0.2 General
The correct processing of modern dental
ceramic materials is placing even higher
demands on dental technicians. We
believe that the VARIO 330000 furnaces
meet these requirements by providing
the latest technology for current and
future ceramic processing.
The software installed in the VARIO 330000
series enables you to optimize firing
management for all layered and pressed
ceramics available on the market and
guarantees maximum levels of perfor-
mance in processing the press-to-metal®*
technique.
The use of materials of the highest quality
increases the lifetime of the furnace,
enabling you to reproduce optimal results
over many years.
Our priority is to ensure that you will be
able to produce top-quality ceramic
prosthesis using our VARIO 330000 furnaces
for many years. We will therefore keep
you informed of any changes to the soft-
ware or extension of the processing
possibilities.
We hope that the ceramic furnace
provides you with great success and
satisfaction and congratulate you on
the choice you have made.
0. Introduction
CConnect to
Pump
Filter
Connect to
Furnace
0.3 Setting up the furnace
In the event that the packaging materials
and/or the ceramic furnace appear to
have been damaged contact your dealer
(see Page 32) immediately and do not
unpack the product.
Open the large carton and remove the
two white boxes. Take out the furnace
and put it down in the desired location.
Note that the furnace is heavy and
should always be lifted and transported
by two persons.
Take the vacuum pump out of its box,
put it down near the furnace and remove
the safety foam.
Please make sure to retain the original
cardboard boxes and other packaging
materials. You will need to have them
handy if returning the device for service.
Vacuum pump onnection
Remove the short transpa-
rent vacuum hose with its
filter from the small white
box and attach it to the
connector marked
“VACUUM” at the back
of the furnace.
Attach the long transparent hose to the
free end of the filter. Connect the other
end of the long transparent hose to the
vacuum pump. Finally, connect the
vacuum pump and the furnace using the
vacuum pump power cord.
* press-to-metal®is a registered Trademark of
Zubler Gerätebau GmbH Germany
ETL LISTED
CONFORMS TO
UL ST 61Ø1Ø-1
CERTIFIE TO
CAN/CSA ST C22.2 NO 61Ø1Ø-1
3Ø89Ø56
0.1 Conformity Declaration
We, Zubler Geraetebau GmbH
Buchbrunnenweg 26
89081 Ulm-Jungingen, Germany
www.zubler.de
hereby declare, that the ceramic furnace product
VARIO PRESS® 330000.e
VARIO PRESS® 330000
VARIO 3
30000
VARIO 330000s
are in compliance with the protective requirements
in accordance with the provisions of the following
directives:
2006/42/EG Machines irective
2006/95/EG Low-Voltage irective
2004/108/EG EMV irective.
In the event of any amendments being made to the
product without our agreement, then this statement
shall no longer be valid.
Ulm, den 15. July 2005
Kurt Zubler
Managing irector

To furnace
“air”
Compressed
air supply
0.6 Pa
Pressure unit in
out
5
Page

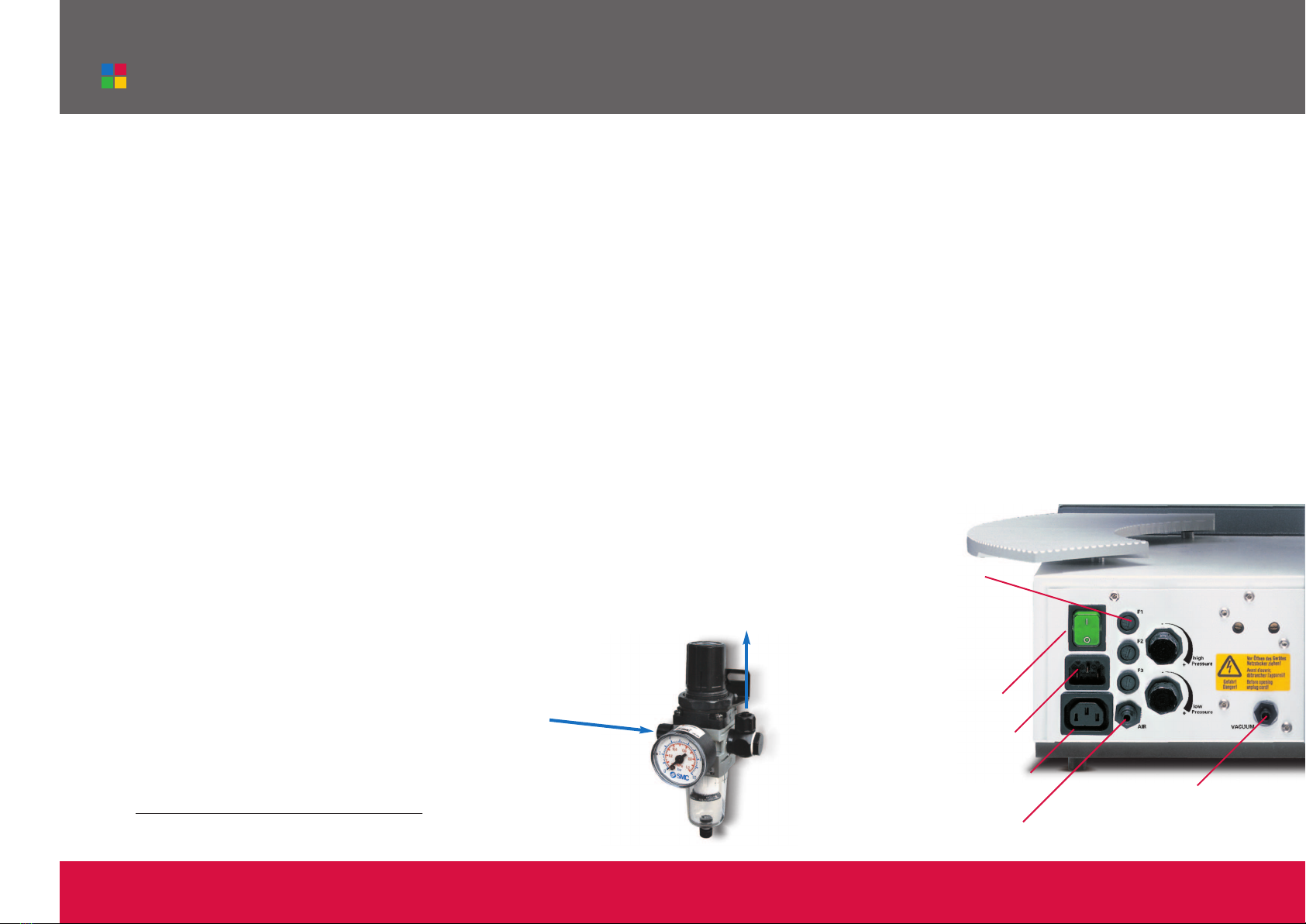

Compressed air connection
The smaller of the white boxes contains
the accessories needed for the com-
pressed air connection.
Use the two screws provided to connect
the pressure regulator vertically to the
housing of the vacuum pump or secure it
elsewhere in the laboratory in the imme-
diate vicinity of the furnace.
Measure the distances from the com-
pressed air supply to the pressure
regulator and from the pressure regulator
to the ceramic furnace. Split the blue
compressed air hose into two lengths of
hose accordingly.
Use one part of the blue compressed air
hose to connect the output connector of
the pressure regulator (“OUT”) to the
back of the furnace.
Secure the other part of the blue com-
pressed air hose to the input connector
of the pressure regulator (“IN”) and
connect the entire assembly to the com-
pressed air supply of your laboratory.
The pressure regulator has been pre-set to
an input pressure of 0.6 MPa (= 6.0 bar).
If additional equipment (sandblasting
units, pressure pots etc.) are connected
to the compressed air supply, ensure
that the pressure does not drop below
0.5 MPa (= 5.0 bar):
Air pressure 0.6 Pa in accordance
with ISO 8573.1:
ust Water Oil
Class 141
0. Introduction
appliances with high power requirements
(e.g. multiway connector at the desk), this
can result in the fuse being blown or
inconsistent processing results. Connect
the power cord to the power connector
on the reverse side of the ceramic furnace
and then connect this with a grounded
power outlet.
Switching on the furnace
As soon as the oven is switched on the
lift will automatically lower to its maximum
open position.

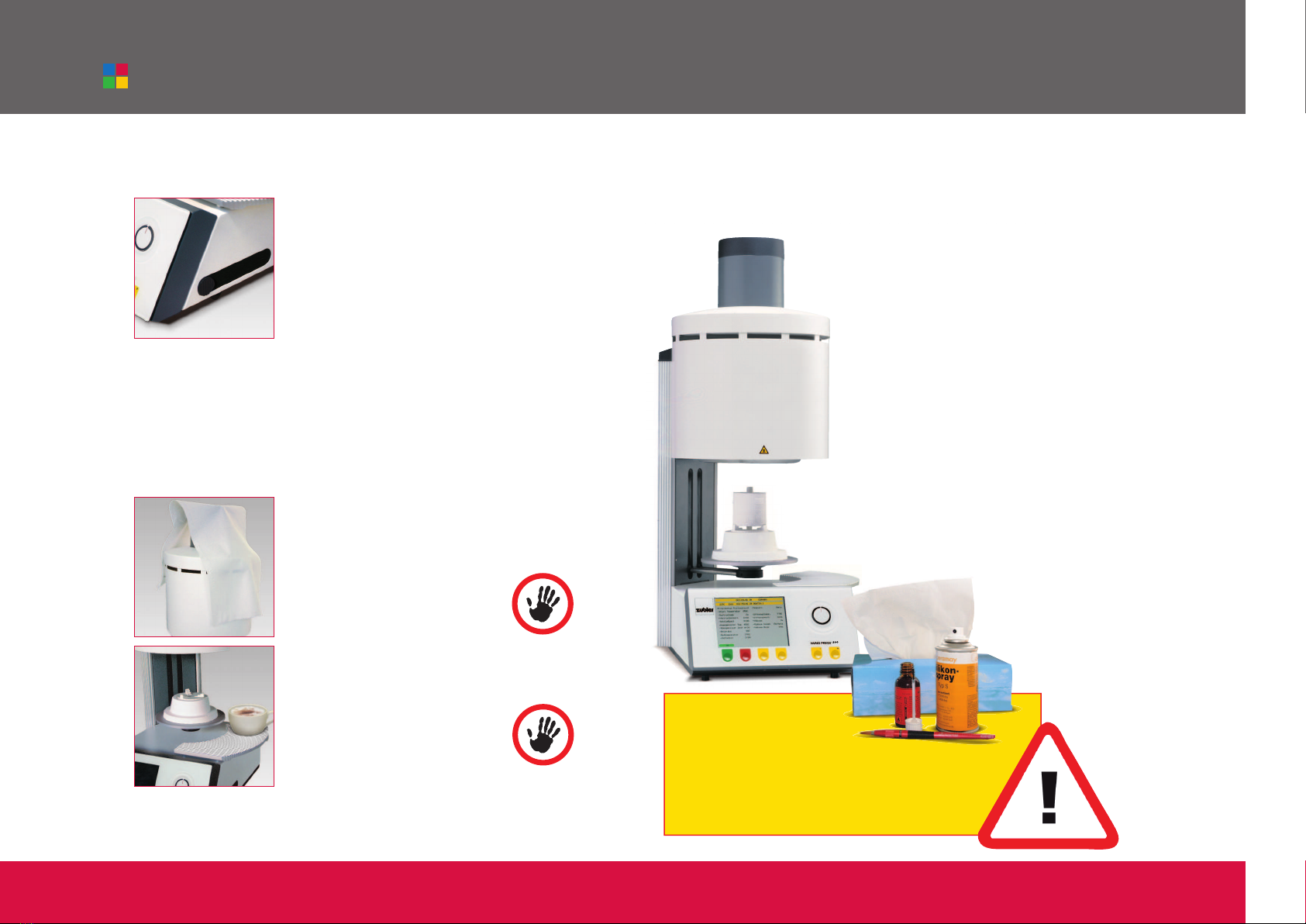

In order to avoid any overheating and
resulting deformation of the aluminium
lift table, please immediately insert the
firing or pressing brick!!!
Electrical connection
The ceramic furnace is supplied with a
230V or 240V AC 50/60Hz internal power
supply. You must connect the furnace to
the proper supply voltage. You cannot
switch the supply voltage on the furnace.
A power cord is supplied together with
the ceramic furnace.
Under no circumstances should you use
any other power cable or any extension
cable. If this ceramic furnace is in a
circuit with other furnaces or electrical
Fuse holders
F1, F2, F3
Vacuum pump connector
Compressed air
connector 0.6 MPa
Power supply for
vacuum pump
Power switch
Power connector
en2

6
Page
0.5 Use within specifications
Caution
The VARIO PRESS® 330000/ VARIO 330000
furnace series was exclusively designed
for firing and/or pressing dental
ceramics.
The user is liable for all damages
resulting from usage other than that
specified by the manufacturer.
At temperatures above 1075°C/1967°F,
the working life of the heating muffle is
reduced.
In case of defect of the furnace, the
stated warranty will apply provided that
use conforms to the specifications
within this manual.
Repairs and maintenance may only be
performed by our authorized Customer
Care Center.
o not touch the screen with wet
fingers. Never use hard or sharp objects
to operate the touch screen.
Soldering inside the oven will negate the
warranty.
Read manual
before using
0.4 Basic settings
Once you have turned on the device, the
display will show the “Main Menu”.
Pressing the green “Enter” key will
activate the current menu selection. The
red “Esc” key will return you to the
previous menu, all the way back to the
“Main Menu”.
Vacuum test
Main Menu Set-up oven iagnostic
tests Service tests Vacuum test
The oven starts to generate vacuum.
After 2 minutes the pump stops auto-
matically. The leakage test starts. uring
this test (duration 2 minutes) the decrease
of vacuum is measured. After this pro-
cedure "Set Vacuum" will appear on the
screen. Press the "yes" button and enter
the value.
Example: Value achieved: 760 mm;
subtract 20 mm; enter 740 mm as your
individual vacuum level.
If the vacuum test was performed under
conditions of very high barometric pressure,
repeat the vacuum test when weather
conditions have returned to normal.
Setup program
Before you operate the ceramic furnace
for the first time, please run the “Run
pre-heat/dry program”. This enables you
to ensure that the firing chamber is free
of any residual humidity, which could
have a negative impact on the firing
results.
Main Menu Set-up oven iagnostic
tests Run pre-heat/dry prog.
Select this option and confirm by pressing
the green "Enter" key. The device will
execute a program that takes approximately
15-20 minutes to run. This is intended to set
up the device after storage and transport.
The firing platform will remain slightly
open to allow any residual moisture to
escape.
Idle temperature
For safety reasons, the idle temperature
has been set as low as 80°C for delivery.
Main menu Set-up oven Change
idle temperature
If using the Vario as a combination or
dedicated ceramic furnace we recom-
mend setting the idle temperature to
the lowest entry temperature of your
ceramic brands.
If using the Vario as a dedicated pres-
sing oven, we recommend setting the
idle temperature to the lowest entry
temperature of your pressable ceramic
brand (700°C/1292°F).
General notes
If you are using the VARIO PRESS® 330000
strictly as a firing oven, make sure the
device is constantly connected to com-
pressed air. Otherwise the position of
the pressing plunger may stay in it's
extended position and damage objects
on the firing tray
The warm-up program on the "Main Menu"
has been pre-defined as a pre-heating
program and should be executed at the
beginning of each working day. This
program ensures that the firing chamber
is heated homogeneously to a uniform
temperature and removes any condensa-
tion inside.
0. Introduction

7
Page
✗
✗
!
■uring operation never place your
hand between the lift table and the
furnace chamber. There is a risk of
pinching your hand and a burn hazard.
■uring operation never place your
hand under the furnace table and do
not put an investment ring or other
objects under the lift table.
o not block the lift table during the
opening process.
There is a risk of pinching your hand.
■Use the special cooling grid to cool
the investment ring after a pressing
process.
■For firing porcelain, use only the firing
tray.
■For pressing, use only the pressing
tray with the insert.
■The insert must be correctly positioned
in the pressing tray.
■A furnace with a pressing function
must always be conneced to
compressed air, even during normal
vacuum firing, so the pressing
plunger remains “up” in its starting
position.
➛
➛
!
Conflict
■Please unpack the oven with caution.
The oven should always be carried by
two persons. Always lift the device at
the bottom, never at the furnace
chamber or table slide bar.
■The oven must always have a firing
or pressing brick on the lift table.
0. Introduction

8
Page
ATTENTION
Safety warnings !
Never put any p tentially flammable materials such
as paper, brushes r similar things, as well as easily
flammable substances like alc h l, insulati n
sprays r die spacers cl se t the furnace.
0.6 Notes for your Safety
✗
✗
■Make sure that no liquids or other
foreign objects enter the furnace or
the air vents, as this may result in an
electrical shock.
■The lift of the furnace has an electri-
cal lift drive and has to be operated by
the "Open" and "Close" Keys. o not
open or close the lift manually.
Conflict
Conflict
■The air vents must be kept free from
obstruction and clean at all times to
allow proper air circulation. If this is
not done, there is a risk of overheating
the furnace.
0. Introduction
■Slide stop at the side of the furnace
always closed.
■The oven must be turned off before
removing or inserting the USB stick.

9
Page
■Leave at least 8” – 12” of free space
around and above the unit. Adjacent
structures surrounding the unit should
be non-flammable and the area
should be well-ventilated.
■Follow fire department guidelines,
always store a multi-purpose dry
chemical fire extinguisher in your
laboratory in proximity to the furnace
and ensure that your employees have
been properly trained in its use.
■Never wear loose fitting or hanging
garments while using this furnace. Be
careful when reaching for items sto-
red around the furnace. Flammable
material could be ignited if brought
into contact with any of the unit’s hot
surfaces and may cause severe burns.
■Any potentially flammable materials,
such as (but not limited to) paper,
brushes, alcohol, sprays and solvents,
should not be used or even stored
next to the furnace and no materials
should ever be placed on top of the unit.
■o not set the furnace or vacuum
pump next to uninsulated heat sources.
(e.g. Other furnaces or ovens)
■Soldering in this furnace will considerably
reduce the life of the thermocouple
and muffle and will void the warranty.
■Use this furnace only for its intended
purpose as described in this Owner’s
Manual and carefully remove all
packing materials and tape during
installation.
■The furnace may only be used indoors.
■Materials developing harmful gases
must not be processed in this furnace.
■This furnace must be plugged into the
proper grounded circuit. If you have
questions regarding the proper circuit,
contact a licensed electrician.
■Any disruption of the protective con-
ductor, either inside or outside the
furnace, or any loosening of the
protective conductor connection may
lead to danger for the user in case of
a malfunction.
■After any extended period without
use as well as high humidity or low
temperatures, it may not be possible
to generate a sufficient vacuum initially.
This is normal.
min. 0.5m
2 feet
0. Introduction

10
Page
■Hoses and connections should be
checked periodically for fit, wear and
damage and replaced or tightened, as
needed.
■All cords and hoses should be located
away from walkways and aisles.
■uring certain operations, such as
high-temperature soak or when the
chamber is opened after firing, high
temperature convection currents are
created.
■o not touch the surface of the heat-
ing chamber, the heating elements or
the interior surface of the heating
chamber. These surfaces may cause
severe burns.
■Always keep the chamber closed with
the lift in the up position between pro-
cesses or when the unit is not in use.
■If the furnace is under vacuum in the
“Off” state for an extended period of
time, the O-ring of the lift plate may
adhere slightly.
■Clean the furnace with a dry or slight-
ly damp cloth. o not use any sol-
vents. Always disconnect power befo-
re cleaning.
0. Introduction
■Be sure that the furnace is properly
installed per our instructions and that
the selected electrical outlet is prop-
erly grounded.
■The electrical service provided must
be a dedicated line of the proper size
according to local electrical codes. Con-
sult a qualified electrician to ensure
that your amperage is sufficient to
prevent burdening of any existing circuit.
■o not use an extension cord with
the furnace. Check with your utility
provider for electrical codes, which
apply in your area.
■In case of undervoltage, the tempera-
ture increase may be delayed.
■Compressed air systems must meet
the listed requirements for use with
the unit. Connections should be made
by qualified personnel and all fittings
attached and used in accordance with
manufacturer’s instructions.
■When heating the firing chamber, there
may be vibration noises from the
heating elements, this is normal.
■In the case of faults or damages that
prevent safe operation, the equipment
should not be used, until the problem
is resolved or repaired.
■Turn off the furnace, disconnect the
power cord and wait for the furnace
to cool to room temperature before
performing any recommended and
authorized routine maintenance or
service, due to the risk of electrical
shock, personal injury or death.
■o not attempt to repair, replace or
open any part of your furnace, unless
you have read the manual and the
repair or replacement is specifically
recommended therein. Any unautho-
rized attempt to repair, replace or
open any part of your furnace could
present a safety hazard and void your
warranty. All other servicing, either in-
warranty or out-of-warranty, should be
referred to our Customer Care Center.

11
Page
Muffle Dust Exposure
This furnace contains respirable refrac-
tory ceramic fibers (RCF) and crystalline
silica in its thermal muffle insulation.
These materials may be in the form of
fiber blanket or felt, vacuum formed
board or shapes, mineral wool slab or
loose fill fiber.
●Normal use of the furnace does not
result in any significant level of air-
borne dust from these materials.
However, when it becomes necessary
to replace the muffle, the person
doing this maintenance and repair
work may be exposed to much higher
levels.
●Given conflicting evidence of any long
term health hazards, we must recom-
mend that safety precautions are
taken whenever the materials are
handled by authorized repair personnel.
●Exposure to dust from fiber which
has been used at high temperatures
may cause respiratory disease. When
handling fiber always use an OSHA or
NIOSH approved and HEPA filtered
respirator, eye protection, gloves and
long sleeved clothing.
●Avoid breaking up waste material.
ispose of fiber waste in sealed
containers.
●After handling, rinse exposed skin
with water before washing gently
with soap (not detergent). Wash work
clothing separately.
●Because this product and many
similar products on the market today
contain crystalline silica and ceramic
fibers, it is necessary under the
statutes of California Proposition 65
that the following statement be
included:
“This product contains substances
known to the State of California to
cause cancer. Material Safety ata
Sheets for RCF materials supplied
upon request.”
0. Introduction
■In case of a service, use only original
spare parts.
■Unauthorized changes or modifica-
tions to hardware or software can
create severe safety hazards, as well
as terminate your warranty.
■Children and untrained visitors should
never be left alone or unattended in
the area where a furnace is in use.
They should never be allowed to climb
or stand on any surface, where the
furnace is situated and being operated
from. Items of interest to children
should not be stored in and around
the furnace. Children climbing on and
around the surface where furnace
operates could be seriously injured.
■Do not discard the original packag-
ing materials and shipping carton
of your VARIO furnace.
When transporting the furnace, use
the original packaging, otherwise you
could negate some of your rights
under the warranty for failure to trans-
port and/or return your unit in the ori-
ginal packaging.

12
Page
ain menu
1.
- +
Selection of menu parameters
❶Once you have switched on the oven,
the Main Menu will appear on the dis-
play with the following five items:
1.1 Run programs
1.2 Edit programs
1.3 Setup oven
1.4 Run warm-up program
1.5 Start night mode
➋Please select your desired menu
parameters using the dialer or the
+/- keys
➌Confirm your selection with the green
“Enter” key

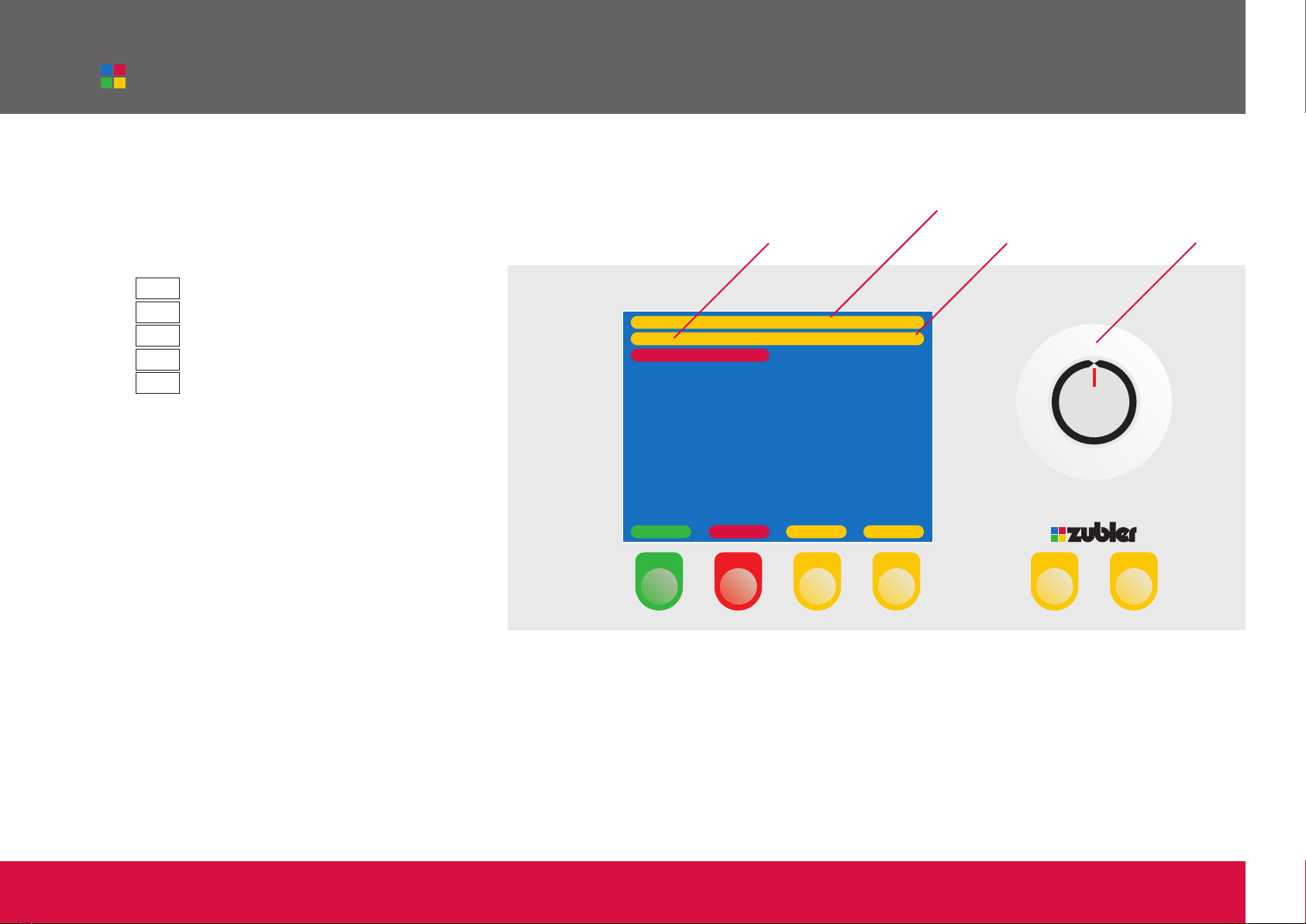

Display functions
Enter Esc Up Down
MAIN MENU
450°C VP 300 I
Run Programs
Edit Programs
Setup Oven
Run warm-up program
Start night mode
Section for selecting parameters
Confirm / cancel key
Lift movement Up/ own
Section for changing values
Rapid selection (circle dialer)
Step by step (yellow keys)
LCD color display
Circle dialerCurrent temperature Oven type
®

13
Page
Enter Esc Up Down
2 - Pulse MC Ceramay
450°C Select program ...
40- PULSE C OPAQUE 1+2
41- PULSE C ARGIN 1
42- PULSE C ARGIN 2
43- PULSE C DENTIN 1
44- PULSE C DENTIN 2
45- PULSE C SHADE/STAIN
46- PULSE C GLAZEFIRING
47- PULSE C GLA.WITH P.
48-
49-
50- INTERFACE CORREC.1-5
51-
52-
53-
54-
55-
56- PULSE PT 200/2
57- PULSE PT 200/5
58- PULSE PT 300/2
59- PULSE PT 300/5
Program to run ... 27
Caut on:
Close the furnace after completing
a firing or pressing!!!
1.1 Run Programs
Program start
■After selecting "Run Program" from
the Main Menu and confirming this
selection with the green “Enter” key.
■The Program Group is displayed. The
most recently activated program will
be highlighted. 19 other programs
addresses will also be displayed.
■Each of the 500 programs (=25
brands with 20 programs each) can
be easily edited.
■epending on the ceramics or techni-
que used, it is always recommended
to allocate a complete block to one
brand or technique.
■Use the dialer or +/- keys to highlight
the program you wish to run. Touch
the green “Enter” key to activate the
program.
■To switch to another program group,
press the red "Esc" key and return to
the brand page (see page 15, “working
with the brand page”)
■The operator using the furnace must
close the lift after completing the
firing or pressing program.
■After closing the lift, the unit will remain
at the programmed idle temperature
for four hours. If the unit is not used,
it will automatically go into the stand-
by mode.
■If, at the end of the program, the
chamber is not manually closed, the
device will automatically cool down to
the safety temperature of 400°C,
independent of the idle temperature
selected. Once this temperature has
been reached, the device will remain
in this state for 30 minutes.
At the end of this time, the device
will enter stand-by mode and close
automatically after the defined stand-
by temperature of 100°C has been
reached.
ain menu1.

14
Page
Overwriting a program during
operation
Should you find that you have to tem-
porarily change one or more parameters
while a program is running, you can do
this by pressing the yellow “Edit Prog.”
key below the display.
In general, you can only change parame-
ters that have not already been started
when you press the key.
By pressing the “Edit” key, you activate
the edit mode. You can now change all
the parameters not yet processed in the
sequence of programs at the time of
modification, with regard to this individual
firing.
For this purpose there appears in the
display a red bar with the first modifiable
parameter. To adjust use the dialer or +/-
buttons.
Now confirm the changes with the green
“Enter” key to get to the next parameter.
The program sequence will be shown in
its usual form on the display.
The changes you have made are temporary
and apply only to the current firing cycle.
Editing can be carried out only once per
firing cycle.
Abort Edit Prog
2 - PULSE MC CERAMAY
758C Run 43-PULSE C DENTIN 1
-Pre dry 3:00
-Closing time 3:00
-Soak temp 450C
-Soak time 0:30
-Heat rate 55C
-Final temp 820C
-Hold time 1:00
-Opening time 1:00
758 C
740mm
2:44
Enter
Hold time 1:00
2 - PULSE MC CERAMAY
758C Run 43-PULSE C DENTIN 1
-Pre dry 3:00
-Closing time 3:00
-Soak temp 450C
-Soak time 0:30
-Heat rate 55C
-Final temp 820C
-Hold time 1:00
-Opening time 1:00
760 C
740mm
2:43
ain menu1.
en

15
Page
Enter Esc
Enter Esc
2 - Pulse MC Ceramay
450°C Select program ...
2 - Pulse MC Ceramay
450°C Select Brand ...
Next
Up Down
40- PULSE C OPAQUE1+2
41- PULSE C ARGIN 1
42- PULSE C ARGIN 2
43- PULSE C DENTIN 1
44- PULSE C DENTIN 2
45- PULSE C SHADE/STAIN
46- PULSE C GLAZEFIRING
47- PULSE C GLA.WITH P.
48-
49-
50- INTERFACE CORREC.1-5
51-
52-
53-
54-
55-
56- PULSE PT 200/2
57- PULSE PT 200/5
58- PULSE PT 300/2
59- PULSE PT 300/5
Working with the brand Page
■In the index, programs can be selected
in groups (see 1.2.6 page 25)
■To navigate away from the most
recently run program to another pro-
gram in a different brand group, leave
the page by pressing the red "Esc" key.
■The first of two program index pages
(0–19) will open.
■Use the dialer or the +/– keys to
move the red cursor to the selected
brand and confirm by pressing The
green “Enter” key.
■The page containing the programs of
the brand will be displayed
■Continue as described under 1.1,
“Run programs”.
*The Advanced Press Programs for lit-
hium disilicate are only available with
the VARIO PRESS 330000.eor as an
upgrade for the Vario Press 300.
Program to run ...
Program to run ...
*
ain menu1.
0-
1-AUTHENTIC CERA AY
2-PULSE C CERA AY
3-PULSE ZR CERA AY
4-PULSE AL CERA AY
5-
6-E P.ESTHETIC IVOCLAR
7-E AX CERA IVOCLAR
8-LDS ADVANCED PRESS
9-E AX ZIRPR. IVOCLAR
10-E. AX CAD IVOCLAR
11-
12-CREATION CC W.GELLER
13-CREATION LF W.GELLER
14-CREATION ZI W.GELLER
15-CREATION AV W.GELLER
16-
17-
18-
19-

16
Page
1.2 Edit Program
Enter Esc
Edit Programs
450°C
New / Change program
Copy / Change program
ove program
Erase program
Look at program
New / Change Brand
Erase Brand
CF transfer
Enter Esc Left Right
2-Pulse MC Ceramay
450 C° Enter Name...
43 PULSE C DENTIN 1.
1.2.1 New/change program
■After selecting "Edit Programs" from
the Main Menu and confirming this
selection by pressing the green
“Enter” key.
■“New/Change program” appears in
the next window. Confirm this by
pressing the green “Enter” key. You
will then arrive at the brand page.
■Select a brand and confirm by
pressing the green “Enter” key.
■Select the program name or program
number of which you wish to create
or change and confirm this by pres-
sing the green “Enter” key.
■The first letter to be changed is high-
lighted in blue.
■Select the desired letters or figure
with the dialer or the +/- keys and
confirm by pressing the “Right” key.
■The cursor will move one position to
the right.
■Continue as previously described until
you have entered the desired name.
■Use the “left” or “right” keys to
move the cursor to another character.
■You cannot store a program name
already stored in the memory.
■Press the green "Enter" Key to save
the name and begin editing the
program parameters.
■If you wish to change only the name
of a program, press the green “Enter”
key to save it and then the “Last line”
key. Select the “Yes” option in the
active “Save” field and confirm this
by pressing the green “Enter” key.
■If you fail to select the save option in
the active “Save” field prior to
pressing the green “Enter” key, you
will loose your input data.
Remember to select the save option.
ain menu1.

17
Page
Enter Esc
2 - PULSE MC CERAMAY
400C EDIT 43-PULSE C DENTIN 1
Program type Professional
-Start temp 450C
-Pre dry Yes
-Pre dry time 3:00
-Closing time 3:00
-Soak temp 450C
-Soak time 0:30
-Heat rate 55C
-Final temp 820C
-Hold time 1:00
-Temper No
-Open temp 820C
-Opening time 1:00
-Vacuum Yes
-Release vacuum Heat up
-Vacuum End 820C
-Edit done ? No
We recommend the Professional program for all firing
tasks. Perfect pre-drying and uniform heating ensure
excellent firing results.
VITA In-Ceram®is a registered Trademark of Vita Zahnfabrik H.Rauter GmbH & Co.KG
ain menu1.
Changing the firing parameters
You can select the program type in the
first line:
❶Professional program: individual firing
management with 16 programmable
parameters for processing all dental
ceramic materials perfectly.
➋Standard program: a standard firing
management in accordance with the
guidelines for the dental ceramics
available on the market.
➌Spec al program: this firing program
is recommended for processing
ceramic materials, which require two
holding times under vacuum and/or
two different heat rates.
(specially for crystallization programs).
➍I-Press program: Intelligent mode for
processing all pressable ceramics for
producing all ceramic restorations and
press-to-metal®technique.
The press time is automatically deter-
mined via the intelligent I-Press
sensor system.
❺Press program: The traditional timed
Press mode for processing pressable
ceramics.
➏S nter program: Used for sintering
alumina framework ceramics (such as
Vita®InCeram*). This program will be
made available by the manufacturer
only on special request.
We recommend the I-Press program for all pressing
tasks. The I-Press function optimizes pressing results.

18
Page
❶The Professional Program
Start temperature Temperature in the firing chamber at which the program starts.
Pre-dry Selecting “YES” activates the special pre-drying program.
Pre-dry time Enter a time. In this section, the lift identifies a predefined position for the entire time, depending on the heat
radiated by the firing chamber. The object can thus be pre-dried at a constant temperature.
Closing time Time in which the lift moves in 10 increments into the firing chamber.
Soak temperature At this temperature the object remains in the closed firing chamber in order to achieve an even temperature
distribution. Soak temperature = Vacuum start
Soak time States the retention period of the object in the firing chamber before evacuation and the temperature increase.
Heat rate Temperature increase per minute in order to reach the final temperature.
Final temperature Temperature at which the ceramic is sintered.
Hold time Period for which the ceramic is maintained at the final temperature.
Temper Selecting “YES” activates the special tempering program.
Temper temperature Temperature at which the ceramic is tempered, i.e. subjected to precise thermal treatment at a
constant temperature.
Temper time States the duration of the thermal treatment in the firing chamber when closed.
Open temperature Temperature at which the device opens the firing chamber.
Opening time ecent time of the lift from the chamber to the fully open position.
Vacuum Selecting “YES” activates the vacuum parameter (firing under vacuum).
Vacuum release uring the heating up stage  release Vacuum Heat up
uring the hold time at final temperature  release Vacuum Hold time
uring the cooling stage  release Vacuum Cooling
Vacuum end isplays the temperature or time at which the vacuum is released.
Edit done? Saving of the program.
ain menu1.

19
Page
➋The Standard Program
Start temperature Temperature in the firing chamber at which the program starts.
Pre-dry Selecting “YES” activates the special pre-drying program.
Pre-dry time Enter a time. In this section, the lift identifies a predefined position for the entire time, depending on the heat radiated
by the firing chamber. The object can thus be pre-dried at a constant temperature.
Closing time Time in which the lift moves in 10 increments into the firing chamber.
Heat rate Temperature increase per minute in order to reach the final temperature.
Final temperature Temperature at which the ceramic is sintered.
Hold time Period for which the ceramic is maintained at the final temperature.
Opening time ecent time of the lift from the chamber to the fully open position.
Vacuum Selecting “YES” activates the vacuum parameter (firing under vacuum).
Vacuum start Temperature at which the vacuum pump begins to evacuate the firing chamber.
Vacuum end Temperature at which the vacuum release occurs.
Edit done? Saving of the program.
ain menu1.

20
Page
➌The Special Program (Firing Program with two heeting rates, e.g. crystallization for IPS e.max®CA )
Start temperature Temperature in the firing chamber at which the program starts.
Pre-dry Selecting “YES” activates the special pre-drying program.
Pre-dry time Enter a time. In this section, the lift identifies a predefined position for the entire time, depending on the heat
radiated by the firing chamber. The object can thus be pre-dried at a constant temperature.
Closing time Time in which the lift moves in 10 increments into the firing chamber.
Soak temperature At this temperature, the object remains in the closed firing chamber in order to achieve an even temperature
distribution.
Soak time States the retention period of the object in the firing chamber before evacuation and the temperature increase.
Heat rate 1 Temperature increase per minute in order to reach the final temperature 1.
Final temperature 1 Temperature 1 at which the ceramic is sintered.
Hold time 1 Period for which the ceramic is maintained at the final temperature 1.
Heat rate 2 Temperature increase per minute in order to reach the final temperature 2.
Final temperature 2 Temperature 2 at which the ceramic is sintered.
Hold time 2 Period for which the ceramic is maintained at the final temperature 2.
Open temperature Temperature at which the device opens the firing chamber.
Opening time ecent time of the lift from the chamber to the fully open position.
Vacuum Selecting “YES” activates the vacuum parameter (firing under vacuum).
Vacuum release uring the heating up stage  release Vacuum Heat up
uring the hold time at final temperature  release Vacuum Hold time
uring the cooling stage  release Vacuum Cooling
Vacuum end isplay shows temperature at which the vacuum is released.
Edit done? Saving of the program.
IPS e.max® is a registered Trademark of Ivoclar Vivadent
ain menu1.
