ZUG DWQS 6 User manual

Operating instructions
DWQS 6/7/9 - DIQS 10
Range hood

Thank you for choosing to buy one of our products. Your appliance is made to
high standards and is easy to use. Nevertheless, please take the time to read
these operating instructions in order to familiarise yourself with the appliance
and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance
at the time these operating instructions went to press. The right to make tech-
nical modifications for the purpose of the further development of the appliance
is reserved.
Validity
The product family (model number) corresponds to the first alphanumerics on
the identification plate. These operating instructions apply to:
Type Product
family
Size
system
Type Product
family
Size
system
DWQS6 62011 60 DIQS10 63011 100
DWQS7 62012 70
DWQS9 62013 90
Variations depending on the model are noted in the text.
© V-ZUG AG, CH-6301 Zug, 2016
2

Contents
2
1 Safety precautions 5
1.1 Symbols used .............................................................................................5
1.2 General safety precautions ......................................................................6
1.3 Before using for the first time ..................................................................7
1.4 Correct use..................................................................................................7
1.5 Children in the home .................................................................................7
1.6 Note on use.................................................................................................8
2 Disposal 10
3 Appliance description 11
3.1 Appliance description............................................................................. 11
3.2 Extraction model...................................................................................... 11
3.3 Recirculation model ................................................................................ 11
3.4 Equipment................................................................................................. 12
3.5 Construction ............................................................................................. 13
3.6 Operating and display elements .......................................................... 14
4 Operating the appliance 15
4.1 Using for the first time ............................................................................ 15
4.2 Operation .................................................................................................. 16
4.3 Intensive level........................................................................................... 17
4.4 After-running time .................................................................................... 17
4.5 Illumination................................................................................................ 17
4.6 Saturation indicator................................................................................. 18
5 Care and maintenance 19
5.1 Cleaning the housing ............................................................................. 19
5.2 Cleaning the grease filters..................................................................... 19
5.3 Cleaning the long-life activated charcoal filter................................... 22
5.4 Replacing the LEDs ................................................................................ 24
6 Trouble-shooting 25
6.1 What to do if … ........................................................................................ 25
7 Accessories and spare parts 27
8 Technical data 28
8.1 Product fiche ............................................................................................ 28
3

9 Index 30
10 Notes 32
11 Service & Support 35
4

1 Safety precautions
1.1 Symbols used
Denotes important safety precautions.
Failure to observe said precautions can result in injury or in dam-
age to the appliance or fittings!
Information and precautions that should be observed.
Information on disposal
Information about the operating instructions
▸ Indicates step-by-step instructions.
–Describes how the appliance reacts to the steps taken.
▪Indicates a list.
5

1 Safety precautions
1.2 General safety precautions
▪Read the operating instructions before using the appliance for
the first time!
▪This appliance can be used by children aged 8 and above
and by persons with reduced physical, sensory or mental cap-
abilities, or lack of experience and/or knowledge, provided
they are supervised or have been instructed on the safe use
of the appliance and have understood the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be undertaken by children without su-
pervision.
▪If an appliance is not equipped with a mains cable and a plug
or other means for disconnecting from the mains with a con-
tact opening on each pole complying with the conditions of
overvoltage category III for full isolation, an isolating device
must be incorporated into the permanently installed electrical
installation in accordance with the installation regulations.
▪If the mains cable of this appliance is damaged, it must be re-
placed by the manufacturer or its Customer Services or a sim-
ilarly qualified person in order to avoid hazard.
6

1 Safety precautions
1.3 Before using for the first time
▪The appliance must be installed and connected to the electricity supply in
accordance with the separate installation instructions. Have a qualified fitter/
electrician carry out the necessary work.
▪Dispose of the packaging material in accordance with local regulations.
1.4 Correct use
▪The appliance is designed for use in the home for extracting cooking
odours from above a cooking area.
▪Any repairs, modifications or manipulations to the appliance, especially any
electrically live parts, may only be carried out by the manufacturer, its Cus-
tomer Services or a similarly qualified person. Repairs if carried out incor-
rectly could cause serious injury or damage to the appliance and fittings as
well as affect the functioning of the appliance. If the appliance is not work-
ing properly or in case of a repair order, follow the instructions given in the
'Service & Support' section. If necessary, please contact our Customer Ser-
vices.
▪Use original spare parts only.
▪Retain these operating instructions for future reference. If you sell the appli-
ance or pass it on to a third party, please ensure these operating instruc-
tions accompany the appliance, together with the instructions on installation.
In this way, the new owner can inform themselves about how to use the ap-
pliance correctly and read the pertinent safety precautions.
1.5 Children in the home
▪Packaging material, e.g. plastic film and polystyrene, can be dangerous for
children. Danger of suffocation! Keep packaging material away from chil-
dren.
▪The appliance is designed for use by adults who are familiar with these op-
erating instructions. Children are often unable to recognize the danger of
electrical appliances. Ensure proper supervision and do not allow children
to play with the appliance – there is a danger that children could hurt them-
selves.
7

1 Safety precautions
1.6 Note on use
▪If the appliance is visibly damaged, do not use it. Contact our Customer
Services.
▪If the appliance is not functioning properly, disconnect it from the power
supply immediately.
▪If the mains cable of the appliance is damaged, it must be replaced by Cus-
tomer Services in order to avoid hazard.
▪Caution: Accessible parts may become hot when used with cooking appli-
ances.
▪Do not flambé food underneath the appliance. Metal grease filters if laden
with grease could catch fire.
▪When frying on the cooking surface, do not leave the appliance unattended.
The cooking oil in the frying appliance could overheat and catch fire. Con-
stantly monitor the temperature of the cooking oil, keeping it below the tem-
perature at which it can catch fire. Change the cooking oil regularly – dirty
oil catches fire more easily than clean oil.
▪Observe the cleaning intervals. Failure to do so can increase the fire hazard
due to the build-up of grease in the metal grease filters.
▪Do not operate the individual cooking zones of the cooking surface without
a pan on them or with an empty pan on them so as to avoid damaging the
appliance or the kitchen fittings through a build-up of heat. Avoid open fires
with oil, gas, wood and coal fired cookers.
▪Ensure there is adequate ventilation when the extractor fan is on so as to
avoid creating a disturbing underpressure in the kitchen and to achieve op-
timal air extraction.
▪Avoid a cross-current of air, which could blow the cooking vapours over the
cooking area.
▪If other appliances – fuelled by gas or other fuels – are being used at the
same time, ensure that there is a sufficient supply of fresh air. This does not
apply to air recirculation appliances.
▪If other firing systems are being used at the same time (e.g. wood, gas, oil
or coal fired heating appliances), safe operation is only possible providing a
room negative pressure of 4Pa (0.04mbar) is not exceeded at the location
of the appliance. Risk of toxic fumes! An adequate flow of fresh air must be
guaranteed e.g. via non-closable openings in doors or windows and in com-
bination with an air-intake/exhaust-air wall box or by other technical means.
8

1 Safety precautions
▪When carrying out maintenance work on the appliance, including replacing
the light bulb, cut off the electricity supply to the appliance: remove the
screw fuse from the holder or switch the circuit breaker off, or disconnect
from the mains supply.
▪When cleaning the appliance make sure no water gets inside the appliance.
Use a moderately damp cloth. Do not spray the inside or outside of the ap-
pliance with water. Do not use a steam cleaner. If water gets inside the ap-
pliance, it can cause damage.
9

2 Disposal
Packaging
▪All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS))
are marked and should, if possible, be collected for recycling and disposed
of in an environmentally friendly way.
Disconnection
▪Disconnect the appliance from the mains. With a fixed appliance, this is to
be carried out by a qualified electrician!
Safety
▪Disable the appliance to prevent accidents caused by improper use, espe-
cially through children playing.
▪Pull the plug out of the mains socket or have the appliance disconnected
from the mains by an electrician. Then cut the mains cable off flush with the
appliance.
Disposal
▪The old appliance should not be discarded as worthless rubbish. If dis-
posed of correctly, the raw materials can be recovered for recycling.
▪The symbol on the identification plate warns that the appliance may not
be disposed of in normal household waste.
▪The appliance must be disposed of in accordance with local regulations on
waste disposal. For more information on the handling, disposal and recyc-
ling of the product, please contact the local authorities, the local recycling
facilities for household waste or the retailer from whom you purchased the
appliance.
10

3 Appliance description
3.1 Appliance description
The appliance is designed for use in the home for extracting cooking fumes
and smells from above the cooking surface.
The model can be used to extract or recirculate air.
3.2 Extraction model
A fan draws cooking fumes and smells from above the cooking area. The
metal grease filters clean the extracted air, which is passed through a connect-
ing pipe fitted with an integrated non-return valve and through the air duct to
the outside.
When in use, ensure there is a sufficient supply of fresh air to replace the
air that is being extracted.
3.3 Recirculation model
After being filtered through the metal grease filter, the cooking fumes and
smells above the cooking area are passed through a long-life activated char-
coal filter. The filtered air is then circulated back into the room through the
side openings.
If long-life activated charcoal filters are not supplied with the appliance,
these should be ordered and installed before using the appliance for the
first time.
The saturation indicator for the long-life activated charcoal filter must be
activated.
Moisture is not filtered out of the air.
11

3 Appliance description
3.4 Equipment
▪1extractor fan with 4 power levels:
▪1 = low, 2 = medium, 3 = high, and intensive level.
▪Power levels 1–3 are suitable for continuous operation.
▪The intensive level is used for short bursts of intensive extraction of cooking
fumes and smells, e.g. when searing meat. The intensive level runs for 5
minutes.
▪Illumination
▪2 - 3 metal grease filters
▪1 long-life activated charcoal filter (only for recirculation mode, not included
in the scope of delivery)
12

3 Appliance description

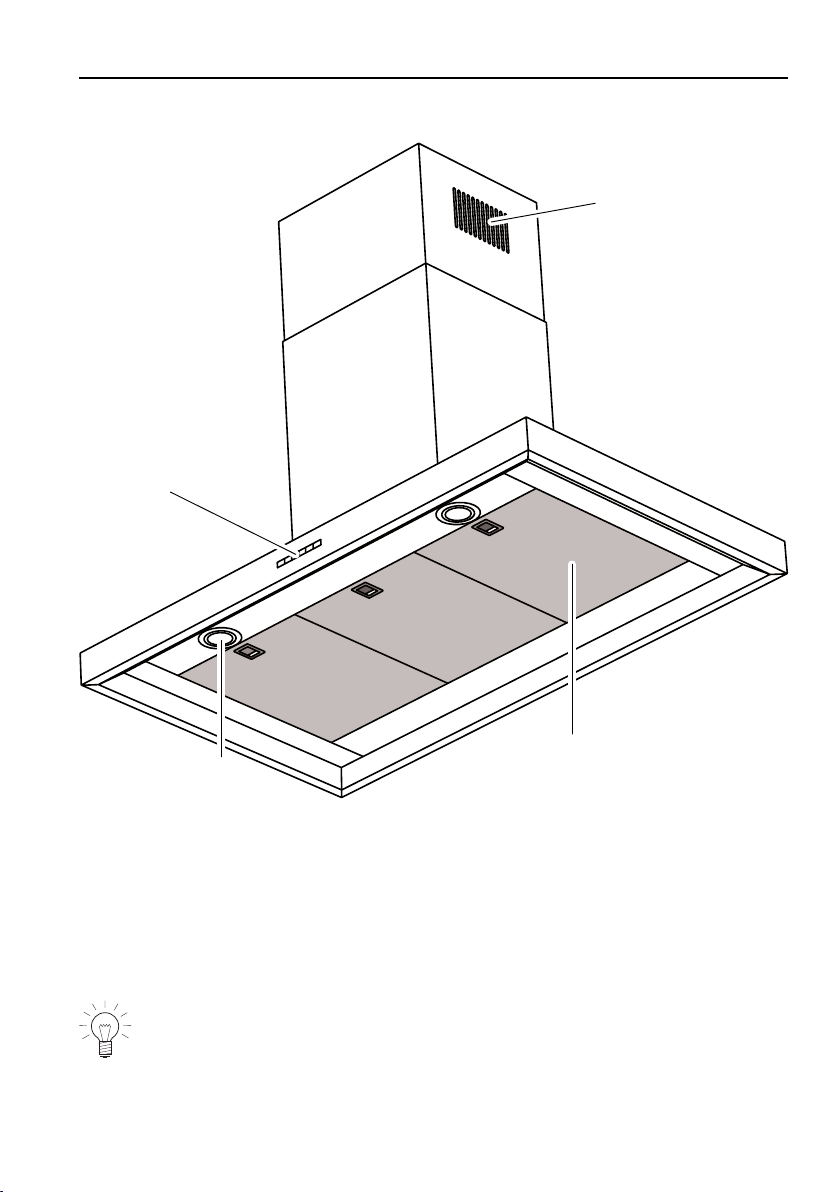

3.5 Construction
2
3
1
4
1Operating and display elements
2Metal grease filter
3Illumination
4Return air in recirculation model
If your appliance has lateral ventilation slits (see no. 4 in the figure) then
it is a recirculation model.
13

3 Appliance description
3.6 Operating and display elements
Switch illumination on/off
Switch off
Power level 1
Power level 2
Power level 3 and intensive level
After-running time
Flashing Clean metal grease filters
Flashing Reactivate/replace long-life activated charcoal filter
Depending on the model and features, the specification of the appli-
ance may partly differ in individual details from the standard spe-
cification described.
14

4 Operating the appliance
4.1 Using for the first time
Configuring the appliance
The model can be used to extract or recirculate air. The appliance is set up as
a recirculation hood ex-factory. With this setting, the service life of the long-life
activated charcoal filter is 120operating hours.
If the appliance is to be operated as an extraction model, the saturation
indicator for the long-life activated charcoal filter must be deactivated.
Activating the saturation indicator for the long-life activated charcoal filter
▸ Switch the appliance off.
▸ Hold the button depressed for three seconds.
–The and buttons flash.
To activate the saturation indicator:
▸ press the button.
–The setting selected will be automatically accepted after five seconds.
The appliance is now set up as a recirculation model.
Deactivating the saturation indicator for the long-life activated charcoal
filter
▸ Switch the appliance off.
▸ Depress the button for three seconds.
–The and buttons flash.
To deactivate the saturation indicator:
▸ press the button.
–The setting selected will be automatically accepted after five seconds.
The appliance is now set up as an extraction model.
15

4 Operating the appliance
Checking the settings
▸ Switch the appliance off.
▸ Depress the button for three seconds.
–If the and buttons flash, the appliance is set up as an extraction
model.
–If the and buttons flash, the appliance is set up as a recirculation
model.
▸ To exit Check settings, no action is necessary as the display will switch it-
self off.
4.2 Operation
Switching the appliance on
▸ Press the / or button.
–The appliance switches on at the corresponding power level.
–The button illuminates to show the current power level.
–The button flashes when the «intensive» power level is selected.
We recommend switching the appliance on at power level 1 some five
minutes before starting to cook. Use a low power level for normal cook-
ing smells and a higher power level for very strong cooking fumes and
smells.
Switching the appliance off
▸ Pressing the button switches the appliance off.
After you have finished cooking, allow the appliance to run for another 15
minutes so that the cooking fumes and smells can be extracted.
16

4 Operating the appliance
4.3 Intensive level
To select the intensive level, the appliance has to be switched on.
▸ Hold the button depressed for two seconds.
–The button flashes.
After five minutes, the appliance switches back to power level .
▸ Press the button to stop the intensive level before the five minutes
has elapsed.
–The appliance switches to the newly selected power level.
4.4 After-running time
▸ Switch the appliance on.
▸ Select the desired power level by pressing the corresponding button.
▸ Press the button to activate after-running time.
With the after-running time function, the appliance keeps running according to
the following table and then switches off automatically.
Button After-running time
20 minutes
15 minutes
10 minutes
Flashing 5 minutes
4.5 Illumination
▸ Press the button to switch the illumination on.
▸ Press the button again to switch the illumination off.
17

4 Operating the appliance
4.6 Saturation indicator
Saturation indicator for metal grease filters
The display flashes after 20 operating hours. The saturation level has been
reached and the metal grease filters must be cleaned.
Saturation indicator for the long-life activated charcoal filter
The button flashes after 120 operating hours. The saturation level has
been reached and the long-life activated charcoal filters must be regenerated.
18

5 Care and maintenance
5.1 Cleaning the housing
Take care that no water gets into the housing of the appliance! If
water gets into the housing, it can cause damage.
Do not use abrasive cleaners, scouring pads, steel wool, etc. for
cleaning, as they can damage the surface.
Remove the screw fuse or switch off the circuit breaker.
Cleaning the outside/inside
▸ Clean the outside using a slightly damp cloth – and detergent if necessary
– and wipe dry.
Grease and condensate water can build up on the inside next to the metal
grease filters.
▸ Clean using a slightly damp cloth – and detergent if necessary – and wipe
dry.
5.2 Cleaning the grease filters
The metal grease filters must be cleaned at least once a month with normal
use or whenever the button flashes. If properly cared for, the metal grease
filters should provide unlimited years of service.
The saturation indicator is visible when the appliance or a power level
is running.
19

5 Care and maintenance

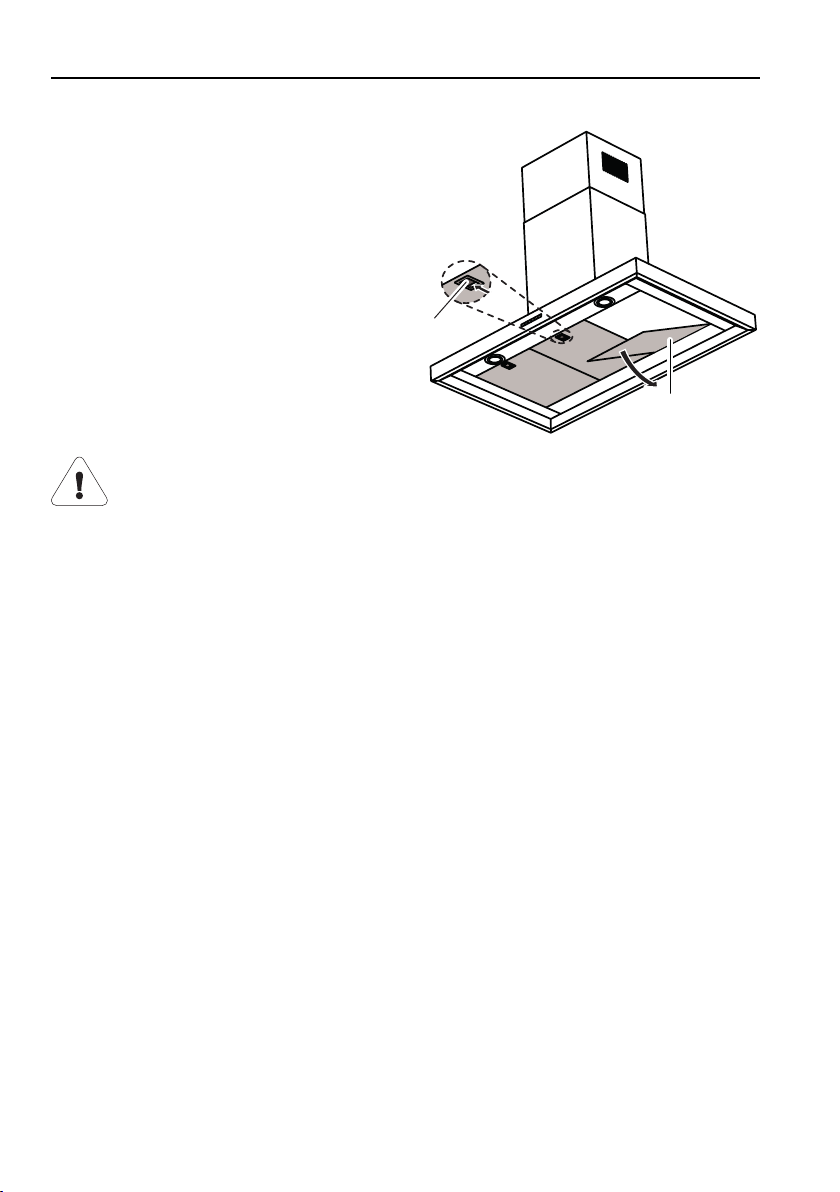

Removing the metal grease filters
▸ Push the grip 2 on the metal grease
filter 1 back.
▸ Carefully pull the metal grease filter
down and out of the fixture.
1
2
Do not damage the grease filter.
20
