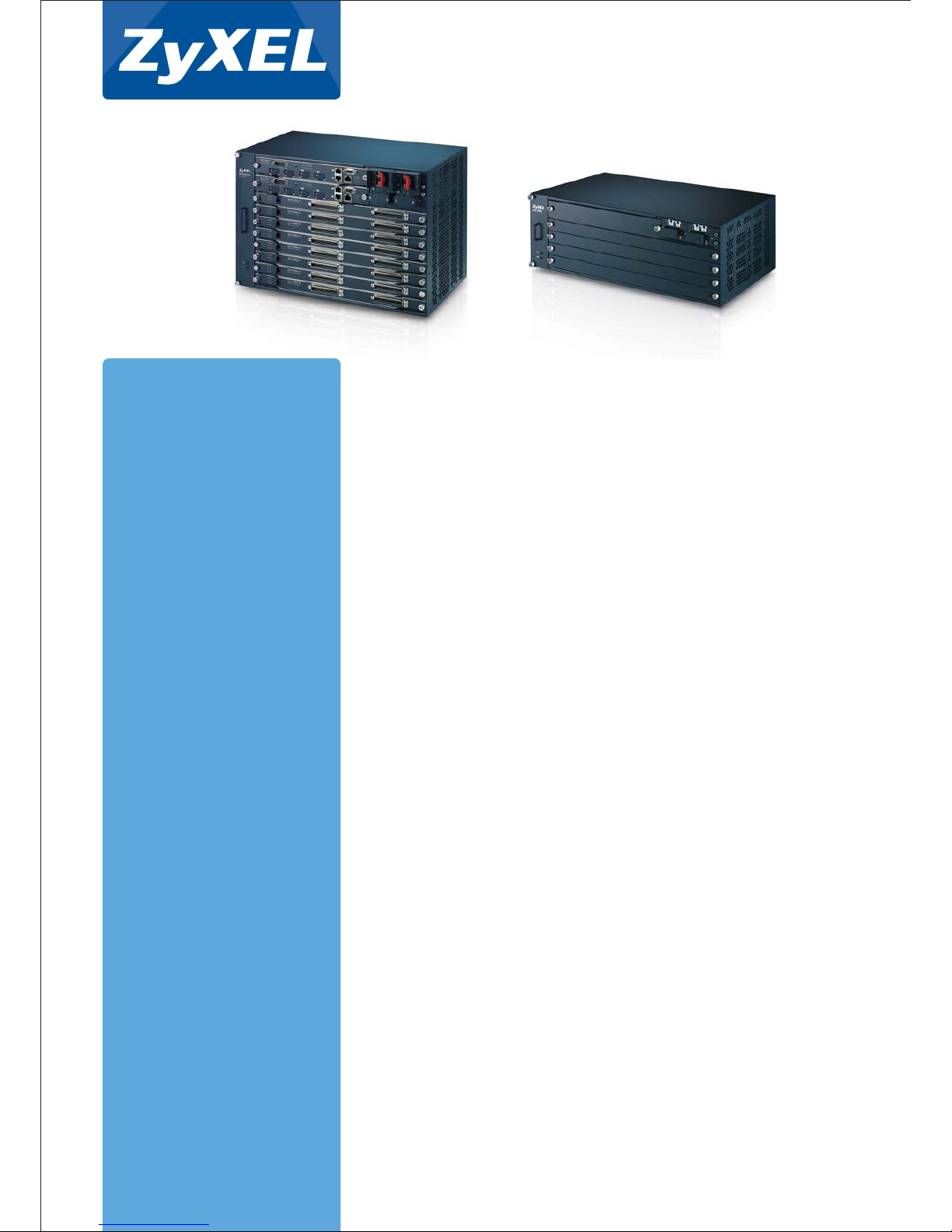

IES-5000

6.5U MSAN/DSLAM with DC Power

IES-5005

3.5U MSAN/DSLAM with DC Power

Benefits

Service aware

The IES-5000/5005 Series is equipped with non-blocking gigabit backplane, failover-enabled

Management Switch Cards (MSC), dual power modules,high-port density DSL line cards and VoIP

line cards.With embedded IP-centric QoS, security and multicasting features, the IES-5000/5005-

chassis-based system facilitates Telco/ISP delivering high degree of quality of experience to today’s

demanding residential and business customers,and achieving its infrastructure provisioning

criteria of reliability, flexibility and scalability at competitive CAPEX/OPEX.The IES-5000/5005 Series

is temperature-hardened and can be installed in street cabinet, suitable for outside plant

deployment.

Scalability

The IES-5000 is a 6.5U height and 10-slot chassis-based system with separated 5U splitter frame.

Two of the 10 slots are reserved for Management Switch Cards (MSC) and the remaining 8 slots are

for DSL,VoIP and Ethernet line cards.The compact design of IES-5005 offers a 3.5U height and 5-slot

chassis-based system with a separated 3U splitter frame. One slot is reserved for MSC card and the

remaining 4 slots are for DSL,VoIP and Ethernet line cards.

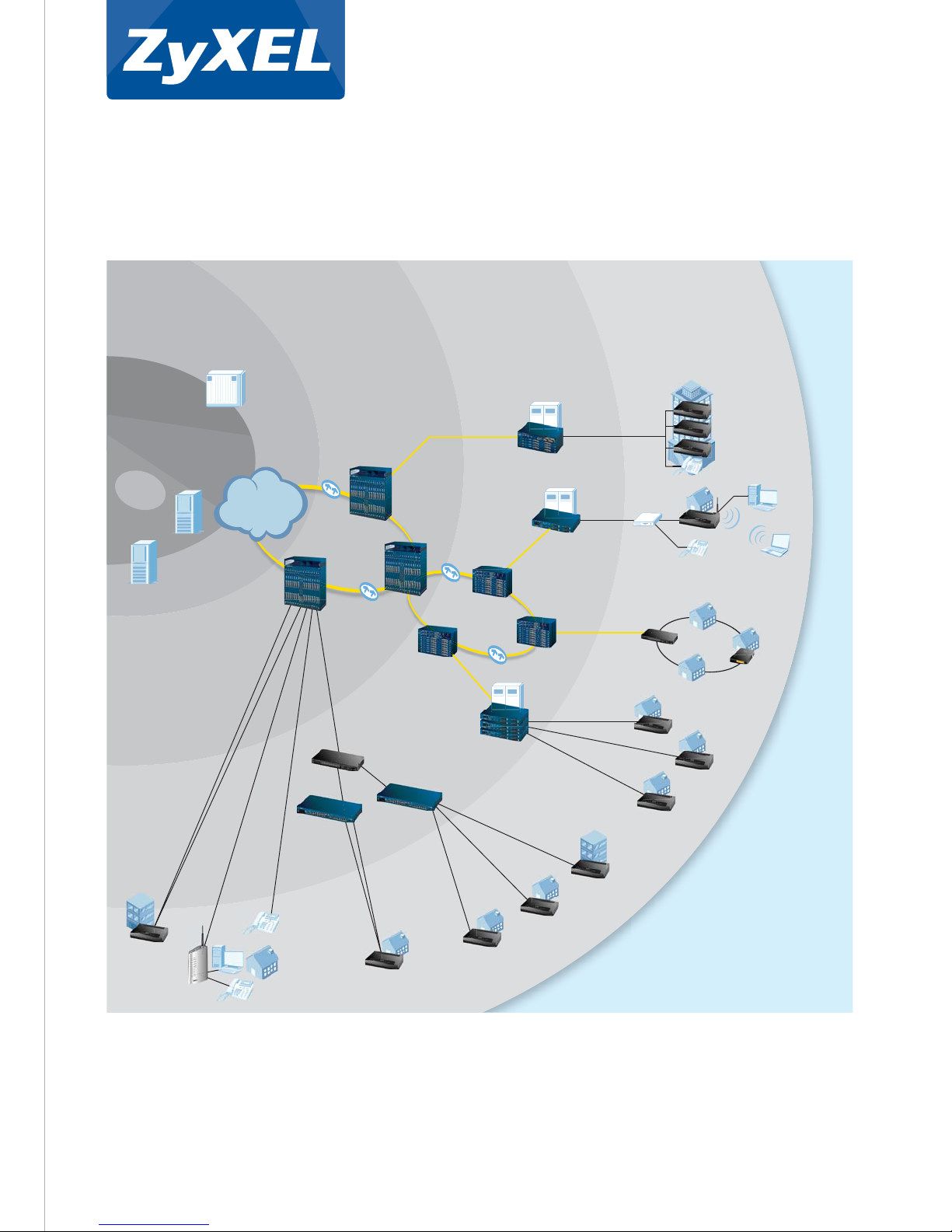

The MSC has 4 GE ports for uplink and subtending.With the subtending feature, the IES-5000/5005

Series can be cascaded in the rack at a central office, or be connected to remote IES products in the

form of a tree, ring, or daisy-chained as needed.The uplinks can be used as a traffic aggregation and

can be plugged in trunk or set to work in 1+1 redundant mode.Additionally, two Management

Switch Cards (MSC) for link redundancy and failover support. In case when one MSC fails, the

second MSC takes over control within 1 second.

The ADSL2/ADSL2+ line cards have two options: 48-ports and 72-ports. G.SHDSL.bis/VoIP line cards

have 48 ports, the VDSL2 line card comes with 24/48 ports and 20 ports for fiber-based Fast

Ethernet line card.

Ł

Non-blocking Gigabit backplane

Ł

Multi-service Interfaces

including ADSL2/2+,

G.SHDSL.BIS,VDSL2, VOIP (SIP &

H.248), Fiber-based FE and E1

IMA

Ł

Comprehensive QoS to enhance

triple play users’experience

Ł

Field proven IGMP snooping and

proxy for IPTV deployment

Ł

Flexible ACL,VLAN-aware DHCP

and anti-IP/MAC address

spoofing to prevent malicious

attack

Ł

DHCP option 82 and PPPoE IA

features support versatile IP

address assignment

Removing the Obstacles of Service

Provisioning Mid-size Multi-Service

Access Platform for Smoothly Migrating

to Next Generation Network

IES-5000

IES-5005

6.5U/3.5U MSAN/DSLAM

with DC Power

IES-5000

IES-5005

6.5U/3.5U MSAN/DSLAM

with DC Power

IES-5000

IES-5005

6.5U/3.5U MSAN/DSLAM

with DC Power

IES-5000

IES-5005

6.5U/3.5U MSAN/DSLAM

with DC Power

Multiple standard DSL services

ADSL line card provides 48/72 ports with transmission bandwidth up to 25 Mbps/2.4 Mbps. ADSL line cards also provide G.bond port bonding to increase

service range or double transmission bandwidth.VDSL line cards provide with a ADLS2+ fallback function (Annex A and Annex B) allows Telco operators

migrating existing ADSL2+ services to VDSL2 services seamlessly. SHDSL line cards provide 48 ports with transmission bandwidth up to 5.69 Mbps/22.76

Mbps/45.52 Mbps in ATM/EFM mode.VDSL line cards provides 24/48 ports with transmission bandwidth up to 100 Mbps/100 Mbps. All DSL cards are hot

swappable to ensure system stability.

Advanced triple play functionality

The IES-5000/5005 provides complete ATM QoS (UBR/VBR/CBR) and Ethernet L2 QoS on the line cards.The IP QoS (Packet classification/Rate

Limiting/Queue Scheduling) is provided on the Network Termination cards as well. Sophisticated PVC to VLAN bridging and aggregation enables

end-to-end QoS and various service allocation and provisioning.In addition, the IES-5000/5005 supports non-blocking traffic forwarding and multicast

features with up to 256 multicast groups. For security, the IES-5000/5005 provides anti MAC/IP address spoofing, broadcast storm prevention, MAC count

limiting, and policy-based packet filtering. All these features allow ISPs/Telco operators to provide High Speed Internet access, VoIP, Near VOD, Broadcast

TV and TV on demand, and other features easily.

Robust physical safety design

The IES-5000/5005 guarantees physical safety by embedding voltage,temperature and FAN speed sensors.When an abnormal condition is detected, the

LED displays and/or the corresponding alarms will come up to alert the operators.In cases when the system temperature goes higher than the configured

threshold,thermal cutoff protection kicks into action and the system will shut down automatically.

Sophisticated OAM&P Element Management System (EMS)

The IES-5000/5005 provides various management methods:local console port,Web-based configuration,Telnet, and SNMP v1/v2/v3-based EMS (NetAtlas

Access EMS). Included management functions are Alarm and Status Surveillance, Configuration management, Performance management, and Fault

management.The IES-5000/5005 allows operators to create multiple administrative accounts and 3 levels of access rights. Accounts with the first-level

privilege have full access rights. Second-level privilege accounts have the same access rights as first-level accounts except for account management.

Third-level accounts can only view configuration settings and performance statistics. NetAtlas Access EMS also provides view-based MIB management

and XML-based north bound interface.These features allow Telco operators to provide wholesale service to smaller CLECs and ISPs.

Distributed and QoS-assured media gateway

The IES-5000/5005 provides a parallel and distributed media gateway architecture to empower VoIP services taking advantage of POTS voice signals,in

addition to FAX and modem services.With the architecture, each media gateway serves up to 48 POTS ports and operates independently with each other.

As part of the benefit, there is no throughput bottleneck or single-point failure issue in this architecture, the performance and reliability of the

VoIP/fax/modem services are outstanding as well.The media gateway provides G.711, G.723, G.726, G.729a/b and T.38 codecs while RFC3261 SIP and

H.248 network signaling protocols are supported as well.

System Specifications

DSL Compliant

• ADSL:

- G.992.1 Annex A, G.992.3 Annex A, G.992.5

Annex A

- G.992.1 Annex B, G.992.3 Annex B, G.992.5

Annex B

Support G.992.3 and G.992.5 spectral mask

Support Annex M and Annex L in G.992.3

and G.992.5

Support EOC and overhead channel access

Support the latency path function

Support loop diagnostic function specified

Support the power management capability

Support the capability of the Seamless Rate

Adaptation (SRA) on-line configuration

Single and dual end loop test

G.998.1 port bonding

• SHDSL: G.991.2, G.991.2.bis, G.998.1

• VDSL2: G.993.2, G.994.1, G.997.1

ATM Traffic Management

• Support 8 PVC per DSL port

• Support UBR, CBR, rt-VBR, nrt-VBR, QoS

mechanisms

• Support ATM Forum TM 4.0 peak cell rate traffic

parameter

• Support downstream traffic shaping function

per ATM PVC

• Support ATM F5 OAM cells for end-to-end loop

back test (ITU-T Rec. I.610)

Performance

• Eight queues with packet priority scheduling

(SPQ,WRR)

• Support 256 IGMP multicast groups

• The maximum channel zapping processing time

is 250 ms

• DSCP to 802.1p mapping

Security

• Per port and per VLAN isolation

• IEEE 802.1x (authentication)

• Rule-based packet filtering (L2 ~ L4 ACL)

• MAC count limiting

• ARP broadcast filtering

• DHCP broadcast filtering

• VLAN aware DHCP snooping

• NetBiOS filtering

• IGMP filtering

• Anti IP/MAC address spoofing

• Support TACACS+ remote authentication

VLAN

• 4094 IEEE 802.1Q compliant VLAN tagging

• VLAN stacking (Q-in-Q)

• VLAN bridge function (multiple PVCs to one

VLAN)(N:1)

• PVC and VLAN one to one mapping (1:1)

• VLAN trunking (single PVC join multiple

VLAN)(1:N)

• Support GVRP function

Traffic Management

• Bandwidth control and broadcast/multicast/

unknown unicast control on Gigabit Ethernet

ports

• STP: IEEE 802.1d, IEEE 802.1w, IEEE 802.1s

• IP bridge

• IEEE 802.3ad (Link aggregation control protocol)

• IP multicast forwarding

• IGMP v1, v2, v3 snooping/proxy

• IGMP multicasting channel limiting

• VLAN aware DHCP snooping

• DHCP relay option 82 with sub-option 1 & 2

• TR-101 compliant PPPoE intermediate agent

• Multicast bandwidth control

• L2 ~ L4 ACL

• IGMP group count/filtering profile

VoIP Features

• Codes: G.711, G.726, G.729a/b, G.723.1

• Network signaling protocols: ITU-T H.248 v2,

SIP v2 (RFC 3261)

• RTP (RFC 1889)

• RTCP (RFC 1890)

• FAX/Modem pass through (T.38) via RTP

• Tone detection and generation (bi-directional)-

RFC2833 RTP Payload for DTMF

• Echo cancellation and auto gain control (G.165,

G.168)

• VAD (Voice Activity Detection)

• CNG (Comfort Noise Generation)

• Caller ID generation and detection

• Supplementary services

- Local dial available

- Emergency call local route

- Do not disturb

- Selective/anonymous call rejection

- Call waiting

- Call transfer (blind and attended transfer)

- Call return and call back on busy

- Off hook warning tone

Network Management

• Local management through a craft terminal

• Web-based management interface

• Cluster management (up to 8 cluster members)

• View-based network management

• Support XML-based North Bound Interface

NetAtlas Access EMS

• In-band and out-of-band IP interface for

management (SSH, SFTP)

• SNMP management (through ZyXEL NetAtlas

Access EMS)

- SNMPv1/v2c/v3 agent/traps

- Standard MIBs

RFC 1213 MIB II

ADSL line MIB (RFC 2662)/extension line MIB

(RFC 3440)

SHDSL line MIB (RFC 3276)

VDSL line MIB (RF 3728)

Bridge MIB/extension MIB

RMON MIB (RFC 1757)

- Vendor specific MIBs, e.g.,

Chassis management MIB (fan speed,

voltage, temperature)

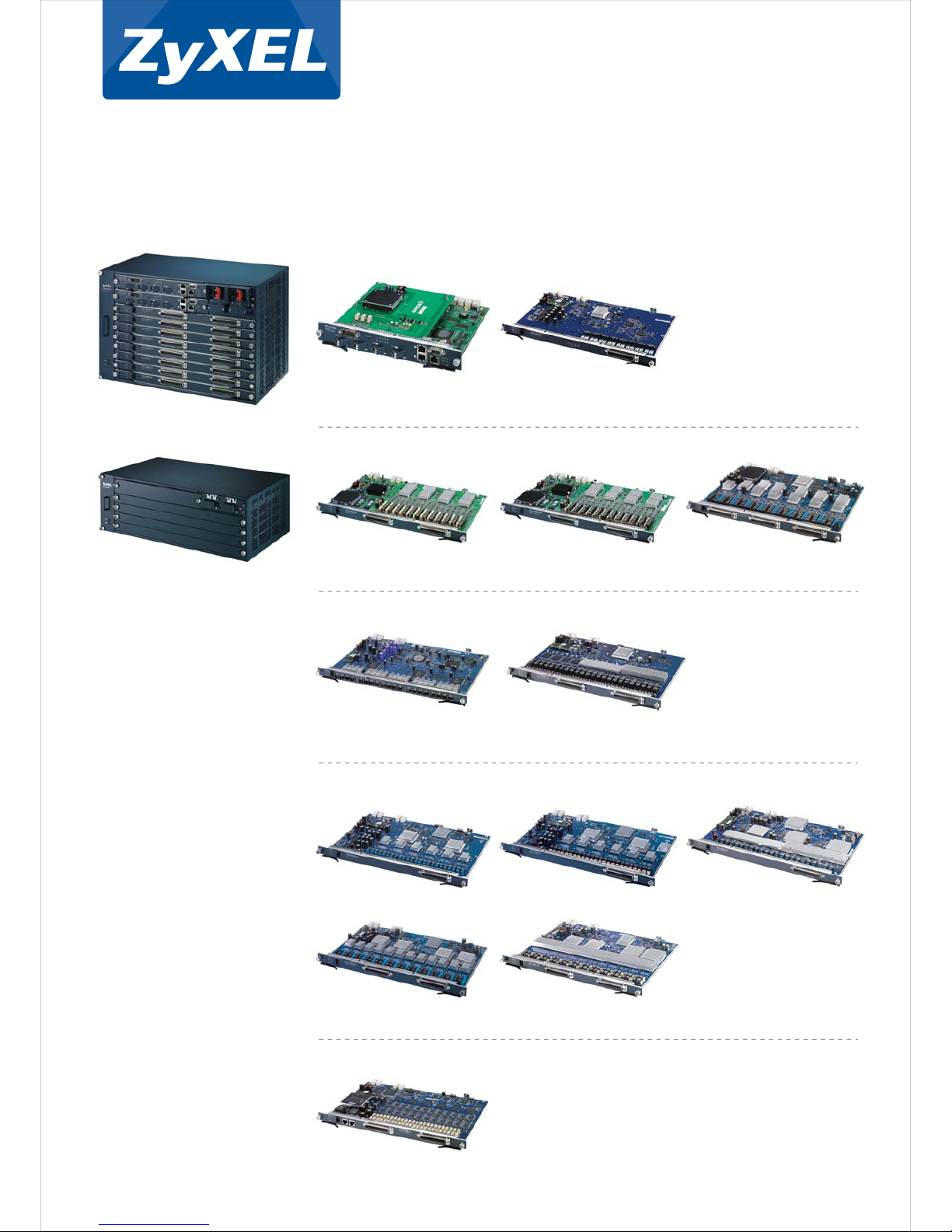

Specifications

Hardware Specifications

IES-5000M

• 10-slot rack mountable enclosure,

19”or 23” chassis

• 8 slots for line termination cards

• 2 slots for management and switch cards

• 2 DC power input module and filter

• One FAN and dust filter module

IES-5005M

• 5-slot rack mountable enclosure,

19”or 23” chassis

• 4 slots for line termination cards

• 1 slots for management and switch cards

• 2 DC power input module and filter

• One FAN and dust filter module

ALC1248G-51/ALC1272G-51

• Hot swappable 48-port/72-port ADSL2/ADSL2+

Annex A line card

• Maximum transmission rate up to 25 Mbps/

2.4 Mbps for ADSL2+

• One mini-RJ11 console port

• One gigabit backplane

• Support G.992.3 and G.992.5 spectral mask

• Support EOC and overhead channel access

defined in G.992.3 and Rec.G.997.1

• Support the latency path function specified in

G.992.3 and G.992.5

• Support Annex L and Annex M specified in

G.992.3 and G.992.5

• Support loop diagnostic function specified in

G.992.3 and G.992.5

• Support the power management capability

specified in G.992.3 and G.992.5

• Support the capability of the seamless rate

Adaptation (SRA) on-line configuration specified

in G.992.3 and G.992.5

• Support ADSL2+ 2-port bonding (G.998.1)

ALC1248G-53

• Hot swappable 48-port ADSL2/ADSL2+ Annex B

line card

• Support Annex M and Annex L specified in

G.992.3 and G.992.5

• Maximum transmission rate up to 25 Mbps/

2.4 Mbps for ADSL2+

• One mini-RJ11 console port

• One gigabit backplane

SLC1348G-22

• Hot swappable 48-port SHDSL/SHDSL.bis

line card

• Support ETSI TS 101 524 V 1.2.1,ITU-T G.991.2,

ITU-T G.991.2.bis

• ATM-based multi-pair bonding (G.998.1) up to

8 ports

• Symmetric transmission rate of 5.69 Mbps/port

• One mini-RJ11 console port

• One gigabit backplane

• Support IEEE EFM

VLC1324G-51/VLC1324G-53/

VLC1348G-51/VLC1348G-53

• Hot swappable 24-port/48-port VDSL2 line card

over POTS and over ISDN

• Support G.993.2, G.994.1, G.997.1

• Maximum transmission rate up to 100 Mbps/

50 Mbps

• One mini-RJ11 console port

• Two gigabit backplane

• Support VDSL2 profiles 8a, 8b, 8c, 8d, 12a, 12b

and 17a

• Support frequency allocation bandplan 998

and 997

• Support U0 band, customer PSD, RFI notch,

single latency in PTM mode and INP

• Support UPBO and DPBO,Reed Solomon and

trellis coding

• Support ADSL fall back with ADSL/ADSL2/

ADSL2+ CPE in Annex A, M, L modes

• Support IEEE 802.1ag Connectivity Fault

Management (CFM)

ELC1220G-55

• Support 20 open slots for Fast Ethernet SFP

(100Base-FX/BX/LX/EX)

• One mini-RJ-11 console

• Aggregates layer-2 traffic from Fast Ethernet

subscribers to the chassis system

• Support multicast VLAN, IGMP snooping, IGMP

filter and static multicast functions for MoD

services

• Support DHCP relay, option82 and snooping

functions

• Support ACL, anti-IP address spoofing and anti-

MAC address spoofing security functions

MSC1000G

• Failover-enabled network termination card

(IES-5000 only)

• Embedded 24G, non-blocking full duplex

switching fabric

• Two 1000M interface modules (SFP + copper)

for subtending

• Two 1000Base-SX/LX/EX/ZX (mini-GBIC,SFP)

interface for uplink

• One RS232 (DB-9) serial console port

• One 10/100M out-of-band Mgmt interface

• One external alarm IO port

VOP1248G-61

• 48-port VoIP line card

• Support H.248 version 2 or SIP singling

protocol

• Compatible CPE including POTS phone, Fax,

analog modem and pay phone

• Support G.711 a/µ, G.726, G.729 a/b G.723.1

• 20K Busy Hour Call Attempts (BHCA)

• Configurable jitter buffer

• Support the generation of dial tone,second

dial tone,ringing tone (ring-back tone), busy

tone,off-hook warning tone

• Support call waiting, call hold,call transfer,

return and call back on busy

• Emergency call local route

• Local dial available

• MLT (Metallic Loop Testing for subscriber lines)

and GR-909 loop diagnostic

• Ringer Max output power: 15 Watt

IES-5000

IES-5005

6.5U/3.5U MSAN/DSLAM

with DC Power

IES-5000

IES-5005

6.5U/3.5U MSAN/DSLAM

with DC Power

IMA1408G-81

• Hot swappable 8-port E1 IMA card,8 groups

per card

• Support G.703, G.704

• Full-duplex bandwidth up to 16M

• One mini-RJ11 console port

• Two gigabit backplane

• Support RFC1483/1577/2364/2684

• Support ATM Forum Rec UNI 3.0,UNI 3.1, UNI 4.0

• Support ITU-TI.361, I.371, G.804

VLC1424G-56

• Hot swappable 24-port VDSL2 line card

• Support G.993.2, G.994.1, G.997.1

• Maximum transmission rate up to

100 Mbps/100 Mbps

• One mini-RJ11 console port

• Two gigabit backplane

• Support VDSL2 profiles 8a, 8b, 8c, 8d, 12a, 12b, 17a

and 30a

• Support frequency allocation bandplan 998

and 997

• Support customer PSD, RFI notch, single latency in

PTM mode and INP

• Support trellis coding

• Support IEEE 802.1ag Connectivity Fault

Management (CFM)

Physical Specifications

IES-5000M

• Dimensions: 440 (W) x 285 (D) x 289 (H) mm

• Weight: 10 Kg

IES-5005M

• Dimensions: 440 (W) x 250 (D) x 152 (H) mm

• Weight: 5 Kg

ALC1248G-51
