ZyXEL Communications ZyXEL ZyWALL IDP 10 Manual

ZyWALL IDP 10
Intrusion Detection Prevention Appliance
Support Notes
Version 1.0
Aug 2004

IDPSupport Notes
2
INDEX
Application Notes............................................................................................................................ 4
Deploy IDP ................................................................................................................................4
Register ZyWALL IDP ............................................................................................................10
Firmware Upgrade...................................................................................................................16
Signature Update......................................................................................................................17
Configure User Defined Policy................................................................................................18
IDP FAQ......................................................................................................................................... 23
What is HIDS?.........................................................................................................................23
What is NIDS?.........................................................................................................................23
What is HIPS?..........................................................................................................................23
What is NIPS (IDP)?................................................................................................................23
What’s the difference between false positive and false negative?...........................................23
Is IDP able to investigate VPN traffic?....................................................................................24
Product FAQ.................................................................................................................................. 24
What is ZyWALL IDP10?........................................................................................................24
Why do I need ZyWALL IDP, if I already have ZyWALL 5/35/70?.......................................24
Will I lose network access if my ZyWALL IDP 10 lost power or crash?................................24
If I forget IDP’s password, how to reset the password to default?..........................................25
How to access IDP through console?.......................................................................................25
How to trouble shoot the false positive and false negative cases? ..........................................26
What's the difference between Inline, Monitor and Bypass mode?.........................................26
When should I use VLAN Tag function?.................................................................................27
How to restart device from WEB GUI, Console?....................................................................27
What does "Stealth" mean, why should I need it?...................................................................29
I can not remote manage my ZyWALL IDP 10 at home, why?...............................................29
Why should I define Policy Check on WAN/LAN port?.........................................................29
What's Pre-defined signature? .................................................................................................30
Why should I need to update signature?..................................................................................30
Where can I get the description of a policy or advisory? ........................................................30
How do I make sure my ZyWALL IDP10 already gets the latest policy?...............................30
I can’t download the latest policy from update server. How can I fix the problem?...............31
How many User-defined policies can I have on ZyWALL IDP 10?........................................32
How many policies does ZyWALL IDP 10 support in total? ..................................................32
Does configuration backup include Pre-defined/Updated signatures?....................................32
What’s the default password of ZyWALL IDP10?..................................................................32
All contents copyright (c) 2004 ZyXEL Communications Corporation.

IDPSupport Notes
3
Why can’t I input mail server address by domain name?........................................................32
What’s “Drop” and “Block Connection” for Action of User Defined Policy?........................33
How to use URL String in Content setup of User-defined policy?..........................................33
What’s the definition of “Incoming” and “Outgoing” direction in a policy setup?.................33
How to decide which Interface should be applied for policy check?......................................34
In User-defined policy, what’s the meaning of Matching Offset, Matching Depth?...............35
How does IDP check multiple contents? .................................................................................35
What’s the priority among Pre-defined policy and User-defined policy? ...............................36
Trouble Shooting........................................................................................................................... 36
Unable to Run Applications.....................................................................................................36
CLI Command List....................................................................................................................... 39
System related Command........................................................................................................39
Debug mode CLI Command....................................................................................................42
All contents copyright (c) 2004 ZyXEL Communications Corporation.

IDPSupport Notes
4
Application Notes
Deploy IDP
IDP functions as a plug and play bridge device filtering malicious traffic from attacking your
networks. With continuous signatures update, users can get free from network-based intrusions.
In this example, we describe how to deploy and configure ZyWALL IDP10 in a network. Since
ZyWALL IDP10 is a bridge device, users don’t need to change the existing network topology
when they deploy it. Two things matter are
Determine the target network/systems to protect.
Assign an IP address to “Management” port to make management of ZyWALL IDP10 possible in
your existing network.
The following diagram and table illustrate the network topology and IP address assignment of the
example network.
IPAddress assignment:
Network WAN DMZ LAN
Segment 211.1.1.0/28 192.168.2.0/24 192.168.1.0/24
All contents copyright (c) 2004 ZyXEL Communications Corporation.

IDPSupport Notes
5
Servers/PC 192.168.2.5-10 LAN1: 192.168.1.5-50
LAN2: 192.168.1.51-100
WLAN: 192.168.1.101-130
Data Center: 192.168.1.131-140
Device IDP (A) IDP (B) IDP (C)
IP Address 192.168.1.141 192.168.1.142 192.168.1.143
Device IDP (D) IDP (E) IDP (F)
IP Address 192.168.1.144 192.168.1.145 192.168.1.146
Purpose:
IDP (A)
Since network devices may also have vulnerabilities, once the firewall device at gateway is
compromised, the protected networks are also endangered. The IDP device outside firewall can
block attacks to firewall/VPN gateways from Internet. So we apply policy protection on WAN
port of IDP (A).
IDP (B)
Servers in DMZ zone are the most critical point in your network. Since malicious attacks may
flow into DMZ along with legitimate traffic. The attacks may come from Internet and to prevent
the infected server from attacking internal networks, so we apply policy protection on both WAN
and LAN port of IDP (B).
IDP (C), IDP (D)
The purpose of IDP (C) and IDP (D) is to separate internal network into blocks, and thus once a
PC gets infected by some worms/virus, the infection won’t spread into the whole network.
Therefore we apply policy protection on both WAN and LAN port of IDP (C) and IDP (D).
IDP (E)
Since IDP (E) protects the data center of the network, and we assume data center is always
waiting for internal users to access, there are no connections initiated from the data center area.
We apply policy protection on WAN port of IDP (E).
IDP (F)
Wireless LAN is a popular application nowadays due to its mobility. However, WLAN does raise
some security concerns into network applications also because of its mobility. Administrators
can’t predict when a mobile notebook will be cracked, and trying to spread worms/virus through
WLAN. So we suggest users to place an IDP device before WLAN connects to internal network.
The policy protection applies on LAN port of IDP (F).
All contents copyright (c) 2004 ZyXEL Communications Corporation.

IDPSupport Notes
6
Setup IP address of IDP (A, B, C, D, E, F)
1. Configure each IDP device’s IP address.
Since IDP is a bridge device, it only has one IP address for management purpose, IDP also uses
this IP address to update signatures and the send system logs through syslog/E-mail/FTP. To
configure the system IP address of IDP device, users can choose two methods,
-Through Console
1. Make sure the baud rate/data/parity/stop/flow control settings are as below.
2. Default Login/password is “admin/1234”
3. Issue the following commands on IDP (A)
$>set system ip 192.168.1.141
Change ZyWALL IDP 10 IP address OK.
$>set system mask 255.255.255.0
Change ZyWALL IDP 10 netmask OK.
$>set system gateway 192.168.1.254
Change ZyWALL IDP 10 default gateway OK.
$>set system dns 168.95.1.1
Change ZyWALL IDP 10 default DNS server OK.
4. Repeat the step 3 to configure IDP (B, C, D, E, F) according to IP address assignment table.
-Through WEB GUI or Telnet
All contents copyright (c) 2004 ZyXEL Communications Corporation.

IDPSupport Notes
7
1. Connect one PC to IDP’s management port by crossed Ethernet cable. Make sure MGMT port
light is on.
2. Go to Start->Settings->Network and Dial-up Connections, and select the Ethernet connection
you are connecting to IDP device.

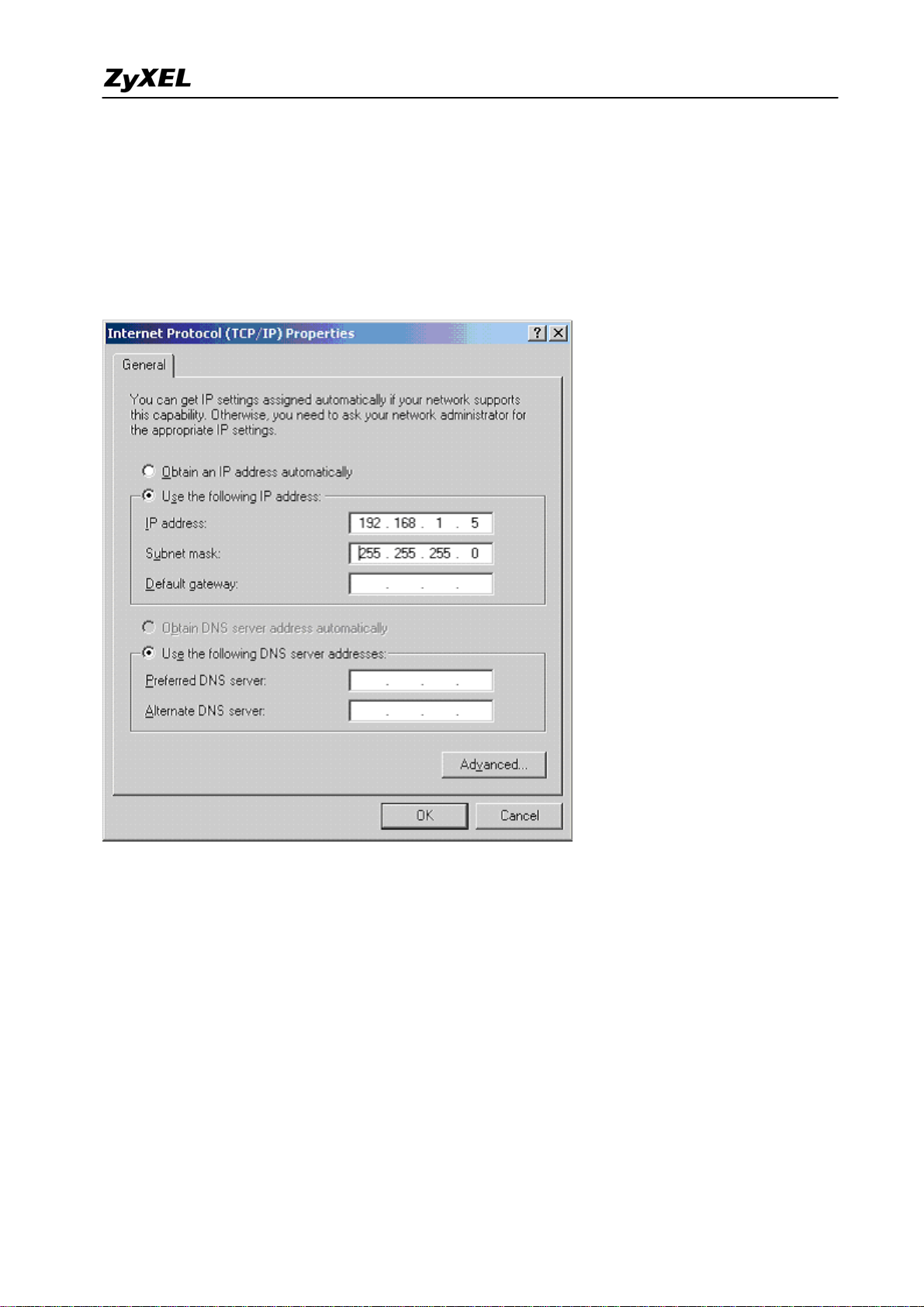

3. Change PC’s IP address to 192.168.1.5, subnet mask= 255.255.255.0 from properties.

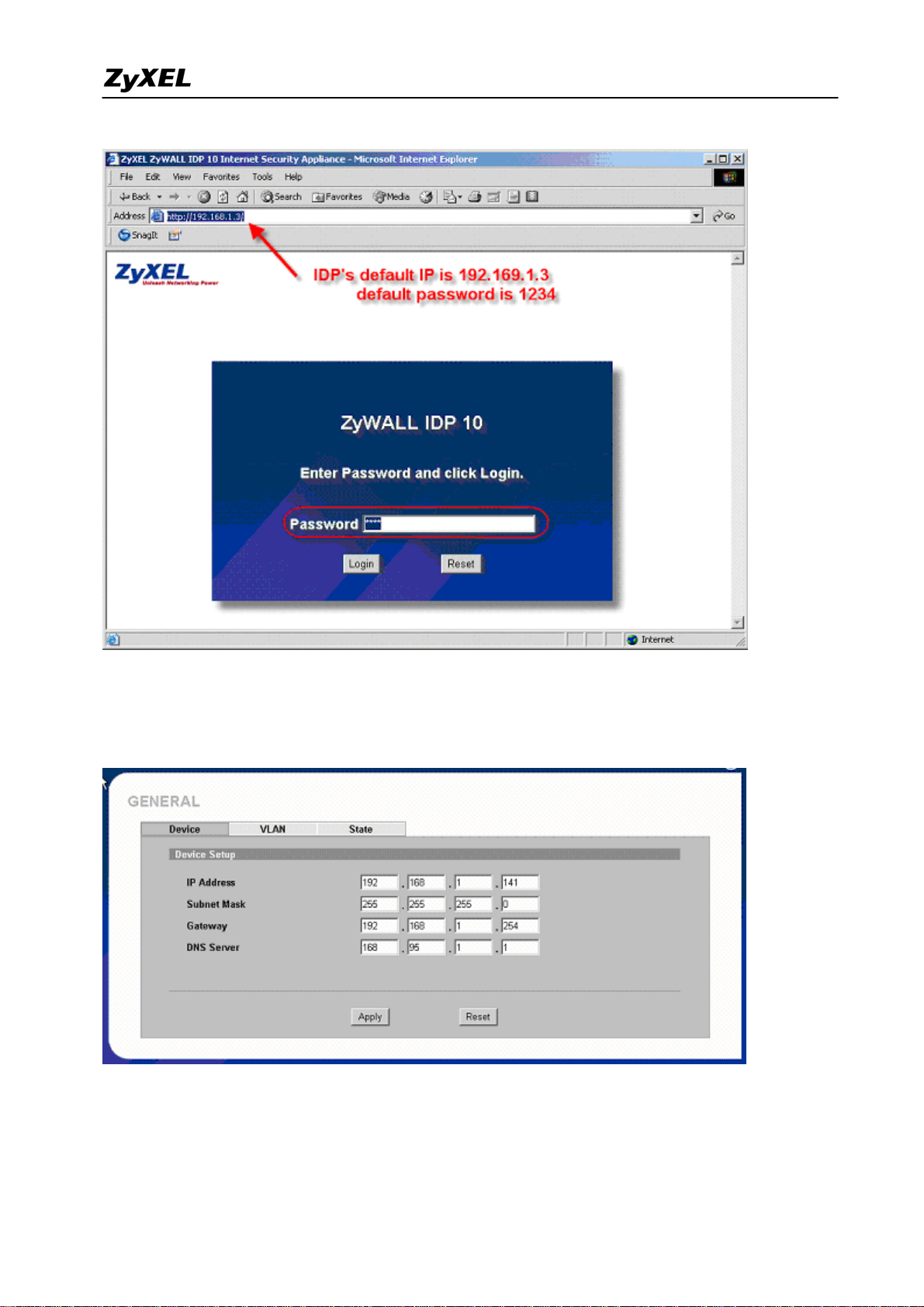

4. Log into IDP’s WEB GUI via browser.
All contents copyright (c) 2004 ZyXEL Communications Corporation.

IDPSupport Notes
8
5. Go to SYSTEM->General->Device, input IDP (A,)’s IP address, subnet mask, default gateway,
DNS server’s IP address.
6. Repeat step 1-5 to configure IDP (B, C, D, E, F) according to IP address assignment table.
All contents copyright (c) 2004 ZyXEL Communications Corporation.

IDPSupport Notes
9
Connect the MGMT/LAN/WAN ports of all IDP devices to the network according to the
deployment topology (192.168.1.0/24).

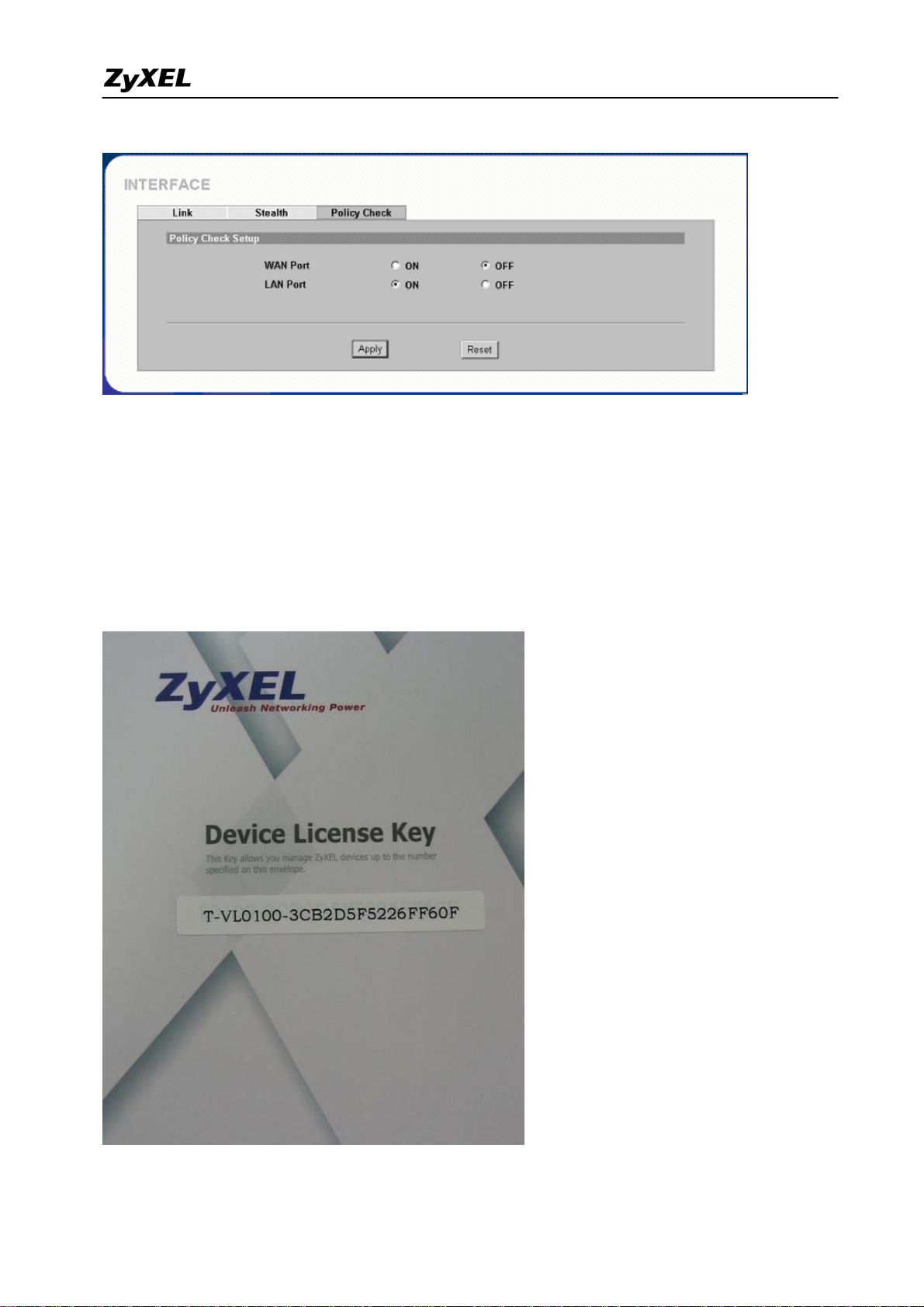

Login IDP (A, E)’s WEB GUI; go to SYSTEM->INTERFACE->Policy Check. Then enable
policy checking on WAN port of IDP (A, E).
Login IDP (B, C, D)’s WEB GUI, go to SYSTEM->INTERFACE->Policy Check. Then enable
policy checking on WAN and LAN port of IDP (A).
Login IDP (F)’s WEB GUI; go to SYSTEM->INTERFACE->Policy Check. Then enable policy
checking on LAN port of IDP (F).
All contents copyright (c) 2004 ZyXEL Communications Corporation.

IDPSupport Notes
10
Register ZyWALL IDP
ZyWALL IDP comes with a “pre-defined” policy set which requires subscription and can be
update at regular bases. Having an up-to-date policy set is essential as new attack types evolve.
1. A “Device License Key” card is included in ZyWALL IDP package for one year free
subscription.
All contents copyright (c) 2004 ZyXEL Communications Corporation.

IDPSupport Notes
11

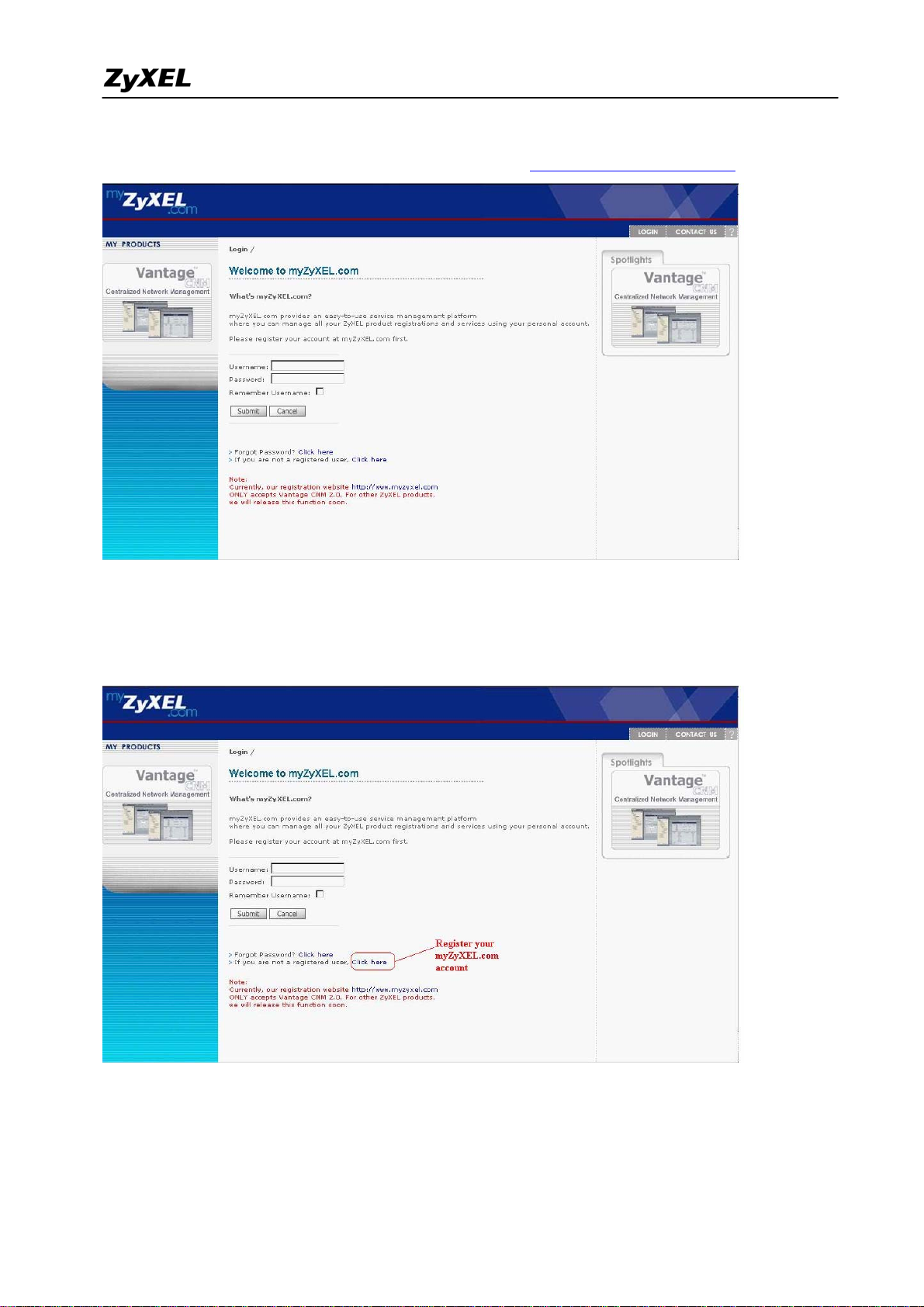

2. Go to ZyXEL Communications online services center. http://www.myZyXEL.com.
3. In case you haven't got an account on myZyXEL.com, you need to get a new account. Please
follow the instruction on myZyXEL.com; we skip the description of detailed procedure in this
article. If you get into trouble in this step, please contact ZyXEL support.
4. Login into myZyXEL.com using your account. “Click here” to register ZyWALL IDP.
All contents copyright (c) 2004 ZyXEL Communications Corporation.

IDPSupport Notes
12
5. Press add button to add the ZyWALL IDP you have.
6. In this step you need to enter Serial Number, Authentication Code (MAC address), and a
Friendly Name for your product. You can find serial number and MAC address at the bottom of
your device.
All contents copyright (c) 2004 ZyXEL Communications Corporation.

IDPSupport Notes
13
7. Input the date you purchase the product, and the purpose of the buying.

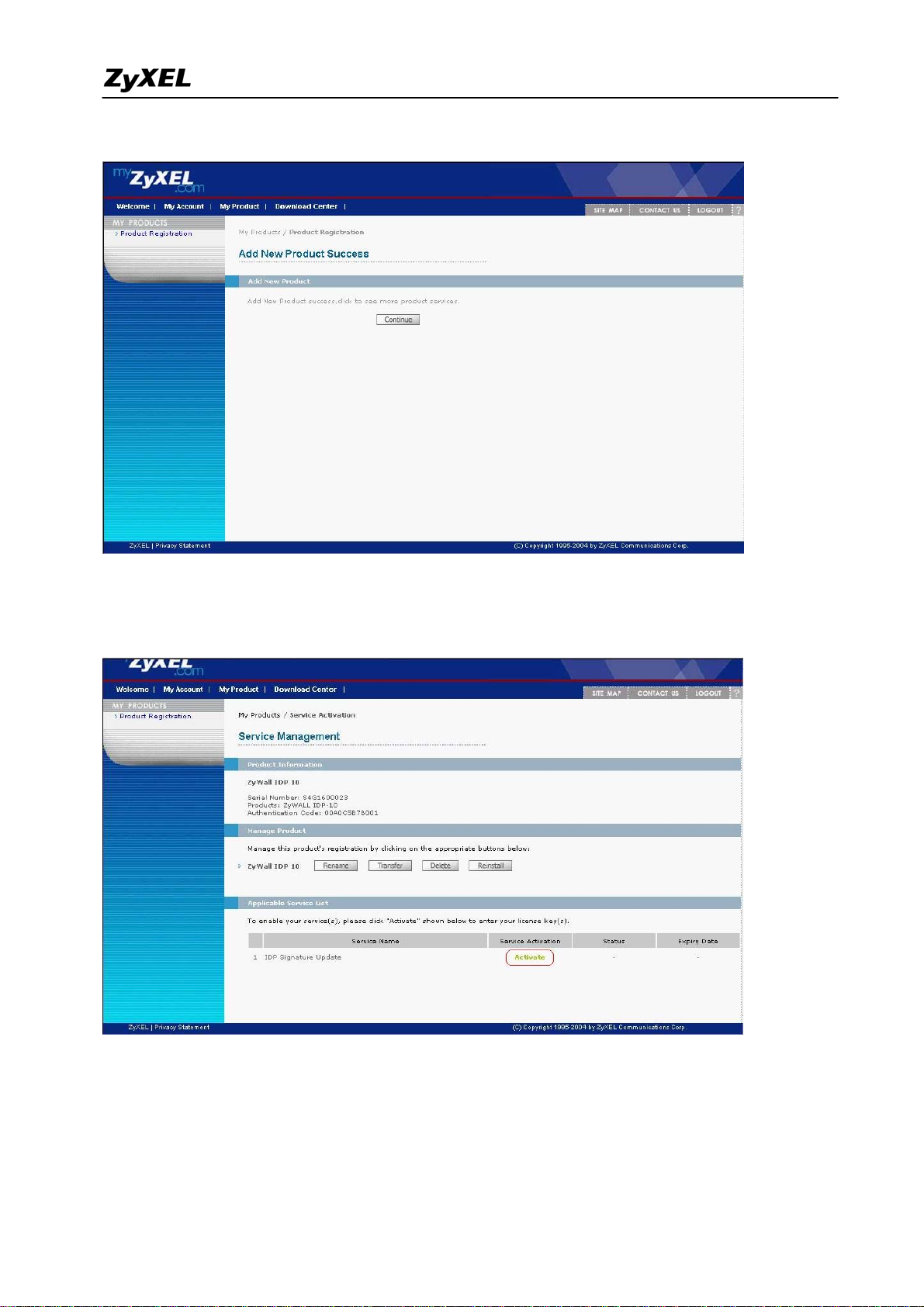

8. You would get a successful message. Then press Continue button.
All contents copyright (c) 2004 ZyXEL Communications Corporation.

IDPSupport Notes
14
9. From ZyWALL IDP’s Applicable Service List, you will have a service "IDP Signature Update"
available. Click Activate.

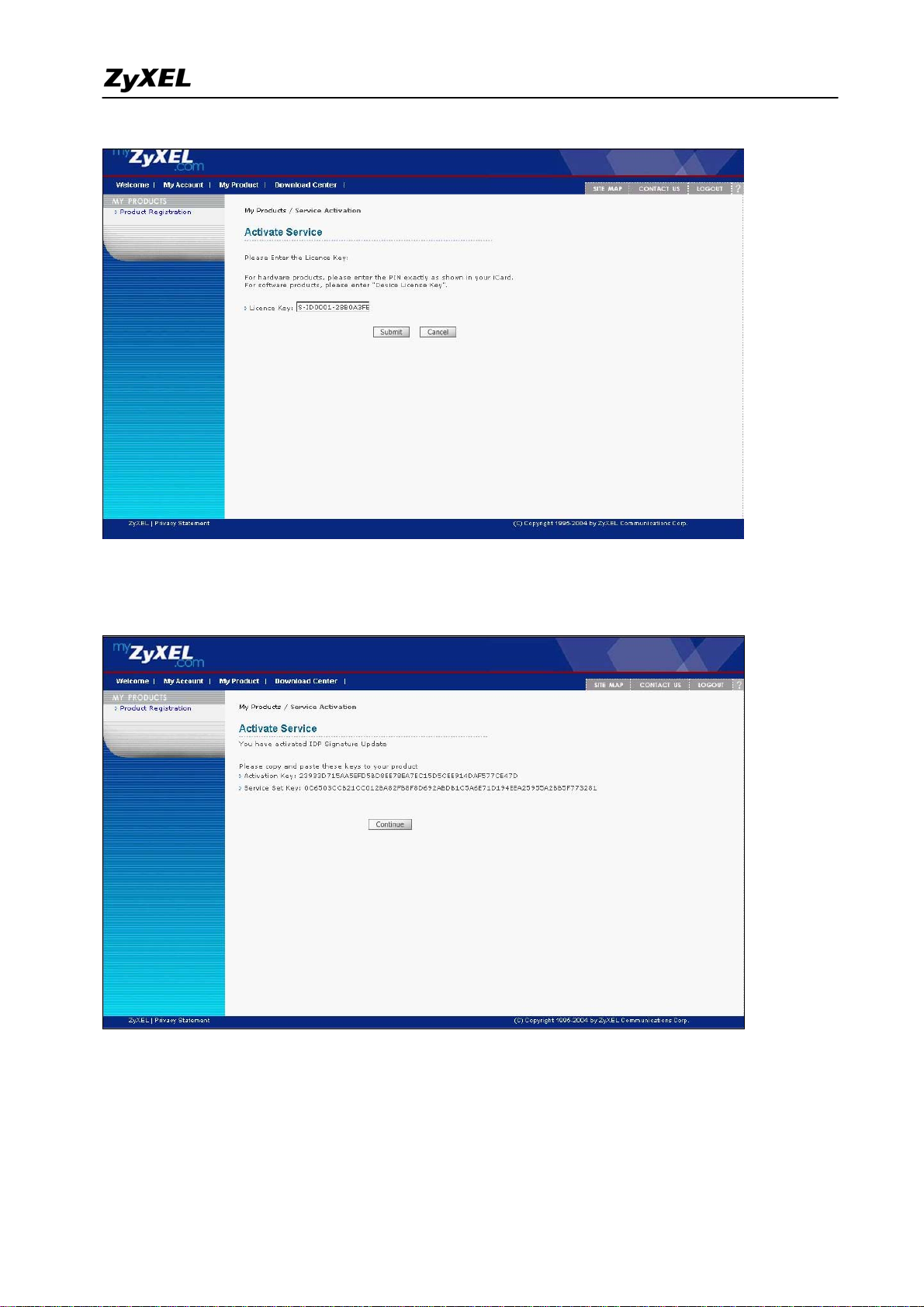

10. Enter the license key you get from “Device License Key” card. Then press Submit button.
All contents copyright (c) 2004 ZyXEL Communications Corporation.

IDPSupport Notes
15
11. After clicking Submit button, you will get an “Activation Key” and “Service Set Key”.
An email with these keys will be send to your email address as well.
12. You can copy & paste “Activation Key” to ZyWALL IDP’s Registration page.
All contents copyright (c) 2004 ZyXEL Communications Corporation.

IDPSupport Notes
16
Firmware Upgrade

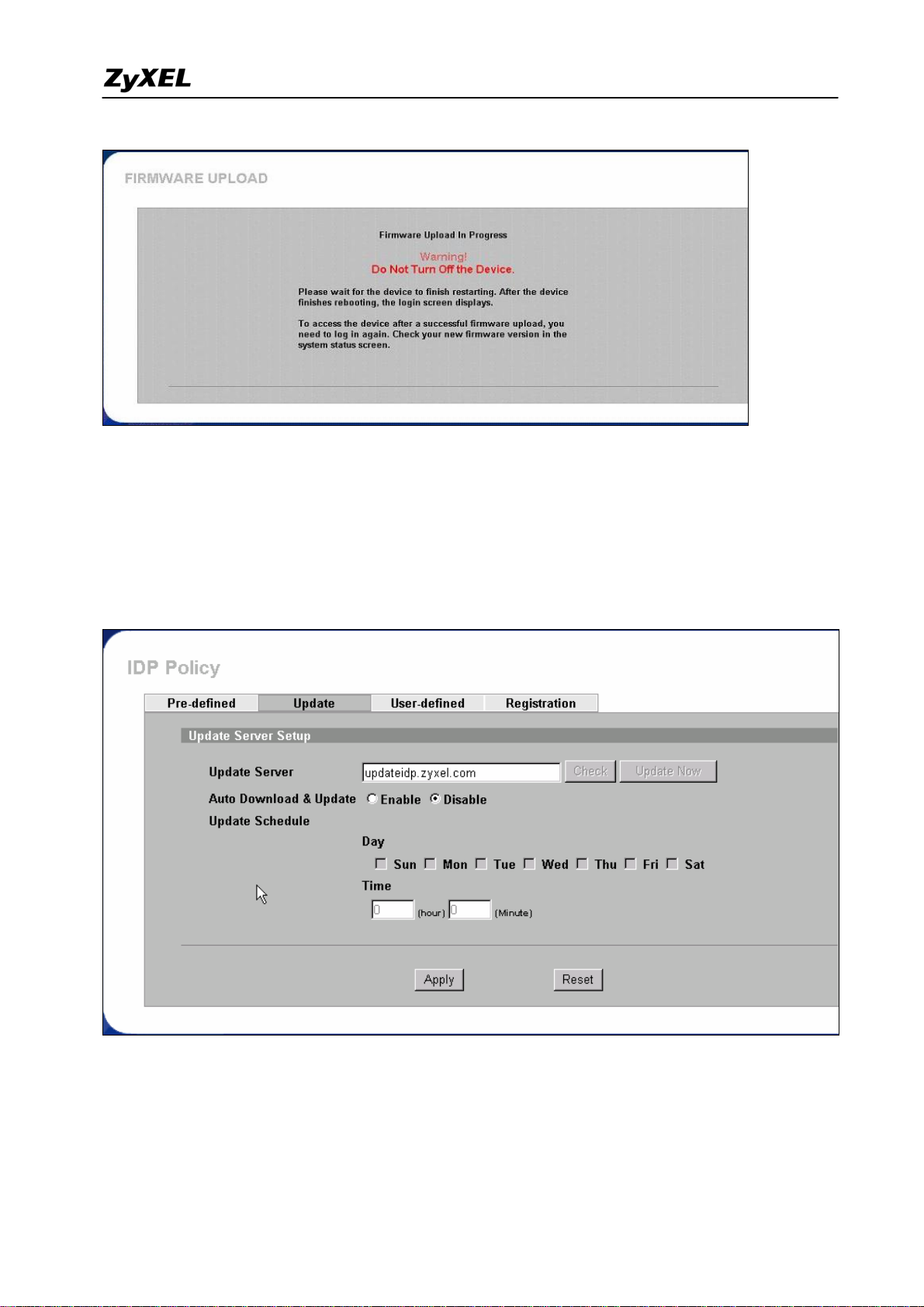

1. Under Maintenance you can find F/W Upload tab.
Click browse to select firmware file (.bin) and click Upload button to start firmware upload.
2. It may take few minutes for firmware upload process to finish.
ZyWALL IDP will reboot when firmware upload completed.
All contents copyright (c) 2004 ZyXEL Communications Corporation.

IDPSupport Notes
17
Signature Update
*Make sure you have registered your ZyWALL IDP before you do the signature update.
To update pre-defined policy for your ZyWALL IDP, login into ZyWALL IDP via HTTP, go to
IDP > Update and enter Update Server’s domain name (updateidp.zyxel.com)
1. You could click Update Now to force ZyWALL IDP to perform signature update immediately.
2. Enable “Auto Download & Update” if you want to perform update during non-peak hour.
All contents copyright (c) 2004 ZyXEL Communications Corporation.

IDPSupport Notes
18
Configure User Defined Policy
In this example, we describe the procedure of using user defined policy. We take eMule
application as an example. eMule is a P2P file sharing application. In the following description we
break down the procedure of how to get and analysis eMule traffic pattern, and how to setup user
defined policy in IDP.
1. Get Ethereal installed on a PC. Ethereal is a freeware packet capturing tool, you can get a
freed download from http://www.ethereal.com.
2. Insert a hub where the ethereal traffic flows.
3. Attach the PC with Ethereal installed on the hub as below.
All contents copyright (c) 2004 ZyXEL Communications Corporation.

IDPSupport Notes
19

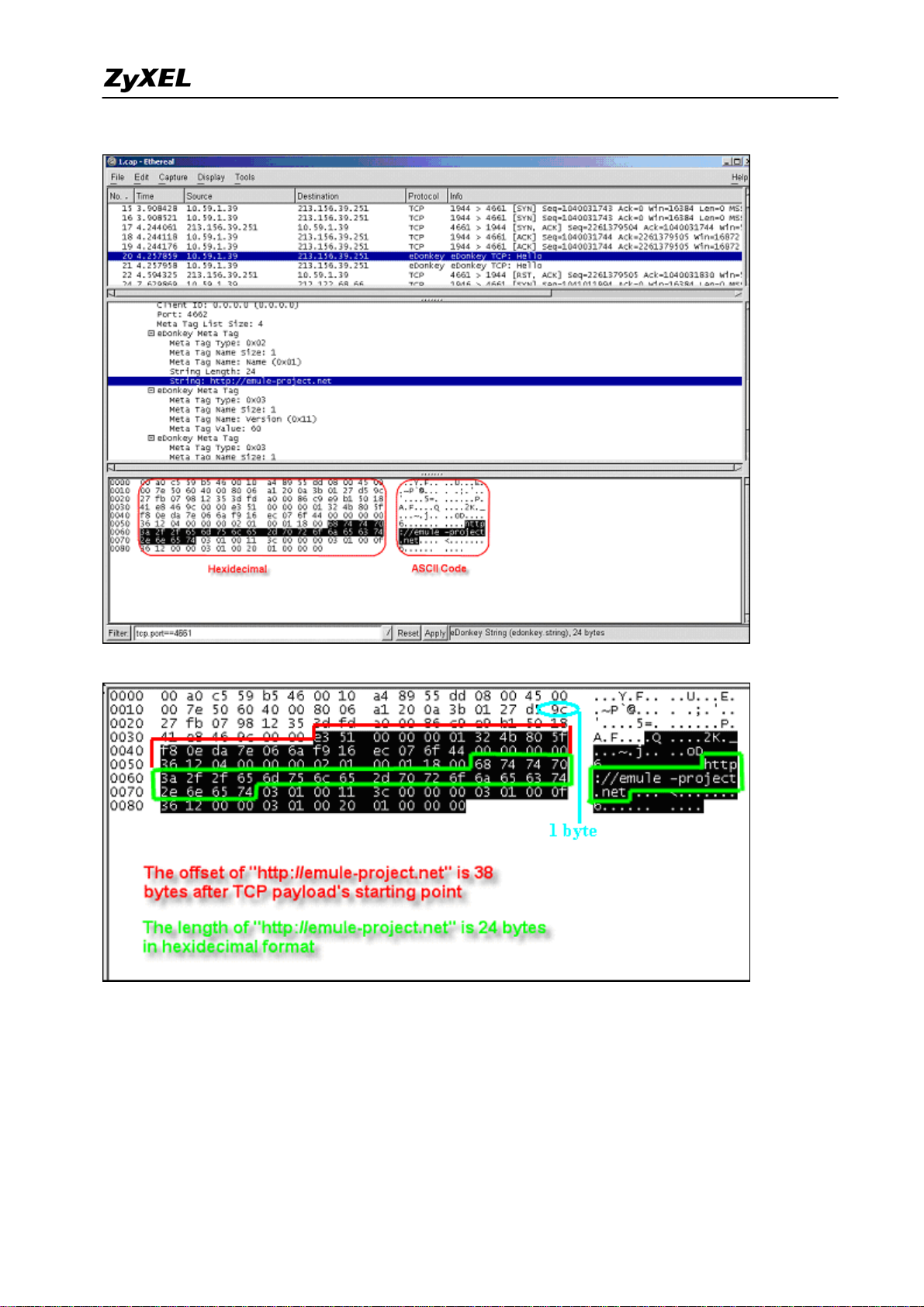

4. Start ethereal packet capturing.
5. Initiate eMule connection from the internal PC, be sure to reduce unnecessary traffic if
possible.
6. Stop packet capturing.
7. Analyze the packet. In ethereal, you will get 3 sub-windows. The first window displays
summary of each packet in time sequence. In the second window, you can check the parsed
details of the selected packet. In the third window, the selected packet is displayed in
Hexadecimal and ASCII format respectively. The basic level to analyze a connection’s pattern
is to trace the ASCII format of the packet.After observing, we can see eMule client sends
“eDonkey TCP: Hello” after TCP three way handshaking. And each time, you can see the key
word of “http://emule-project.net” appears in TCP payload.
All contents copyright (c) 2004 ZyXEL Communications Corporation.

IDPSupport Notes
20
8. Count the TCP offset and the length of “http://emule-prjoect.net”
9. Create User-defined policy in IDP. Login to IDP’s WEB GUI; go to IDP->User-defined. We’ll
create a user-defined policy for TCP protocol, with offset=38 bytes, matching depth=24 bytes.
Please note that the starting point of offset depends on which protocol you select. For TCP
(UDP/ICMP) protocol, the offset starts from the starting points of TCP (UDP/ICMP) payload.
IP and TCP (UDP/ICMP) headers are not included. For IP protocol, the starting point of the
offset is at the end of the IP header (IP header is not included). Press Apply button to save the
policy.
All contents copyright (c) 2004 ZyXEL Communications Corporation.
