NBG-419N
Wireless N Home Router
NBG-419N
Wireless N Home Router
A Green and Easy Way for
Multimedia Enjoyments
Benefits
High-Performance Router for Gaming and Video Streaming
The ZyXEL NBG-419N Wireless N Router features the latest 802.11n technology to offer a cost-
effective solution for users upgrading their networks to the next generation.With a speed six times
faster than the standard 802.11g networks,the NBG-419N provides more stable and reliable wireless
connections for high-speed data and multimedia deliveries.It surely provides a better Internet
experience, and better yet, it’s backward compatible with the existing 802.11b/g networks.
QoS Enhances User Experiences on Network Gaming and Multimedia Streaming
With Wi-Fi Multimedia (WMM) technology, by automatically prioritizing different types of network
traffics to optimal performance, NBG-419N can enhance users’experiences for audio, video and voice
applications over wireless networks.The configurable QoS ensures smooth delivery of gaming, video
streaming,VoIP and downloading,so your most important needs receive the priority you set.
Easy Mode and Expert Mode for Quick Navigation and Setup
Designed with a user-friendly interface, NBG-419N provides the“Easy Mode”for navigating functions,
basic setup tasks and providing a comprehensive network map.With the Easy Mode that simplifies
the system configuration tasks,you can enable or disable the frequent setup options such as Game
Engine, Power Saving, Content Filtering and Bandwidth Management with just one click.Users just
click the On/Off icon to enable the Game Engine function and set the gaming traffic as first priority
to ensure the smooth delivery of gaming over Xbox 360,PlayStation, Battle.net, and MSN Game Zone.
For advanced setup,“Expert Mode” provides full setup options for more detailed configuration.
ł
802.11n Draft Certified,Wireless Speed Up to 300 Mbps*
ł
QoS Enhances User Experiences on Network Gaming and Multimedia
Streaming
ł
Friendly User Interface for Fast Function Navigation and Setup
ł
Easy Control of Home Wireless Access with Wireless On/Off Switch
ł
Eco-friendly Wireless Scheduling Saves Energy
ł
Wi-Fi Protected Setup (WPS) Button to Simplify Secure Network Setup
ł
Enhanced Security with WEP,WPA/WPA2 and Firewall
Powered by an
ENERGY STAR®
qualified adapter
for a better
environment
* The theoretical maximum data transfer rate is 300 Mbps.The actual data transfer rate will vary depending on the network environment.

Green Product with Wireless Control for Energy Savings
Featured with wireless scheduling, the NBG-419N can be configured to turn off according to your wireless usage pattern. It can save unnecessary power
consumption and reduce wireless radiation when wireless connection is not in use. Users can easily set up its wireless usage schedule under Easy Mode.
In addition users can also use the wireless on/off switch on the rear panel to toggle the wireless access in just seconds.
Easy Setup with Wi-Fi Protected Setup (WPS)
Equipped with a Wi-Fi Protected Setup (WPS) push button, establishing a secure wireless network with the NBG-419N could not be easier.The WPS takes only
a few seconds to set up a secure wireless network without any complicated procedure. Instead of entering a pass phrase, users can authenticate a new device
on the network by pressing a button or by entering an automatically generated PIN code.With the button option, users could even setup the wireless
configuration and encryption with just a simple click.
Six-level Neighbor-friendly Wireless Output Power Control
The NBG-419N makes it easy to adjust the output power to reduce interference with neighboring access points within high wireless density areas.The NBG-
419N’s six-level output power control capability makes you a good wireless neighbor starting from the first day having it installed.
Enhanced Security with WEP,WPA/WPA2 and Firewall
64/128-bit WEP,and WPA/WPA2 are supported to provide stringent protection for wireless transmissions. In addition, the NBG-419N is equipped with firewall
features including DoS (Denial-of-Service), Network Address Translation (NAT), VPN Pass-through (IPSec, PPTP, & L2TP) to prevent attacks from the Internet.
NBG-419NNBG-419N
Wi
re
l
ess N H
o
me R
o
uter
System Specifications
WLAN Feature:
• 802.11b/g and 802.11n draft
• Wi-Fi Protected Setup (WPS)
• Wi-Fi Multimedia (WMM)
• Wireless scheduling
• Wireless security: 64/128 bit WEP,WPA/WPA2
• Mac address filtering
Routing:
• NAT
• DoS Prevention Firewall
• Connection type: Static IP, DHCP, PPPoE, PPTP,
L2TP
• DHCP server/client
• IGMP v1/v2
• Dynamic DNS
• Bandwidth management
• VPN pass-through (IPSec,PPTP, L2TP)
• UPnP
• Diagnostic logs
Hardware Specifications
• LAN: Four 10/100 Mbps Ethernet RJ-45
connector with auto MDI/MDIX support
• WAN: One 10/100Mbps Ethernet RJ-45
connector with auto MDI/MDIX support
• Two 2 dBi external detachable dipole antennas
• Wireless on/off switch
• WPS push button
• Reset button
• Power: DC 12 V, 1A
• Power consumption: 6 Watt max
Physical Specifications
• Item weight: 252 g (0.56 lb)
• Item dimensions:
162 (W) x 115 (D) x 33 (H) mm
(6.38 (W) x 4.53 (D) x 1.3 (H) inch)
• Packing weight:785g (1.73 lb)
• Packing dimensions:
273 (W) x 230 (D) x 68 (H) mm
(10.75 (W) x 9.05 (D) x 2.68 (H) inch)
Environmental Specifications
• Operating environmental:
- Temperature: 0ºC ~ 40ºC/32ºF ~ 104ºF
- Humidity: 20% ~ 90% (Non-condensing)
• Storage environmental:
- Temperature: -30ºC ~ 70ºC/-22ºF ~ 158ºF
- Humidity: 20% ~ 95% (Non-condensing)
Certification
• Safety: CE LVD
• EMC: CE, FCC, IC, NCC
• Others:Wi-Fi 11b/g/n,WMM,WPS,Vista baseline
Package Contents
• Wireless router
• Two removable antennas
• Power adapter
• Ethernet cable
• Quick start guide
• Support CD
• Warranty card
Specifications

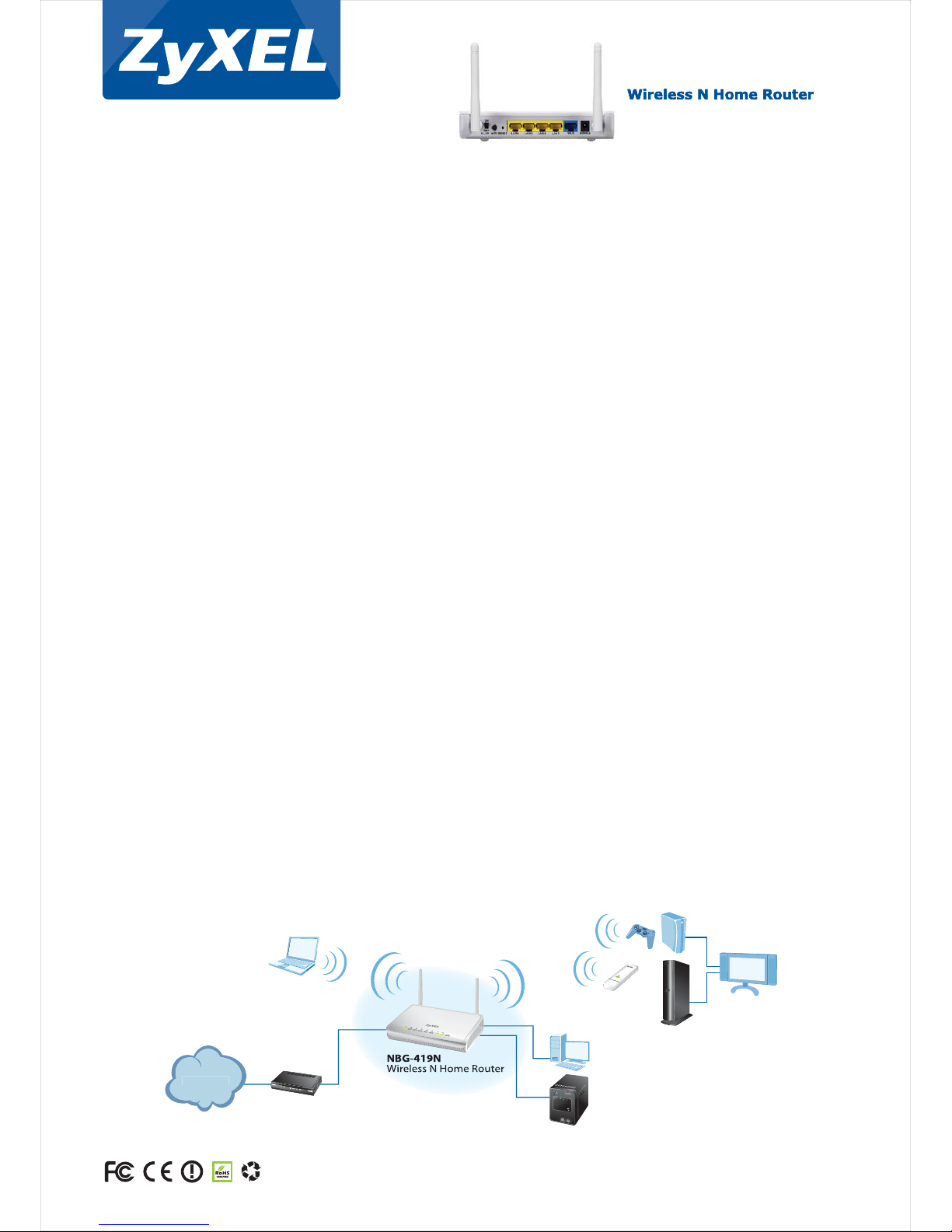

Application Diagram
65-100-041901B 04/09
For more product information, visit us on the web at www.ZyXEL.com
Copyright © 2009 ZyXEL Communications Corp. All rights reserved. ZyXEL, ZyXEL logo are registered
trademarks of ZyXEL Communications Corp. All other brands, product names, or trademarks mentioned are the
property of their respective owners. All specifications are subject to change without notice.
xDSL/Cable Modem
Game
Console
In
t
erne
t
D
MA-2
500
Full HD Di
g
ital Media Streame
r
N
S
A-22
0
P
lus
Central Digital
Media Library
NWD-211AN
D
ua
l
-
b
an
d
W
ire
l
ess N
U
SB A
d
apter
