1 BY ONE 200UK-0007 User manual

Amplied Digital Indoor HDTV Aerial
Model 200UK-0007
Congratulations!You have just purchased the nest, technologically advanced,
easy-to-install HD digital aerial for indoor use. 1byone® products have been
rated “best sellers.”We hope your investment in this quality aerial will give you
and your family years of enjoyment. Thank you for your purchase and your
support. We invite you to visit our website at www.1byone.com for other
high-quality products.
Package Contents -
Aerial with 3-meter coaxial cable
Aerial stand
Two 3M stickers
Instructional Manual
Detachable Amplier
Switching 5V 200mA Adapter
www.1byone.com
2. Mount Aerial
Find a convenient indoor location to mount your aerial then, set up the channels in the following,
“Scan For Channels”step below.
Note: Test your aerial location after scanning for channels & before nal mounting with the 3M
mounting stickers. In some instances, you may decide to relocate the aerial for better reception. See
“Aerial Placement Options and Tips”below.
If you do not want to mount the aerial to the wall or to a window, you can use the included
accessory aerial stand for convenient desk or tabletop placement.
3. Scan for Channels
A. In the TV’s setup menu, set the mode to Aerial or Air. Refer to the TV manual for detailed
instructions.
B. While in the TV’s setup menu, set TV to scan for channels.This can sometimes be listed as
auto-program, channel search or channel scan. Consult yourTV manual for detailed instructions.
Aerial Placement Options and Tips
TV reception and quality depends on the distance from the transmitting tower to your home.
Surrounding environments may also aect signal strength and reception.
If your reception is sporadic or needs to be improved, try the helpful tips below,
1. Placing the aerial in a higher location may result in better reception.
2. Placing the aerial facing the broadcast tower may result in better reception.
3. Placing the aerial close to or on a window may also result in better reception.
Important:
Always re-scan for channels whenever you move your aerial.
Frequently Asked Questions
How many channels can I receive?
The number of channels you can receive will be determined by what is being broadcast in your area.
Channel reception will vary from location to location based on terrain (including trees, buildings,
hills and mountains). The fewer obstructions, the better your chance of receiving strong digital
signals. Go to http://www.digitaluk.co.uk/. Enter your address for a listing of likely channels
available in your area.
Do I need to use the External Amplier?
The amplier can enhance signals weakened by obstructions between you and the broadcast towers.
If your TV picture is not crystal clear, or you are unable get weak signals from distant towers, you
need to use this amplier to boost the weakened signals.
Note: We do NOT recommend using the amplier if your house is very close to the broadcast tower
and the signal is already very strong. A booster will cause self-oscillation and you may actually end
up getting fewer signals than without it.
Will all the channels I receive be High Denition (HD)?
Not all digital signals are High Denition (HD). Make sure you are using a High Denition Television
(HDTV) with built in DVB-T tuner. When connecting the aerial to a third-party receiver, make sure it
is capable of receiving HD. Otherwise no HD channels can be picked up.
Copyright ©2015 1byone Products, Inc. All rights reserved
Will the picture be better than cable?
All cable companies compress their HD signals. The result is a degraded signal that is usually inferior to
DVB-T broadcast. Many factors determine whether your picture quality will be better in every instance.
However, your picture quality should greatly improve using your 1byone® DVB-T compatible digital aerial.
Can I connect the aerial to multiple televisions?
Yes. However, the signal should only be split between multiple HDTVs if using an amplied aerial.
Troubleshooting
What if I can’t receive a signal with my 1byone® aerial?
1. Check to make sure you have correctly connected the aerial to your HDTV or third-party HD receiver.
See the Setup Guide under,“Connect the Aerial and Amplier”in this manual.
2. Re-Scan for Channels. See the Setup Guide under,“Scan for Channels”in this manual.
3. Reposition the aerial in a dierent location. Maybe higher on a wall or close to a window
Facing the direction of the broadcast tower is usually best. Signal strength will vary based
on certain conditions. Distance from the tower, hills, buildings and even tall trees can impact
reception. Always re-scan for channels after moving the aerial.
4. This is an amplied aerial. If a signal cannot be received with the external amplier, remove the
amplier and try again. In some instances, the amplier may cause self-oscillation, which may interfere
with the signal.
One channel is missing.
1. Something may be obstructing the signal. Move the aerial, then re-scan for channels.
2. Try turning the aerial 10 or 20 degrees in either direction to avoid reection, then re-scan for channels.
The picture or sound freezes while I am watching a channel, or there are boxes in the picture.
This is often caused by a weak or intermittent signal. Try moving the aerial to a dierent location or
aiming it in the direction of the broadcast tower for that channel.
For Optimal Performance
Place your 1byone® aerial in the location with the strongest reception. Typically this will be on a window
and facing the broadcaster’s tower. A television signal can become weak or intermittent by trying to pass
through walls that are exceptionally thick or contain large amounts of metal. Your 1byone® aerial can
usually pick up the stronger signals from almost any direction. Experiment with dierent walls and even
dierent rooms to nd the best location to mount your aerial. To check the exact distance from your
residence to the nearest tower, go to - http://www.digitaluk.co.uk/ and type in your zip code.You
will then have a better idea of what you should expect in the way of reception. If there are multiple tower
locations, optimize the position of your 1byone aerial by pointing it in the direction of the weakest signal
(usually the farthest away from you).
Distributed by
1byone® Products, Inc.
2313 E Philadelphia St, Ontario, CA 91761
www.1byone.com
®
50 mile maximum range possible. Individual experiences may vary.
尺寸：355.5X216mm说明书形式为三折页 材质：铜版纸120g
正面背面

1
Power Option
For USB
Power Cable
For use when no
USB port is available
on the TV.
Supplied USB
Power Adapter
1.5-meter USB Power Cable
from External Amplier
3
1.5-meter USB Power Cable
3-meter Coaxial Cable
Aerial
To ANT/IN or CABLE IN on back of TV
External Amplier
To ANT/IN or CABLE IN
on back of TV
3-meter Coaxial Cable
from Aerial
Detailed
View
1.5-meter USB
Power Cable
To USB
on back of TV*

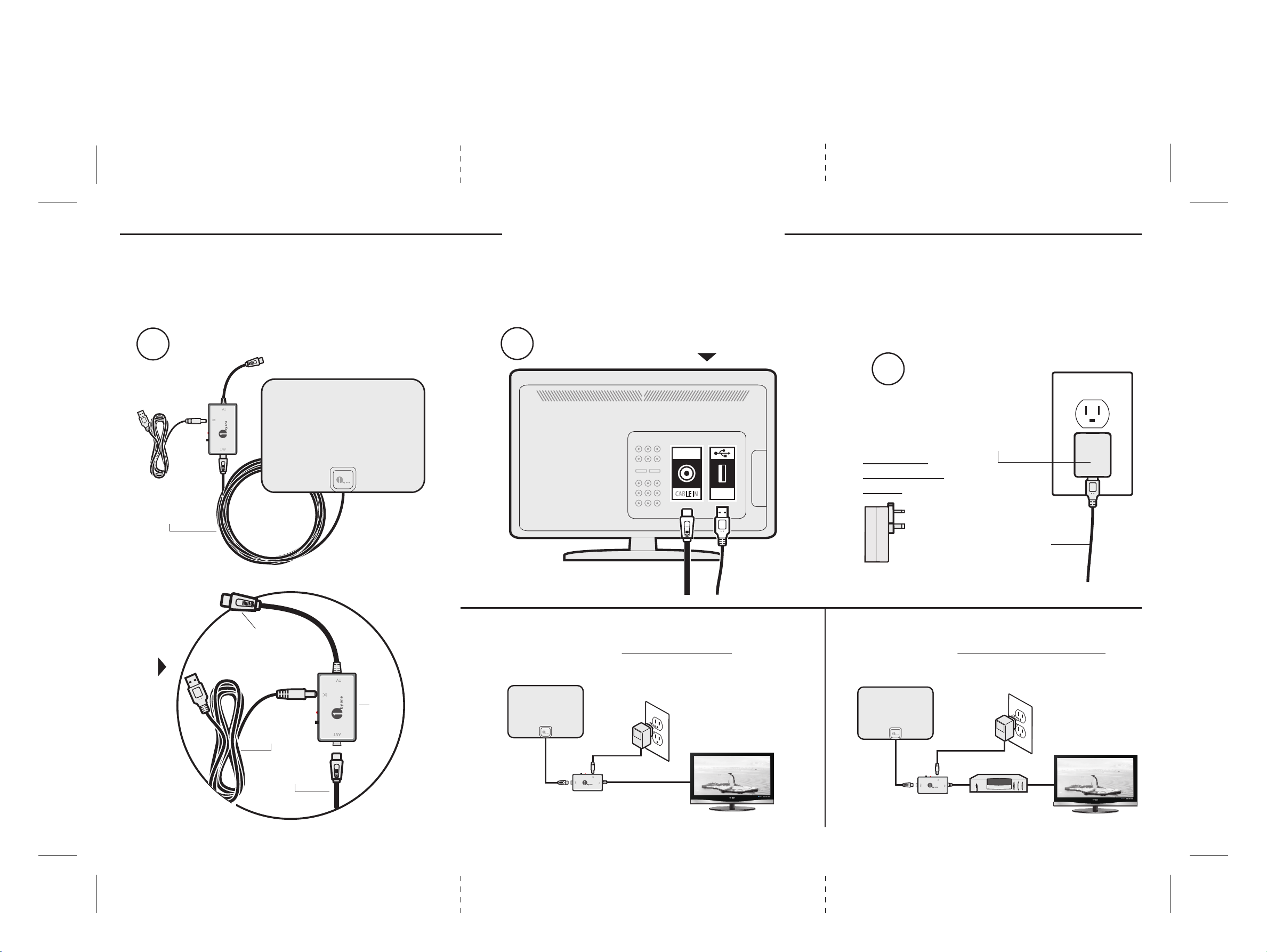

A. Attach the 3-meter long coaxial cable from the aerial to the external amplier
