Glomex RHEA V8100S2 Operating manual

RHEA V8100S2
DVB-S2 MARINE SATELLITE TV
ANTENNA
USER AND INSTALLATION MANUAL

RHEA V8100S2
36 www.glomex.it
ENGLISH

RHEA V8100S2
37
www.glomex.it
ENGLISH
INDEX
1. FOREWORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
1.1 DELIVERY LETTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
1.2 ANTENNA IDENTIFICATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
1.3 WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
1.4 GENERAL SAFETY RULES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
1.5 ENVIRONMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
2. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
3. CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
3.1 OPTIONAL ACCESSORIES (NOT INCLUDED) TO USE GLOMEX ANTENNAS. . . . . 43
4. NECESSARY TOOLS FOR ASSEMBLY (NOT PROVIDED) . . . . . . . . . . . . . . . . . . . . . . 43
5. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6. ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
6.1 LOWER RADOME CUTTING TEMPLATE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
6.2 CUTTING TEMPLATE FOR BUILT-IN INSTALLATION OF THE CONTROL UNIT . . . 51
6.3 SKEW CALIBRATION (MANUAL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
6.4 SKEW ADJUSTMENT GRID FOR EUROPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
7. USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
8. TIPS FOR CORRECT USAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
8.1 FOOTPRINTS: SATELLITE TRANSMISSION AREAS . . . . . . . . . . . . . . . . . . . . . . . . . 58
9. MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
9.1 PREVENTIVE MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
9.2 SPARE PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
9.3 SOFTWARE UPDATE BY SD CARD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
9.4 REPLACING THE POWER SUPPLY PROTECTION FUSE . . . . . . . . . . . . . . . . . . . . . 63
10. TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
11. RESHIPPING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
12. TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
13. TECHNICAL SUPPORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

RHEA V8100S2
38 www.glomex.it
ENGLISH

RHEA V8100S2
39
www.glomex.it
ENGLISH
1. FOREWORD
1.1 DELIVERY LETTER
Welcome: with the installation of this antenna, the
world of satellite television comes on board your
boat.
This manual has been drafted in order to help you
with the correct installation and operation of the
antenna.
1.2 ANTENNA IDENTIFICATION
When calling GLOMEX or an authorized Service
Centre, always provide the serial number and the
model of the antenna, shown on the second page
of the manual, on the packaging, on the backside
of the dish, under the control unit and under the
power supply.
1.3 WARRANTY
GLOMEX guarantees the RHEA V8100S2 satellite
antenna series against conformity defects for a
period of 24 (twenty-four) months from the date of
shipment.
Warranty is intended as the repair or replacement
of the equipment showing conformity defects when
entering the sales contract, with no charge for the
materials.
In case of conformity defects, the customer is enti-
tled to the replacement of the goods with no
charge.
The warranty is only valid if the product comes
with a valid proof of purchase (receipt or
invoice).
The non-conforming product must be sent back to
a Service Centre or authorized retailer, who will for-
ward it to:
GLOMEX S.r.l.
Via Faentina 165/G
48124, Ravenna (Italy)
along with all the accessories supplied at pur-
chase.
The serial number must neither be erased nor
made illegible, otherwise the warranty will be
voided.
SWARNING
Conserve the installation and user manual with
care! Losing the serial number makes the warranty
null and void!
The warranty does not apply in case of damage
due to carelessness, use or installation not compli-
ant with the instructions given, tampering, product
or serial number modification, damage due to acci-
dental causes or to the buyer’s negligence.
Moreover, warranty does not apply in case of dam-
age consequent to connections of the equipment to
different voltages than those indicated or to sudden
voltage variations of the network the equipment is
connected to, as well as in case of damage caused
by leakage, fire, inductive/electrostatic discharges
or discharges due to lightning, use of cables differ-
ent to those provided, overvoltages or other phe-
nomena not related to the equipment.
The parts subject to wear consequent to use such
as connection cables, driving belts, connectors,
external parts and plastic supports are covered by
a one-year period warranty.
The following are not covered by warranty: periodic
monitoring, software updates, settings of the prod-
uct, maintenance.
After the expiration of the warranty period, the tech-
nical support activities will be carried out charging
the customer for the replaced parts, the labour
costs and freight charges, according to current
rates.
The equipment will be replaced or repaired
under warranty only and exclusively on Glomex
quality department’s approval.
Should any dispute rise, the place of jurisdiction will
exclusively be Ravenna (Italy).
The warranty is provided by:
GLOMEX S.r.l.
Via Faentina 165/G
48124 Ravenna (Italy)

RHEA V8100S2
40 www.glomex.it
ENGLISH
1.4 GENERAL SAFETY RULES
Carefully read the instructions given and follow the
precautions indicated to prevent potential hazards
and to safeguard your health and safety, before
carrying out any installation and maintenance oper-
ation.
This manual contains the following indications:
SWARNING
This symbol warns against potential damage to the
equipment which could involve the operator’s
safety.
SDANGER
With specific warnings against potential dangers
for the safety of the operator or other directly
involved persons.
Failure to comply with the instructions preceded by
the above-mentioned keywords (WARNING and
DANGER) can cause serious accidents or even
the death of the persons involved.
Moreover, in this Manual, some instructions are
given with text in italics, preceded by the word
NOTE.
The information and specifications given in this
manual are based upon the information available at
the moment it is written.
In case of doubts, do not hesitate to contact
GLOMEX S.r.l.
1.5 ENVIRONMENT
Do not throw the appliance away with the normal
household waste at the end of its life, but hand it in
at an official point for recycling. By doing this, you
will help preserve the environment.
Fig. 1

RHEA V8100S2
41
www.glomex.it
ENGLISH
2. PRODUCT DESCRIPTION
Rhea has been updated with DVB-S2 technology
in order to be able to receive channels in 4K
ULTRA HD and ensure high standards in the acqui-
sition and maintenance of the signal. Rhea has a
470 mm satellite dish and extremely low energy
consumption (12 Vdc - 1.5 A/h). Rhea is a gyro-sta-
bilised antenna equipped with a new high perfor-
mance satellite dish of the HPD (High Performance
Dish) series, combined with the new signal search
software and innovative STO (Silent Tracking
Operation) system for reducing noise. Rhea has
been improved both mechanically and electroni-
cally. The antenna is in fact designed to get an ele-
vation range (-9° / +81°) able to increase receptive
power of the signal even at the northern European
latitudes. The new electronics also allow the
antenna to compensate any loss of quality due to
the increase in number of orbiting satellites and to
the transmissions on the same frequencies, and to
operate in total silence. Simple to install since there
is only one coaxial cable (SCC) that directly con-
nects the antenna to the TV, Rhea with 3 pre-
uploaded satellites (Astra1, Astra2, Hotbird) easy
to select from the control unit is factory-ready to
download new satellites and future updates
through the SD card slot on the control unit.

RHEA V8100S2
42 www.glomex.it
ENGLISH
3. CONTENTS
The satellite antenna is sent packed in a cardboard
box and sealed with the GLOMEX “SAFETY SEAL”
hoop, which has the function of CONTENT WAR-
RANTY seal.
Upon receipt, check that:
- the packaging is whole and the warranty hoop is
present;
- the supply matches the order specifications;
- the antenna and its accessories are not dam-
aged.
In case of damage or missing parts, immediately
inform the Retailer, if possible with appropriate
photos.
The table below lists the components contained in
the package, indicating the quantities and the
GLOMEX code (if provided).
Satellite receiver (not
provided)
Fig. 1
RHEA V8100S2
Component GLOMEX code
RHEA V8100S2 antenna unit (1) 3.010.0032
Base seal (2) 4.010.0415A
Fastening reinforcements (4 pcs) (3) 4.020.0247
M8 self-locking nuts (4 pcs) (4) 4.100.0019
Control unit (5) 4.120.0228
Frame for built-in installation (6) 4.010.0008
10 m cable for antenna - control unit connection (7) V9140/10
1.5 m cable for control unit - satellite receiver (8) V9143

RHEA V8100S2
43
www.glomex.it
ENGLISH
3.1 OPTIONAL ACCESSORIES (NOT INCLUDED) TO USE GLOMEX ANTENNAS
To be able to use your new GLOMEX satellite
antenna for boats, you will have to procure or buy
also:
- a TV set;
- a satellite receiver for channel selection.
The table below lists all the GLOMEX optional
components, with relevant code.
4. NECESSARY TOOLS FOR
ASSEMBLY (NOT PROVIDED)
Procure all tools and materials listed below. They
will be necessary to complete installation.

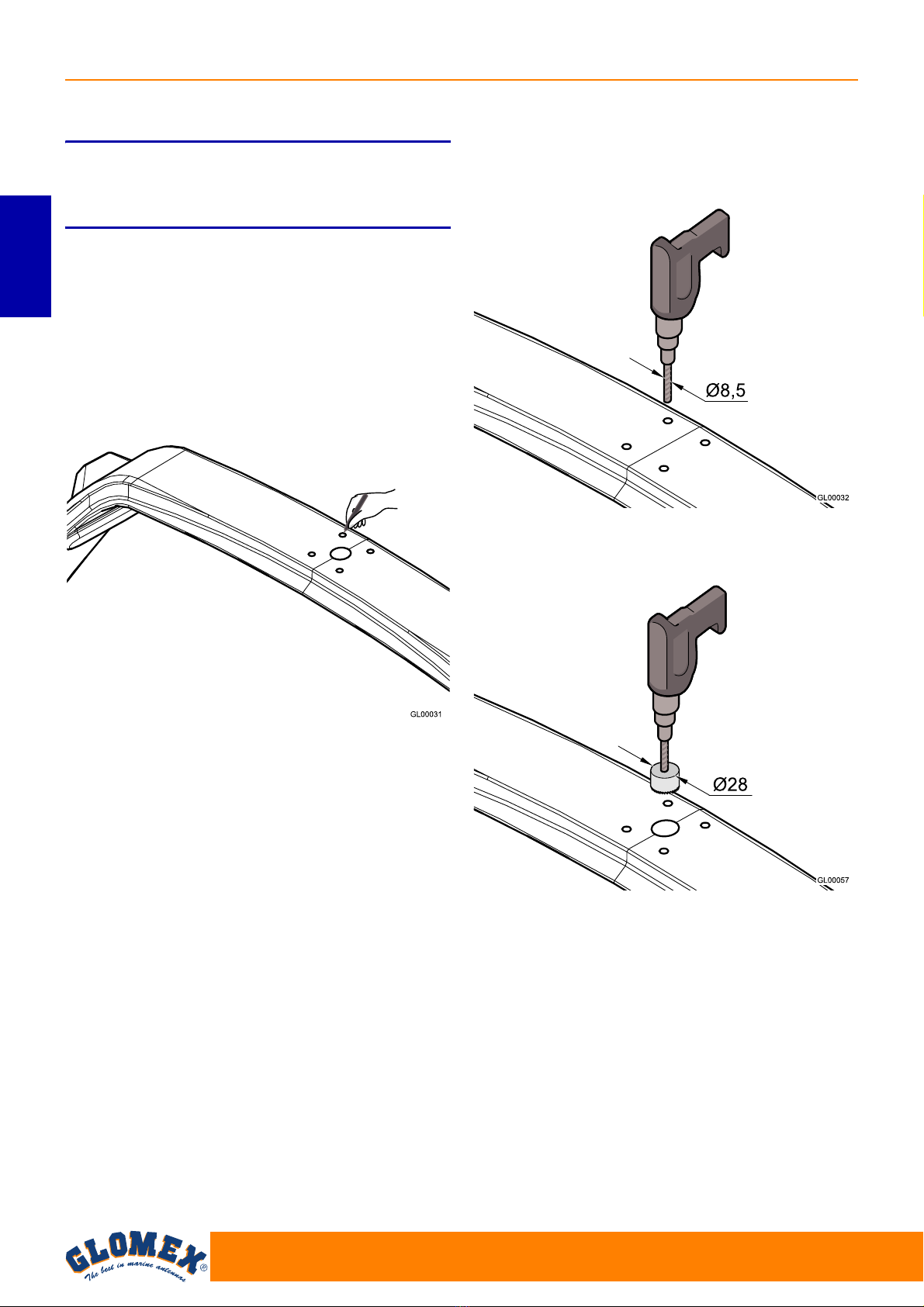

- Electric drill (1).
- 8.5 mm drill tip for radome assembly (2).
- 28 mm hollow mill for drilling the passage hole
for the antenna connector cable (3).
- Phillips screwdriver (with adequate dimensions
for control unit installation) (4).
- 11 mm wrench (for the installation of the coaxial
cable connectors) (5).
- Reciprocating saw (to create the compartment
in case of wall built-in installation of the control
unit; use the template provided on page 51) (6).
SWARNING
Plan the whole installation before proceeding!
Please consider the lay-out of the various compo-
nents, the distance between them, the length of the
various cables and the accessibility to the equip-
ment once it is installed.
SWARNING
Always lift the antenna from the lower radome and
never from the upper radome or any part inside it.
Optional accessory GLOMEX code
SD card with new satellite 4.120.0077
SD card with software update 4.120.0078
Stainless steel support 0°- 5° V9500
Twin radome V8100S2TWIN
Fig. 2
Upper radome
Lower radome

RHEA V8100S2
44 www.glomex.it
ENGLISH
5. INSTALLATION
Before proceeding with the installation, please
respect the following guidelines:
- please remember that the best position for the
satellite TV antenna is in the middle of the boat,
in the lowest possible position.
- minimize obstruction. The antenna requires a
clear view of the sky in order to receive satellite
TV signals. The fewer the obstacles, the better
the system operation.
Any foreign body (flags, antennas, radar anten-
nas, sailboat masts, cranes, bridges, etc.)
between the antenna and the satellite obstructs
the signal and prevents correct receipt.
- make sure that the mounting surface is wide
enough for the antenna base to be installed.
- make sure that the mounting surface is resistant
and rigid enough to support the weight of the
antenna and the vibrations which could occur.
- do not install the antenna near speakers or mag-
netic sources. In case it is not possible, it is nec-
essary to compensate the magnetic source,
paying attention not to interfere with the on-board
compass.
- the antenna requires a lifting angle between -9°
and 81° to receive satellite signals (Fig. 3).
Typical antenna lifting
Roll-bar
Fig. 3
TV antenna
Obstructed signal!
Fig. 4
NORTHERN EUROPE (~ 15°) CENTRAL EUROPE (~ 35°) SOUTHERN EUROPE (~ 50°)

RHEA V8100S2
45
www.glomex.it
ENGLISH
- please also consider the position of the antenna
with respect to the position of all various attach-
ments or wiring harnesses inside the boat.
- the control unit should be mounted in a conveni-
ent position for the adjusting operations. It should
be near the receiver/TV-set unit, so that the TV
screen may be watched while carrying out the
operations on the control unit.
SWARNING
The radio frequency beam transmitted by the radar
may damage the inner electronics of the antenna,
especially the LNB.
We recommend not to install the antenna at the
same level of the radar, as the radar’s energy
could damage the antenna. The antenna should
be positioned at a distance of at least 1.5 m from
the other transmitting antennas (VHF, radar) (Fig.
5).
Fig. 5
OK NO
Typical radar vertical
irradiation angle

RHEA V8100S2
46 www.glomex.it
ENGLISH
6. ASSEMBLY
SDANGER
While installing the antenna, wear the appropriate
safety equipment for the job to be carried out.
1. First of all, make sure you have chosen a cor-
rect position to install the antenna (see section
5: “Installation”).
2. Remove the antenna from the packaging box.
3. Use cutting template 6.1 on page 50 and use a
felt-tip pen to mark the holes for the screws
coming out of the antenna and for and cable
passage.
4. Drill the 4 holes for the passage of the 4 screws
coming out of the antenna using an electric drill
and a 8.5 mm drill tip on the supporting surface.
5. Drill the hole for cable passage by means of an
electric drill and a 28 mm hollow mill.
6. Position the rubber seal so that the holes
match.
Fig. 6
Fig. 7
Fig. 8

RHEA V8100S2
47
www.glomex.it
ENGLISH
7. Position the antenna onto the seal, and firstly
insert the cable through the relevant hole, then
the 4 screws, and pay attention to direct the ori-
entation symbol of the antenna towards the
bow.
8. Install the fastening reinforcements onto the
threaded bars and screw in the M8 self-locking
nuts.
9. Completely tighten.
SWARNING
GLOMEX declines any liability for an incorrect
mounting of the radome on the boat.
10. Connect the 10 m coaxial cable to the cable
coming out of the antenna.
Should it be necessary to shorten the cable,
please refer to the instructions given in Fig. 11.
SWARNING
Do not pull nor damage the cable coming out of the
antenna! It is not provided with an outer sheath as
the 10 m coaxial cable!
11. Make sure that the cable core is correctly
inserted in the central hole of the female con-
nector on the antenna (otherwise, there could
be a short circuit and the fuse installed on the
power supply line inside the control unit would
trip).
Manually screw in the ring nut of connector F.
Once the ring nut has been manually screwed
in, tighten by ¼ turn by means of a 11 mm
wrench.
NOTA: For the connection of the antenna coaxial
cable, it is not necessary to remove the upper
radome!
Fig. 9
Fig. 10
GL00095
Fig. 11

RHEA V8100S2
48 www.glomex.it
ENGLISH
SWARNING
For a correct assembly, respect the installation
direction indicated in Fig. 9.
A different installation from the recommended one
could cause an incorrect operation of the antenna
due to the risk of water penetration into the
radome.
Operations to be carried out inside the boat.
1. Determine the correct position for the control
unit:
- it must be positioned near the satellite
receiver, as the provided coaxial cable is 1.5
m long;
- it must be reached by the power supply
cables coming from the control panel;
- it must be reached by the coaxial cable com-
ing from the antenna (10 m long);
- it must be positioned in a dry and ventilated
area.
2. Connect the coaxial cable of the antenna (pre-
viously installed) to the ANTENNA IN input on
the control unit and the 1.5 m coaxial cable to
the RECEIVER OUT output on the control unit.
Make sure that the cable cores are correctly
inserted in the central holes of the relevant
female connectors on the control unit (other-
wise, there would be a short circuit and the fuse
installed on the power supply line inside the
control unit would trip).
Manually screw in the ring nuts of connectors F.
Once the ring nuts have been manually
screwed in, tighten by ¼ turn by means of a 11
mm wrench.
SWARNING
The inversion of the two cables jeopardizes the
operation of the equipment. Make sure you have
correctly installed the coaxial cables. In case of
damage, GLOMEX will not be directly liable for the
damage suffered by the receiver.

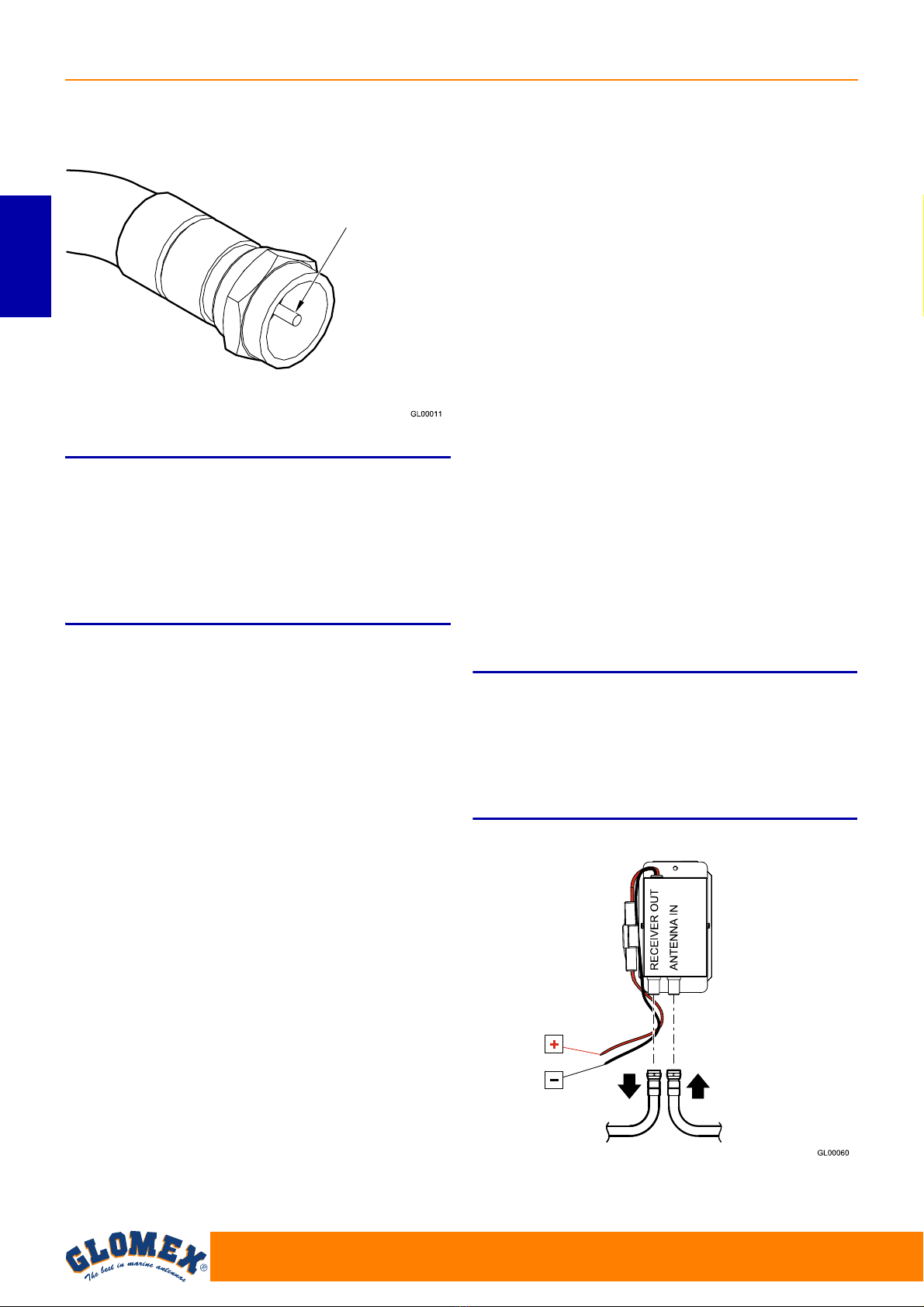

Central coaxial cable con-
ductor
Fig. 12
From the
antenna
To the satellite
receiver
Fig. 13
Power supply
cable
Red
Black

RHEA V8100S2
49
www.glomex.it
ENGLISH
3. Connect the power supply cable (12 V) to a free
switch for the on-board electronic devices (min.
5A): connect the positive terminal to the red
cable and the negative terminal to the black
cable. The power supply line must have cables
with a minimum cross section of 2.5 mm2with a
length up to 4 m, of 4 mm2for longer cables.
SWARNING
Do not use power supply from secondary circuits.
This could jeopardize the operation of the equip-
ment.
NOTA: The polarity inversion on the power supply
blows the fuse to prevent any damage to the
antenna.
SWARNING
Pay attention not to bend the coaxial cables at a
right angle; the bending angle must always be
higher than 120°.
SWARNING
The V8100S2 antenna is designed to operate with
a single decoder; therefore, do not install signal
splitters upstream or downstream the control unit.
NOTA: Do not cut the connectors of the coaxial
cables (the operation would not be guaranteed any
more) and always use the original GLOMEX cables
supplied, even with inappropriate dimensions (too
long). Do not use different cables, as it would
jeopardize the operation of the equipment.
4. Build in the control unit by using the GLOMEX
accessory (code 4.010.0008) by boring a hole
with a reciprocating saw and using the drill with
2.5 mm tip (use the cutting template in Fig. 17
for correct dimensions).
5. Connect the 1.5 m coaxial cable to the satellite
receiver.
NOTA: Maximum wall thickness for mounting the
control unit: 20 mm.
SWARNING
If the control unit led flashes alternately red and
green, there is no communication between the
antenna and the control unit.
It is therefore necessary to check that the connec-
tion cable between antenna and control unit is cor-
rectly fastened and is not interrupted or short-
circuited.
Fig. 14
Fig. 15

RHEA V8100S2
50 www.glomex.it
ENGLISH
6.1 LOWER RADOME CUTTING TEMPLATE
Fig. 16

RHEA V8100S2
51
www.glomex.it
ENGLISH
6.2 CUTTING TEMPLATE FOR BUILT-IN INSTALLATION OF THE CONTROL UNIT

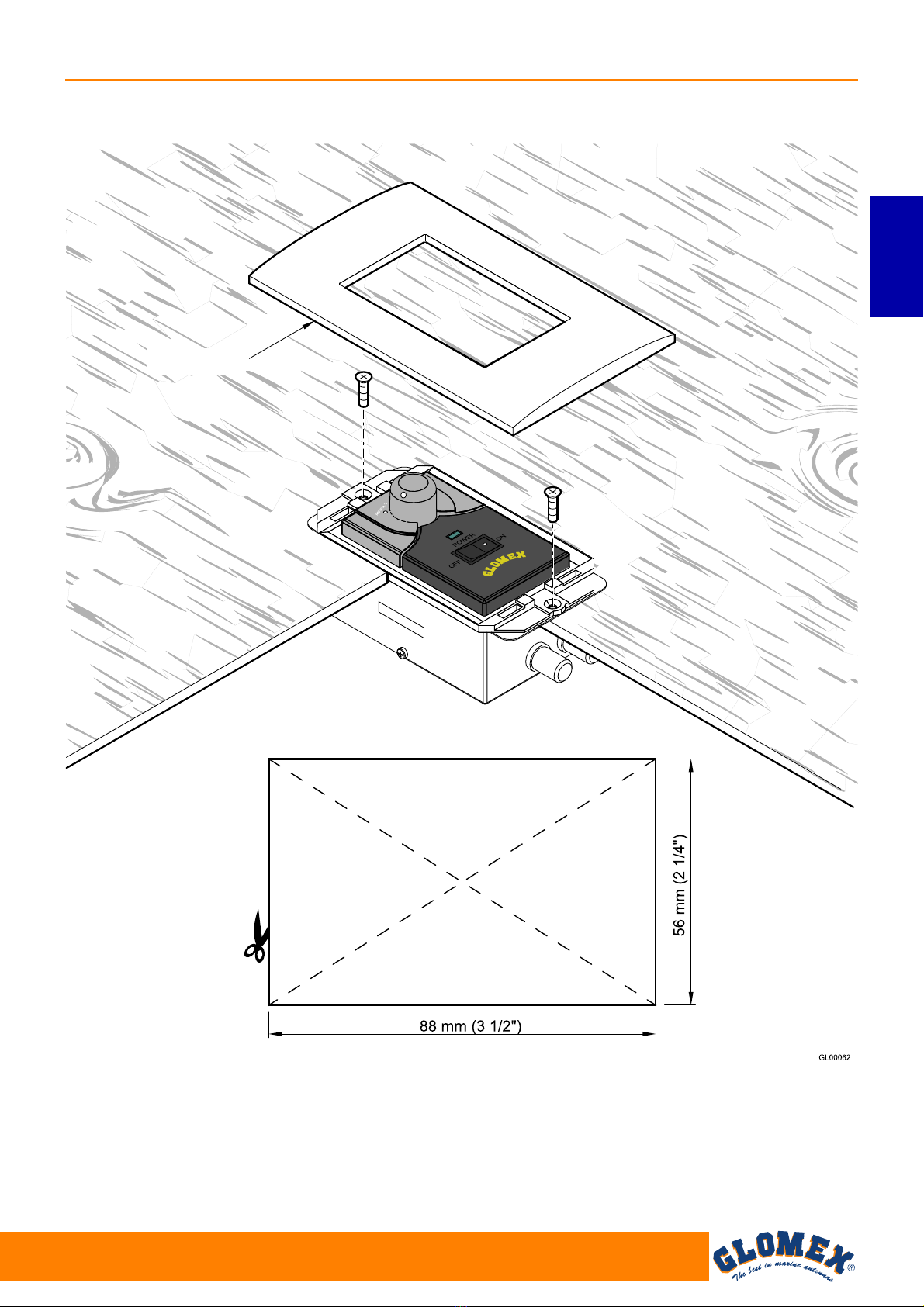

Fig. 17
4.010.0008

RHEA V8100S2
52 www.glomex.it
ENGLISH
6.3 SKEW CALIBRATION (MANUAL)
Satellites can transmit in linear (Europe) or circular
(USA) polarisation. GLOMEX antennas are
designed to operate with a linear or circular polari-
sation according to the installed LNB, depending
on the satellite whose transmission you want to
receive and on where you are positioned.
Circular polarisation does not require any calibration
for the optimization of the received signal.
On the contrary, LNB operating with linear polarisa-
tion need calibrating upon installation, in order to
optimize the alignment of the LNB with the satellite
whose transmission you want to receive.
When you are at the same longitude of the satellite,
its horizontal and vertical signals are aligned with
the horizon. When the satellite is east or west of
your position, the signal of the satellite will appear
as clockwise or counterclockwise shifted. Both the
horizontal and the vertical signal will be shifted by
the same angle, and therefore they will always be
perpendicular to each other.
The degree of rotation will depend on the distance
to the east or to the west between the position of
the antenna and the position of the satellite, and on
your distance from the equator.
Once you move to an area with a longitude more
than +/- 10° from the previous position, the LNB
must be manually adjusted in order to obtain the
best possible signal.
Antennas are delivered with the LNB optimized for
an area with longitude 12° East while receiving sat-
ellite 13° East.
For the adjustment of the LNB, proceed as follows:
- loosen the screws on the radome and remove it
from the base;
- loosen the 2 screws fastening the LNB to the dish
(see Fig. 19) and manually move the dish, using
the parameter of signal quality of the digital
receiver in use as a reference for correct calibra-
tion (please refer to the receiver’s manual). Cali-
bration does not need to be changed if the boat
remains in the same area and receives transmis-
sion from the same satellite.
SWARNING
While adjusting the SKEW, please make sure not
to disconnect the two sensor cables fastened to the
LNB.
Once the desired adjustment has been carried out,
tighten the screws, position the radome onto its
base again and tighten the fastening screws again.
Fig. 18
Fig. 19

RHEA V8100S2
53
www.glomex.it
ENGLISH
6.4 SKEW ADJUSTMENT GRID FOR
EUROPE
To determine the values for adjusting the LNB, it is
possible to use the grid below and the relevant
table.
We recommend obtaining the exact values for the
adjustment of the skew by using the (free licence)
app SMW Link (distributed by SWEDISH MICRO-
WAVE AB) available for both iOS on the App Store
and for Android on Play Store. Select the menu
item “Antenna Alignment”.
EGITTO GIORDANIA
GL00096
Fig. 20

RHEA V8100S2
54 www.glomex.it
ENGLISH
Grid position TURKSAT
42°E
ASTRA
2
28.2°E
ASTRA
3
23.5°E
ASTRA
1
19.2°E
HOTBIRD
13.0°E
SIRIUS
4.8°E
THOR
1°W
HISPASAT
30°W
ATLANTIC
BIRD 3
5°W
A (6°W 58°N) -25° -19° -18° -14° -11° -6° -3° 14° -3
B (6°E 58°N) -20° -13° -12° -8° -4° 0° 4° 20° 4
C (18°E 58°N) -14° -6° -4° 0° 3° 8° 11° 24 11
D (30°E 58°N) -7° 1° 3° 6° 10° 14° 17° 28° 16
E (42°E 58°N) 0° 7° 10° 13° 16° 20° 23° 30° 21
F (6°W 52°N) -30° -24° -21° -18° -14° -8° -3° 17° -2
G (6°E 52°N) -24° -16° -13° -10° -5° 0° 5° 24° 6
H (18°E 52°N) -17° -8° -5° 0° 3° 9° 14° 34° 15
I (30°E 52°N) -9° 1° 4° 8° 12° 18° 21° 36° 22
J (42°E 52°N) 0° 11° 12° 17° 20° 25° 28° 22° 26
K (6°W 45°N) -36° -29° -27° -23° -18° -10° -5° 30° -4
L (6°E 45°N) -30° -20° -20° -12° -7° 0° 6° 31° 7
M (18°E 45°N) -22° -9° -8° -1° 4° 12° 18° 36° 18
N (30°E 45°N) -11° 2° 5° 10° 16° 22° 27° 40° 26
O (42°E 45°N) 0° 13° 17° 21° 25° 31° 34° 43° 34
P (6°W 38°N) -43° -35° -36° -28° -22° -13° -6° 27° -5
Q (6°E 38°N) -37° -25° -23° -16° -8° 1° 8° 36° 12
R (18°E 38°N) -27° -12° -10° -1° 6° 16° 22° 43° 23
S (30°E 38°N) -15° 2° 8° 13° 20° 28° 33° 47° 35
T (42°E 38°N) 0° 17° 23° 26° 31° 37° 41° 50° 44
U (6°W 30°N) - -44° -43° -36° -28° -18° -8° 35° -7
V (6°E 30°N) - -33° -34° -21° -11° 1° 11° 45° 17
W (18°E 30°N) - -16° -11° -1° 8° 21° 29° 52° 36
X (30°E 30°N) - 3° 10° 18° 25° 36° 41° 56° 50
Y (42°E 30°N) - 22° 28° 34° 38° 46° 49° 58° 54
Astra 3 (23,5°E)
Turksat (42°E)
Eurobird (9°E)
Hot-Bird (13°E)
Sirius 4 (5°E)
Astra 1 (19,2°E)
Atlantic Bird 3 (5°W)
GL00249
Fig. 21
