2N SIP SPEAKER User manual

www.2n.cz
2N SIP Audio Converter
®
Public Address Paging
Installation Manual
Version: 2.9

The 2N TELEKOMUNIKACE a.s. is a Czech manufacturer and supplier of
telecommunications equipment.
The product family developed by 2N TELEKOMUNIKACE a.s. includes GSM gateways,
private branch exchanges (PBX), and door and lift communicators. 2N
TELEKOMUNIKACE a.s. has been ranked among the Czech top companies for years
and represented a symbol of stability and prosperity on the telecommunications
market for almost two decades. At present, we export our products into over 120
countries worldwide and have exclusive distributors on all continents.
2N is a registered trademark of 2N TELEKOMUNIKACE a.s. Any product and/or other
®
names mentioned herein are registered trademarks and/or trademarks or brands
protected by law.
2N TELEKOMUNIKACE a.s. administers the FAQ database to help you quickly find
information and to answer your questions about 2N products and services. On www.
faq.2n.cz you can find information regarding products adjustment and instructions for
optimum use and procedures „What to do if...".
2N TELEKOMUNIKACE a.s. hereby declares that the 2N product complies with all
®
basic requirements and other relevant provisions of the 1999/5/EC directive. For the
full wording of the Declaration of Conformity see the CD-ROM (if enclosed) or our
website at www.2n.cz.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.

The 2N TELEKOMUNIKACE a.s. is the holder of the ISO 9001:2009 certificate. All
development, production and distribution processes of the company are managed by
this standard and guarantee a high quality, technical level and professional aspect of
all our products.

2N TELEKOMUNIKACE a.s., www.2n.cz 4/50
Content:
1. Product Overview
1.1 Components and Associated Products
1.2 Terms and Symbols
2. Description and Installation
2.1 Before You Start
2.2 Mechanical Installation
2.3 Electric Installation
2.4 Product Description
3. Function and Use
3.1 Configuration
3.2 Default Reset
3.3 Basic Functions
3.4 Downloads
4. Technical Parameters
5. Supplementary Information
5.1 Troubleshooting
5.2 Directives, Laws and Regulations
5.3 General Instructions and Cautions

2N TELEKOMUNIKACE a.s., www.2n.cz 5/50
1. Product Overview
In this section, we introduce the product, outline its 2N SIP
®ConverterAudio
application options and highlight the advantages following from its use. The section
also includes safety precautions.
Here is what you can find in this section:
1.1 Components and Associated Products
1.2 Terms and Symbols

2N TELEKOMUNIKACE a.s., www.2n.cz 6/50
Basic Properties
SIP 2N
®ConverterAudio is a versatile sound transmission system for IP networks. It is
designed as a universal VoIP telephone with an audio output/input, button and
switched circuit connection option. It finds a variety of applications – in schools,
hospitals, office buildings, hotels, production halls, shopping centres, bus terminals,
airports and so on. You can monitor the events in the area 2N® SIP ConverterAudio
using an integrated streaming server.
SIP 2N®ConverterAudio is a stand-alone SIP-based sound decoder and converter
with an amplifier. communicates with the other audio 2N® SIP Audio Converter
system components via the SIP Proxy or directly via a specified address.
Press the attached button to set up a call to up to three predefined numbers or
addresses, with calls being transferred automatically at no answer. Configure the
button function using an integrated calendar to make sure that the called subscriber is
always accessed.
You can make use of a lot of convenient VoIP services thanks to the integrated SIP
such as call forwarding at no answer (to another worksite, recording machine or
mobile phone) and call transfer (from the secretary to the required person, e.g.).
SIP 2N®ConverterAudio is equipped with a switch for you to control the electric door
lock from any telephone (by tone-entering the password).
You can manage your unit via a configuration web interface, 2N® SIP ConverterAudio
by pushing the unit buttons or with a remote controller.

2N TELEKOMUNIKACE a.s., www.2n.cz 7/50
Advantages of Use
Operable in the Ethernet network
Ethernet-based power supply – PoE
SIP
Integrated administration web server
1 programmable button
Streamed audio support
Integrated calendar with programmable DAY/NIGHT/WEEKEND modes
Applicable as standard VoIP telephone/communicator
DTMF detection according to RFC2833, in-band and SIP-INFO

2N TELEKOMUNIKACE a.s., www.2n.cz 8/50
Basic Features
10/100Base-TX LAN interface
12 V DC / 1,8 A or PoE 802.3af supply
Integrated 30 W amplifier
Line/headset output
Colour LED operational status signalling
Universal galvanically isolated output
Universal galvanically isolated digital input
Two volume control buttons
Infrared remote control

2N TELEKOMUNIKACE a.s., www.2n.cz 9/50
1.1 Components and Associated Products
Basic Unit
Part No. 914401E
2N SIP Converter
®Audio
IP audio decoder
18 W amplifier
PoE / 12 V
10/100Base Ethernet
terminals for connecting loudspeakers 4–16 Ohm
support for SIP protocol
Part No. 914490E Part No. 914490E
2N SIP Converter
®Audio set with speaker and mic

2N TELEKOMUNIKACE a.s., www.2n.cz 10/50

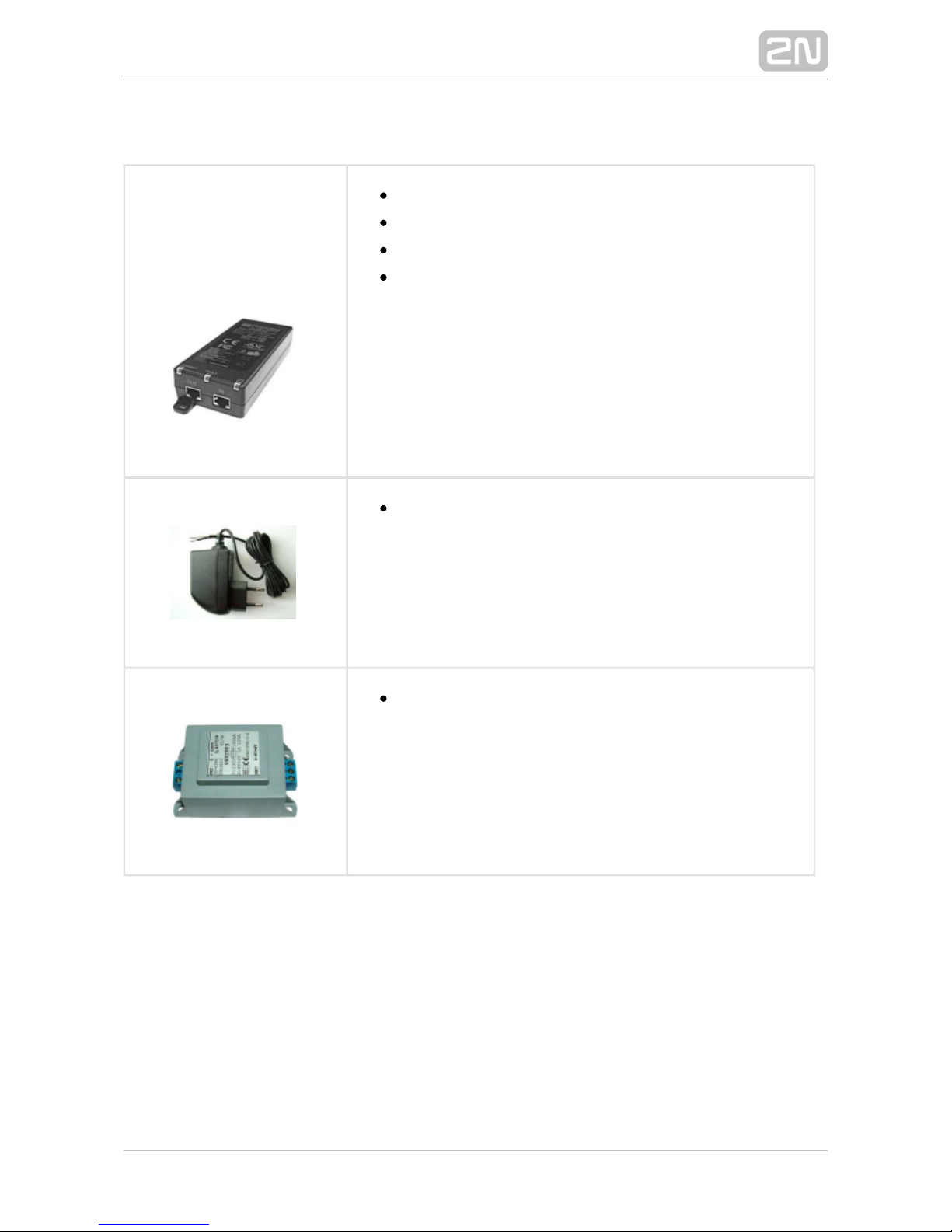

Power Supply
Part Numbers:
91378100
91378100E
91378100US
PoE injector – without cable
PoE injetor – with EU cable
PoE injector – with US cable
ethernet For power supply of intercom via cable when
PoE switch is not available.
91341481EPart No. Stabilised 12 V / 2 A power supply needs to be used when
no PoE is available.
932928Part No. For external power supply of the lock with 12 V AC
voltage.

2N TELEKOMUNIKACE a.s., www.2n.cz 11/50
Internal Units
Part Numbers:
91378365
91378366
2N Indoor Touch
® – black
WiFi version (second part no.)
The elegant internal touch panel, , is suitable 2N Indoor Touch
®
for all intercoms. On the panel’s display not only 2N Helios IP
can you find out who is at the door, but also start a
conversation with the visitor, open the lock or turn on the light
in the entrance hall.
Part Numbers:
91378365WH
91378366WH
2N Indoor Touch
® – white
WiFi version (second part no.)
The elegant internal touch panel, , is 2N Indoor Touch
®
suitable for all intercoms. On the panel’s display 2N Helios IP
not only can you find out who is at the door, but also start a
conversation with the visitor, open the lock or turn on the light
in the entrance hall.

2N TELEKOMUNIKACE a.s., www.2n.cz 12/50
VoIP Telephones
91378357Part No. Grandstream GXV3240 VoIP video telephone
GXV3240 is the successor to the popular GXV3140 model,
which allows comfortable video calls in the IP network.
Touchscreen and keyboard control.
91378358Part No. Grandstream GXV3275 VoIP telephone
GXV3275 is the successor to the popular GXV3175 model,
which allows comfortable video calls in the IP network.
Touchscreen control.

2N TELEKOMUNIKACE a.s., www.2n.cz 13/50

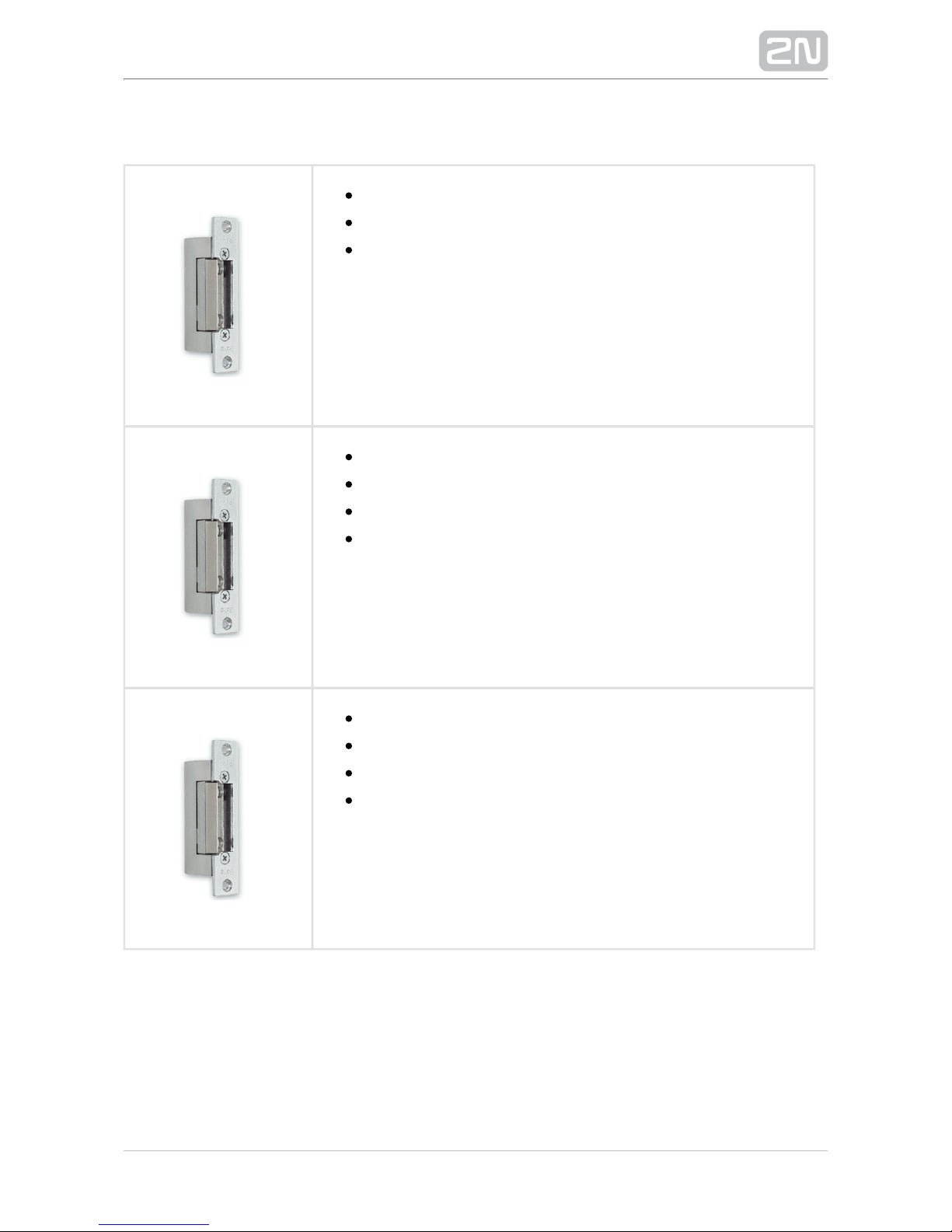

Electric Locks
932071EPart No. BEFO 11211
12 V / 230 mA DC
low consumption
932081EPart No. BEFO 11221 with momentum pin
12 V / 230 mA DC
low consumption
For opening of the lock a short electrical impuls is sufficient,
which unlocks the lock. Lock is then open until someone closes
the door.
932091EPart No. BEFO 11211MB with mechanical blocking
12 V / 230 mA DC
low consumption
Enables mechanically close or open the lock. When opened,
the lock is open all the time. When closed, it behaves as
standart electrical lock.

2N TELEKOMUNIKACE a.s., www.2n.cz 14/50

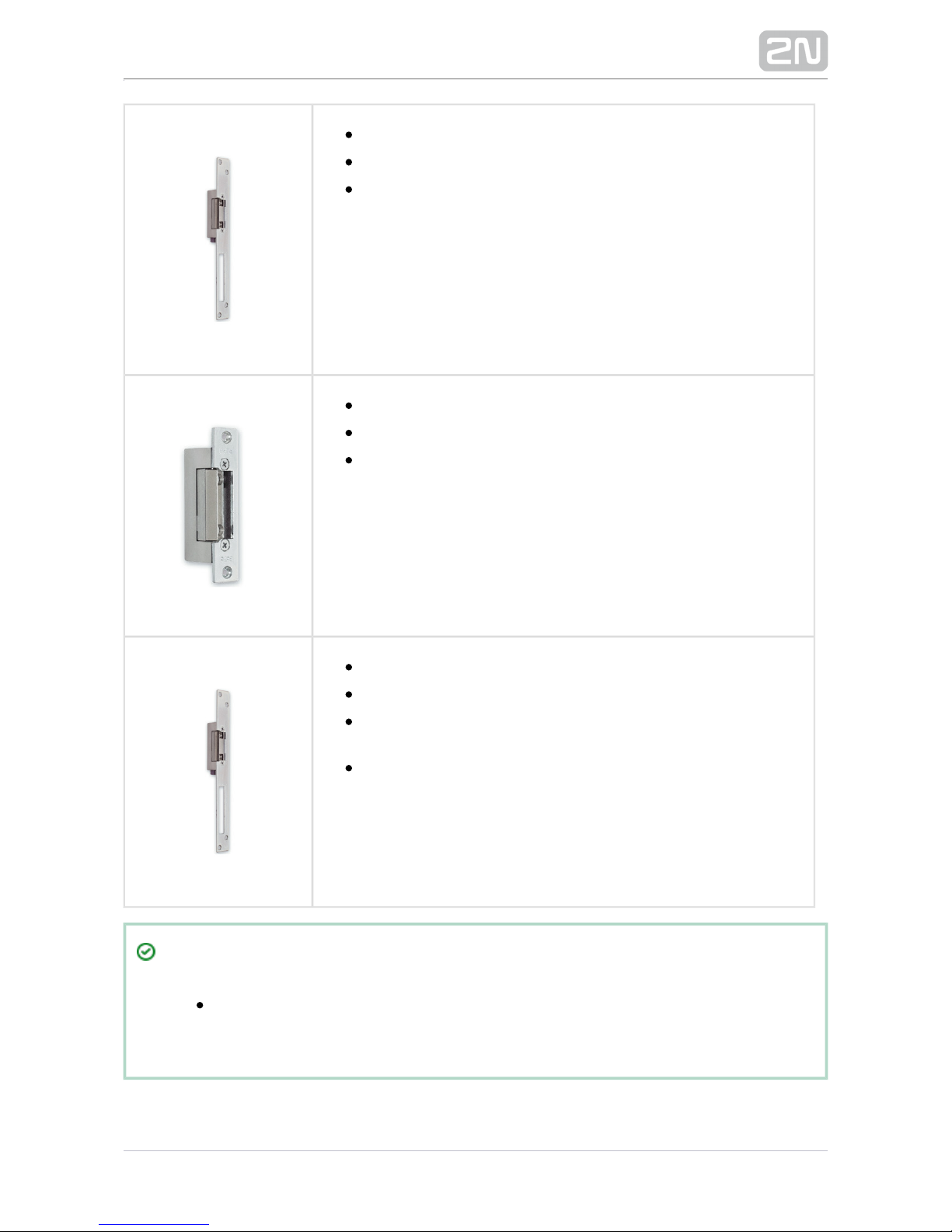

Part No. 932061E 211211 door signalling, low consumption
12 V / 230 mA
A regular lock with a built-in contact to indicate whether the
door is open or closed.
Part No. 932072E 31211 fail-safe
12 V / 170 mA DC
The failsafe lock is closed when electricity is switched on.
When electricity is interrupted, the lock is opened.
Part No. 932062E 321211 fail-safe, door signalling
12 V / 170 mA
The failsafe lock is closed when electricity is switched on.
When electricity is interrupted, the lock is opened.
It contains a built-in contact to indicate whether the door is
open or closed.
Tip
FAQ: Electric locks – Difference between locks in 2N Helios IP
®
accesories

2N TELEKOMUNIKACE a.s., www.2n.cz 15/50
Accessories
Part No. 9159010 Security Relay
A handy add-on that significantly enhances door entry security
as it prevents tampering with the intercom and forced opening
of the lock. To be installed between intercom and lock,
powered by the intercom.
Part No. 9137410E External IP Relay – 1 output
Standalone IP device which can be controlled by HTTP
commands sent by Helios IP intercom, which can thus control
devices on unlimited distance.
Part No. 9137411E External IP Relay – 4 outputs, PoE
Standalone IP device which can be controlled by HTTP
commands sent by Helios IP intercom, which can thus control
devices on unlimited distance.
Part No. 9159013 Exit button
(suitable for Security relay)

2N TELEKOMUNIKACE a.s., www.2n.cz 16/50
Part No. 9159014EU/US
/UK 2N 2Wire
®
(set of 2 adaptors and power source for EU/US/UK)
The converter allows you to use existing wiring (2 2N 2Wire
®
wires) from your original door bell or door intercom to connect
any IP device. You don’t have to configure anything, and you
only need one unit at each end of the cable and a 2N 2Wire
®
power source connected to at least one of these units.
The unit then provides PoE power not only to the 2N 2Wire
®
second converter, but also to all other connected IP end
devices.
Part No. 9154004 Water-proof metal button
Hole diameter 19 mm, button diameter 22 mm.
Part No. 914105E
Mounting set for 2N SIP Converter
® Audio
Side legs can be used to attach the device to any base.

2N TELEKOMUNIKACE a.s., www.2n.cz 17/50
Part No. 914034B/W Wall-mounted loudspeaker
A wall-mounted 8 ohm loudspeaker can be connected as an
loudspeaker to the . Available in black 2N SIP Converter
®Audio
and white.
Tip
For more accessories and particular advice please contact your local
distributor of 2N products.

2N TELEKOMUNIKACE a.s., www.2n.cz 18/50
1.2 Terms and Symbols
The following symbols and pictograms are used in the manual:
Safety
Always abide by this information to prevent persons from injury.
Warning
Always abide by this information to prevent damage to the device.
Caution
Important information for system functionality.
Tip
Useful information for quick and efficient functionality.
Note
Routines or advice for efficient use of the device.

2N TELEKOMUNIKACE a.s., www.2n.cz 19/50
2. Description and Installation
In this section, we describe the product and its installation.2N SIP
®ConverterAudio
Here is what you can find in this section:
2.1 Before You Start
2.2 Mechanical Installation
2.3 Electric Installation
2.4 Product Description

2N TELEKOMUNIKACE a.s., www.2n.cz 20/50
2.1 Before You Start
Product Completeness Check
Before installing this product, check whether the product delivery includes:
1x 2N SIP
®ConverterAudio
4x self-adhesive device feet
1x 5-pin terminal block
1x 4-pin terminal block
Quick User Manual
Installation Conditions
2N SIP
®ConverterAudio is to be connected to the LAN.
2N SIP
®Audio Converter is designed for indoor use.
2N SIP
®ConverterAudio may not be operated in damp environment.
