2N 9154100 User manual



Installation manual 2N® IP
Audio Kit

v.2.18
www.2n.com





Installation manual 2N® IP Audio Kit
2 / 57
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Content:
1. Product Overview
1.1 Components and Associated Products
1.2 Terms and Symbols
2. Description and Installation
2.1 Before You Start
2.2 Mechanical Installation
2.3 Electric Installation
2.3.1 Overvoltage Protection
2.4 Extending Module Connection
2.5 Configuration
2.6 Downloads
3. Technical Parameters
4. Supplementary Information
4.1 Troubleshooting
4.2 Directives, Laws and Regulations
4.3 General Instructions and Cautions

Installation manual 2N® IP Audio Kit
3 / 57
•
•
1. Product Overview
Here is what you can find in this section:
1.1 Components and Associated Products
1.2 Terms and Symbols
Basic Features
2N®IP Audio Kitis a universal and reliable IP intercom module designed for integration in the
third parties' equipment. It is provided with a number of useful functions that are not quite
common in the devices of this category. Featuring the SIP standard support and compatibility
with renowned IP exchange and telephone manufacturers,2N®IP Audio Kitcan make use of all
VoIP services available on the market.
2N®IP Audio Kitis equipped with a 10W power amplifier for external loudspeaker connection. If
the power output ofamplifieris insufficient for your specific application, you can connect an
externalpower amplifierto the line output. You can also connect an external electret
microphone or another audio signal source to the IP intercom line output.
2N®IP Audio Kitallows up to 16 separate buttons or a 16-button matrix keypad to be
connected. Set the button function flexibly according to your specific application needs. You can
set up to three telephone numbers and call time profiles to each of the buttons to make the
called subscriber accessible any time. Configure the buttons as a numerical keypad, which can
be used as a switch activation code lock or for dialling a preset or any other telephone number.
2N®IP Audio Kitis equipped with one relay output and two active 12V outputs. Use the
numerical keypad or, during the call, any telephone to control these outputs. A wide range of
output mode settings help you make use of a high number of applications.
2N®IP Audio Kitis equipped with two galvanically isolated digital inputs and three status
signalling outputs.
2N®IP Audio Kitis very easy to install. All you have to do is connect it to your LAN using the LAN
cable. An integrated two-port LAN switch simplifies installation on sites with a limited LAN
infrastructure. Supply the intercom either from a 9–36V source or directly from your PoE
supporting LAN.

Installation manual 2N® IP Audio Kit
4 / 57
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Use a PC web browser to configure your2N®IP Audio Kit. Apply the
2N®Access Commanderto administer extensive intercom installations easily and quickly.
Advantages of Use
Industrial design and variable mounting options
Wide supply power range + PoE supply
Integrated 10W power amplifier
External amplifier connection
External microphone/audio signal source connection
Galvanically isolated relay output
Two controlled active 12V outputs
Two galvanically isolated logic inputs
Up to 3 signalling LED outputs
Up to 16 external buttons/matrix keypad connection
Integrated two-port LAN switch
Bidirectional communication – acoustic echo cancelling
Configuration via web interface/special PC application
SIP 2.0 support
HTTP(S) server for configuration
SNTP client for server time synchronisation
RTSP server for audio streaming
TFTP client for automatic configuration and firmware update
1.1 Components and Associated Products
Basic Units
2N Part No.9154100
Axis Part No.
01526-001
Intercom module in plastic box

Installation manual 2N® IP Audio Kit
5 / 57
•
•
•
•
•
Part No.9154101
Intercom module without box
Part No.9154102
Lite intercom module in plastic box
2N Internal Units and Accessories
Part numbers:
2N Part No. 91378375
Axis Part No. 01668-001
2N Part No. 91378376
Axis Part No. 01670-001
2N®Indoor Touch 2.0 – black
WiFi (second Part no.)
The elegant internal touch panel, 2N®Indoor Touch
2.0, is suitable for all 2N IP intercoms. On the panel’s
display not only can you find out who is at the door,
but also start a conversation with the visitor, open the
lock or turn on the light in the entrance hall.

Installation manual 2N® IP Audio Kit
6 / 57
•
•
•
•
2N Part No. 91378382
Axis Part No. 01425-001
2N®Indoor Touch desk stand black
Part numbers:
2N Part No. 91378375WH
Axis Part No. 01669-001
2N Part No. 91378376WH
Axis Part No. 01671-001

2N®Indoor Touch 2.0 – white
WiFi (second Part no.)
The elegant internal touch panel, 2N® Indoor Touch
2.0, is suitable for all 2N IP intercoms. On the panel’s
display not only can you find out who is at the door,
but also start a conversation with the visitor, open the
lock or turn on the light in the entrance hall.

Installation manual 2N® IP Audio Kit
7 / 57
•
•
•
•
2N Part No. 91378382W
Axis Part No. 01426-001
2N®Indoor Touch desk stand white
2N Part No.
1120101W
Axis Part No.
02518-001
2N®IP Handset
answering unit
white color

Installation manual 2N® IP Audio Kit
8 / 57
•
•
•
2N Part No.
1120101B
Axis Part No.
02519-001

2N®IP Handset
answering unit
black color


Installation manual 2N® IP Audio Kit
9 / 57
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
IP Telephones
2N Part No. 91378360
Axis Part No. 01586-001
Yealink SIP T58A IP video phone
simple operation
HD quality video calls
A display-equipped extender EXP50 (Part
No.91378363) can be added to the phone delivery to
make up to 60 speed dialings.
2N Part No. 1120111EU
Axis Part No. 02544-001
Grandstream GXV3350 IP video phone
Android 7.0 OS
5” touch display control
HD quality video calls
WiFi and Bluetooth support
HDMI output and pan tilt zoom camera
Easy integration with intercoms or PBXs via SIP
2N Part No.91378362EU Grandstream GXV3370 IP video phone
Android 7.0 OS
7” touch display control
HD quality video calls
WiFi and Bluetooth support
Easy integration with IP intercoms, PBXs and security
cameras.

Installation manual 2N® IP Audio Kit
10 / 57
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Electric Locks
obj. č. 11202101 Mini electronic doorstrike series 5
electric opener designed for door frame installation
intended for such narrow profiles as aluminum, wood
or PVC in particular
short sheet metal front cover version (130 mm)
16 mm width
obj. č. 11202101-L Mini electronic doorstrike series 5, long
electric opener designed for door frame installation
intended for such narrow profiles as aluminum, wood
or PVC in particular
long sheet metal front cover version (250 mm)
16 mm width
obj. č. 11202102 Mini electronic doorstrike series 5 - with momentum
pin
electric opener designed for door frame installation
intended for such narrow profiles as aluminum, wood
or PVC in particular
short sheet metal front cover version (130 mm)
16 mm width

Installation manual 2N® IP Audio Kit
11 / 57
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
obj. č. 11202102-L Mini electronic doorstrike series 5 - with momentum
pin, long
electric opener designed for door frame installation
intended for such narrow profiles as aluminum, wood
or PVC in particular
long sheet metal front cover version (250 mm)
16 mm width
obj. č.11202103 Mini electronic doorstrike series 5 - with mechanical
blocking
electric opener designed for door frame installation
intended for such narrow profiles as aluminum, wood
or PVC in particular
short sheet metal front cover version (130 mm)
16 mm width
obj. č.11202103-L Mini electronic doorstrike series 5 - with mechanical
blocking, long
electric opener designed for door frame installation
intended for such narrow profiles as aluminum, wood
or PVC in particular
long sheet metal front cover version (250 mm)
16 mm width

Installation manual 2N® IP Audio Kit
12 / 57
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
obj. č.11202104 Mini electronic doorstrike series 5 - door signaling
electric opener designed for door frame installation
intended for such narrow profiles as aluminum, wood
or PVC in particular
including a door state monitoring micro switch: open/
closed
short sheet metal front cover version (130 mm)
16 mm width
obj. č.11202104-L Mini electronic doorstrike series 5 - door signaling,
long
electric opener designed for door frame installation
intended for such narrow profiles as aluminum, wood
or PVC in particular
including a door state monitoring micro switch: open/
closed
long sheet metal front cover version (250 mm)
16 mm width

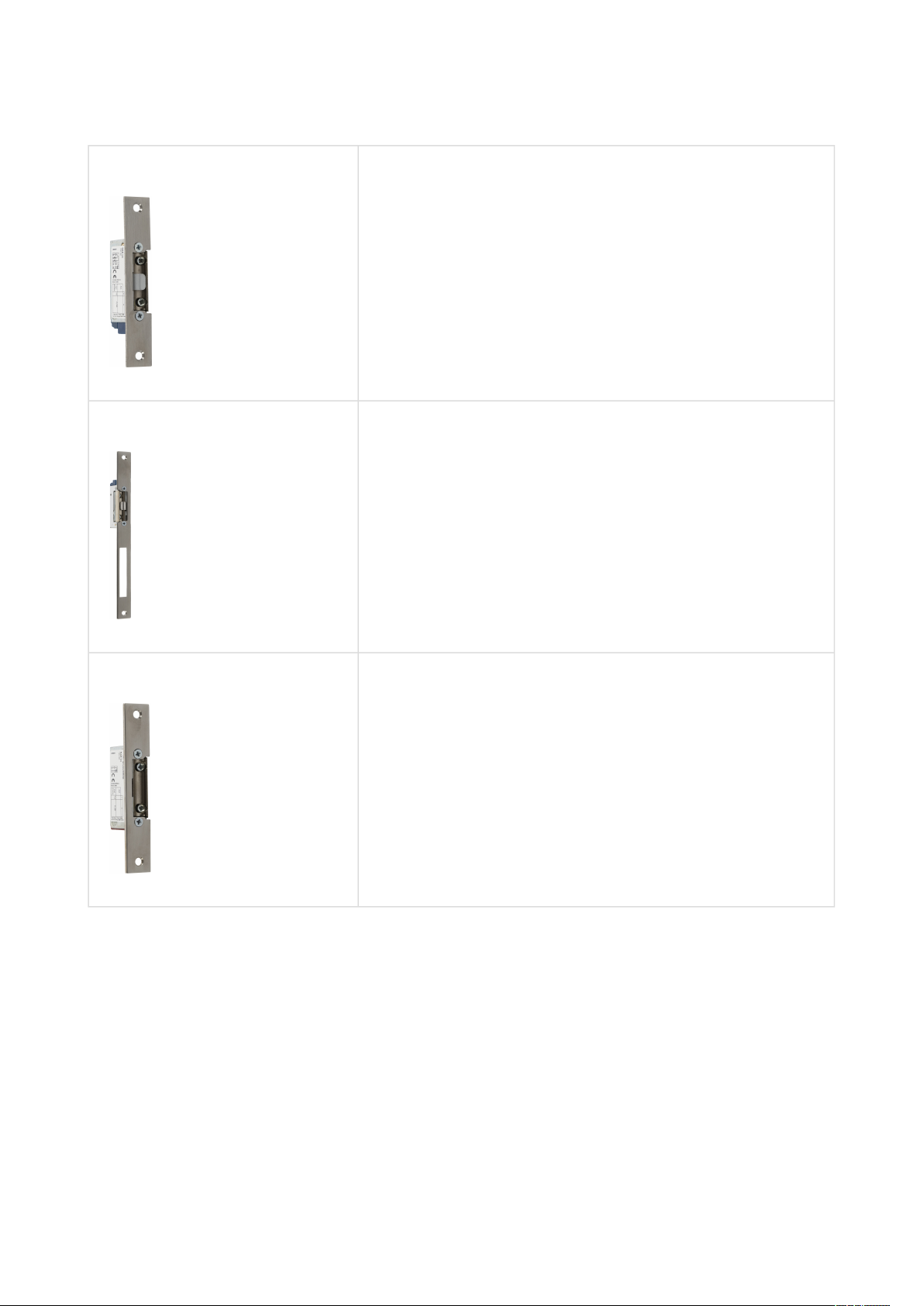

obj. č.11202105 Mini electronic doorstrike series 5 - fail-safe
electric opener designed for door frame installation
intended for such narrow profiles as aluminum, wood
or PVC in particular
under voltage: opener secured, blocked
at voltage interruption: opener unblocked, door can be
opened
short sheet metal front cover version (130 mm)
16 mm width

Installation manual 2N® IP Audio Kit
13 / 57
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
obj. č.11202105-L Mini electronic doorstrike series 5 - fail-safe, long
electric opener designed for door frame installation
intended for such narrow profiles as aluminum, wood
or PVC in particular
under voltage: opener secured, blocked
at voltage interruption: opener unblocked, door can be
opened
long sheet metal front cover version (250 mm)
16 mm width
obj. č.11202106 Mini electronic doorstrike series 5 - fail-safe and
door signaling
electric opener designed for door frame installation
intended for such narrow profiles as aluminum, wood
or PVC in particular
under voltage: opener secured, blocked
at voltage interruption: opener unblocked, door can be
opened
short sheet metal front cover version (130 mm)
16 mm width
obj. č.11202106-L Mini electronic doorstrike series 5 - fail-safe and
door signaling, long
electric opener designed for door frame installation
intended for such narrow profiles as aluminum, wood
or PVC in particular
under voltage: opener secured, blocked
at voltage interruption: opener unblocked, door can be
opened
long sheet metal front cover version (250 mm)
16 mm width

Installation manual 2N® IP Audio Kit
14 / 57
•
•
•
•
•
•
•
•
•
•
•
•

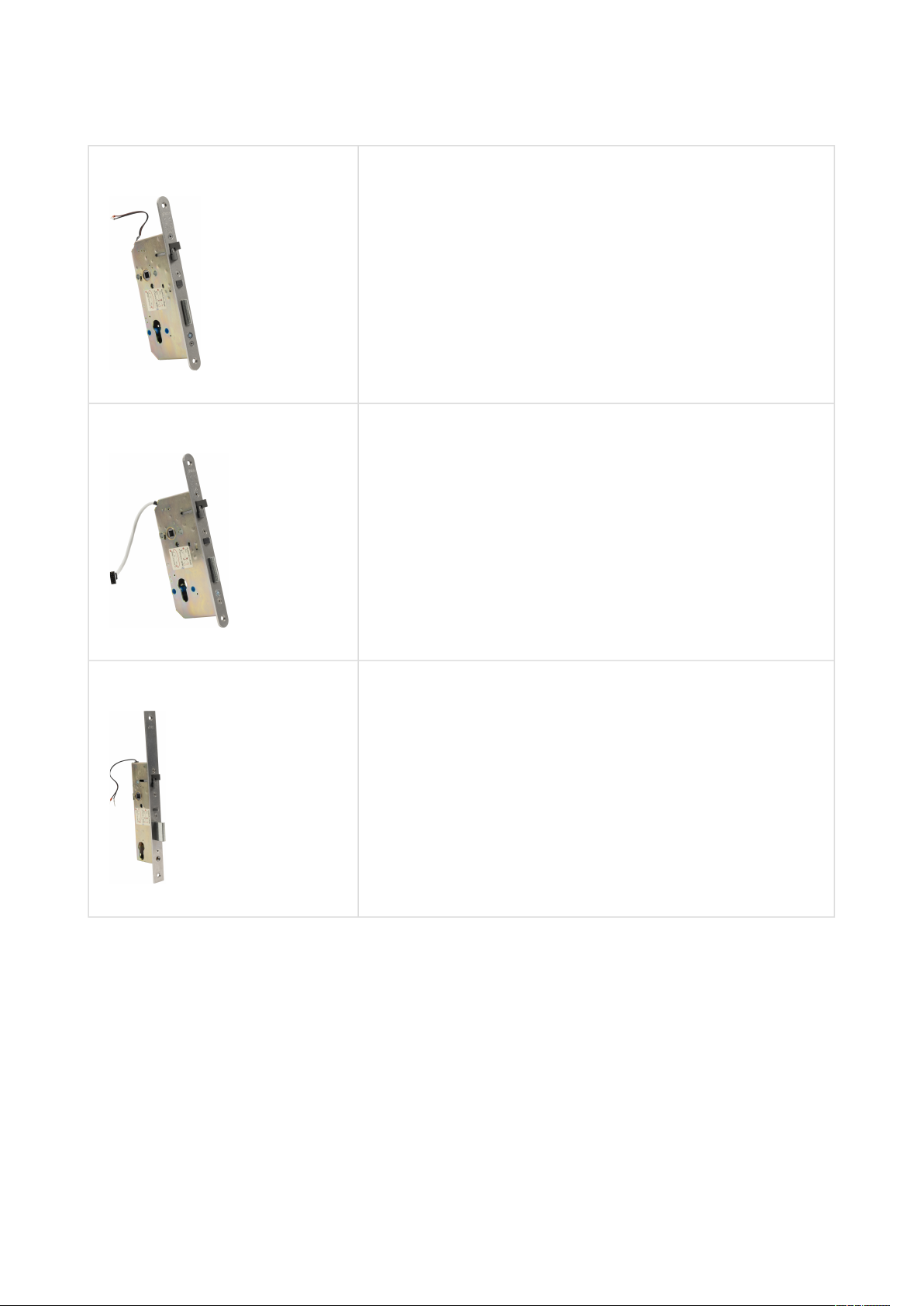

obj. č.11202201 Electromechanical lock SAM 7255
72/55 self-locking lock with panic function
A key is necessary for door opening from the outside (or
an electric pulse from a connected 2N IP intercom /
reader).
convenient solution for emergency exits
obj. č.11202201-M Electromechanical lock SAM 7255 with monitoring
72/55 self-locking lock with panic function
A key is necessary for door opening from the outside (or
an electric pulse from a connected 2N IP intercom /
reader).
convenient solution for emergency exits
obj. č.11202202 Electromechanical lock SAM 9235
92/35 self-locking lock with panic function
A key is necessary for door opening from the outside (or
an electric pulse from a connected 2N IP intercom /
reader).
convenient solution for emergency exits

Installation manual 2N® IP Audio Kit
15 / 57
•
•
•
•
•
•
•
•
•
•
obj. č.11202202-M Electromechanical lock SAM 9235 with monitoring
92/35 self-locking lock with panic function
A key is necessary for door opening from the outside (or
an electric pulse from a connected 2N IP intercom /
reader).
convenient solution for emergency exits
obj. č.11202301 Cable protector FX290
Provides secure passage and protection of the supply
cable between the door frame and the door leaf.
290 mm length
obj. č.11202302 Cable protector FX510
Provides secure passage and protection of the supply
cable between the door frame and the door leaf.
510 mm length

Installation manual 2N® IP Audio Kit
16 / 57
•
•
•
•
•
•
•
•
•
•
•
obj. č.11202303 Cable protector FX300G
Provides secure passage and protection of the supply
cable between the door frame and the door leaf.
440 mm length
obj. č.11202304 Cable protector FX500G
Provides secure passage and protection of the supply
cable between the door frame and the door leaf.
640 mm length
obj. č.11202107 Maglock MEX100
used as a door holding supplement, not replacing the
lock
consists of two parts: supplied part and counterpart
under voltage: door cannot be opened
at voltage interruption: magnets get disconnected,
door opens

Installation manual 2N® IP Audio Kit
17 / 57
•
•
•
•
•
•
•
•
•
•
•
obj. č.11202501 Magnetic handle P300RP
fully replaces a mortise lock and handle
under voltage: door cannot be opened
at voltage interruption: magnets get disconnected,
door opens
suitable for wooden, metal and glass doors
obj. č.11202401 ED100
low energy simple door operator
contactless operation
can be interconnected with a motion sensor and
electronic access control system
applicable for right / left doors
in / out opening versions
•
Tip
FAQ: Electric locks – Difference between locks in 2N IP intercoms accesories


Installation manual 2N® IP Audio Kit
18 / 57
•
•
•
•
•
•
•
•
Power Supply
Part Numbers:
2N Part No. 91378100E
2N Part No. 91378100US
Axis Part No. 01403-001
PoE injector – with EU cable
PoE injector – with US cable
For power supply of intercom via ethernetcable
when PoEswitchis not available.
Part No.91341481E
Adapter 12V / 2A
A stabilised power supply has to be used if the
Ethernet (PoE) power supply is not available.
Part No.932928
12 V transformer
For 230 V mains voltage.
For external power supply of the lock with 12 V AC
voltage.

Installation manual 2N® IP Audio Kit
19 / 57
•
•
•
•
•
Two-wire connection
Part numbers:
2N Part No. 9159014EU
2N Part No. 9159014US
Axis Part No. 01404-001
2N Part No. 9159014UK
2N®2Wire
set of 2 adaptors and power source for EU/US/UK
The 2N®2Wire converter allows you to use existing
wiring (2 wires) from your original door bell or door
intercom to connect any IP device. You don’t have to
configure anything, and you only need one 2N®2Wire
unit at each end of the cable and a power source
connected to at least one of these units.
The 2N®2Wire unit then providesPoEpower not only to
the second converter, but also to all other connected IP
end devices.
External switches
2N Part
No.9159010
Axis Part No.
01386-001
2N®Security Relay
A handy add-on that significantlyenhances door entry security as it
prevents tampering with the intercom and forced opening of the lock.
To be installed between intercom and lock, powered by the intercom.

Installation manual 2N® IP Audio Kit
20 / 57
•
•
•
•
•
•
2N Part
No.9137410E
Axis Part No.
01397-001
External IP Relay – 1 output
Standalone IP device which can be controlled byHTTPcommands sent
by 2N IP intercom, which can thus control devices on unlimited
distance.
2N Part
No.9137411E
Axis Part No.
01398-001
External IP Relay – 4 outputs, PoE
Standalone IP device which can be controlled byHTTPcommands sent
by 2N IP intercom, which can thus control devices on unlimited
distance.
Sensors and switches
Part No. 9159013
Exit button
A button for connection to a logic input for
opening a door inside a building.
