3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page i
Instructions and Parts List
Important Safety Information
BEFORE INSTALLING OR OPERATING THIS EQUIPMENT
Read, understand and follow all safety and operating instructions.
Spare Parts
It is recommended you immediately order the spare parts listed in the “Spare
Parts/Service Information” section. These parts are expected to wear through
normal use, and should be kept on hand to minimize production delays.
3M-Matic™Accuglide™2+
Type 10500
Upper and Lower
Standard Taping Heads
3 Inch
Serial #:
For reference, record machine serial number here.

NA - ENG
April 2017
3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page ii

NA - ENG
April 2017
3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page iii
Replacement Parts and Service Information
To Our Customers:
This is the 3M-Matic™/AccuGlide™/Scotch®equipment you ordered.
It has been set up and tested in the factory with Scotch®Tapes.
Included with each machine is an Instructions and Parts List manual.
Identication Plate
For Commercial Use Only
Technical Assistance / Replacement Parts and Additional Manuals:
For technical assistance, contact our help line at 1-800-328-1390.
Provide the customer support coordinator with the model/machine name,
machine type, and serial number that are located on the identication plate
(For example: Model - Accuglide 2+ (3 inch) Taping Head - Type 10500 - Serial Number 13282).
To order replacement parts, contact us:
CSPD division of Combi Packaging Systems LLC.
5365 East Center Dr. N.E.
Canton,OH 44721
1-800-344-9883
e-mail: CSPD-[email protected]
www.combi.com

NA - ENG
April 2017
3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page iv

NA - ENG
April 2017
3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page v
Replacement Parts and Service Information (continued)
To Our Customers:
This is the 3M-Matic™/AccuGlide™/Scotch®equipment you ordered. It has been set up
and tested in the factory with Scotch®tapes.
Included with each machine is an Instructions and Parts List Manual.
Order parts by part number, part description, and quantity required.
Also, when ordering parts or additional manuals, include model/machine name,
machine type, and serial number that are located on the identication plate.
Service, replacement parts, and additional manuals available direct from:

NA - ENG
April 2017
3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page vi

NA - ENG
April 2017
3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page vii
Table of Contents - Manual 2: Accuglide 2+ Standard - 3 inch
(Upper and Lower Taping Heads)
Accuglide 2+ Standard Taping Head Manual - 3 inch Page
Cover Page
Replacement Parts and Service Information . . . . . . . . . . . . . . . . . . . . . i – ii
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii – v
Equipment Warranty and Limited Remedy. . . . . . . . . . . . . . . . . . . . . . . . . vii
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Taping Head Contents / How to Use Manual . . . . . . . . . . . . . . . . . . . . . . . 3
Important Safeguards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

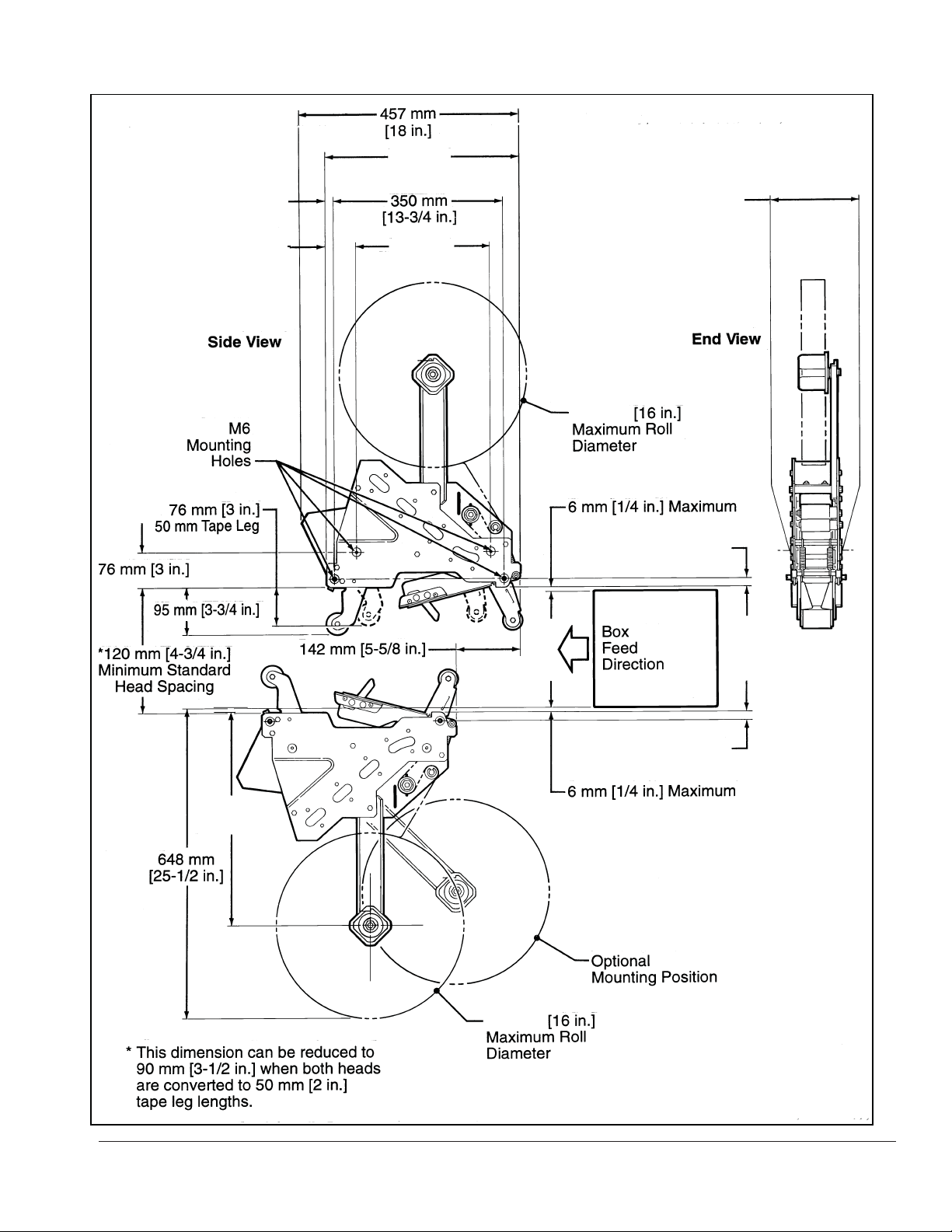

Dimensional Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Receiving and Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Tape Leg Length. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Tape Width Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
Tape Loading – Upper Taping Head. . . . . . . . . . . . . . . . . . . . . . . . . . 10
Tape Loading – Lower Taping Head. . . . . . . . . . . . . . . . . . . . . . . . 10-11
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
Blade Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Blade Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Blade Oiler Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Applying/Bung Roller Replacement . . . . . . . . . . . . . . . . . . . . . . . . 13
Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15
Tape Latch Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Tape Drum Friction Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Applying Mechanism Spring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
One-Way Tension Roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Tape Leg Length. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Leading Tape Leg Length Adjustment . . . . . . . . . . . . . . . . . . . . 16
Changing Tape Leg Length - 70 to 50 mm [2-3/4 to 2 Inch] 16
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-18
Spare Parts/Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Recommended Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Replacement Parts and Service. . . . . . . . . . . . . . . . . . . . . . . . . . . 19-20
Replacement Parts Illustrations and Parts List . . . . . . . . 21-End of Manual

NA - ENG
April 2017
3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page viii
Warranty
Warranty
Equipment Warranty and Limited Remedy: THE FOLLOWING WARRANTY IS
MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY,
THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND
ANY IMPLIED WARRANTY ARISING OUT OF A COURSE OF DEALING,
A CUSTOM OR USAGE OF TRADE:
3M sells its 3M-Matic™Accuglide 2+ Taping Head Type 10500
with the following warranties:
1. The Taping Head blade, springs and rollers will be free from defects in material and
manufacture for ninety (90) days after delivery.
2. All other Taping Head parts will be free from defects in material and manufacture for
three (3) years after delivery.
If any part is defective within this warranty period, your exclusive remedy and 3M’s and
seller’s sole obligation shall be, at 3M’s option, to repair or replace the part. 3M must
receive actual notice of any alleged defect within a reasonable time after it is discovered,
but in no event shall 3M have any obligation under this warranty unless it receives such
notice within ve (5) business days after the expiration of the warranty period.
All notices required hereunder shall be given to 3M solely through the 3M-Matic™ Help
line. To be entitled to repair or replacement as provided under this warranty, the part
must be returned as directed by 3M to its factory or other authorized service station
designated by 3M. If 3M is unable to repair or replace the part within a reasonable time
after receipt thereof, 3M, at its option, will replace the equipment or refund the purchase
price. 3M shall have no obligation to provide or payfor the labor required to remove any
part or equipment or to install the repaired or replacement part or equipment. 3M shall
have no obligation to repair or replace those parts failing due to normal wear, inadequate
or improper maintenance, inadequate cleaning, non-lubrication, improper operating
environment, improper utilities, operator error or misuse, alteration or modication,
mishandling, lack of reasonable care, or due to any accidental cause.
Limitation of Liability: Except where prohibited by law, 3M and seller will not be liable
for any loss or damage arising from this 3M equipment, whether direct, indirect, special,
incidental, or consequential, regardless of the legal theory asserted, including breach of
warranty, breach of contract, negligence, or strict liability.
Note: The foregoing Equipment Warranty and Limited Remedy and Limitation of Liability
may be changed only by a written agreement signed by authorized representatives
of 3M and seller.
AccuGlide™, Scotch™, and 3M-Matic™are Trademarks of 3M, St. Paul, Minnesota 55144-1000

NA - ENG
April 2017
3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page 1
Intended Use
The intended use of the AccuGlide™ 2+ Upper and Lower Taping Heads - 3 inch is to
apply a “C” clip of Scotch®pressure-sensitive lm box sealing tape to the top and/or
bottom center seam of regular slotted containers. These taping heads are incorporated
into most standard 3M-Matic™ case sealers. The compact size and simplicity of the
taping head also makes it suitable for mounting in box conveying systems other than
3M-Matic™ case sealers. This includes replacement of other types of taping, gluing or
stapling heads in existing case sealing machines. The AccuGlide™ 2+ Upper and Lower
Taping Heads - 3 inch have been designed and tested for use with Scotch®pressure-
sensitive lm box sealing tape.
AccuGlide™ 2+ STD 3 Inch Upper Taping Head, Type 10500

NA - ENG
April 2017
3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page 2

NA - ENG
April 2017
3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page 3
AccuGlide™2+ Standard - 3 inch Upper and Lower Taping Heads consist of:
Qty. Part Name
1 Taping Head Assembly
1 Tape Drum and Bracket Assembly
1 Hardware and Spare Parts Kit
1 Threading Tool
General Information
This instruction manual covers safety aspects, handling and transport, storage, unpacking,
preparation, installation, operation, set-up and adjustments, technical and manufacturing
specications, maintenance, troubleshooting, repair work and servicing, electric diagrams,
warranty information, disposal (ELV), a glossary with a denition of symbols, plus a parts
list of the 3M-Matic™Accugllide 2+ (3 inch) 3M Industrial Adhesives and Tapes Division
3M Center, Bldg. 220-5E-06 St. Paul, MN 55144-1000 (USA) Edition April 2017/
Copyright 3M 2017. All rights reserved The manufacturer reserves the right to change
the product at any time without notice.
How to use this Manual
The manual is an important part of the machine; all information contained herein is
intended to enable the equipment to be maintained in perfect condition and operated
safely. Ensure that the manual is available to all operators of this equipment and the
manual is kept up to date with all subsequent amendments. Should the equipment be
sold or disposed of, please ensure that the manual is passed on with the machine.
Electrical and pneumatic diagrams are included in the manual. Equipment using PLC
controls and/or electronic components will include relevant schematics or programs in
the enclosure (or will be delivered separately as needed)
Keep the manual in a clean and dry place near the machine. Do not remove, tear or
rewrite parts of the manual for any reason. Use the manual without damaging it.
However, if the manual has been lost or damaged, ask your after sale service for a
new copy (if it is possible, please have the manual name, part number, and revision
information and/or model/machine name, machine type, and serial number) that
are located on the identication plate:
(For example: Model - Accuglide 2+ - 3” - Type 10500 - Serial Number 13282).
Note: All the important warning notes related to the operation of the machine are
identied by the symbol:
Updating the Manual
Modications to the machine are subject to manufacturer’s internal procedures.
The user may receive pages or parts of the manual which contain amendment made
after its rst publication. The user must use them to update this manual.
Taping Head Contents

NA - ENG
April 2017
3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page 4
(Important Safeguards continued on next page)
Explanation of Signal Word and Possible Consequences
Indicates a potentially hazardous situation, which,
if not avoided, may result in minor or moderate injury
and/or property damage.
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury and/or
property damage.
This safety alert symbol identies important messages in this
manual. READ AND UNDERSTAND THEM BEFORE INSTALLING OR
OPERATING THIS EQUIPMENT.
Caution
Warning
• To reduce the risk associated with
mechanical hazards
- Read, understand and follow all safety
and operating instructions before
operating or servicing the case sealer
−Allow only properly trained and
qualied personnel to operate
and or service this equipment
CAUTION
• To reduce the risk associated with
muscle strain:
- Use proper body mechanics when
removing or installing taping heads
that are moderately heavy or may be
considered awkward to lift
• To reduce the risk associated with
impact hazards
- Place the taping head on a smooth
level surface when maintaining or
servicing this equipment
WARNING
• To reduce the risk associated with
sharp blade hazards:
- Keep hands and ngers away from
tape cutoblades under orange blade
guards. The blades are extremely sharp.
WARNING
• To reduce the risk associated with
shear, pinch, and entanglement hazards
- Turn air and electrical supplies o
on associated equipment before
performing any adjustments, mainte-
nance, or servicing the taping heads
- Never attempt to work on the taping
head or load tape while the box drive
system is running
WARNING
Important Safeguards

NA - ENG
April 2017
3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page 5
Important - In the event the following safety labels are damaged or destroyed,
they must be replaced to ensure operator safety. See "Replacement Parts
Illustrations and Parts Lists" for label part numbers.
Important Safeguards (continued)
Figure 1-1 Replacement Labels/3M Part Numbers
78-8133-9606-2
Tape Threading Label
(Not shown)

NA - ENG
April 2017
3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page 6
(Specications continued on next page.)
Specications
1. Tape:
For use with Scotch®pressure-sensitive lm box sealing tapes.
2. Tape Width:
48mm [2 inches] minimum to 72mm [3 inches] maximum.
3. Tape Roll Diameter:
Up to 405mm [16 inches] maximum on a 76.2mm [3 inch] diameter core.
(Accommodates all system roll lengths of Scotch®lm tapes.)
4. Tape Application Leg Length - Standard:
70mm ± 6mm [2-3/4 inches ±1/4 inch]
Tape Application Leg Length - Optional:
50mm ± 6mm [2 inches ± 1/4 inch] (See “Adjustments – Tape Leg Length.”)
5. Box Size Capacities:
For use with center seam regular slotted containers.
Minimum Maximum
Length – 150mm [6 inches] Unlimited
Height – 120mm [4-3/4 inches] (most “3M-Matic” Case Sealers)
90mm [3-1/2 inches] (with optional 2 inch leg length)
Width – 150mm [6 inches]
When upper and lower taping heads are used on “3M-Matic” case
sealers, refer to the respective instruction manual specications for
box weight and size capacities.
6. Operating Rate:
Conveyor speeds up to 0.38 m/s [75 feet per minute].
7. Operating Conditions:
Use in dry, relatively clean environments at 5° to 40°C [40° to 105°F] with clean dry boxes.
Important – Taping heads should not be washed down or subjected to conditions causing
moisture condensation on components.
8. Taping Head Dimensions:
Length – 457mm [18 inches]
Height – 560mm [22 inches] (with tape drum)
Width – 130mm [5-1/8 inches] (without mounting spacers)
Weight – Packaged: 8.2 kg [18 lbs.] Unpackaged: 7.3 kg [16 lbs.]
Limited by
Case Sealer

NA - ENG
April 2017
3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page 7
Specications (continued)
Figure 2-1 Dimensional Drawing
396 mm
[15-19/32 in.]
278 mm
[10-15/16 in.]
13 mm
[1/2 in.]
58 mm
[2 9/32 in.]
405 mm
405 mm
445 mm
[17-1/2 in.]
18 mm [11/16 in.]
18 mm [11/16 in.]
130mm (5 1/8)

NA - ENG
April 2017
3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page 8
Receiving And Handling
After the taping head assembly has
been unpackaged, examine the unit
for damage that might have occurred
during transit. If damage is evident,
le a damage claim immediately with
the transportation company and also
notify your 3M Representative.
Installation Guidelines
The taping head assembly can be
used in converting existing or in
custom made machinery.
It can be mounted for top taping
or bottom taping. Refer to “Box Size
Capacities,” as well as Figure 2-1
in the Specications section, for
following points making installations:
Important – Always conduct a hazard
review to determine appropriate
guarding requirements when the
installation is in an application
other than 3M-Matic™equipment
1. The box conveying system
must positively propel the box in
a continuous motion, not exceeding
0.38 m/s [75 feet per minute],
past the taping head assembly
since the box motion actuates
the taping mechanism.
2. If a pusher/cleated conveyor is used,
steps should be taken in conveyor to
prevent pusher from contacting apply-
ing or bung roller arms (resulting in
damage to taping head).
3. Figure 2-1 illustrates the typical
mounting relationship for oppos-
ing taping head assemblies to
allow taping of box heights
down to 90mm [3-1/2 inches].
To tape box heights down to
70mm [2-3/4 inches], the taping
heads must be completely
staggered so only one tape seal
is being applied at one time.
Note – AccuGlide™ 2+ Standard Upper
Taping Head is supplied with a bung
arm guard. Adjustments to guard may
be required to install taping head into
some older design case sealers.
4. Mounting studs are provided with the
taping head, but special installations
may require alternate mounting means.
5. Box hold-down/guide skis should be
provided and taping head mounted so
that side plates are 6mm [1/4 inch]
maximum away from the ski surface on
which the box rides.
Tape Leg Length
Taping heads are factory set to apply
standard 70mm [2-3/4 inch] tape legs.
The heads can be converted to apply
50mm [2 inch] tape legs if but both upper
and lower heads must be set to apply the
same tape leg length. See “Adjustments –
Changing Tape Leg Length from 70 to
50mm [2-3/4 to 2 Inches].”
Also, conveyor speed at which the
product moves through taping heads
aects the leading and trailing tape leg
length. See “Adjustments section -
Leading Tape Leg Length Adjustment.”
Tape Width Adjustment
Taping heads are factory set to apply
72mm [3 inch] wide tape. If it is
necessary to align the tape or to apply
narrower tapes, refer to “Adjustments –
Tape Web Alignment” set-up procedure.
CAUTION
• To reduce the risk associated with
muscle strain:
- Use proper body mechanics when
removing or installing taping heads
that are moderately heavy or may be
considered awkward to lift
• To reduce the risk associated with
sharp blade hazards:
- Keep hands and ngers away from
tape cutoblades under orange blade
guards. The blades are extremely sharp.
WARNING
Installation

NA - ENG
April 2017
3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page 9
Operation

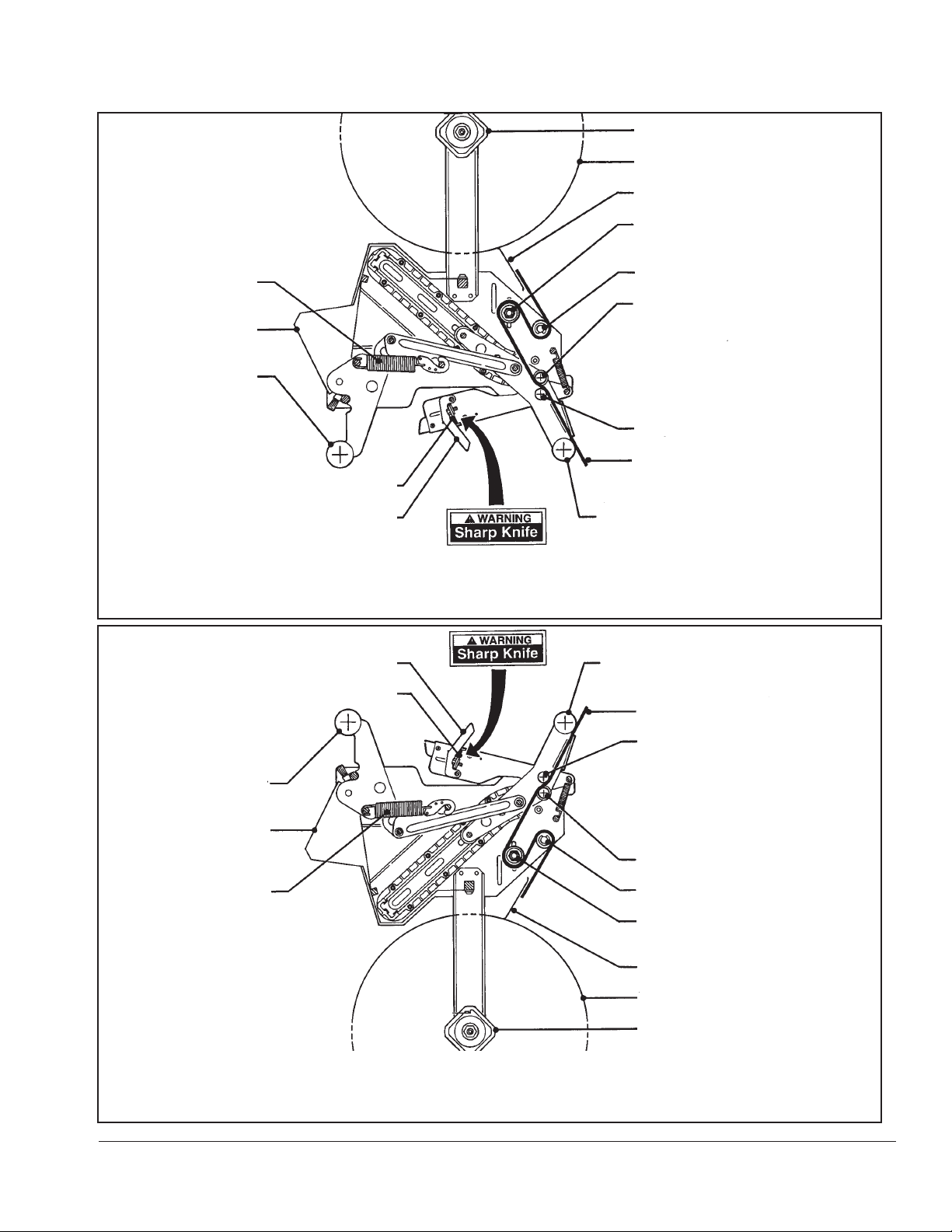

Figure 3-1 Taping Head Components/Threading Diagram - Upper Head (Left Side View)
Figure 3-2 Taping Head Components/Threading Diagram - Lower Head (Left Side View)
Tape Drum
Tape Drum
Tape Supply Roll
Tape Supply Roll
Tape Adhesive Side
Tape Adhesive Side
Tension Wrap Roller
Tension Wrap Roller
Knurled Roller
Knurled Roller
Wrap Roller
Wrap Roller
Threading Needle
Threading Needle
Applying Roller
Applying Roller
One-Way
Tension Roller
One-Way
Tension Roller
Applying
Mechanism
Spring
Applying
Mechanism
Spring
Bung Arm
Cover
Bung Arm
Cover
Bung
Roller
Bung
Roller
Orange Knife Guard
Orange Knife Guard
Tape Cut-OKnife
Tape Cut-OKnife

NA - ENG
April 2017
3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page 10
Figure 3-3
Insert threading needle through rollers in
direction indicated by arrows.
Operation (continued)
It is recommended that the detailed
instructions and sketches in this manual
be referred to the rst few times the
taping head is loaded/threaded until the
operator becomes thoroughly familiar
with the tape loading operation.
Note – Remove tape roll before removing
taping head from machine to minimize
weight.
Tape Loading – Upper Taping Head
1. Place the upper taping head in a
convenient working position.
2. Use Figures 3-3/3-5 and tape thread-
ing label. Position tape roll so adhesive
side of tape faces front of taping head
as it’s pulled from supply roll.
3. Attach the threading needle to the
end of the roll. Guide the threading
needle around the wrap roller
(Position 1) then back around the
one-way tension roller (Position 2).
4. Continue pulling the threading needle
down and guide it between the two
rollers on the apply arm (Position 3).
5. Pull threading needle down until tape
travels between apply plate and ears
of apply arm (Position 4) until extends
past apply roller. When threaded adhe-
sive side of tape should face knurled
rollers at position 2 and also position 3.
6. Cut away any excess tape.
Important – Do not cut against apply
roller - roller damage could occur.
Tape Loading – Lower Taping Head
1. Remove the lower taping head from
the conveyor bed or associated
equipment and place it a convenient
working position.
2. Lower taping head is loaded and
threaded in same manner as upper head.
• To reduce the risk associated with
sharp blade hazards:
- Keep hands and ngers away from
tape cutoblades under orange blade
guards. The blades are extremely sharp.
WARNING
CAUTION
• To reduce the risk associated with
muscle strain:
- Use proper body mechanics when
removing or installing taping heads
that are moderately heavy or may be
considered awkward to lift
• To reduce the risk associated with
impact hazards
- Place the taping head on a smooth
level surface when maintaining or
servicing this equipment
• To reduce the risk associated with
shear, pinch, and entanglement hazards
- Turn air and electrical supplies o
on associated equipment before
performing any adjustments, mainte-
nance, or servicing the taping heads
- Never attempt to work on the taping
head or load tape while the box drive
system is running
WARNING
1
2
3
4

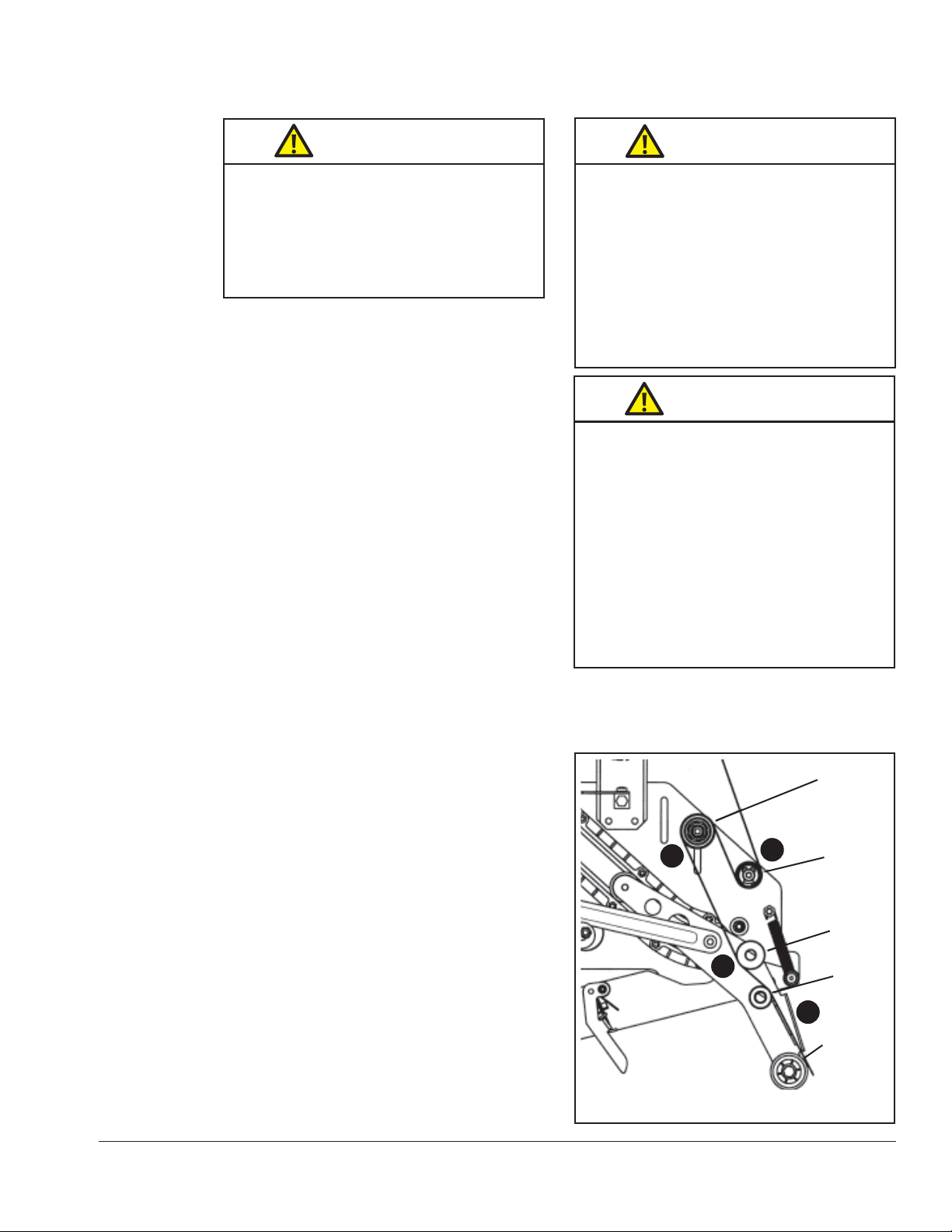

Figure 3-3 Tape Loading/Threading
Tension
Wrap
Roller
Knurled
Roller
Wrap
Roller
One-Way
Tension
Roller
Applying
Roller

NA - ENG
April 2017
3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page 11
Figure 3-4 Tape Loading/Threading
Figure 3-5 Tape Loading/Threading
Operation (continued)
Figure 3-4
Place tape roll on tape drum to
dispense tape with adhesive side
forward. Seat tape roll fully against
back ange of drum. Adhere tape
lead end to threading needle as
shown.
Manually turn tape roll to create
slack tape while pulling threading
needle through tape applying
mechanism until needle is through
and tape is in alignment with
applying roller.
Excess tape can be cut with a
scissors at applying roller.
• To reduce the risk associated with
sharp blade hazards:
- Keep hands and ngers away from
tape cutoblades under orange blade
guards. The blades are extremely sharp.
WARNING

NA - ENG
April 2017
3M-Matic™Accuglide 2+ - 3 Inch Taping Head
Page 12
(Maintenance continued on next page.)

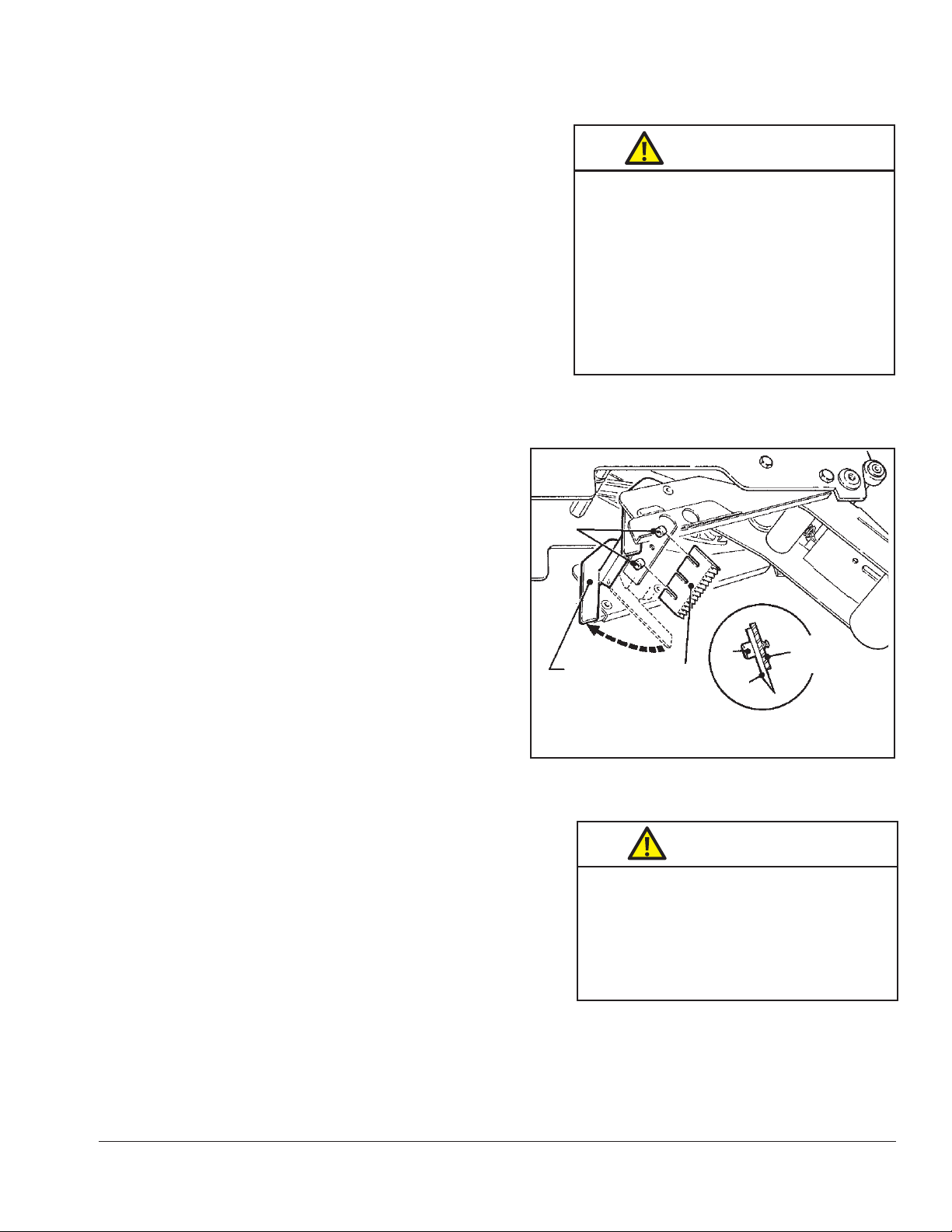

Figure 4-1 Blade Replacement
Knife
Guard
Knife
Holder
A
A
B
B
Maintenance
The AccuGlide™ 2+ Standard 3 inch
Taping Head has been designed for
long, trouble free service. The taping
head will perform best when it
receives routine maintenance and
cleaning. Taping head components
that fail or wear excessively should
be promptly repaired or replaced to
prevent damage to other portions of
the head or to the product.
Blade Replacement, Upper and Lower
Taping Heads – Figure 4-1
1. Loosen, but do not remove, the
blade screws (A). Remove and
discard old blade.
2. Mount the new blade (B) with the
beveled side away from the blade
holder.
3. Bottom the blade slots against
the screws (this will position the
blade at the correct angle.)
Tighten the blade screws to
secure the blade.
Note – Check the blade position
to insure proper clearance
between blade and guard by
slowly pivoting blade guard back.
Blade Guard
The blade guard covers the blade
whenever a box is not being taped.
Periodically check to be sure the
blade guard is functioning properly
and returning to cover the blade.
Replace any defective parts.
Blade Oiler Pad
To reduce adhesive build-up, the
taping heads are equipped with
a factory pre-lubricated felt oiler
pad that provides a lm of oil on
the cutting edge of the blade.
Blade maintainance should include
keeping the felt oiler pad saturated
with Silicone.
Should tape adhesive build-up
occur on blade, carefully wipe
clean with an oily cloth.
• To reduce the risk associated with
sharp blade hazards:
- Keep hands and ngers away from
tape cutoblades under orange blade
guards. The blades are extremely sharp.
WARNING
• To reduce the risk associated with
shear, pinch, and entanglement hazards
- Turn air and electrical supplies o
on associated equipment before
performing any adjustments, mainte-
nance, or servicing the taping heads
- Never attempt to work on the taping
head or load tape while the box drive
system is running
WARNING
