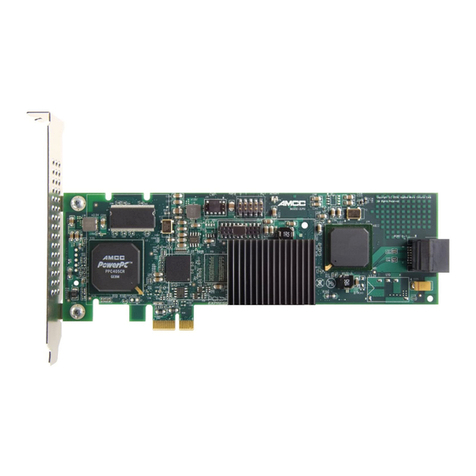

3Ware 9000 Series User manual

Only one RAID controller family can deliver fault tolerant, low cost storage, multi-terabyte
capacity and unparalleled performance and reliability levels — the 3ware 9000 Series
Serial ATA hardware RAID controllers. Combined with the AMCC StorSave Platform and
an advanced RAID management feature set, the 9000 Series RAID controllers, available in
12, 8 and 4-port configurations, are the most compelling solution for high performance
and highest reliability computing.
Benefits
• Over 400 MB per second RAID 5
reads for high performance
computing applications1
•Single array capacities scale to
over 4.8TB per controller (64-bit
LBA support)
• True hardware RAID minimizes
impact to the host CPU,maximizing
your system investment
• AMCC StorSave Platform for
maximum reliabilitywithout
sacrificing performance
• Advanced software and RAID
features make configuring,manag-
ing and expanding RAID systems
abreeze
•Multi-lane connectors combine
four SATA ports into one for
maximum reliability
•Broad operating system support
including Windows,Linux (open
source) and FreeBSD (open source)
• A family of 12,8 and 4-port
controllers simplifies migration
as capacity requirements grow
SATA RAID Controllers
APPLICATIONS FOR 3WARE CONTROLLERS
Servers Security/
Surveillance Video Editing Super
Computing NAS Video On-Demand Disk-to-Disk
Backup
3ware9000 Series —
The Highest Performing Hardware RAID
3ware’s advanced switched RAID architecture —
StorSwitch™unleashes the power of Serial ATA
(SATA), delivering the highest hardware RAID
performance in its class. The 3ware 9500S
hardware RAID controllers deliver in excess of
400 MB per second (MB/sec) sustained RAID 5
reads and over 100 MB/sec RAID 5 sequential
writes with less than 3% CPU utilization1.
The StorSwitch architecture can simultaneously
handle commands toand from multiple drives.
No single driveis penalized byanother while
executing read or write commands. The on-board
processor ensures the host CPU is managing your
applications —not the RAID controller functions.
The result is superior overall performance
compared to other Serial ATA controllers.
Enterprise-class RAID Features
and Management
The 3ware 9500S hardware RAID controllers
include advanced RAID features for greater data
protection and management. The AMCC StorSave
Platform combines firmware and a Battery Backup
Unit (BBU) that maximizes data protection
without compromising performance. Greater
than 2 TB supportallows for very large arrays in
64-bit platforms. An enhanced firmware platform
that allows features such as on-line capacity
expansion (OCE), RAID Migration and enclosure
management protects your RAID storage invest-
ment. 3ware’s remote management software,
3wareDisk Manager 2 (3DM®2) simplifies storage
configuration and management for Linux and
Windows environments via a Web browser.
Highest Reliability
Hardware RAID provides higher fault tolerance
than software RAID because it protects your data
in the event of an operating system failure.
The 3ware9500S SATA hardware RAID controllers
supportRAID levels 0, 1, 10, 5, 50 and Single Disk
(JBOD).
The innovative AMCCStorSave Platform supplies
power to the cache memory module in the event
of a system power loss — without sacrificing
performance. It includes exclusive features that
utilize a write journaling technique, which
enables not only controller but also drive write
caching to continue in the event of a power
failure. The highest levels of performance are
continuously maintained while guarding against
data loss.
Integrated Solutions
3ware offers a truly innovative SATA cabling solu-
tion for large-scale configurations where space
and airflow are at a premium. The 3ware 9500S
Multi-lane (MI) controllers combine a highly
reliable,locking cable/connector system that
combines four SATA ports into one on the
controller side. Available in 12 or 8-port configu-
rations, the 3ware 9500S-MI controllers increase
reliability,and simplify installation and routing.
Hard
Drive
Hard
Drive
Hard
Drive
Hard
Drive
Up to
1.5 Gb/sec
per port
3ware SATA Hardware
RAID Controller
Advanced
StorSwitch
Architecture
3ware®9000 Series
High-Performance Serial ATA Hardware RAID Controllers

Operating System Support
•Microsoft® Windows® 2003/XP/2000, RedHat® Linux, SuSE® Linux, FreeBSD
For complete OS listing, go to: www.3ware.com/support/OS-support
3ware 9000 Series Specifications
• PCI 2.2 compliant 64-bit/66MHz bus master
• Serial ATA Specification 1.0a compliant
• BIOS PnP (plug and play) and BBS (BIOS boot specification) support
• Operating Temperature Without BBU: 0˚C to 50˚C
With BBU: 10˚C to 40˚C
• Power Requirements 8.72W max. on +5 V
250mW max. on +3.3 V
250mW max. on -12V, +12 V not used
• Dimensions
PCI MD2 Low Profile: 9500S-4LP 7.475"L x 2.300"H (18.987cm x 5.842cm)
PCI Half Length: 9500S-8 7.475"L x 3.875"H (18.987cm x 9.843cm)
9500S-12 7.475"L x 3.875"H (18.987cm x 9.843cm)
9500S-8MI 7.430"L x 3.875"H (18.872cm x 9.843cm)
9500S-12MI 7.430"L x 3.875"H (18.872cm x 9.843cm)
Service and Support
• 3-year warranty
• Support via the web at www.3ware.com/support
•For latest motherboard and hard drive compatibility listing go to:
www.3ware.com/products/compatibility_sata.asp
Accessories
•RDC- 400-SATA: Serial ATA RAID Internal Drive Cage
•CBL-SATA-39: 1m Serial ATA Cable
• CBL-SATA-24: 0.61m Serial ATA Cable
•CBL-IB-05M: 0.5m Serial ATA Multi-lane (4x) Cable
• CBL-IB-10M: 1m Serial ATA Multi-lane (4x) Cable
• BBU-9500S-01: Battery Backup Unit
3ware 9000 Series Features
• Optimized hardware XOR RAID 5 engine provides true hardware
based RAID and intelligent drive management functions
• Supports RAID levels 0, 1, 10, 5, 50, Single Disk (JBOD)
• Single array capacity scales to over 4.8 TB per controller (64-bit LBA support)
• 128 MB of ECC protected SDRAM, upgradable to 256 MB
• AMCC StorSave Platform for maximum reliability and performance
— Battery Backup Unit (BBU)
— Write journaling for protection of drive write caching
• Storage management
— Online Capacity Expansion to grow total capacity easily
— RAID Level Management for converting non-redundant
RAID volumes to RAID 5
• StreamFusion maximizes performance through efficient handling
of sequential streams
• StorSwitch point-to-point, non-blocking switched architecture
for highest performance
• Bootable array support for greater fault tolerance
• Variable stripe size for performance tuning by application
• Multiple array background initialization for immediate data redundancy
• Host controller and drive command queuing for peak performance
•Support for up to4cards per system for large storage requirements
• Multiple logical volumes and RAID levels can exist on one card
for maximum configuration flexibility
• Legacy and SATA II out of band (OOB) staggered drive spin-up support
• Hot-swap and hot-spare support for data availability
• Dynamic sector repair for robust data protection
•S.M.A.R.T.disk drivemonitoring for reliability
• SMTP support for email/pager notification
• Emergency Flash Recovery protects against power failure during
firmware upgrades
• Supportfor drive activity LED
• Flexible task scheduling for increased useability
•Multi-lane connectors based on the Infiniband SFF-8470 specification
•Complete configuration management suite
—3ware BIOS Manager (3BM) – BIOS configuration tool
—3ware Disk Manager 2(3DM® 2) – browser-based management tool
—Command Line Interface (CLI) – scriptable configuration tool
3ware 9000 Series
AMCC reserves the right to make changes to its products, or to discontinue any product or service without notice, and advises its customers to obtain the latest version of relevant information to verify,
before placing orders, that the information being relied upon is current.
AMCC is a registered trademark of Applied Micro Circuits Corporation. 3ware, SwitchedRAID and 3DM are registered trademarks in the United States and StorSwitch is a trademark in the United States,
of Applied MicroCircuits Corporation. All other trademarks are the property of their respective holders. Copyright © 2004 Applied Micro Circuits Corporation. All Rights Reserved.
DS9000_01/25/05

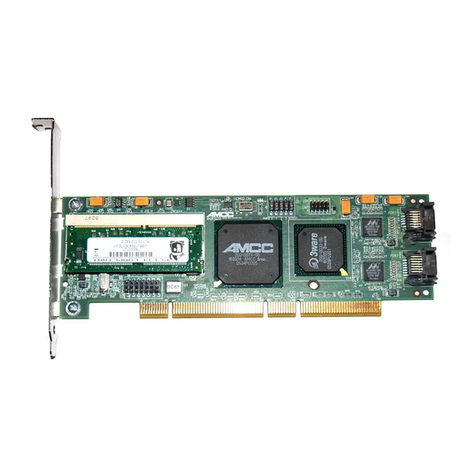

3ware 9500S-4LP with BBU 3ware 9500S-12MI
with Multi-lane cable
3ware 9000 Series Selection Guide
Model 9500S-4LP 9500S-8 9500S-12 9500S-8MI 9500S-12MI
Drive Support Up to 4 Serial ATA Up to 8 Serial ATA Up to 12 Serial ATA Up to 8 Serial ATA Up to 12 Serial ATA
RAID Levels 0,1,10,5,Single Disk (JBOD) 0,1,10,5,50,Single Disk (JBOD) 0,1,10,5,50, Single Disk (JBOD) 0,1,10,5,50, Single Disk (JBOD) 0,1,10,5,50,Single Disk (JBOD)
Target Markets Departmental Servers, Departmental Servers, Security and Surveillance, Departmental Servers, Security and Surveillance,
Video Editing Security and Surveillance, Super Computing, Security and Surveillance, Super Computing,
Super Computing, Video On-Demand, Super Computing, Video On-Demand,
Video On-Demand, Disk-to-Disk Backup, Video On-Demand, Disk-to-Disk Backup,
NAS Storage NAS Storage NAS Storage NAS Storage
