6TL YAV90059 Parts list manual

TECHNICALDESCRIPTION
YAV90059
64-Channel, 2A Multiconfig Multiplexer
This document is a technical description of the YAV90059 .
Note Before you begin, complete the software and hardware installation procedures applicable to your
application.
Note the guidelines in this document are specific to the YAV90059 . The other components in the system
might not meet the same safety ratings. Refer to the documentation of each component in the system to determine
the safety and EMC ratings for the entire system.
MORE INFORMATION ON OUR WEBTSITE:
www.6tlengineering.com

Pag 2 | 13 www.6tlengineering.com 24/06/2022 YAV90059
CONTENT
1. SAFETY GUIDELINES................................................................................................... 3
2. ELECTROMAGNETIC COMPATIBILITY GUIDELINES.................................................. 3
3. DESCRIPTION............................................................................................................... 4
4. LAYOUT AND DIMENSIONS......................................................................................... 5
5. RELAY DISTRIBUTION.................................................................................................. 6
6. PINOUT (FRONT).......................................................................................................... 7
7. CONNECTOR PINOUT (REAR)..................................................................................... 8
8. LED BEHAVIOUR .......................................................................................................... 8
9. SWITCH CONFIGURATION........................................................................................... 9
10. HARDWARE SPECIFICATIONS.................................................................................. 10
11. OPERATION................................................................................................................ 11
11.1 PHI6 EXPLORER soft interface ........................................................................ 11
12. LOW LEVEL CAN COMMANDS................................................................................... 12
13. ACCESSORIES............................................................................................................ 12
14. UNPACKAGING AND INSTALLING............................................................................. 13

Pag 3 | 13 www.6tlengineering.com 24/06/2022 YAV90059
1. SAFETYGUIDELINES
Caution Read this manual carefully to understand the contents well and make the proper use of
this system accordingly.
Keep the manual safely for ready reference at any time. For basic operation of the system/module,
also read the relevant manuals carefully to understand the contents well, and then make the proper
use of this system accordingly.
Note Only qualified and entitled personnel are authorized to carry out operations of installation
and routine on the devices described in this manual. The company installing it would bear
responsibility for any security or operating failure of the lift, when such failure is due to the
parameters incorrect programming.
The product described in this manual can be configured to comply with the ruling of different
countries. The manufacturer does not hold any responsibility if the company installing it does not
configure it according to the legal, commercial or security prescriptions that may be in force in the
place of installation or otherwise agreed with the customer.
2. ELECTROMAGNETICCOMPATIBILITYGUIDELINES
The product YAV90059 to which this manual relates meet the provisions of the EU Directives 2014/30/CE
which declares the compliance of electromagnetic compatibility (EMC) and directive 2014/35/CE of low
voltages electronic devices.
For accessories or other elements that can be connected to this product, see their corresponding
Declaration of Conformities

Pag 4 | 13 www.6tlengineering.com 24/06/2022 YAV90059
3. DESCRIPTION
The YAV90059 module is controlled through CAN Bus and features104 DPST relays forming
two 4-poles, 2-Poles or 1-Pole Multi-configuration Multiplexers.
The configuration of the multiplexer is selected by a software command. The ‘mode’ is an
analog output Phi6 function, where the input parameter can be 1 to 13. The modes available are
the following:
1. 8 x(1x16) →8 banks of 16 individual outputs. This is the default mode.
2. 4x(1x32) →4 banks of 32 individual outputs.
3. 1x(1x64) + 2x(1x32) →1 bank of 64 individual outputs and 2 banks of 32 individual
outputs.
4. 1x(1x96) + 1x(1x32) →1 bank of 96 individual outputs and 1 bank of 32 individual outputs.
5. 2(1x64) →2 banks of 64 individual outputs.
6. 1(1x128) →1 bank of 128 individual outputs.
7. 8 x(2x8) →8 banks of 8 double outputs.
8. 4 x(2x16) →4 banks of 16 double outputs.
9. 1 x(2x32) + 2x(2x16) →1 bank of 32 double outputs and 2 banks of 16 double outputs.
10. 1 x(2x48) + 1x(2x16) →1 bank of 48 double outputs and 1 bank of 16 double outputs.
11. 2 x(2x32) →2 banks of 32 double outputs.
12. 1 x(2x64) →1 bank of 64 double outputs.
13. 4x(4x8) →4 banks of 8 quadruple outputs (2 locked double outputs).

Pag 5 | 13 www.6tlengineering.com 24/06/2022 YAV90059
4. LAYOUTANDDIMENSIONS
All dimensions are in millimetres.

Pag 6 | 13 www.6tlengineering.com 24/06/2022 YAV90059
5. RELAYDISTRIBUTION

Pag 7 | 13 www.6tlengineering.com 24/06/2022 YAV90059
6. PINOUT(FRONT)
A
Description
B
Description
C
Description
D
Description
1
Mux# 1 K012+
1
Mux# 1 K012-
1
Mux# 1 K011+
1
Mux# 1 K011-
2
Mux# 1 K010+
2
Mux# 1 K010 -
2
Mux# 1 K009+
2
Mux# 1 K009 -
3
Mux# 1 Comm+
3
3
3
Mux# 1 Comm-
4
Mux# 1 K014+
4
Mux# 1 K014-
4
Mux# 1 K013+
4
Mux# 1 K013 -
5
Mux# 1 K016+
5
Mux# 1 K016 -
5
Mux# 1 K015+
5
Mux# 1 K015 -
6
6
6
6
7
Mux# 2 K028+
7
Mux# 2 K028 -
7
Mux# 2 K027+
7
Mux# 2 K027 -
8
Mux# 2 K026+
8
Mux# 2 K026 -
8
Mux# 2 K025+
8
Mux# 2 K025 -
9
Mux# 2 Comm+
9
9
9
Mux# 2 Comm-
10
Mux# 2 K030+
10
Mux# 2 K030 -
10
Mux# 2 K029+
10
Mux# 2 K029 -
11
Mux# 2 K032 +-
11
Mux# 2 K032 -
11
Mux# 2 K031 +
11
Mux# 2 K031 -
12
12
12
12
13
Mux# 3 K044 +
13
Mux# 3 K044 -
13
Mux# 3 K043 +
13
Mux# 3 K043 -
14
Mux# 3 K042 +
14
Mux# 3 K042 -
14
Mux# 3 K041 +
14
Mux# 3 K041 -
15
Mux# 3 Comm+
15
15
15
Mux# 3 Comm-
16
Mux# 3 K046 +
16
Mux# 3 K046 -
16
Mux# 3 K045 +
16
Mux# 3 K045 -
17
Mux# 3 K048 +
17
Mux# 3 K048 -
17
Mux# 3 K047 +
17
Mux# 3 K047 -
18
18
18
18
19
Mux# 4 K060 +
19
Mux# 4 K060-
19
Mux# 4 K059+
19
Mux# 4 K059-
20
Mux# 4 K058 +
20
Mux# 4 K058 -
20
Mux# 4 K059+
20
Mux# 4 K059-
21
Mux# 4 Comm+
21
21
21
Mux# 4 Comm-
22
Mux# 4 K062-
22
Mux# 4 K062-
22
Mux# 4 K061+
22
Mux# 4 K061-
23
Mux# 4 K064 -
23
Mux# 4 K064 -
23
Mux# 4 K063+
23
Mux# 4 K063-
24
24
24
24
25
Mux# 5 K076 +
25
Mux# 5 K076 -
25
Mux# 5 K075 +
25
Mux# 5 K075 -
26
Mux# 5 K074 +
26
Mux# 5 K074 -
26
Mux# 5 K073+
26
Mux# 5 K073 -
27
Mux# 5 Comm+
27
27
27
Mux# 5 Comm-
28
Mux# 5 K078 +
28
Mux# 5 K078 -
28
Mux# 5 K077+
28
Mux# 5 K077-
29
Mux# 5 K080 +
29
Mux# 5 K080 -
29
Mux# 5 K079 +
29
Mux# 5 K079 -
30
30
30
30
31
Mux# 6 K092 +
31
Mux# 6 K092 -
31
Mux# 6 K091 +
31
Mux# 6 K091 -
32
Mux# 6 K090 +
32
Mux# 6 K090 -
32
Mux# 6 K089 +
32
Mux# 6 K089 -
33
Mux# 6 Comm+
33
33
33
Mux# 6 Comm-
34
Mux# 6 K094 +
34
Mux# 6 K094 -
34
Mux# 6 K093 +
34
Mux# 6 K093 -
35
Mux# 6 K096 +
35
Mux# 6 K096 -
35
Mux# 6 K095 +
35
Mux# 6 K095 -
36
36
36
36
37
Mux# 7 K108 +
37
Mux# 7 K108 -
37
Mux# 7 K0107 +
37
Mux# 7 K0107 -
38
Mux# 7 K106 +
38
Mux# 7 K106 -
38
Mux# 7 K0105 +
38
Mux# 7 K0105 -
39
Mux# 7 Comm+
39
39
39
Mux# 7 Comm-
40
Mux# 7 K110 +
40
Mux# 7 K110 -
40
Mux# 7 K109+
40
Mux# 7 K109 -
41
Mux# 7 K112 +
41
Mux# 7 K112 -
41
Mux# 7 K111 +
41
Mux# 7 K111 -
42
42
42
42

Pag 8 | 13 www.6tlengineering.com 24/06/2022 YAV90059
43
Mux# 8 K124 +
43
Mux# 8 K124 -
43
Mux# 8 K123 +
43
Mux# 8 K123 -
44
Mux# 8 K122 +
44
Mux# 8 K122 -
44
Mux# 8 K121 +
44
Mux# 8 K121 -
45
Mux# 8 Comm+
45
45
45
Mux# 8 Comm-
46
Mux# 8 K128 +
46
Mux# 8 K128 -
46
Mux# 8 K125 +
46
Mux# 8 K125 -
47
Mux# 8 K128 +
47
Mux# 8 K128 -
47
Mux# 8 K127 +
47
Mux# 8 K127 -
48
48
48
48
7. CONNECTOR PINOUT(REAR)
X1 Connector (Power and CAN)
Pin Number
Signal
Description
1
GND
Ground connection
2
+24V
Board power supply
3
CAN L
CAN-Bus Low signal
4
CAN H
CAN-Bus High signal
X1 pinout description
Plug type:
•Manufacturer: Weidmuller
•Model: BLZF 3.50/04/180
8. LED BEHAVIOUR
LED Name
LED Behaviour
Definition of Behaviour
STATUS
Off
Board is not powered on or power supply is not reaching the
microcontroller.
Solid green
Board is powered on, but firmware of microcontroller is not present or
is not running due an error.
Blinking green
Board is powered on and firmware is running properly.
LED behaviour

Pag 9 | 13 www.6tlengineering.com 24/06/2022 YAV90059

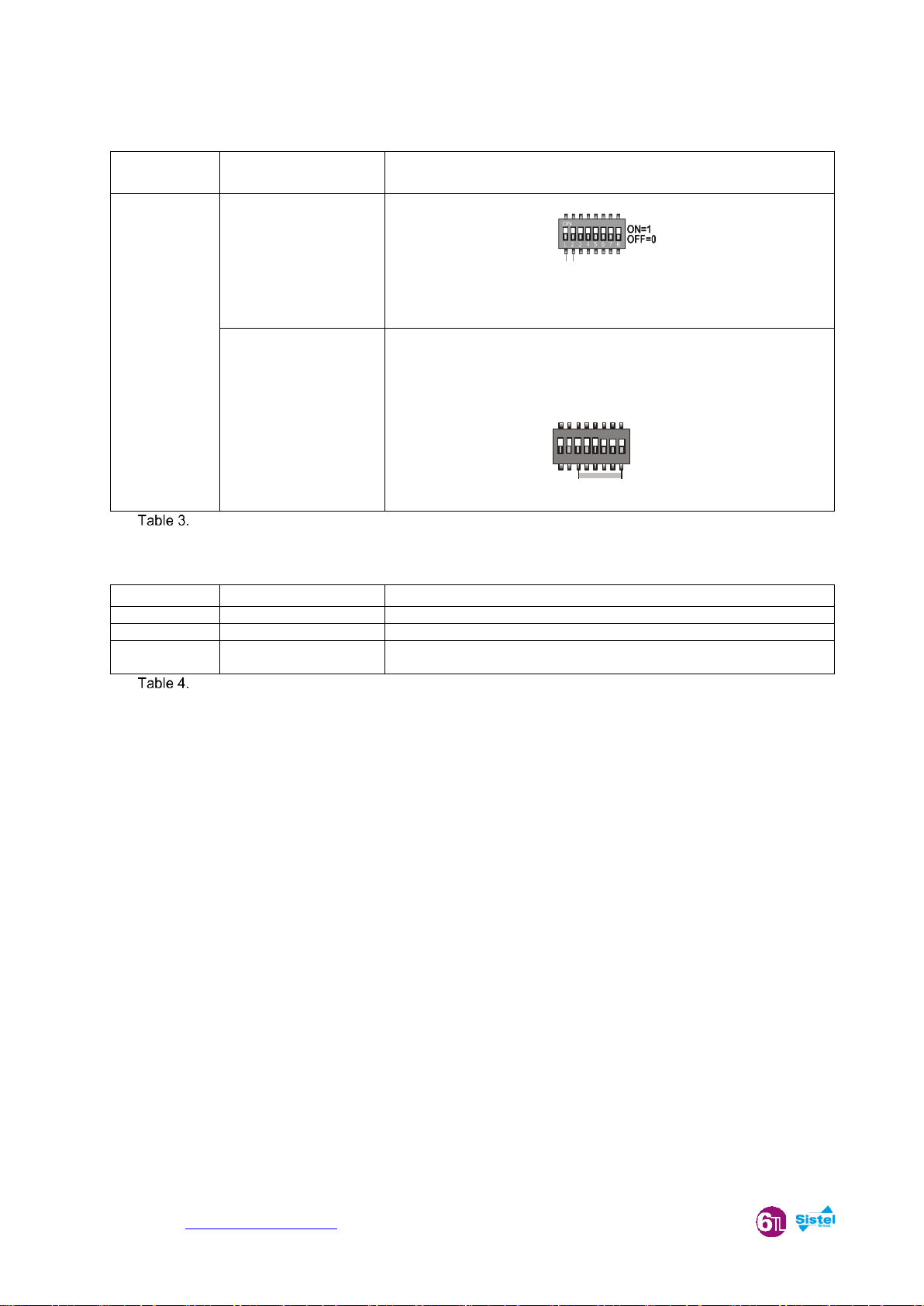

9. SWITCHCONFIGURATION
Switch
Name
Pin switch
Definition of Behaviour
SW1
1 & 2
Switches 1 and 2 set the CAN communication speed:
3 to 8
The logic address is composed by 2 elements: the module
identification and the hardware address. The module identification is
set on firmware and cannot be changed. The hardware address is
selected by switches 3 to 8, being 3 the least significant bit (LSB) and
8 the most significant bit (MSB):
ON
1 2 3 4 5 6 7 8
ON=1
OFF=0
LSB MSB
Board Address
SW1 behaviour
Switch ID
Description
Definition of Behaviour
SW2
BOOT0
Factory use. Must be OPEN on operation.
SW3
RESET
Must be OPEN on operation. A temporary bridge causes a reset of the board.
SW4
CAN-END
Placing jumper adds a 120 Ohm resistor between the CAN-High and CAN-Low
signals of CAN-Bus.
Switches description
00 = 50 kbps
10 = 100 kbps
01 = 125 kbps
11 = 250 kbps

Pag 10 | 13 www.6tlengineering.com 24/06/2022 YAV90059
10. HARDWARESPECIFICATIONS
Operation parameters
Property
Min.
Typ.
Max.
Units
•Control Voltage
18
24
32
V
•Operating current @24VDC and 25ºC
750
mA
•CAN Bus operation speed
50
250
kbps
Operation specifications
Contact data
Property
Min.
Typ.
Max.
Units
•Maximum switching voltage
220
250
VDC
VAC
•Rated current
2
A
•Switching power
60
W
•Minimum switching voltage
100
mV
•Operate time
1
3
ms
•Release time
3
5
ms
•Bounce time
1
5
ms
•Initial contact resistance
50
mΩ
Relay contact specifications

Pag 11 | 13 www.6tlengineering.com 24/06/2022 YAV90059
11. OPERATION
Through the PHI6 Explorer soft panel the user can interface with the YAV90059 board
manually. This tool is a very useful for table-top debugging of test-systems or system
maintenance on-site.
The panel displays the relays in two pages, 4 banks in each page.
Activate relays
By clicking a relay in the panel, the relay closes and
its status in the panel is updated.
Reset: Reset button will put all relays in ‘Open’
status.
Config tags
To operate with Phi6 driver each row/column must be
given a tag name. By clicking this button, the panel
will change its background color from grey to yellow,
and tag name can be modified.

Pag 12 | 13 www.6tlengineering.com 24/06/2022 YAV90059
12. LOW LEVELCAN COMMANDS
13. ACCESSORIES
Item
Description
PN
ITA Module
Quadrapaddle Signal Module, 192 Position
VP510151105
ITA Quadrapaddle pin
Quadrapaddle Signal, Contact, 7 Amp, 20-24 AWG
VP610138109

Pag 13 | 13 www.6tlengineering.com 24/06/2022 YAV90059
14. UNPACKAGINGAND INSTALLING
The YAV90059 is supplied vacuum packed to avoid the intrusion of external agents during
transport and storage and on an antistatic package. To start using the product just remove
vacuum bag carefully to avoid damage.
To install the YAV90059 simply insert the module on a VPC receiver, vertical or horizontally,
according to the Receiver arrangement. Once it is completely inserted, fix YAV module with two
4-40 UNC screws on each side of connector. Tight them using a 3/32 Allen wrench at full
revolutions. Torque should be 0.45Nm max.
Finally, connect the X1 rear plug of CAN bus and power supply (24VDC) to start using the
module.
