808audio XL-V User manual

Instructions en français...........xx
Instrucciones en español.........xx
SPAL1 QSG 01
SMART
SPEAKER
QUICK START GUIDE

2
Make sure you have the following items in your package:
• the XL-V Smart Speaker
• a power cable
Step 1: Unpack
The XL-V Smart Speaker connects to Alexa, a cloud-based
voice service, to provide information, answer questions,
play music, read the news, check sports scores or the
weather and more – instantly.
The XL-V also oers you a new way to discover and enjoy
your music: just say the song, artist or genre you want to
hear, and stream directly over WiFi from Spotify, TuneIn,
iHeartRadio, Amazon Music and more. Or stream music
wirelessly from your phone or tablet. With its advanced
audio design, the XL-V Smart Speaker’s high powered audio
fills the room with immersive stereo sound, delivering crisp
vocals and dynamic bass response.
This Quick Start Guide takes you through the steps to get
started.
Welcome to the XL-V!

3
In the Google Play or Apple App
Stores, search for “808 AUDIO” or
“Smart Speaker 808” and look for the
icon shown here. Then download and
install the App.
Step 2: Download and install the 808
Audio App on your phone or tablet
Speaker back Plug one end of the power
cable into the DC IN jack on
the back of the speaker.
Plug the other end into a
working power outlet or
surge protector.
The speaker turns on
automatically when you
plug it in.
Step 3: Plug in & turn on the speaker
Speaker front

4
Press the 808 Audio icon on your phone
or tablet’s screen to launch it.
Step 4: Launch the 808 Audio
App on your phone or tablet
Note: The first time you launch the 808 Audio
App, it will ask to access your music and video
libraries on your phone or tablet.
To get the most from the Smart Speaker, we
recommend you allow the 808 Audio App to
access these libraries.
The 808 Audio App searches for your
Smart Speaker (make sure you have it
plugged in and turned on!).

5

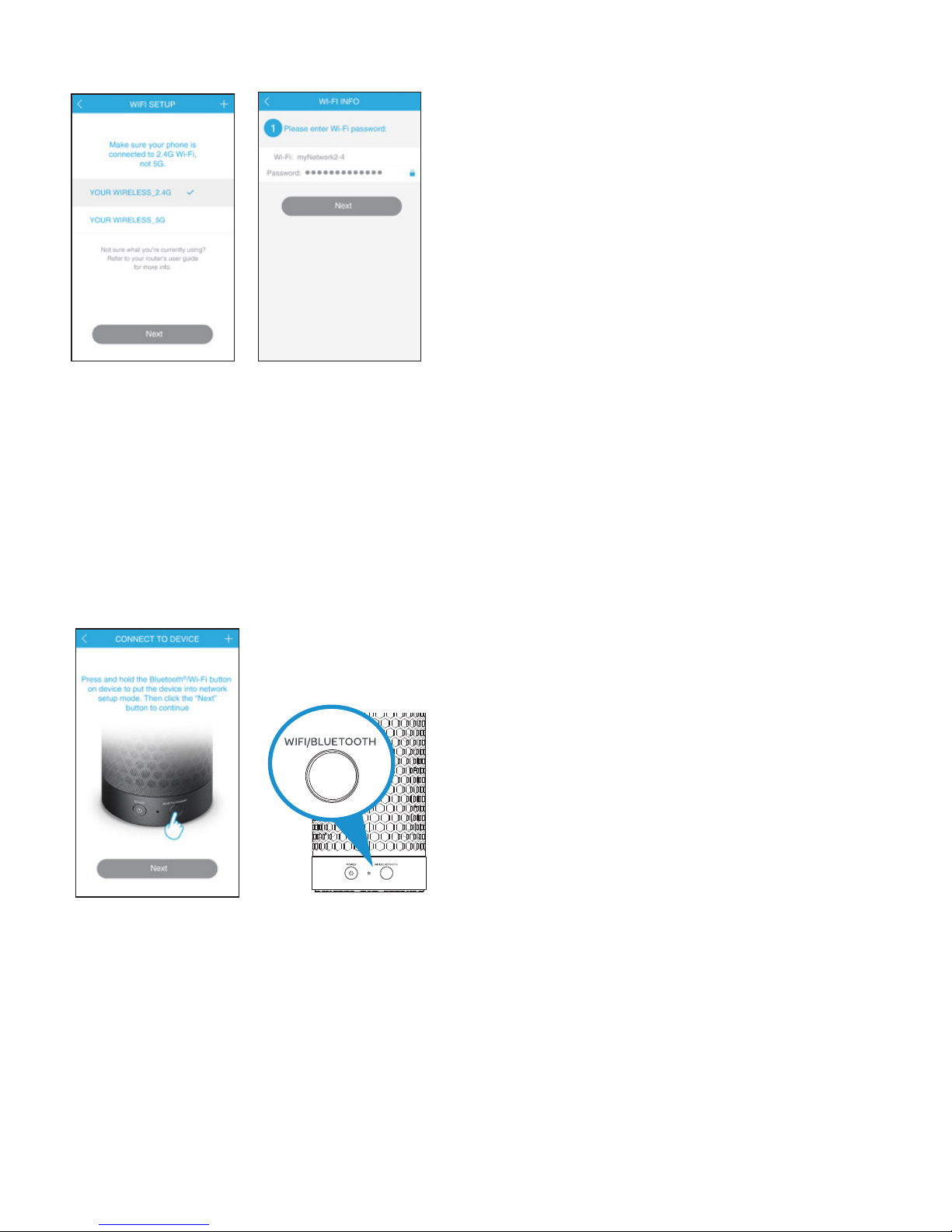

If your WiFi router oers
both 2.4GHz and 5GHz
networks, the App asks
you to make sure that your
phone or tablet is connected
to the 2.4GHz network to set
up your speaker.
Once you’ve entered the
information for your WiFi
network, press and hold the
WIFI/BLUETOOTH button
on the front of the speaker.
The speaker announces
“Connecting to your
network...this may take 1 to
3 minutes.”
Speaker
front
Once you’ve confirmed that your phone or tablet is connected
to a 2.4GHz network, the App asks you to enter your WiFi
network’s password. Enter your password and press the Next
button in the App.
Press the Next button in the App to proceed. The App is
now connecting the speaker to your WiFi network. This
might take a few minutes.

6

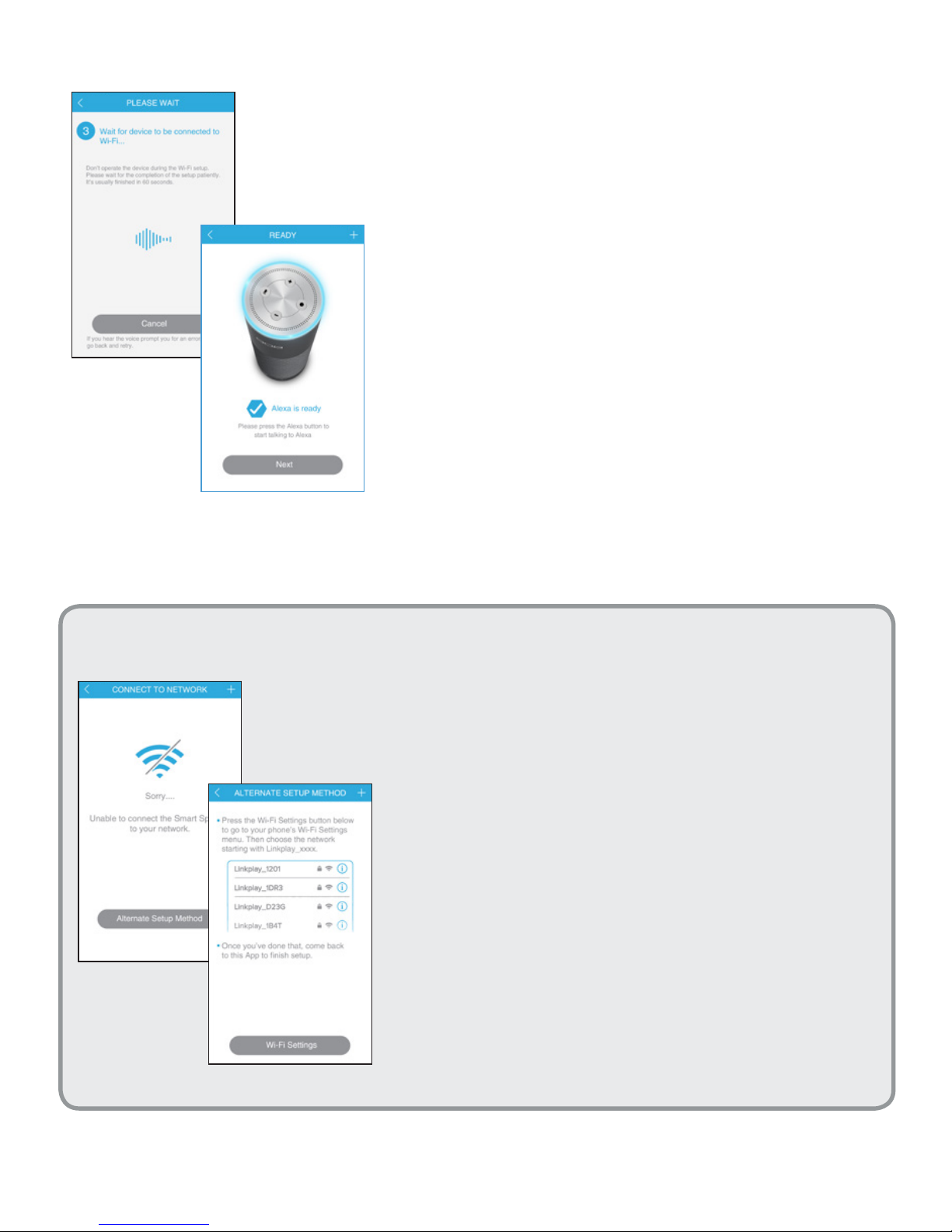

Once your speaker has
successfully connected to your
WiFi network, the speaker gives
an audio signal and the App
lets you know that the speaker
is connected. Press Next to
continue.
In the next App screen, choose a
name for your speaker.
What if the App doesn’t connect the speaker?
If the App can’t connect the
speaker to your WiFi network
directly, it leads you through
the steps for an alternate
setup. Follow the steps in the
App alternate setup to, first,
connect your phone or tablet to
the speaker, then connect the
speaker to your WiFi network.

7

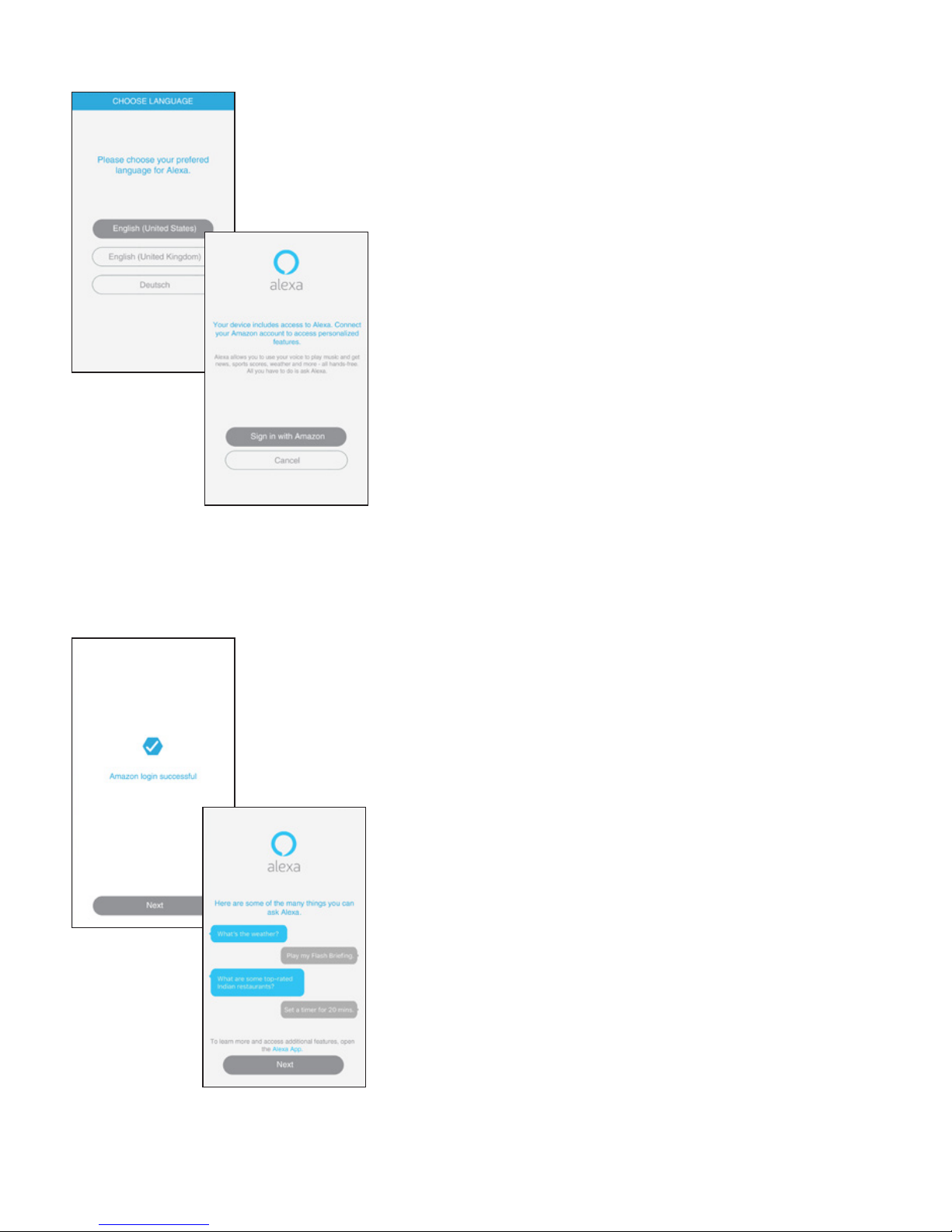

Then, choose your preferred
language to use for Alexa.
Now you’re ready to set up this
speaker to work with Alexa
through your Amazon account.
Press the Sign in with Amazon
button in the App and follow the
instructions to continue.
Once you’ve logged into your
Amazon account, the App
confirms your login and introduces
you to Alexa. Press the Next
button on both screens to proceed.
Congratulations! You’ve just set
up the XL-V Smart Speaker. The
next few pages give you a tour of
some of its key features.

8
Tour of the App
The 808 Audio App is your gateway to your speaker’s full
functionality. You can play content from your library or
streaming services, access Alexa, and adjust your speaker’s
settings. Simply swipe to switch between the following
screens in the App:
Main Menu
Search lets you locate items in your music library.
Favorites shows you the items you’ve marked as your
favorites.
My Music accesses the music library on your device.
Music playback Device List Main Menu

9
TuneIn, iHeartRadio, and Spotify access your accounts
with those services. The first time you use these services
with this App, you’ll need to set them up in the App.
Amazon Alexa lets you access the Alexa service and adjust
settings.
Add More Services lets you choose from a list of available
services for the XL-V Smart Speaker.
Line In switches to audio source connected to the Line In
input on the back of the speaker.
Bluetooth lets you set up the XL-V Smart Speaker to
stream audio from other devices via Bluetooth. Follow the
instructions in the App to set this up.
For all alerts and alarms, skills and smarthome
functionality, use the Amazon Alexa App, available in the
App Store or through Google Play.

10
Tour of the speaker
Top
+and —adjust the speaker’s
volume up or down. Press and hold
to change tracks.
and turn Alexa’s listening mode
o and on. When this is on, you can
give voice commands at any time,
without pressing a button. When
this is o, you’ll need to press the
to give your command.
Light
ring
Indicator
light
Light ring gives you feedback when talking to Alexa and shows
the speaker’s connection status: blue for Bluetooth (solid when
connected, fast blinking when pairing, slow blinking when
connecting), white for Aux In.
Front
POWER turns the speaker o
and on.
WIFI/BLUETOOTH starts the
speaker setup process with
the App (press and hold), and
initiates Bluetooth pairing
(double press).
