A.caminetti 4D Instruction manual

MANUAL OF USE
INSTALLATION & OPERATION
OUTDOOR 4D FIREPLACE
www.acaminetti-factory.com

1. INTRODUCTION.
CONTENTS
2. NOTE BEFORE INSTALLATION
3. ASSAMBLY INSTRUCTIONS
4. FUEL CHOICE
5. PLACEMENT FROM NON COMBUSTIBLE MATERIALS
6. POSITIONING OF THE OUTDOOR FIREPLACE
7. STARTUP AND OPERATION
8. CLEANING AND MAINTENANCE
9. WARRANTY

INTRODUCTION
Thank you for your trust and for choosing A.Caminetti 4D outdoor fireplace !
This manual provides all the necessary information for the correct connection,
operationand maintenance of the firebox.
Please make sure that the OUTDOOR FIREPLACE is operated in the correct way: use suitable
wood,and clean regularly, to be rewarded with many wonderful and warm autumns and winters.
We can be confident that our commitment to designing and manufacturing fireplaces will bematched by
your satisfaction in making this excellent choice. Please read all the sections in thisManual carefully
before starting any installation work and use. Please contact our technical-support department if you
have any queries or doubts. For any further information go to:
A.Caminetti is a renowned and appreciated heating appliance manufacturer, on
European market. Our products are made in compliance with stringent standards. Each of
the fireplace fireboxes we have manufactured undergoes internal quality inspection, during
which it is assessed in rigorous safety tests. The prime-quality materials we use in the
production ensures that the final user will benefit from a functional and reliable heating unit.
This manual provides all the necessary information for the correct connection, operation and
maintenance of an outdoor fireplace.
- This prduct is for OUTDOOR USE ONLY, and should NOT be used in a building, garage,
or any other enclosed area.
- Do NOT use this outdoor fireplace for indoor heating. Toxic carbon monoxide
fumes can be very dangerous.
www.acaminetti-factory.com.
- The 4D outdoor fire is NOT allowed to be operated by children.
- Do not use the outdoor fireplace without reading the entire “Manual”

- Do NOT burn charcoal briquets, lump charcoal, driftwood, rubbish, leaves, paper, cardboard, plywood, painted
or stained or pressure treated wood. Avoid using softwoods such as pine or cedar that can throw sparks out.
- Do not use the outdoor fire without reading the entire “Manual”
- Use dry hardwood.with a Humidity of up to 20 %, It will burn hotter, more completely and create less smoke.
- Remove ash from the ash trap regularly
- Clean the glass with agents intended for such use, keeping in mind not to apply them directlyonto the glass,
but on a cloth.
- Do NOT use the outdoor fireplace near any Motor vehicle or recreational vehicle.
- Do NOT use in an explosive atmosphere. Keep the area clear from combustible materials.
- Do NOT use the A.caminetti outdoor fire under any overhead or near any unprotected combustible
constructions avoid using near or under overhanging trees or shrubs.
- Do NOT use petrol, kerosene, diesel, lighter fluid or alcohol to light or relight fires.
- Keep all electrical cords, cables away from the outdoor fireplace.
NOTE BEFORE INSTALLATION!!!
- Do Not leave a lit outdoor fire unattended, especially around children and pets
- Do NOT attempt to move the outdoor fireplace until all ashes and coals are completely extinguished.
- Do Not remove ashes or logs until they are completely and fully extinguished.
- Use heat-resistant gloves or tool when opening and closing door.
- All Surfaces of the outdoor fire are hot when in operation. To avoid burns, do NOT touch outdoor fire
until it has completely cooled unless you are wearing protective gear (heat-resistant gloves, BBQ
mittens etc.) Never touch ashes or logs to see if they are hot.!
To prevent the risk of fire, the heater must be installed in compliance with the rules andregulations of this
User Manual.
- Do NOT use the outdoor fire until it is completely assembled.
- Do NOT store or use any flammable liquids or vapours in the vicinity of the outdoor fireplace.
- Check the chimney flue at least once a year.
- Do not overheat the firebox: maximum load must not exceed 1/3 of the combustion-chamber volume
- Always use the outdoor fireplace on a hard, level non-combustible surface, Asphalt may not be
acceptable for this. Do NOT use on Wooden decking.

ASSEMBLY INSTRUCTION
The fireplace should be positioned on a non-flammable floor - Always use the
outdoor fireplace on a hard, level non-combustible surface, Asphalt may not
be acceptable for this. Do NOT use on Wooden decking.
POSITIONING THE OUTDOR FIREPLACE AT A SAFE DISTANCE
The recommend minimum distance from outdoor fireplace to combustible materials is
60 cm. Note that some furniture is more easily affected by heat and may need to be
moved to greater distance. This is your responsibility!
The heater is delivered in a ready-to-be-installed state. Remove the packaging and
check theappliance for completeness according to this Operation Manual. You should
also ensure thatthe following are operational.

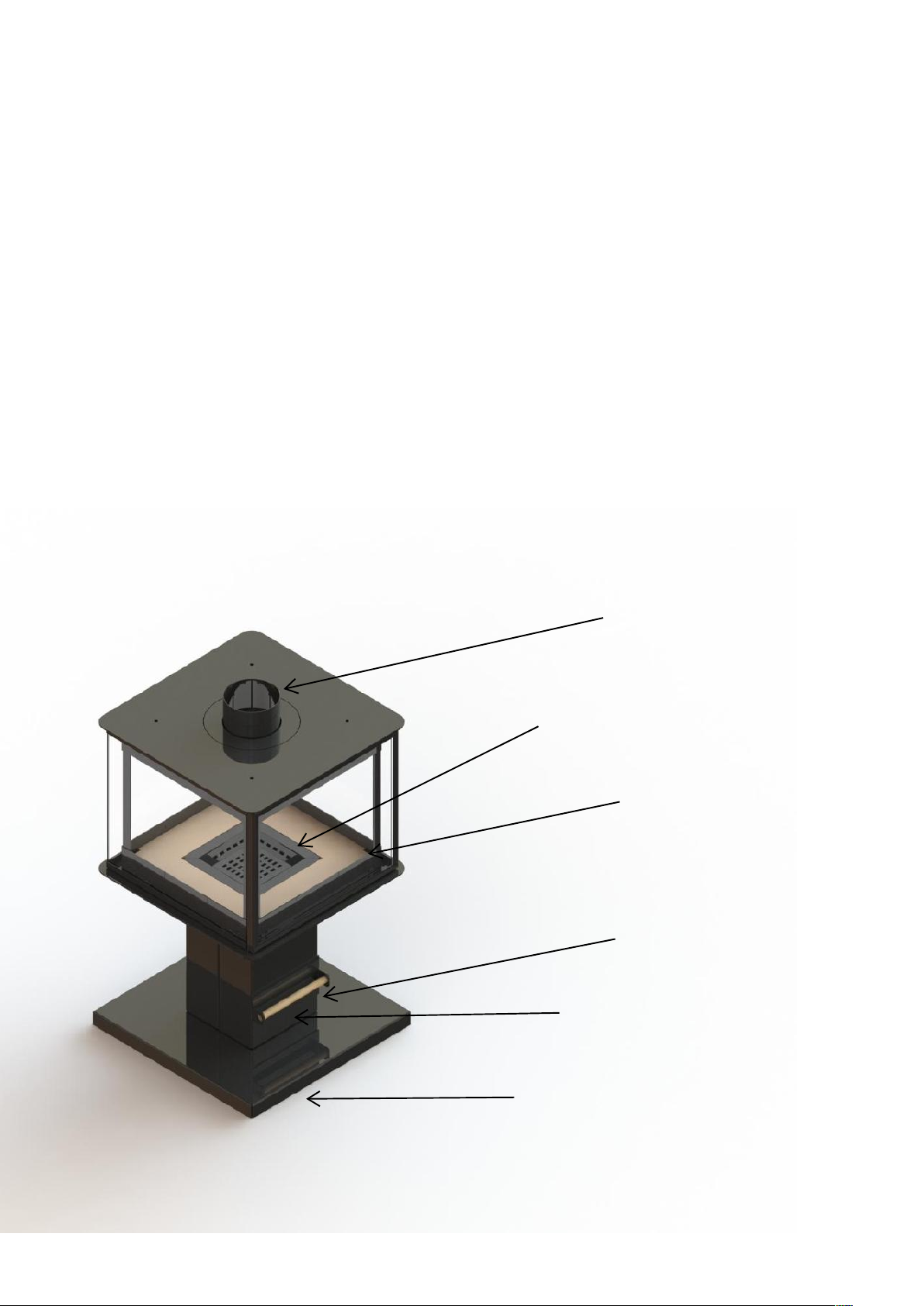

Base Section
Ash Box
Flue Section (Flange)
Fire Body
Ash pan Tool
Grate
PLACEMENT FROM NON COMBUSTIBLE MATERIALS

FUEL CHOICE
You should avoid burning billets of split logs with a humidity of over 20% as it can
prevent theapplian- ce from achieving its declared technical specifications, and can
reduce the heat output.Burning softwood billets and high-resin wood in the
appliance is not recommended, as they result inheavy smoking and frequent
cleaning of the appliance and chimney flue.
Recommended Fuel
- the manufacturer recommends hardwood billets like beech, hornbeam, oak,
alder, birch, ash,etc., with billet or split log dimensions 30cm long and
circumferences between 30 and 50cm,and lignite briquettes.
- the humidity of the fuel wood for the appliance should not exceed 20%.
Not Recommended Fuel
The following is not allowed to be burned in the heaters: minerals, e.g. coal, tropical wood (like
maho- gany), chemical products and fluids, (like oil, alcohol, petrol, and naphthalene),
laminated boards, or adhesive-bonded, impregnated or pressed wood chips and litter. If any
other fuel is allowed, it will be notified on the rating plate.
Avoid filling the hearth with wood fully, optimising the amount of fuel at one-third of thecombustion
chamber’s capacity.

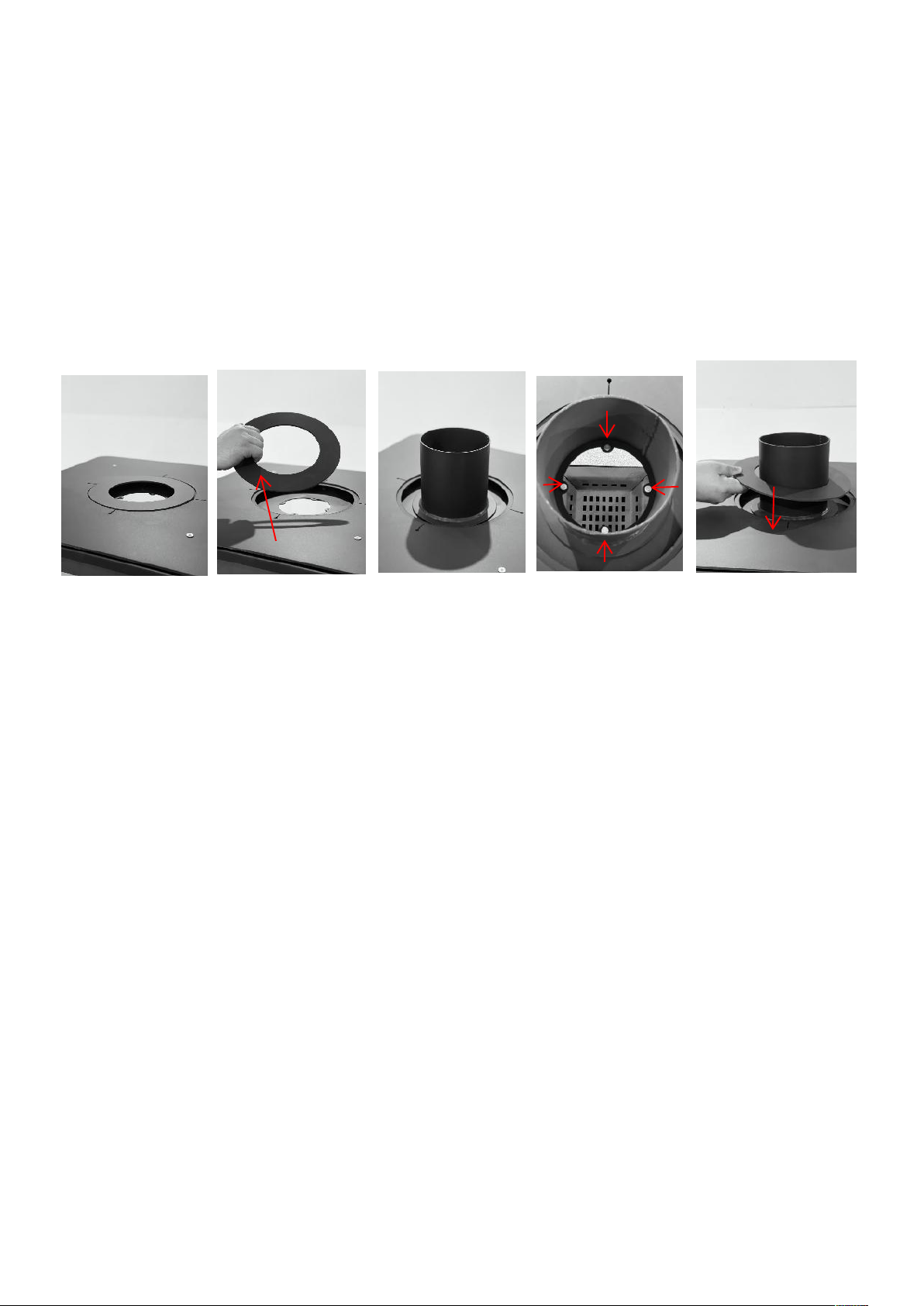

FLANGE POSITIONING
(fig.1a)
(fig.1b)
(fig.1c)
(fig.1d)
(fig.1e)
For connecting the flange with the main body follow the steps as in photos below.
Remove first the metalic circle of the main body as in (fig.1b).Place easily the connection
flange which is packaged inside the fire body (fig.1c).Place the screws than in the side spaces,
to fix the flange on the body as in (fig.1d).Finally set the matalic circle on its first position (fig.1e).


Lighting
MATERIAL NEEDED -A few larger wooden billets (split; max. humidity 20%; approx. 10-13 cm)- a handfulof
splints for kindling (dia. approx. 2-5 cm ; max. humidity 20%,) -Tinder of choice -Matches/Lighter.
OUTDOOR FIREPLACE
Extinguishing
1. Allow fire to burn itself out.
2. Do NOT use water to extinguish as this is dangerous and may cause glass to shatter causing serious injury
or damage to property and damage to the outdoor firelace.
1. Open Door
2. Stack logs as shown use logs that are no more than 350mm Long.
3. Place kindling on top as shown.
4. Use a tapper or long match to light kindling.
5. Close door once kindling is lit.
6. It will help with lighting if the ash box is opened slightly.
7. Close ash box immediately logs start to burn.
This outdoor fireplace is designed to burn wood with a humidity of up to 20%. Using coal, coke,
coal-ba-sed products, plastic, litter, cloths and otherflammable materials is not allowed. Burning
approved wood briquettes made of wood dust or pellet istemporarily allowed, but in small quantities only.
The following is practical guidance for assessing thewood used as fuel. The wood which is to have a
humidity of 18-20% must be seasoned for 18-24 monthsor kiln-dried. As the humidity of wood
de-creases, its net calorific value rises, which brings financialsavings of even up to 30% of the total wood
weight needed to run the appliance during one heatingseason. If the wood used for burning is of too high
humidity, then, too much energy needed forevaporation and condensation in the flue pipe or combustion
chamber can be consumed, which affectsthe heating process of a room. Another negative process
occurring when the high-humidity wood is
used is the emission of creosote, a deposit which damages the chimney flue and, in extreme cases, can
result in ignition and a chimney fire. It is therefore recommended to use hardwood like oak, beech,
hornbeam or birch. Lower calorific va- lues are typical of the coniferous trees and burning their wood
produces heavy soot accumulation on the glass.

CHIMNEY-FLUE MAINTENANCE
A well-cleaned and maintained chimney provides the basis for correct and safe stove
operation. The user must clean the chimney in accordance with the valid regulations. How
often you clean and per- form the maintenance depends on the chimney insulation and the
type of wood used. Using unse- asoned wood with a humidity above 20%, or softwood, will
pose the risk of a chimney fire related to a thick layer of flammable creosote deposits, which
must be removed regularly. Failing to remove the creosote layer inside the chimney liner
causes sealing damage, and also contributes to corrosion build-
-up. Consequently, the regular inspection and maintenance of the stove and its related
components are required.
HEARTH CLEANING
Before and after each heating season, the hearth must be cleaned and checked carefully, as
leaving ash in the ash drawer over a longer time will cause its chemical corrosion. During
operation, regular cle- aning of the firebox-combustion chamber must be performed (how often it
needs to be done depends on the variety and humidity of the wood used). Use a poker,
scrapers, a brush, chimney vacuums and ash separators for cleaning the hearth components.
GLASS CLEANING
The glass gets heated up to high temperatures, so clean it only when the hearth has cooled
down. Clean it using approved agents designed for this purpose only (do not use them to clean
the firebox parts). Do not use any abrasive agents for this purpose, asthis may cause its
surface to be scratched.
NORMAL OUTDOOR FIREPLACE BURNING AND EXTINGUISHING
To prevent flue gases from escaping during the heater’s operation, the door should be closed
at all times, except for lighting, fuel loading and removing ash. Do not leave the site while
lighting thefire when the door is open.

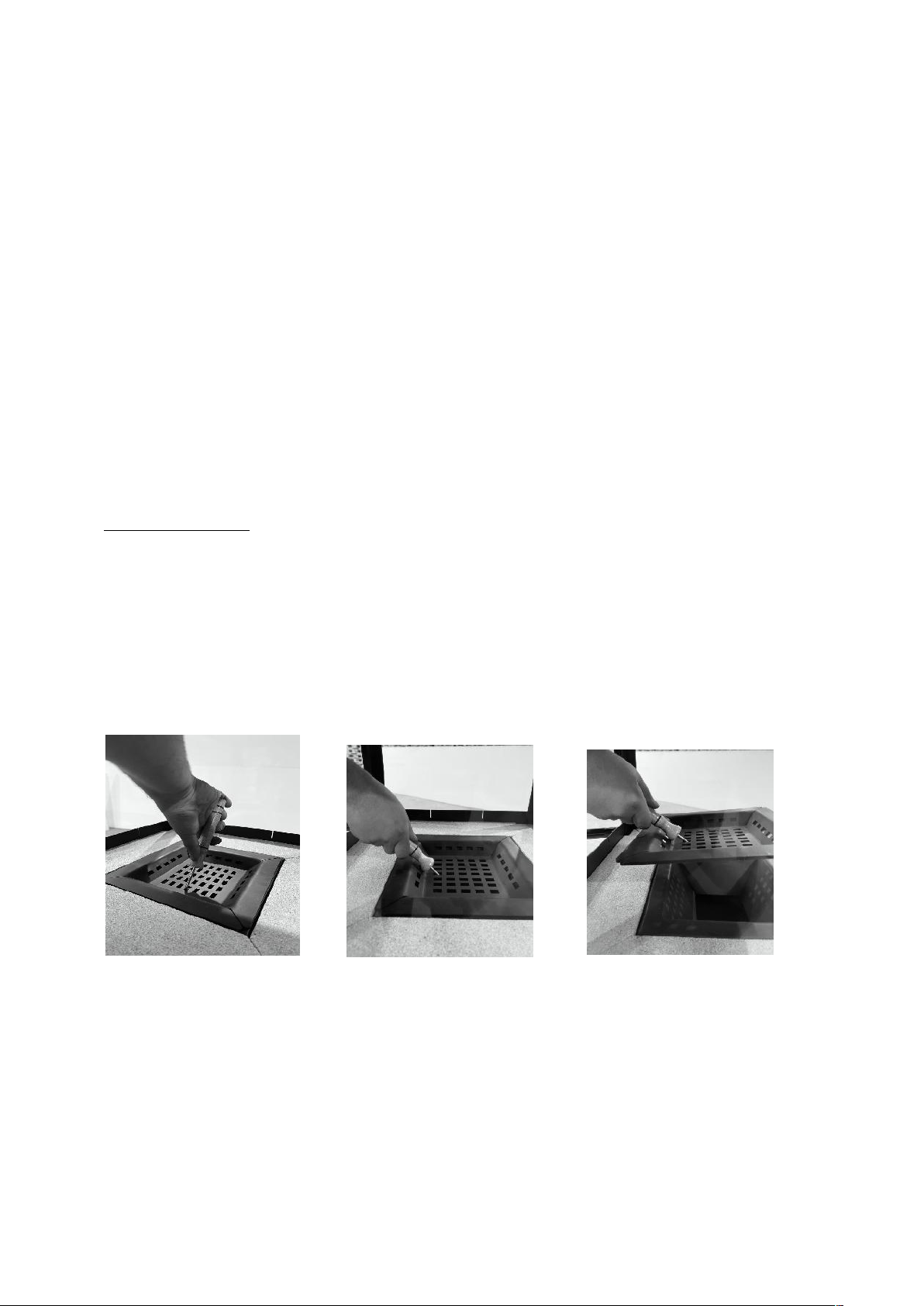

GRATE MAINTACE AND CLEANING
(fig.2a)
(fig.2b)
(fig.2c)

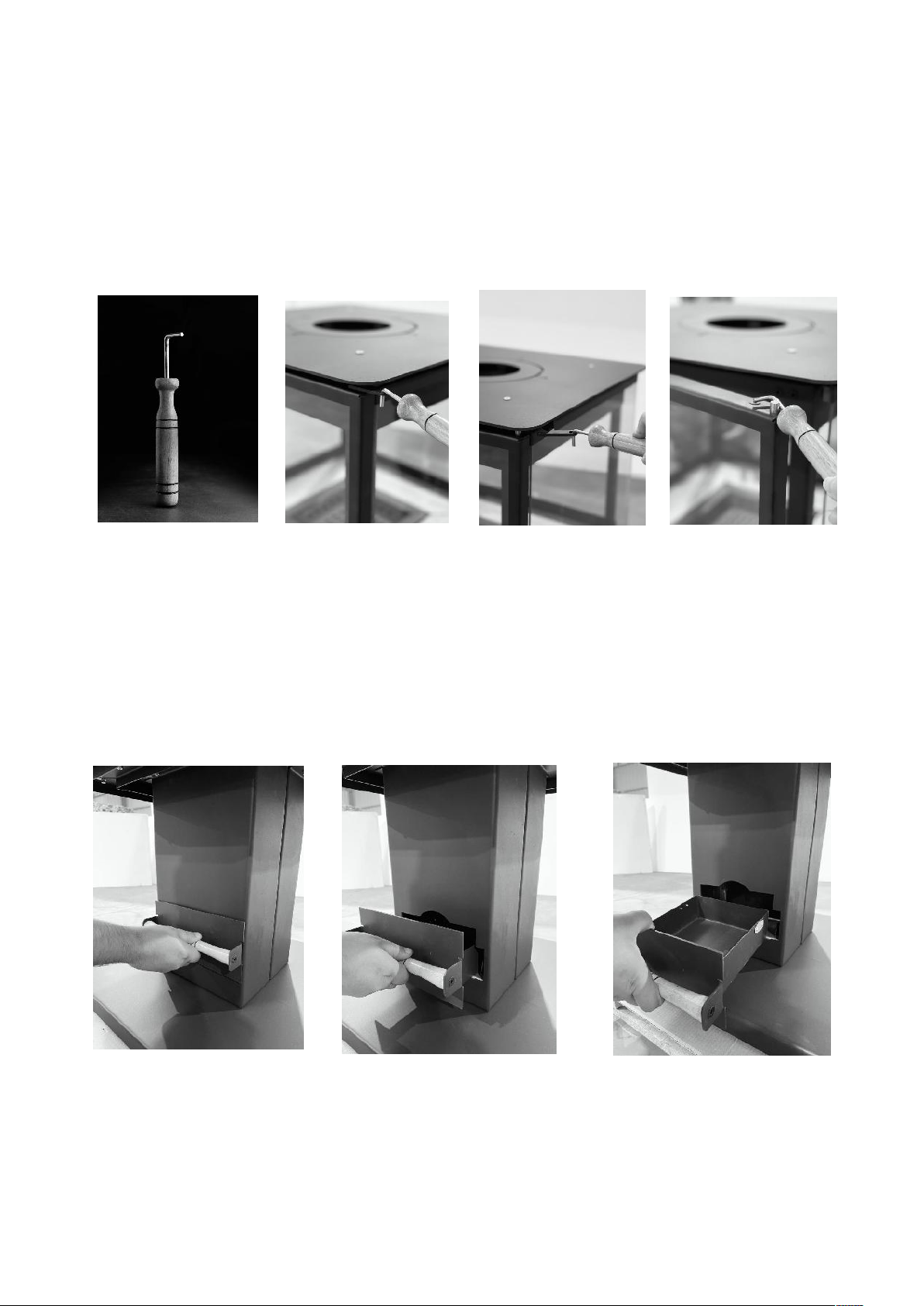

DOOR OPENING
ASH REMOVAL
Door on the outdoor fireplace is easily opened as below.Always use the door accessory and gloves if its nessesary.
Ash should be removed prior to each time you light the stove. To remove the ash, just emptythe ash
container located below the fire grate. Regular hearth-ash removal prevents the ashfrom spilling out. Do
not allow ash to spill over the barrier. Remove the ash from the stovewhen it is cold.
3a) Door accessory
* Remove and clean the ash box each time you light the outdoor fireplace!

•Production defects.
In case you have questions orrequire servicing during the warranty period, please contact your dealer
who will assist you. Always inform the dealer of which model you have purchased as well as the serial
number of your stove.
The following are not covered by the warranty:
WARRANTY
A.caminetti warrants brand new outdoor fireplace for 12 months.The warranty covers:
•Fire-penetration of the steel, assuming that the outdoor fireplace has been fired up correctly.
•Transportation damages.
•Secondary damages resulting from the use of the product.
•Damages resulting from incorrect use such as superheating. Such damages may be avoided by
following the operating manual instructions.
•Glass, soapstone, sandstone and ceramics
If after many years you find exchanging some parts necessary, contact the supplier or any
representa- tive of our company. To order a spare part, submit the information listed in the
rating plate located on the back of the guarantee certificate, which must be kept even when the
guarantee has terminated.
If you have this information, and our factory documentation, the supplier will be able to deliver
all spare parts in a short time.
SPARE PARTS
If the chips are down and your outdoor fireplace needs repairing under the warranty, you must be able
to present adated and signed invoice stating the name of the dealer and the model. In case of repairs
under the warranty, the parts and labor costs will be covered by A.caminetti.
THANK YOU FOR CHOOSING "A.CAMINETTI"!

[email protected]
www.acaminetti-factory.com
A.caminettti GmbH
AM Industriegleis 6a,Ergolding / Germany.
