A-Neuvideo ANI-HDAINSERT1080 User manual
AUDIO / VIDEO MANUFACTURER
ANI-HDAINSERT1080
HDMI Audio Inserter
A-NeuVideo.com
Frisco, Texas 75036
INSTRUCTION MANUAL
SAFETY INFORMATION
1. To ensure the best results from this product, please read this manual and all other documentation before operating your
equipment. Retain all documentation for future reference.
2. Follow all instructions printed on unit chassis for proper operation.
3. To reduce the risk of re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid.
4. Make sure power outlets conform to the power requirements listed on the back of the unit. Keep unit protected from rain,
water and excessive moisture.
5. Do not attempt to clean the unit with chemical solvents or aerosol cleaners, as this may damage the unit. Dust with a clean
dry cloth.
6. Do not use the unit if the electrical power cord is frayed or broken. The power supply cords should be routed so that they
are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and
plugs, convenience receptacles, and the point where they exit from the appliance.
7. Do not force switched or external connections in any way. They should all connect easily, without needing to be forced.
8. Always operate the unit with the AC ground wire connected to the electrical system ground. Precautions should be taken
so that the means of grounding of a piece of equipment is not defeated.
9. AC voltage must be correct and the same as that printed on the rear of the unit. Damage caused by connection to improper
AC voltage is not covered by any warranty.
10. Turn power off and disconnect unit from AC current before making connections.
11. Never hold a power switch in the “ON” position.
12. This unit should be installed in a cool dry place, away from sources of excessive heat, vibration, dust, moisture and cold.
Do not use the unit near stoves, heat registers, radiators, or other heat producing devices.
13. Do not block fan intake or exhaust ports. Do not operate equipment on a surface or in an environment which may
impede the normal ow of air around the unit, such as a bed, rug, carpet, or completely enclosed rack. If the unit is used
in an extremely dusty or smoky environment, the unit should be periodically “blown free” of foreign dust and matter.
14. To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside. Refer all
servicing to qualied service personnel. There are no user serviceable parts inside.
15. When moving the unit, disconnect input ports rst, then remove the power cable; nally, disconnect the interconnecting
cables to other devices.
16. Do not drive the inputs with a signal level greater than that required to drive equipment to full output.
17. The equipment power cord should be unplugged from the outlet when left unused for a long period of time.
18. Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship
the unit, use only the original factory packing.
19. Service Information Equipment should be serviced by qualied service personnel when:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the equipment.
C. The equipment has been exposed to rain.
D. The equipment does not appear to operate normally, or exhibits a marked change in performance.
E. The equipment has been dropped, or the enclosure damaged.
THIS SAFETY INFORMATION IS OF A GENERAL NATURE AND MAY BE SUPERSEDED BY
INSTRUCTIONS CONTAINED WITHIN THIS MANUAL.
ANEUVIDEO
1
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power
supply. Please keep the following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of re, electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain, moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow
for sufcient space for air to circulate around the unit.
DISCLAIMERS
The information in this manual has been carefully checked and is believed to be accurate. We assume no responsibility for
any infringements of patents or other rights of third parties which may result from its use.
We assume no responsibility for any inaccuracies that may be contained in this document. We make no commitment to update
or to keep current the information contained in this document.
We reserve the right to make improvements to this document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means — electronic, mechanical, magnetic, optical, chemical,
manual, or otherwise — without the express written permission and consent.
© Copyright 2020. All Rights Reserved.
Version 1.0 JUNE 2020
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be trademarks of the companies with which they are associated.
ANEUVIDEO
2
TABLE OF CONTENTS
INTRODUCTION & CONTENTS......................................................................................................2
FEATURES.......................................................................................................................................3
SPECIFICATIONS............................................................................................................................4
OPERATION CONTROLS & FUNCTIONS.......................................................................................5
CONNECTION DIAGRAM.................................................................................................................8
INTRODUCTION
The ANI-HDAINSERT1080 HDMI Audio Inserter lets you insert an external audio signal into your
HDMI or DVI signal path. The unit allows you to insert stereo and multi-channel surround sound
signals to give users the capability to select audio formats while extending your HDMI signal. This
product has a 3 year warranty.
PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following items
are contained in the shipping carton:
• ANI-HDAINSERT1080 HDMI Audio Inserter
• 5V/1A Power Adaptor
• Users Guide
APPLICATIONS
• Embeds external audio into HDMI signal
• Integrates audio and DVI video to HDMI signal output
• Replaces audio in the original HDMI signal by other input sources
SYSTEM REQUIREMENTS
Source equipment such as PC/Laptop or DVD player with connection cables and HD monitor or LCD
TV with HDMI cables.
3
FEATURES
• Compliant with HDMI, HDCP 1.2 and DVI 1.0
• Supports HDMI audio sampling rates up to 192kHz
• Supports Optical S/PDIF audio sampling rate up to 48kHz
• Supports TMDS clock frequency up to 225MHz
• Supports high-bit-rate (HBR) audio
• HDMI cable distance tested with 1080p at 8-bit or 12-bit resolution, the input and output can run
up to 49ft/15M (8-bit) or 32ft/10M (12-bit)
• Low power consumption
• Supports 3D signal
4
SPECIFICATIONS
• Input Ports:
• HDMI
• Optical (Digital Audio)
• L/R (Analog Audio)
• HDMI Audio Sampling Rate: Up to 192kHz
• Optical Audio Sampling Rate: Up to 48kHz
• Output Port: HDMI
• HDMI Cable I/O Distance: 32ft/10M, 1080p@12-bit / 49ft/15M, 1080p@8-bit
• HDMI Audio Format: LPCM 2/5.1/7.1, Dolby 5.1, DTS 5.1, Dolby Digital+, Dolby TrueHD &
DTSHD Master Audio
• Optical Audio Format: LPCM 2, Dolby Digital & DTS Digital Audio 5.1
• Power Supply: 5 V/1 A linear power adaptor (US/EU Standards, CE/FCC/UL Certied) or 5
V/1.2 A switching power adaptor (with universal plug, CE/FCC/UL certied)
• ESD Protection Human body model:
• ±8kV (air-gap discharge)
• ±6kV (contact discharge)
• Dimensions (WxDxH): 3.6 x 3.4 1.3 in (90.7 x 85.8 x 34 mm)
• Weight: 3.8 oz / 107g
• Chassis Material: Plastic
• Silkscreen Color: White
• Operating Temperature: 0ºC~40ºC/32ºF~104ºF
• Storage Temperature: −20ºC~60ºC/−4ºF~140ºF
• Relative Humidity: 20~90% RH (non-condensing)
• Power Consumption: 2.7 W
As product improvements are continuous, specications are subject to change without notice.
5
OPERATION CONTROLS AND FUNCTIONS
Top Panel
qPower LED: The LED will illuminate in blue when the unit is connected to the power supply and
switched on.
wLink LED: The LED will illuminate in green when both the source and the display are connected
and have established a link. This LED will also blink once while the power is turned on.
Right Panel
qAudio In Select: Allows users to select among 3 different audio input options. Switch among the
original HDMI audio, Digital Audio (Optical) and Analog Stereo (L/R).
wPower: Switches the unit ON or puts the device into STANDBY mode.
6
OPERATION CONTROLS AND FUNCTIONS

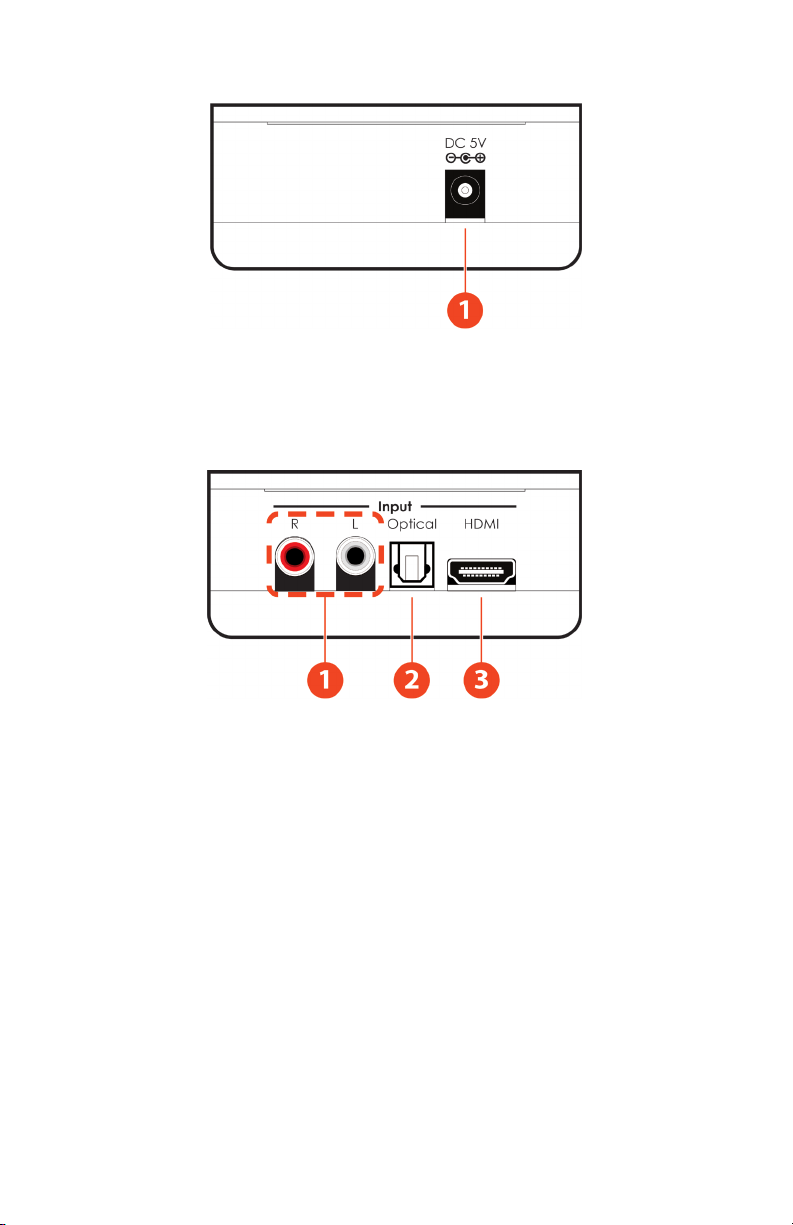

Left Panel
qDC 5V: Connect the 5V DC power supply into the unit and plug the adaptor to an AC wall outlet.
FRONT Panel
qR/L Input: Connect to the audio source equipment such as a PC/Laptop or an Hi-Fi equipment
with RCA cables.
wOptical Input: Connect to the audio source equipment such as a CD player or an Hi-Fi equipment
with an optical cable.
eHDMI Input: Connect to the audio/video source such as a DVD/ Blu-ray player with an HDMI
cable.
7
OPERATION CONTROLS AND FUNCTIONS
BACK Panel
qHDMI Out: Connect to an HDMI display (LCD TV or HD monitor) or AV Receiver to output both
video and audio with an HDMI cable.
8

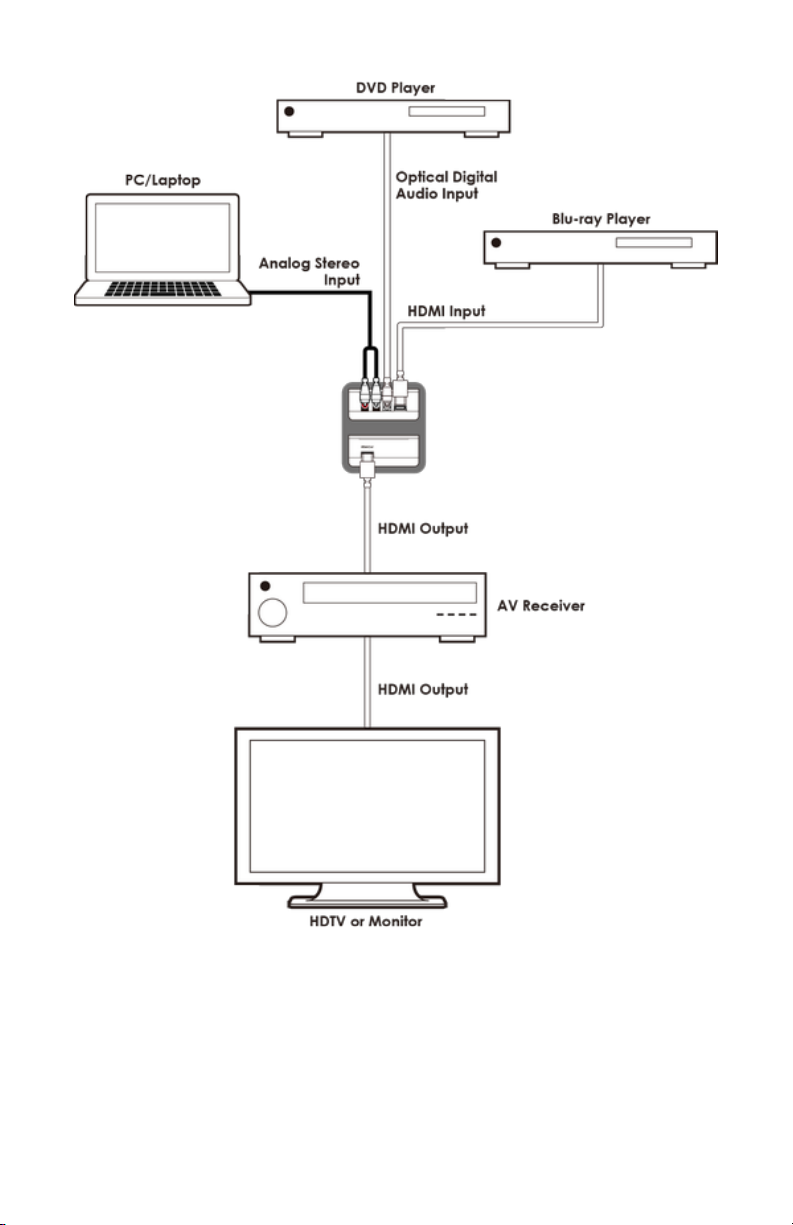

CONNECTION DIAGRAM
THIS PAGE IS INTENTIONALLY LEFT BLANK.
TERMS AND CONDITIONS OF USE
PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY,
THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to
these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address
set forth on the Product’s packing label at your expense. A-NeuVideo, Inc. may modify these Terms and Conditions at anytime, without notice to you.
RESTRICTIONS ON USE OF THE PRODUCT
It is your responsibility to read and understand the installation and operation instructions, both verbal and in writing, provided to you with respect to the Product. You
are authorized to use the Product solely in connection with such instructions. Any use of the Product not in accordance with such instructions shall void any warranty
pertaining to the Product. Any and all damages that may occur in the use of the Product that is not strictly in accordance with such instructions shall be borne by you
and you agree to indemnify and hold harmless A-NeuVideo, Inc. from and against any such damage.
The Product is protected by certain intellectual property rights owned by or licensed to A-NeuVideo. Any intellectual property rights pertaining to the Product are
licensed to you by A-NeuVideo, Inc. and/or its afliates, including any manufacturers or distributors of the Product (collectively, “A-NeuVideo”) for your personal use
only, provided that you do not change or delete any proprietary notices that may be provided with respect to the Product.
The Product is sold to you and any use of any associated intellectual property is deemed to be licensed to you by A-NeuVideo for your personal use only. A-NeuVideo
does not transfer either the title or the intellectual property rights to the Product and A-NeuVideo retains full and complete title to the intellectual property rights therein.
All trademarks and logos are owned by A-NeuVideo or its licensors and providers of the Product, and you may not copy or use them in any manner without the prior
written consent of A-NeuVideo, which consent may be withheld at the sole discretion of A-NeuVideo.
The functionality and usability of the Product is controlled by A-NeuVideo, Inc. from its ofces within the State of Texas, United States of America. A-NeuVideo makes no
representation that materials pertaining to the Product are appropriate or available for use in other locations other than the shipping address you provided with respect
thereto. You are advised that the Product may be subject to U.S. export controls.
DISCLAIMERS AND LIMITATION OF LIABILITY
A-NeuVideo may change or modify the Product at any time, from time to time.
THE PRODUCT IS PROVIDED “AS IS” AND WITHOUT WARRANTIES OF ANY KIND EITHER EXPRESS OR IMPLIED. A-NEUVIDEO DOES NOT WARRANT OR
MAKE ANY REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE OF THE PRODUCT’S CORRECTNESS, ACCURACY, RELIABILITY,
OR OTHERWISE.
A-NeuVideo has no duty or policy to update any information or statements pertaining to the Product and, therefore, such information or statements should not be
relied upon as being current as of the date you use the Product. Moreover, any portion of the materials pertaining to the Product may include technical inaccuracies or
typographical errors. Changes may be made from time to time without notice with respect to the Product.
TO THE FULLEST EXTENT PERMISSIBLE PURSUANT TO APPLICABLE LAW, A-NEUVIDEO DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT. A-NEUVIDEO
DOES NOT WARRANT THE ACCURACY, COMPLETENESS OR USEFULNESS OF ANY INFORMATION WITH RESPECT TO THE PRODUCT. A-NEUVIDEO DOES
NOT WARRANT THAT THE FUNCTIONS PERTAINING TO THE PRODUCT WILL BE ERROR-FREE, THAT DEFECTS WITH RESPECT TO THE PRODUCT WILL BE
CORRECTED, OR THAT THE MATERIALS PERTAINING THERETO ARE FREE OF DEFECTS OR OTHER HARMFUL COMPONENTS. A-NEUVIDEO WILL USE ITS
REASONABLE EFFORTS TO CORRECT ANY DEFECTS IN THE PRODUCT UPON TIMELY WRITTEN NOTICE FROM YOU NOT TO EXCEED 10 BUSINESS DAYS
AFTER RECEIPT BY YOU OF THE PRODUCT, BUT YOU (AND NOT A-NEUVIDEO) ASSUME THE ENTIRE COST OF ALL NECESSARY SERVICING, REPAIR AND
CORRECTION THAT WAS CAUSED BY YOU UNLESS OTHERWISE AGREED TO IN A SEPARATE WRITING BY A-NEUVIDEO.
UNDER NO CIRCUMSTANCES, INCLUDING, BUT NOT LIMITED TO, NEGLIGENCE, SHALL A-NEUVIDEO BE LIABLE FOR ANY SPECIAL OR CONSEQUENTIAL
DAMAGES THAT RESULT FROM THE USE OF, OR THE INABILITY TO USE THE PRODUCT IN ACCORDANCE WITH ITS SPECIFICATIONS, EVEN IF
A-NEUVIDEO OR ITS REPRESENTATIVES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL A-NEUVIDEO’S TOTAL
LIABILITY TO YOU FROM ALL DAMAGES, LOSSES, AND CAUSES OF ACTION (WHETHER IN CONTRACT, OR OTHERWISE) EXCEED THE AMOUNT YOU PAID
TO A-NEUVIDEO, IF ANY, FOR THE PRODUCT.
END OF DOCUMENT
