LILY
Reverse Osmosis User Manual
Ters Osmoz Kullanma Kılavuzu

ENG 1
Dear customer,
Thank you for purchasing a "A.O. Smith" branded water purier!
You are now the owner of water treatment equipment produced by the world’s leading
manufacturer of water treatment systems. This equipment produces pure water that can
be consumed directly, providing you with a cleaner and healthier source of drinking water.
Please read this user manual carefully before you install and operate your
"A.O. Smith branded" water purier. To achieve maximum efciency this user manual
provides detailed instructions regarding the installation of your water purier as well as
information related to the proper operation and maintenance of your water purier.
The installation should only be handled by professionals authorized by A.O. Smith
Su Teknolojileri A.Ş.
Spare parts used for maintenance and replacement lter should be approved
by A.O. Smith Su Teknolojileri A.Ş. before they are installed.
Any degradation of performance caused by the use of spare parts or lters that have not
been approved by A.O. Smith Su Teknolojileri A.Ş. will not be covered by our warranty.
If you experience any difculties during installation or operation, please contact your local
distributor to have them carry out repairs or maintenance on your equipment.

ENG 2
CONTENTS
İÇİNDEKİLER

ENG
SAFETY CONSIDERATIONS 4
PRODUCT DESCRIPTION 7
Brief Introduction 7
Description of Components 7
Electrical Diagram 8
Water Route Map 8
Technical Specications 9
Functions of Main Components 9
Functions of Accessories 10
Water Puriter Features 10
TRANSPORTATION 10
INSTALLATION METHODS 11
Pre-Installation Preparations 11
Instructions for Proper Installation 11
ADJUSTMENT METHODS 14
LED DISPLAY FUNCTIONS 15
SIDE STREAM R.O. MEMBRANE 17
OPERATION WARNINGS 18
MAINTENANCE AND REPAIR 19
Flushing the RO Membrane 19
Filter Replacement Interals 19
PACKING LIST 21
AFTER-SALES SERVICE 21
TROUBLESHOOTING GUIDE 22
TR
GÜVENLİK UYARILARI 26
ÜRÜN TANITIMI 29
Kısa Tanıtım 29
Su Arıtma Cihazının Ayrıntılı Proli 29
Elektrik Şeması 30
Su Akış Şeması 30
Teknik Bilgiler 31
Ana Bileşenlerin İşlevleri 31
Aksesuarların İşlevleri 32
Su Arıtma Cihazının Özellikleri 32
NAKLİYE 32
KURULUM TALİMATLARI 33
Kurulum İçin Ön Hazırlık 33
Doğru Kurulum için Uyulması Gereken Talimatlar 33
AYARLAMA YÖNTEMLERİ 36
LED EKRANIN İŞLEVLERİ 37
SIDE STREAM R.O. MEMBRAN 39
KULLANIM UYARILARI 40
BAKIM VE ONARIM 41
RO Membranın Yıkanması 41
Filtre Değişim Aralıkları 41
Filtre Değişim Yöntemleri 42
Genel Bilgiler 42
ÜRÜN KONTROL LİSTESİ 43
SATIŞ SONRASI SERVİS 43
ARIZA GİDERME KILAVUZU 44
YETKİLİ SERVİSLER 46
MONTAJ KONTROL KARTI 48
BAKIM KARTI 49
GARANTİ BELGESİ 50

ENG 4
Safety Considerations
(Be sure to read and remember these safety considerations)
Make note of the following safety precautions In order to avoid property damage and harm to you and others.
•Ignoring the following safety precautions could result in risky situations for you, your water purier and your environment.
Warnings
If you ignore contents in this section, it may cause permanent damage to the water purier or cause serious property damage.

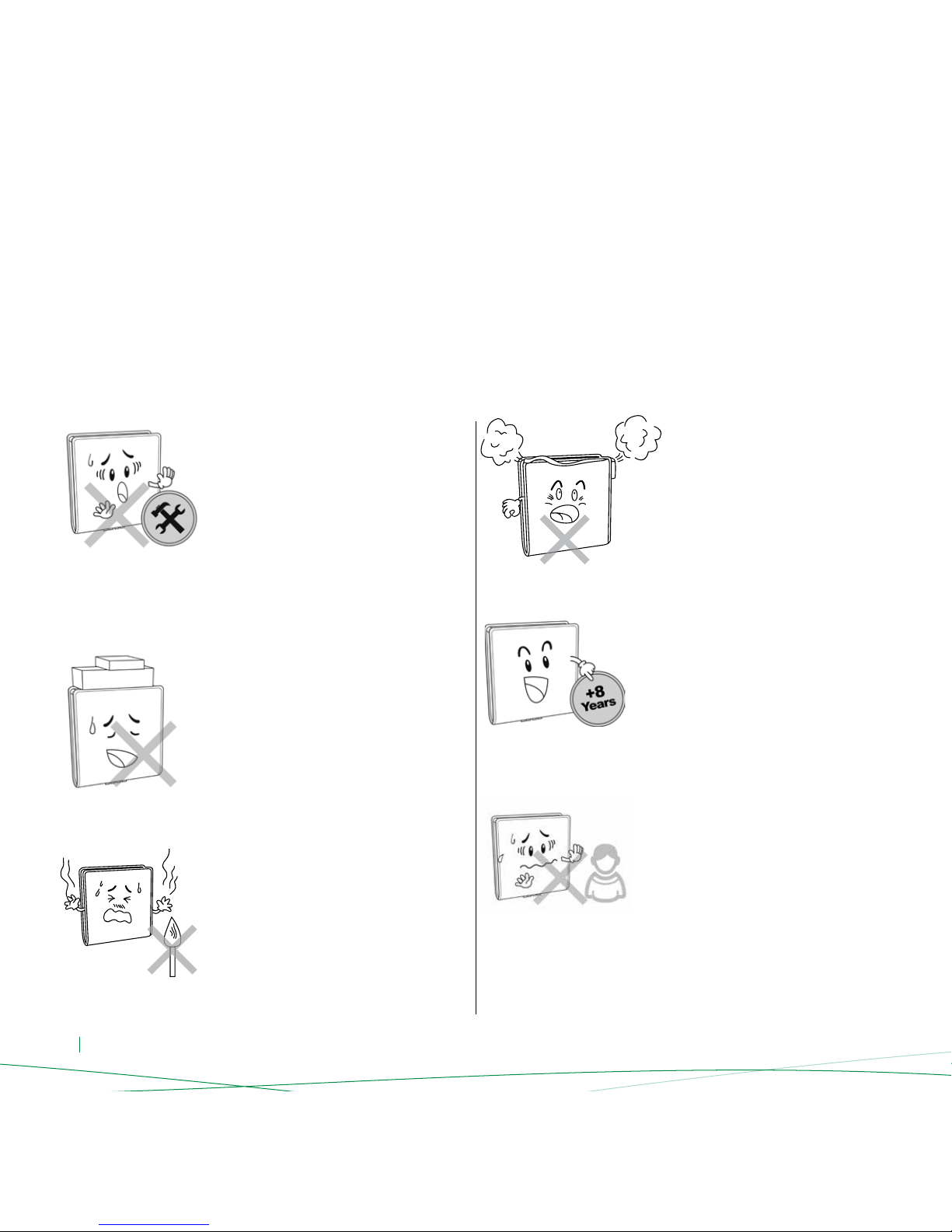

Do not disassemble or modify this water
purier on your own!
Unauthorized disassembly or modication
of the machine could lead to machine
malfunctions or leakage accidents. Please
check with the store where you purchased
this product for product consultation in order
to arrange for repairs.
Do not put the water purier close
to a source of ames!
Do not put the water purier near a source
of ames or a place where the temperature
is too high as this may cause deformation or
melting of the machine, causing damage or
leakage, which could lead to serious bodily
and property damage.
Do not put heavy objects on the water
purier!
Placing heavy objects on the water purier
may cause damage to the water purier’s
external cover or internal components, which
in turn could lead to leakage, equipment
malfunctions or even serious property
damage.
Do not place any objects on top of your
water purier!
Obstructing the heat dissipation may lead to
machine damage or res.
This appliance can be used by 8 years and
older children and persons with reduced
physical and sensory capabilities only
when they have been given supervision or
instruction concerning use of the appliance by
a person responsible for their safety and they
have fully comprehend the possible risks of
the appliance.
As this appliance functions with electricty
and water, using the device by mentally
handicapped people is not advised.
Children should not be allowed to play with
the unit.
Cleaning and maintenance of the unit should
not be made by children without supervision.

ENG 5
Do not use this water purier under high
water pressure conditions!
Operating under high pressure conditions
may cause the water purier pipes to rupture,
resulting in leakage, the machine working
improperly, or even serious property damage.
Recommended inlet pressure is
0.1-0.35 MPa (1 Bar to 3,5 Bars)
In places where inlet water pressure is
more than 0.35 MPa (3,5 Bars), it is
recommended to use a pressure reducer
before the unit.
Do not touch the power plug with wet hands!
It may lead to electric shock.
Do not damage the power cord
or the outlet!
Doing so may lead to electric shock, short
circuiting or re.
The equipment must be disconnected from
the power supply during installation
and repairs!
Otherwise it may lead to electric shock.
Do not use a power source exceeding
the equipment’s specied value. Use only
230V AC power!
The electrical current supplied to your
equipment by the outlet must not be greater
than the specied value; otherwise it may
lead to the overheating of your equipment
or re.
230 V
Unit should be installed and connected to
the water mains by new hose-set that was
included in the product package. Old
hose-sets should not be reused with the unit.
Otherwise water leakages may occur or
the unit’s performance may be affected
negatively.
Use only power supply unit (the supply cord
and the plug) that was provided with the unit!
Using the non-original power supply unit may
affect the performance of the unit negatively
and using unqualied parts may damage to
the unit.
If the supply cord is damaged, supply an
original cord from your A.O.Smith Sales Agent
or A.O.Smith Authorized Service!
Using the non-original supply cord unit may
affect the performance of the unit negatively
and using unqualied parts may damage to
the unit.
Do not use the water purier when the sewer
is blocked up!
If the purier is used while the sewer is
blocked, it may cause waste water to back
up into the purier and pollute the water
and parts inside.

ENG 6
Do not place the water purier under direct
sunlight!
Placing the water purier under direct
sunlight for a certain period of time may
create a breeding ground for microorganisms;
decreasing the output water quality
and potentially causing the internal
components of the water purier
to become contaminated.
The waste water discharge pipe and
waste water rationing device cannot be
blocked!
When the waste water discharge pipes and
waste water rationing devices are obstructed
or clogged, it may lead to high levels of TDS
efuent, the RO membrane may get blocked
or the water purier may not work.

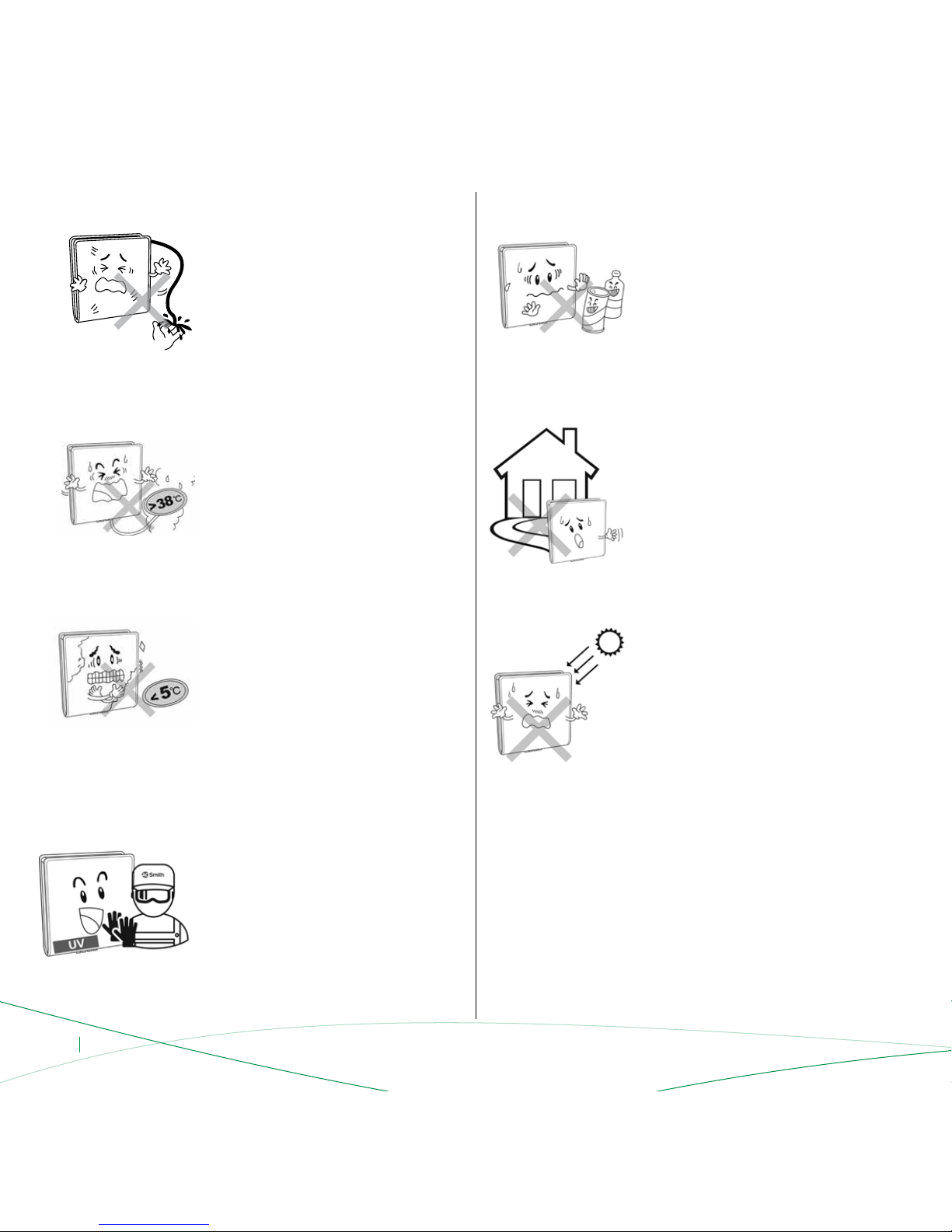

Do not use in conditions under 5°C!
If the ambient temperature falls below 5°C,
please be sure to take measures to prevent
freezing, such as turning on a heater or air
conditioner to prevent leakage or cracked
pipes caused by water freezing inside
the equipment.
Water purier inlet water temperature
should not exceed 38°C!
If the inlet water temperature is over 38°C,
it will damage the reverse osmosis membrane
leading to membrane failure.
Do not use this water purier outdoors!
If this water purier is used outdoors, it can
lead to accelerated aging of the
water purier pipes and parts, which can
cause leaking or machine failure.
Do not let the machine come in contact with
corrosive materials!
These materials could corrode the outer cover
and adversely affect various parts of the
equipment. Toxic and hazardous compounds
could penetrate the water purier pipes,
causing contamination of the water or
leakage, which in turn may cause personal
damage or property damage.
Do not use force on the glass panel and place
the water purier atly!
The reinforced glass panel needs to be put
lightly and atly. Otherwise it may lead to the
glass panel damage.
Do not remove the UV Protector
unauthorized!
• Wear protective goggles and gloves
while maintaining UV disinfection unit.
• Do not look directly to UV lamps while
they are on.
• During maintenance and repair, be sure
that UV unit is not active.
Otherwise UV light might lead damage to
the eyes and skin.

ENG 7
Brief Introduction
This equipment utilizes the current, most advanced international
RO technology. RO technology relies on the articial reversing
of the naturally occurring osmosis phenomena. The RO membranes have
pores with a diameter of 0.0001 micron (0.1 nm), so they can effectively
remove bacteria, viruses, heavy metals, pesticide residue, and other harmful
substances from the water. Produced water is fresh, pure and suitable for
direct use.

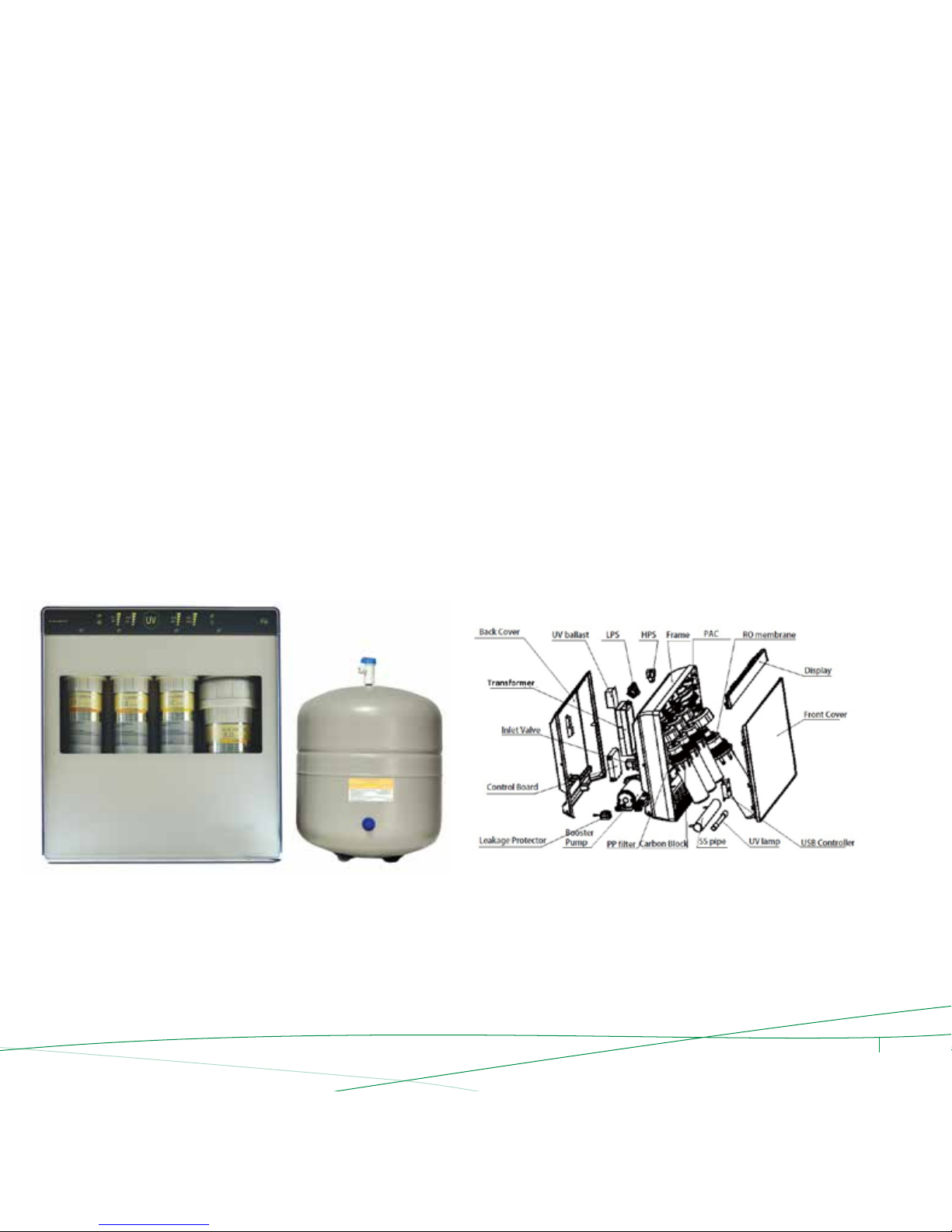

Description of Components
Product Description
Diagram 1
Lily

ENG 8
Electrical Diagram
Diagram 2
Diagram 3
Water Route Map
ENG 8
Explored View
Back Cover UV ballast LPS HPS Frame PAC RO membrane
Display
Front Cover
Switch Mode
Power Supply
Inlet Valve
Control Board
Leakage Protector Booster
Pump PP filter SS pipe UV lamp USB Controller
Electrical Diagram
Reed Switch
Low Pressure Switch
High Pressure Switch
230V AC 24V DC
Inlet Water Valve Flushing Valve
UV Lamp
Booster Pump
Power Control Board
Diagram 3
Diagram 4
Carbon Block
technology as follows:
ENG 9
Water Flow Diagram
3 way joint
Municipal
Water
Low Pressure Switch
Inlet Water Valve
Booster
Pump
High
Pressure
Switch
Tank
UV Lamp
Electronic
Faucet
Functions of the Main Components of Water Treatment
The standard configura on of the water purifier that u lizes current most advanced interna onal RO
Stage Product Name Func on
First stage PP filter it can effec vely filter rust, sand, other larger par cles and
solid impuri es, suspended solids, colloids in the water.
Second stage Carbon block
The filter effec vely absorbs chlorine, mould, disinfec on
by-products, odors, discolora ons and other materials
suspended in the water.
Third stage RO membrane
Fourth stage Post-ac vated carbon filter This filter regulates the taste of water and keeps the water
fresh .
Fi h-stage UV Lamp Effec vely restrain the water pipe and tank, etc to breed
the bacteria a er long me no-use.
Waste Water
Flushing Vavle
PP
RO
PAC
Check Valve
Tank Valve
Diagram 5
Carbon Block
Check
Valve
it can effectively remove bacteria, viruses, heavey
metals, pesticide residues and other harmful
substances

ENG 9
Functions of the Main Components
The standard conguration of the water purier that utilizes the current,
most advanced international RO technology is as follows:
• The rst stage is a 5-micron PP (Sediment) Filter:
The pores on the aperture within the PP lter is 5 microns wide so it
can effectively lter rust, sand, other larger particles and solid impurities
suspended in the water.
• The second stage is a Carbon Block Filter:
The lter effectively absorbs chlorine, mould, disinfection by-products,
odors, discolorations and other materials suspended in the water.
• The third stage is the RO membrane:
The RO membrane with a pore size of 0.0001 micron (0.1 nm), it can
effectively remove bacteria, viruses, heavy metals, pesticide residue, and
other harmful substances. Produced water is fresh, pure and suitable
for direct use.
• The fourth-stage is a Post Active Carbon (PAC) Filter:
This lter regulates the taste of water, keeps the water fresh.
• The fth-stage is a UV Disinfection:
This unit effectively restrains the water pipe and tank etc to breed the
bacteria after long time without use.
Note: the parameters above may change due to product improvements, but the product name plate shall remain the same. TDS refers to inuent total dissolved solids.
Note:
0.1 MPa = 1.02 Kg/cm2 = 14.5Psi
1 Psi = 0.07 Kg/cm2
1 Gallon = 3.785 Liters
75 GPD = 75 Gallons/Day = 284 Liters/Day = 197 Milliliters/Minute
Technical Specications
Model No.
Frequency
Voltage
Suitable Water Pressure
Inlet Temperature
Maximum Daily Water TDS Value
Flushing Method
Electric Shock Protection Type
Product Dimensions
Tank Dimensions
Weight
Suitable Water Quality
Power Rating
Daily Water Production Volume
Tank Volume
230V AC
50 Hz
38 W
0.1-0.35 MPa (1 Bar to 3,5 Bars)
5 ~38˚C
≤1000 PPM
Auto Flushing
75 Gallons, approximately 284 Liters
3.2 Gallons, approximately 12.1 Liters
Class II
Municipal tap water meeting the TS-266 standarts
LILY
460x488x161 mm
335x280 mm
14 kg

ENG 10
Functions of Accessories
• Storage Tank: Used to store water ltered by the water purier.
• High Pressure Pump: Boosts pressure to create a stable environment
for the RO membrane.
• Flushing (Solenoid) Valve: Control the waste water ow and
automatically ush the RO membrane.
• Low Pressure Switch: Prevents pump idling. When the inlet water
pressure is less than 1 Bars or when the inlet water stops,
the low-voltage switch automatically shuts off the power source
so the machine comes to a halt.
• High Pressure Switch: Prevents pump from overdrive. When the pressure
tank is full or has reached the set pressure level, power supply is
automatically cut off to stop the operation of the machine.
• Inlet Water (Solenoid) Valve: Connects or cuts off incoming water.
• Check Valve: Also known as a one-way valve, controls the direction
of water ow.
• Transformer: Converts 230V AC to 24V DC (the machine's safe
operating voltage).
• Power Control Board: Control the whole process of water production.
• Leakage Alarm: Detect malfunction of water leakage timely to protect
user's safety and avoid the loss of user's property.
• E-Faucet: Controls the water output status of drinking water. Electronic
faucet indicates the lter life while it is on by changing the logo color.
• UV Disinfection Unit: Sterilizes the outlet of pure water.
Water Purier Features
• Side Stream Membrane: The Side Stream R.O. membrane increases
the recovery rate to around 50%, compared to 25% for the regular
residential R.O. membrane, and waste water volume is reduced by 56%.
• Automatic Control System: The system controls the whole water
production process, such as stopping automatically when there is no
inlet water or when the tank is full;
• Auto Flush Function: The system can automatically control the water
auto ush process for the RO membrane to ensure more reliable
and safe operation.
• Remind on Filter Replacement: While the lters are close to the service
life, system can remind the customers with sound and red colors to
replace the lters.
• Leakage Protection: While inspect there has water leakage, it will
automatically stop working, and power off the booster pump, inlet
valve to avoid risk on water leakage. And “Leakage” light ashing on
the display with buzzer warning. Only can be recovered after defect
solved and re-power on.
• UV Lamp Protection: Use the powerful radiation of short-wave
ultraviolet ray to effect on microorganism in water, so as to achieve the
bacteriostatic action of water
•Stock up on top of each other more than 6 pieces.
• Before lifting the packages be sure that xing tapes below the package
are intact.
• Lift the packages holding from bottom.
•Persons, who are vulnarable to heavy lifting shoud not carry the packages
to prevent any health issues.
Transportation
Please take into consideration the following points while transporting the device.

ENG 11
Pre-Installation Preparations
• Choose the location where the water purier will be installed
• Conrm the availability of the various tools required
for installation
• Conrm that you have all the connectors required for installation
•Make sure to turn off the water supply and electricity before
commencing installation
Warning: In places where inlet water pressure is more than 0.35 MPa(3,5
Bars), it is recommended to use a pressure reducer before the unit.
Installation Methods
Our company recommends that your water purier is installed by trained professionals as the installation process is somewhat complex and requires the
use of various tools. However, if you decide to install the purier yourself, please refer to the following steps and diagrams:
Adjustable Spanner
Drill
6.2 mm Drilling Bit
Hole Saw φ16-35 mm
T10 Cross and Flathead Screwdrivers
Scissors
14 - 16 mm Wrench
19 - 21 mm Wrench
Needle Nose Pliers
1
1
1 (Waste water hole)
1
1 of each
1 pair
1
1
1
Instructions for Proper Installation

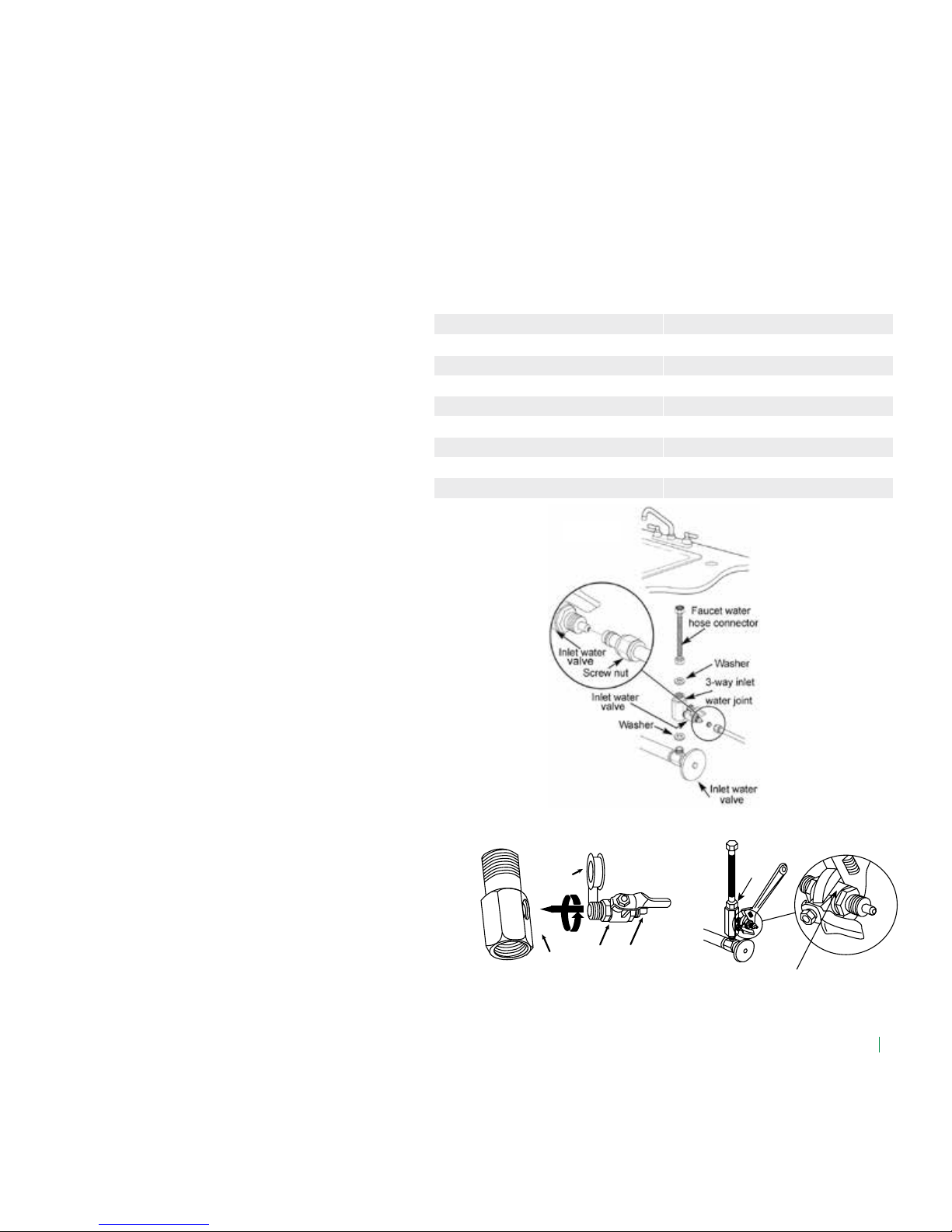

• Installation of the inlet water metal hose and 3-way inlet water joint:
(If the metal hose diameter is equal or less than 9 mm, the 3 - way inlet
water joint should be connected to the unit) First, close the inlet water
valve. Screw off the metal hose. Remove the 3-way inlet water joint
from the water purier accessories box, screw one end of the inlet water
3-way joint onto the inlet water valve outlet. One end of the unscrewed
metal hose should be screwed into the 3-way inlet water joint using the
screw nut (See Diagram 4)
• Installation of the 3-way inlet water joint and inlet water ball valve:
Take out the inlet water ball valve from the water purier accessories
box, wrap one end of the external threads on the ball valve with appro
priate teon tape (See Diagram 5). If you have silica gel, spread a little
over the thread and then screw the ball valve into the corresponding hole
of the 3-way inlet water joint (See Diagram 5). Take out the Ø 9mm
water pipe from the accessories box. Using a pair of scissors, cut
a suitable length of pipe and connect one end of the pipe to
the inlet water ball valve (See Diagram 6). Finally screw the nut in place.
Diagram 4
Diagram 5
3-Way inlet
water joint
Inlet water
ball valve
Teon tape
Water pipe
connection
Diagram 6
9mm Ball valve
Inlet water
3-way
joint
ENG 11
Pre-Installation Preparations
for installation
Make sure to turn off the water supply and electricity before
commencing installation
Installation Methods
Our
Adjustable Spanner 1
Drill 1
6.0 mm Drilling Bit 1 (Waste water hole)
Hole Saw φ16-35mm 1 (High-speed steel or marble hole saw)
T10, Cross, Flathead Screwdriver 1 of each
Scissors 1 pair
14 - 16 mm Wrench 1
19 - 21 mm Wrench 1
Needle Nose Pliers 1
Instructions for Proper Installation
Inlet water metal hos e and 3-way inlet water joint installation method(if the
metal hos e diameter is 9mm, the 3-way inlet water joint must be purchased
separately)
Before installing, c los e the inlet water valve. U nscrew the inlet water valv from t
he metal hose. R emove the inlet water 3-way joint from the water purifier
accessories box. Thread one end of the inlet water 3-way joint into the inlet water
va lve outlet connection. O ne e nd of the metal hos e should be connected to the
external threads o f the inlet water three-way joint (see diagram 6).
2) Inlet tube installation
Take out the 1/4” tube from the accessory box, and cut to suitable length with
scissors, connect one end of the inlet tube to the inlet end of the 3-way joint (see
diagram 6), then screw the nut tightly. The other end of inlet tube connect to
the “Source” of the unit connector.
Note to fix the tube and quick connector to avoid water leakage issues.
1）
Diagram 6

ENG 12
• Installation of inlet tube:
Take out the 1/4” tube from the accessory box, and cut to suitable
length with scissors, connect one end of the inlet tube to the inlet end of
the 3-way joint (See Diagram 4), then screw the nut tightly. The other
end of inlet tube connect to the “Source” of the unit connector.
Note to x the tube and quick connector to avoid water leakage issues.

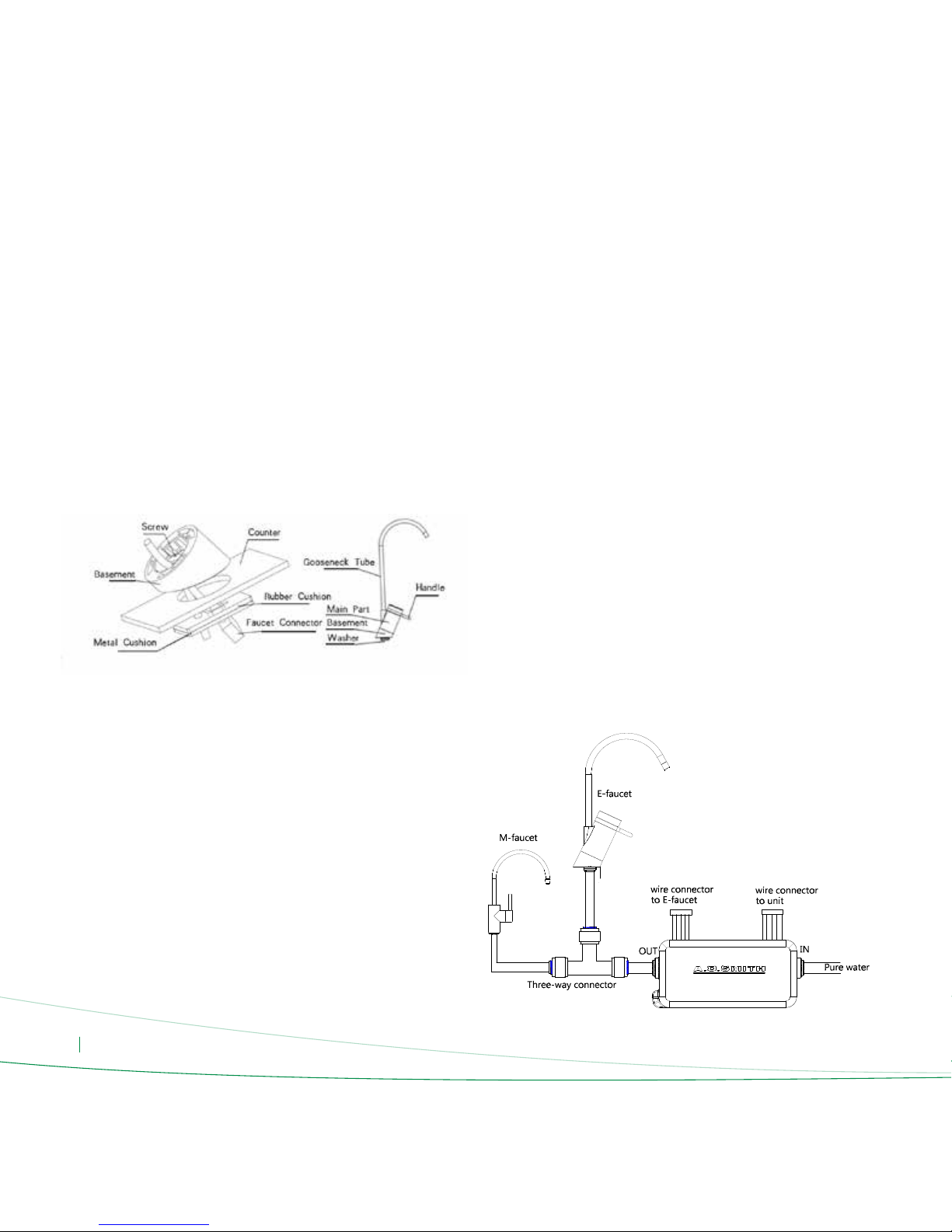

• Installation of the electronic faucet:
Drill a φ20-35 mm hole in an appropriate position on the counter where
the faucet is to be installed. Then take out the faucet from the water
purier accessory bag. Begin the installation of the faucet. In the
counter where the faucet is to be installed, drill a 20-35mm hole in an
appropriate position, then take out the faucet from the water purier
accessory bag, start the faucet installation (See Diagram 7):
A) Basement Installation: install the rubber cushion into the metal cushion,
take out 2 pieces M4mm screw, and x the screw on the metal cushion
through the basement hole, then pull the connectors of faucet through
the basement Pull the faucet cable through the plastic basement, rubber
cushion and the metal cushion in series, and combine the rubber cushion
and metal cushion together, then take out the M4mm screws and x one
screw to metal cushion started from plastic basement. Then put the plastic
basement through the sink hole and insert the cushions, then install
another screw and x tight 2 screws.
NOTE: don’t x the screw to tight once, it should be xed in steps, and
don’t use strong force.
B) Main Part Installation:
Cut a suitable length 1/4” tube and insert one end into the bottom quick
snap of main part, and connect another end to the “Source” connector
of the unit, then press down the main part on the basement.
C) Gooseneck Installation
Make sure all 3 O rings are in the O ring slot of gooseneck tube, then dip
some water on the end with O rings, then insert into the output nozzle of
main part.
• Installation of the Second Faucet Outlet Converter
Lily water treatment system can be connected to outlet connection with
the converter that comes as standard feature inside the package. With
this converter, it possible to connect the system to your refrigerator or to a
second faucet.
Water System Connection:
Connect the pure water pipe to the converter IN end then connect the
OUT end to the one end of three-way connector, after that connect other
two ends of the three-way connector to the E-faucet and M-faucet.
Electrical System Connection:
Connect the one wire connector on the converter to the E-faucet and the
other one connect to the wire from the units. These wire are apple to
apple connection.
Diagram 7

ENG 13
• Installation of the waste water pipe:
Drill a small hole into the sink drain pipe using a φ 6mm drill. Take
a suitable length of the 6mm water pipe and lay one end just inside
the drilled hole (See Diagram 8), put some silica gel where the 6mm
pipe and the drain pipe connect to prevent leakage. Use a cable tie to x
the waste water pipe to the drain pipe (for large ow water puriers;
you will need to insert a waste water clip into the drilled drain pipe hole).
The other end connect to the ''Waste'' at the back of the machine.
• Installation of the Side-Stream RO Membrane:
Open the front cover, pull up and out the RO lter assembly about 15°,
then rotate anticlockwise to take out, then use wrench to remove
the shell cover; then take out the RO membrane from the vacuum
bag, keep all O ring installed (See Diagram 9), put the at end of RO
membrane intothe shell and xed, then rotate the shell cover and tighten
with wrench,after that install the RO lter assembly into the front cover
in clockwise, and push inside until in originally vertical.
• Membrane Installation Warnings:
•The package of the reverse osmosis membrane contains a small amount
of protective solution in order to prevent microbiological contamination
of membrane components during storage and transportation.
• You should pay attention to the direction of the RO membrane during
installation.
• When installing the RO membrane, rst make sure that one end of the
membrane has 2 large O-rings and the other end has two large and
four small O-rings.
• When installing, be sure to put the end with 2 O-rings into the
membrane shell RO outlet water connection. Be sure when installing
to only use a little force to put the RO membrane into the membrane
shell. If you encounter too much resistance, please do not force the
reverse osmosis membrane into the membrane shell, doing so may cause
permanent damage to the membrane shell or membrane components.
A.O. Smith does not assume responsibility for returned components due
to damage during installation.
• Check the grey rubber bracket whether under the RO membrane
assembly, can not missing.
• Do not cut or try to disassemble the replaced membrane. RO membrane
can lter microorganisms and cutting or harming RO membrane may risk
on you and your environments health
• Installation of the Pre-Filters:
Open the front cover, pull up and out the RO lter cartridge assembly
about 15°, then rotate anticlockwise to take out, then use wrench to
remove the shell cover;Then take out the lters from package, keep 2 o
rings installed (See Diagram 10), put the end without O ring of lters into
the cartridge shell and xed, then rotate the shell cover and tighten with
wrench,after that install the RO lter cartridge assembly into the front
cover in clockwise, and push inside until in originally vertical.
The 1st stage lter is PP lter, 2nd stage is carbon block lter, and 4th stage
is PAC lter.
Diagram 8
Pure water pipe
Hot
Cold
Inlet water ball valve
Waste water hole
Diagram 10
Diagram 9

ENG 14
• Open the tap water inlet valve and the water purier inlet water ball
valve (See Diagram 13) and plug the unit in the power outlet. Close
the storage tank ball valve, then automatically start a 120 second
ushing process, water will start to drain through the discharge outlet.
• Wait for the water purier to operate stably (for about 5-10 minutes).
Check each connection to make sure they are secure. Check to see if
there is any leakage from the membrane shell, lters, etc.
•Close the pure water osmosis faucet and storage tank ball valve. Wait
approximately 30 seconds. Check to see whether or not the water
purier waste water and high pressure pump have stopped working.
• Open the osmosis faucet. Check to see if the water is owing through
the faucet. If not, check to see whether the tap water pressure is too low
or whether or not the high pressure switch can be reset automatically.
•Wait until the machine is operating properly, then close the inlet water
ball valve. After a short period of time, check to see if the machine stops
working, if it does not stop working, check to see whether or not
the low-pressure switch can be reset.
•Perform a second check to make sure everything is ok. Now your water
purier is ready for use.
• Installation of UV Lamp:
First be sure that the water inlet and electricity connections are cut off from
the unit. Open the front cover, remove the UV lamp protector, and take
out the UV lamp and 2 pin cables from package, put one end 2 pins of UV
lamp into the hole end of cable connector, then put another end 2 pins of
UV lamp and 2 pins plug of cable together into the 4 holes end connector
and tight. Then install the cables and UV lamp into the stain steel tube
assembly, and make sure the 4 holes connector also inside, then cover the
end with cap and x the cover (See Diagram 11).
• RO Unit Placement:
Lily RO unit is not wall hung type, and need put on the ground or solid at
surface directly. If choice to hung on the wall, need to purchase additional
expand bolts and screws for xation.
• Installation of the Storage Tank:
Wrap 4-5 rounds thread seal tape on the tank nozzle, then x the tank
valve into the tank nozzle, then cut out a suitable length 1/4” tube, put one
end of tube on the tank valve, and another end connected to the “Tank”
joint of the unit (See Diagram 12). After that, nd a suitable place to locate
the tank in the cabinet.
Diagram 11 Diagram 12
Diagram 13
Adjustment Methods
Make sure that the water route connections are correct, proper power supply is used and water supply is suitable.
Then, follow these steps to adjust the purier:
ENG 15
Adjustment Methods
Make sure that the water route connections are correct, proper power supply is used and water supply is suitable.
er ball
the storage tank ball valve, then automatically start a 120 second
Check each connection to make sure they are secure. Check to see if
Close the pure water faucet and storage tank ball valve. Wait
approximately 30 seconds. Check to see whether or not the water
hrough
the faucet. If not, check to see whether the tap water pressure is too low
or whether or not the high pressure switch can be reset automatically.
Wait until the machine is operating properly, then close the inlet water
ball valve. After a short period of time, check to see if the machine stops
working, if it does not stop working, check to see whether or not
the low-pressure switch can be reset.
Perform a second check to make sure everything is ok. Now your water
Diagram 13
In these “operation methods”, “operation” refers to the power
supply
being connected and/or the inlet water ball valve being open
The major components of this product are manufactured using plastic.
of the equipment in order to ensure safe operation.
The package of the reverse osmosis membrane contains a small amount
of protective solution in order to prevent microbiological contamination
of membrane components during storage and transportation. The post
t time
the water produced during this period is disposed of. Otherwise,
the taste of the pure water may be unusual.
water.
be a little high. After operating for some time, the TDS value of the pure
water produced will gradually decrease until it is stable.
be opened and the pure water faucet needs to be turned on. When
you are not using water turn off the water faucet, the high pressure
switch will automatically cut off the water supply.
Operation Methods
so
3
3-Way Joint
Close
Open
ENG 14
7) UV lamp installation
Open the front cover, remove the UV lamp protector, and take out the UV lamp and 2 pin cables from package, put one end 2 pins of UV lamp into the hole
end of cable connector, then put another end 2 pins of UV lamp and 2 pins plug of cable together into the 4 holes end connector and tight. Then install the
cables and UV lamp into the stain steel tube assembly, and make sure the 4 holes connector also inside, then cover the end with cap and fix the cover.
8) Drinking machine fixation
The drinking machine is not wall hung type, and need put on the ground or solid flat surface directly. If choice to hung on the wall, need to purchase
additional expand bolts and screws for fixation.
9) Storage tank installation
Wrap 4-5 rounds thread seal tape on the tank nozzle, then fix the tank valve into the tank nozzle, then cut
out a suitable length 1/4” tube, put one end of tube on the tank valve, and another end connected to the
“Tank” joint of the unit (see diagram 12). After that, find a suitable place to locate the tank in the cabinet.
Protector
2 Pins Cable
Stain Steel
Tube Assembly UV Lamp
4 Holes Connector Cap
Tank Valve
Nozzle
1/4”
Tube
Diagram 11
Diagram 12
Tank
Base

ENG 15
LED Display Functions
1st
PP
2nd
CB
3rd
RO
4th
PAC
Work: When the machine is producing water, this icon will lit up.
Source: When the machine has no inlet water or the inlet water is not
enough, this icon will lit up and the alarm will buzz.
Flush: When the unit is flushing the membrane, this icon will lit up.
Leakage: When there is a water leakage, this icon will lit up and the alarm
will buzz.
UV: This icon indicates the remaining life of UV Lamp.
Replace: These icons will be lit when one of the filters need to be replaced.
1st PP: This icon indicates the remaining life of 1st stage Sediment Filter.
2nd CB: This icon indicates the remaining life of 2nd stage Carbon Block
Filter.
3rd RO: This icon indicates the remaining life of 3rd stage RO Membrane
Filter.
4th PAC: This icon indicates the remaining life of 4th stage Post Active
Carbon Filter.
Work
• This icon will lit up only when the unit is producing
water.
• When the unit is in standby mode, this icon will be off.
Flush
• This icon will lit up only when the unit is flushing the RO
membrane.
• When the unit is in standby mode, this icon will be off.
Source
• When the machine has no inlet water or the inlet water
is not enough, this icon will lit up in red color and the
alarm will buzz..
• Alarm will buzz 7 times, after the buzzing, alarm will be
off and this icon will blink on the display.
• Alarm will buzz 7 times only once but everytime when
the water cut, the alarm will buzz again.
• This function and alarm will be activated when water is
cut no matter the unit is treating water or in standby.
Leakage Sensor and Alarm
• When there is a water leakage inside the unit, solenoid
valve will cut the water and leakage alarm will be
activated. .
• When Leakage Alarm is activated this icon will be
blinking in red color and alarm will buzz in each 2
seconds continuously.
• Alarm can be off only when the power source is the
unit is cut and reconnected to power again.
• Leakage alarm will be activated and the inlet water
will be automatically cut off no matter the unit is
treating water or in standby.

ENG 16
1/2/3/4 Filter Life Status and Replace:
•These numbers indicates the remaining life of four
different filters. When the remaining of filter life changes,
the color of these icons will change.
• Number 1 indicates 5 µm Sediment Filter, Number
2 indicates Carbon Block Filter, Number 3 indicates RO
Membrane Filter and Number 4 indicates Post Active
Carbon Filter.
• When the related icon is Green, the filter can be used
normally.
• When the related icon turns to Orange and alarm is
buzzing 4 times, it means the filter should be replaced
soon.
After the icon turns orange on the display, the alarm will
buzz 4 times evertime the unit is treating water, this icon
willl remain until the related filter is replaced.
• When the icon turns Red and Replace icon is blinking
in Red color with alarm is buzzing 8 times, it means
the related filter can not be used and needs replacing
immediately. The unit should be stopped functioning and
call the After Sales Service for filter replacement
After the icon starts blinking on the display, the alarm will
buzz 8 times evertime the unit is treating water. This icon
willl remain blinking until the filter is replaced.
• This function and alarm will be activated no matter the
unit is treating water or in standby.
•Select and Reset Buttons:
When the filters’ life up to the it’s rated service life,
customer should contact the after-sale staff to change the
filter. after changing the filter should reset the filter life
through Select and Reset buttons.
Select and Reset Buttons are located next to UV unit.
Take off the USB cover to control the “Select” and
“Reset” manually (See Diagram 14).
Press the ''Select'' button to select the corresponding
filter icon, the corresponding filter icon will blinking,
then press the ''Reset'' button 3 seconds to reset
thecorresponding filter life, the color of the filter icon
will from red to green. if reset any filter life, related filter
icon will extinguish. if want to reset all the five stages
filter, press the select and reset button at the same time
about 5 seconds.It will exit if no operation in 10 seconds.
CAUTION: “Reset” button can be operated only after
replace the filter, otherwise not allowed to press the
“Reset” button.
THESE RESET/SELECT BUTTONS SHOULD BE
OPERATED BY ONLY AFTER SALES SERVICES.c
UV Lamp Status:
• This icon indicates the remaining life UV lamp. When the
remaining of UV lamp changes, the color of this icon will
change.
• When the icon is Green, UV lamp can be used normally
• When the icon turns to Orange, it means UV lamp
should be replaced soon.
• When the icon turns Red, it means UV lamp can not
be used and needs replacing immediately. The unit should
be stopped functioning and call the After Sales Service for
replacement
• When the icon turns Red and the alarm is buzzing, it
means the unit should be stopped functioning and UV unit
should be checked and UV lamp should be replaced. In this
case, call the After Sales Service for replacement
• This function and alarm will be activated no matter the
unit is treating water or in standby.

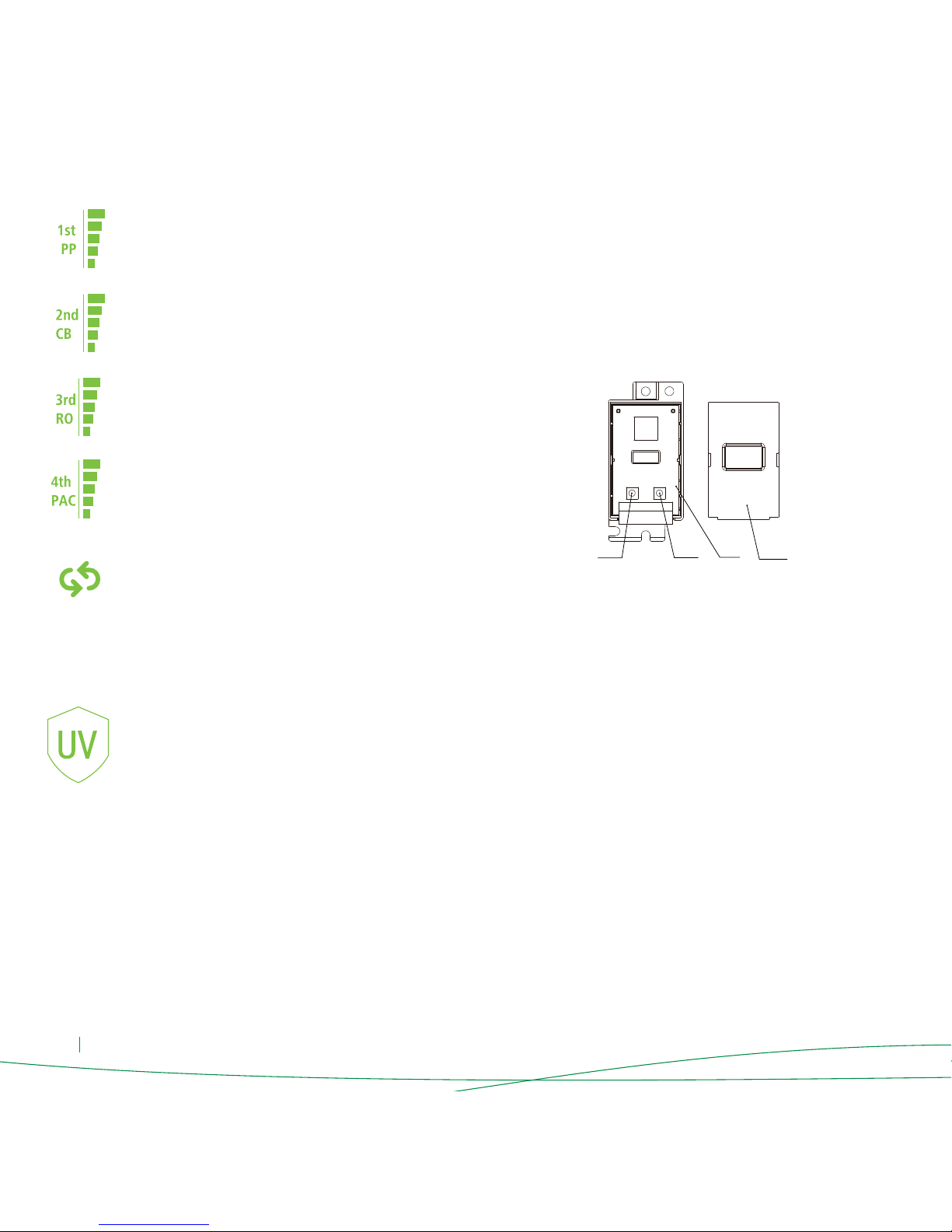

Diagram 14
ENG 17
Take off the USB cover to control the “Select” and “Reset” manually.
“Select”: after replace the filter, press “Select” button to select the corresponding filter, the symbol light of
selected filter is flashing.
“Reset”: Select corresponding filter and press “Reset” button, hold for more than 3 seconds until it is effective.
It can be selected to reset the filter life.
It will exit if no operation in 10 seconds.
NOTICE: “Reset” button can be operated only after replace the filter, otherwise not allowed to press
the “Reset” button.
Select Reset
USB Box
Cover
Select Reset
USB Box
While the unit power on, open the faucet, the logo “AO SMITH” and symbol “ ” will be lighted up,
the logo shows in white, and symbols color depends on the service life of filters.
During the usage interval, while the symbol shows in orange or red, please check the unit display and
notice which stage filter, then contact the authorized professionals to remind and preparation for
the maintenance.
While close the faucet, both logo and symbol are also lighted off.
Faucet display function
Diagram 15
Diagram 16

ENG 17
•Faucet display function:
While the unit power on, open the faucet, the logo “AO SMITH” and
symbol “ ” will be lighted up,the logo shows in white, and symbols color
depends on the service life of filters. During the usage interval, while the
symbol shows in orange or red, please check the unit display and
notice which stage filter, then contact the authorized professionals to
remind and preparation for the maintenance. While close the faucet, both
logo and symbol are also lighted off (See Diagram 15).
Diagram 15
Side Stream R.O. Membrane Technology is a special innovation by
A.O.Smith. Side Stream R.O. Membrane use patented MLSB Screw-type
Technology.
MLSB (multi-leaves single-bag) membrane has vertical inow and
concentrate water direction; longer and narrower inow passage thus
app. 2,8 times higher surface ow rate. Higher ow rate can reinforce the
effect of surface ush, of R.O. membrane, reduce the rate of concentration
polarization, blockage, scale formation, waste water discharge, and
increase the salt rejection rate.
The Side Stream R.O. membrane increases the recovery rate to around
50%, compared to 25% for the regular residential R.O. membrane, and
waste water volume is reduced by 56%.
Combined with MLSB Screw-type Technology, Side Stream R.O. Membrane
creates the world’s highest utilization rate for residential membranes,
reaching 85-90% compared to only 70% for traditional membranes.
With patented full ush function, it completely solves the traditional water
purier problem of having no way for the concentrate water to ush out
of the membrane when the tank is full, leading to membrane scale and
pollution problems. The optimal ushing design reduces ushing discharge
by 50% and extends the service life of the membrane by 1,5 times.
Advantages
• Less Waste Water: It can reduce 56% waste water, energy saving,
en vironmental protection, enjoy low carbon living;
• More Pure Water: It can increase 66% pure water, more efcient and
highest utilization;
• High Salt Rejection: Its salt rejection can be more than 95%, which is the
top level of residential membrane;
• Long Life: By less concentration polarization, it has a low risk
contamination and long life span app. ;
• Reliable Structure: It has water hammer and attack protection, mistake-
proof design to prevent wrong installation;
• Better Sealing: Two o-ring design, completely leak tight, insure pure
water quality;
• Compact Size: 10% smaller, more compact, lighter design.
Side Stream R.O. Membrane
More pure water
waste water
of RO filter
Less
Prolong
66%
56%
1.5
times

ENG 18
• During the rst operation of the unit, before activating RO membrane,
pre-lters should be ushed. Follow the below steps to ush the
pre-lters:
- Turn off the inlet water solenoid valve.
- Take out third stage RO membrane housing.
- Place a storage cup to next to the Second Stage Carbon Block housing to
drain the dark color water coming from the Second Stage Filter.
- Turn on the inlet water solenoid valve and wait until the color of the
water returns to normal.
- Turn off the inlet water solenoid valve and reassemble third stage RO
membrane housing.
- Before using Fourth Stage PAC, ush the cartridge for 1-2 minutes also.
•The major components of this product are manufactured using plastic.
When using the water purier, always observe the integrity
of the equipment in order to ensure safe operation.
•The package of the reverse osmosis membrane contains a small amount
of protective solution in order to prevent microbiological contamination
of membrane components during storage and transportation. The
PAC lter may emit activated carbon powder the rst time it is used.
So do not open the water storage tank during the rst hour when the
water purier is put into operation. It is recommended that the water
produced during this period is disposed of. Otherwise, the taste of the
pure water may be unusual.
• When you rst use the storage tank it is recommended that you discard
the rst tank of water; otherwise it may result in abnormal tasting pure
water.
• When you rst operate the water purier, the pure water TDS value may
be a little high. After operating for some time, the TDS value of the pure
water produced will gradually decrease until it is stable.
• When you are using the water purier, the inlet water ball valve should
be opened and the pure water faucet needs to be turned on. When
you are not using water turn off the water faucet, the high pressure
switch will automatically cut off the water supply.
•When the unit is not operated for long periods of time, occurance of
microbiological contamination is possible.
To prevent any microbiological contamination, it is recommended to
operate the unit at least twice a week. Otherwise, the water can have a
smell.
• When any of the following situations occur, immediately disconnect
the water purier water source (close the inlet water ball valve) and/or
the power source and carry out repairs.
- If the water purier pipes or related components are leaking.
- If the water purier and/or components stop working.
- If any components leak electricity.
- If there are any other anomalies or failures.
• When you go out or do not use the machine, disconnect the water
purier's water source (close the inlet water ball valve) and/or power
source.
• If the water purier parts are damaged, it is recommended that the water
purier be entrusted to the manufacturer or distributor, service center,
or specialized technical personnel for replacement to prevent loss caused
by improperly performed maintenance, the manufacturer assumes
no liability for losses incurred as a result of operation or use that does
not conform with the instructions and reminders specied herein.
Operation Warnings
