a2b Shima User manual

1
Owner´s manual Shima

3
Contents
1.0 Introduction 2
2.0 Important notes 3
3.0 Your A2B 6
4.0 Getting to Know your A2B 12
5.0 Using, Storing and Disposing of the Battery 21
6.0 Important Safety Instructions Before Your First Ride 25
7.0 Maintenance 28
8.0 Cleaning the Vehicle 34
9.0 Troubleshooting 34
10.0 Technical Data 36
11.0 Warranty and Safety Notes 37
12.0 Disposal 38
13.0 Maintenance Schedule 39
Product Registration 50

2
Owner´s manual
1.0 Introduction
Welcome and congratulations on buying your new A2B Shima*, the electric bike that’s taking transport in a whole new direction.
Your A2B will give you the freedom to go your own way.
Whether to work, to go shopping or simply for a breath of fresh air - the A2B is the revolutionary new solution of getting from A to B.
Compared to jumping in the car, it’s a lot more fun, easier to park and will reduce your fuel costs as well as your impact on the environment…
numerous advantages, as you’ll soon experience!
Hero Eco Ltd
80 Coleman Street
London EC2R 5BJ
www.wearea2b.com
*' A2B Shima electric bike will be referred to as "A2B" for short in the further course of this manual.

3
2.0 Important Notes
This owner’s manual contains important safety, performance and service information.
Please read it through carefully before your first ride.
Your A2B specialist dealer should have completely assembled and charged your A2B upon delivery. If not, please contact us immediately
as otherwise your warranty will expire. Please ensure that all users of your A2B have read and understood the following important
information.
This indicates a potentially hazardous situation, which if not avoided, may result in serious injury, property or equipment
damage or inadvertent system failure.
Refers to useful or other important relevant information.
If you have questions or do not completely understand any of the instructions in this owner's manual, please ask your A2B specialist
dealer.
Important symbols
• The A2B is suitable for riding on paved streets and roads.
Therefore, do not ride off the paved roads or across terrain.
Do not use the A2B to cross water, for off-road jumps or for
sporting events.
• When using the A2B we recommend you always put on an
approved helmet and wear bright or reflective clothing at night.
• Make certain that you know and obey the rules of conduct for
safe and responsible driving. There is always a risk of having an
accident when riding the A2B, resulting in serious injuries, death
or property damage.
By deciding to ride the A2B you accept full responsibility for
this risk.
• Your existing insurance policy may not provide accident cover
for riding the A2B. Please enquire of your insurance company
or insurance broker.
• This owner's manual does not make any guarantees as to the
safe use of the A2B under all conditions.

4
Owner´s manual
2.1 Your A2B belongs to European Vehicle Category L1e (light two-wheel powered vehicle up to 45 km/h).
These electric bicycles with assistance up to 45 km/h are also generally called fast pedelecs (S-Pedelec or Speed Pedelec).
The A2B has an operating permit with Type Approval Number e13*2002/24*0639. The applicable existing statutory regulations and legal
provisions are explained in the following.
Registration number requirement
The A2B as homologated vehicle must be provided with a valid
insurance tag (vehicle insurance) which can be procured from
any insurance. This tag must be clearly legible when affixed to its
designated registration plate bracket.
Driving licence
L1e category light two-wheel powered vehicles may only be driven
if in possession of at least a Category M (as of 16 years of age)
driving licence.
Where you may ride
Riding on bicycle lanes and in pedestrian areas is not permitted for
light two-wheel powered vehicles, applicable within and outside
city limits. Riding on bicycle streets is only permitted if these
streets are generally approved for motor vehicles or motorcycles.
This also applies if you ride only by pedalling, meaning without
motor assistance.
Helmet requirement
At the time this owner's manual was written a standard Euro-
pean helmet requirement does not yet exist. Therefore, after you
have purchased your A2B, please consult your A2B specialist
dealer to find out the current legal situation in your country.
We therefore recommend you wear an appropriate helmet
for every ride.
Trailers
According to law, light two-wheel powered vehicles may only
pull cargo trailers.
It is prohibited to attach children's trailers to an S-Pedelec
(your A2B in this case) to transport children.

5
Replacing and modifying components
Specific components may only be used if approved for use with an
S-Pedelec in the type approval documents. When changing compo-
nents you should accordingly only use original parts or attachments
which have received legal approval for your A2B (or S-Pedelec).
This regulation concerns the following components:
• Lights (front & rear) & reflectors
• Brake system, side stand
• Electrical system (motor, battery, controller & display)
• Wheel rims and tyres
• Frame
• Registration number bracket
• Stem and handlebar
Unfit state to drive
Avoid using your A2B if you feel unwell and not completely fit.
Do not ride your A2B while under the influence of medication or
drugs. An alcohol level as of 0.5 will lead to fines and possible legal
consequences (suspension or revocation of your driving licence).
The rules and principles described here refer to the use of your
A2B in the European Union. For use outside the EU you should
obtain information beforehand about possible deviations.
Since legislature has not yet created uniform European stand-
ards and directives for S-Pedelecs, we would ask you to check
if the previously stated information is still current at the time you
purchase your A2B.
You will receive further information from your A2B specialist dealer
and at www.weareA2B.com.

6
Owner´s manual
1. Saddle (seat)
2. Seat post
3. Seat post clamp
4. Frame
5. Display
6. VIN (Vehicle Identification Number)
7. Front light
8. Splash guard front
9. Front wheel
10. Front rim
11. Quick release front wheel
12. Front disk brake and rotor
13. Name-plate (left side)
14. Pedals, crank arm and chain ring
15. Chain
16. TMM4 Sensor
17. Motor
18. Rear rim
19. Rear wheel
20. Kickstand
21. Derailleur and free-wheel
22. Bracket for registration number
23. Rear light
24. Splash guard rear
25. Battery connector
26. Battery
27. Rack
3.0 Your A2B
3.1 Components
1
2
3
8
9
10
14
13
20
15
19
18
21
17
24
26
16
27
11
4
25
12
7
6
23
22
5

7
A
B
C
E
D
A. Right side brake lever
(for rear brake)
B. Left side brake lever
(for front brake)
C. Gear shifter
D. Right pedal
E. Left pedal
F. Rear view mirror
F

8
Owner´s manual
3.2 Changing components or attaching accessories
Before you install any components or accessories (including other
tyres), ask your Hero Eco specialist dealer whether these are
suitable for your A2B.
Read and comply with the instructions of the respective
components or accessories which you have purchased for your
A2B. Follow the manufacturer's instructions for the components or
accessories if they differ from these instructions.
Just as for all mechanical components, your A2B is also
subject to a certain degree of wear. Especially in cases of high
loads, attention must be paid to wear characteristics. When
the useful life of a component is exceeded it can cause the
unexpected functional loss of this component, resulting in
serious injuries or even death. Therefore, pay attention to wear
characteristics such as cracks, scratches and changes in colour
at highly stressed points on the frame, fork, running wheels and
handlebars which would indicate that the useful life has been
reached or exceeded. Have your specialist dealer immediately
replace worn components.
If any components or accessories are not checked for
suitability and if they are not installed, used and maintained
properly, then this may result in serious injuries or even death. The
use of non original components or spare parts can jeopardise the
safety of your A2B, causing the warranty to expire.
A2B maintenance schedule
Your A2B should be professionally maintained by an A2B specialist
dealer at regular intervals. Read the information in chapter 13.0
(pg.39) to that effect.
The replacement of components or installation of accessories
occurs at your own risk, since these parts have not been checked by
Hero Eco for suitability, reliability or safety with your A2B.
3.3 Brake lever adjustment
Can you comfortably operate the brake lever? If not, take your A2B
to your A2B specialist dealer and ask them to adjust the angle of the
brake levers.
Otherwise you can adjust the brake lever angle yourself:
1. Loosen the screw under the brake lever with an appropriate Allen
key.
2. Adjust the angle as required.
3. Re-tighten the screw and ensure that the brake lever is securely
fixed in position.
To adjust the brakes you should take your A2B to an A2B
specialist dealer.

9

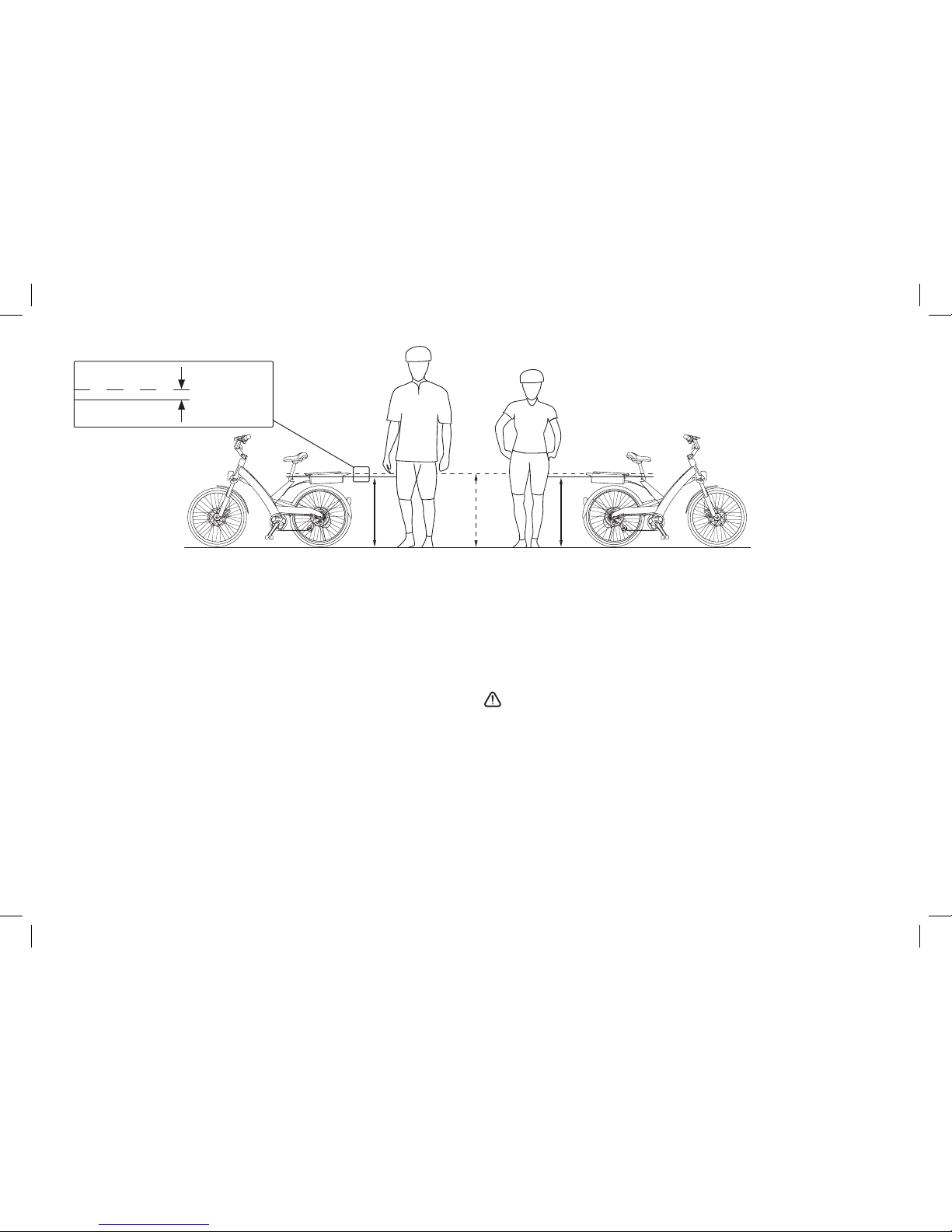

3.4 Seat height adjustment
The seat may require adjustment. Ask your A2B specialist dealer
to do this before you ride. However, you can adjust the seat height
yourself as follows:
1. Stand over your assembled A2B, your feet placed flat on the
ground approximately shoulder width apart.
2. There should be a gap of at least 25 mm between the frame
height (1) and the inside leg length of the rider (2).
Adjusting the height
1. The seat height can be adjusted by releasing the seat post clamp
for the seat post.
2. Adjust the seat to the required height. DO NOT IN ANY CASE
adjust the seat higher than the minimum insertion marking on the
seat post.
3. Press the lever of the seat post clamp towards the frame until it is
locked. The lever may not stick out in order to avoid injuring yourself.
The lever is securely fastened when it requires a particular force to
Frame Height Frame Height
Inside leg
length
Inside leg length
2.5 cm
Gap
Frame height
press it in the closed position. A correctly closed seat post clamp
cannot be moved except by opening it once more according to the
method described above. If you can move the mechanism slightly,
open the lever of the seat post clamp, turn the adjusting nut by
another 180° and then try again.
4. After the height adjustment, check to see if the seat can be
moved in any other direction.
An improperly fastened seat can result in serious injuries or
even death. Make certain that the screw of the seat clamp (seat
post - seat) has been tightened with 27 Nm.
• This owner's manual does not make any guarantees as to the
safe use of the A2B under all conditions.

10
Owner´s manual
A
B
C
D
3.5 Adjusting the handlebar
1. Loosen the screws A with an appropriate
Allen key.
2. Align the centre of the handlebar to the
stem.
3. Rotate the handlebar to the required
angular position.
4. Evenly tighten screws A using 5 Nm.
3.6 Setting the adjustable stem
Alignment of handlebar stem
1. Loosen the screws B with an appropriate
Allen key.
2. Align the stem with the front wheel.
3. Evenly tighten screws using 15 Nm.
Angle adjustment of the stem
1. Loosen screw C with an appropriate
Allen key.
2. Position the stem at the desired angle.
3. Tighten screw C to 17-18.5 Nm and
make certain that the stem is aligned with
the front wheel.
Caution: This is an A headset stem,
upper screw D is a pre-stressed bolt and
does not serve to adjust the stem! Attempt-
ing to tighten screw D can damage the
upper head.
An improperly fastened handlebar and
stem can result in serious injuries or even
death.
Make certain that the handlebar has no play
and that it can be easily operated.
Please consult your A2B specialist dealer
if you require further help in adjusting the
handlebar, bearings and stem.

11
E
3.7 Adjusting the display
1. Loosen the adjusting screw E on the
underside of the display with an appropriate
Allen key.
2. Align the angle of the display according
to your requirement.
3. Then evenly tighten the screw with 5 Nm.

12
Owner´s manual
4.0 Getting to Know your A2B
If after reading this section you still have questions, ask your A2B specialist dealer to explain any functions or characteristics that
are unclear to you before your first ride.
4.1 An A2B overview
The A2B is equipped with a force sensor.
As soon as you begin to pedal you will
discover that the motor starts up and
assists you - making cycling an effortless
pleasure. In addition to this pedalling
assistance you'll find next to the left grip a
starting aid which accelerates the motor -
regardless of your pedalling power - up to
20 km/h.
4.2 Your first trip
1. Put your helmet on and choose a quiet
location away from cars, obstacles or other
hazards.
2. Make certain the battery is charged and
connected.
3. Activate the system with the electronic
key (see 4.3).
4. Do NOT sit down on the A2B while it is
still on its kickstand. You will damage the
kickstand and possibly the frame.
5. Mount your A2B and find a comfortable
sitting position.
6. Step on the pedals to start the motor
assistance.
7. Test the brakes at slow speed. The left
brake lever operates the front brake, the
right brake lever operates the rear brake.
Pulling the brake lever too tightly may block
the wheel, causing you to lose control of
the bicycle and fall down.
Please remember that a motor cut-out
is integrated in the right brake lever. The
electric power supply to the motor is cut
off the moment you activate the right brake
lever. Therefore, do not keep the right brake
lever operated when you want the motor to
run.
8. Try the handling and response of your
A2B. Familiarise yourself with how the
suspension responds when you operate the
brakes and when you shift your weight.

13

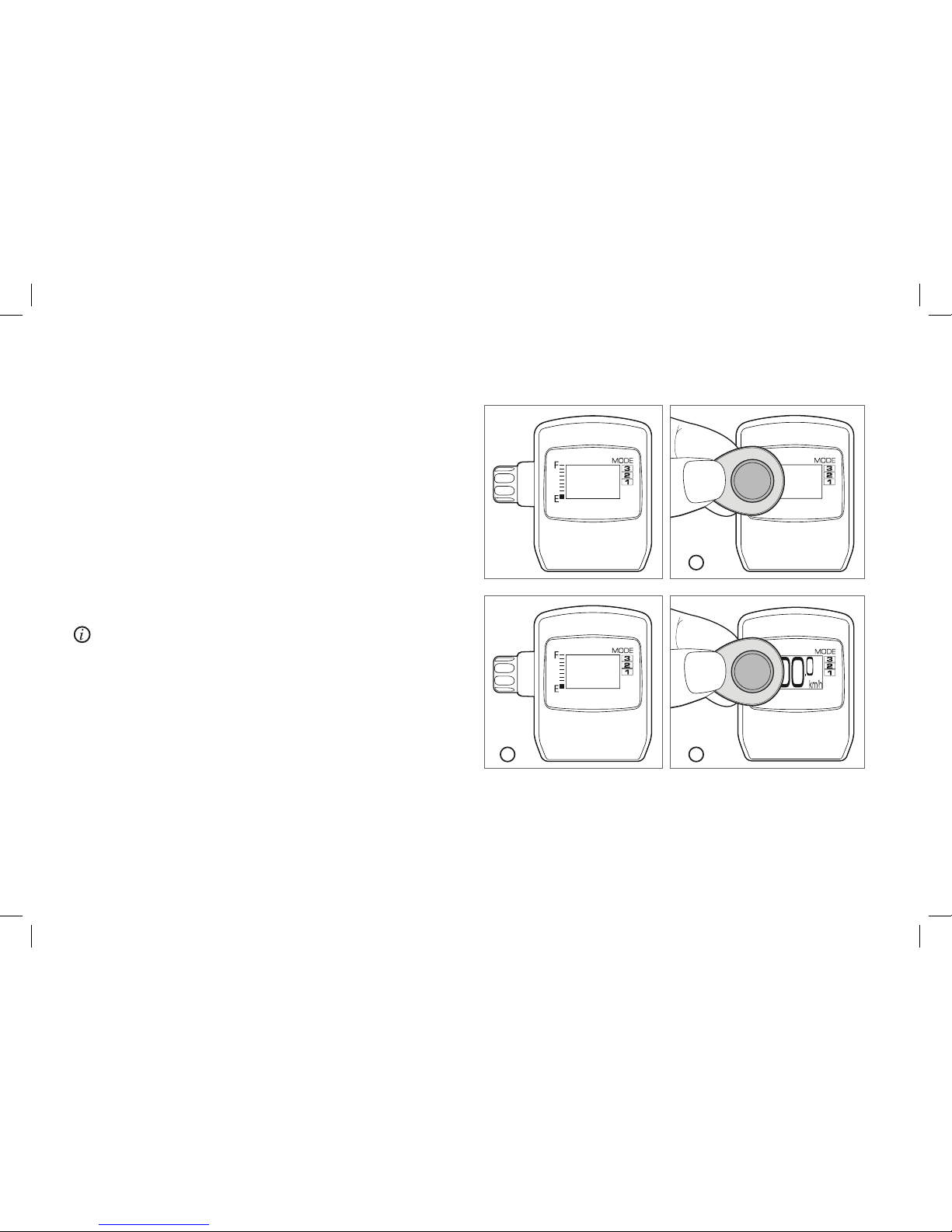

4.3 Display and electronic key
Switching the electronic system on and off at the display
Your A2B is secured by electronic key (also called E-key). You must
activate the system before you begin riding.
1. Hold the E-Key directly over the screen of your display.
2. The display now lights up. As soon as the A2B lettering appears,
pull the key away.
3. After the ride: to shut off the system hold your E-Key over the
display until it blanks out. Then pull the E-Key away. The system is
now deactivated.
The E-Key is used to wake the display, battery and motor control
from sleep mode. If not all of the components wake up after first
switching on with the E-Key (e.g. no motor assistance), deactivate
the system and repeat the switching on process with the E-Key.
2 3
1

14
Owner´s manual
4.4 Display - Functions
Overview of functions and menus
A. Rotary knob/Button
B. Battery charge indicator
C. Speed indicator
D. Mode indicator - shows the respectively selected power level
(1 -3)
E. Unit indicator (km/h or mph)
It is recommended to regard the E-Key like a car or house key.
It is best to attach it to your private key ring.
B
D
C
A
E

15
4.5 Adjusting the degree of assistance
Your A2B allows you to choose from 3 power levels (modes). At top
right of the display you can see your current mode.
Choosing the assistance level:
Turn the knob in order to choose between the different power levels.
As soon as the desired mode is displayed, press the knob to confirm
the selection. The display then returns to the standard display.
Display overview
1. Standard display
2. 0 – off mode (no assistance).
3. Mode 1 – economic (minimum motor assistance, ideal for
economizing the battery output, maximum range).
4. Mode 2 – standard (normal motor assistance, normal power,
average range per battery charge).
5. Mode 3 – high power (additional motor assistance, maximum
power, shortest range per battery charge).
1
23
4 5

16
Owner´s manual
ts-value
8
back
9
odo
231
10
setup
6
km
7
miles
11 trip
0.0
trip
5.1
4.6 Set-up (switching between km & miles)
Turn the knob until the set-up menu (6) appears. Now press
the knob for 2 seconds in order to access the menu. By
pressing again (2 seconds) you can now choose between
kilometres and miles (7).
Then wait to confirm the selection.
If you turn the knob in the menu set-up, you will see
"ts-value" (8) displayed. This sub-menu permits service
technicians and specialist dealers to check for the correct
function of the pedalling sensor. To exit the set-up menu from
here, keep turning until the display "back" (9) appears and
confirm by pressing once.
The standard display (1) will then appear.
4.7 Switching between total kilometres (odo) - and
distance counter display (trip)
Turn the knob until odo or trip (10 / 11) appears. Then wait; the
system automatically accepts the setting.
To reset the distance counter: press the knob for 2 seconds
while you are in the trip menu (11).
The system of your A2B switches automatically to the idle
mode after it has been inactive for 10 minutes (including the
light system).

17
4.9 Error codes
In the event of an error, the
corresponding warning signals (!)
and one of the following codes will
be displayed:
01 HARDWARE_Brake_SET: Excess current hardware
02 RECUPERATION: Error energy recuperation
03 FAST_OVER_VOLTAGE: Fast overvoltage
04 FAST_UNDER_VOLTAGE: Fast undervoltage
05 SLOW_OVER_VOLTAGE: Slow overvoltage
06 SLOW_UNDER_VOLTAGE: Slow undervoltage
07 OVER_TEMP_135: Motor temperature above 135 °C
08 OVER_TEMP_INT: Overtemperature of the controller
09 CORRUPT_HALL_VALUE: Motor signal fault
10 WRONG_HALL_ORDER: Fault motor direction of rotation
11 not set
12 RECOVER_WHILE_DRIVE: Resetting of fault messages during
the trip
13 I_OFFSET_OVER_LIMIT: Offset current over limit
14 I_OFFSET_UNDER_LIMIT: Offset current under limit
15 TORQUE_OFFSET_OVER_LIMIT: Offset force sensor over limit
16 TORQUE_OFFSET_UNDER_LIMIT: Offset force sensor under
limit
16
Fault messages are reset automatically when the error no
longer exists. In case of a permanent error message, consult your
A2B specialist dealer.

18
Owner´s manual
4.10 Gears
Your A2B has a derail-
leur that is operated by the
right-side gear shifter at the
handlebar. To make pedal-
ling easier (e.g. at an incline),
press the lever (A) and shift
down a gear. You then need
to pedal more quickly in
order to maintain the same
speed.
If you wish to ride faster (on
even terrain or downhill), pull the lever (B) and shift up a gear. You
can now pedal more slowly but will have to expend more effort.
Never pedal backwards
when shifting gears. The
chain could jump off, making
you lose control which could
result in accidents with seri-
ous injuries or even death
and/or property damage.
Always pedal evenly after
shifting gears.
The derailleur operates inde-
pendently of the motor. Use
the derailleur to adjust the
gear setting to find a gear that
makes pedalling comfortable
whilst assisting the motor.
4.11 Lights
Set the switch at the rear side
of the head light to the cor-
responding direction to switch
the lights on or off.
1
8
A
B
B
A
