a2b A2B Galvani User manual
Owner’s Manual Galvani / Female
3page
owner´s manual
04
05
06
11
18
22
26
30
31
32
33
34
35
1. Introduction
2. Important Information
3. Your A2B
4. Understand your A2B
5. Battery use, storage and disposal
6. Important Pre-ride Safety Information
7. Maintenance
8. Cleaning
9. Trouble Shooting
10. Technical Information
11. Warranty & Security Details
12. Disposal
13. Owner registration
Contents
4page
Welcome and congratulations on buying your new A2B Galvani*, the electric bike that’s taking trans-
port in a whole new direction. Your bike will give you the freedom to go your own way.
It’s the new revolutionary way to get to work, pop to the shops or just get some fresh air.
Compared to jumping in the car, it’s a lot more fun, easier to park and will reduce your fuel costs as
well as your impact on the environment... as you’ll soon nd out!
This manual refers to the male and female frame design of A2B Galvani. Graphical representations may
vary from your product.
Hero Eco Ltd
80 Coleman St
London EC2R 5BJ
www.wearea2b.com
*A2B Galvani is termed as ‘A2B ’ throughout the rest of this manual.
1.0 Introduction
5page
owner´s manual
If you have any questions or are not sure about any instructions in this owner manual ask your A2B
dealer.
• According to national rules a bicycle has to be
equipped with two independently working bra-
kes, a bell, head light, tail light, side reectors on
the wheels or integrated reection stripes on the
tyres and front and rear reectors.
• The A2B is designed for public road use. Don‘t
ride off-road, in water and don‘t use the A2B to
jump in bumby terrain or for competition events.
• We recommend that you always wear light or
uorescent clothing at night when riding the A2B
.
2.0 Important information
This owner`s manual contains important safety, performance and service information.
Please ensure you read this thoroughly before your rst ride.
Your A2B should be fully assembled and the bat-
tery charged by your A2B dealer at the time of
delivery. If not contact us immediately as this will
void your warranty.
Please ensure that all users of your A2B read and
understand the following important information.
• Make sure you know and practice the ru-
les of safe and responsible riding. There is al-
ways a risk of serious / fatal injury or damage
as a result of an accident while riding an A2B
. By choosing to ride the A2B you assume
responsibility for that risk.
• Your existing insurance policies may not provide
accident cover for your A2B . Contact your insu-
rance company or agent for information.
• This owner’s manual makes no representation
about the safe use of the A2B under all condi-
tions.
This indicates a potentially hazardous situation which, if not avoided, could result in
a serious injury, property damage or damage to equipment or inadvertent system
failure.
Provides helpful or other important related information.
Important symbols
6page
3.0 Your A2B
3.1 Components
1. Saddle (seat)
2. Seat post
3. Seat post quick release
4. Frame
5. Stem
6. Grips & Brakes
7. Display
8. Front fork
9. Front brake
10. Headlight
11. Quick release front wheel
12. Front wheel tyre
13. Front wheel rim
14. Front mudguard
15. Pedal, crank arm and chain ring
16. Drive chain
17. Derailleur and freewheel
18. Motor
19. Rear wheel tyre
20. Rear wheel rim
21. Rear light
22. Rear mudguard
23. Sensor
24. Battery
25. Rear rack
26. Rear brake
*showing PEAK male frame design
7page
owner´s manual
SHIMANO
1
2
3
4
5
6 7
8 9 10
11
12
13
14
151617
18
19
20
21
22
23
26
24 25
8page
Before installing any component or accessory,
including a different tyre, make sure that it is com-
patible with your A2B by checking with your A2B
dealer.
Read, understand and follow the instructions that
accompany the component or accessory you
purchase for your A2B . Follow the component
manufacturer’sinstructions if they conict with
these instructions.
As with all mechanical components, the bi-
cycle is subjected to wear and high stresses.
Different materials and components may react
in different ways to wear or stress fatigue. If the
design life of a component has been exceeded, it
may suddenly fail possibly causing serious or fatal
injuries to the rider. Any form of crack, scratches
or change of colouring in highly stressed areas,
such as frame, fork and handle bar, indicates that
the life of the component has been reached and it
should be replaced immediately by an A2B dea-
ler.
Failure to conrm with compatibility, proper
installation, operation and maintenance compo-
nents or accessories can result in serious or fatal
injury.
Using non-genuine components or replace-
ment parts may compromise the safety of your
A2B and void the warranty.
If you change components or add accesso-
ries, you do so at your own risk because Hero
Eco may not have tested that component or ac-
cessory for compatibility, reliability or safety on
your A2B .
3.3 Brake lever adjustment
Can you comfortably operate the brakes? If not,
take your A2B to an A2B dealer and ask them to
adjust the angle of the brake levers.
Alternatively, follow the instructions below to ad-
just the brake lever angle:
1. Loosen the bolt underneath the brake lever
with an appropriate allen key.
2. Adjust the angle to suit.
3. Tighten up the bolt underneath, ensuring the
brake lever is rmly xed in place.
Should you need to adjust the brakes them-
selves, please take your A2B to an A2B dealer to
make the required adjustments.
3.2 Changing components or adding accessories
9page
owner´s manual
3.4 Handle bar adjustment
1. Loosen the bolts (A) using an appropriate allen
key.
2. Position the handle bar symmetrical to the bar
stem.
3. Turn the handle bar to the desired angle.
Tighten the bolts consistently to 12 Nm.
3.6 Bar stem adjustment
1. Loosen bolt (C) using an appropriate allen key.
2. Once loose, align the stem with the front
wheel.
3. Once aligned, tighten the bolt (C) to 15 Nm.
3.7 Change the angle of the adjustable-
rise stem
1. Loosen bolts (D and F) using an appropriate
5 mm allen key.
2. Position the stem to the desired angle.
3. Tighten bolts to 15 Nm ensuring the stem is
aligned to the front wheel.
Caution: this is an A-head stem, the top bolt (E)
is a pre-load and does not adjust the handlebar
stem.
Caution: this is an A-head stem, the top screw
E is preloaded with 1-2 Nm and does not adjust
the handlebar stem. Trying to tighten bolt E can
damage the head set bearings.
Failure to correctly secure the handle bar
and bar stem can result in serious or fatal injury.
Ensure there is no play in the steering and that the
steering is working smoothly.
Should you need further advice to adjust the
headset, please contact your A2B dealer.
3.5 Display adjustment
1. Loosen the bolts (B) using an appropriate
cross-head screwdriver.
2. Position the display to the desired angle.
3. Tighten the bolts consistently..
C
D
E
A
B
F
10page
3.8 Seat height adjustment
The seat height may require adjustment. Ask your
A2B dealer to adjust it before you ride, however
to adjust the seat yourself follow these instruc-
tions:
To determine the correct height of the seat
for the rider
1. Straddle the assembled A2B with your feet
shoulder-width apart and at on the ground.
2. There must be at least 25 mm/1 inch clearance
between the frame height (1) and the inside leg
measurement of the rider (2).
Height adjustment
1. Release the seat post quick release by rota-
ting the quick release lever away from the seat
post until it is fully open.
2. Adjust the saddle height accordingly to your
request. DO NOT raise the seat beyond the ‘mini-
mum insertion’ mark on the seat post.
3. Firmly grip the seat tube with your hand, and
push the lever over to the closed position towards
the frame, ensuring that it does not protrude so
as to cause injury to the rider. The lever is secu-
rely tightened when it takes a signicant amount
of force to position it in the closed position. The
appropriate amount of force necessary to close
the lever when it is properly adjusted will result in
an imprint of the lever in the palm of your hand.
When properly closed, it is impossible to move
unless you open it again by reversing the steps
above. If you can easily move it, open the quick
release lever and tighten the adjusting nut another
180º and try again.
4. After adjustment, ensure there is no move-
ment in the seat position in any direction.
Failure to correctly secure the seat can result
in serious or fatal injury.
Ensure the seat clamp bolt (seat pillar - seat post)
is tightened to 27 Nm.
Frame height
Frame height
Inside leg height
HYBRID
HYBRID
Rahmenhöhe
Rahmenhöhe
Innenbeinhöhe
Frame height
1 inch / 2,5 cm
clearance
Inside leg height
1 12
11page
owner´s manual
4.0 Understanding your A2B
4.1 A2B Overview
Having read this section, if you are still unsu-
re, please ask an A2B dealer to explain any
functions or features that you do not under-
stand before your rst ride.
The A2B has a ’true pedal assist’ function, this
means the motor engages only when the rider is
pedalling. So you can get places under your own
steam yet have the comfort of the electric motor
giving you that extra boost along the way.
4.2 Starting and stopping
1. Select a quiet area away from cars, other cyc-
lists, obstacles or other hazards.
2. Make sure that the battery is fully recharged.
3. Power ON the electronic system by turning
the battery power on.
4. Raise the kickstand into the riding position.
DO NOT sit on the A2B while it is supported by
the kickstand, you will damage the kickstand
and, possibly the frame.
5. Mount your A2B and get comfortable.
6. Apply motor power by pedalling the A2B .
7. Test the brakes at slow speed. The right
brake lever actuates the rear brake and the
left brake lever actuates the front brake. Ap-
plying brakes too hard can lock up a wheel,
which could cause you to lose control and fall.
8. Check out the handling and response of your
A2B . Familiarise yourself with how the suspen-
sion responds to application of the brakes and
shifts in rider weight.
Remember that there are power cut-off swit-
ches embedded into the brake levers. When
you apply the brakes, power to the motor will
turn OFF. Therefore, do not hold the brake levers
when you want the motor to run.
12page
You can choose between 3 power assistance le-
vels for your A2B . To enter the programme me-
nue turn the knob untill (P) appears.
Now press the knob to switch between the mo-
des. The mode icon will ash and your assistance
level will be set automatically .
• P0 - off (no assistance).
• P1 - economic (minimum motor assistance,
ideal for saving battery power, maximum range).
• P2 - standard (normal motor assistance, ave-
rage range).
• P3 - high power (maximum motor assistance,
reduced range).
Reset trip
Switch to the trip and push the knob for 2 se-
conds.
1. Turn/ push knob
2. State-of-Charge
3. Mode (adjusts the power assist level 1-3)
4. LCD screen (speed and distance informations)
turn the knob to select the menu/
push the knob for 2 seconds
4.3 Display Select power assistance level
2 3
1
4
13page
owner´s manual
turn the knob to select the menu
Switching between odo (kilometer
reading) and trip
Turn the knob forward or backwards till odo or
respectively trip is shown.
Manual sensor calibration
For manual calibration turn the knob till CAL is
shown. Push the knob for 2 seconds till CAL
starts to ash.
turn the knob to select the menu/
push the knob for 2 seconds
Switching between km/h and mph
Turn the knob till SEt is shown. Push the knob for
2 seconds until SEt start to ash. Then push the
knob to switch between km/h and mph.
turn the knob to select the menu/
push the knob for 2 seconds/
then push the knob once again
14page
Error codes - overview
E-001: Under voltage
E-002: Motor stall
E-003: Over load
E-004: Over temperature controller
E-005: Over temperature motor
E-006: Over voltage
E-007: Not applicable
E-008: Hall sensor error
E-009: Torque sensor failure
E-0010: Offset torque sensor under limit
E-0011: Offset torque sensor over limit
4.4 Error codes
If the warning sign (!) is shown an error has oc-
curred. One of the following codes will be shown
on the display:
Error messages will automatically be reset if
the error ceases to occur. Please contact your
A2B dealer in case of a permanently displayed
error message.
15page
owner´s manual

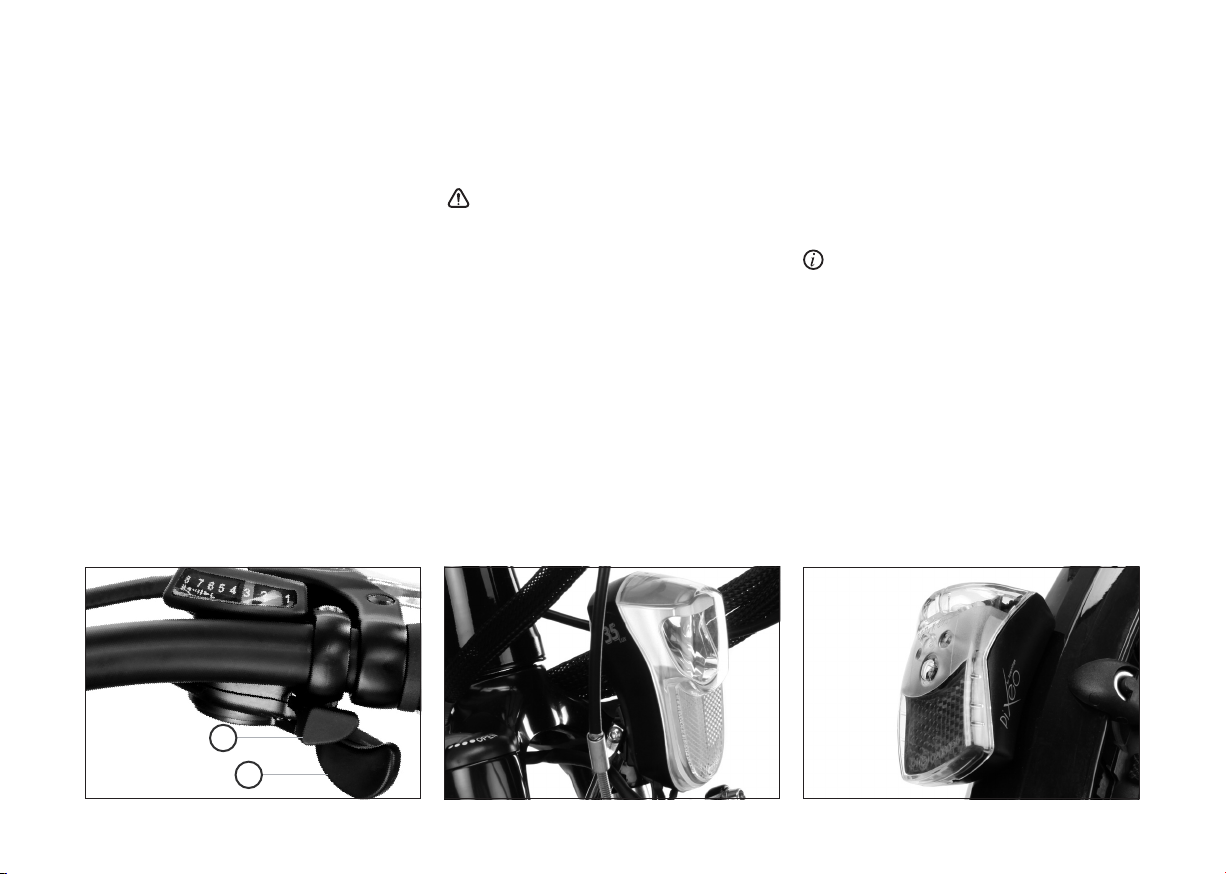

4.5 Gears
Your A2B has a rear derailleur controlled by the
gear shifter on the right side of the handlebar.
To shift gears, pedal at a steady pace and push
the shift lever A or B until you nd the gear most
comfortable for you and the current conditions.
To make pedalling easier (when encountering a
hill), push up lever A in riding direction to down-
shift, this will also make you pedal faster to achie-
ve any given speed. Push up lever A against stop
to down-shift two gears at once.
To ride faster (on a at section or a downhill), push
up lever B to up-shift, allowing you to pedal more
slowly for a given speed, but with more effort re-
quired.
Never pedal backward while shifting gears.
The chain could derail and you could lose control,
resulting in an accident that could cause serious
or fatal injury and/or property damage. Always
pedal forward at a steady pace when shifting ge-
ars.
The rear derailleur operates independently of the
motor. Using the derailleur control, adjust the
gear setting to nd a gear that makes pedalling
comfortable while assisting the motor.
4.6 Light
To switch the light on and off push the switch on
the headlight to on or off position.
You can ride your A2B without attaching the
battery. The motor will generate power for the
lights.
B
A
16page

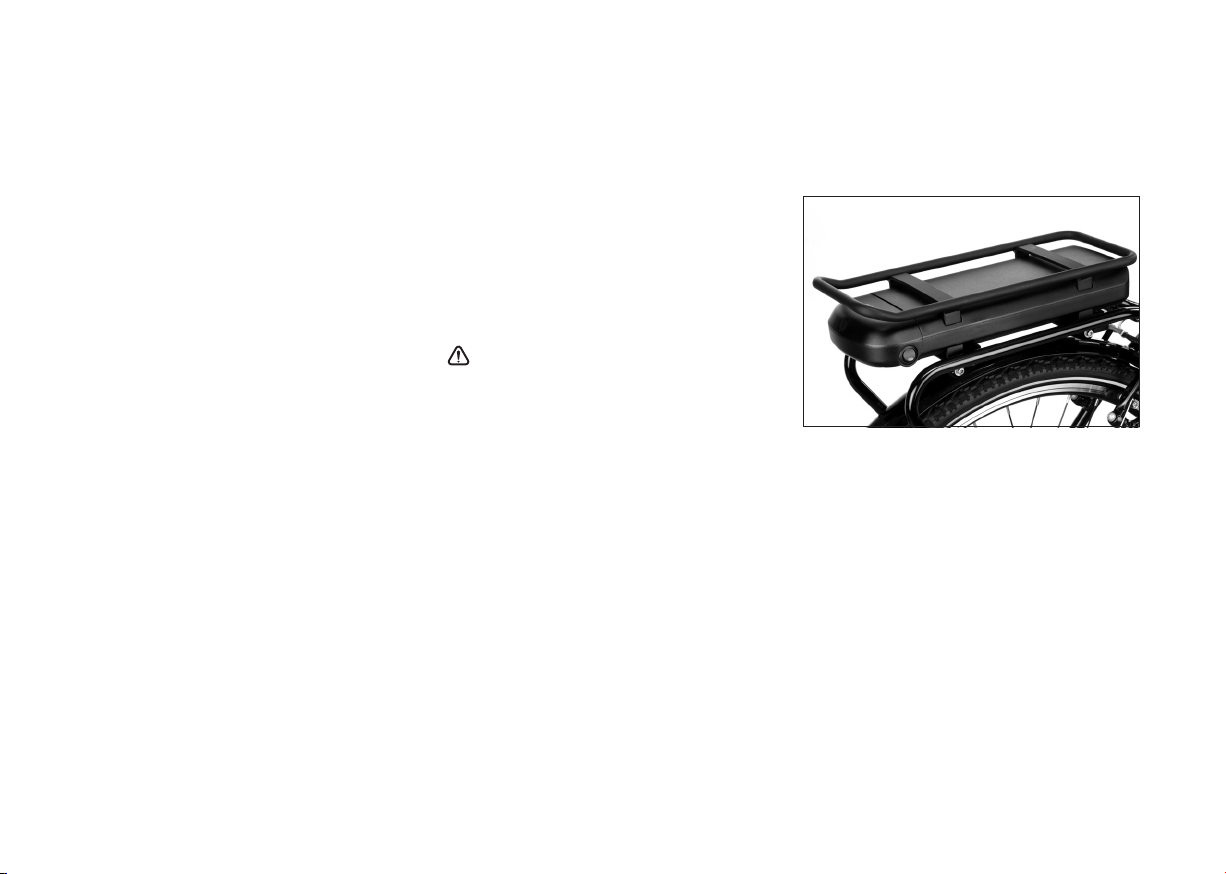

4.7 Luggage Carrier
Your A2B equipped with a durable luggage car-
rier. In case you need to carry luggage or any
goods with your A2B , please carefully read the
enclosed instructions before using the luggage
carrier.
1. The rack is attached to the carrier support by
4 x countersunk screws. The support is screwed
on the frame by 4 x countersunk screws. If you
are frequently using the luggage carrier, always
check that the screws are secured tightly at
torque value 6-8 Nm.
2. The maximum weight that could be carried is
10 Kg.
3. Please ensure that the luggage is fastened se-
curely, so that it can not fall off while riding. Take
care that loose straps or other itms can not get
caught by the spokes or wheels while riding.
4. The luggage carrier is not designed for carry-
ing a second rider or for the attachment of a child
seat. It should also not be used to pull a trailer.
5. Do not modify the luggage carrier.
6. Distribute the weight of your luggage or goods
evenly between the two sides of the luggage car-
rier.
7. Please be aware when the luggage carrier is
loaded, your A2B may behave differently, espe-
cially when steering or braking.
8. Once you have attached your luggage to the
luggage carrier, please be aware that rear light
and reector may be obscured by your luggage.
Failure to observe these instructions can re-
sult in serious or fatal injury.
17page
owner´s manual
4.8 At the end of your ride
If you have any questions, or if you feel anything
about your A2B is not as it should be, ask your
A2B dealer before you ride again.
Recharge your discharged battery
Fully recharge your battery within 3 days if the
battery is completely discharged because a lithi-
um ion battery left in a discharged condition dete-
riorates much faster than a fully charged battery.
See 5.3 & 5.4.
Your range
Factors affecting range:
• Pedal assist mode
• Battery state-of-charge
• Use of gears appropriate to speed
• Tyre ination pressure
• Front wheel bearings and both brakes (tight
bearings or a dragging brake shoe reduces range)
• Rider weight (it takes more energy to accelera-
te a heavier person)
• Your speed and wind conditions (range is re-
duced when pedalling hard against a high wind)
• Terrain (travelling on a soft surface or climbing
a hill uses more power)
• Frequent starts and stops (full power from a
standing start draws the most amperage from
the battery)
Maximise your range
• Fully charge your battery before each ride
• Check tyre pressure regularly and inate to the
pressure of 4.5 bar for front tyre and rear tyre
• Have your A2B serviced at least once a year
to ensure that the wheel bearings turn freely and
the rims do not bind the brake shoes when the
brakes are not applied
• Minimise the weight that you carry
• Ride at slower speeds
• Use the economy mode as much as possible and
support the motor by pedalling with your own power
• Keep the chain and derailleur lubricated with
bicycle recommended chain spray
18page
image showing rack battery
1. ON/ OFF-switch
2. Charging port with cover
3. Battery state-of-charge
Use only the battery supplied with your A2B or a
battery provided by Hero Eco as a replacement
for the battery supplied with your A2B . Use of
any battery not supplied with your A2B WILL void
the warranty and may cause damage to the elec-
trical system and the hub motor.
Improper use and poor storage of this battery will
void the warranty and may cause serious or fatal
injury or other hazardous situations including re
and property damage.
Improper use includes: using this battery with any
other vehicle or appliance, subjecting the batte-
ry to intense physical shock or severe vibration,
creating a short circuit of the discharge terminals
of the battery.
Poor storage includes: storing near excessive
heat and/or open ames, long term exposure to
sunlight.
Use only the battery charger supplied with this
battery. Use of any other battery charger will void
the warranty and may cause damage to the bat-
tery, serious or fatal injury and/or other hazardous
situation.
Improper use of this battery charger battery will
void the warranty and may cause serious or fatal
injury or other hazardous situation including re
and property damage.
Improper use includes: subjecting it to intense
physical shock or severe vibration.
This battery charger supplied with this battery is
for INDOOR use only.
Avoid any contact with water or other uids. If the
battery, charger or any connections become wet,
immediately unplug the charger and thoroughly
dry all components prior to charging the battery.
Do not disassemble the battery. The attempt to
disassemble the battery will void the warranty and
may cause damage to the battery, serious or fatal
injury and/or other hazardous situation.

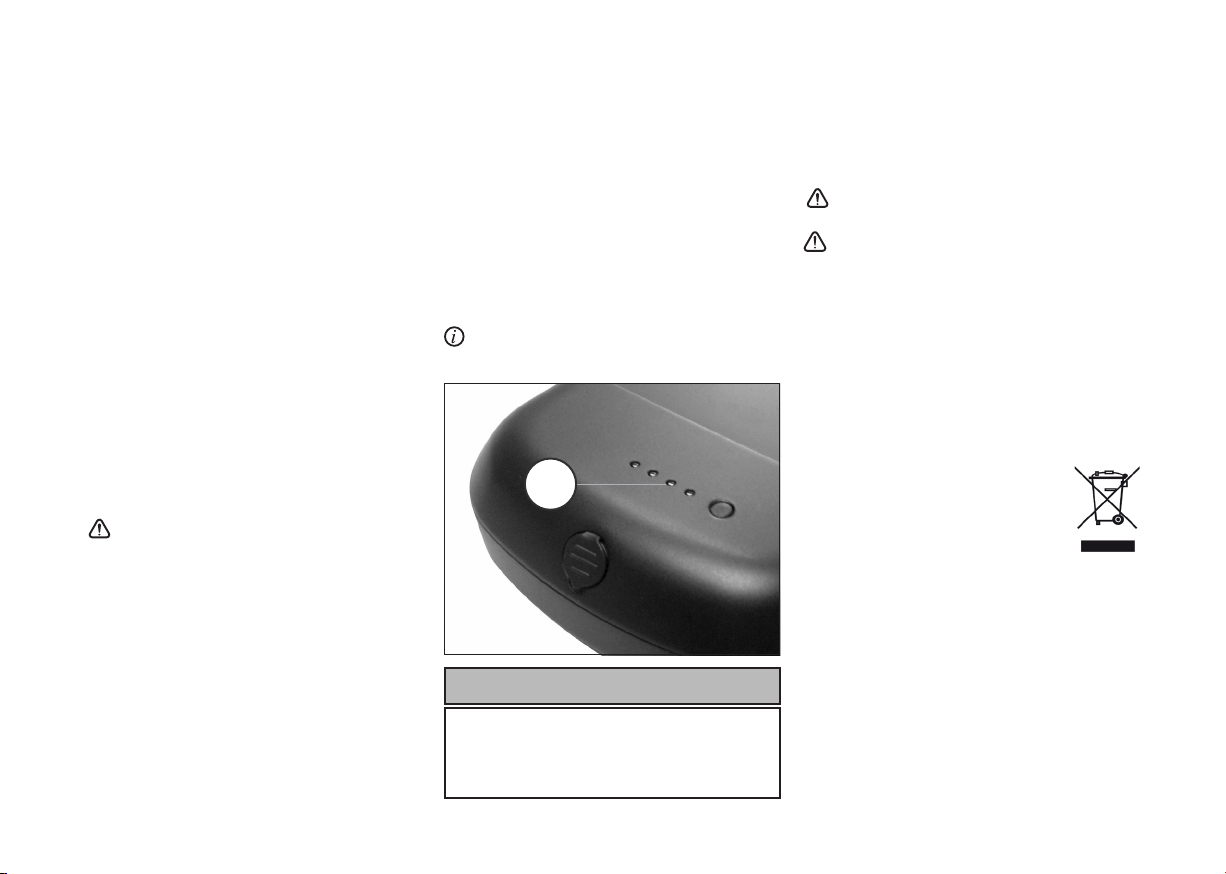

5.1 Battery and charger
1
2
3
5.0 Battery use, storage and disposal
19page
owner´s manual
5.2 Charging the battery
1. Make sure that the Battery is turned OFF.
2. Plug the charger into the wall outlet. The LED
will illuminate GREEN when the charger is con-
nected to a wall outlet
3. Pull the rubber cover out of the battery.
4. Carefully align the connector pin and connect
the charger to the battery by plugging the con-
nector into the charger socket.
5. The LED will illuminate RED as long as the bat-
tery is charged.
6. When charging is complete the Indicator LED
will illuminate GREEN.
7. Carefully unplug the charger from the battery
by pulling the connector out of the battery socket.
Then install the rubber cover and unplug the char-
ger from the wall outlet.
8. Your battery is now ready for use.
5.3 Battery charging
To maximise battery life, recharge as soon as
possible after every use.
Avoid leaving the battery charger plugged
into your battery for more than 12 hours at a time.
Once the battery is fully charged, unplug the
charger from the wall outlet then carefully unplug
the charger from the battery pack.
Avoid charging the battery at a temperature
lower than 0 °C or over 40 °C. If possible charge
the battery at room temperature.
You may recharge the battery at any time, re-
gardless of its state-of-charge. As your battery
ages, it will gradually lose capacity. With proper
care and maintenance, your battery will retain up
to 80% of its capacity over at least 500 dischar-
ge/recharge cycles. As capacity diminishes, you
will notice a gradual drop-off in maximum range
capability. When range falls to an unacceptable
level, contact your A2B dealer for a replacement
battery.
Charging times hours
Before using battery for rst time 12
Fully discharged 5 – 6
Battery charging
20page
Low battery charge
The motor controller and battery management
system (BMS) are designed to turn off the pow-
er to the motor when the voltage of the battery
drops to a predetermined point. This is to pro-
tect the battery from the harmful effects of over-
discharge.
When the power turns off due to a low battery,
plug the battery into the charger supplied with
your A2B to recharge the battery within 3 days. It
will take 5 - 6 hours to fully recharge a completely
discharged battery.
If you have any questions about this battery or
its usage, contact our Customer Services Depart-
ment.
Never attempt to use remaining power once
the BMS has switched off the battery. You will da-
mage your battery.
5.5 Battery storage
Disconnect the battery from the bike and store
the battery in a cool (10º-21ºC, 50º-70ºF), dry
place. Avoid exposure to direct sunlight.
The Battery Management System (BMS) is al-
ways on, consuming a small amount of power
from the battery.
Ensure the battery is min 50% recharged be-
fore you store it.
charging instructions for storage hours
Before storing battery 2
Half re-charge at least every 90 days 2
charging instr. for storage - half charge
Make sure that the Battery is turned OFF.
Failure to follow these battery storage char-
ging instructions will void the warranty.
5.6 Battery disposal
DO NOT dispose of the battery as household
waste. Dispose of, or recycle according to local
authority guidelines or contact our Customer
Services Department for guidance.
min.
50%
Table of contents
Other a2b Bicycle manuals
