Abatement Technologies PREDATOR 1200 User manual

PREDPRED
PREDPRED
PREDAA
AA
ATT
TT
TOROR
OROR
OR®1200 Portable Air Scrubber1200 Portable Air Scrubber
1200 Portable Air Scrubber1200 Portable Air Scrubber
1200 Portable Air Scrubber
Model PRED1200Model PRED1200
Model PRED1200Model PRED1200
Model PRED1200
INSTRUCTION MANUALINSTRUCTION MANUAL
INSTRUCTION MANUALINSTRUCTION MANUAL
INSTRUCTION MANUAL
Abatement Technologies Ltd.
Ontario, Canada
905-871-4720
Abatement Technologies, Inc.
Georgia, USA
800-634-9091
PRED1200MNL rev. 6/30/2009
Abatement Technologies, Inc./Remediation Products Division
www.abatement.com
Patented - U.S. Design Patent No. D572,356

1
¼
»
1. First Stage 1" Coarse/Particulate Pre-filter
(P/N F621)
2. Second Stage 2" Pleated Pre-filter
(P/NH502)
3. OptionalThird Stage 2" High Capacity
Vapor-Lock®Carbon Filter
(P/NVL1002).
4. Final Stage 99.97% HEPA Filter
(P/NH610C-99)
5. MotorizedImpeller
6. 8" Rear Wheels
7. 360°Swivel Casters
8. Pre-filterAccess Door
9. HEPAFilter Access Panel

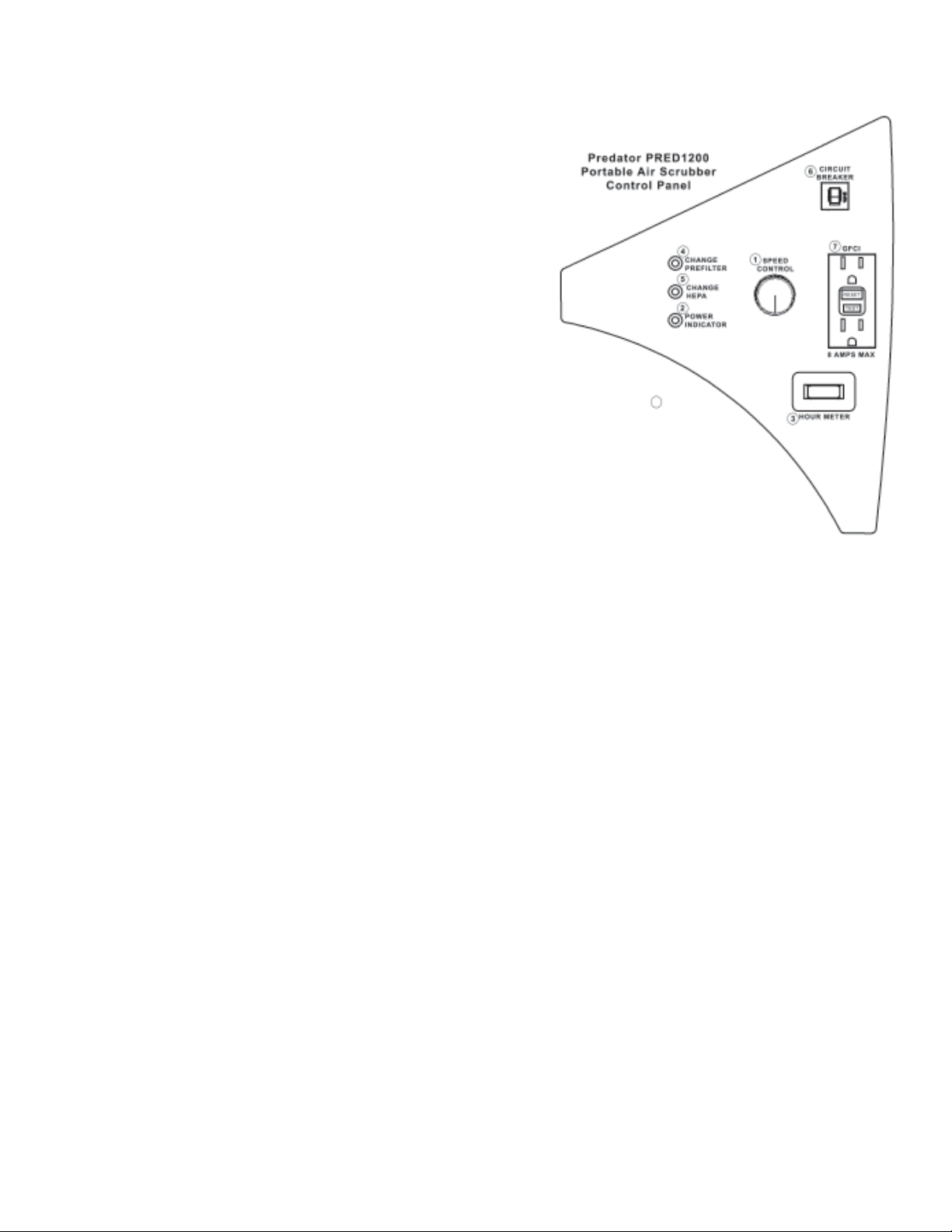

10.ControlPanel
11.ExhaustOutlet

2
• Low concentrations of OVG
• Low concentrations of Volatile
Organic Compounds (VOC)
• Unpleasant nuisance odors
• Lung-damaging particles
• Metal fumes
• Smoke
• Mold and fungal spores
PREDATOR Portable Air Scrubber
Model: PRED1200
Instruction Manual
©AbatementTechnologies 2006All Rights Reserved. No reproduction of any portion of this work is permitted without the
expresswrittenpermissionof AbatementTechnologies, Inc.
READ AND SAVE THESE INSTRUCTIONS!
Note: 1. Read and understand all operating instructions before using the PRED1200 Portable Air
Scrubber.
2. Save this manual for future reference.
This instruction manual provides important information on the use of the Predator Portable Air Scrubber (PAS) -
model PRED1200. These instructions must be carefully followed in order to operate the unit safely and correctly.
If there are any questions regarding the use of the unit, please contactAbatementTechnologies immediately at
800-634-9091 U.S. or 905-871-4720 Canada.
Abatement Technologies strongly urges users of air filtration units and related accessories to follow the most
recentguidelinesand/orstandardspublishedby the OccupationalSafetyandHealthAdministration,Environmental
Protection Agency, and all other federal, state, provincial and local regulations.
GENERAL INFORMATION
The PRED1200 is a multi-use air filtration device, equipped with pre-filters and a HEPA filter that are capable of
filtering many airborne contaminants. An optional carbon pre-filter for capturing low concentrations of odors,
vapors, gases, and volatile organic compounds, collectively known as OVG, is also available.
Types of contaminants captured by particulate pre-filters, HEPA filter, or carbon filters:
• Dirt
• Dust
• Drywall dust
• Saw dust
Note: To capture low concentrations of OVG, a Vapor-Lock®carbon filter must be used.
The PRED1200 is capable of providing particulate and odor, vapor, gas filtration with final stage filtration through
a High Efficiency Particulate Air (HEPA) filter. The PRED1200 incorporates a series of particulate filters which
successively remove larger size to smaller size particles from the air. In addition to providing HEPA filtration, the
PRED1200 is primarily used in a negative pressure or recirculation mode. A negative pressure condition is
created in order to confine contaminated airborne particles. This condition exists when the static pressure inside
the room containing the unit is lower relative to the pressure of the environment outside the room. The static
pressure differential is created and maintained by continuously exhausting air out of a given room at a faster rate
than air enters the room from all other sources. In the recirculation mode, all of the filtered air is exhausted back
into the room containing the unit.
Standard Air Cleaning Stages (filters supplied with the unit)
The PRED1200 comes equipped with two progressively efficient particulate pre-filters mounted in the pre-filter
compartment, and a final stage HEPAfilter, located in the lower section of the cabinet:
•The first-stage 1"-deep, coarse particulate pre-filter (F621) is designed to capture particles 100 microns
orlarger.
•The second-stage 2"-deep, pleated pre-filter (H502) is designed to capture particles 10 microns or
larger.
•Each HEPA filter (H610C-99) is tested & certified to capture at least 99.97% (9,997 out of 10,000) 0.3-
micron particles.

3
Note: The particulate filters in the PRED1200 do not remove odors, vapors or gases, including volatile organic
compounds.
Optional Vapor-Lock Carbon Filters (must be purchased separately)
CAUTION: For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive
Materials And Vapors. Refer to the REQUIREMENTS FOR SAFE OPERATION section of this manual.
Vapor-Lock®pleated, high-capacity, carbon filters (part # VL1002) are available for capturing OVG.This 2"-
deep filter can be used in place of the second-stage H502 pre-filter, to reduce airborne OVG by chemically
bonding the OVG molecules to the surface area of the carbon granules, via a process known as adsorption.
The VL1002 filter also provides a similar level of particulate filtration efficiency to the H502 pre-filter.
Effective carbon adsorption is dependent upon the amount of carbon & exposed carbon granule surfaces, and
the dwell (contact) time the OVG molecules have with the carbon granules. Operating the unit at lower speed
settings to increase dwell time can therefore improve OVG adsorption, though it is highly unlikely that all of the
OVG will be removed in one pass of air through the unit. Operating the unit in the recirculation mode can
increase effectiveness, by exposing OVG particles to multiple passes through the Vapor-Lock filter.
It is almost impossible to provide accurate estimates to two commonly asked questions: “how much time will it
take to capture all of the OVG?”, and “how do I know when a carbon filter should be replaced?” Unfortunately,
unknown factors, such as concentration levels, fresh-air intake volume, temperature, and humidity prevent
establishment of any more accurate ‘rule of thumb’ than one’s sense of smell. Since off-gassing of adsorbed
OVG can occur when the adsorption capacity of the filter is reached, replace the carbon filter as soon as odor
breakthrough is sensed. More detailed information on carbon adsorption can be found in an article titled:
“Activated Carbon: How Is It Used? How Does It Work?” which can be found on the Links and Articles
page of the MoldAbatement, Restoration & Renovation products section of the Abatement Technologies
website, www.abatement.com.
TO DETERMINE THE REQUIRED NUMBER OF UNITS
Note: The Mold Abatement, Restoration & Renovation section of theAbatement Technologies website,
www.abatement.com, includes a handy Air Change Calculator for all Predator models.This calculator provides
users with a simple way to determine how many units are needed to provide a given number of air changes
per hour (ACH) in any size containment area, and eliminates the need for user calculations. Simply enter the
dimensions of the containment area, theACH required, and select a built-in safety factor (SF) to compensate
for potential losses due to filter loading, inlet and exhaust collars, ducting, etc. (Please note that use of a SF is
recommended but not required). The calculator does the rest.
To determine the number of units required without using the Air Change Calculator, proceed as follows:
1. Calculate the volume inside containment (V), in cubic feet, by multiplying the length of the area (L) x the
width of the area (W) x the ceiling height (H), in feet.
2. Determine the minimumACH required in the job specification.
3. Select a safety factor (SF). Most users build-in between 10% (SF = 1.1) and 25% (SF = 1.25), or more.
If you don’t wish to use a SF, proceed to Step 4.
4. Calculate the minimum total airflow required (Total CFM), as follows:
Total CFM = (V xACH x SF) ÷60.
5. # Units Required = Total CFM ÷CFM rating for the Unit.

4
6. Always round up to the next whole number. For example, if the minimum requirement is 2.1 units, 3
units are recommended, not 2.
Example 1:
How many 900 CFM units are needed to provide at least 6ACH in a 25’ x 30’x 10’ containment area, with a
20% safety factor?
V = 25 x 30 x 10 = 7,500 Cubic Feet
Total CFM = (7,500 x 6 x 1.2)÷60 = 900 CFM
Minimum # Units Req’d = 900 CFM ÷900 CFM (airflow of unit) = 1 Unit Required
Example 2:
How many 900 CFM units are needed to provide at least 5ACH in a 50’ x 42’x 10’ containment area, with a
25% safety factor?
V = 50 x 42 x 10 = 21,000 Cubic Feet
Total CFM = (21,000 x 5 x 1.25) ÷60 = 2,188 CFM
Minimum # Units = 2,188 ÷900 = 2.43 = 3 Units Required
Note: This example illustrates the importance of a Safety Factor. If no SF were used, only 1,750 CFM (2 units)
would be required.
PRED1200 TRANSPORT
Note: The PRED1200 can be transported in the horizontal position. If extremely poor road conditions exist, or
excessive shock and vibration are expected, take precautionary measures by padding the unit to provide impact
absorption during transport.
Caution: Always use caution when moving the PRED1200 inside a building or home. The unit weighs 70
pounds. Olderstructures with weakened floorsor staircases mayrequirespecial considerations forsafe transport.
ELECTRICAL REQUIREMENTS
1. The PRED1200 requires a minimum of 110 volts AC, 60 Hz to operate properly; however, maximum airflow
performance requires 120 volts AC, 60 Hz.
2. Due to momentary start-up current surge, the unit requires a 15 amp circuit that is free of other loads.
3. Extension cords used for the PRED1200 must be UL-listed, heavy duty No. 14/3AWG industrial grade 3-
wire type. Use of larger numerical gauge (lower capacity wire) power cord(s) may result in electrical shock,
fire hazards and/or damage to unit. The cord(s) must be in good condition and in continuous lengths (no
splicing) and should not exceed a total of 50 feet in length. Make certain that any extension cords used do
not reduce power to the unit to less than 110 volts. Use of a voltmeter to confirm adequate voltage is
recommended.
4. Check to ensure that any circuit to which the unit is connected is protected by a 15 ampere circuit breaker.
The unit itself is equipped with a 12 amp circuit breaker.
5. The PRED1200 should be connected to a three-prong, properly grounded electrical outlet equipped with a
Ground Fault Circuit Interrupt (GFCI) device. AGFCI is an electrical safety device that will trip the circuit and
stop the flow of electricity if leakage of current is detected.
Important Note: The GFCI on the PRED1200 control panel only detects leakage of current from the
unit or an electrical device plugged into the GFCI. The PRED1200 should be plugged into a GFCI
receptacle at the power source to protect the power cord and the unit. This GFCI will trip the
circuit if it detects leakage of current from the power cord or unit.
6. To avoid personal injury, fire hazards and/or damage to the PRED1200 electrical system and power cord,
do not connect or disconnect the power cord to an electrical outlet unless the motorized impeller is “OFF”.

5
REQUIREMENTS FOR SAFE OPERATION
1. Never allow unauthorized individuals or children to operate the unit at any time.
2. Abatement Technologies urges anyone operating the PRED1200 to wear the proper personal protective
equipment and follow safe work practices in accordance with federal, state, provincial and employer
regulations.
3. Check the condition of power cord(s) before using them. Damaged cords can cause fatal electric shock and/
or motorized impeller failure.
4. Power cord(s) should never be exposed to water, heat, sharp, or abrasive objects; in addition, they should
never be kinked or crushed.Avoid tightly wrapping the cords to prevent kinking of the internal wires. Always
replace damaged power cords immediately.
5. Never pull the unit by the power cord.
6. Avoid running over power cords with utility equipment and vehicles.
Important Safety Instructions
a. Do not operate any unit with a damaged cord or plug. Discard unit or return it to an authorized
service facility for examination and/or repair.
b. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area
and where it will not be tripped over.
Caution:As with any piece of electrical equipment, always make sure that the unit is turned “OFF” prior
to connecting the power cord to an electrical outlet or disconnecting it from an electrical outlet. Failure
to do so will cause “arcing”, and could result in personal injury, fire hazards and/or damage to the unit.
Do not disconnect the power cord from supply receptacle while the unit is operating.
Warning: To reduce risk of electrical shock, do not expose this unit to water or rain. Do not touch the
electrical outlet or power cord(s) with wet hands or while standing on a wet or damp surface.
Warning: Risk of electrical shock! Can cause injury or death! Turn unit “OFF” and disconnect power
cord from supply receptacle before replacing the HEPA filter and before cleaning or servicing the unit.
Warning: The PRED1200 is equipped with an automatic restart motorized impeller that will restart without
warning after a temporary power interruption or recovery from a thermal overload (over-heating)
condition. Keep clear of the motorized impeller at all times to reduce the risk of injury.
Warning: To reduce risk of fire or electrical shock, do not use the PRED1200 with any solid state speed
control device. Do not use in a cooking area.
Caution: The PRED1200 is designed for indoor use only.
CAUTION: For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive
Materials And Vapors.
Warning: Abatement Technologies air filtration systems are not intrinsically safe for use in hazardous
environments. Always consult a certified industrial hygienist before using them. Do NOT use this
equipment in any atmosphere that is or may be immediately dangerous to life or health (IDLH),
combustible, flammable, explosive, oxygen deficient, and/or contains odors, vapors, gases or particulates
that exceed permissible exposure levels. Such atmospheres may require the use of intrinsically safe
equipment, specific engineering controls, and personal protective equipment in accordance with
Occupational Safety and Health Administration (OSHA), Environmental ProtectionAgency (EPA),Canadian
Standards Association (CSA), and other federal, state, provincial and local regulations.
Warning: This equipment is not classified as “intrinsically safe” and should not be used in the
following hazardous locations as defined by the Underwriters Laboratories: Class I Division 1, Class I
Division 2, Class I Zone 0, Class I Zone 1, Class I Zone 2, Class II Division 1, Class II Division 2, Class
III Division 1, Class III Division 2. Refer to the UL web site: http://www.ul.com/hazloc/define.htm.
Warning: Do not use this unit near sparks, open flames or other possible sources of ignition.

6
PRED1200 CONTROL PANEL
1. Speed Control Switch - Serves as the power switch
and provides a variable adjustment to the speed of the
motorized impeller.
2. Power Indicator - Green light that indicates speed
control switch is “ON” and system is connected to
power source.
3. Hour Meter - Provides a count of the total operating
hours.
4. Filter Change Indicator - Pre-filters – Red light that
indicates excessive restriction on air intake or loading
of the pre-filter(s) and that filter change procedures
should be followed.
5. Filter Change Indicator - HEPA- Red light that
indicates excessive restriction on air exhaust or loading
of the HEPA filter and that filter change procedures
should be followed.
6. Circuit Breaker - 12 amp circuit breaker that provides
protection for the unit’s electrical components.
7. GFCI Receptacle - Electrical safety device that will
trip and stop the flow of electricity if leakage of current
is detected from the unit or an electrical device plugged
into the GFCI receptacle. The PRED1200 can supply a
total of 8 amps of electrical power for additional
equipment that is connected to the GFCI receptacle.
Do not exceed this 8 amp limit.
Note: If the equipment connected to the GFCI receptacle draws more than a total of 8 amps, the circuit
breaker on the control panel and/or the building breaker will trip. This condition can be remedied only by
reducing the total amperage draw.
BEFORE OPERATING THE UNIT, NOTE THE FOLLOWING:
Inspectand tighten any HEPAfilterretainingnuts that mayhave loosenedduring transportation. Inspect the filters
for any material or structural damage prior to use and replace any damaged filters before operating the unit.
When removing any filters prior to operation, always put them back in place with airflow indicator on filter housing
oriented in the proper direction (if applicable).
As with any air filtration system, external airflow losses not attributable to the air filtration unit will reduce the
airflow of the system. The following recommendations can minimize airflow losses created by external static
resistance.
1. Always use the minimum length of ducting possible with the fewest possible number of turns and bends.
2. Rigid metal ducting creates less turbulence and consequently less airflow loss than flexible ducting.
Regardless of the type of ducting used, rigid, “sweep-type’, radiused connections should be used for all
turns and bends.
3. If flexible ducting is used, it must be kept as taut as possible to avoid flattening.
LOCATION OF THE UNITS AND MODES OF OPERATION
1. Negative Pressure - used to help ensure that airborne contaminants do not escape from a contained
area, by maintaining negative (lower) air pressure within that area compared to adjacent areas. This is
generally accomplished by placing the unit inside the containment area and exhausting filtered air from
the unit out of the area. The filtered air must be exhausted outside of the containment area, either

7
directly to the outdoors, or into another part of the building. To maintain negative pressure, the air
exhaust must exceed the air supply by the greater of 10% or 100 CFM. To achieve this differential, the
air supply volume to the area may have to be reduced. Negative pressure levels should be continuously
monitored.
2. Recirculation -used to reduce concentrations of airborne contaminants in a room or area by
continuously cleaning the air and exhausting it back into the same room or area.
3. Positive Pressure - used to help prevent airborne contaminants from entering a containment area, by
keeping that area under positive pressure compared to adjacent spaces, so any air leakage will be an
outflow of clean air, and not inflow of contaminated air. This pressure differential can be established by:
a. placing the unit inside the containment area, and using it to pull air into the area by attaching flex
duct between the inlet collar and a location outside of the containment area.
b. placing the unit outside of containment area, and using it to push HEPA-filtered air into the area
through flex duct attached between the outlet collar and a location inside the area.
To ensure that the proper pressure differential is maintained, the volume of HEPA-filtered air supplied to
the area must be the greater of 10% or 100 CFM higher than the volume of air exhausted from it by the
HVAC system. Positive pressure levels should be monitored continuously.
Important Note: Do not operate the unit unless the pre-filter(s) and HEPA filter are installed, and the
filter access door and panel are in place and closed.
DAISY CHAINING
“Daisy Chaining” refers to the operation of multiple units on one circuit, with only one of the units plugged into a
120V/15A electrical power supply receptacle. Each subsequent unit is plugged into one of the GFCI
receptacles on the prior unit, up to the maximum number allowed based on the amperage draw per unit. The
National Electrical Code limits the total amperage draw of devices operating on one circuit to 80% of full load,
which means that the total amperage draw on a 120V/15A circuit, including the unit plugged into the building
electrical power supply receptacle, must not exceed 12 amps.
A total of three PRED1200 units can be “Daisy Chained” on a 15 amp circuit, including the unit plugged into the
building electrical power supply receptacle.
TO START UNIT
1. Check to make sure that the Speed Control Switch is in the “OFF” position. Plug power cord into a 120 volt
AC, 60Hz, 15 amp supply circuit.
2. Turn Speed Control switch clockwise past the click at the “HIGH” setting to turn power “ON”.
3. Set Speed Control switch to desired setting.
Note: Refer to the chart in this instruction manual entitled “AIRFLOW RATINGS” that lists the airflows for the
PRED1200.
Note: In the event of a power failure while the unit is running, or loss of power due to any other cause,
this unit’s motorized impeller will re-start when power is restored, after a brief delay.
FILTER CHANGE INDICATORS
“Change Pre-filter” light “ON” indicates one or more of the following:
1. Loaded pre-filter(s). Refer to filter change procedures.
2. Restrictions on air intake. Refer to Troubleshooting Guide.
“Change HEPA” light “ON” indicates the following:
1. Loaded HEPA filter. Refer to filter change procedures.
2. Excessive restrictions on air exhaust. Refer to Troubleshooting Guide.

8
FILTER REPLACEMENT
Note: Personnel responsible for changing filters, servicing units or relocating units within the facility
are urged to wear the proper personal protective equipment and follow safe work practices in accordance
with federal, state, provincial, and employer regulations.
Note: Filters being replaced must be disposed of in accordance with federal, state, provincial, local and
facility regulations.
System airflow reduction is generally the result of filter loading, blockage of the unit’s inlet or use of excessive
lengths of flex duct that is connected to the inlet.
The size and concentration of airborne contaminants, temperature and humidity conditions, and duration of use
determinehow oftenfilters needreplacement. Ifthe Filter Change Indicator(s) on the control panel illuminate, this
indicates one or more of the following: (1) pre-filter(s) are loaded, (2) the inlet or exhaust is obstructed, (3) the flex
duct, if attached to inlet or exhaust, is too long or has too many bends, and (4) the HEPA filter is loaded.
The method of determining when to replace the optional activated carbon filter is somewhat subjective. As the
odor, vapor, and/or gas filtration capacity decreases, the user will begin to sense a slight odor or taste of the
contaminant, indicating that the filter should be replaced.
Note: The filters are not reusable, therefore, do not attempt to clean and reuse them.
Caution: Abatement Technologies PRED1200 Portable Air Scrubber units are designed to meet or exceed
standards for high efficiency air filtration equipment. Use only Abatement Technologies parts, including
replacement filters. Use of non-Abatement Technologies parts and filters voids the product warranty
and all performance claims.
Warning: To reduce the risk of fire, electrical shock or personal injury, always turn the PRED1200 “OFF”
and disconnect the power cord from supply receptacle before replacing the HEPA filter and before
cleaning or servicing the unit.
FILTER CHANGE PROCEDURE
To Change the First Stage Filter:
1. With the unit operating, turn the latch on the pre-filter access door counterclockwise (approx ½ turn), and
open the door.
2. Remove the first stage filter and replace it with a new one.
3. Close the door and lock it in position by turning the latch clockwise. Make sure the door is flush against the
PRED1200 cabinet before closing latch.
4. If the “Change Pre-filter” light remains “ON” after changing the first stage filter, the second stage filter should
bereplaced.
To Change the Second Stage Filter:
1. Open the pre-filter access door.
2. Remove the second stage filter and replace it with a new one.
3. Close the door and lock it in position.
4. If the “Change Pre-filter” light remains “ON” after changing the second stage filter, the optional third stage filter
should be replaced. The light would remain “ON” only if the optional third filter is in use and has become
loaded.

To Change the Optional Third Stage Filter:
1. Open the pre-filter access door.
2. Remove the third stage filter and replace it with a new one.
3 Close the door and lock it in position.
Note: Ifan optional Vapor-Lock®filteris being used, be sureto remove it from itspoly bag beforeinstalling itin the
unit. Vapor-Lock®filters are packaged in poly bags to preserve the integrity of the carbon granules.
To Change the HEPA Filter:
1. Turn the unit “OFF” and disconnect the power cord from the electrical outlet.
2. Remove the screws that hold the HEPA filter access panel in place and set the panel aside.
3. Remove the wing nuts that secure the HEPA filter retaining bracket in place, slide the bracket off the long
filter retaining bolts and remove the HEPA filter.
4. Carefully place a new HEPA filter (part# H610C-99) into the cabinet, making sure that it rests on the curved
section of the cabinet base, which is just behind the long, lower filter retaining bolt. The foam seal of the
filter should be aligned with the exhaust outlet.
5. Place the HEPAfilter retaining bracket over the retaining bolts and secure it in place with the wing nuts. Do
not over-tighten the wing nuts.
6. Re-attach the HEPA filter access panel and secure it to the cabinet with its screws.
Warning: Use only Abatement Technologies pre-filters, HEPA filters, and replacement parts. Substitute
parts void the warranty, jeopardize worker and environmental safety, and adversely effect engineered
performance levels.
9

PRED1200 SPECIFICATIONS
10
ERUTAEF0021DERP
:sretlif/wthgiewteN.sbl07
:thgiewgnippihS.sbl59
:)HxWxL(snoisnemiDH"24xW"42xL"22
:stnemeriuqe
rylppusrewoP.tiucricpma51,zH06,CAstlov021
:spmagnitarepolamroNsselrospma5.3
:rellepmIdezirotoM daolrevolam
rehthtiwrellepmidezirotomttaw004 .esahpelgnis,zH06,tes-erotua,noitcetorp
:rekaerBtiucriCpma21
:leveldnuos
lanoitarepOteef5tanekatgnidaer,ABd76-26
:lairetamtenibaC deretsigeR-APEhtiwnisertnadrateremalfBH49LU .rot
ibihnilaiborcim
:ytilibatropsnarT dnaraernisleehwrebburgnikram-non,dilos"8hcae2 .tnorfnisretsacleviws°06
3.ae2
:sseccaretlif-erP hctalgnitatorybderucessirooddegnihgnitarepo-ysaE .ssap-ybretliftsniagatcetorpot
:
retlif-erpegatstsriF)126F(retlif-erpetalucitrapesraoc"1
:retlif-erpegatsdnoceS)205H(retlif-erpetalucitra
pdetaelp"2
-erpegatsdrihtlanoitpO :retlif )2001LV(retlifnobracyticapachgih"2
:retlifAPEH rehgihro%79.99foy
cneiciffenaotdeifitrecdnadetseT )99-C016H(.selcitrapezisnorcim3.0tsniaga
:tnetaP653,275D.oNtnetaPngiseD.
S.U-detnetaP
deepStsewoLdeepStsehgiH
0021rotaderPMFC003MFC009
Note: Specifications subject to change without notice.
AIRFLOW RATINGS
Note: Airflow ratings estimates are based on factory and independent testing @ 120 VAC with an air straightener and a
traverseofreadingstaken with a computingvane-anemometer.Actualresultsmay vary forvariousreasons,including motor
and blower and HEPAfilter tolerances. Factors such as filter loading, reduced voltage to the motor, and inlet and outlet
ducting will reduce airflow. Use these ratings as a general guideline only.

TROUBLESHOOTING GUIDE
11
MELBORPESUACELBISSOPNOITULOS
EHTNEHWESNOPSERON
."NO"DENRUTSIREWOP
.DEGGULPNUDROCREWOP
.DROCREWOPEVITCEFED
.R
EKAERBTIUCRICDEPPIRT
TIUCRICTLUAFDNUORGDEPPIRT
.RETPURRETNI
EHTNODAOLREVOLAMREHT
.DEPPIRTSAHRELLEPMIDEZIR
OTOM
OTNIYLMRIFDROCREWOPGULP
.LLAWNITELTUOLACIRTCELE
DNASNOITCENNOCLLAKCEHC
TONOD.SDROCLLAFONOITIDNOC
REWO
PDEGAMADHTIWETAREPO
.)S(DROC
TESER.GNIDLIUBROFREKAERBTESER
.LENAPLORTNOCNOREKAERBPMA21
RO/DNALENAPLORTNOC
NOICFGTESER
.ECRUOSREWOPTA
DNASETUNIM03TIAW,"FFO"TINUNRUT
.TINUTRATSER
NOREKAERBTIUCRIC
ROLENAPLORTNOC
."SP
IRT"GNIDLIUB
.TIUCRICDEDAOLREVO TNEMPIUQELANOITIDDAYNAGULPNU
.ELBATPECERICFGEHTOTDETCENNOC
.REKAERBTIUCRICTESER
EGNAHCRETLIF
."NO")S(ROTACIDNI
.SRETLIFDEDAOL
EKATNINOSNOITCIRTSEREVISSECXE
.TSUAHXERO
NEEBTONSAHRET
LIFNOBRAC
.GABYLOPMORFDEVOMER
HTIWECNADROCCANIEGNAHC
.SNOITCURTSNIGNITAREPO
TCUDXELFFOHTGNEL,SDNEBECUDER
.
SNOITCIRTSERETANIMILERO
MORFRETLIFNOBRACEVOMER
.GABYLOP
Note: Ifthe unit doesnotstart or malfunctionsafter carefullyfollowing the Troubleshooting Guide, callAbatement
Technologies service department at 800-634-9091 (U.S.) or 905-871-4720 (Canada) for assistance.
COMPONENT REPLACEMENT AND CARE OF THE UNIT
Warning: To reduce the risk of fire, electrical shock or personal injury, always turn the unit “OFF” and
disconnect power cord from supply receptacle before removing the control panel, replacing the HEPA
filter and before cleaning or servicing the unit. The PRED1200 is equipped with an automatic restart
motorized impeller that will restart without warning after a temporary power interruption or recovery
from a thermal overload (over-heating) condition. Keep clear of the motorized impeller at all times to
reduce the risk of injury.
Occasionallyadefective component willcausethe unit tooperateimproperly or not atall. Any electricalcomponent

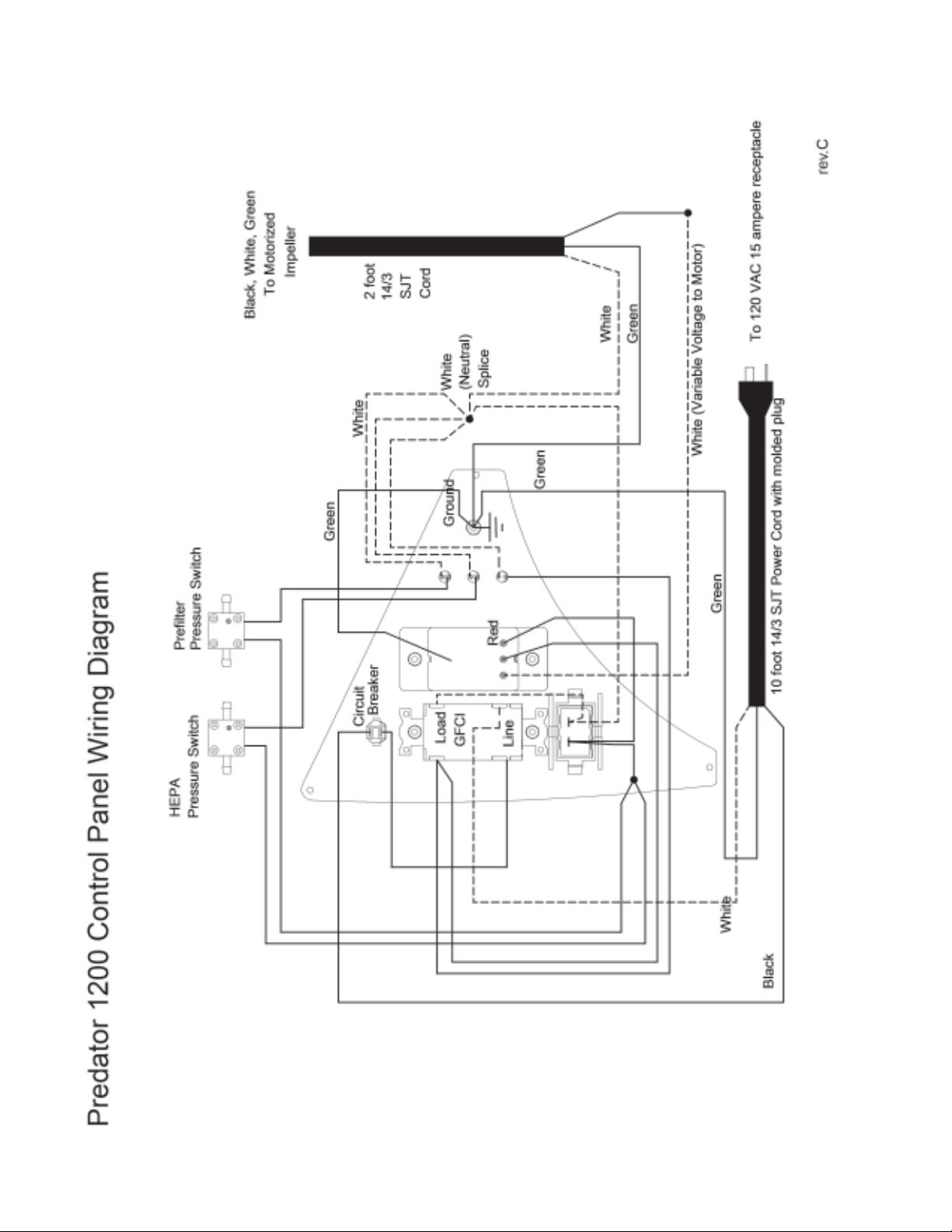

canfail.Refertothe Wiring Diagrams andWiringSchematicstodiagnosethe failure of any component.Diagnostics
should only be performed by a technician qualified to service electrical equipment.
The unit is plastic and should be cleaned with a damp cloth or a water-based cleaner/sanitizer. Do not use harsh
chemicals, solvents or detergents to clean the unit.
Warning: Keep electrical components dry as their exposure to liquids poses a safety hazard and can
damage components.

12
CERTIFICATION OF ROOM AIR FILTRATION UNITS
TheAbatement Technologies room air filtration units have been tested by Intertek Testing Services (ITS) and are
ETL and ETLC (Canada) listed for electrical safety.
ITS is accredited by the U.S. Occupational Safety and HealthAdministration (OSHA) as a Nationally Recognized
Testing Laboratory (NRTL).
LIMITED WARRANTY
Abatement Technologies, Inc (ATI) warrants that goods sold to the original user shall be free from defects in
material and workmanship for a period of 1 year, except such as are commercially acceptable. This warranty
does not include useful filter life. The plastic cabinet has a lifetime warranty period for the original user. ATI does
not warrant that the goods sold are merchantable or fit for any particular purpose. ATI makes no warranties
other than as stated in this paragraph. All other warranties, guaranties, or representations, express or
implied, by operation of law or otherwise, are expressly disclaimed. Goods found byATI to be defective or
not to conform to specification shall upon return be replaced or repaired byATI without any additional charges, or,
at ATI’s option,ATI may refund the purchase price of such goods. ATI will pay return transportation charges on
returned goods not exceeding the transportation charges applicable to shipment from original destination unless
the returned goods are free from defect and conform to specifications. Returned goods which are found byATI to
be free from defect and to conform to specifications shall be held for Purchaser’s shipping instructions, which
instructions Purchaser shall furnish promptly upon request. ATI’s liability shall in no event extend beyond
replacement, repair or refund of the purchase price andATI shall not be liable under any circumstances
for special, contingent or consequential damages, nor for loss, damages, or expenses directly or indirectly
arising from the use of the goods, including without limitation, warehousing, labor, handling and service
charges, die, equipment, or machine breakage, nor for costs, lost profits or loss of good will. The use of
substitute, non-ATI parts and/or filters, in anyATI product, voids all warranties and performance claims.
The remedies set forth herein are exclusive.
For warranty information and assistance contact Abatement Technologies’ Customer Service Department at
800-634-9091 (U.S.) or 905-871-4720 (Canada.)
Abatement Technologies’ PRED1200 high-efficiency air filtration units are originally equipped with true HEPA
(HighEfficiencyParticulateAir) filters designed to maximize the performance of the equipment, and to meet the
following industry standards:
Institute of Environment Sciences and Technology
IEST-RP-CC001.3 (TypeAHEPAand ULPAFilters)
IEST-RP-CC021.1 (Testing HEPAand ULPA Filter Media)
Underwriters Laboratories
UL900, Class II (Flammability Specifications)
100% Efficiency Tested
Abatement Technologies HEPAfilters are individually tested and certified to ensure that the completed filter
provides an overall minimum efficiency of 99.97% when challenged by a thermally generated test aerosol, 0.3-
microns in size, in accordance with IEST-RP-CC001.3.

13

14

15
