ABB RPC S-series Instructions for use

Application manual
Programming ABB RPC S-series Integrated
Power Source

Trace back information:
Workspace RW 6-0 version a3
Checked in 2014-11-11
Skribenta version 4.1.349

Application manual
Programming ABB RPC S-series Integrated Power Source
RobotWare 6.0
Document ID: 3HAC050970-001
Revision: -
© Copyright 2014 ABB. All rights reserved.

The information in this manual is subject to change without notice and should not
be construed as a commitment by ABB. ABB assumes no responsibility for any errors
that may appear in this manual.
Except as may be expressly stated anywhere in this manual, nothing herein shall be
construed as any kind of guarantee or warranty by ABB for losses, damages to
persons or property, fitness for a specific purpose or the like.
In no event shall ABB be liable for incidental or consequential damages arising from
use of this manual and products described herein.
This manual and parts thereof must not be reproduced or copied without ABB's
written permission.
Additional copies of this manual may be obtained from ABB.
The original language for this publication is English. Any other languages that are
supplied have been translated from English.
© Copyright 2014 ABB. All rights reserved.
ABB AB
Robotics Products
Se-721 68 Västerås
Sweden

Table of contents
7Overview of this manual ...................................................................................................................
91 Safety
91.1 Safety ............................................................................................................. 101.2 Safety for arc welding ........................................................................................
112 Integrated Power Source application
112.1 Overview ......................................................................................................... 122.2 Starting Integrated Power Source ......................................................................... 132.3 Active arc welding system ...................................................................................
153 Integrated Power Source application details
153.1 Job Manager .................................................................................................... 153.1.1 The Job Manager view ............................................................................. 173.1.2 Handling jobs ......................................................................................... 203.1.3 Editing job parameters ............................................................................. 223.2 Monitor ............................................................................................................ 223.2.1 The Monitor view ..................................................................................... 233.3 Advanced ........................................................................................................ 233.3.1 The Advanced view ................................................................................. 243.4 Backup and Restore .......................................................................................... 243.4.1 The backup and restore function ................................................................
27Index
3HAC050970-001 Revision: - 5
© Copyright 2014 ABB. All rights reserved.
Table of contents

This page is intentionally left blank

Overview of this manual
About this manual
This manual contains information on how to:
• Create and operate jobs.
• Edit parameters.
• Read power source information and execute advanced functions.
• Backup and restore of XML files.
Usage
This manual is intended to be used for:
• Programming
• Maintenance
Who should read this manual?
This manual is intended for:
• Robot programmers
• Maintenance personnel
Prerequisites
The reader must be familiar with:
• Industrial robots and the relevant terminology.
• System parameters and how to configure them.
References
Document IDReference
3HAC050988-001Application manual - Arc and Arc Sensor
3HAC050981-001Introduction and Safety - Arc Welding Products
3HAC050948-001Technical reference manual - System parameters
3HAC050917-001Technical reference manual - RAPID Instructions, Functions and Data
types
Revisions
DescriptionRevision
Released with RobotWare 6.0.-
3HAC050970-001 Revision: - 7
© Copyright 2014 ABB. All rights reserved.
Overview of this manual

This page is intentionally left blank

1 Safety
1.1 Safety
Safety of personnel
A robot is heavy and extremely powerful regardless of its speed. A pause or long
stop in movement can be followed by a fast hazardous movement. Even if a pattern
of movement is predicted, a change in operation can be triggered by an external
signal resulting in an unexpected movement.
Therefore, it is important that all safety regulations are followed when entering
safeguarded space.
Safety regulations
Before beginning work with the robot, make sure you are familiar with the safety
regulations described in the manual Operating manual - General safety information.
3HAC050970-001 Revision: - 9
© Copyright 2014 ABB. All rights reserved.
1 Safety
1.1 Safety

1.2 Safety for arc welding
Safety instructions for arc welding
Safety instructions can be found in the manual Introduction and Safety - Arc Welding
Products for all steps that involve risk of personal injury or material damage. In
addition, they are included in the instructions for each step.
General warnings, where the intention is to avoid problems, are only included in
the instructions.
WARNING
All personnel working with the welding robot system must have a full
understanding of the applicable safety instructions.
10 3HAC050970-001 Revision: -
© Copyright 2014 ABB. All rights reserved.
1 Safety
1.2 Safety for arc welding

2 Integrated Power Source application
2.1 Overview
Supported power sources
Integrated Power Source is an administrative interface for power sources in the
FlexPendant. The following power sources are compatible with the Integrated
Power Source:
• RPC Synergic 300
• RPC Synergic 400
• RPC Synergic 500
Firmware requirements
Integrated Power Source can only work with the power source of required firmware:
• Panel version : 5A8 or later
• Robot Interface version : 9A7 or later
3HAC050970-001 Revision: - 11
© Copyright 2014 ABB. All rights reserved.
2 Integrated Power Source application
2.1 Overview

2.2 Starting Integrated Power Source
Starting the Integrated Power Source program tool
InfoAction
Tap the ABB menu.1
en1000001318
Tap Integrated Power Source
S-Series.
2

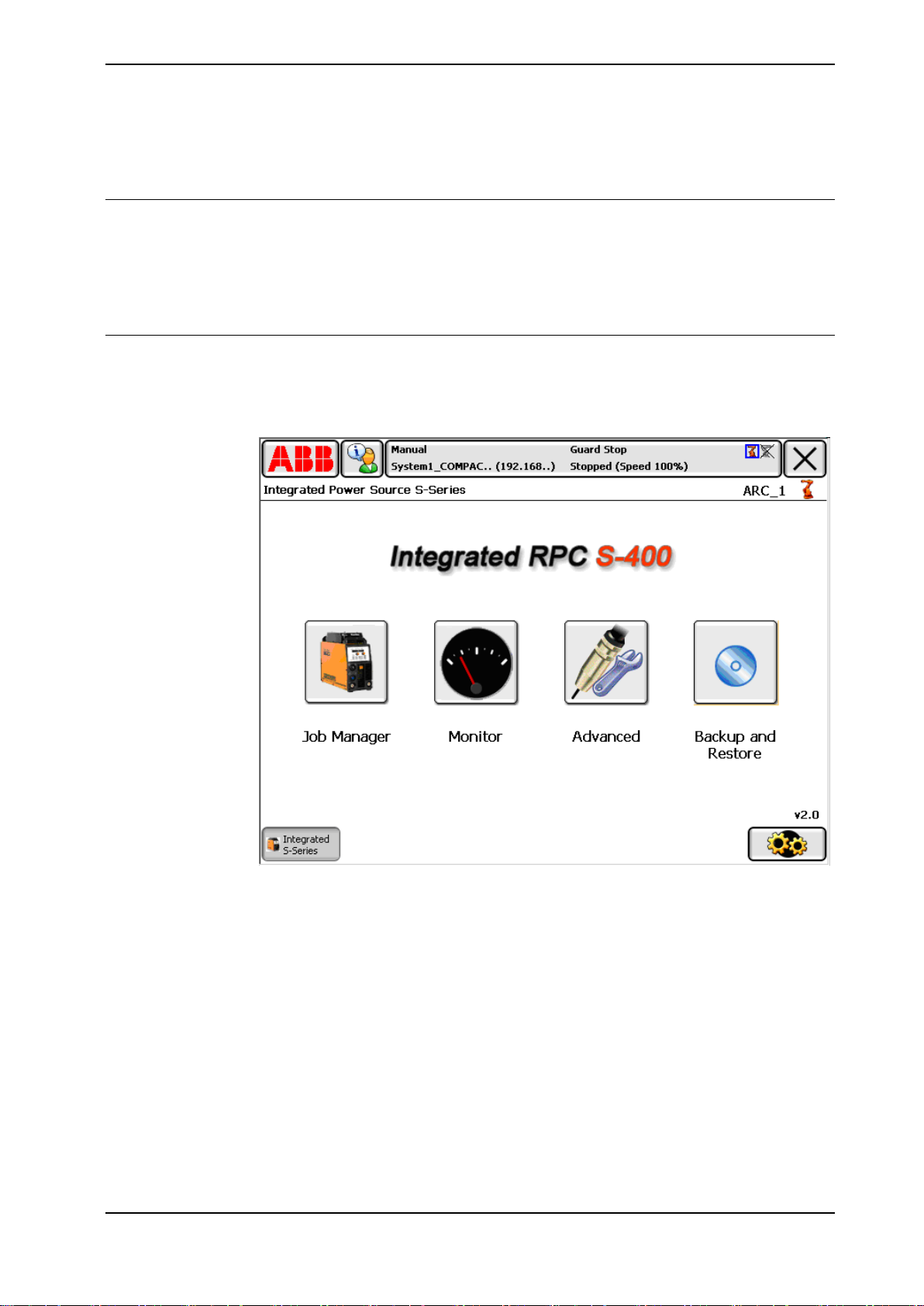

Integrated Power Source start window
Once the program is loaded, the start window of Integrated Power Source is
displayed (a desktop with icons). The power source functions can be accessed
from this window.
en1000001319
12 3HAC050970-001 Revision: -
© Copyright 2014 ABB. All rights reserved.
2 Integrated Power Source application
2.2 Starting Integrated Power Source

2.3 Active arc welding system
General
The selection of the AW system determines which equipment is active when manual
operations (Gas On, Manual Wire feed, Editing jobs) are executed.
For information on how to change active arc welding system, see Selecting arc
welding system on page 23.
Active power source information
The name of the active arc welding system is indicated in the upper right-hand
corner. The Integrated Power Source supports up to four robots and each robot
can have one RPC S-Series power source.
en1000001319
3HAC050970-001 Revision: - 13
© Copyright 2014 ABB. All rights reserved.
2 Integrated Power Source application
2.3 Active arc welding system

This page is intentionally left blank

3 Integrated Power Source application details
3.1 Job Manager
3.1.1 The Job Manager view
Opening the Job Manager view
Info/illustrationAction
en1000001319
Tap the Job Manager button in
the start window to open the
Job Manager view.
1
en1000001320
Select a job from the combo
box. All used jobs stored in the
power source are selectable in
the combo box.
2
The parameters of the selected job are listed.
Refreshing the job parameters
Note
All modifications of the job are lost when refreshing. To preserve the
modifications, save the job.
Continues on next page
3HAC050970-001 Revision: - 15
© Copyright 2014 ABB. All rights reserved.
3 Integrated Power Source application details
3.1.1 The Job Manager view

Info/illustrationAction
en1000001322
In the Job Manager view, tap
the Operate menu and select
Refresh.
1
Filter the job parameters
It is possible to filter the parameter list, showing only the common parameters or
showing only the switch parameters.
Info/illustrationAction
en1000001323
In the Job Manager view, tap
the View menu and select which
parameters to view.
1
16 3HAC050970-001 Revision: -
© Copyright 2014 ABB. All rights reserved.
3 Integrated Power Source application details
3.1.1 The Job Manager view
Continued

3.1.2 Handling jobs

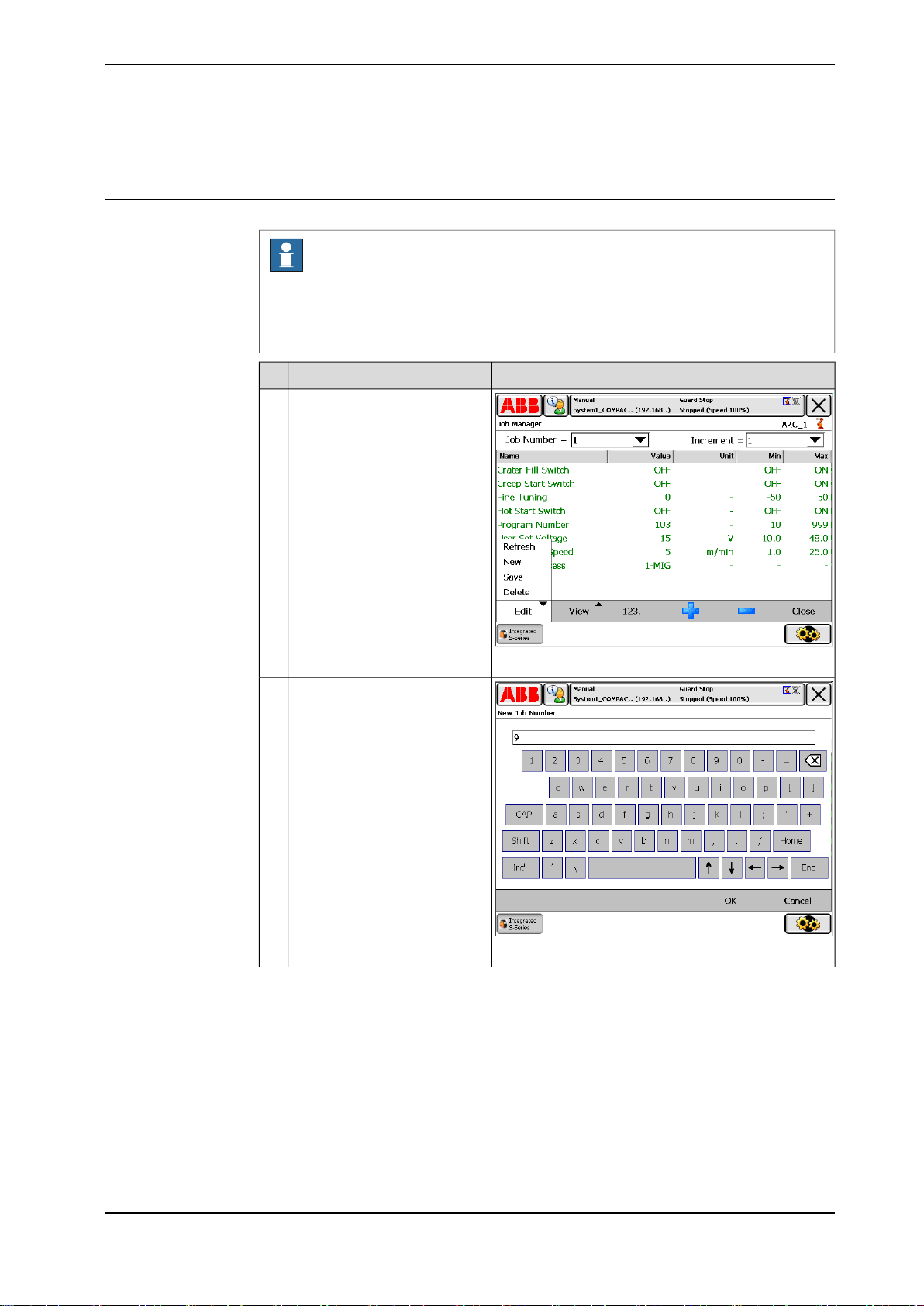

Creating a new job
Note
A new job number should be numeric from 0 to 89.
If the new job number is the same as one of the used job numbers, the job will
be replaced with default parameters.
Info/illustrationAction
en1000001322
In the Job Manager view, tap
the Operate menu and select
New.
1
en1000001324
Enter the new job number and
tap OK.
2
Continues on next page
3HAC050970-001 Revision: - 17
© Copyright 2014 ABB. All rights reserved.
3 Integrated Power Source application details
3.1.2 Handling jobs

Info/illustrationAction
en1000001325
To view the parameters for the
new job, select the new job in
the Job Number combo box.
3
Saving a job
When editing the parameters of a job, the job needs to be saved.
Info/illustrationAction
en1000001322
In the Job Manager view, tap
Operate and select Save to
save the job selected in the Job
Number combo box.
1
Deleting a job
Info/illustrationAction
In the Job Manager view, select
the job number in the Job
Number combo box.
1
Tap Operate and select Delete.2
Continues on next page
18 3HAC050970-001 Revision: -
© Copyright 2014 ABB. All rights reserved.
3 Integrated Power Source application details
3.1.2 Handling jobs
Continued

Info/illustrationAction
en1000001329

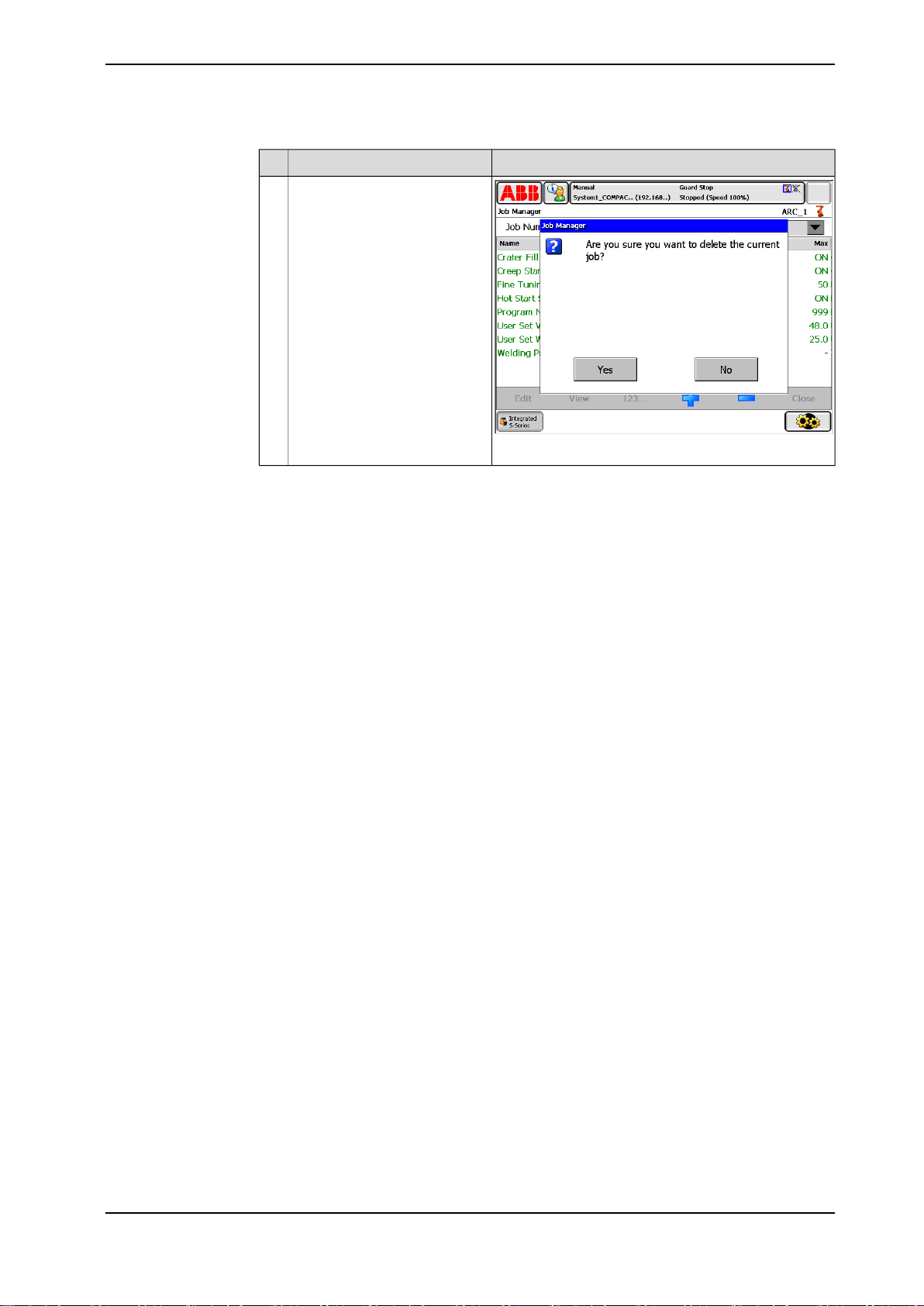

In the dialog box, tap Yes to
confirm the deleting of the job.
3
3HAC050970-001 Revision: - 19
© Copyright 2014 ABB. All rights reserved.
3 Integrated Power Source application details
3.1.2 Handling jobs
Continued

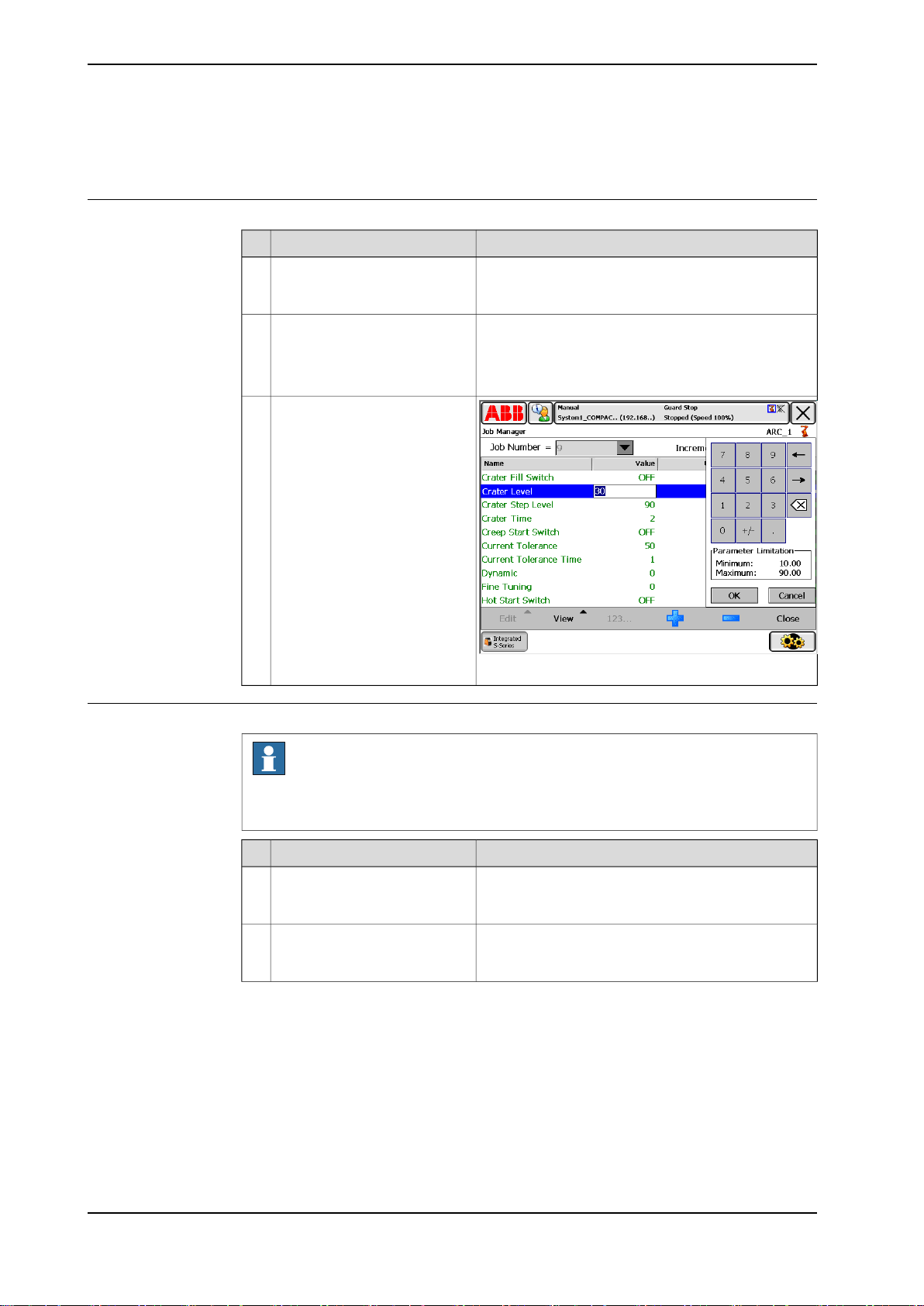

3.1.3 Editing job parameters
Editing parameter values
Info/illustrationAction
In the Job Manager view, select
the job from the Job Number
combo box.
1
Double-tap the parameter2
or
select it and then tap the button
123....
en1000001332
Enter the new value on the nu-
meric keypad and tap OK.
3
Editing job number
Note
All the modifications of the job are lost when changing the job number. To
preserve the modifications, save the job.
Info/illustrationAction
In the Job Manager view, select
the job from the Job Number
combo box.
1
Double-tap the parameter (or
select it and then tap the button
123...).
2
Continues on next page
20 3HAC050970-001 Revision: -
© Copyright 2014 ABB. All rights reserved.
3 Integrated Power Source application details
3.1.3 Editing job parameters
