ABB Busch-ComfortTouch 9 User manual

1473-1-8041 │20.11.2015
Operating Instructions
Busch-ComfortTouch®
Pos: 3 /Layout bis 2014-11-11/ Online-Dokumen tation (+KNX)/Ti telblätter/K NX/ComfortPanel 3. 0/Titelblat t - Bedienungsan leitung - C P 3.0 - ABB @ 36\ mod_1364392422833_15. docx @ 293647 @ @ 1
Busch-ComfortTouch® 9
8136/09-811-500 (CP/U 9.3.1)
8136/09-825-500 (CP/U 9.4.1)
Busch-ComfortTouch® 12.1
8136/12-811-500 (CP/U 12.3.1)
8136/12-825-500 (CP/U 12.4.1)
=== Ende der Liste für Textmar ke Cover ===

Operating Instructions
Busch-ComfortTouch®
Operating Instructions | 1473-1-8041 — 2 —
Pos: 5 /Layout bis 2014-11-11/ Online-Dokumen tation (+KNX)/I nhaltsverzeichnis (--> Für alle Dokumente <--)/Inhaltsverzeichnis @ 19\mod _1320649044386_15. docx @ 109653 @ @ 1
1Notes on operating instructions ................................................................................................................................ 4
1.1 General information................................................................................................................................. 4
1.2 Setup of the manual ................................................................................................................................ 4
1.3 Symbols in the manual ............................................................................................................................ 4
2Safety ....................................................................................................................................................................... 5
2.1 Intended use ........................................................................................................................................... 5
2.2 Improper use ........................................................................................................................................... 5
2.3 Liability and warranty .............................................................................................................................. 6
2.4 Cyber Security) ....................................................................................................................................... 6
3Environment ............................................................................................................................................................. 6
4Product overview ..................................................................................................................................................... 7
4.1 Product description ................................................................................................................................. 7
4.2 Function overview ................................................................................................................................... 8
4.3 Device setup ......................................................................................................................................... 10
5Operation ............................................................................................................................................................... 11
5.1 Fundamentals ....................................................................................................................................... 11

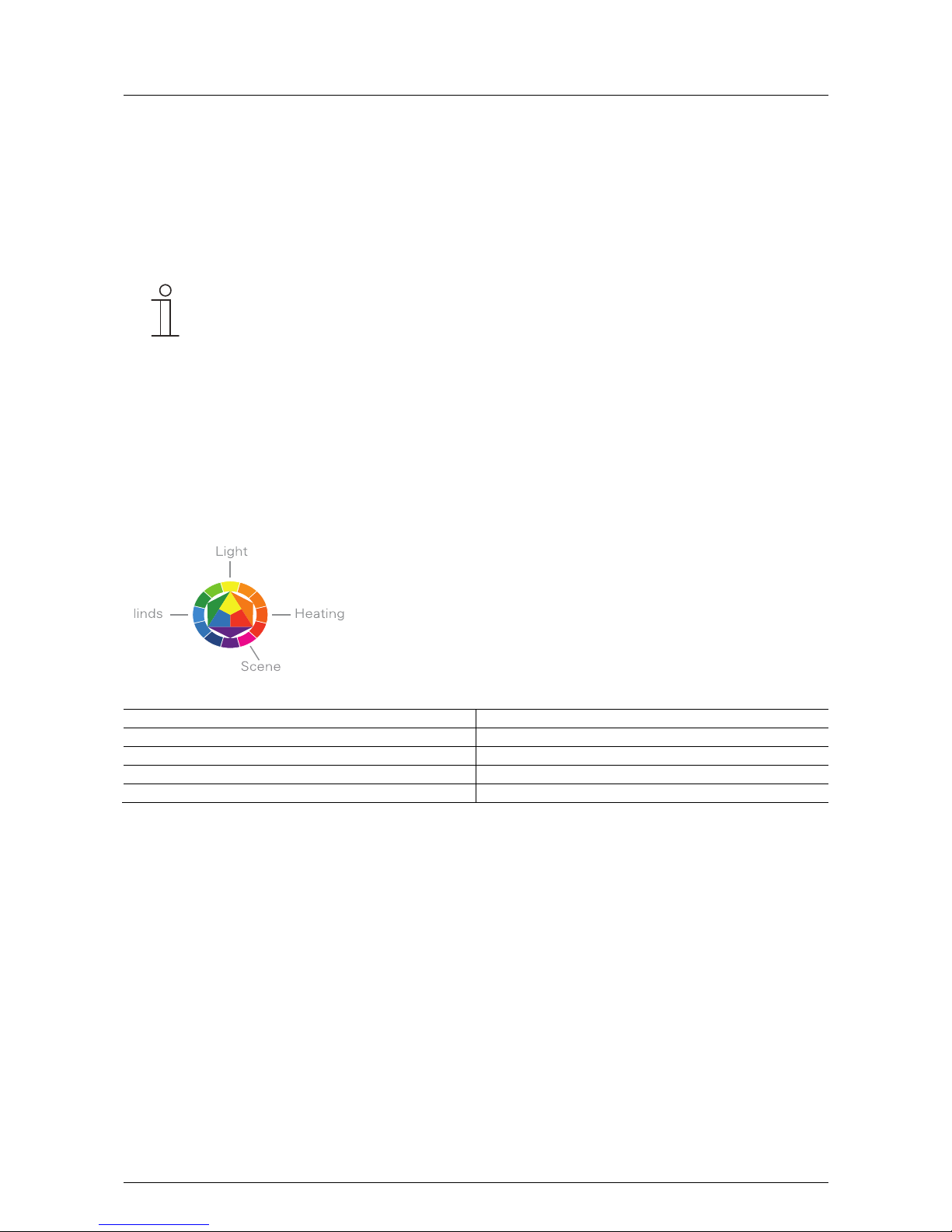

5.1.1 Colour concept ...................................................................................................................................... 11
5.1.2 Basic setup of the monitor ..................................................................................................................... 12

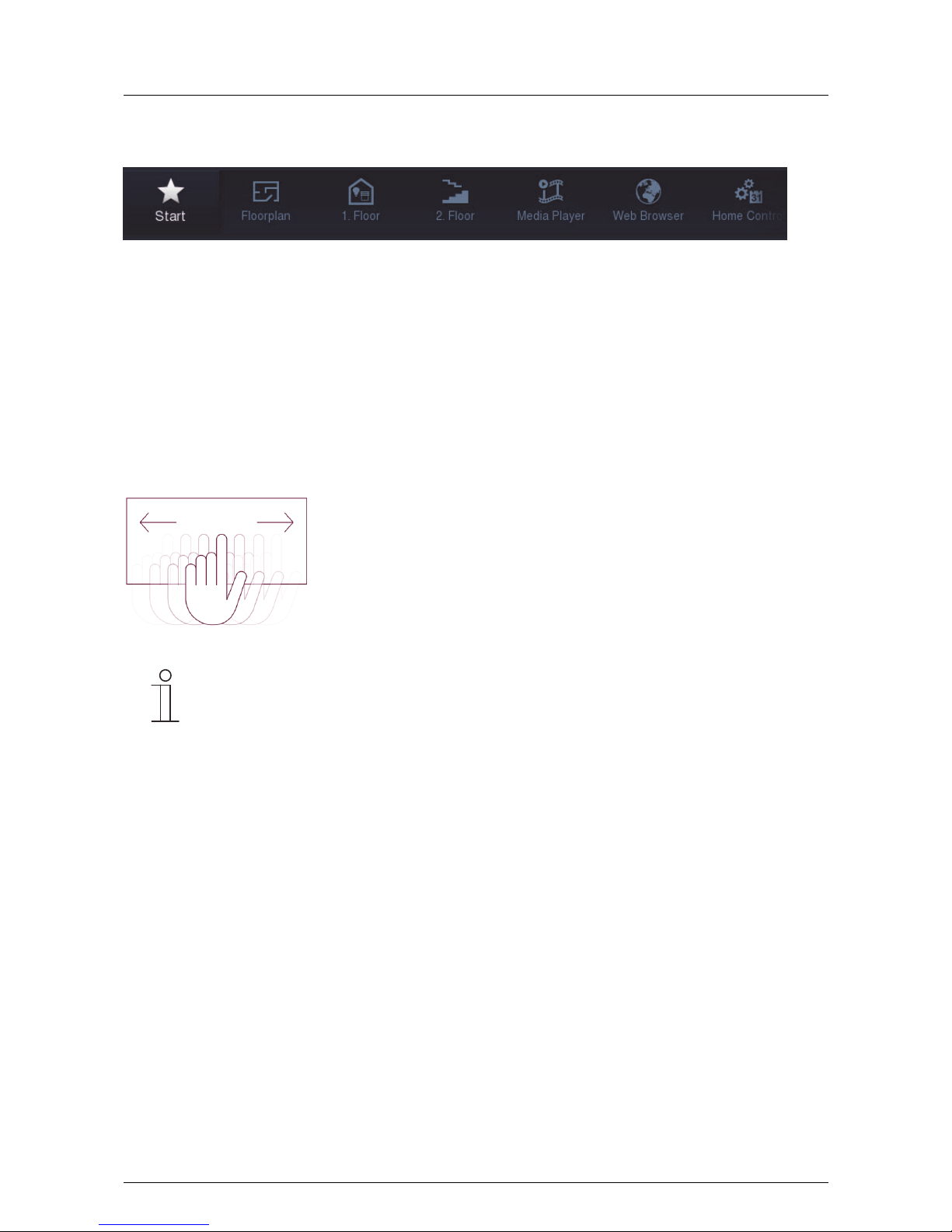

5.1.3 Navigation bar ....................................................................................................................................... 13

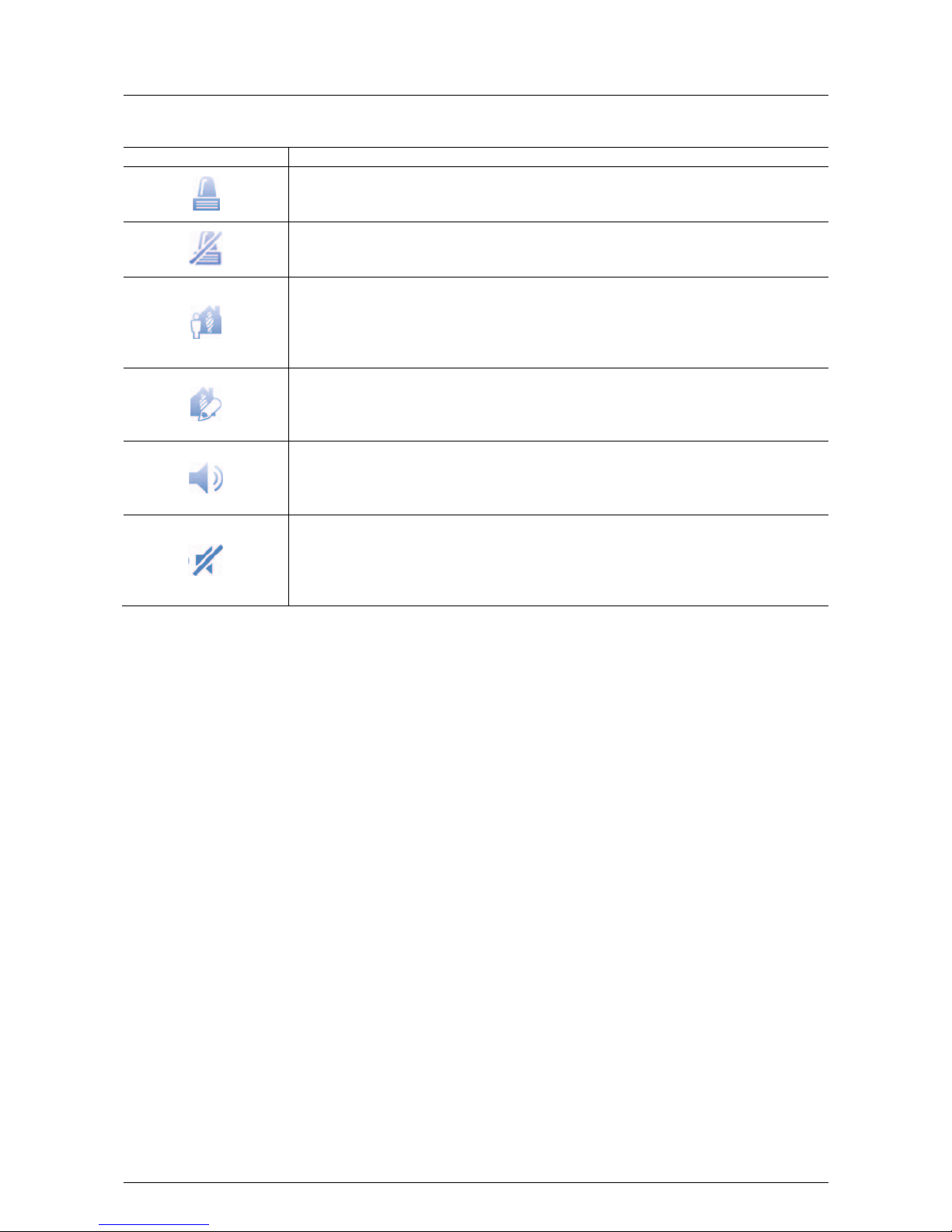

5.1.4 Status bar .............................................................................................................................................. 14
5.2 Operating processes on the touchdisplay ............................................................................................. 16
5.2.1 Buttons .................................................................................................................................................. 16

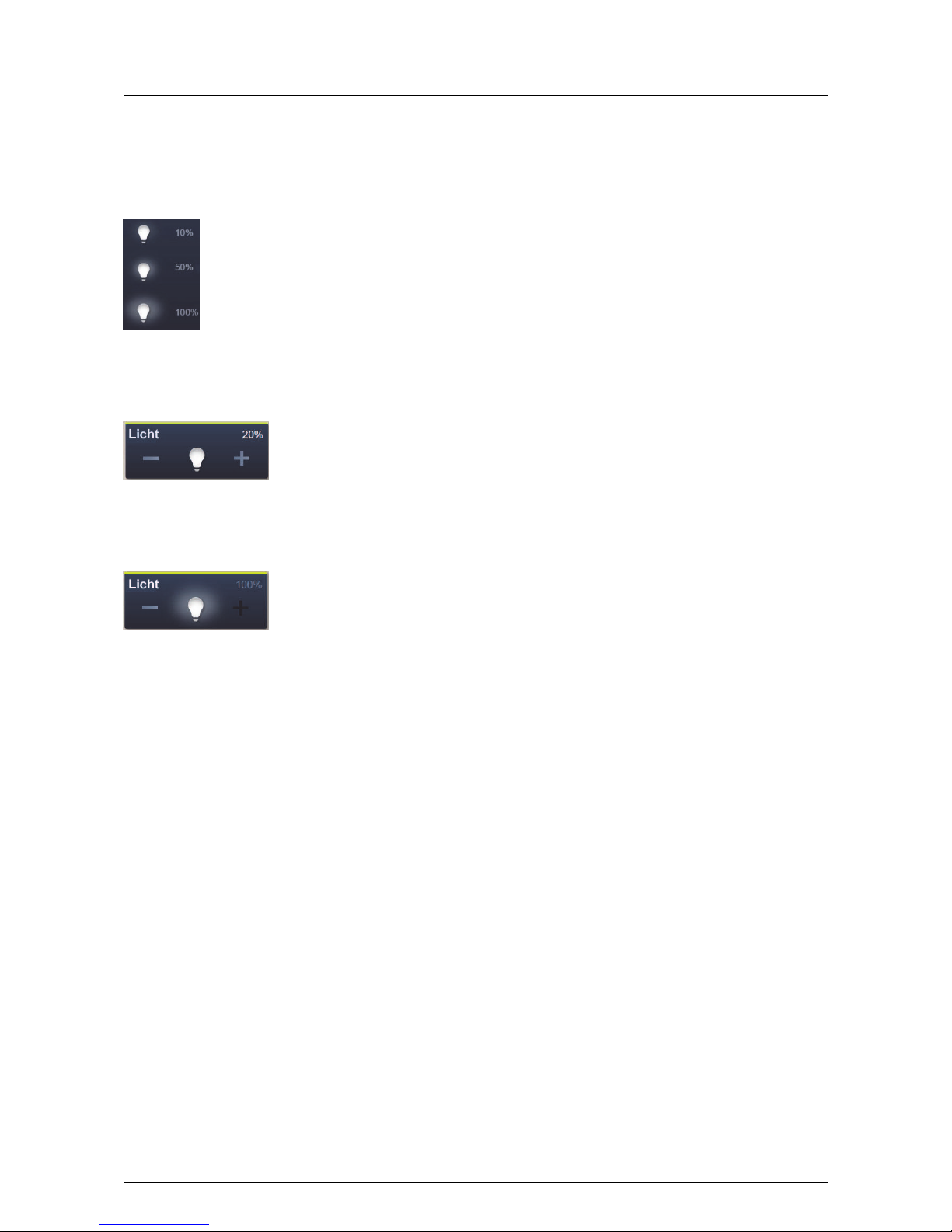

5.2.2 Control elements ................................................................................................................................... 17
5.2.3 Entries ................................................................................................................................................... 30
5.2.4 Swiping motions (scrolling) ................................................................................................................... 30
5.3 Explanation of functions ........................................................................................................................ 31
5.3.1 Page types ............................................................................................................................................ 31
5.3.2 Basic functions of switching, dimming, blinds, value, scenes, RTC and measured values ................... 32
5.3.3 Media Player ......................................................................................................................................... 33
5.3.4 Sonos loudspeaker ............................................................................................................................... 35
5.3.5 Image messaging .................................................................................................................................. 36
5.3.6 Voice messages .................................................................................................................................... 39
5.3.7 E-mail .................................................................................................................................................... 41
5.3.8 Feed Reader ......................................................................................................................................... 43
5.3.9 Weekly programs .................................................................................................................................. 45
5.4 Simpls weekly program ......................................................................................................................... 48
5.4.1 Calendar (twelve-month timer) .............................................................................................................. 50
5.4.2 Miele (only via Plug-In) .......................................................................................................................... 51
5.4.3 Camera surveillance ............................................................................................................................. 51
5.4.4 Alarm control unit .................................................................................................................................. 53
5.4.5 Presence simulation .............................................................................................................................. 55
5.4.6 Short-time timer .................................................................................................................................... 56
5.4.7 Alarm clock ........................................................................................................................................... 58
5.4.8 Data logger ........................................................................................................................................... 60
5.4.9 Web browser ......................................................................................................................................... 61
5.4.10 Telephone (VoIP) .................................................................................................................................. 62
5.4.11 Door Communication ............................................................................................................................ 66
5.4.12 Fault and alarm messages .................................................................................................................... 71
5.4.13 IR remote control .................................................................................................................................. 72
5.4.14 Scene editor .......................................................................................................................................... 73
5.4.15 Room temperature controller ................................................................................................................ 76
5.4.16 Date and time settings .......................................................................................................................... 82

Operating Instructions
Busch-ComfortTouch®
Operating Instructions | 1473-1-8041 — 3 —
5.4.17 Import and export of files ....................................................................................................................... 84
5.4.18 System settings ..................................................................................................................................... 85
5.4.19 Device information ................................................................................................................................ 85
6Cleaning ................................................................................................................................................................. 86
=== Ende der Liste für Textmarke TOC ===

Operating Instructions
Busch-ComfortTouch® Notes on operating
instructions
Operating Instructions | 1473-1-8041 — 4 —
Pos: 7.1 /Lay out bis 2014-11-11/ Online-Dokumen tation (+KNX)/ Überschriften (--> Für alle Dokumente <--)/1. Ebene/G - L/Hinweise zur Bedi enungsanleitung @ 34\mod_13618011 65580_15.docx @ 283615 @ 1 @ 1
1 Notes on operating instructions
Pos: 7.2.1 / Layout bis 2014-11- 11/Online-Doku mentation ( +KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/A - F/Allgemeine Hinweise @ 30\mod_134848102 4126_15.doc x @ 238505 @ 2 @ 1
1.1 General information
Pos: 7.2.2 / Layout bis 2014-11- 11/Online-Doku mentation ( +KNX)/Hinweise zu m Handbuch ( --> Für alle Doku mente --<)/ Allgemeine Hinwei se/Allgemeine Hinweise - B edienungsanleitung @ 35\mod_136 3589814870_15.doc x @ 287994 @ @ 1
Please read this manual through carefully and adhere to the information listed. This will ensure reliable operation
and long service life of your product.
If additional information is required or problems arise that are not dealt with in this manual, the necessary
information can be requested from the manufacturer or from your electrical installer.
Pos: 7.3.1 / Layout bis 2014-11- 11/Online-Doku mentation ( +KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/A - F/Aufbau der Bedienungsan leitung @ 35\ mod_1363591944772_1 5.docx @ 288042 @ 2 @ 1
1.2 Setup of the manual
Pos: 7.3.2 / Layout bis 2014-11- 11/Online-Doku mentation ( +KNX)/Hinweise zu m KNX Technisc hen Handbuch/KNX/K NX-Aktorik/C omfortPanel 3. 0/Bedienungsanlei tung/Aufbau des Handbuches/ Aufbau des Handb uches - Bedi enungsanleitung @ 35\mod_1363592 055121_15.d ocx @ 288058 @ @ 1
- This manual provides you with the detailed information about the operation. This will ensure reliable operation
and long service life of your product.
- The chapters "Information on the manual", "Safety", "Environmental information" and "Product overview"
contain general specifications and basic information as well as a description of functions.
– The operation of the device is explained in chapter "Operation".
- Chapter "Maintenance" contains information about cleaning.
Pos: 7.4.1 / Layout bis 2014-11- 11/Online-Doku mentation ( +KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/S - T/Symbole des Handbuche s @ 30\mod_134848 1258296_15.doc x @ 238518 @ 2 @ 1
1.3 Symbols in the manual
Pos: 7.4.2 / Layout bis 2014-11- 11/Online-Doku mentation ( +KNX)/Hinweise zu m KNX Technisc hen Handbuch ( --> Für alle Doku mente --<)/ Symbole des Handbuc hes (Reduzier t - KNX BA)/ Symbole des Handbuc hes (Reduzier t - KNX BA) @ 34\mod_1361779 236928_15.doc x @ 281524 @ @ 1
A
ttention - dama
g
e to propert
y
This symbol indicates a possibly harmful situation. Non-observance of the safety instructions can
lead to damage or destruction of the product.
Note ...
This symbol indicates information or references to additional useful topics. This is not a signal word
for a dangerous situation.
This symbol indicates information on the protection of the environment.
Pos: 8 /Layout bis 2014-11-11/ Modul-Struktur /Online-Dokumen tation/Steuermodule - Online-Dokumentation (--> Für alle Dokumente <--)/++++++++++++ Sei tenumbruch +++++ +++++++ @ 9\mod_12688 98668093_0.doc x @ 52149 @ @ 1

Operating Instructions
Busch-ComfortTouch® Safety
Operating Instructions | 1473-1-8041 — 5 —
Pos: 9.1 /Lay out bis 2014-11-11/ Online-Dokumen tation (+KNX)/ Überschriften (--> Für alle Dokumente <--)/1. Ebene/S - T/Sicherheit @ 18\mod_130 2612791790_15. docx @ 103357 @ 1 @ 1
2 Safety
Pos: 9.2 /Lay out bis 2014-11-11/ Online-Dokumen tation (+KNX)/ Sicherheitshinweise und Hinweise (--> Für alle Dokumente <--)/Hinweise - Sachschäden/Achtung - Schaden dur ch äußere Ei nwirkung (Renovier ung - Betrieb) @ 34\mod_1361 780986628_15.doc x @ 281540 @ @ 1
Caution
Risk of damaging the device due to external factors!
Moisture and contamination can damage the device.
That is why the device must be protected against humidity, dirt and damage during storage
(renovations) and operation.
Pos: 9.3.1 / Layout bis 2014-11- 11/Online-Doku mentation ( +KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/A - F/Bestimmungsgemäßer Gebr auch @ 25\mod_ 1340691838858_15. docx @ 220036 @ 2 @ 1
2.1 Intended use
Pos: 9.3.2 / Layout bis 2014-11- 11/Online-Doku mentation ( +KNX)/Sicherhei t/KNX/KNX-Aktori k/ComfortPanel 3.0/Bedienungs anleitung/Besti mmungsgemäßer Gebrauch/Bestimmungs gemäßer Gebrauc h - Bed. . .. @ 35\mod_1363592 354102_15.doc x @ 288075 @ @ 1
The Busch-ComfortTouch® is a central switching and monitoring location for the entire building automation with
control, monitoring and visualisation functions for numerous devices and media within a building. The device
makes available numerous functions. The range of functions is contained in chapter "Description of Functions".
Note
The device must only be used in dry indoor rooms.
Note
Making and saving video recordings can infringe on personal rights! Always observe applicable
legal and labeling requirements for placement and operation of video components!
Pos: 9.4.1 / Layout bis 2014-11- 11/Online-Doku mentation ( +KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/A - F/Bestimmungswidriger Gebrauch @ 30\ mod_1348482382253_1 5.docx @ 238583 @ 2 @ 1
2.2 Improper use
Pos: 9.4.2 / Layout bis 2014-11- 11/Online-Doku mentation ( +KNX)/Sicherhei t/KNX/KNX-Aktori k/ComfortPanel 3.0/Bedienungs anleitung/Besti mmungswidriger Gebrauch/Besti mmungswidriger Gebrauch - Bed. ,,, @ 35\ mod_1363592673470_15. docx @ 288108 @ @ 1
The device is dangerious if used improperly. Any non-intended use is deemed improper use. The manufacturer is
not liable for damages resulting from such improper use. The associated risk is borne by the user/operator.
The device must never be used outdoors or in bathroom areas. Do not push objects through the openings in the
device.
Maintenance and repair work must only be performed by authorized electricians.
Pos: 9.5 /Lay out bis 2014-11-11/ Online-Dokumen tation (+KNX)/ Steuermodule - Online-Dokumentation (--> Für alle Dokumente <--)/++++++++++++ Seitenumbruch + +++++++++++ @ 9\mod_1268898668093_0. docx @ 52149 @ @ 1

Operating Instructions
Busch-ComfortTouch® Environment
Operating Instructions | 1473-1-8041 — 6 —
Pos: 9.6.1 / Layout bis 2014-11- 11/Online-Doku mentation ( +KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/G - L/Haftung und Gewährleis tung @ 30\mod_13 48478525228_15. docx @ 238363 @ 2 @ 1
2.3 Liability and warranty
Pos: 9.6.2 / Layout bis 2014-11- 11/Online-Doku mentation ( +KNX)/Sicherheit (--> Für alle Dokumente <--)/Haftung und Gewährleistung/Haft ung und Gewährlei stung - B ed. ... @ 35\mod_1363592929989_15.docx @ 288140 @ @ 1
Improper use and non-observance of this manual excludes the liability of the manufacturer for the damages
caused. It voids the warranty of the manufacturer.
Pos: 9.7.1 / Layout bis 2014-11- 11/Online-Doku mentation ( +KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/A - F/Cyber Security ( Netzwerksicherheit) @ 40\mod_1418804 878733_15.doc x @ 310416 @ 2 @ 1
2.4 Cyber Security)
Pos: 9.7.2 / Layout bis 2014-11- 11/Online-Doku mentation ( +KNX)/Sicherheit (--> Für alle Dokumente <--)/Cyber Security (Netzwerksicherheit)/Cyber Sec urity (Netzwerksic herheit) @ 40\mod_1418804500166_ 15.docx @ 31040 1 @ @ 1
This product has been developed in connection with a network interface and for communicating information and
data via this network interface. It is exclusively your responsibility for establishing a safe connection between the
product and your network or (if necessary) a different network and to regularly check this. You must use suitable
measures (for example, the installation of firewalls, the use of authentication measures, data encryption, the
installation of anti-virus programs, etc.) to protect the product, the network, its system and interface against all
kinds of violations of security, unauthorized access, intrusions, information leaks and/or piracy of data and
information.ABB and associated companies are not liable for damages and/or losses in connection with the
violation of security, unauthorized access, malfunctions, intrusions, information leaks and/or piracy of data or
information.
Pos: 10.1 /Lay out bis 2014-11-1 1/Modul-Struk tur/Online-Doku mentation/Überschriften (--> Für alle Dokumente <--)/1. Ebene/U - Z/Umwelt @ 18\ mod_1302614158967_15. docx @ 103383 @ 1 @ 1
3 Environment
Pos: 10.2 /Lay out bis 2014-11-1 1/Online-Doku mentation (+KNX) /Sicherheitshi nweise und Hinweise (--> Für alle Dokumente <--)/Hinweise/Hinweis - Umwelt - Hinweis Elektrogeräte @ 18\ mod_1302763973434_ 15.docx @ 10350 0 @ @ 1
Consider the protection of the environment!
Used electric and electronic devices must not be disposed of with domestic waste.
– The device contains valuable raw materials which can be recycled. Therefore, dispose of the
device at the appropriate collecting depot.
Pos: 10.3 /Lay out bis 2014-11-1 1/Online-Doku mentation (+KNX) /Sicherheitshi nweise und Hinweise (--> Für alle Dokumente <--)/Hinweise/Hinweis - Umwelt - Entsorgung Elektrogeräte @ 20\mod_1325760695 972_15.docx @ 136583 @ @ 1
All packaging materials and devices bear the markings and test seals for proper disposal. Always dispose of the
packaging material and electric devices and their components via the authorized collecting depots and disposal
companies.
The products meet the legal requirements, in particular the laws governing electronic and electrical devices and
the REACH ordinance.
(EU Directive 2002/96/EC WEEE and 2002/95/EC RoHS)
(EU REACH ordinance and law for the implementation of the ordinance (EC) No.1907/2006)
Pos: 11 /Layout bis 2014-11-11/ Modul-Struktur /Online-Doku mentation/Steuer module - Online- Dokumentation (--> Für alle Dokumente <--)/++++++++++++ Seitenumbruch ++++++++++++ @ 9\mod_1268898668093_0.doc x @ 52149 @ @ 1

Operating Instructions
Busch-ComfortTouch® Product overview
Operating Instructions | 1473-1-8041 — 7 —
Pos: 13.1 /Lay out bis 2014-11-1 1/Online-Doku mentation (+KNX) /Überschrif ten (--> Für alle Dokumente < --)/1. Ebene/ P - R/Produktüber sicht @ 33\mod_13 61365511862_15. docx @ 278082 @ 1 @ 1
4 Product overview
Pos: 13.2.1 / Layout bis 2014-11- 11/Online-Dok umentation (+ KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/P - R/Produktbeschreibung @ 33\mod_136136665 6992_15.docx @ 278290 @ 2 @ 1
4.1 Product description
Pos: 13.2.2 / Layout bis 2014-11- 11/Online-Dok umentation (+ KNX)/Produktübersi cht/KNX/KNX-Ak torik/Comfort Panel 3.0/K NX Technisches Handbuch/Produk tbeschreibungProd uktbeschreibun g @ 40\mod_141 8304922983_15.doc x @ 308408 @ @ 1
Busch-ComfortTouch®are high-quality colour touch displays in 16:9 format with a resolution of 800 x 480 pixel
for the 23 cm (9“) display and 800 x 1280 pixel for the 31 cm (12.1“) display.
The Busch-ComfortTouch® consists of a basic system on a modern computer platform that is also designed for
future tasks and is capable of being upgraded. The unit is of fan-free cooling design and does not require a
mechanical hard disc to store the platform-independent operating system in the device.
The Busch-ComfortTouch® is a central switching and monitoring location for the entire building automation with
control, monitoring and visualisation functions for numerous devices and media within a building. It unites the
functions of a building control system and an information centre and Media Players on a single monitor. Using the
colour display, it is possible to switch on or dim lights in the entire building, control the blinds or regulate the room
temperature or scenes using a combination of the functions mentioned above - even via remote control. Please
note that additional components of building automation are required for this. The operation and control is carried
out via the text-labelled touch surfaces in a clear menu structure and/or via floor plans and room views. It is a
labelling code that is understood internationally and does not rely on language.They are supplemented by easily
understood function icons. No lettering is needed. You can design the touch surfaces to your individual
preferences dependent of the parameter settings.
The display has LED backlighting. The integrated speaker can, for example, provide acoustic feedback to
operations, be used as an alarm clock or to signal alarms and fault messages and can also be used for playing
back stored audio files.
The Busch-ComfortTouch®has a USB connection (USB 2.0) and a slot for a 64 GB multimedia / SD card (SD,
SDHC and Micro SD (SDHC with the use of a suitable adapter)).
Pos: 13.2.3 / Layout bis 2014-11- 11/Online-Dok umentation (+ KNX)/Produktübersi cht/KNX/KNX-Ak torik/Comfort Panel 3.0/K NX Technisches Handbuch/Produktb eschreibungProd uktbeschreibung - ABB - LAN/WLAN/K NX @ 40\mod_141830 5527658_15.doc x @ 308440 @ @ 1
The design of the Busch-ComfortTouch® allows the connection to networks via LAN or WLAN. Access to KNX is
also possible by means of the optional connection of twisted pair power supply modules or via the appropriate
IP/KNX router. And the device can additionally serve as gateway between IP networks and KNX networks.
Pos: 13.3 /Lay out bis 2014-11-1 1/Online-Doku mentation (+KNX) /Steuermodule - Online-Dokumentation (--> Für alle Dokumente <--)/++++++++++++ Seitenumbruch ++++++++++++ @ 9\mod_1268898668093_0. docx @ 52149 @ @ 1

Operating Instructions
Busch-ComfortTouch® Product overview
Operating Instructions | 1473-1-8041 — 8 —
Pos: 13.4.1 / Layout bis 2014-11- 11/Online-Dok umentation (+ KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/A - F/Funktionsübersicht @ 33\mod_1361366367915 _15.docx @ 2782 58 @ 2 @ 1
4.2 Function overview
Pos: 13.4.2 / Layout bis 2014-11- 11/Online-Dok umentation (+ KNX)/Produktübersi cht/KNX/KNX-Ak torik/Comfort Panel 3.0/Bedien ungsanleitung/ Funktionsübersi chtFunktion sübersicht - Bed. ... @ 44\mod_1448004101302_15.docx @ 404412 @ @ 1
The following table provides an overview of the functions of the Busch-ComfortTouch®:
NOTE
The overview shows all the functions the Busch-ComfortTouch® offers. However, many functions
are available only when the project planning software of the Busch-ComfortTouch® has been
appropriately activated. Please contact your electrical installer who will set up the Busch-
ComfortTouch® for you individually and according to your wishes.
Function group Function Description
Entertainment / Multimedia Media Player
(includes Web Radio and Web TV)
Replay of:
– Audio and video data
– Internet Radio Streams
– Internet TV Streams
Sonos loudspeaker Replay of audio data
News Image messaging Recording and displaying of notes
Voice message Recording and playback of voice messages
E-mail Reading of e-mails
Feed Reader Reading of feeds (news feeds)
Home automation KNX *) Control and monitoring of a KNX bus
system
Scene editor Editing and calling up of scenes and
sequences
Weekly programs Editing of weekly programs
Calendar (twelve-month timer) Setting specific repeating anniversaries
Miele (only via Plug-In) Visualisation for activating Miele household
appliances
Logic editor *) Setting of separate logic functions, for
implementing complex switching sequences
Safety Camera surveillance Display of IP camera images
Alarm control unit Message also of opened doors / windows or
glass breakage (with the use of the
appropriate sensors). And with it the
protection against uninvited guests
Presence simulation Recording and replay of switching
sequences which can be automatically
simulated during absence
Extras Short-time timer Integrating an egg timer
Alarm clock Integration of an alarm clock
Data logger Recording of data, e.g. energy consumption
Web browser Call-up of predefined Internet sites
Telephony Telephone (VoIP) Internet telephony
Door communication For the communication with image and
sound between the Busch-ComfortTouch®
and a ABB-Welcome station

Operating Instructions
Busch-ComfortTouch® Product overview
Operating Instructions | 1473-1-8041 — 9 —
Function group Function Description
Settings IR remote control Editing and calling up scenes, sequences
and operating functions via an infrared
remote control
Fault and alarm messages Display and acknowledgement of faults and
alarms
Access control *) Blockage of individual pages and functions
with password protection
File browser *) Administering external storage media and
network shares
Mobile access *) Remotely controlling the Busch-
ComfortTouch® (via MobileApp)
Camera module Use in various applications (e.g. door
communication)
Control elements Basic functions of switching, dimming,
blinds, value, scenes, RTC and measured
values
All conventional functions in building
automation can be controlled and have their
status displayed
*) No directly visible application with an operating page. The setting is made by the electrical installer via the
project planning software. The activation is fundamental in part for other applications.
Pos: 13.5 /Lay out bis 2014-11-1 1/Online-Doku mentation (+KNX) /Steuermodule - Online-Dokumentation (--> Für alle Dokumente <--)/++++++++++++ Seitenumbruch ++++++++++++ @ 9\mod_1268898668093_0. docx @ 52149 @ @ 1

Operating Instructions
Busch-ComfortTouch® Product overview
Operating Instructions | 1473-1-8041 — 10 —
Pos: 13.6.1 / Layout bis 2014-11- 11/Online-Dok umentation (+ KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/A - F/Aufbau Gerät @ 33\mod_13613 66224154_15.d ocx @ 278226 @ 2 @ 1
4.3 Device setup
Pos: 13.6.2 / Layout bis 2014-11- 11/Online-Dok umentation (+ KNX)/Produktübersi cht/KNX/KNX-Ak torik/Comfort Panel 3.0/Bedien ungsanleitung/ Aufbau Gerät - Bed. ...Aufbau Gerät - Bed. ... @ 40\mod_1418725076081_15.doc x @ 309530 @ @ 1
1
2
3
5
6
7
4
8
!
9
Fig. 1: Overview of devices
1 Design bar | 2 Colour touchdisplay | 3 Camera | 4 Camera adjustment | 5+9 IR sensors 6 Slot for SD card | 7 Reset
button | 8 Slot for USB stick
Caution
Risk of damaging the device due to touching!
The USB connection contains many sensitive contacts.
- They must not be touched directly!
Note
Some USB sticks which do not correspond to the general specification may not be recognised.
Pos: 14 /Layout bis 2014-11-11/ Modul-Struktur /Online-Doku mentation/Steuer module - Online- Dokumentation (--> Für alle Dokumente <--)/++++++++++++ Seitenumbruch ++++++++++++ @ 9\mod_1268898668093_0.doc x @ 52149 @ @ 1

Operating Instructions
Busch-ComfortTouch® Operation
Operating Instructions | 1473-1-8041 — 11 —
Pos: 15.1 /Lay out bis 2014-11-1 1/Modul-Struk tur/Online-Doku mentation/Überschriften (--> Für alle Dokumente <--)/1. Ebene/A - F/Bedienung @ 11\ mod_1279185541649 _15.docx @ 8304 3 @ 1 @ 1
5 Operation
Pos: 15.2.1 / Layout bis 2014-11- 11/Online-Dok umentation (+ KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/G - L/Grundlagen @ 34\mod_1361 783815778_15.doc x @ 281737 @ 2 @ 1
5.1 Fundamentals
Pos: 15.2.2 / Layout bis 2014-11- 11/Online-Dok umentation (+ KNX)/Bedienung/K NX/KNX-Aktori k/ComfortPanel 3. 0/Bedienungsanl eitung/Grundla genGrundlagen @ 34\mod_13617836 92984_15.docx @ 281700 @ @ 1
The following pages will guide you through the advantages of the Busch-ComfortTouch®. Intuitive operability
easily familiarizes you with the versatility of the technical options. The operation distinguishes itself through its
clarity and user-friendliness.
Note
However, many functions are are available only when the project planning software of the Busch-
ComfortTouch® has been appropriately activated. Please contact your electrical installer who will
set up the Busch-ComfortTouch® for you individually and according to your wishes. In the project
planning software the scope of available functions is specified. Also consult your specialist
electrical dealer.
Pos: 15.2.3.1 /Layout bis 2014- 11-11/Online-Dok umentation ( +KNX)/Überschriften (--> Für alle Dokumente <--)/3. Ebene/A - F/Farbkonze pt @ 34\mod_13617 84416110_15.doc x @ 281801 @ 3 @ 1
5.1.1 Colour concept
Pos: 15.2.3.2 /Layout bis 2014- 11-11/Online-Dok umentation ( +KNX)/Produktüber sicht/KNX/Co mfortPanel 3. 0/KNX Technische s Handbuch/ Farbkonzept/Farbkon zept @ 33\mod_13 61365475354_15. docx @ 278065 @ @ 1
The Busch-ComfortTouch® is equipped with an intelligent, intuitive operating concept. The basis is a consistent
colour orientation for a better overview and faster recognition of the control element functions. The functions
"Light", "Blinds", "Heating" and "Scenes" are illuminated in colour code (colour code on the operating surfaces) as
follows:
B
Fig. 2: Colour concept
Colour Function assignment
Yellow (like the sun) Light control
Blue (like the sky) Blind functions
Orange (like warmth) Climate functions
Magenta (stands for extravagance) Scenes
Pos: 15.2.4 / Layout bis 2014-11- 11/Online-Dok umentation (+ KNX)/Steuermodule - Online-Dokumentation (--> Für alle Dokumente <--)/++++++++++++ Seitenumbruc h +++++++++ +++ @ 9\mod_126889866809 3_0.docx @ 52149 @ @ 1

Operating Instructions
Busch-ComfortTouch® Operation
Operating Instructions | 1473-1-8041 — 12 —
Pos: 15.2.5.1 /Layout bis 2014- 11-11/Online-Dok umentation ( +KNX)/Überschriften (--> Für alle Dokumente <--)/3. Ebene/A - F/Basisauf bau des Bildsc hirms @ 34\mod_136 1789765109_15. docx @ 281995 @ 3 @ 1
5.1.2 Basic setup of the monitor
Pos: 15.2.5.2 /Layout bis 2014- 11-11/Online-Dok umentation ( +KNX)/Bedienung/ KNX/KNX-Aktor ik/ComfortPane l 3.0/Bedienungsa nleitung/Grund lagen/Basisauf bau des Bildsc hirms/Basisa ufbau des Bildsc hirms @ 34\ mod_1361789476750_ 15.docx @ 281931 @ @ 1
The functions available in the Busch-ComfortTouch® depend on their individual installation. This means that also
the display image of the operating page and the naming of the functions vary from Busch-ComfortTouch® to
Busch-ComfortTouch®. However, the basic structure always remains the same.
1 Title | 2 Operating surface | 3 Navigation bar | 4 Status bar
Element Description
Title (pages, etc.) [1] Specification of page or directory
Control button (pages) [2] This is set up individually for you.
Navigation bar [3] Contains a menu that is tailored to your apartment.
Status bar [4] Displays information about your Busch-ComfortTouch® with the aid of icons.
Pos: 15.2.6 / Layout bis 2014-11- 11/Online-Dok umentation (+ KNX)/Steuermodule - Online-Dokumentation (--> Für alle Dokumente <--)/++++++++++++ Seitenumbruc h +++++++++ +++ @ 9\mod_126889866809 3_0.docx @ 52149 @ @ 1

Operating Instructions
Busch-ComfortTouch® Operation
Operating Instructions | 1473-1-8041 — 13 —
Pos: 15.2.7.1 /Layout bis 2014- 11-11/Online-Dok umentation ( +KNX)/Überschriften (--> Für alle Dokumente <--)/3. Ebene/M - O/Navigation sleiste @ 34\mod_ 1361789901569_1 5.docx @ 282011 @ 3 @ 1
5.1.3 Navigation bar
Pos: 15.2.7.2 /Layout bis 2014- 11-11/Online-Dok umentation ( +KNX)/Bedienung/ KNX/KNX-Aktor ik/ComfortPane l 3.0/Bedienungsa nleitung/Grund lagen/Navigation sleiste/Na vigationsleiste @ 34\mod_1361789 580305_15.doc x @ 281978 @ @ 1
Fig. 3: Navigation bar (example)
The navigation bar is used exclusively for navigation in a Busch-ComfortTouch®. An exception are links to the
start page, which also provides quick access to certain pages in the navigation bar.
Each operating or application page is represented by an access in the navigation bar. This means that each
access on the navigation bar stands for exactly one page. Or conversely, each access to the navigation bar
stands for exactly one page. Pressing an access takes you directly to the respective page. Also the functions are
activated via the pages. The various accesses can also be bundled topically. Then, after a press, an option opens
for calling up operating pages or application pages.
With a swiping motion of the fingers the bar can be moved back and forth. This shows all elements one after the
other. Access to the start page is provided on the left edge of the navigation bar.
Fig. 4: Moving the navigation bar with swiping motion
Note
The icons for the buttons (accesses) can be selected individually.
Pos: 15.2.8 / Layout bis 2014-11- 11/Online-Dok umentation (+ KNX)/Steuermodule - Online-Dokumentation (--> Für alle Dokumente <--)/++++++++++++ Seitenumbruc h +++++++++ +++ @ 9\mod_126889866809 3_0.docx @ 52149 @ @ 1

Operating Instructions
Busch-ComfortTouch
®
Operation
Operating Instructions | 1473-1-8041 — 14 —
Pos: 15.2.9.1 /Layout bis 2014- 11-11/Online-Dok umentation ( +KNX)/Überschriften (--> Für alle Dokumente <--)/3. Ebene/S - T/Statusleis te @ 34\mod_13617 90168538_15.d ocx @ 282027 @ 3 @ 1
5.1.4 Status bar
Pos: 15.2.9.2 /Layout bis 2014- 11-11/Online-Dok umentation ( +KNX)/Bedienung/ KNX/KNX-Aktor ik/ComfortPane l 3.0/Bedienungsa nleitung/Grund lagen/Statuslei steStatusleis te @ 40\mod_14187 25921684_15.d ocx @ 309564 @ @ 1
Fig. 5: Status bar (Example)
The status bar displays information about your Busch-ComfortTouch
®
with the aid of icons. Applications and
functions can also be called up and activated directly by pressing the icons.
The following list shows a selection of important icons that can be displayed in the status bar (additional symbols
are available).
Icon Description
Displays the current date
An option opens when pressing the date. Here the "Date settings" can be selected.
Additional date-relevant functions are available for selection depending on the activation. The functions
are described in greater detail in section "Explanation of functions".
Displays the current time
An option opens when pressing the time. Here the "Time settings" can be selected.
Additional time-relevant functions ("Alarm clock" and "Timer") are available for selection depending on
the activation. The functions are described in greater detail in section "Explanation of functions".
Depending on the setting, it displays the current room temperature or outside temperature, as
well as the current operating mode of the local room temperature controller
Displays the current room temperature or the outside temperature, as well as the current operating
mode of the local room temperature controller via different icons. With a press on the temperature the
local room temperature controller opens. This function is described in greater detail in section
"Explanation of functions" -> "Room temperature controller".
1
2
When you touch the pin [1], you can hold the screen view since your Busch-ComfortTouch
®
switches
to the start screen after the expiry of a time interval. After the activation the icon looks like icon [2].
Indicates that the blocked application (access control) has been enabled
The message centre is displayed after pressing this icon
All currently received messages are displayed here. Also "Image message" and "Voice message" are
available for selection, calls (not accepted), e-mails or system messages. The icon appears brighter as
soon as a message is received. After the message is opened in the "Message centre" it is deleted from
the overview.
Note
When a message is received, a notice (with icons) appears via the "Message centre" icon indicating
the type of message received.

Operating Instructions
Busch-ComfortTouch
®
Operation
Operating Instructions | 1473-1-8041 — 15 —
Icon Description
Indicates that the alarm control unit has been activated
When pressing the icon, a selection with "Disarm" and "Open" is displayed. This function is described
in greater detail in section "Explanation of functions" -> "Alarm control unit".
Indicates that the alarm control unit has been disarmed
When pressing the icon, a selection with "Arm" and "Open" is displayed. This function is described in
greater detail in section "Explanation of functions" -> "Alarm control unit".
Indicates that presence simulation is being played
Presence simulation is activated during prolonged absences such as holidays. Your Busch-
ComfortTouch
®
switches the lights and blinds on and off during your absence, to simulate someone's
presence in the house. This function is described in greater detail in section "Explanation of functions" -
> "Presence simulation".
Indicates that presence simulation is being recorded
During recording by your Busch-ComfortTouch
®
, presence simulation runs continuously to constantly
have up-to-date information available. This is how a typical daily routine is recorded and stored. This
function is described in greater detail in section "Explanation of functions" -> "Presence simulation".
Indicates that the the volume is active (not mute)
With a long press of this icon the volume controller is displayed. By shifting the controller you set the
volume foe all applications of the Busch-ComfortTouch
®
. A brief press of this icon switches the volume
to mute and the following icon is displayed.
Indicates that the the volume is mute (not active)
A brief press of this icon switches the volume to active and the previous icon is displayed.
Note
If you set the volume on "Mute", the alarm clock does not generate an alarm tone.
Pos: 15.3 /Lay out bis 2014-11-1 1/Online-Doku mentation (+KNX) /Steuermodule - Online-Dokumentation (--> Für alle Dokumente <--)/++++++++++++ Seitenumbruch ++++++++++++ @ 9\mod_1268898668093_0. docx @ 52149 @ @ 1

Operating Instructions
Busch-ComfortTouch® Operation
Operating Instructions | 1473-1-8041 — 16 —
Pos: 15.4.1 / Layout bis 2014-11- 11/Online-Dok umentation (+ KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/A - F/Bedienungsvorgänge am Touchdisplay @ 34\mod_1361791386 659_15.docx @ 282063 @ 2 @ 1
5.2 Operating processes on the touchdisplay
Pos: 15.4.2.1 /Layout bis 2014- 11-11/Online-Dok umentation ( +KNX)/Überschriften (--> Für alle Dokumente <--)/3. Ebene/S - T/Schaltfläc hen @ 34\mod _1361791774658_15. docx @ 282202 @ 3 @ 1
5.2.1 Buttons
Pos: 15.4.2.2 /Layout bis 2014- 11-11/Online-Dok umentation ( +KNX)/Bedienung/ KNX/KNX-Aktor ik/ComfortPane l 3.0/Bedienungsa nleitung/Bedi enungsvorgänge am Touchdisplay /Schaltflächen/ Schaltfläche n @ 34\mod_1361791 449195_15.doc x @ 282078 @ @ 1
Operating surfaces are generally termed buttons, which are frequently used in user operating surfaces. The user
can trigger a function by touching the button.
In the Busch-ComfortTouch® these are, among others, icons (e.g. in the navigation and status bars), data
displays and lettering (e.g. date and time display in the status bar), list entries (e.g. options lists / menus) and
graphically highlighted elements.
Examples of buttons in the Busch-ComfortTouch®:
Pos: 15.4.3 / Layout bis 2014-11- 11/Online-Dok umentation (+ KNX)/Steuermodule - Online-Dokumentation (--> Für alle Dokumente <--)/++++++++++++ Seitenumbruc h +++++++++ +++ @ 9\mod_126889866809 3_0.docx @ 52149 @ @ 1

Operating Instructions
Busch-ComfortTouch® Operation
Operating Instructions | 1473-1-8041 — 17 —
Pos: 15.4.4.1 /Layout bis 2014- 11-11/Online-Dok umentation ( +KNX)/Überschriften (--> Für alle Dokumente <--)/3. Ebene/A - F/Bedienele mente @ 20\mod_1323 260220559_15.doc x @ 111647 @ 3 @ 1
5.2.2 Control elements
Pos: 15.4.4.2 /Layout bis 2014- 11-11/Online-Dok umentation ( +KNX)/Bedienung/ KNX/KNX-Aktor ik/ComfortPane l 3.0/Bedienungsa nleitung/Bedi enungsvorgänge am Touchdisplay /BedienelementeB edienelemente @ 44\mod_144800 4363441_15.doc x @ 404430 @ @ 1
Control elements in the Busch-ComfortTouch® are used to fulfil the basic functions of "Switching", "Dimming",
Blinds", "Value", "Scenes", RTC and "Measured values". The elements can include switches, buttons and sliders.
This makes possible the button mode, (executing the function with one press), the tipping mode (executing the
function by pressing and holding), as well as controller mode (moving a slider).
The following selection shows the most commonly used control elements available in the Busch-ComfortTouch®.
The type and appearance of the control elements may vary due to individual adaptation.
NOTE
The type and appearance of some control elements has been fixed and cannot be altered (e.g.
volume control). However, for some control elements (e.g. light switches) individual formats (also
icons) can be selected.
This must be appropriately activated in the project planning software of the Busch-ComfortTouch®.
Please contact your electrical installer who will set up the Busch-ComfortTouch® for you
individually and according to your wishes.
Basic structures of control elements
Fig. 6: Different statuses of the same control element
1 Status display of "Device" | 2 Designation of "Control element" | 3 Function button | 4 Status display of "Device" |
5 Function button
Control element Description
Status display of device [1] The device is switched off (lettering is dark).
Designation of control element [2] Light control: Yellow
Blind functions: Blue
Climate functions: Orange
Scenes: Magenta
Other functions: Grey
Function button (push-button) [3] The function is triggered with a press of the button (can also display the status, here: "Device
off").
Status display of device [4] The device is switched on (Lettering: white / bright).
Function button (push-button) [5] The function is triggered with a press of the button (can also display the status, here: "Device
on").

Operating Instructions
Busch-ComfortTouch® Operation
Operating Instructions | 1473-1-8041 — 18 —
Additional basic principles
Function buttons of dimming control elements can display different stages of dimming by means of alternating
icons (e.g. larger light halo around the icon).
Default settings of steps (e.g. dimming steps, fan speed levels) are shown in white / bright lettering / icons. The
step or level values can be specified. The following example shows the brightness value of "20%". A 1-byte
feedback signal results.
If a selection or setting cannot be made, the colour of the lettering / icons appears dark. In the following example
the uppermost setting for dimming has been reached ("100%"). Increased dimming is not possible, and that is why
"Plus (+)" and "100%" appear in a dark colour.
Active elements or functions are displayed in white / bright lettering / icons.

Operating Instructions
Busch-ComfortTouch® Operation
Operating Instructions | 1473-1-8041 — 19 —
Adjustable control elements
Push-buttons (basic versions, which can be adapted further)
Simple switches can be implemented with push-buttons. This makes light switches or switches for simple
switching processes based on push-buttons possible.
Control element State Function
Push-button (Light) A simple light push-button always transmits the same value when it
is pressed. Its status remains unchanged (e.g. "On").
Also value 1 can be sent at a rising edge and value 2 at a falling
edge.
Switch (Light) A reverser light push-button alternately sends one of two values
when actuated and alternates between two statuses (e.g. "On" and
"Off").
Push-button
(Neutral)
A simple neutral push-button always transmits the same value when
it is pressed. Its status remains unchanged (e.g. "On").
Also value 1 can be sent at a rising edge and value 2 at a falling
edge.
Switch (Neutral) A reverser light push-button alternately sends one of two values
when actuated and alternates between two statuses (e.g. "On" and
"Off").
Rocker switch
(Neutral)
A neutral push-button with rocker function when actuated on the right
or left side of the rocker sends out a switching telegram. A
differentiation is made between whether the rocker is actuated on
the left or on the right side. This allows one of two versions to be
selected. A neutral push-button with rocker function can be used to
call up two different scenes for example (in the example: "Presence"
or "Absence").

Operating Instructions
Busch-ComfortTouch® Operation
Operating Instructions | 1473-1-8041 — 20 —
Dimmers (basic versions, which can be adapted further (e.g. with value display))
Dimmers can be used to implement convenient light switches with dimming functions.
Control element Status Function
Dimmer without slider The version without slider has a push-button for switching
on/off in the centre and two buttons left and right for stepwise
dimming (brighter/darker).
Dimmer with slider The version with slider has a push-button for switching on/off
on the left side and a slider for dimming.
Dimmers with popup
slider
The version pop-up slider has a push-button for switching
on/off on the left side and another button on the right side. The
latter opens a slider for dimming. When not actuated the slider
closes automatically again after a few seconds.
