Crestron FlipTop FT-TS600 Owner's manual

FT-TS600
FlipTop™ Touch Screen
Supplemental Guide
Crestron Electronics, Inc.

Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a limited non-exclusive,
non-transferable Software Development Tools License Agreement. Crestron product operating system software is licensed to Crestron
dealers, CSPs, and end-users under a separate End-User License Agreement. Both of these Agreements can be found on the Crestron
website at www.crestron.com/legal/software_license_agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at patents.crestron.com.
Crestron, the Crestron logo, FlipTop, and Rava are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United
States and/or other countries. Internet Explorer is either a trademark or registered trademark of Microsoft Corporation in the United States
and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the
entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others.
Crestron is not responsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2015 Crestron Electronics, Inc.

Contents
Access the Setup Screens 1
Configure the FT-TS600 2
Ethernet Setup ........................................................................................................ 2
IP Table Setup ........................................................................................................ 4
Edit the CIP ID ........................................................................................... 5
Edit the IP Address or Hostname ............................................................... 5
Audio Setup ............................................................................................................ 6
Display Setup.......................................................................................................... 6
Standby Timeout..................................................................................................... 7
Diagnostics ............................................................................................................. 7
Keypad Test............................................................................................... 8
Touch Test................................................................................................. 8
Calibrate .................................................................................................... 9
LAN Test.................................................................................................... 9
Test Patterns.............................................................................................. 9
Rava Test................................................................................................. 10
Mic Test ................................................................................................... 10
About .................................................................................................................... 10
Save & Edit ........................................................................................................... 11
Supplemental Guide – DOC. 7585E Contents •i

FT-TS600: FlipTop Touch Screen
Access the Setup Screens
The
FT-TS600 Setup
screen is the starting point for configuring the TF-TS600 FlipTop™
Touch Screen from Crestron®.
NOTE:
If no project has been loaded or if an invalid project has been loaded, the screen
displays the following message: “There is no display project to start. [Touch Screen to Enter
Setup…].”
The setup screens enable basic configuration prior to regular operation of the touch screen.
During regular operation of the touch screen, there are two ways to access the setup
screens:
1. Place a button on the project main page and assign the reserved join number
(17242) that accesses the setup screens.
2. Press hard keys 1, 2, 3, and 4, to the right of the touch screen display in sequence
twice (i.e., press 1, 2, 3, 4, 1, 2, 3, 4) within a 5 second period.
Button Numbering
4
3
2
1
Supplemental Guide – DOC. 7585E FT-TS600: FlipTop Touch Screen •1

The
FT-TS600 Setup
screen is displayed.
FT-TS600 Setup Screen
The
FT-TS600 Setup
screen is comprised of buttons for Ethernet setup, IP table setup,
audio setup, display setup, standby timeout, and diagnostics. In addition, there is an
About
button that provides information about the touch screen and a
Save & Exit
button. The
functions of each are detailed in the sections that follow.
Configure the FT-TS600
Ethernet Setup
On the
FT-TS600 Setup
screen, tap
Ethernet Setup
to display the
Ethernet Setup
screen.
Ethernet Setup Screen
The
Ethernet Setup
screen displays the touch screen’s Mac and IP addresses, subnet
mask, default router, primary DNS, secondary DNS, hostname, and domain. This screen
also contains a link indicator to show the status of the Ethernet connection.
2•FT-TS600: FlipTop Touch Screen Supplemental Guide – DOC. 7585E

Tap
Set Static IP Address Settings
to display the
Ethernet Setup – Static IPs
screen.
Ethernet Setup – Static IPs Screen
To edit the static IP address, static subnet mask, static default router, preferred DNS, or
alternate preferred DNS, tap its corresponding field. The
Edit IP Address
screen opens.
Edit IP Address Screen
Use the keyboard to make the new entry. Tap the
X
in the text field to clear a previous entry.
Tap to delete the last digit. Tap
Save
to save a new entry.
After new settings have been saved, tap
Reboot Required to Apply IP Changes
on the
Ethernet Setup – Static IPs
screen to reboot the touch screen so the new settings can
take effect.
Supplemental Guide – DOC. 7585E FT-TS600: FlipTop Touch Screen •3

IP Table Setup
On the
FT-TS600 Setup
screen, tap
IP Table Setup
to display the
Ethernet Setup – IP Table
screen.

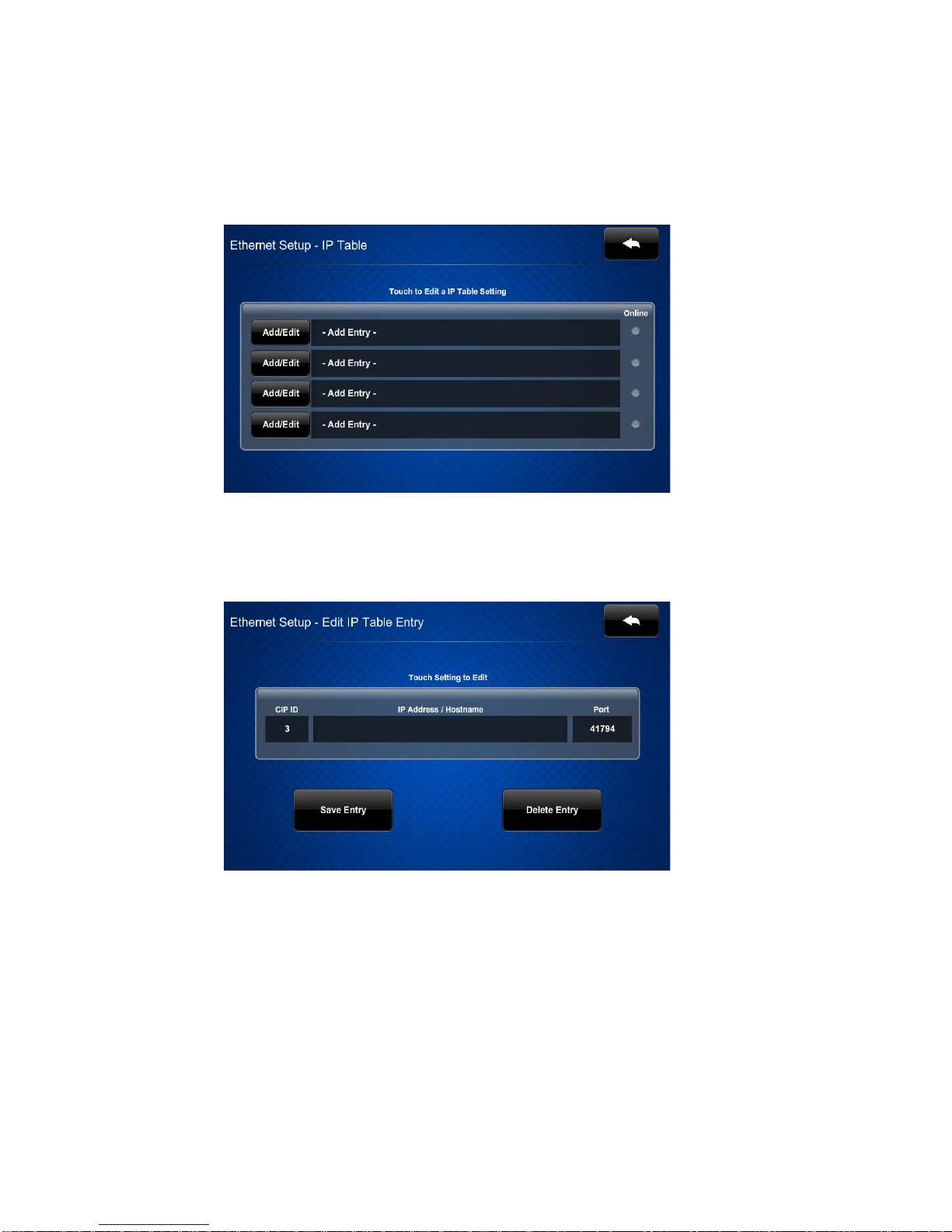

Ethernet Setup – IP Table Screen
The
Ethernet Setup – IP Table
screen displays up to four IP table settings, each of which
has an online indicator. To add or edit an entry, tap its corresponding
Add/Edit
button. The
Ethernet Setup – Edit IP Table Entry
screen is displayed.
Ethernet Setup – Edit IP Table Entry Screen
4•FT-TS600: FlipTop Touch Screen Supplemental Guide – DOC. 7585E

Edit the CIP ID
Tap the
CIP ID
field to display the
Edit CIP ID
screen.
Edit CIP ID Screen
Use the keypad to make the new entry. Tap the
X
in the text field to clear a previous entry.
Tap to delete the last digit. Tap
Save
to save a new entry.
Edit the IP Address or Hostname
Tap the
IP Address/Hostname
field to display the
Edit IP/Host
screen.
Edit IP/Host Screen
Use the keyboard to make a new entry. Tap
Cancel
to return to the
Ethernet Setup – Edit
IP Table Entry
screen. Tap the
X
in the text field to clear a previous entry. Tap to
delete the last digit. Tap
Save
to save a new entry and return to the
Ethernet Setup – Edit
IP Table Entry
screen.
On the
Ethernet Setup – Edit IP Table Entry
screen, tap
Save Entry
to save the current
entry or
Delete Entry
to clear it.
Supplemental Guide – DOC. 7585E FT-TS600: FlipTop Touch Screen •5

Audio Setup
On the
FT-TS600 Setup
screen, tap
Audio Setup
to display the
Audio Setup
screen.
Audio Setup Screen
The
Audio Setup
screen provides controls for muting or unmuting the audio, adjusting
levels for both the master volume and the media volume, and playing a test .wav file. The
Media Volume
controls adjust the H.264 streaming media level in relation to the
Master
Volume
controls. Use the
Speakers
and
Line Out
buttons to choose whether audio plays
through the internal speaker or via the line output.
Display Setup
On the
FT-TS600 Setup
screen, tap
Display Setup
to display the
Display Setup
screen.
Display Setup Screen
The
Display Setup
screen provides controls for the screen’s LCD brightness and
On
and
Off
controls for using a hard key to wake the LCD.
6•FT-TS600: FlipTop Touch Screen Supplemental Guide – DOC. 7585E

Standby Timeout
On the
FT-TS600 Setup
screen, tap
Standby Timeout
to display the
Standby Timeout
screen.

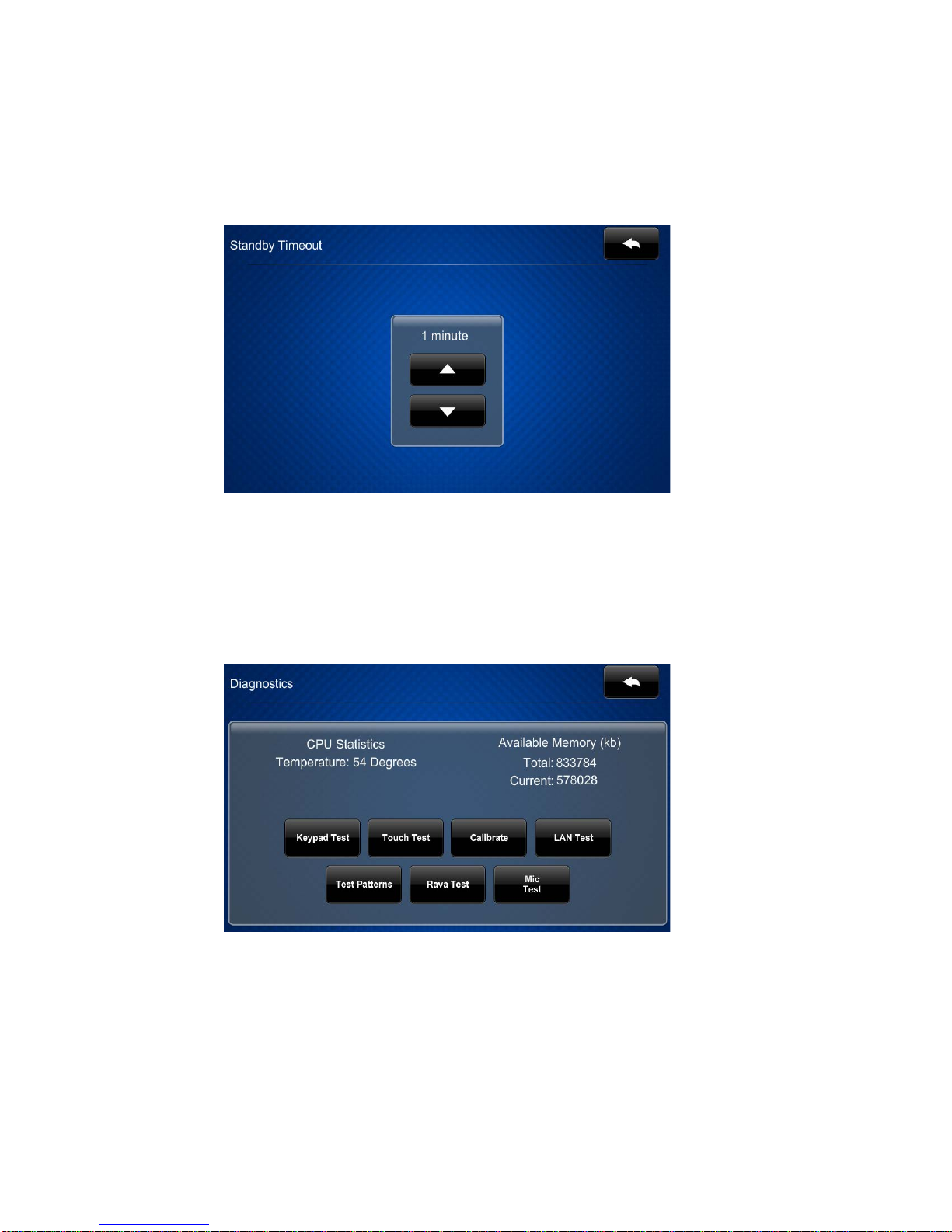

Standby Timeout Screen
The
Standby Timeout
screen provides controls to adjust standby timeout from 0 to 120
minutes.
Diagnostics
On the
FT-TS600 Setup
screen, tap
Diagnostics
to display the
Diagnostics
screen.
Diagnostics Screen
The
Diagnostics
screen displays the CPU temperature, displays the available memory, and
contains controls to run a keypad test, touch test, LAN test, Rava®test, and mic test. In
addition, there are controls to initiate touch screen calibration and to open various test
screens. These are explained in the sections that follow.
Supplemental Guide – DOC. 7585E FT-TS600: FlipTop Touch Screen •7

Keypad Test
On the
Diagnostics
screen, tap
Keypad Test
to display the
Diagnostics – Keypad Test
screen.
Diagnostics – Keypad Test Screen
The
Diagnostics – Keypad Test
screen can be used to test the function of the hard keys.
When a hard key is pressed, its corresponding indicator on the screen lights.
Touch Test
On the
Diagnostics
screen, tap
Touch Test
to display the touch test screen.
Touch Test Screen
The touch test screen can be used to test the function of the screen. When a location
button (the
X
buttons or the
O
button) is tapped, its indicator on the screen lights. This
screen also contains a
Calibrate
button to initiate touch screen calibration.
During touch screen calibration, a crosshair appears at the center of the screen. Tap the
center of the crosshair, which then moves to the upper left part of the screen. Tap the
center of the crosshair, and it moves to another part of the screen. Continue tapping the
center of the crosshair until calibration is complete.
NOTE:
When tapping the screen during calibration, be as accurate as possible.
8•FT-TS600: FlipTop Touch Screen Supplemental Guide – DOC. 7585E

Calibrate
On the
Diagnostics
screen, tap
Calibrate
to initiate the screen calibration procedure. Refer
to “Touch Test” on page 8 for details.
LAN Test
On the
Diagnostics
screen, tap
LAN Test
to display the
Diagnostics – LAN
screen.

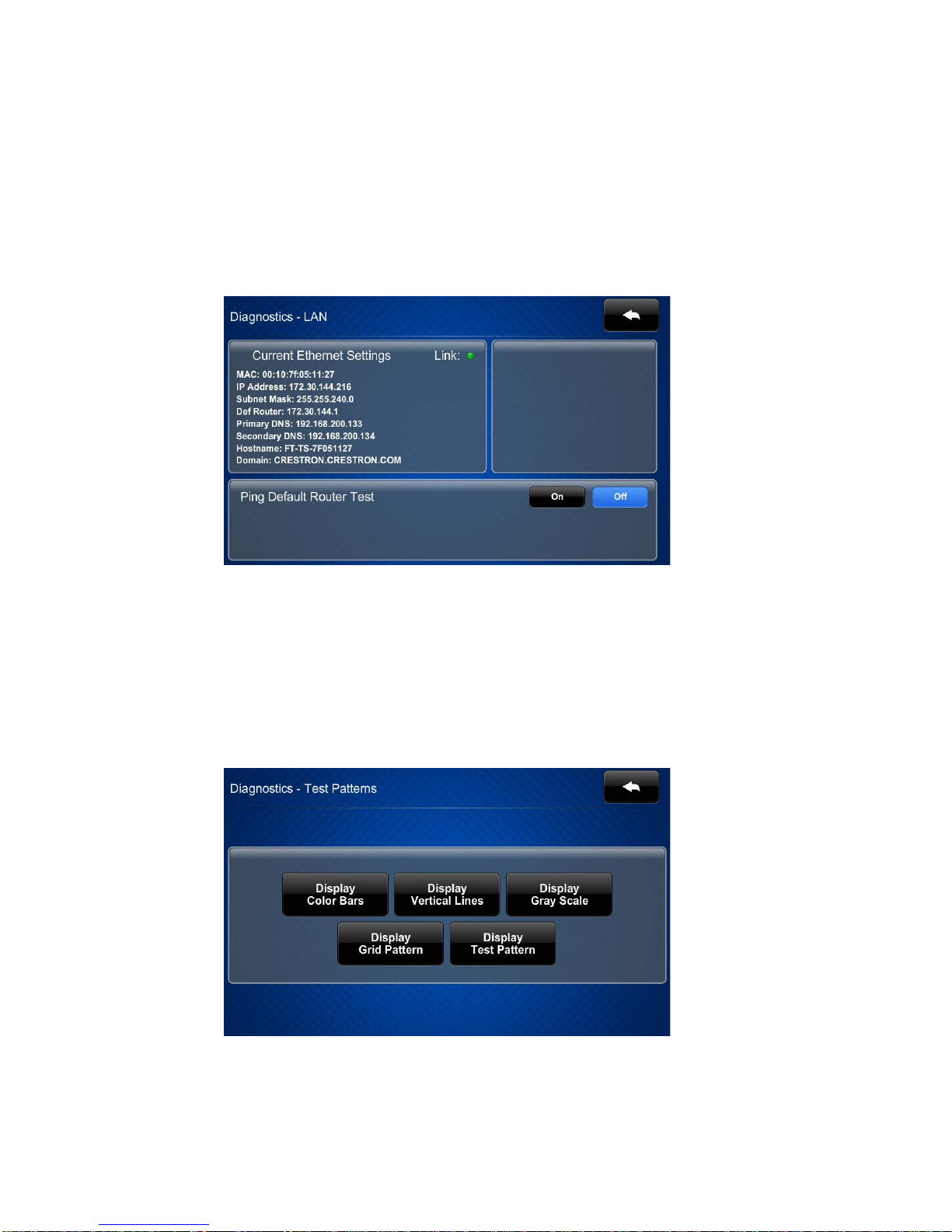

Diagnostics – LAN Screen
The
Diagnostics – LAN
screen displays current Ethernet settings and contains a link
indicator to show the status of the Ethernet connection. A
Ping Default Router Test
control
is also provided.
Test Patterns
On the
Diagnostics
screen, tap
Test Patterns
to display the
Diagnostics - Test Patterns
screen.
Diagnostics - Test Patterns Screen
The
Diagnostics - Test Patterns
screen contains buttons for selecting the different
available test patterns:
Display Color Bars
,
Display Vertical Lines
,
Display Gray Scale
,
Display Grid Pattern
, and
Display Test Pattern
.
Supplemental Guide – DOC. 7585E FT-TS600: FlipTop Touch Screen •9

Rava Test
On the
Diagnostics
screen, tap
Rava Test
to display the
Diagnostics – RAVA
screen.
Diagnostics – RAVA Screen
The
Diagnostics - Rava
screen provides controls for testing the use of Crestron’s Rava SIP
Intercom with the FT-TS600. It can be used to test projects and settings. If the intercom
works but the project does not, there is an issue with the project; if the intercom does not
work, there is an issue with the settings.
Mic Test
On the
Diagnostics
menu, tap
Mic Test
to begin a microphone test.
The built-in microphone (located above the touch screen display) records your voice for five
seconds and plays it back to confirm the microphone is functioning. When playback is
finished, the display returns to the
Diagnostics
screen.
About
On the
FT-TS600 Setup
screen, tap
About
to display the
About
screen.
About Screen
10 •FT-TS600: FlipTop Touch Screen Supplemental Guide – DOC. 7585E

The
About
screen displays information about the touch screen, including the currently
loaded firmware and operating system versions.
Save & Edit
On the
FT-TS600 Setup
screen, tap
Save & Exit
to save all settings, exit the setup
screens, and return to the main project.
Supplemental Guide – DOC. 7585E FT-TS600: FlipTop Touch Screen •11

Crestron Electronics, Inc. Supplemental Guide – DOC. 7585E
15 Volvo Drive Rockleigh, NJ 07647 (2037433)
Tel: 888.CRESTRON 04.15
Fax: [phone] Specifications subject to
www.crestron.com change without notice.
