In keeping with DFI’s tradition of bringing you the most up-to-date embedded technology, we present
the 15-inch and 19-inch VS Series touchscreen computers.
These computers can support a wide range of DFI-ACP motherboards that
support the Intel Celeron M, Pentium M, Core Solo, Core Duo and Core 2 Duo
processors. The VS Series offers you an LCD-based computer with touchscreen
technology, in a compact enclosure.
The VS Series interactive touchscreen computers
are designed to be high-volume and cost effective.
The slim form-factor allows these all-in-one
computers to be integrated into your kiosks,
industrial or custom enclosures.
Your conguration choices
can range from a low-
power, low-heat option,
to the high-performance
dual core platform. You
can congure this system
with a touchscreen,
up to 2 GB of memory,
optical drive and a wide choice of storage
solutions. Optional NEMA 4 and 4X front
bezels are available with these VS systems.
 DFI VS Series
Mechanical drawings are available in the Download section on our website.
15”
19”
19”

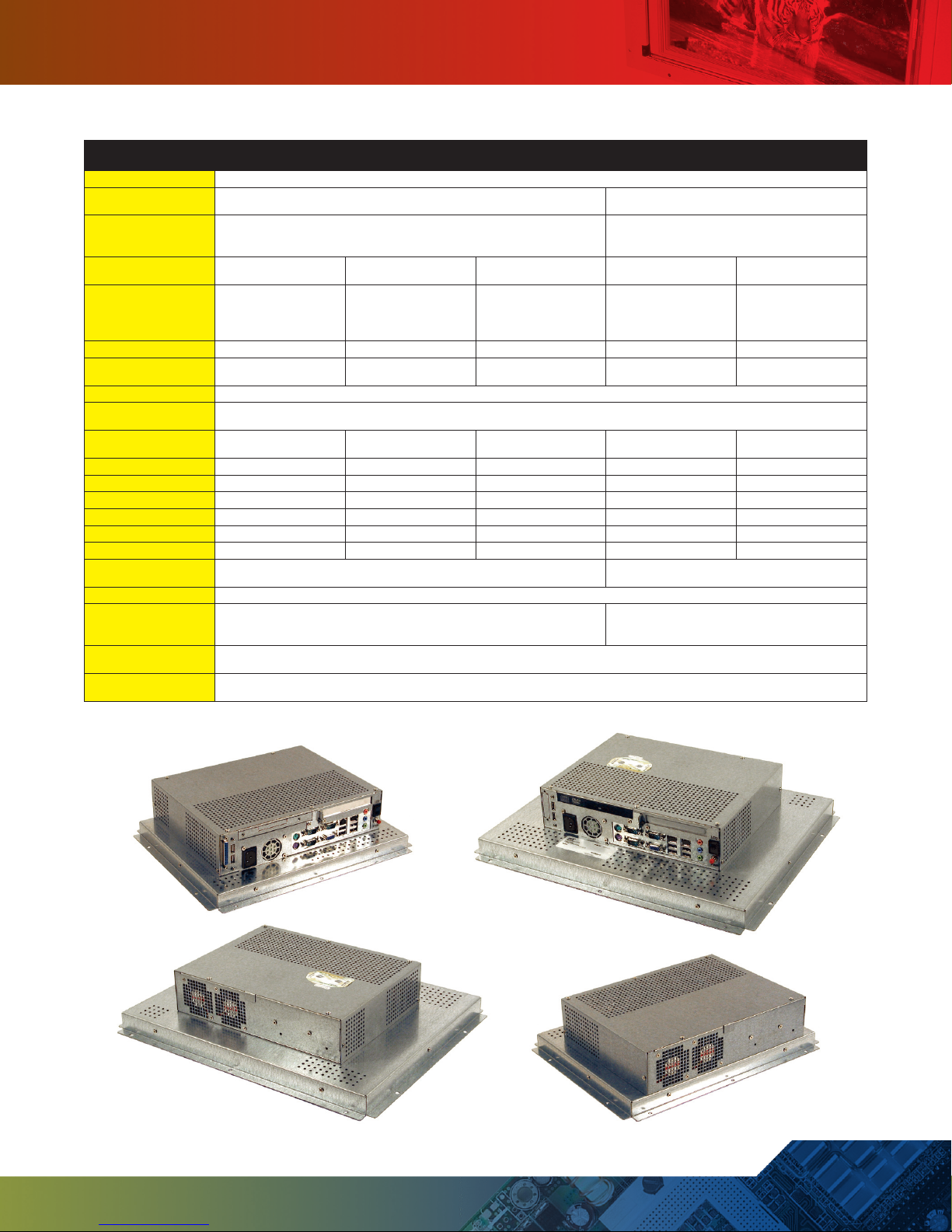

VS Model
(Screen Size)
VS475
(15”)
VS480
(15”)
VS485
(15”)
VS480
(19”)
VS485
(19”)
Enclosure Galvanized Steel Frame Construction
LCD Panel 15” TFT, 1024x768, 350nits, 400:1 contrast,
256K Windows True Color
19” TFT, 1280x1024, 300 nits, 700:1 contrast,
Windows True Color
Touchscreen
Elo AccuTouch 5-Wire Resistive,
Elo IntelliTouch Surface Wave,
or without touchscreen
Elo AccuTouch 5-Wire Resistive, Elo IntelliTouch
Surface Wave, 3M ClearTek II Capacitive,
or without touchscreen
Main Board DFI-ACP
G5G100-P
DFI-ACP
G5C100-N
DFI-ACP
SR100-N
DFI-ACP
G5C100-N
DFI-ACP
SR100-N
Processor Type
Intel Celeron M
or Pentium M
(Mobile type)
Intel Celeron M,
Core Solo, Core Duo
or Core 2 Duo
(Mobile type)
Intel Core 2 Duo
(Mobile type)
Intel Celeron M,
Core Solo, Core Duo
or Core 2 Duo
(Mobile type)
Intel Core 2 Duo
(Mobile type)
Processor FSB 400 / 533 533 / 667 533 / 800 533 / 667 533 / 800
Main Chipsets Intel 915GME
+ ICH6M
Intel 945GME
+ ICH7M + GMA950
Intel GME 965
+ ICH8M + GMA X3100
Intel 945GME
+ ICH7M + GMA950
Intel GME 965
+ ICH8M + GMA X3100
PCI Slot 1 Full-height, Half-length PCI Card Support
HDD and
Optical Drive Bays
Typical Conguration: 1 Notebook-type shock-mounted HDD, and 1 Notebook-type Optical Drive
Without Optical drive: Up to 2 Notebook-type Shockmounted HDDs
PS/2 Keyboard and
Mouse Ports 1 pair 1 pair 1 pair 1 pair 1 pair
DB-9 Serial Port 3 3 2 3 2
Video Port 1 DB-15 1 DB-15 1 DB-15 + 1 DVI-D 1 DB-15 1 DB-15 + 1 DVI-D
RJ45 LAN Port 1x (10/100/1000) 2x (10/100/1000) 2x (10/100/1000) 2x (10/100/1000) 2x (10/100/1000)
USB Port 6 6 6 6 6
Audio Jacks 3 3 3 3 3
Internal CF Card 0 1 0 1 0
Dimension
W x H x D
14.7” x 11.4” x 3.7”
(373.6 x 289.9 x 93.1 mm)
18.1” x 14.6” x 3.9”
(460.1 x 371.8 x 98.8 mm)
Ventilation Two 60 mm enclosure fans
Power Supply Internal auto-110/220V 180W power supply with
power factor correction and noise killer feature.
Internal auto-110/220V 200W power supply
with power factor correction and noise killer
feature.
Operating
Temperature
0ºC - 50ºC (32ºF - 122ºF), 10% - 90% RH.
Note: The operating temperature is limited by the LCD’s thermal specs.
Optional Items Notebook-type CD, CD R/W, DVD or DVD R/W Optical Drive, or Compact Flash Drive Kit
Front Bezel: NEMA 4 (black powder coated), or NEMA 4X (brushed stainless steel)
15”
All pictures are for illustration only. The I/O port arrangement, motherboard inside, and other components will differ depending on the conguration.
15”
19”
19”
