ABB PSTX30 Instructions for use

Softstarters Type PSTX30...PSTX370
Application manual: Waste water pump
1SFC132104M0201 EN, Rev A

This is the Application manual: Waste water pump for
Softstarters Type PSTX30…PSTX370.
Document number: 1SFC132104M0201
Revision: A
Issue date: 2015-03-01
Data can be changed without notice.
We reserve all rights to this document, even in the event that
a patent is issued and a different commercial proprietary right
is registered. Improper use, in particular reproduction and
dissemination to third parties, is not permitted.
This document has been carefully checked. If the user detect
an error, he or she is kindly asked to notify us as soon as
possible.
The data contained in this manual is intended solely for
the product description and is not to be deemed to be a
statement of guaranteed properties. In the interests of our
customers, we constantly seek to ensure that our products
are developed to the latest technological standards. As a
result, there may be some differences between the softstarter
and the information in this manual.
Author’s address:
ABB AB
Control Products
Low Voltage Products
SE-721 61 VÄSTERÅS, Sweden
www.abb.com/lowvoltage
© Copyright 2015. All rights reserved. Data can be changed
without notice.
Original instruction

Thank you for selecting this ABB PSTX softstarter. Read
carefully and make sure that you you understand all
instructions before you mount, connect and configure the
softstarter.
This manual is an application manual intended for quick
and easy installation and usage of a waste water pump
with the PSTX softstarter. For complete information,
see 1SFC132081M0201 - Softstarters Type PSTX30...
PSTX370, Installation and Commissioning Manual
available on: http://new.abb.com/low-voltage/
products/softstarters
• The softstarter shall be installed by authorized
personnel only.
• ABB personnel must obey the ABB CISE 15.4
instructions.
• Always read the full manual before you use the
softstarter.
Saftey notes
In this user manual, these symbols are used:
CAUTION
Caution symbol indicates the presence of a
hazard which could result in personal injury.
WARNING
Warning symbol indicates the presence of
a hazard which could result in damage to
equipment or property.
INFORMATION
Information sign alerts the reader to relevant facts
and conditions.
Modications to data in this manual can be applied without
notice.
General saftey information
CAUTION
Only authorized and appropriately trained
personnel are allowed to install and make
the electrical connection of the softstarter in
accordance with existing laws and regulations.
WARNING
Examine the softstarter and the package when
you unpack your new PSTX softstarter. If there
are damages, please contact the transportation
company or the ABB reseller/office immediately.
WARNING
Do not lift the softstarter by the connection bars,
as this can damage the softstarter.
WARNING
Only authorized and appropriately trained service
personnel are allowed to do service and repair
on the softstarter. Note: unauthorized repair will
effect the warranty.
Read this first
Warning and saftey

11
3
5
2
4
1 Introducton
2 Circuit diagram
3 Connection
4 Set-up
5 User guide
Softstarters Type PSTX30...PSTX370
Application manual: Waste water pump

6 Introducton | Application manual: Waste water pump | 1SFC132104M0201
1 Introducton
1.1 Purpose of this manual
This is a manual for simplified installation, set-up and
operation of a PSTX softstarter with a waste water
pump. If the instructions in this manual are followed, the
PSTX softstarter will have the most important features
activated and controlled by hard wire. If any further
functionality or information is requested or if the PSTX
softstarter is not controlling a waste water pump, please
see 1SFC132081M0201 - Softstarters Type PSTX30...
PSTX370, Installation and Commissioning Manual,
available on http://new.abb.com/low-voltage/products/
softstarters. This manual will show how to activate:
• Soft start and stop of pump for normal operation.
• Electronic
overload protection, for detection of pump clogging.
• Current under load protection, for detection of dry
pump based on current.
• Power factor under load protection, for detection of
dry pump based on power.
• Pump cleaning with full voltage forward and fast jog
reverse.
• All inputs and outputs that are needed to get an easy
control of the PSTX softstarter using push buttons or
a PLC with hard wire.
1.2 Needed components
This is the list of recommended pilot devices that is
needed to perform the instructions and operations in this
manual.
NOTE
Please note that equivalent pilot devices
can be used as well. Contact you local ABB
representative for more information.
Table 1 Needed components
Quantity Description Type names Article number
1Double pushbutton for start and stop. White and
black, marked with I and O. MPD17-11B 1SFA611146R1106
1Contact block holder MCBH-00 1SFA611605R1100
1Contact block NO MCB-10 1SFA611610R1001
1Contact block NC MCB-01 1SFA611610R1010
1Legend plate holder MA1-8139 1SFA611920R8139
1Legend plate “Start” MA6-1044 1SFA611930R1044
1Legend plate “Stop” MA6-1045 1SFA611930R1045
1Yellow pilot light 230V AC CL-523Y 1SFA619402R5233
1Green pilot light 230V AC CL-523G 1SFA619402R5232
1Toggle switch, 3-position, momentary MTS2-10B 1SFA611301R1006
1Contact block holder MCBH-00 1SFA611605R1100
1Contact block NO MCB-10 1SFA611610R1001
1Blue pushbutton, momentary, 1NO CP1-10L-10 1SFA619100R1014
1Emergency stop, 40mm, twist release, 1NC CE4T-10R-01 1SFA619550R1041
Table 2 Optional components
Quantity Description Type name Article number
1Extension I/O DX111-FBP.0 1SAJ611000R0101
1

1SFC132104M0201 | Application manual: Waste water pump | Circuit diagram 7
2 Circuit diagram
2.3 Circuit diagram for control with
push buttons
2.4 Circuit diagram for control with
PLC
21
22
GND
In0
Start
Stop
In1
In2
DGND
+24V
20
19
18
17
16
15
13
5268911 12
14
K1
1L1 3L2 5L3
K2
41710
23 24 25 282726 29 30
2T1 4T2 6T3
RUN
A
FAULT
120 Ω
K4 K5 K6
M
Com 3 +24V GND
UVW
Extension I/O (Optional)
REVERSE
FORWARD
RESET
STOP
START
K1
EMERGENCY STOP
21
22
GND
In0
Start
Stop
In1
In2
DGND
+24V
20
19
18
17
16
15
13
5268911 12
14
K1
1L1 3L2 5L3
K2
41710
23 24 25 282726 29 30
2T1 4T2 6T3
FAULT
A
120 Ω
K4 K5 K6
M
Com 3 +24V GND
UVW
Extension I/O (Optional)
K1
DC
+-
REVERSE
FORWARD
RESET
STOP
START
EMERGENCY STOP
RUN
1

8 Connection | Application manual: Waste water pump | 1SFC132104M0201
3 Connection
This chapter describes the electrical connections as well
as connections for communication devices that can be
connected to the softstarter.
WARNING
Mounting and electrical connections of the
softstarter shall be made in accordance with
local laws and regulations and be performed by
authorized personnel.
CAUTION
Hazardous voltage. Can cause death or serious
injury. Turn off and lock out all power supplying
this device before any work on the softstarter.
WARNING!
Apply the control supply voltage to make sure
that the bypass relays are in open position before
you connect the softstarters PSTX30...PSTX170
to operational voltage for the rst time. If not, the
equipment can start accidentally. This is necessary to
avoid unintentional starting of the equipment during
the connection.
INFORMATION
ABB personell have to obey the instructions in
ABB CISE 15.4.
WARNING
Capacitors for power factor compensation
are not allowed in between the softstarter and
the motor, since this can cause current peaks
which can burn the thyristors in the softstarter. If
such capacitors are to be used, they should be
connected on the line side of the softstarter.
For more information, please see 1SFC132081M0201
- Softstarters Type PSTX30...PSTX370, Installation and
Commissioning Manual.
3.1 Main circuit
INFORMATION
The voltage dips may not be more than 5%
between softstarter and motor. The cable lenght
does not matter.

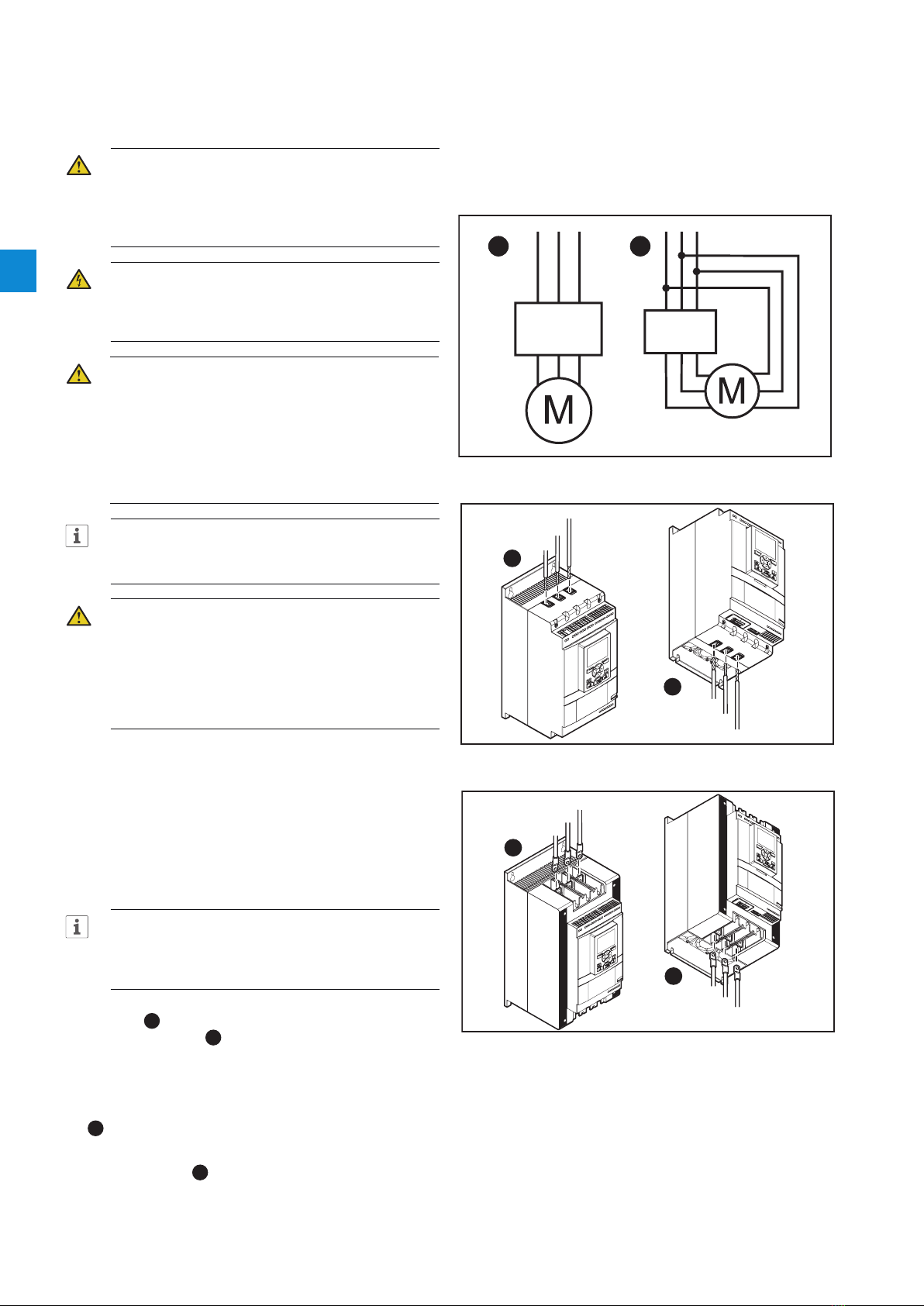

Softstarters PSTX30...PSTX370 can be connected both
In Line, see 1Figure 1,
and Inside Delta, see 2Figure 1.
Use wire connection for PSTX30...PSTX105 see Figure 2
and terminal connection for PSTX142...PSTX170
see Figure 3.
• Connect the line side to terminals 1L1, 3L2, 5L3, see
1in Figure 2 and 3.
• Connect the motor to terminals 2T1, 4T2, 6T3 on the
motor side, see 2in Figure 2 and 3.
The terminal marking is printed on the front of the
softstarter. For tightening torques and cable thickness,
1
PSTX PSTX
12
1SFC132081M0201
Figure 1: In line (1) and inside delta (2) connection
3
Line side
2T1
4T2
6T3
5L3
3L2
1L2
Motor side
1
2
1SFC132081M0201
Figure 3: Terminal connection bars
see chapter 3.1.1 Tightening torques and cable
dimensions.
2
1SFC132081M0201
1
2
Line side
1L1
3L2
5L3
6T3
4T2
2T1
Motor side
Figure 2: Terminal connection clamps
2

1SFC132104M0201 | Application manual: Waste water pump | Connection 9

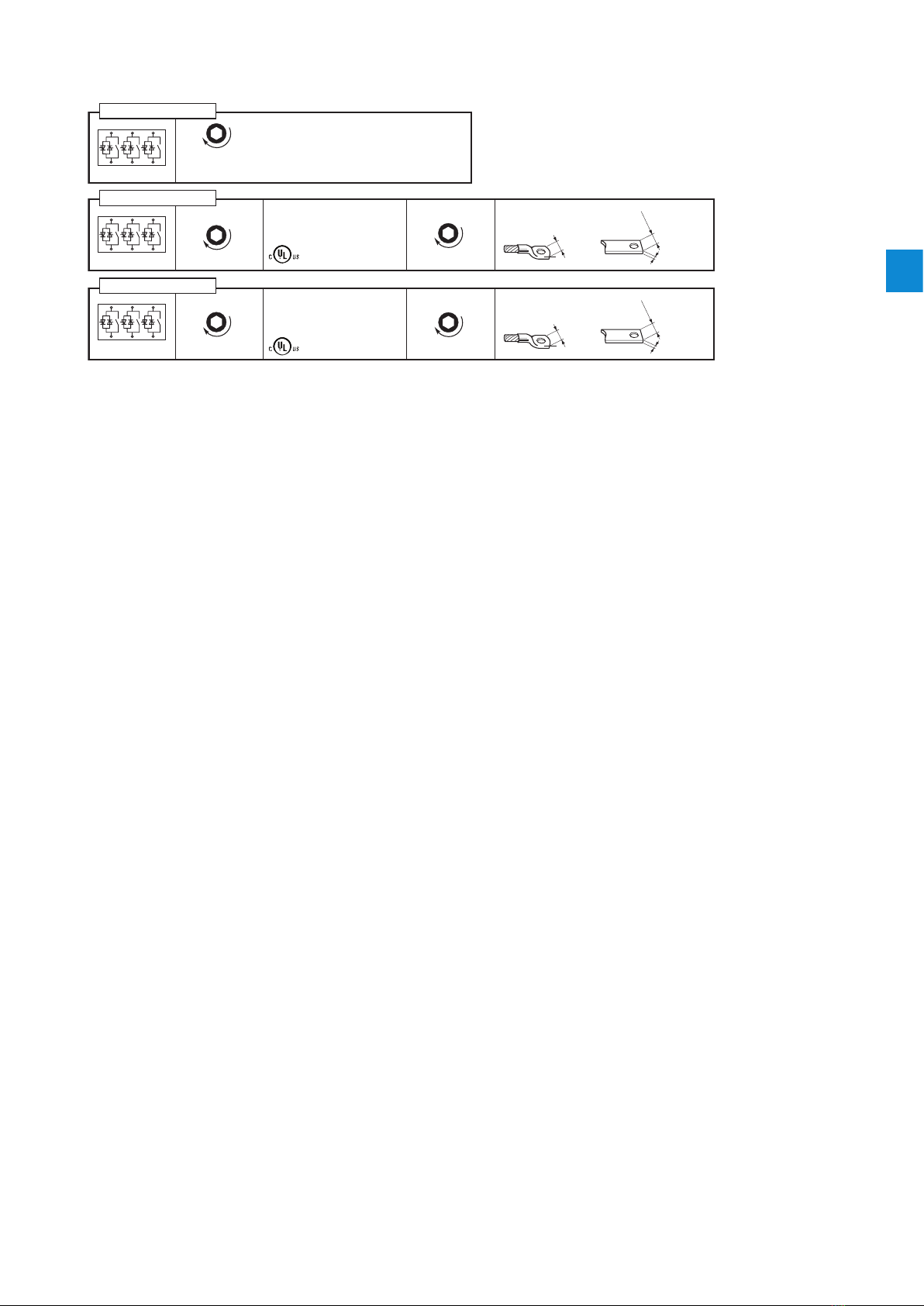

3.1.1 Tightening torques and cable
dimensions
M8
PSTX30...PSTX105
1L1
2T1 4T2 6T3
3L25L3
11/6-16 UNF-2A
275 lb.in
PSTX142...PSTX170
1L1
2T1 4T2 6T3
3L25L3
3/4-16 UNF-2A
375 lb.in
PSTX210...PSTX370
2T1 4T2 6T3
ATK185: AWG4 to 300kcmil
AI Cu 75°C only
8 Nm - 71 Ib.in AWG6 .. 2/0
Cu 75°C only
Rigid: 10 ... 95 mm²
Flexible: 10 ... 70 mm²
Rigid/flexible: 2x6 ... 2x35 mm²
max
30 mm
(1.181 in)
max
30 mm
(1.181 in)
max
10 mm
(0.394 in)
M10
28 Nm - 240 lb.in
Using connection bars
max
24 mm
(0.945 in)
max
22 mm
(0.866 in)
max
8 mm
(0.315 in)
M8
18 Nm - 160 lb.in
Using connection bars
Using connection module
ATK300: AWG4 to 400kcmil
ATK300/2: AWG4 to 500kcmil or
2xAWG4 to 2x500kcmil
AI Cu 75°C only
Using connection module
1L13L2 5L3
1SFC132081M0201
2

10 Connection | Application manual: Waste water pump | 1SFC132104M0201

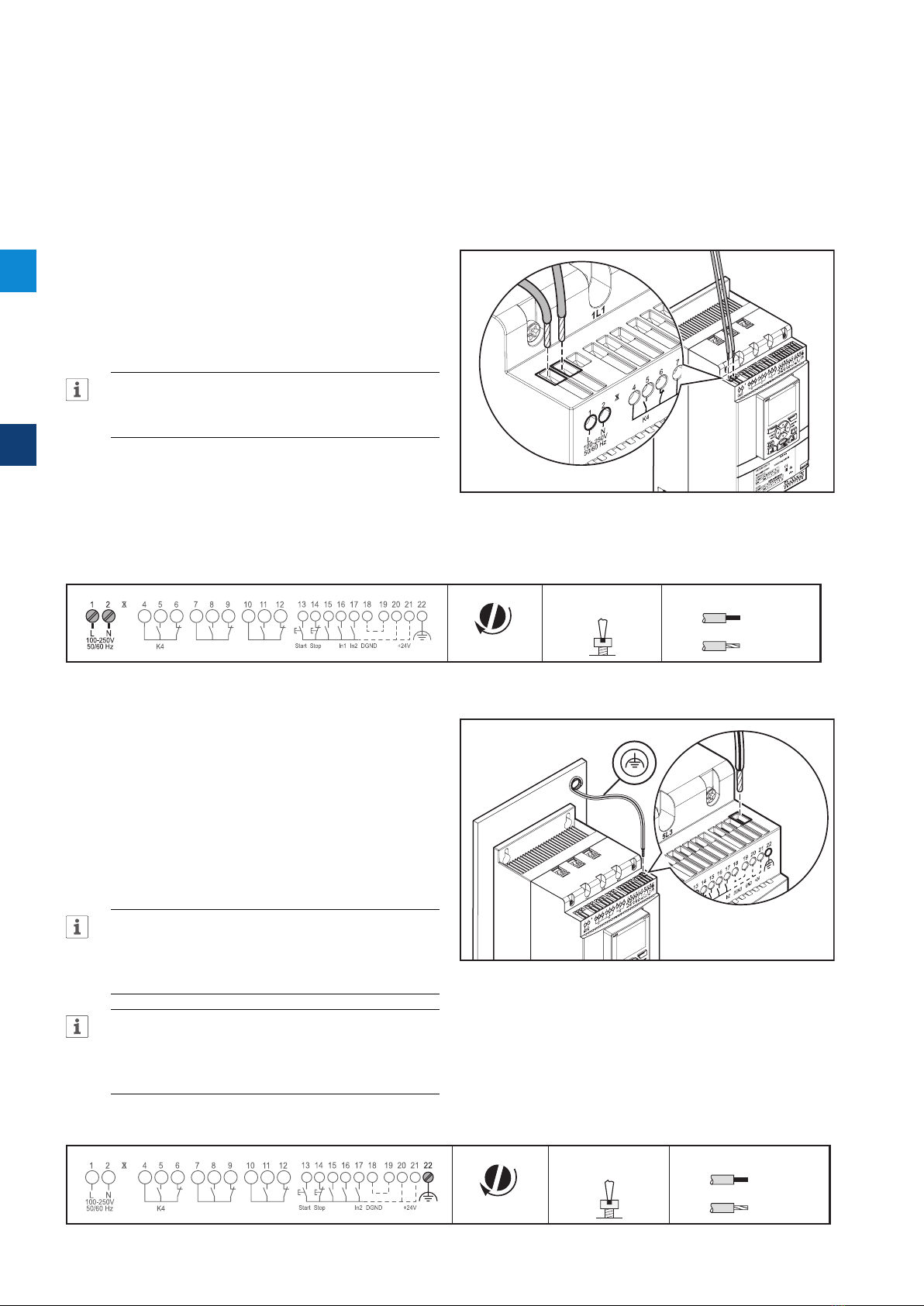

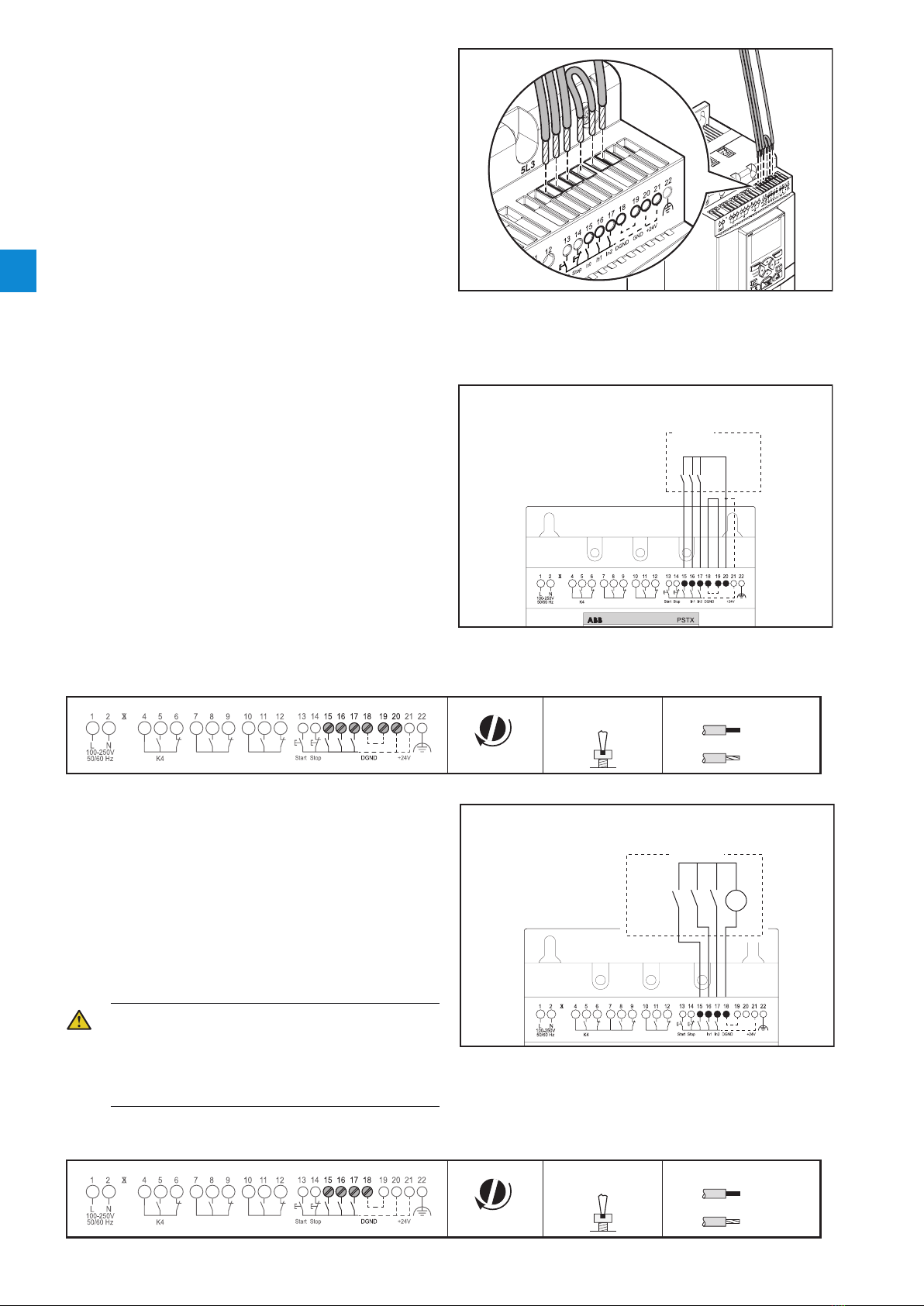

3.2 Control supply and control circuit
Wires in industrial control applications are divided into
three groups: main power supply, control supply and
control circuit.
Main power supply (1L1, 3L2, 5L3, 2T1, 4T2, 6T3)
Control supply voltage (terminals1and2)
Control circuit (terminals 13 - 21).
3.2.1 Control supply voltage -
terminals1and2
Connect neutral and phase to terminal 1 and 2.
See Figure 4.
INFORMATION
Only use 100-250 V, 50 / 60 Hz supply voltage.
Tightening torques and cable dimensions.
0,2 .. 2,5 mm2
2x0,2 .. 1,5 mm2
0,2 .. 2,5 mm2
2x0,2 .. 1,5 mm2
AWG 12 ... 24
0,5 Nm
4,3 lb.in
3,5 x 0,6 mm
(0.138 x 0.024 in)
M3,5
L
100-250V
50/60 Hz K4 K5 K6
Start Stop In0 In1 In2 GND +24V
N
1SFC132081M0201
3.2.2 Functional earth - terminal 22
Softstarters type PSTX85...PSTX370 should be earthed
using the terminal 22 as shown in Figure 5 (one
connection is sufficient). Connect the cable to an earthing
point close to the softstarter. The cable should be as
short as possible. A suitable earthing point is next to the
softstarter on the mounting plate, which should also be
earthed.
INFORMATION
This is not a protective earth, it is a function
earth. The earthing cable should be as short as
possible. Maximum length 0.5m.
INFORMATION
Do not use functional earth in IT-networks,
commonly found in for instance marine
applications.
Tightening torques and cable dimensions.
0,2 .. 2,5 mm2
2x0,2 .. 1,5 mm2
0,2 .. 2,5 mm2
2x0,2 .. 1,5 mm2
AWG 12 ... 24
0,5 Nm
4,3 lb.in
3,5 x 0,6 mm
(0.138 x 0.024 in)
M3
L
100-250V
50/60 Hz K4 K5 K6
StartStopIn0 In1In2 DGND GND +24V
N
1SFC132081M0201

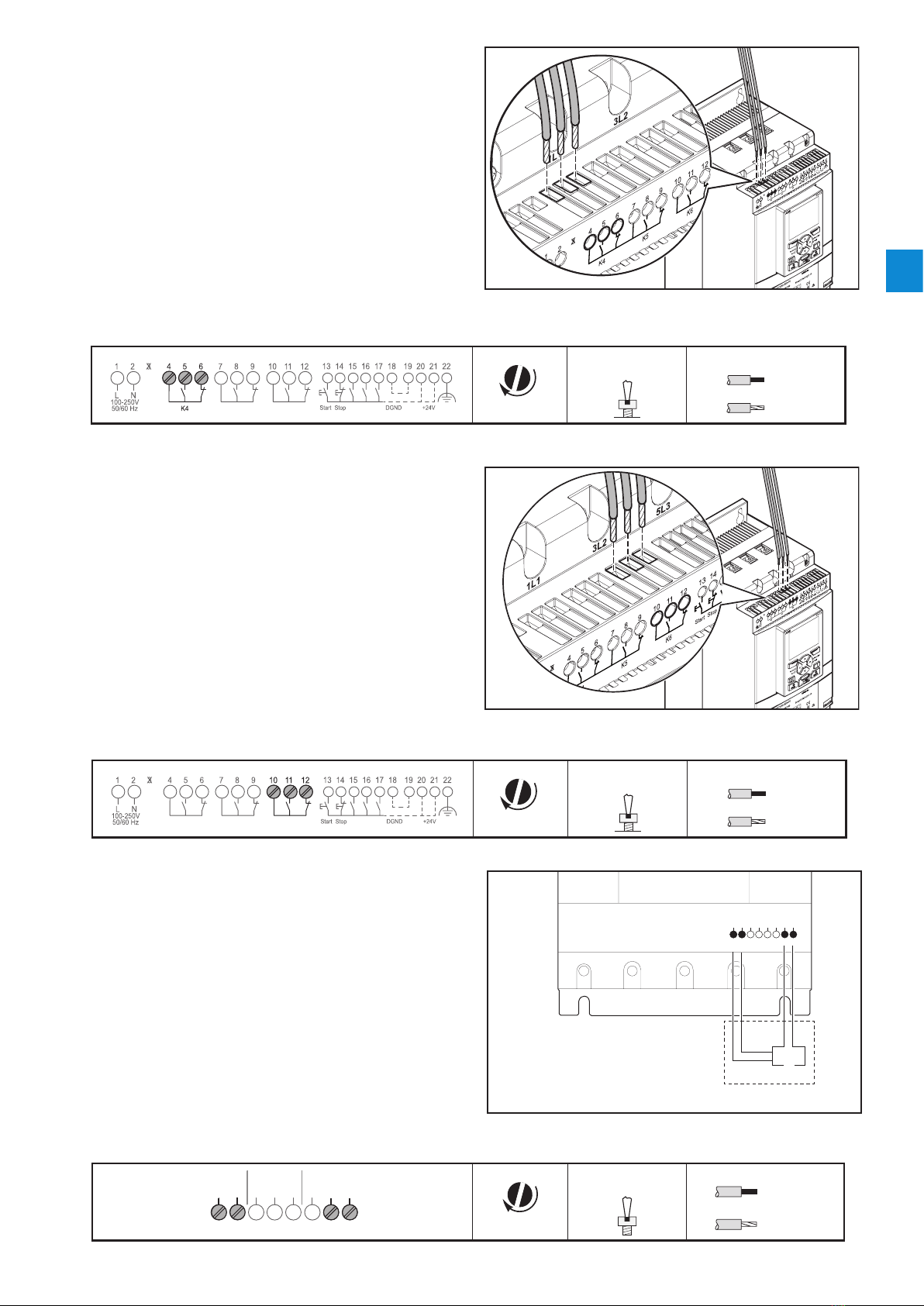

Figure 4: Supply voltage, terminal 1, 2
4
1SFC132081M0201
Figure 5: Functional earth, terminal 22
5
1SFC132081M0201
2
5
