Abit LG95C User manual

LG-95Z V2.0
LG-95C
Motherboard
Intel Socket 775
Installation Guide

ii LG-95Z V2.0/LG-95C
Copyright and Warranty Notice
The information in this document is subject to change without notice and does not represent a commitment on part of the vendor, who
assumes no liability or responsibility for any errors that may appear in this manual.
No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular part of this
document. In no event shall the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising from any defect
or error in this manual or product.
Product names appearing in this manual are for identification purpose only and trademarks and product names or brand names appearing in
this document are the property of their respective owners.
This document contains materials protected under International Copyright Laws. All rights reserved. No part of this manual may be reproduced,
transmitted or transcribed without the expressed written permission of the manufacturer and authors of this manual.
If you do not properly set the motherboard settings, causing the motherboard to malfunction or fail, we cannot guarantee any responsibility.
The Following Information is Only for EU-member States:
Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE): The use of the symbol indicates that this
product may not be treated as household waste. By Ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could otherwise be cause by inappropriate waste handling of
this product. For more detailed information about recycling of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.

LG-95Z V2.0/LG-95C iii
Contents
1. Hardware Setup ................................................ 1
1.1 Specifications .............................................................1
1.2 Choosing a Computer Chassis......................................2
1.3 Installing Motherboard................................................2
1.4 Checking Jumper Settings ...........................................3
1.4.1 CMOS Memory Clearing Header and Backup
Battery ......................................................................3
1.5 Connecting Chassis Components .................................4
1.5.1 ATX Power Connectors .......................................4
1.5.2 Front Panel Switches and Indicators Headers.......5
1.5.3 FAN Power Connectors .......................................5
1.6 Installing Hardware ....................................................6
1.6.1 CPU Socket 775 .................................................6
1.6.2 DDR2 Memory Slots ...........................................8
1.7 Connecting Peripheral Devices.....................................9
1.7.1 Floppy and IDE Disk Drive Connectors.................9
1.7.2 Serial ATA Connectors ........................................9
1.7.3 Additional USB 2.0 Port Headers .......................10
1.7.4 Internal Audio Connectors ................................10
1.7.5 Front Panel Audio Connection Header ...............11
1.7.6 PCI and PCI Express X16, X1 Slots ....................11
1.8 Connecting Rear Panel I/O Devices............................ 12
2. BIOS Setup ...................................................... 13
3. Driver & Utility ................................................ 14
4. Appendix ......................................................... 15
4.1 規格（繁體中文）....................................................15
4.2 规格（简体中文）....................................................16
4.3 Troubleshooting (How to Get Technical Support?) ......17
4.3.1 Q & A..............................................................17
4.3.2 Technical Support Form....................................18
4.4 Contact Information..................................................19

iv LG-95Z V2.0/LG-95C
LG-95Z V2.0 Layout LG-95C Layout
※ The motherboard and its component layouts illustrated in the
following chapter of this manual were mainly based on model
“LG-95Z V2.0”, unless specifically stated.

LG-95Z V2.0/LG-95C 1
1. Hardware Setup
1.1 Specifications
CPU
• LGA775 socket for Intel Core 2 Duo / Pentium Dual-Core /
Pentium D / Pentium 4 / Celeron D processor with 800MHz FSB
• Supports Intel Hyper-Threading Technology
Chipset
• LG-95Z V2.0: Intel 945GZ / ICH7
• LG-95C: Intel 945GC / ICH7
Memory
• 2x 240-pin DIMM slots support up to 2GB capacity
• Supports Dual Channel DDR2 533 Un-buffered Non-ECC memory
(For LG-95Z V2.0 only)
• Supports Dual Channel DDR2 667 Un-buffered Non-ECC memory
(For LG-95C only)
Graphics
• Integrated Intel Graphics Media Accelerator 950 (GMA950)
LAN
• Onboard 10/100M PCI controller
Audio
• Onboard 7.1-Channel HD Audio CODEC
Serial ATA
• 4x SATA 3Gb/s offered by Intel ICH7
Expansion Slots
• 1x PCI-E X16 slot (PCI-E X16 bandwidth) (For LG-95C only)
• 1x PCI-E X16 slot (PCI-E X4 bandwidth)
• 2x PCI slots
Internal I/O Connectors
• 1x Floppy port
• 1x Ultra ATA 100 IDE connector
• 4x SATA 3.0Gb/s connectors
• 2x USB 2.0 headers
• 1x FP-Audio header
• 1x CD-In connector
Rear Panel I/O
• 1x PS/2 Keyboard connector
• 1x PS/2 Mouse connector
• 1x COM port
• 1x LPT port
• 1x VGA connector
• 4x USB 2.0 connectors
• 1x RJ-45 LAN connector
• 1x 7.1-Channel Audio Connector
RoHS
• 100% Lead-free process and RoHS compliant
Miscellaneous
• Micro ATX form factor (244mm x 220mm)
• Vista Premium HW ready
※ Specifications and information contained herein are subject to
change without notice.

2 LG-95Z V2.0/LG-95C
1.2 Choosing a Computer Chassis
• Choose a chassis big enough to install this motherboard.
• As some features for this motherboard are implemented by
cabling connectors on the motherboard to indicators and switches
or buttons on the chassis, make sure your chassis supports all the
features required.
• If there is a possibility of adopting some more hard drives, make
sure your chassis has sufficient power and space for them.
• Most chassis have alternatives for I/O shield located at the rear
panel. Make sure the I/O shield of the chassis matches the I/O
port configuration of this motherboard. You can find an I/O shield
specifically designed for this motherboard in its package.
1.3 Installing Motherboard
Most computer chassis
have a base with many
mounting holes to allow
the motherboard to be
securely attached, and at
the same time, prevent
the system from short
circuits. There are two
ways to attach the
motherboard to the
chassis base: (1) with
studs, or (2) with spacers.
Basically, the best way to attach the board is with studs. Only if you are
unable to do this should you attach the board with spacers. Line up the
holes on the board with the mounting holes on the chassis. If the holes
line up and there are screw holes, you can attach the board with studs.
If the holes line up and there are only slots, you can only attach with
spacers. Take the tip of the spacers and insert them into the slots. After
doing this to all the slots, you can slide the board into position aligned
with slots. After the board has been positioned, check to make sure
everything is OK before putting the chassis back on.
※ Always power off the computer and unplug the AC power cord
before adding or removing any peripheral or component. Failing to
so may cause severe damage to your motherboard and/or
peripherals. Plug in the AC power cord only after you have carefully
checked everything.
To install this motherboard:
1. Locate all the screw holes on the motherboard and the chassis
base.
2. Place all the studs or spacers needed on the chassis base and have
them tightened.
3. Face the motherboard’s I/O ports toward the chassis’s rear panel.
4. Line up all the motherboard’s screw holes with those studs or
spacers on the chassis.
5. Install the motherboard with screws and have them tightened.
※ To prevent shorting the PCB circuit, please REMOVE the metal studs
or spacers if they are already fastened on the chassis base and are
without mounting-holes on the motherboard to align with.
This side faces
the chassis’s rear
panel.

LG-95Z V2.0/LG-95C 3
1.4 Checking Jumper Settings
For a 2-pin jumper, plug the jumper cap on both pins will make it
CLOSE (SHORT). Remove the jumper cap, or plug it on either pin
(reserved for future use) will leave it at OPEN position.
SHORT OPEN OPEN
For a 3-pin jumper, pin 1~2 or pin 2~3 can be shorted by plugging the
jumper cap in.
Pin 1~2 SHORT Pin 2~3 SHORT
1.4.1 CMOS Memory Clearing Header and Backup
Battery
The time to clear the CMOS memory occurs when (a) the CMOS data
becomes corrupted, (b) you forgot the supervisor or user password
preset in the BIOS menu, (c) you are unable to boot-up the system
because the CPU ratio/clock was incorrectly set in the BIOS menu, or (d)
whenever there is modification on the CPU or memory modules.
This header uses a jumper cap to clear the CMOS memory and have it
reconfigured to the default values stored in BIOS.
• Pin-2 and pin-3 shorted (Default): Normal operation.
• Pin-1 and pin-2 shorted: Clear CMOS memory.
To clear the CMOS memory and load in the default values:
1. Power off the system.
2. Set pin-1 and pin-2 shorted by the jumper cap. Wait for a few
seconds. Set the jumper cap back to its default settings --- pin-2
and pin-3 shorted.
3. Power on the system.
4. For incorrect CPU ratio/clock settings in the BIOS, press <Del> key
to enter the BIOS setup menu right after powering on system.
5. Set the CPU operating speed back to its default or an appropriate
value.
6. Save and exit the BIOS setup menu.
CMOS Backup Battery:
An onboard battery saves the CMOS memory to keep the BIOS
information stays on even after disconnected your system with power
source. Nevertheless, this backup battery exhausts after some five
years. Once the error message like “CMOS BATTERY HAS FAILED”

4 LG-95Z V2.0/LG-95C
or “CMOS checksum error” displays on monitor, this backup battery
is no longer functional and has to be renewed.
To renew the backup battery:
1. Power off the system and disconnect with AC power source.
2. Remove the exhausted battery.
3. Insert a new CR2032 or equivalent battery. Pay attention to its
polarity. The “+” side is its positive polarity.
4. Connect AC power source and power on the system.
5. Enter the BIOS setup menu. Reconfigure the setup parameters if
necessary.
CAUTION:
※ Danger of explosion may arise if the battery is incorrectly renewed.
※ Renew only with the same or equivalent type recommended by the
battery manufacturer.
※ Dispose of used batteries according to the battery manufacturer’s
instructions.
1.5 Connecting Chassis Components
1.5.1 ATX Power Connectors
These connectors provide the connection from an ATX power supply. As
the plugs from the power supply fit in only one orientation, find the
correct one and push firmly down into these connectors.
ATX 24-Pin Power Connector:
The power supply with 20-pin or 24-pin cables can both be connected
to this 24-pin connector. Connect from pin-1 for either type. However, a
20-pin power supply may cause the system unstable or even
unbootable for the sake of insufficient electricity. A minimum power of
300W or higher is recommended.
ATX 12V 4-Pin Power Connector:
This connector supplies power to CPU. The system will not start without
connecting power to this one.

LG-95Z V2.0/LG-95C 5
1.5.2 Front Panel Switches and Indicators Headers
This header is used for connecting switches and LED indicators on the
chassis front panel.
Watch the power LED pin position and orientation. The mark “+” align
to the pin in the figure below stands for positive polarity for the LED
connection. Please pay attention when connecting these headers. A
wrong orientation will only result in the LED not lighting, but a wrong
connection of the switches could cause system malfunction.
Pin Definition Pin Definition
1 HD LED + 2 Message LED +
3 HD LED - 4 Message LED -
5 RESET 6 Power Switch
7 RESET 8 Power Switch
9 Reserved
1.5.3 FAN Power Connectors
These connectors each provide power to the cooling fans installed in
your system.
• CPU_FAN: CPU Fan Power Connector
• SYS_FAN: System Fan Power Connector
• PWR_FAN: Auxiliary Fan Power Connector
※ These fan connectors are not jumpers. DO NOT place jumper caps
on these connectors.

6 LG-95Z V2.0/LG-95C
1.6 Installing Hardware
※ DO NOT scratch the motherboard when installing hardware. An
accidental scratch of a tiny surface-mount component may seriously
damage the motherboard.
※ In order to protect the contact pins, please pay attention to these
notices:
1. A maximum 20 cycles of CPU installation is recommended.
2. Never touch the contact pins with fingers or any object.
3. Always put on the cap when the CPU is not in use.
1.6.1 CPU Socket 775
※ The installation procedures vary with different types of CPU
fan-and-heatsink assembly. The one shown here is served for demo
only. For detailed information on how to install the one you bought,
refer to its installation guidelines.
1. Place the board so that
the lever-hook of the
socket is on your left
side. Use your left thumb
and forefinger to hold
the lever hook, pull it
away from the retention
tab. Rotate the lever to
fully open position.
2. Use your right-thumb to
raise the load plate. Lift
it up to fully open
position.
3. Use your right thumb
and forefinger to grasp
the CPU package. Be
sure to grasp on the
edge of the substrate,
and face the Pin-1
indicator toward the
bottom-left side. Aim at
the socket and place the
CPU package vertical
down into the socket.
4. Visually inspect if the
CPU is seated well into
the socket. The
alignment key must be
located in the notch of
package.

LG-95Z V2.0/LG-95C 7
5. Use your left hand to
hold the load plate, and
use your right thumb to
peel the cap off.
※ The cap plays an
important role in
protecting contact pins.
In order to prevent bent
pin, PUT ON the cap after
operation or testing.
6. Lower the plate onto the
CPU package. Engage
the load lever while
gently pressing down the
load plate.
7. Secure the lever with the
hook under retention
tab.
8. Place the heatsink and
fan assembly onto the
socket. Align the four
fasteners toward the
four mounting holes on
the motherboard.
9. Press each of the four
fasteners down into the
mounting holes. Rotate
the fastener clock-wise
to lock the heatsink and
fan assembly into
position.
10. Attach the four-pin
power plug from the
heatsink and fan
assembly to the CPU FAN
connector.
※ A higher fan speed will be helpful for better airflow and
heat-dissipation. Nevertheless, stay alert to not touch any heatsink
since a high temperature generated by the working system is still
possible.

8 LG-95Z V2.0/LG-95C

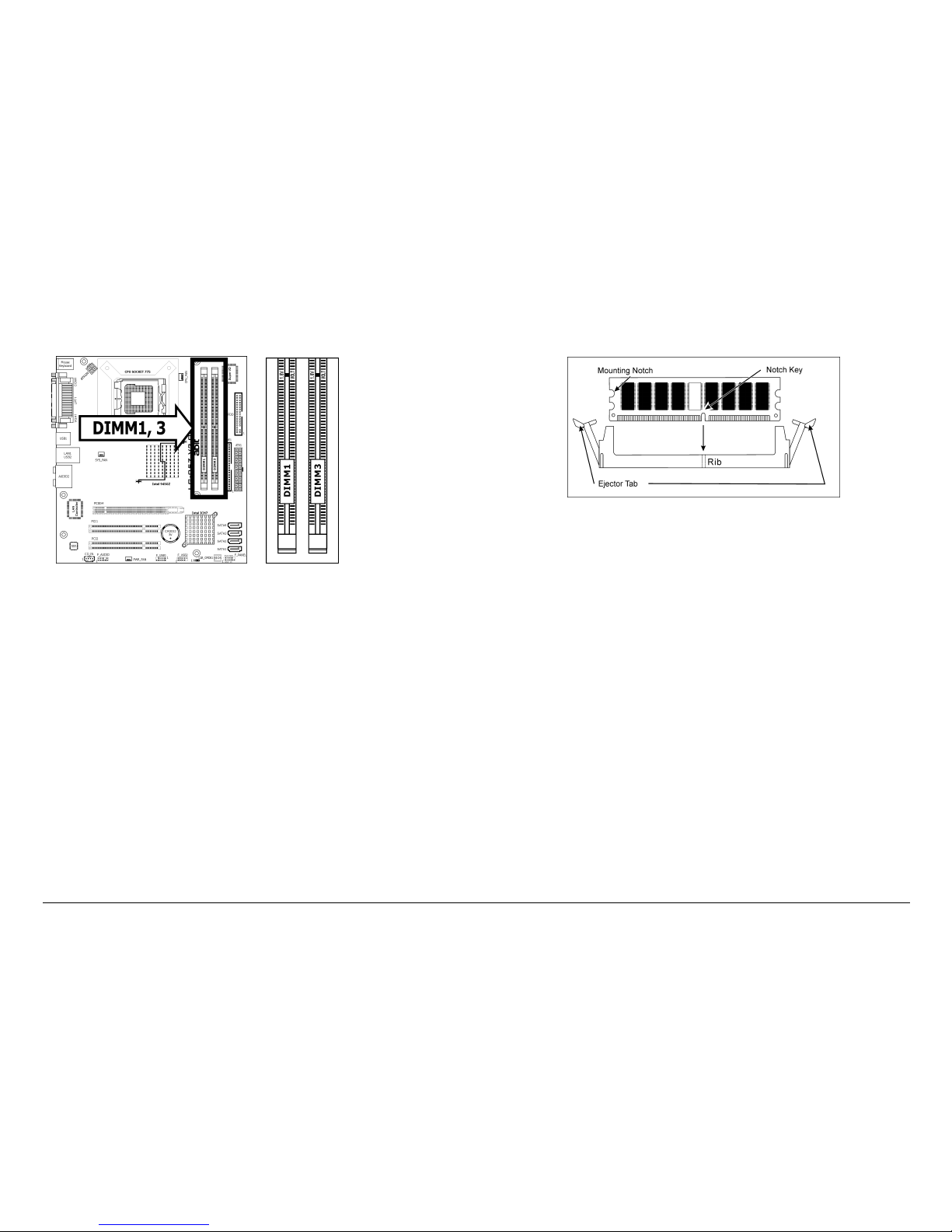

1.6.2 DDR2 Memory Slots
• To reach the optimum performance in dual-channel
configurations, install identical DDR2 DIMM pairs for each
channel.
• Install DIMMs with the same CAS latency. To reach the optimum
compatibility, obtain memory modules from the same vendor.
※ Usually there is no hardware or BIOS setup required after adding or
removing memory modules, but you will have to clear the CMOS
memory first if any memory module related problem occurs.
To install system memory:
1. Power off the computer and unplug the AC power cord before
installing or removing memory modules.
2. Locate the DIMM slot on the board.
3. Hold two edges of the DIMM module carefully, keep away from
touching its connectors.
4. Align the notch key on the module with the rib on the slot.
5. Firmly press the module into the slots until the ejector tabs at both
sides of the slot automatically snap into the mounting notch. Do not
force the DIMM module in with extra force as the DIMM module
only fits in one direction.
6. To remove the DIMM modules, push the two ejector tabs on the
slot outward simultaneously, and then pull out the DIMM module.
※ Static electricity can damage the electronic components of the
computer or optional boards. Before starting these procedures,
ensure that you are discharged of static electricity by touching a
grounded metal object briefly.

LG-95Z V2.0/LG-95C 9
1.7 Connecting Peripheral Devices

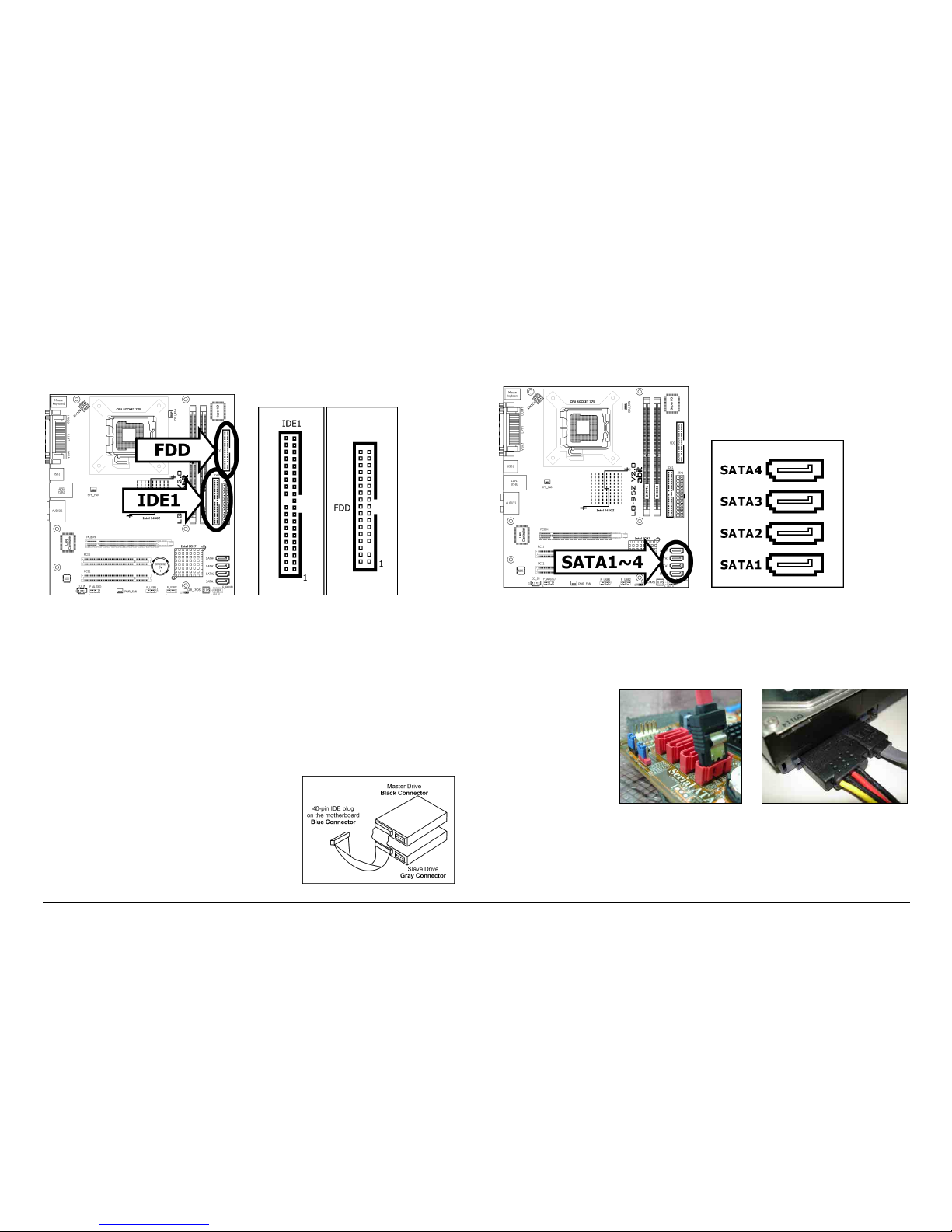

1.7.1 Floppy and IDE Disk Drive Connectors
Connect the single end at the longer length of ribbon cable to the FDD
on the board, the two connectors on the other end to the floppy disk
drives connector. Generally you need only one floppy disk drive in your
system.
※ The red line on the ribbon cable must be aligned with pin-1 on both
the FDD port and the floppy connector.
Connect the single end (blue connector) at the longer length of ribbon
cable to the IDE port of this board, the other two ends (gray and black
connector) at the shorter length of the ribbon cable to the connectors
of your hard drives.
※ Make sure to configure the “Master”
and “Slave” relation before connecting
two drives by one single ribbon cable.
The red line on the ribbon cable must
be aligned with pin-1 on both the IDE
port and the hard-drive connector.
1.7.2 Serial ATA Connectors
Each SATA connector serves as one single channel to connect one SATA
device by SATA cable.
To connect SATA device:
1. Attach either end of the signal cable to the SATA connector on
motherboard. Attach the other end to the SATA device.
2. Attach the SATA power cable to the SATA device and connect the
other end from the power supply.
※ The motherboard in this photo is served for DEMO only, and may not
be the same type or model as the one described in this manual.

10 LG-95Z V2.0/LG-95C
1.7.3 Additional USB 2.0 Port Headers
Each header supports 2x additional USB 2.0 ports by connecting
bracket or cable to the rear I/O panel or the front-mounted USB ports
of your chassis.
Pin Pin Assignment Pin Pin Assignment
1 VCC 2 VCC
3 Data0 - 4 Data1 -
5 Data0 + 6 Data1 +
7 Ground 8 Ground
10 NC
※ Make sure the connecting cable bears the same pin assignment.
1.7.4 Internal Audio Connectors
This connector connects to the audio output of internal CD-ROM drive
or add-on card.

LG-95Z V2.0/LG-95C 11
1.7.5 Front Panel Audio Connection Header
This header provides the connection to audio connector at front panel.
Pin Signal Name Function
1 AUD_MIC Front Panel Microphone input signal
2 AUD_GND Ground used by Analog Audio Circuits
3 AUD_MIC_BIAS Microphone Power
4 AUD_VCC Filtered +5V used by Analog Audio Circuits
5 AUD_F_R Right Channel audio signal to Front Panel
6 AUD_RET_R Right Channel Audio signal to Return
from Front Panel
7 REVD Reserved
8 Key No Pin
9 AUD_F_L Left Channel Audio signal to Front Panel
10 AUD_RET_L Left Channel Audio signal to Return from
Front Panel
1.7.6 PCI and PCI Express X16, X1 Slots
Install PCI Express X16 graphics card into slot “PCIEX16” or “PCIEX4”.
Install PCI cards into slots “PCI1” and/or “PCI2”.
※ Slot PCIEX4 supports up to X4 bandwidth. Slot PCIEX16 supports up
to X16 bandwidth but is available for model LG-95C only.

12 LG-95Z V2.0/LG-95C
1.8 Connecting Rear Panel I/O Devices
The rear I/O part of this motherboard provides the following I/O ports:
• Mouse: Connects to PS/2 mouse.
• Keyboard: Connects to PS/2 keyboard.
• LPT1: Connects to printer or other devices that support this
communication protocol.
• COM1: Connects to external modem, mouse or other devices
that support this communication protocol.
• VGA1: Connects to monitor input.
• USB1/USB2: Connects to USB devices such as scanner, digital
speakers, monitor, mouse, keyboard, hub, digital camera, joystick
etc.
• LAN1: Connects to Local Area Network.
• AUDIO2:
Cen./Sub. (Center / Subwoofer): Connects to the center and
subwoofer channel.
R.L./R.R. (Rear Left / Rear Right): Connects to the rear left
and rear right channel.
S.L./S.R. (Surround Left / Surround Right): Connects to the
surround left and surround right channel.
Line-In: Connects to the line out from external audio sources.
Line-Out: Connects to the front left and front right channel.
Mic-In: Connects to the plug from external microphone.

LG-95Z V2.0/LG-95C 13
2. BIOS Setup
This motherboard provides a programmable EEPROM so that you can
update the BIOS utility. The BIOS (Basic Input/Output System) is a
program that deals with the basic level of communication between
processor and peripherals. Use the BIOS Setup program only when
installing motherboard, reconfiguring system, or prompted to “Run
Setup”.
After powering up the system, the BIOS message appears on the
screen, the memory count begins, and then the following message
appears on the screen:
PRESS DEL TO ENTER SETUP
If this message disappears before you respond, restart the system by
pressing <Ctrl> + <Alt> + <Del> keys, or by pressing the Reset
button on computer chassis. Only when these two methods fail should
you restart the system by powering it off and then back on.
After pressing <Del> key, the main menu screen appears.
CMOS Setup Utility – Copyright (C) 1985-2005, American Megatrends, Inc.
►Standard CMOS Setup ►Frequency/Voltage Control
►Advanced Setup Load Optimal Defaults
►Advanced Chipset Setup ►Supervisor Password
►Integrated Peripherals ►User Password
►Power Management Setup Save & Exit Setup
►PCI/PnP Configuration Exit Without Saving
►PC Health Status
:Move Enter:Select +/-/:Value F10:Save and Exit
F1:General Help F9:Optimized Defaults Esc:Exit
v02.58 (C)Copyright 1985-2005, American Megatrends, Inc.
※ In order to increase system stability and performance, our
engineering staff is constantly improving the BIOS menu. The BIOS
setup screens and descriptions illustrated in this manual are for
your reference only, and may not completely match with what you
see on your screen.
※ Do not change the BIOS parameters unless you fully understand its
function.

14 LG-95Z V2.0/LG-95C
3. Driver & Utility
The “Driver & Utility CD” that came packed with this motherboard
contains drivers, utilities and software applications required for its basic
and advanced features.
Place the “Driver & Utility CD” into the CD-ROM drive in your system.
The following installation auto-run screen appears. If not, browse the
root directory of the CD-ROM via the File Manager, and double click the
“AUTORUN” file.
• [Drivers]: Click to enter the driver installation menu.
• [Manual]: Click to enter the user’s manual menu.
• [Utility]: Click to enter the utilities installation menu.
• [ Browse CD]: Click to browse the contents of this
“Driver & Utility CD”.
• [ Close]: Click to exit this installation menu.

LG-95Z V2.0/LG-95C 15
4. Appendix
4.1 規格（繁體中文）
處理器
• 支援具備 800MHz 前端匯流排的 Intel Core 2 Duo / Pentium
Dual-Core / Pentium D / Pentium 4 / Celeron D 處理器
• 支援 Intel Hyper-Threading 技術
晶片組
• LG-95Z V2.0：Intel 945GZ / ICH7
• LG-95C：Intel 945GC / ICH7
記憶體
• 2條240 針腳 DIMM 插槽，支援最大 2GB 記憶體容量
• 支援雙通道 DDR2 533 無緩衝非 ECC 記憶體
（只用於 LG-95Z V2.0）
• 支援雙通道 DDR2 667 無緩衝非 ECC 記憶體
（只用於 LG-95C）
圖形埠
• 整合 Intel Graphics Media Accelerator 950 (GMA950)
網路
• 內建 10/100M PCI 網路控制器
音效
• 內建 7.1 聲道 HD 音效
Serial ATA
• Intel ICH7 提供 4個SATA 3.0Gb/s
擴充插槽
• 1個PCI-E X16 插槽（PCI-E X16 頻寬） （只用於 LG-95C）
• 1個PCI-E X16 插槽（PCI-E X4 頻寬）
• 2個PCI 插槽
內部輸入/輸出接頭
• 1個軟碟埠
• 1個Ultra ATA 100 IDE 接頭
• 4個SATA 3.0Gb/s 接頭
• 2個USB 2.0 接頭
• 1個FP-Audio 接頭
• 1個CD-In 接頭
後面板輸入/輸出接頭
• 1個PS/2 鍵盤接頭
• 1個PS/2 滑鼠接頭
• 1個COM 連接埠
• 1個LPT 連接埠
• 1個VGA 連接埠
• 4個USB 2.0 接頭
• 1個RJ-45 網路接頭
• 1個7.1 聲道音效接頭
RoHS
• 100%無鉛製程符合 RoHS 規範
其他
• Micro ATX 主機板規格（244mm x 220mm）
• 符合 Vista Premium 硬體需求
※ 本手冊的規格與資訊若有變動，恕不另行通知。

16 LG-95Z V2.0/LG-95C
4.2 规格（简体中文）
处理器
• 支持具备 800MHz 前端总线的 Intel Core 2 Duo / Pentium
Dual-Core / Pentium D / Pentium 4 / Celeron D 处理器
• 支持 Intel 超线程技术
芯片组
• LG-95Z V2.0：Intel 945GZ / ICH7
• LG-95C：Intel 945GC / ICH7
内存
• 2条240 针脚 DIMM 插槽支持最大 2GB 内存容量
• 支持双信道 DDR2 533 无缓冲非 ECC 内存
（只用于 LG-95Z V2.0）
• 支持双信道 DDR2 667 无缓冲非 ECC 内存
（只用于 LG-95C）
图形端口
• 整合 Intel Graphics Media Accelerator 950 (GMA950)
网络
• 内建 10/100M PCI 网络控制器
音效
• 支持 7.1 声道 HD 音效
串行 ATA
• Intel ICH7 提供 4个SATA 3.0Gb/s
扩充插槽
• 1个PCI-E X16 插槽（PCI-E X16 频宽） （只用于 LG-95C）
• 1个PCI-E X16 插槽（PCI-E X4 频宽）
• 2个PCI 插槽
内部输入/输出接头
• 1个软盘端口
• 1个Ultra ATA 100 IDE 接头
• 4个SATA 3.0Gb/s 接头
• 2个USB 2.0 接头
• 1个FP-Audio 接头
• 1个CD-In 接头
后面板输入/输出接头
• 1个PS/2 键盘接头
• 1个PS/2 鼠标接头
• 1个COM 连接埠
• 1个LPT 连接埠
• 1个VGA 连接埠
• 4个USB 2.0 接头
• 1个RJ-45 网络接头
• 1个7.1 声道音效接头
RoHS
• 100%无铅制程符合 RoHS 规范
其它
• Micro ATX 主机板规格（244mm x 220mm）
• 符合 Vista Premium 硬件需求
※ 本手册的规格与信息若有变动，恕不另行通知。
