Abit AT8 32X User manual

AT8 32X
AMD Athlon 64x2/64FX/64 System Board
Socket 939
User’s Manual
4310-0000-14
Rev. 2.00

Copyright and Warranty Notice
The information in this document is subject to change without notice and does not
represent a commitment on part of the vendor, who assumes no liability or
responsibility for any errors that may appear in this manual.
No warranty or representation, either expressed or implied, is made with respect to the
quality, accuracy or fitness for any particular part of this document. In no event shall
the manufacturer be liable for direct, indirect, special, incidental or consequential
damages arising from any defect or error in this manual or product.
Product names appearing in this manual are for identification purpose only and
trademarks and product names or brand names appearing in this document are the
property of their respective owners.
This document contains materials protected under International Copyright Laws. All
rights reserved. No part of this manual may be reproduced, transmitted or transcribed
without the expressed written permission of the manufacturer and authors of this
manual.
If you do not properly set the motherboard settings, causing the motherboard to
malfunction or fail, we cannot guarantee any responsibility.
AT8 32X

Table of Contents
Chapter 1. Introduction .......................................................................... 1-1
1-1. Features & Specifications ........................................................................1-1
1-2. Layout Diagram .......................................................................................1-3
Chapter 2. Hardware Setup.................................................................... 2-1
2-1. Install The Motherboard...........................................................................2-1
2-2. Install CPU, Heatsink and Fan Assembly................................................2-2
2-3. Install System Memory ............................................................................2-4
2-4. Install Graphics Card(s) ...........................................................................2-6
CrossFire Mode:.......................................................................................2-7
2-5. Connectors, Headers and Switches ..........................................................2-9
(1). ATX Power Input Connectors........................................................2-9
(2). FAN Power Connectors ...............................................................2-10
(3). GURU Clock Connection Header................................................2-10
(4). CMOS Memory Clearing Header ................................................2-11
(5). Internal Audio Connectors ...........................................................2-11
(6). Front Panel Switches & Indicators Headers ................................2-12
(7). Wake-up Header...........................................................................2-13
(8). Floppy and IDE Disk Drive Connectors......................................2-14
(9). Serial ATA Connectors .................................................................2-15
(10). PCI Express x1 Slots....................................................................2-16
(11). PCI Express x16 Slot ...................................................................2-16
(12). Additional USB Port Headers......................................................2-17
(13). Additional IEEE1394 Port Headers .............................................2-17
(14). Front Panel Audio Connection Header ........................................2-18
(15). POST Code Display .....................................................................2-19
(16). Back Panel Connectors ................................................................2-20
Chapter 3. BIOS Setup............................................................................ 3-1
3-1. µGuru™Utility .........................................................................................3-2
3-2. Standard CMOS Features.........................................................................3-9
3-3. Advanced BIOS Features.......................................................................3-12
3-4. Advanced Chipset Features....................................................................3-14
3-5. Integrated Peripherals ............................................................................3-18
3-6. Power Management Setup .....................................................................3-21
User’s Manual

3-7. PnP/PCI Configurations.........................................................................3-23
3-8. Load Fail-Safe Defaults .........................................................................3-24
3-9. Load Optimized Defaults .......................................................................3-24
3-10. Set Password ..........................................................................................3-24
3-11. Save & Exit Setup ..................................................................................3-24
3-12. Exit Without Saving...............................................................................3-24
Appendix A. Install Audio Driver ......................................................................... A-1
Appendix B. Install Realtek LAN Driver.............................................................. B-1
Appendix C. Install ULi1575 SATA RAID Driver............................................... C-1
Appendix D. Install Sil3132 SATA Driver............................................................D-1
Appendix E. Install Cool’n’Quiet Driver ............................................................. E-1
Appendix F. Install USB 2.0 Driver ..................................................................... F-1
Appendix G. Install ABIT µGuru Utility ..............................................................G-1
Appendix H. POST Code Definition .....................................................................H-1
Appendix I. Troubleshooting (Need Assistance?)................................................ I-1
Appendix J. How to Get Technical Support .........................................................J-1
AT8 32X

Introduction 1-1
Chapter 1. Introduction
1-1. Features & Specifications
1. CPU
• Socket 939 for AMD Athlon 64x2/ 64FX/ 64 Processors with 2000MT/s System Bus
• Supports AMD K8 CPU Cool ‘n’ Quiet Technology
2. Chipset
• ATI RD580 RADEON Xpress 3200 chip
• ULI 1575 SB chip
• Support Dual Full PCIE x16 bandwidth to graphic
3. Memory
• Four 184-pin DIMM sockets
• Supports Dual Channel DDR 400/333/266 un-buffered ECC/Non-ECC memory
• Supports maximum memory capacity up to 8GB
4. Graphics
• Two PCI-Express X16 slots support Dual Graphic card by ATI CrossFire™Technology
• Two X16 graphics links for high performance Crossfire configurations
5. ABIT Engineered
• ABIT Silent OTES Technology
• ABIT µGuru™Technology
6. Serial ATA
• 4x SATA 3.0 Gb/s (RAID 0/1/0+1/5)
• Supports SATA AHCI, providing native command queuing and native hot plug
• Onboard Silicon Image Sil3132 PCIE RAID controller, supports 2x 3Gb/s SATA ports
7. LAN
• Onboard 10/100/1000M PCIE controller
8. IEEE 1394
• Supports IEEE1394 by PCI controller
9. Audio
• Onboard 7.1 CH HD Audio CODEC
• Optical S/PDIF Output/Input
• Supports auto jack sensing
User’s Manual

1-2 Chapter 1
10. Internal I/O Connectors
• 2x PCI-E X16 slot
• 2x PCI-E X1 slots
• 2x PCI slots
• 1x Floppy port supports up to 2.88MB
• 2x Ultra DMA 133/100/66/33 IDE connectors
• 6x SATA 3G connectors
• 2x USB 2.0 headers
• 1x IEEE 1394 header
• 1x FP-Audio header
• 1x CD-IN
11. Back Panel I/O
• 1x PS/2 keyboard connector
• 1x PS/2 mouse connector
• 1x OPT-OUT1 connector
• 1x OPT-IN1 connector
• 1x AUDIO1 connector (Surround-Left / Surround-Right, Rear-Left / Rear-Right,
Center/Subwoofer)
• 1x AUDIO2 connector (Mic-In, Line-In, Line-Out)
• 4x USB 2.0 connector
• 1x RJ-45 LAN connector
• 1x IEEE1394 port
12. Miscellaneous
• ATX form factor: 305 x 245 mm
 Specifications and information contained herein are subject to change without notice.
AT8 32X

Introduction 1-3
1-2. Layout Diagram
User’s Manual

1-4 Chapter 11-4 Chapter 1
AT8 32X AT8 32X

Hardware Setup 2-1
Chapter 2. Hardware Setup
Before the Installation: Turn off the power supply switch (fully turn off the +5V standby power), or
disconnect the power cord before installing or unplugging any connectors or add-on cards. Failing to do
so may cause the motherboard components or add-on cards to malfunction or damaged.
2-1. Install The Motherboard
Most computer chassis have a base with many mounting holes to allow a motherboard to be securely
attached and at the same time, prevented from short circuits. There are two ways to attach the
motherboard to the chassis base:
1. use with studs
2. or use with spacers
In principle, the best way to attach the board is to
studs. Only if you are unable to do this should
you attach the board with spacers. Line up the
holes on the board with the mounting holes on the
chassis. If the holes line up and there are screw
holes, you can attach the board with studs. If the
holes line up and there are only slots, you can
only attach with spacers. Take the tip of the
spacers and insert them into the slots. After doing
this to all the slots, you can slide the board into
position aligned with slots. After the board has been positioned, check to make sure everything is OK
before putting the chassis back on.
ATTENTION: To prevent shorting the PCB circuit, please REMOVE the metal studs or spacers if they
are already fastened on the chassis base and are without mounting-holes on the motherboard to align with.
User’s Manual

2-2 Chapter 2
2-2. Install CPU, Heatsink and Fan Assembly
Please pay attention to the following notices
before installing the CPU and heatsink/fan
assembly.
1. Always use the processor with the
Heatsink and Fan Assembly installed.
2. Do not touch the pins on the processor.
3. If you ever need to reinstall the Heatsink
and fan Assembly, please clean the
heatsink surface and apply new thermal
interface material first.
1. Pull out the socket locking lever slightly,
then lift it up.
2. Align the corner with triangle mark of the
processor with the marking on the motherboard,
and then place the processor vertical down into
the socket.
3. Lower the locking lever to the fully locked
position.
Apply thermal interface material.4.
5. Place the heatsink and fan assembly onto
the retention frame. Match the heatsink clip
with the socket mounting lug. Hook the spring
clip to the mounting lug.
AT8 32X

Hardware Setup 2-3
6. On the other side, push the retention clip
straight down to lock into the plastic lug on the
retention frame.
7. Turn the cam lever to lock into the retention
frame.
8. Attach the four-pin power plug from the
heatsink and fan assembly to the CPU FAN
connector.
For detailed information on how to install your
heatsink and fan assembly, please refer to the
instruction manual that came packed with the
heatsink and fan assembly you bought.
User’s Manual

2-4 Chapter 2
2-3. Install System Memory
This motherboard provides four 184-pin DDR DIMM sockets for Single/Dual Channel DDR 400/333/200
memory modules with memory expansion size up to 8GB.
Table 2-1. Valid Memory Configurations
Bank Memory Module Total Memory
Bank 0, 1 (DIMM1) 256, 512MB, 1GB, 2GB 256MB ~ 2GB
Bank 2, 3 (DIMM2) 256, 512MB, 1GB, 2GB 256MB ~ 2GB
Bank 4, 5 (DIMM3) 256, 512MB, 1GB, 2GB 256MB ~ 2GB
Bank 6, 7 (DIMM4) 256, 512MB, 1GB, 2GB 256MB ~ 2GB
Total System Memory 256MB ~ 8GB
Table 2-2. Unbuffered DIMM Support For AMD 939-pin Processor
Default Setting
Data Bus DIMM1 DIMM2 DIMM3 DIMM4
1T 2T
Single rank N/A Empty N/A DDR400 DDR400
Double rank N/A Empty N/A DDR400 DDR400
Empty N/A Single rank N/A DDR333 DDR333
Empty N/A Double rank N/A DDR400 DDR400
Single rank N/A Single rank N/A DDR333 DDR400
Single rank N/A Double rank N/A DDR200 DDR400
Double rank N/A Single rank N/A DDR200 DDR400
64-bits
(Single
Channel)
Double rank N/A Double rank N/A DDR200 DDR333
Single rank Single rank Empty Empty DDR400 DDR400
Double rank Double rank Empty Empty DDR400 DDR400
Empty Empty Single rank Single rank DDR333 DDR333
Empty Empty Double rank Double rank DDR400 DDR400
Single rank Single rank Single rank Single rank DDR333 DDR400
Single rank Single rank Double rank Double rank DDR200 DDR400
Double rank Double rank Single rank Single rank DDR200 DDR400
128-bits
(Dual
Channel)
Double rank Double rank Double rank Double rank DDR200 DDR333
AT8 32X

Hardware Setup 2-5

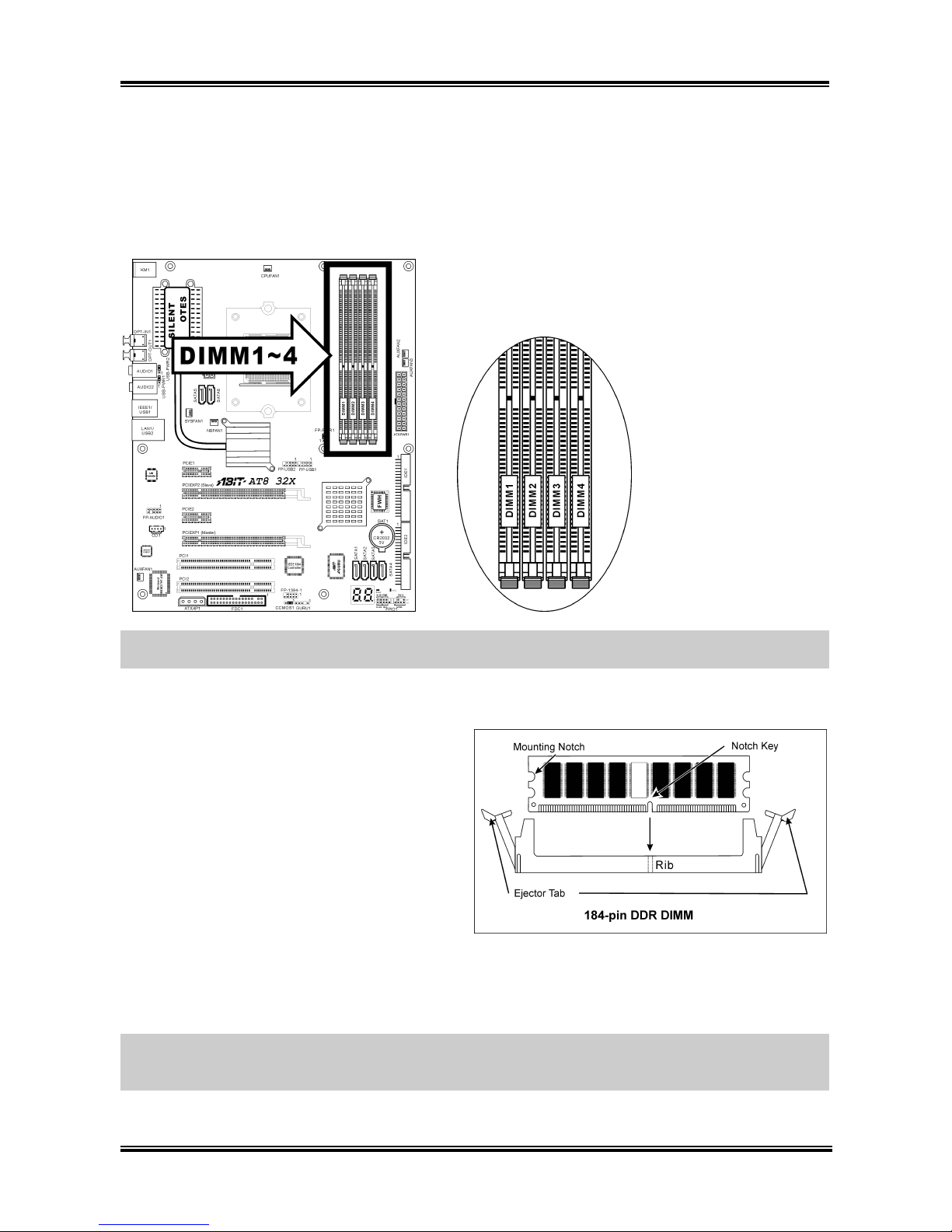

To reach the performance of Dual Channel DDR, the following rules must be obeyed:
• When installing TWO DIMM modules: Install DIMM modules of the same type and size for
slots [DIMM1]+[DIMM2] or slots [DIMM3]+[DIMM4].
• When installing FOUR DIMM modules: Install DIMM modules of the same type and size for
slots [DIMM1]+[DIMM2], and slots [DIMM3]+[DIMM4].
NOTE: Usually there is no hardware or BIOS setup requires after adding or removing memory modules,
but you will have to clear the CMOS memory first if any memory module related problem occurs.
Power off the computer and unplug the AC power cord before installing or removing memory modules.
1. Locate the DIMM slot on the board.
2. Hold two edges of the DIMM module
carefully, keep away of touching its
connectors.
3. Align the notch key on the module with the
rib on the slot.
4. Firmly press the module into the slots until
the ejector tabs at both sides of the slot
automatically snaps into the mounting notch.
Do not force the DIMM module in with extra
force as the DIMM module only fit in one direction.
5. To remove the DIMM modules, push the two ejector tabs on the slot outward simultaneously, and
then pull out the DIMM module.
ATTENTION: Static electricity can damage the electronic components of the computer or optional
boards. Before starting these procedures, ensure that you are discharged of static electricity by touching a
grounded metal object briefly.
User’s Manual

2-6 Chapter 2
2-4. Install Graphics Card(s)
This motherboard supports two graphics modes: Normal Mode for single PCIE graphics card and
CrossFire Mode for one CrossFire™Edition graphics card and one CrossFire™compatible graphics card.
NOTE: The ATI CrossFire™technology currently supports the Windows XP Service Pack 2 operating
system only.
Normal Mode: Insert your PCIE graphics
card into PCIEXP1 or PCIEXP2 slot.
CrossFire Mode: Insert one CrossFire™
Edition graphics card into PCIEXP1
(Master) slot and one CrossFire™
compatible graphics card into PCIEXP2
(Slave) slots.
AT8 32X

Hardware Setup 2-7
CrossFire Mode:
To enable CrossFire Mode, you will need to:
• Prepare one CrossFire™Edition graphics card and one CrossFire™compatible graphics card.
• Make sure the graphics card driver supports the ATI CrossFire™technology. Download the
latest driver from ATI website (www.ati.com).
• Make sure your power supply unit is sufficient to provide the minimum power required.
1. You need a CrossFire™Edition ATI
graphics card to enable the CrossFire mode.
Note that there’s a unique CrossFire™
DMS-59™connector on the bracket of a
CrossFire™Edition graphics card.
2. Insert the CrossFire™Edition graphics card
into PCIEXP1 (Master) slots on the
motherboard.
3. You also need a CrossFire™compatible
PCI Express graphics card for the slave slot.
Note that there’s no CrossFire™DMS-59™
connector on the bracket of the slave card.
4. Insert the CrossFire™compatible PCI
Express graphics into the PCIEXP2 (Slave) slot.
User’s Manual

2-8 Chapter 2
5. Locate the DMS-59™to interconnect cable
in the package.
6. There are 3 connectors on the DMS-59™
interconnect cable as shown in above
illustration:
Connector 1 is a DMS-59™Male connector;
Connector 2 is a DVI-I Female connector;
Connector 3 is a DVI-I Male connector.
7. Connect the DMS-59™Male connector on
the cable to the DMS-59™connector on the
CrossFire™Edition graphics card.
8. Connect the DVI-I Male connector on the
cable to the DVI-I connector on the CrossFire™
compatible PCI Express graphics card. Then
connect the DVI-I Female connector on the
cable to your monitor.
AT8 32X

Hardware Setup 2-9
2-5. Connectors, Headers and Switches
Here we will show you all of the connectors, headers and switches, and how to connect them. Please read
the entire section for necessary information before attempting to finish all the hardware installation inside
the computer chassis. A complete enlarged layout diagram is shown in Chapter 1 for all the positions of
connectors and headers on the board that you may refer to.
WARNING: Always power off the computer and unplug the AC power cord before adding or removing
any peripheral or component. Failing to do so may cause severe damage to your motherboard and/or
peripherals. Plug in the AC power cord only after you have carefully checked everything.
(1). ATX Power Input Connectors
This motherboard provides two power connectors to connect ATX12V power supplier.
NOTE: This 24-pin power connector “ATXPWR1” is compliant to the former 20-pin type. Pay attention
to the orientation when attaching the power cord. (Pin-11, 12, 23, and 24 should be left un-connected).
Note: It is recommended to connect to a power with 350W, 20A +5VDC capacity at least for heavily
loaded system, and a 2A +5VSB capacity at least for supporting wake-up features.
The auxiliary 12V power connector [ATX4P1]
p
rovides an additional power
source for devices added on PCI Express slots. It is highly recommended to
attach 12V power from the power supplier for the best system stability.
User’s Manual

2-10 Chapter 2
(2). FAN Power Connectors
These connectors each provide power to the cooling fans installed in your system.
• CPUFAN1: CPU Fan Power Connector
• SYSFAN1: System Fan Power Connector
• NBFAN1: Chipset Fan Power Connector
• AUXFAN1, AUXFAN2 AUXFAN3: Auxiliary Fan Power Connector
WARNING: These fan connectors are not jumpers. DO NOT place jumper caps on these connectors.
GURU Clock Connection Header (3).
This header is reserved for connecting ABIT’s exclusive GURU Clock.
AT8 32X

Hardware Setup 2-11
(4). CMOS Memory Clearing Header
This header uses a jumper cap to clear the CMOS memory.
• Pin 1-2 shorted (default): Normal operation.
• Pin 2-3 shorted: Clear CMOS memory.
WARNING: Turn the power off first (including the +5V standby power) before clearing the CMOS
memory. Failing to do so may cause your system to work abnormally or malfunction.
(5). Internal Audio Connectors
These connectors connect to the audio output of internal CD-ROM drive or add-on card.
User’s Manual

2-12 Chapter 2
(6). Front Panel Switches & Indicators Headers
This header is used for connecting switches and LED indicators on the chassis front panel.
Watch the power LED pin position and orientation. The mark “+” aligning to the pin in the figure below
stands for positive polarity for the LED connection. Please pay attention to connect these headers. A
wrong orientation will simply cause the LED to not light, but a wrong connection of the switches could
cause system malfunction.
• HLED (Pin 1, 3):
Connects to the HDD LED cable of chassis front panel.
• RST (Pin 5, 7):
Connects to the Reset Switch cable of chassis front panel.
• SPK (Pin 15, 17, 19, 21):
Connects to the System Speaker cable of chassis.
• SLED (Pin 2, 4):
Connects to the Suspend LED cable (if there is one) of chassis front panel.
• PWR-ON (Pin 6, 8):
Connects to the Power Switch cable of chassis front panel.
• PLED (Pin 16, 18, 20):
Connects to the Power LED cable of chassis front panel.
AT8 32X
