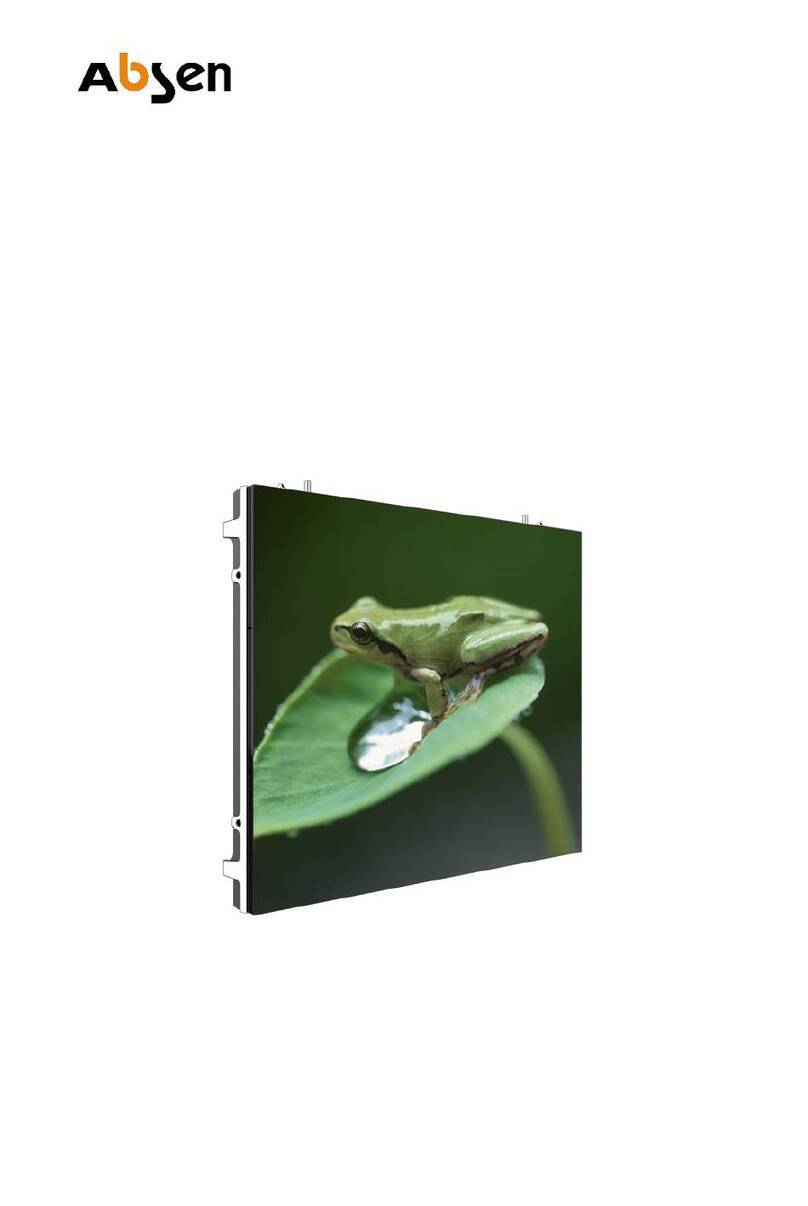

Absen A27 V3 Series User manual

A27 V3 Series Product User Manual
A2712 V3/A2715 V3/A2719 V3/A2725 V3
Shenzhen Absen Optoelectronic Co.,Ltd.

1
CONTENT
Safety Information.................................................................................................................................. 2
1 Product Introduction....................................................................................................................... 5
1.1 Product application scenarios.................................................................................................7
1.2 Main features.............................................................................................................................7
1.3 Product parameters..................................................................................................................9
2 Introduction of Product Components.......................................................................................10
2.1 Product size introduction.......................................................................................................10
2.2 Introduction of cabinet components.................................................................................... 11
3 Preparation before installation...................................................................................................14
3.1 Installation tools......................................................................................................................14
3.2 Installation environment requirements................................................................................15
3.3 Precautions before installation............................................................................................. 15
4 Product Installation....................................................................................................................... 17
4.1 Steel structure installation.....................................................................................................17
4.2 Wall mounting......................................................................................................................... 18
4.3 Hanging installation................................................................................................................19
5 Product Wiring................................................................................................................................ 21
5.1 Preparation before connection............................................................................................. 21
5.2 Power cable connection........................................................................................................ 21
5.3 Signal cable connection........................................................................................................ 22
5.4 The test of setting up an electric circuit.............................................................................. 24
6 Product Maintenance.................................................................................................................... 25
6.1 Preparation Tools....................................................................................................................25
6.2 Module maintenance............................................................................................................. 25
6.3 Adapter board/receiving card/power supply maintenance...............................................26
6.4 Product maintenance precautions....................................................................................... 28
6.5 Troubleshooting...................................................................................................................... 30

A27 V3 Series Product User Manual
2
SAFETY INFORMATION
The following marks on the product and in this manual indicate important safety
measures.
WARNING: Be sure to understand and follow all safety guidelines, safety instructions,
warnings and precautions listed in this manual. This product is for professional use only!
This product may result in serious injury or death due to fire hazard, electric shock, and
crushing hazard.
Please read this manual carefully before installing, powering up, operating and maintenance of
this product. Follow safety instructions in this manual and on the product. If you have any
questions, please seek help from Absen.
Beware of Electric Shock!
• To prevent electric shock the device must be properly grounded during installation. Do
not ignore using the grounding plug, or else there is a risk of electric shock.
• During a lightning storm, please disconnect the device’s power supply, or provide other
suitable lightning protection. If the equipment is not in use for a long time, please unplug the
power cable.
• When performing any installation or maintenance work (e.g. removing the fuses, etc.,) make
sure to turn off the master switch.
• Disconnect AC power when the product is not in use, or before disassembling, or installing
the product.
• The AC power used in this product must comply with local building and electrical codes, and
should be equipped with overload and ground fault protection.
• The main power switch should be installed at a location near the product and should be
clearly visible and easily reached. This way in case of any failure the power can be promptly
disconnected.
• Before using this product check all electrical distribution equipment, cables and all connected
devices, and make sure all meet current requirements.
• Use appropriate power cables. Please select the appropriate power cable accableing to the
required power and current capacity, and ensure the power cable is not damaged, aged or wet.

A27 V3 Series Product User Manual
3
If any overheating occurs, replace power cable immediately.
• For any other questions, please consult a professional.
Beware of Fire!
• Use a circuit breaker or fuse protection to avoid fire caused by power supply cables
overloading.
• Maintain good ventilation around the display screen, controller, power supply and other
devices, and keep a minimum 0.1 meter gap with other objects.
• Do not stick or hang anything on the screen.
• Do not modify the product, do not add or remove parts.
• Do not use the product in case ambient temperature is over 55 ℃.
Beware of Injury!
• Warning: Wear a helmet to avoid injury.
• Ensure any structures used to support, fix and connect the equipment can withstand at least
10 times the weight of all the equipment.
• When stacking products, please hold products firmly to prevent tipping or falling.
• Ensure all components and steel frames are securely installed.
• When installing, repairing, or moving the product, ensure the working area is free of obstacles,
and ensure the working platform is securely and stably fixed.
• In the absence of proper eye protection, please do not look directly at the lit screen from
within a 1 meter distance.
• Do not use any optical devices that have converging functions to look at the screen to avoid
burning the eyes.
WARNING: Beware of suspended loads.
LED lamps used in the module are sensitive and can be damaged by ESD (electrostatic
discharge). To prevent damage to LED lamps, do not touch when the device is running
or switched off.
WARNING: The manufacturer shall not bear any responsibility for any incorrect, inappropriate,
irresponsible or unsafe system installation.
Product Disposal
• Any component that has a recycling bin label can be recycled.
• For more information on collecting, reusing and recycling, please contact the local or regional
waste management unit.
• Please contact us directly for detailed environmental performance information.

A27 V3 Series Product User Manual
4
Warning: Changes or modifications to this unit not expressly approved by
the party responsible for compliance could void the user’s authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la classe B est conforme a la norme NMB-003
du Canada.

A27 V3 Series Product User Manual
5
1 Product Introduction
The "∞" element in design implies a visual feast full of infinite possibilities. The
elegant black appearance shows Absen's unwavering efforts in the display
industry, and its confidence and commitment to offering high-quality products.
The A27 V3 series is specifically designed for high-end enterprises, high-end
retail and other fields to develop indoor high-definition fixed display screens.
The panel size is 610x343mm and is designed in a 27.5 inch 16:9 ratio. The
2x2 panel size is exactly 55 inches, which can perfectly replace the 55 inch
LCD splicing wall and achieve seamless splicing.

A27 V3 Series Product User Manual
6
High definition image quality, enjoying the giant screen. The panel is designed
in a 27.5-inch 16:9 ratio, providing multiple pixel pitch products, making it easy
to build a point-to-point 2K/4K/8K large screen. Customers can easily get the
best high-definition visual experience under different viewing distances.
APS energy-saving technology, low-carbon and environmentally friendly. Using
Absen APS energy-saving technology *, precise power supply, efficient energy
saving, resulting in a power consumption reduction of over 30% compared to
A27 PLUS.
Overcurrent protection, stable operation. By using overcurrent protection
technology, module components can be protected when abnormal currents
occur externally; When components experience short circuits or internal faults
due to various reasons, major accidents such as fires can be avoided.
Lightweight design, with a panel thickness of only 44.5mm and a weight of only
24kg/㎡, it is Lightweight and stylish.
A5C+point by point correction technology, extremely realistic. Adopting
A5C+point by point correction technology, effectively improving screen display
uniformity and color consistency, significantly increasing color saturation, and
restoring the true field of view.
Professional color management is amazing. Thanks to Absen's professional
color management technology, adaptive video source color gamut, full color
display, high-definition, rich dark texture, and precise color display.
Wide visual angle and high color consistency. The entire series has a visual
angle of 160/160, with uniform color presentation, and no color deviation when
viewed from anywhere within the visual range.
Highlight, fearless of sunlight. After calibration, the brightness of the A2712/15
V3 series can reach 800nit; After calibration, the brightness of the A2719/25 V3
series can reach 1000nit.
The module automatically reads back data. Replacing the module does not
require manually loading the configuration file, and it will automatically display
normally after power outage and restart.

A27 V3 Series Product User Manual
7
Dual card and dual power versions provide effective protection. The dual card
and dual power version can be configured to ensure uninterrupted screen
display and stable information transmission, making it more suitable for scenes
such as control rooms and radio and television studios
1.1 Product application scenarios
This product is mainly used in the following application scenarios (indoor):
Retail: display screens at the entrance of the store, pillar screens inside the
store, and large wall display screens inside the store;
Enterprises: corporate lobby, corporate exhibition hall, corporate conference
room, monitoring center, etc;
1.2 Main features
1.2.1 Structural design
The module adopts a bottomless design, with higher splicing accuracy.
The module is connected to the HUB using high-precision floating
connectors, which are installed in a wireless plug type and support
adjusting the splicing gaps between the modules from top to bottom, left to
right.
The display unit adopts a die-cast aluminum panel frame, with high splicing
accuracy.
The internal structure of the panel adopts a hard connected modular design
and innovative integrated power supply base design, ensuring safety and
stability.
Levelness adjustment connecting plates are installed inside the panel , wall
mounting and hanging support manual adjustment of front and rear
flatness.
The panel supports XYZ three axis and six direction adjustment, achieving
better flatness between the panel and the panel .

A27 V3 Series Product User Manual
8
Support front installation, front or rear wiring, and support hanging, wall
mounting, and steel structure installation methods.
The bottom of the panel is designed with a protective lamp stand to reduce
lamp drop during floor and splicing installation.
The rear cover of the panel adopts a rotary shaft type buckle design, which
can meet the needs of fast rear wiring without removing the cover.
The product comes standard with an exquisite edge trim design scheme.
The receiving card adopts high-precision connectors for docking, which is
stable, reliable, and convenient for maintenance.
1.2.2 Feature design
The panel supports signal and power backup, with dual receiving cards and
dual power configurations.
The pixel design of the panel meets the 16:9 ratio, which can achieve
point-to-point 2K/4K/8K.
Adopting advanced hidden circuit design, there is no "caterpillar" or "ghost"
phenomenon.
Adopting PWM constant current output high-end chips, achieving high gray
in low brightness, rich color levels, and precise presentation of details.
Adopting Absen A5C+ point by point chromaticity and brightness correction
technology to improve display consistency and make colors more natural
and accurate. The module is equipped with a module that can store
correction parameters.
Equipped with black screen and partial black screen dynamic
energy-saving function, the dynamic energy-saving mode is automatically
activated during use, which is efficient and energy-saving (not supported by
A2725 V3).
The product meets the EMC Class B civilian level radiation requirements.
Through the German Rhine TÜV low blue light certification, it filters out
harmful blue light and takes care of the eyes.
The panel supports signal loop backup.
The attenuation coefficient is set for a single module to ensure that there is
no color difference after maintenance and replacement.
The software has the function of adjusting the light and dark lines with one
click.
The calibration data can be stored on the receiving card and the module
itself, and the software can read back the data from both.
The external test button and indicator light make the panel testing and
operation status clear at a glance.

A27 V3 Series Product User Manual
9
1.3 Product parameters
Parameters
A2712 V3
A2715 V3
A2719 V3
A2725 V3
Physical Parameter
Diode Type
SMD1010
CHIP
SMD1010
CHIP
SMD1515
SMD2121
Pixel Pitch (mm)
1.2
1.5
1.9
2.5
Panel Dimensions (WxHxD)/(mm)
610*343*44.5
Pixel Per Panel
480*270
384*216
320*180
240*135
Panel Weight (kg)
10.5
10.5
10.4
10.3
Panel Material
Die-cast aluminum
Module Dimensions (WxH)/(mm)
152.5*343
Optical
Parameter
Brightness (nit)
800~1000nits
Refresh Rate (Hz)
3840
Gray scale (bit)
14 bit
Contrast Ratio
4000:1
4500:1
4500:1
4000:1
Color Temperature (K)
6500
Viewing Angle (H/V) (°)
160/160
160/160
160/160
160/160
Driving Type
1/45
1/48
1/40
1/27
AC Operating Voltage (V)
100~240
Power Consumption (Max./Avg.)(W/m²)
561/187
540/180
471/157
300/100
Application
Parameter
Storage Temperature
-40～+60
Operating Temperature
-10～+40
Storage Humidity
10%～85%
Operating Humidity
10%～80%
LED Lifetime
100000
Installation/Maintenance
Module maintenance
Full front
Power & other maintenance
Full Front
Installation method
Hanging, Wall mounting and Stacking
EMC level
CLASS B (The dual backup version only supports Class A)
Certification
CCC/CE/FCC/ETL/ROHS/TUV/CB/UKCA
Note: Power consumption tolerance: ±15%, according to the actual situation.

A27 V3 Series Product User Manual
10
2 Introduction of Product Components
2.1 Product size introduction
2.1.1 Cabinet size drawing
2.1.2 Module size drawing
610mm
343mm
343mm
152.5mm

A27 V3 Series Product User Manual
11
2.2 Introduction of cabinet components
2.2.1 Introduction to Panel Structure
Panel handle
Anti-slip left/right handle
Wire hole
Power cable : inlet hole
Power cable : outlet hole
Signal cable : inlet or outlet hole
Signal cable : inlet or outlet hole

A27 V3 Series Product User Manual
12
Note: Supports both horizontal and vertical wiring. The default vertical wiring is
configured when placing an order, and the panel comes with connecting screws
2.2.2 Introduction to Adjusting the Flatness of Panel Structure
In addition to the XYZ three axis and six direction adjustment, a new method for
adjusting the flatness of the connecting plate inside the panel is added, which
can also be used for wall mounting with higher accuracy and better display
effect.
Positioning column
frame mounting hole/connecting plate mounting hole
pilot lamp

A27 V3 Series Product User Manual
13
Adjustment method for flatness of steel structure installation:
Left and right adjustment holes Front and rear adjusting holes Upper and lower adjusting holes
Adjustment method for the flatness of the front and rear connecting plate in the
wall mounting installation and hanging installation

A27 V3 Series Product User Manual
14
3 Preparation before installation
3.1 Installation tools
Installation
Tool List
Tool type
function
knife
Open the cabinet
Hexagon
screwdriver
Install and remove the hexagon
socket screws
6mm T-wrench
Install the connecting plate
screws
5mm T-wrench
Install the "Z" axis adjustment
screw
Socket hexagon
wrench
Install the screws between the
LED cabinets
PH2 screwdriver
Maintenance and
disassembly
Module & power supply &
Multimeter
Measuring power cable and
distribution cabinet
Spirit level
Check the flatness of the
cabinet installation
Rubber hammer
Adjusting the flatness of the
panel structure
Front
maintenance
tool
Install& maintain the LED
module
Diagonal pliers
Handling cable ties when
arranging cables
tape measure
Measure the distance
Laser level
Measuring installation position

A27 V3 Series Product User Manual
15
3.2 Installation environment requirements
1. The small spacing series requires on-site temperature and humidity testing to
ensure that the temperature is within 35 ℃and the humidity is within 70% RH;
2. When the temperature exceeds (35 ℃, 70% RH), the product cannot be
installed on site;
3.3 Precautions before installation
Before installation
1. Determine the power distribution plan:
Provide a specific power distribution plan based on the size and arrangement
order of the actual display screen, determine the specifications and quantity of
the power distribution panel , main power lines, and the number of power lines
connected to the cabinet. Determine the specifications and quantity of the
sending panel and video processor, as well as the number of network cables,
based on the total pixel points and arrangement order.
2. Power distribution precautions
①The wiring should be neat, horizontal and vertical, and non cable cables
must be laid with wire slots or conduits;
②The signal line and power line are laid separately to avoid interference;
③The wiring should consider three-phase power balance, and try to have an
equal number of display panel es for each phase of electrical load;
④The cable head needs to be pressed with wire terminals;
⑤Encode the wire ends, and ensure that the overall distribution diagram is
consistent with the actual wiring for easy troubleshooting in the future;
⑥Under the premise of considering the safe carrying capacity, lay the cables
from the distribution panel to the display screen panel based on the actual
arrangement of the panel;
⑦Long distance wiring, considering line loss voltage, to ensure that the display
terminal voltage is within the allowable range;

A27 V3 Series Product User Manual
16
3. Tool preparation: commonly used tools for screen installation, including
matching and preparing models with tools such as screwdrivers, wrenches, and
multimeters.
During installation
4. Installation of distribution panel : The installation of distribution panel must
be firm and reliable. Reliable protective grounding.
5. Panel installation: equipment handling. Adequate manpower must be
provided to ensure safety. Pay attention to handling with care and avoid
damaging the appearance and function of the panel due to collision. Install the
display screen and check if the magnet legs are tightened. Confirm that the
power cord and network cable are connected in place and correctly, the
network cable is inserted in place, and the screen connection sequence is
correct.
6. Wiring sequence: First, connect the panel in series with a power cord
connected to the panel, and then connect the main power cord from the
distribution panel or socket to the bottom layer of the panel.
7. Power connection: Firstly, confirm that the power supply end is in a
"disconnected" state and must start connecting from the power consumption
end (equipment switch or distribution panel , etc.). Only after checking the
correct connection of the power supply end can the power supply end be
connected. First, connect the protective grounding, then connect the zero line,
and finally connect the phase line. After connecting to the power supply: Check
the power supply switch or equipment distribution voltage, confirm that there
are no errors, and then "disconnect" the power supply. The power cord must be
distinguished by color for ground wire, neutral wire, and phase wires such as A,
B, and C.
8. Panel adjustment: Check if the display screen is flat and clean. Perform
micro silicon adjustment on the gaps between modules and between panel es.
When installing, be sure to lock the panel tightly with screws to ensure the
smoothness of the left, right, top, and bottom between the panels.
9. Power test: Before supplying power to the entire screen and providing control
signals, please carefully check whether the power and signal lines are
connected correctly; Please carefully check the "L" line, "N" line, and "PE" line
on the AC power input port of each panel to ensure that there is no short circuit
between the three (measured with a multimeter).
10. Power on detection: Fault diagnosis, checking the appearance of the
power on detection for any broken screen and correct text output; If a fault
occurs, make a judgment based on the fault phenomenon and eliminate the

A27 V3 Series Product User Manual
17
fault.
4 Product Installation
4.1 Steel structure installation
Install layer by layer from bottom to top. First, lock the connecting screws
between the panels, and then use connecting plates and M8x55mm screws to
fix them on the square joint. Install M6x50mm "Z" axis adjustment screws on
the connecting plates.
After the installation of the panel is completed, confirm that the wires are
connected before installing the module on the panel according to its number.
Connecting piece M8 * 55mm fixing screw
Z-axis adjustment screw

A27 V3 Series Product User Manual
18
4.2 Wall mounting
Step 1: Use M6 self tapping screws or M6 expansion screws to fix the frame on
a flat wall. Single or double frames are optional.
Step 2: Install the hanging nails on the installation holes on the back of the
panel, and each frame needs to install 4 hanging nails.
Step 3: Install the panel frame (excluding the module) on the frame: layer by
layer from bottom to top, and complete the installation of the inner connecting
plate.

A27 V3 Series Product User Manual
19
Step 4: Connect the signal cable and power cable Step after installing the
panel.
Step 5: Install the module, paying attention to the corresponding numbering of
the module and the panel.
4.3 Hanging installation
Use screws on the top and bottom of the panel to connect the hanging bar. The
hanging bar can lift up to 20 panels, and internal connecting plates need to be
installed. Single and double hanging bars are optional.
