Abtus MAX-HDBT62MU-P User manual

ABtUS SINGAPORE PTE LTD www.abtussingapore.com
ABtUS SIGAPORE PTE LTD www.abtussingapore.com
4K HDBT
6x2 HDMI 2.0
Matrix Switcher
Model:
MAX-HDBT62MU-P
rev.2021.11Nov.24

User Operation Guide
*Specications are subject to changes without notice.
2
PRODUCT DESCRIPTION
FEATURES
The MAX-HDBT62MU/P is a 6x2 HDBaseT Matrix Switcher which can support resolution
up to 4K@60Hz@4:4:4 HDR. It comprises of four HDMI inputs, one USB-C input, one
HDBT input, one HDBT output and one HDMI output. The matrix has two unbalanced
audio inputs and outputs for audio embedding and audio de-embedding.
The MAX-HDBT62MU/P uses a global standard HDBT technology which allows HDMI
signals to be transmitted up to 100m over a CAT cable without compromising the video
quality. This means that the MAX-HDBT62MU/P HDBT is compatible with any displays
and receivers that support HDBT.
Another feature of the matrix switcher is that it comes with an auto switching capability
whereby the switcher can switch its source via 5V or TMDS activity at the inputs. The
MAX-HDBT62MU/P can be controlled using different protocols such as Web GUI,
RS232, Ethernet, IR and CEC.
• Auto-switchingcapability
• SupportsHDMIVersion2.0
• HDCPV2.2compliant
• HDBToutputsupportstransmissiondistanceofupto70mfor4kresolution
• HDBToutputsupportstransmissiondistanceofupto100mfor1080presolution
• UsesglobalstandardHDBTtechnologythatcansupportanyHDBTenabledequipment..
• Comprisesof2unbalanceinputandoutputaudioportforaudiode-embeddingandembedding
• Allowsvolumecontrolusingthebuiltinvolumeknoborcontrolprotocols.
• Built-inwithanEDIDmanagementsystemwithnoadditionalsoftwareinstallationrequired.
• SupportsdownscalingonHDBToutputandupscalingonHDMIoutput.
• SupportscontrolprotocolssuchasRS232,TCP/IP,CEC,UI

*Specications are subject to changes without notice. 3
No. Name Description
1 IR Built-in IR sensor for receiving IR signals from IR remote to control the matrix.
2 Power The LED illuminates blue when the device is powered on,
red when the device is in standby mode.
3 INPUTS Total seven buttons with blue LED
  ●HDMI1inputselector.
  ●HDMI2inputselector.
  ●HDMI3inputselector.
  ●HDMI4inputselector.
  ●USBCinputselector.
  ●HDBTinputselector.
  ●Autoswitchingmodeselector.
4 OUTPUT Two buttons with blue LED.
  ●HDBToutputselector.
  ●HDMIoutputselector
5 VOLUME ●PressthevolumeknobintotoggleamongAUDIO1andAUDIO2output 
audio control, and the corresponding LED will illuminate blue.
  ●Rotatetheknobtoincreaseordecreasethevolumeoftheselectedaudio.
  ●Pressandholdtheknobatleastthreesecondstomute/unmutetheselectedaudio.
PANEL DESCRIPTIONS
Note: Pictures shown in this manual are for reference only, different model and specifications are subject to real product.
Front Panel
13 4 5 2

User Operation Guide
*Specications are subject to changes without notice.
4
PANEL DESCRIPTIONS
No. Name Description
1 INPUTS A total of six video inputs and three audio inputs.
  ●HDMI 1~4: Connects to HDMI source devices.
  ●USB-C Connects to USB-C source devices.
  ●HDBT: Connects to the HDBT output of a compatible transmitter to receive AV signal.
  ●LINE 1: Connects to audio source device for audio embedding.
  ●LINE 2: Connects to audio source device for audio embedding.
2 OUTPUT ●HDBT: Connects to the HDBT input of a compatible receiver to extend AV signal, IR
and RS232 control signal.
  ●HDMI: Connects to the video display device.
  ●AUDIO 1:Connectstoaudioplaybackdeviceforaudiode-embedding.Theaudio
output can be de-embedded from the HDBT or HDMI output selected via RS232
command. It’s de-embedded from HDBT output by default.
  ●AUDIO 2: Connectstoaudioplaybackdeviceforaudiode-embedding.Theaudio
output can be de-embedded from the HDBT or HDMI output selected via RS232
command. It’s de-embedded from HDMI output by default.
3 CONTROL ●TCP/IP: Connects to a control device (e.g. PC) to control the switcher by GUI.
  ●RS232 (Control): Connects to the control device (e.g. PC) to control the switcher by
sending RS232 commands.
  ●RS232 (Passthrough): Connects to the control device (e.g. PC) or a third-party
device for RS232 pass-through control.
  ●FIRMWARE: Type-A USB port for firmware upgrade. Also supplies DC 5V 1A
 ●SYSTEM IR: Connects to IR receiver to control the switcher by the IR remote.
 ●IR IN: Connects to IR receiver for IR pass-through control.
  ●IR OUT: Connects to IR emitter for IR pass-through control.
4 DV 24V DC connector for the power adapter connection.
Rear Panel
1 2 4
3

*Specications are subject to changes without notice. 5
SYSTEM CONNECTION
HDMI In HDMI In HDMI In HDMI In USB-C In HDBT In
HDMI Out
AmplifierSpeaker
System
IR
HDBT
Transmitter
Central
Control
System
Third
Party
Device
LAN
Control
HDBT Out Audio Out Audio Out
ABtUS
MAX-HDBT62MU/P
(backview)

User Operation Guide
*Specications are subject to changes without notice.
6
BUTTON CONTROL
When the switcher is in manual switching mode, the AUTO LED goes out. Please follow the below
steps to switch input source to output channel.
1) Press any one of six input buttons to select input source, and the corresponding LED turns blue.
2) Press either HDBT or HDMI output button to select output channel, and the corresponding LED
turns blue.
3) Press the input button again to confirm switching setting, otherwise, it will automatically confirm
after three seconds.
4)TheLEDofboththeinputsourceandtheoutputwillblinkthricetoindicatethatthechangewas
made.
Please follow the steps below to enable auto switching mode for HDBT or HDMI output.
1) Press AUTO, and the button LED turns blue.
2) Press either HDBT or HDMI output button, and the corresponding LED turns blue.
3) Press AUTO button again to confirm the setting, otherwise, it will automatically confirm after
three seconds.
4) Repeat the above three steps to exit auto mode.
(Note: the input source will remain in the current settings.)
Note: The AUTO LED illuminates blue when the HDMI output or HDBT output is in auto mode.
When in auto mode, the switcher will switch according to the following rules:
● The switcher will switch to the first available active input starting at input 1 to 6 by default. (The
switching priority can be set by RS232 command and GUI.)
● New input: The switcher will automatically select the new input once detecting a new input.
● Reboot: If power is restored to the switcher, it will automatically reconnect the input before
powered off.
● Source removed: When an active source is removed, the switcher will switch to the first available
active input according to the priority.
● In auto mode, the input source also can be switched by the manual switching steps.
PressvolumeknobtochooseAUDIO 1 or AUDIO 2 audio needs to be adjusted, the corresponding
LED will turn blue
● Adjusting the knob in clockwise direction to increase sound volume.
● Adjusting the knob in anti-clockwise direction to decrease sound volume.
● Press and hold the knob for at least three seconds to mute/unmute the selected audio.
Manual Switching
Auto Switching
Sound Volume Control

*Specications are subject to changes without notice. 7
SYSTEM OPERATIONS
IR Remote Control
Connect IR receiver to the SYSTEM IR port, the switcher can be controlled by the following IR
remote.
1) Poweron/o󰀨theswitcher.
2) Select input source.
3) Select output channel.
4) Audio output control:
 ● De-embedded audio 1 control: Mute, Volume Down
and Volume Up.
 ● De-embedded audio 2 control: Mute, Volume Down
and Volume Up.

User Operation Guide
*Specications are subject to changes without notice.
8
SYSTEM CONNECTION
GUI Control
The switcher can be controlled via TCP/IP. The default IP settings are:
IPAddress:192.168.1.10
SubnetMask:255.255.255.0
Type 192.168.1.10 in the internet browser, it will enter the below log-in webpage:
Default Username: admin
Default Password: admin
Typetheusernameandpassword,andthenclickLogintoenterthesectionforvideoswitching.

*Specications are subject to changes without notice. 9
SYSTEM CONNECTION
●HDBT OUTPUT:SelectaninputsourceforHDBToutput.ClickAUTO to enable/disable auto
switching mode.
●HDMI OUTPUT:SelectaninputsourceforHDMIoutput.ClickAUTO to enable/disable auto
switching mode.
●Settheswitchingpriorityforautoswitchingmode.
Switching Tab
1.1 Signal Switching
1.2 Auto Switching Priority Setting

User Operation Guide
*Specications are subject to changes without notice.
10
SYSTEM CONNECTION
2 Audio Tab
●AUDIO EMBEDDEDING:
●Select or deselect the external audio from LINE 1 or LINE 2 to be embedded in HDBT output.
●Select or deselect the external audio from LINE 1 or LINE 2 to be embedded in HDMI output.
●Clickoncetoselect,clickagaintodeselect
● AUDIO DE-EMBEDDEDING
●Select the HDBT output or HDMI output audio to be de-embedded through Audio 1 output.
●Select the HDBT output or HDMI output audio to be de-embedded through Audio 2 output.
●VOLUME: Volume bar; Volume down, Volume up and Mute buttons.

*Specications are subject to changes without notice. 11
●Selectthecompatiblebuilt-inEDIDfortheselectedinputsource.
●Uploaduser-defineEDIDusingthefollowingsteps:
Step 1: Prepare the EDID file (.bin) on the control PC.
Step 2: Select the user-defined option.
Step 3: Clicktheblackbox ,andthenselecttheEDIDfile(.bin)accordingly.
 Step4:ClickAPPLYtouploadtheuser-definedEDID.
SYSTEM CONNECTION
3.1 EDID Setting

User Operation Guide
*Specications are subject to changes without notice.
12
SYSTEM CONNECTION
●EnableordisableHDBToutputdownscaling.The4Kinputvideocanbedownscaledto1080p
output when HDBT output downscaling is enabled.
●EnableordisableHDMIoutputupscaling.The1080pinputvideocanbeupscaledto4Koutput
when HDMI output upscaling is enabled.
● Selecttoenable/disablePoCforHDBToutput
3.2 Scaling Setting
3.3 PoC Setting

*Specications are subject to changes without notice. 13
3.4 Fan Speed Setting
●OFF:Turnsoffthebuilt-infanofthematrixswitcher
●LOW:Setsthefanspeedtolow
●High:Setsthefanspeedtohigh

User Operation Guide
*Specications are subject to changes without notice.
14
SYSTEM CONNECTION

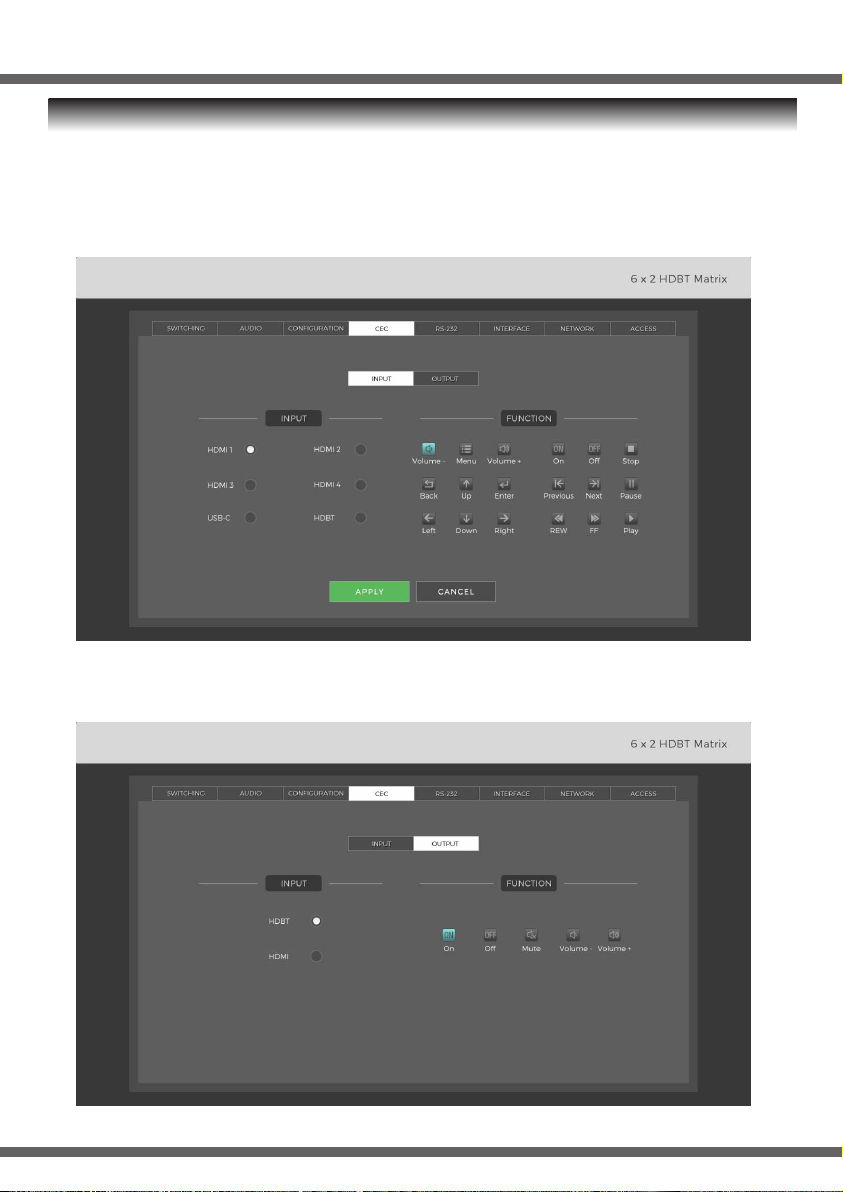

If the input source devices and display devices support CEC, they can be controlled by the below
control buttons to replace IR remote.
1) Input Source Control
● Selecttheinputsourcewhichneedstobecontrolled,thenpressthedesiredfunctionbuttons.
● Selecttheoutputdisplaywhichneedstobecontrolled,thenpressthedesiredfunctionbuttons.
2) Output Display Control
4 CEC Tab

*Specications are subject to changes without notice. 15
SYSTEM CONNECTION
5. RS-232 Tab
●SelectLocal or HDBT Out (passthrough) control mode.
 ●Local: Send RS232 commands to control the local third-party device which is connected
to the RS232 port of the switcher.
 ●HDBT Out: Send RS232 commands to remote device via HDBT.
● Set the command format to HEX or ASCII.
● Baud Rate: Select the baud rate of the device.
 Supportedbaudrates:9600,19200,38400,57600 and 115200.
● Command Ending: NULL, CR, LF or CR+LF can be chosen.
● Command: Type the desired command in this textbox to be sent.

User Operation Guide
*Specications are subject to changes without notice.
16
SYSTEM CONNECTION
6. Interface Tab
7.NetworkTab
●Title Bar Label: Modify the name of matrix switcher.
●INPUT: Modify the label of input sources.
●OUTPUT: Modify the label of outputs.
●SelectStaticIPorDynamicHostConfigurationProtocol(DHCP).
●ModifythestaticIPAddress,SubnetMask,andGatewayifrequired.

*Specications are subject to changes without notice. 17
SYSTEM CONNECTION
8.AccessTab
● Credentials: Modify the login password.
● Version: Shows the GUI and firmware version.

User Operation Guide
*Specications are subject to changes without notice.
18
SYSTEM CONNECTION
Auto-trigger CEC
Both outputs can send power on or power o󰀨 CEC commands to the TV automatically by
detecting source inputs. User can choose one output or both via RS232 command. Please refer
to page 19 (Set auto TV power command) for more details.
Power on Command
Whentherstsourceinputisdetected,theswitcherwillautomaticallysendCECcommandto
turn on the TV when the set auto TV power option is enable on the particular output.
Power o󰀨 Command
When the last source input was removed, the switcher will automatically send CEC command
toturno󰀨theTVwhenthesetautoTVpoweroptionisenableontheparticularoutput.
RS232 Control
The RS232 port of switcher has two control methods.
1) Local control: Connect the RS232 (Control) port to a control device (e.g. PC) to control the
switcher by RS232 commands.
2) Pass-through control: The RS232 (Passthrough) port is used with the RS232 port of far-end
HDBaseT receiver to control the third-party device (e.g. Projector).
RS232 commands can also be used to control the unit via TCP/IP on port 23.
RS232 Commands:
Thecommandlistsareusedtocontroltheswitcher.TheRS232controlsoftware(e.g.docklight)
needs to be installed on the control PC to send RS232 commands.
After installing the RS232 control software, please set the parameters of COM number,
baud rate, data bit, stop bit and the parity bit accordingly to ensure that software is able to
communicate correctly with the device
Baud rate: 9600
Databit:8
Stop bit: 1
Parity bit: none
Note:
● All commands needs to end with “<CR><LF>”.
● In the commands, “[”and “]” are symbols for easy reading and do not need to be typed in
actual operation.
● Type the command carefully, it is case-sensitive.

*Specications are subject to changes without notice. 19
SYSTEM CONTROL COMMANDS
4K 6X2 HDMI 2.0 HDBaseT Matrix Switcher
22
9.1 System Control Commands
Command Description Command Example and
Feedback
>SetKeyLock
[Lockparam]
Lock/ unlock front panel buttons.
[Lockparam] = On, Off
On - Locked
Off - Unlock
>SetKeyLock Off
<KeyLock Off
>GetKeyLock Get the locking status of front panel
buttons. <KeyLock Off
>FactoryReset Factory reset. <FactoryReset
>Help Get the command list.
<V1.0.0
1.">SetVideo param1 To
param2,..."
……
>SetIP
<XXX.XXX.XXX.XXX>
<YYY.YYY.YYY.YYY>
<ZZZ.ZZZ.ZZZ.ZZZ>
Set IP address.
XXX = 0 ~ 255(IP ADDRESS)
YYY = 0 ~ 255(MASK)
ZZZ = 0 ~ 255(GATE)
>SetIP <192.168.1.10> <> <>
<SetIP <192.168.1.10>
<255.255.255.0>
<192.168.0.1>
>GetIP Get the IP address. <IP:192.168.1.10>
>GetStatus Get the system status.
<V1.0.0
<Video
OUT 01 02
IN 01 02
<Audio
OUT A01 A02 01 02
IN S01 S02 S00 S00
……
>SetPower[param]
Power on/off the switcher.
>SetPower param
param = On, Off
On: power on
Off: power off
>SetPower On
<Power On
>GetPower Get power status of the switcher.
>GetPower
<Power On
>SetAutoTVPower
Set the outputs of auto-trigger power
on/off CEC command.
>SetAutoTVPower param
param = 1, 2, 3, 4
1: HDBT output
>SetAutoTVPower 1
<AutoTVPower 1

User Operation Guide
*Specications are subject to changes without notice.
20
SYSTEM CONTROL COMMANDS
4K 6X2 HDMI 2.0 HDBaseT Matrix Switcher
23
Command Description Command Example and
Feedback
2: HDMI output
3: Both HDBT and HDMI outputs
4: No output
>GetAutoTVPower Get the outputs of auto-trigger power
on/off CEC command.
>GetAutoTVPower
<AutoTVPower 1
9.2 Signal Switching Commands
Command Description Command Example and
Feedback
>SetVideo [Inparam] To
[Outparam]
Video signal switching.
[Inparam] = 01~06, ON, FF
01 - HDMI IN1
02 - HDMI IN2
03 - HDMI IN3
04 - HDMI IN4
05 – USB C IN
06 - HDBT IN ON - ON (Cancel Black
screen)
FF - OFF (Black screen)
[Outparam] = 01, 02, Null
01 - HDBT OUT
02 - HDMI OUT
Null - All outputs
>SetVideo 01 To 01
>SetVideo 01
<Video
OUT 01 IN 01
OUT 02 IN 02
>GetVideo Get the current switching status.
<Video
OUT 01 IN 01
OUT 02 IN 02
>SetAutoSwitch
[Outparam] [Staparam]
Set the auto switching mode.
[Outparam] = 01, 02, Null
01 - HDBT OUT
02 - HDMI OUT
Null - All outputs
[Staparam] = On, Off
On - Auto switching mode (Default)
Off - Manual switching mode
>SetAutoSwitch 01 On
>SetAutoSwitch On
<AutoSwitch OUT 01 On
>GetAutoSwitch Get auto switching status.
<AutoSwitch
OUT 01 02
STA On On
>SetSwitchPriority Set the switching priority in auto switching >SetSwitchPriority 06 05 04 03
