Abtus MAX-HDBT62MV/P User manual

ABtUS SINGAPORE PTE LTD www.abtussingapore.com
ABtUS SIGAPORE PTE LTD www.abtussingapore.com
4K HDBT
6x2 HDMI 2.0
Matrix Switcher
Model:
MAX-HDBT62MV/P
rev.2021.11Nov.24

2
PRODUCT DESCRIPTION
FEATURES
The MAX-HDBT62MV/P is a 6x2 HDBaseT Matrix Switcher which can support resolution
up to 4K@60Hz@4:4:4 HDR. It comprises of four HDMI inputs, One VGA input, one
HDBT input, one HDBT output and one HDMI output. The matrix has two unbalanced
audio inputs and outputs for audio embedding and audio de-embedding.
The MAX-HDBT62MV/P uses a global standard HDBT technology which allows HDMI
signals to be transmitted up to 100m over a CAT cable without compromising the video
quality. This means that the MAX-HDBT62MV/P HDBT is compatible with any displays
and receivers that support HDBT.
Another feature of the matrix switcher is that it comes with an auto switching capability
whereby the switcher can switch its source via 5V or TMDS activity at the inputs. The
MAX-HDBT62MV/P can be controlled using different protocols such as Web GUI,
RS232, Ethernet, IR and CEC.
• Auto-switchingcapability
• SupportsHDMIVersion2.0
• HDCPV2.2compliant
• HDBToutputsupportstransmissiondistanceofupto70mfor4kresolution
• HDBToutputsupportstransmissiondistanceofupto100mfor1080presolution
• UsesglobalstandardHDBTtechnologythatcansupportanyHDBTenabledequipment..
• Comprisesof2unbalanceinputandoutputaudioportforaudiode-embeddingandembedding
• Allowsvolumecontrolusingthebuiltinvolumeknoborcontrolprotocols.
• Built-inwithanEDIDmanagementsystemwithnoadditionalsoftwareinstallationrequired.
• SupportsdownscalingonHDBToutputandupscalingonHDMIoutput.
• SupportscontrolprotocolssuchasRS232,TCP/IP,CEC,UI
User Operation Guide
*Specications are subject to changes without notice.

*Specications are subject to changes without notice. 3
No. Name Description
1 IR Built-in IR sensor for receiving IR signals from IR remote to control the matrix.
2 Power The LED illuminates blue when the device is powered on,
red when the device is in standby mode.
6 INPUTS Total seven buttons with blue LED
  ●HDMI1inputselector.
  ●HDMI2inputselector.
  ●HDMI3inputselector.
  ●HDMI4inputselector.
  ●VGAinputselector.
  ●HDBTinputselector.
  ●Autoswitchingmodeselector.
4 OUTPUT Two buttons with blue LED.
  ●HDBToutputselector.
  ●HDMIoutputselector
5 VOLUME ●PressthevolumeknobintotoggleamongAUDIO1andAUDIO2output 
audio control, and the corresponding LED will illuminate blue.
  ●Rotatetheknobtoincreaseordecreasethevolumeoftheselectedaudio.
  ●Pressandholdtheknobatleastthreesecondstomute/unmutetheselectedaudio.
PANEL DESCRIPTIONS
Note: Pictures shown in this manual are for reference only, different model and specifications are subject to real product.

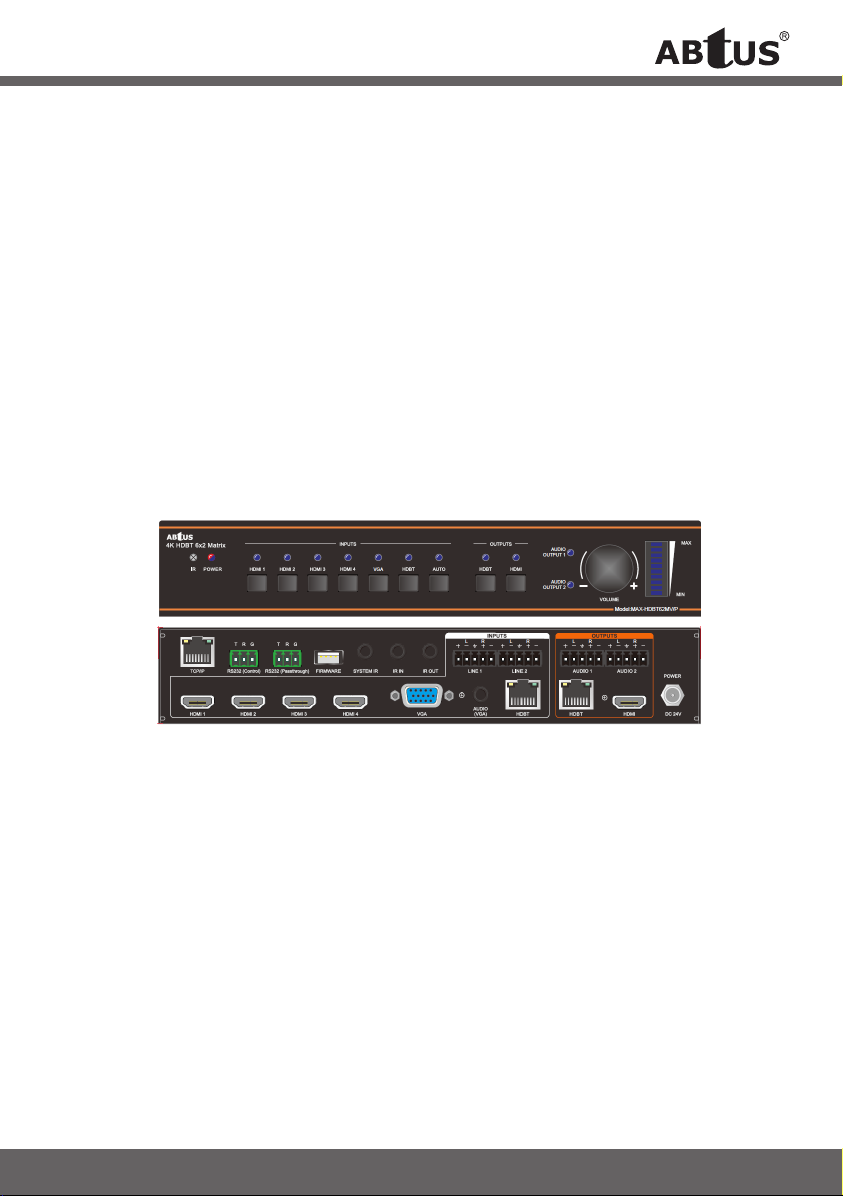

Front Panel
13 4 5 2

4
PANEL DESCRIPTIONS
No. Name Description
1 INPUTS A total of six video inputs and three audio inputs.
  ●HDMI 1~4: Connects to HDMI source devices.
  ●VGA:ConnectstotheVGAsource.Onestereoauxiliaryaudioinput(3.5mmjack)
can be embedded in the VGA video.
  ●HDBT: Connects to the HDBT output of a compatible transmitter to receive AV signal.
  ●LINE 1: Connects to audio source device for audio embedding.
  ●LINE 2: Connects to audio source device for audio embedding.
2 OUTPUT ●HDBT: Connects to the HDBT input of a compatible receiver to extend AV signal, IR
and RS232 control signal.
  ●HDMI: Connects to the video display device.
  ●AUDIO 1:Connectstoaudioplaybackdeviceforaudiode-embedding.Theaudio
output can be de-embedded from the HDBT or HDMI output selected via RS232
command. It’s de-embedded from HDBT output by default.
  ●AUDIO 2: Connectstoaudioplaybackdeviceforaudiode-embedding.Theaudio
output can be de-embedded from the HDBT or HDMI output selected via RS232
command. It’s de-embedded from HDMI output by default.
3 CONTROL ●TCP/IP: Connectstoacontroldevice(e.g.PC)tocontroltheswitcherbyGUI.
  ●RS232 (Control): Connectstothecontroldevice(e.g.PC)tocontroltheswitcherby
sending RS232 commands.
  ●RS232 (Passthrough):Connectstothecontroldevice(e.g.PC)orathird-party
device for RS232 pass-through control.
  ●FIRMWARE: Type-A USB port for firmware upgrade. Also supplies DC 5V 1A
 ●SYSTEM IR: Connects to IR receiver to control the switcher by the IR remote.
 ●IR IN: Connects to IR receiver for IR pass-through control.
  ●IR OUT: Connects to IR emitter for IR pass-through control.
4 DV 24V DC connector for the power adapter connection.
Rear Panel
1 2 4
3
User Operation Guide
*Specications are subject to changes without notice.

*Specications are subject to changes without notice. 5

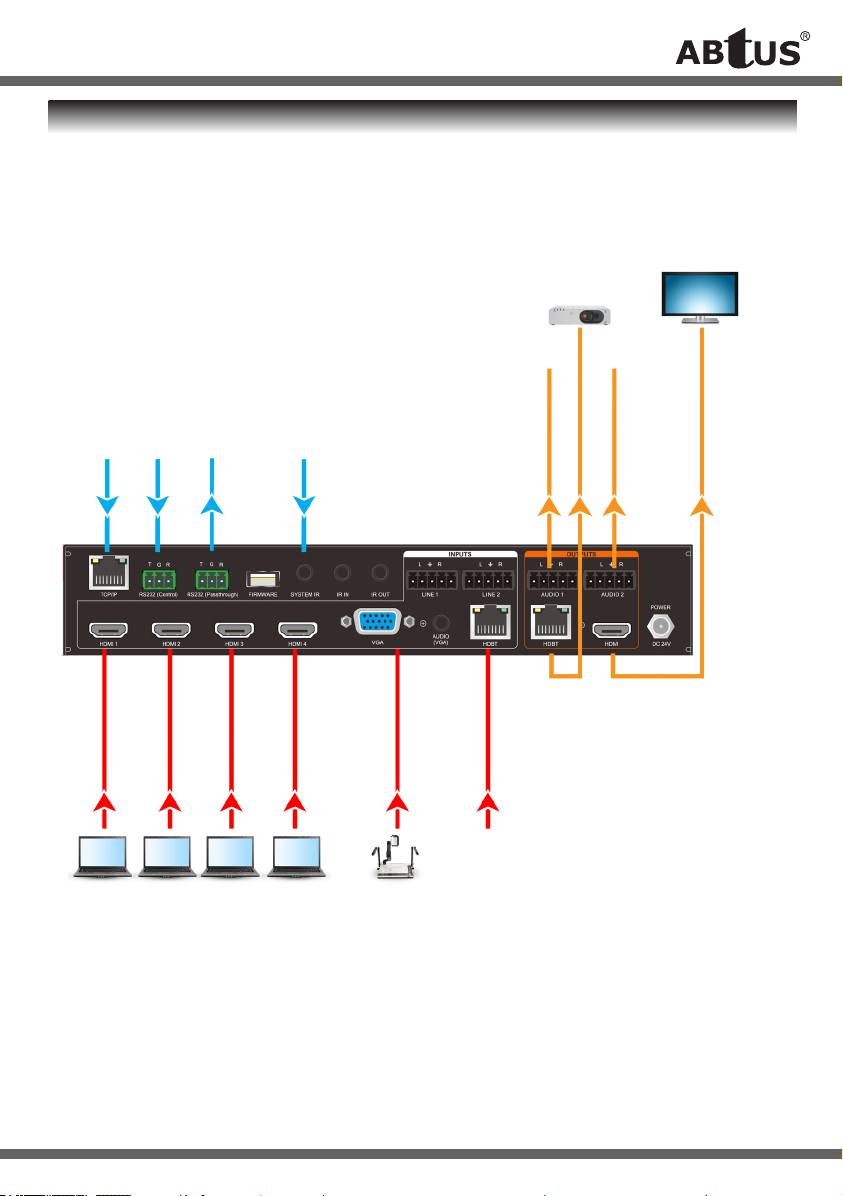

SYSTEM CONNECTION
HDMI In HDMI In HDMI In HDMI In VGA In HDBT In
HDMI Out
AmplifierSpeaker
System
IR
HDBT
Transmitter
Central
Control
System
Third
Party
Device
LAN
Control
HDBT Out Audio Out Audio Out
ABtUS
MAX-HDBT62MV/P
(backview)

6
BUTTON CONTROL
When the switcher is in manual switching mode, the AUTO LED goes out. Please follow the below
steps to switch input source to output channel.
1)Pressanyoneofsixinputbuttonstoselectinputsource,andthecorrespondingLEDturnsblue.
2)PresseitherHDBTorHDMIoutputbuttontoselectoutputchannel,andthecorrespondingLED
turns blue.
3)Presstheinputbuttonagaintoconfirmswitchingsetting,otherwise,itwillautomaticallyconfirm
after three seconds.
4)TheLEDofboththeinputsourceandtheoutputwillblinkthricetoindicatethatthechangewas
made.
Please follow the steps below to enable auto switching mode for HDBT or HDMI output.
1) PressAUTO,andthebuttonLEDturnsblue.
2) PresseitherHDBTorHDMIoutputbutton,andthecorrespondingLEDturnsblue.
3) PressAUTObuttonagaintoconfirmthesetting,otherwise,itwillautomaticallyconfirmafter
three seconds.
4) Repeattheabovethreestepstoexitautomode.
 (Note:theinputsourcewillremaininthecurrentsettings.)
Note: The AUTO LED illuminates blue when the HDMI output or HDBT output is in auto mode.
When in auto mode, the switcher will switch according to the following rules:
● The switcher will switch to the first available active input starting at input 1 to 6 by default. (The
switching priority can be set by RS232 command and GUI.)
● New input: The switcher will automatically select the new input once detecting a new input.
● Reboot: If power is restored to the switcher, it will automatically reconnect the input before
powered off.
● Source removed: When an active source is removed, the switcher will switch to the first available
active input according to the priority.
● In auto mode, the input source also can be switched by the manual switching steps.
PressvolumeknobtochooseAUDIO 1 or AUDIO 2 audio needs to be adjusted, the corresponding
LED will turn blue
● Adjusting the knob in clockwise direction to increase sound volume.
● Adjusting the knob in anti-clockwise direction to decrease sound volume.
● Press and hold the knob for at least three seconds to mute/unmute the selected audio.
Manual Switching
Auto Switching
Sound Volume Control
User Operation Guide
*Specications are subject to changes without notice.

*Specications are subject to changes without notice. 7
SYSTEM OPERATIONS
IR Remote Control
Connect IR receiver to the SYSTEM IR port, the switcher can be controlled by the following IR
remote.
1) Poweron/o󰀨theswitcher.
2) Selectinputsource.
3) Selectoutputchannel.
4) Audiooutputcontrol:
 ● De-embedded audio 1 control: Mute, Volume Down
and Volume Up.
 ● De-embedded audio 2 control: Mute, Volume Down
and Volume Up.

8
SYSTEM CONNECTION
GUI Control
The switcher can be controlled via TCP/IP. The default IP settings are:
IPAddress:192.168.1.10
SubnetMask:255.255.255.0
Type 192.168.1.10 in the internet browser, it will enter the below log-in webpage:
Default Username: admin
Default Password: admin
Typetheusernameandpassword,andthenclickLogintoenterthesectionforvideoswitching.
User Operation Guide
*Specications are subject to changes without notice.

*Specications are subject to changes without notice. 9
SYSTEM CONNECTION
●HDBT OUTPUT:SelectaninputsourceforHDBToutput.ClickAUTO to enable/disable auto
switching mode.
●HDMI OUTPUT:SelectaninputsourceforHDMIoutput.ClickAUTO to enable/disable auto
switching mode.
●Settheswitchingpriorityforautoswitchingmode.
Switching Tab
1.1 Signal Switching
1.2 Auto Switching Priority Setting

10
SYSTEM CONNECTION

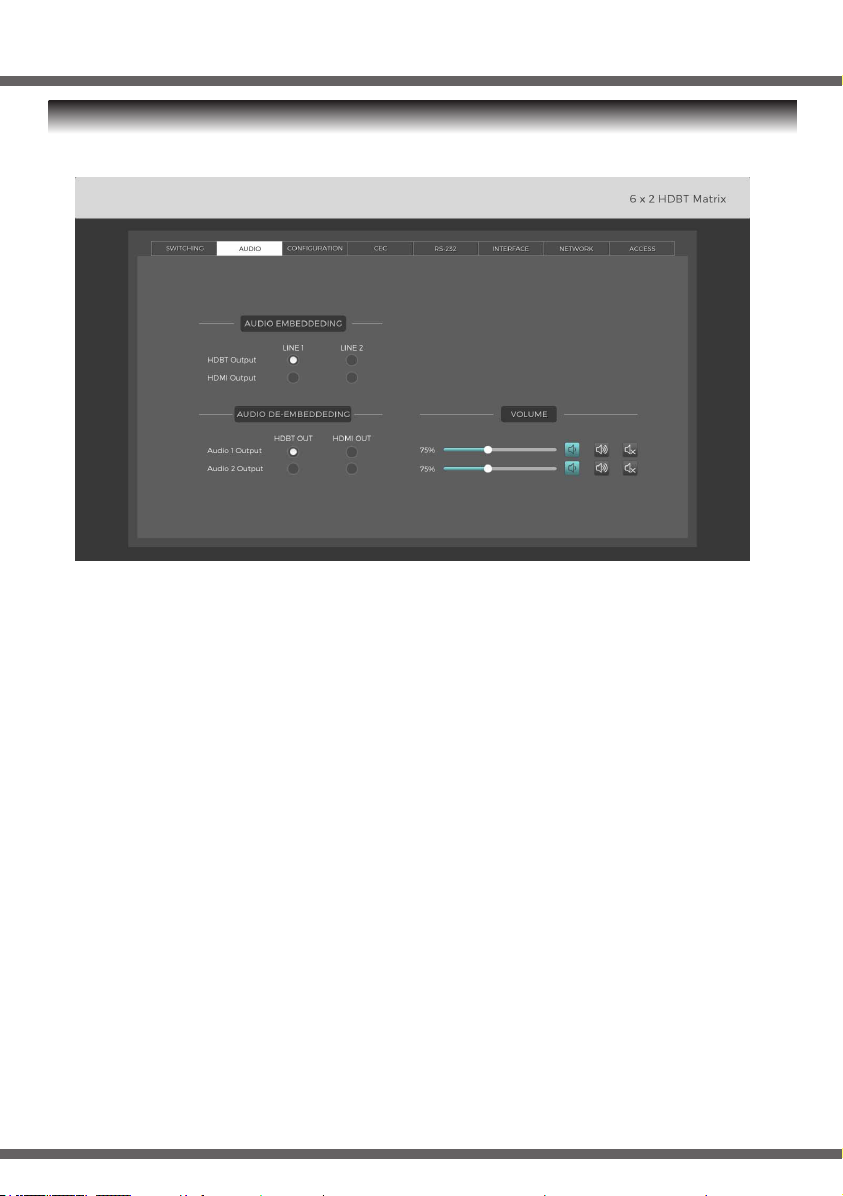

2 Audio Tab
●AUDIO EMBEDDEDING:
●Select or deselect the external audio from LINE 1 or LINE 2 to be embedded in HDBT output.
●Select or deselect the external audio from LINE 1 or LINE 2 to be embedded in HDMI output.
●Clickoncetoselect,clickagaintodeselect
● AUDIO DE-EMBEDDEDING
●Select the HDBT output or HDMI output audio to be de-embedded through Audio 1 output.
●Select the HDBT output or HDMI output audio to be de-embedded through Audio 2 output.
●VOLUME: Volume bar; Volume down, Volume up and Mute buttons.
