AC Antennas KUM400 Series User manual

700
PCB
(Coax cable
not included)
Box
Box Lid
M3 Machine
Screws
(4 pcs)
TX15 Tapping
Screw with
Washer
M10 nuts
(reused from
antenna)
Top section
Bottom section
200mm
50mm
Tighten the bolts with
max 9Nm of torque.
Min 200mm
140mm
75mm
11mm
Min 200mm
Installation Guide
for 2 Section
KUM400 KUM600,
KUM700 Series
and Mounts
457-0001.03
(Only applicable for type -1 and -2)
Package content:
N095F-Set Clamp Mount
Stainless Ø30-Ø100mm
1"-14TPI base, 4-way
mount and N200F
MWM mount
and N200F
M6 set screws
(2 pcs)
AC Antennas A/S
Fabriksparken 40, DK-2600 Glostrup, Denmark
WWW.ACANTENNAS.COM

B
A

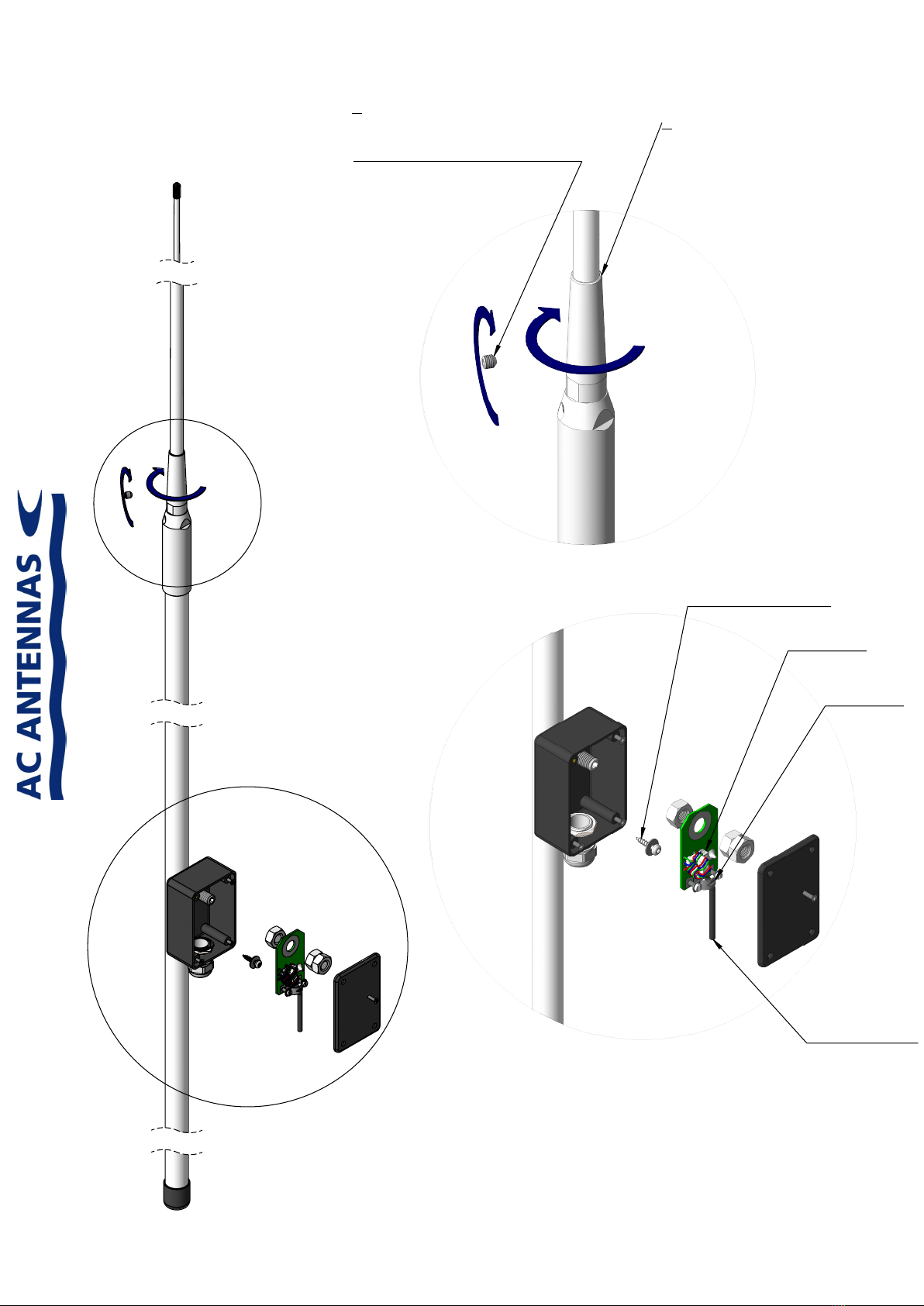

DETAIL B
SCALE 1 : 3
Connect Coax
Shield Here
Connect Coax
Center Here
TX15 Tapping Screw
Fixes Box to Antenna
Grounding Cable
(Termination is
system dependable)
DETAIL A
SCALE 1 : 2
2:
Assemble the middle and bottom
antenna sections with 20-25 Nm
recommended torque
1:
Tighten the M6 set screws (2 pcs) with
3-5Nm recommended torque.
(Use loctite on the set screws for extreme
cases - Not supplied)
Installation Guide
This is a guide only and does not form any contract or warranty
(Only applicable for coax cable installation type -1 and -2)
