Acard ACP-2200 User manual
ACP-2200
USB/eSATA to SATA & IDE
Disk Mate-easy plug and play
User's Manual
Version: 1.0
Copyright©2008 ACARD Technology Corp.
Release: March 2008
Copyright and Trademarks
The information of the products in this manual is subject to
change without prior notice and does not represent a
commitment on the part of the vendor, who assumes no liability
or responsibility for any errors that appear in this manual.
ACARD is the trademark of ACARD Technology Corp. Microsoft
and the Windows Logo are the registered trademarks, and
Windows is thetrademark of Microsoft Corporation. All brands
and trademarks are the properties of their respective owners.
This manual contains materials protected under International
Copyright Conventions. All right reserved. No part of this manual
may be reproduced in any form or by any means, electronic or
mechanical, including photocopying, without the written
permission of the manfacturer. All requiries should be addressed
to ACARD Technology Corp.
ACP-2200 User's Manual
Index
Chapter 1 Introduction...........................................................................
1.1 Overview...........................................................................................
1.2 Features...........................................................................................
1.3 Specficatons....................................................................................
1.4 Accessories.....................................................................................
Chapter 2 Appearance..........................................................................
2.1 Main unit appearance......................................................................
2.2 Power supply appearance...............................................................
2.3 Host-end Connections.....................................................................
2.4 Device-end connections..................................................................
Chapter 3 Configuration........................................................................
3.1 One Touch Backup (OTB)...............................................................
3.2 Attention...........................................................................................
Appendix 1.............................................................................................
Technical Support Request Form...........................................................
5
5
5
5
6
6
6
6
7
8
11
11
19
20
22
ACP-2200 User's Manual
WEEE Statement
In order to cope with the increasing waste electrical and electronic equipment, reduce the use of
landfill and incinerator, and prevent the harmful matter of waste equipment from entering the
environment, the European Union (EU) has set the Directive on Waste Electrical and Electronic
Equipment (WEEE) asking manufacturers to collect, recycle and treat waste electrical and
electronic equipment properly. Member nations already established their free of charge recycle
systems of WEEE before August 13, 2005. Accordingly, ACARD has to be responsible for
recycling all products exported to Germany. You can return your ACARD product that needs
recycling to a local collector.
WEEE Erklärung
Mit dem Ziel die steigende Menge elektrischer und elektronischer Altgeräte zu bewältigen ohne
hierzu unnötig Mülldeponien und Verbrennungsanlagen zu belasten und um die Verschmutzung
der Umwelt durch freiwerdende Stoffe aus den Altgeräten zu vermeiden, hat die Europäische
Union (EU) die Richtlinie über Elektro- und Elektronik-Altgeräte erlassen. Die Richtlinie verpflichtet
Hersteller, elektrische und elektronische Altgeräte umweltgerecht einzusammeln, zu recyceln und
zu entsorgen. Die Mitgliedsstaaten der EU haben bereits ihre kostenfreien Recyclesysteme
konform der WEEE vor dem 13. August 2005 eingerichtet. Entsprechend der Richtlinie ist ACARD
verantwortlich für die umweltgerechte Entsorgung aller nach Deutschland exportierten ACARD
Produkte. Sie können Ihr zu entsorgendes ACARD Produkt zu Ihrer örtlichen Sammelstelle
bringen.
AEEA verklaring
Met het doel de stijgende hoeveelheid afgedankte elektrische en elektronische apparatuur te
beheersen zonder hiervoor onnodig stortplaatsen en verbrandingsovens te belasten en om de
vervuiling van het milieu door vrijkomende stoffen uit de afgedankte apparatuur te voorkomen,
heeft de Europese Unie (EU) de richtlijn betreffende afgedankte elektrische en elektronische
apparatuur besloten. Deze richtlijn verplicht fabrikanten afgedankte elektrische en elektronische
apparatuur in te zamelen, te recyclen en te verwijderen. De lidstaten van de EU hebben reeds de
kosteloze recyclesystemen volgens de AEEA vóór de 13 augustus 2005 ingericht. Conform de
richtlijn is ACARD verantwoordelijk voor de verwijdering van alle naar Nederland geëxporteerde
ACARD producten. U kunt uw afgedankt ACARD product naar uw locale inzamelplaats brengen.
Elektrik ve Elektronik Madde Atıkları Demeci
Elektrik ve electronik madde atıklarının yukselmesiyle basedebilmek ,arazi doldurma ve cop
yakma fırını kullanımını azaltmak,atık madde zararlarının cevreye yayılmasını onlemek icin Avrupa
Birligi (AB),ureticilerden elektrik ve elektronik madde atıklarını gerektigi gibi toplamalarını,geri
donusturmelerini ve kimyasal isleme tabi tutmalarını talep etmek icin Elektrik ve Elektronik Madde
Atıkları uzerine bir direktif hazırladı.Topluluk uyeleri,13 Agustos 2005' ten once elektrik ve
elektronik madde atıklarının ucretsiz geri donusum sistemlerini coktan olusturmuslardı.Bundan
dolayı, ACARD, Almanya'ya ihrac ettigi butun urunlerin geri donusumunden sorumludur.ACARD
urunleri geri donusum gerektirirse yerel toplayıcılara geri verebilirsiniz.
EnglishEnglishEnglish
German
Dutch
Turkish
ACP-2200 User's Manual
WEEE бюлетень
ЧтобЫ сρaвиться сувеличивающимся ненуҗным электрическим иэлектронным
оборудованием, уменъшите использование закапывания мусора ииспользования установки
для с игания отходов, препятствуйте вредному выбросам загрязнять окру ановки среду,
Европейский союз (EC) установил Директиву по Нену ному Электрическому и
Электронному Оборудованию (WEEE) для того, чтобы изготовителей собрали,
перерабатывали ивообще проявили внимание кнену ному электрическому излектронному
оборудованию дол ным образом. Члены нации установили бесплатную систему и
электронному оборудованию дол ным образом. Члены нации установили бесплатную
систему переработки WEEE до 13 августа 2005. Соответственно, ACARD обязан быть
ответственным за то, что переработал все продукты, экспортируемые вГерманию. Вы
мо ете возвратнть ваш продукт ACARD, который ну дается врециркуляции местному
сборщику.
WEEE Statement
Afin de gérer la quantité croissante de déchets électriques et électroniques, de réduire l’utilisation
des décharges et des incinérateurs et d’éviter que des déchets nocifs ne polluent l’environnement,
l’Union Européenne a publié la directive WEEE sur les déchets électriques et électroniques. Celle-
ci spécifie que les fabricants doivent collecter, recycler et traiter l’équipement électronique et
électrique usagé. Depuis le 13 août 2005, les pays membres ont mis en place un système de
recyclage gratuit selon le WEEE,.
De ce fait, Acard est responsable du recyclage de tous les produits exportés vers l’Allemagne.
Vous pouvez mettre au rebut votre équipement ACARD usagé dans votre centre local de
recyclage.
Pour plus d’informations sur les lieux de mise au rebut des équipements usagés destinés au
recyclage, veuillez contacter votre mairie, votre service de traitement des déchets ménagers ou le
magasin où vous avez acheté le produit.
RAEE
Con la finalidad de reducir el incremento de residuos eléctricos y de material electrónico,
reduciendo el uso de los vertederos e incineradoras y prevenir el preocupante aumento del
contacto de estos residuos con el medio ambiente. Por este motivo la Unión Europea ha fijado la
Directiva de Residuos de Aparatos Eléctricos y Electrónicos (RAEE) solicitando a los fabricantes
la recolección, reciclaje y tratamiento de ests residuos correctamente. Los paises miembros ya
han establecido su sistema de reciclaje gratuito de RAEE antes del 13 de Agosto del 2005. Por
este motivo ACARD es el responsable del reciclaje de todos los productos exportados a
Alemania. Usted puede devolver su producto Acard a un punto de recogida local cuando desee
reciclarlo.
Dichiarazione WEEE
Per far fronte all’aumento dei residui delle apparecchiature elettriche ed elettroniche, ridurre l'uso
di materiale di riporto e degli inceneritori, ed impedire che il materiale nocivo delle apparecchiature
residue entri a contatto con l'ambiente, l’ Unione Europea (UE) ha stabilito le Direttive sui Residui
delle apparecchiature Elettriche ed Elettroniche (WEEE) chiedendo ai fornitori di raccogliere
correttamente, riciclare e trattare le apparecchiature elettriche ed elettroniche residue. Le nazioni
facenti parte dell’ Unione Europea hanno già stabilito il loro sistema gratuito di riciclaggio di questo
materiale (WEEE) prima del 13 agosto 2005. Di conseguenza, ACARD è responsabile del
riciclaggio di tutti i prodotti esportati in Germania. Potete restituire il vostro prodotto acquistato da
ACARD che deve essere riciclato da un’ azienda specifica
locale.
Russian
French
Spanish
Italian
ACP-2200 User's Manual
x2
x1
x1
x1
1.1 Overview
ACP-2200 Bridge pro is the first product to provide USB and eSATA
combo interfaces in the market. Through USB or eSATA interfaces, users
can easily connect 2.5” /3.5”HDD of IDE or SATA as well as ATAPI
devices to PC or Notebooks, while the users even don't need to restart
their computers . The best part is that ACP-2200 is easy to connect. It
doesn't function like other external boxes that have to be disassembled
and assembled. This is a good news especially for the engineers who
often need to inspect or maintain HDD and systems, thus enabling them
to upgrade the convenience of data transfer and to avoid the trouble of
changing interfaces.
1.2 Features
●Supports USB2.0 or eSATA connections to the PC
●Can be connected to SATA and IDE hard disks or optical drives
●OTB(One Touch Backup) Hot key supports data backup via USB
interface*
●Supports 2.5”/3.5” IDE or SATA HDD / ODD. Foolproof connectors to
prevent incorrect connections.
●Streamline design, goes well with Notebook
* Need eSBR (easy storage 、easy backup 、easy recovery) Utility
support.
1.3 Specficatons
●Built-in ACARD USB/eSATA to SATA & IDE single control chip
●Portable USB interface to supports 2 devices
●Refer to the previous suggestion
●Power adapter for 100~240V
●Supports overvoltage and instantaneous current protection
●Dimension ： 98mm(W) ×17mm(H) ×73mm(D)
1.4 Accessories
●ACP-2200 x 1
●External power supply x 1
●User's Manual x 1
●IDE cable 8cm x 1
●SATA cable 10cm x 2
●Support CD x 1
●Carry Pouch x 1
●
Y type power cable
Chapter 1 Introduction
5
x1
ACP-2200 User's Manual
2.5”IDE Port
SATA Device
Port2
OTB Backup
Button
SATA Device
Port1
3.5”IDE Port
eSATAT Port
USB/eSATA Switch
(Factory Default:USB)
USB Port
LED Device
Status Indicator
Fig.1 Product Diagram
DC Power Port with fool-
proofing to prevent incorrect
connection
2.1 Main unit appearance
2.2 Power supply appearance
6
Chapter 2 Appearance
15 pins power connector 4 pins power connector
34W Power adapter
ACP-2200 User's Manual
2.3 Host-end Connections
2.3.1 The ACP-2200 provides two types of host connection interfaces:
USB or eSATA. You can switch between them as shown below:
Switching between USB/eSATA modes
●Please turn off the power supply connected to the ACP-2200 and
disconnect it from the host before switching the main unit to USB
or eSATA mode.
●When the main unit is set to USB mode, it can recognize up to two
devices at the same time.
●When the main unit is set to eSATA mode, it can only recognize one
device.
USB Mode
eSATA Mode
7
ACP-2200 User's Manual
2.4 Device-end connections
2.4.2 2.5" IDE HDD
The ACP-2200 can be connected directly to the 2.5" IDE HDD
2.5" IDE Port
Note: The 2.5" IDE port is powered so there is no need for a separate
power supply
2.4.1 IDE Port
Connect the included IDE cable (8cm) and power supply with the
device.
2.5" IDE HDD Connector 3.5" IDE Port
ACP-2200 &IDE
connector
ACP-2200 connected
to IDE HDD
ACP-2200
connected to IDE
optical drive
Connect 2.5" HDD in
direction of arrow
8
ACP-2200 User's Manual
2.4.3 2.5" SATA HDD
Use the included SATA cable to connect to the ACP-2200's SATA
port. It is compatible with both SATA1/SATA2 ports.
ACP-2200 & SATA connector ACP-2200 connected to
2.5" SATA HDD
2.4.4 3.5" SATA HDD or Optical Drive
Use the included SATA cables to connect to the ACP-2200's SATA1
or SATA2 ports (SATA1/SATA2 can both be used at the same time).
ACP-2200 connected to
3.5" SATA HDD
ACP-2200 connected to
SATA optical drive
9
ACP-2200 User's Manual
2.4.5 Connection Rules
Note:
●Device priority is SATA1 > SATA2 > 2.5" IDE > 3.5" IDE
●When host is set to eSATA mode, do not use the 2.5" and 3.5" IDE
ports at the same time
Host-end/Device-end SATA Port 1 SATA Port 2 2.5’’ IDE 3.5’’ IDE
USB mode
√
√
√
√
√ √
√ √
√ √
√ √
√ √
√ √
√
√
√
√
eSATA mode
ACP-2200 Connection Rules List
How the device list looks
when HDD and DVD-ROM
are both connected in USB
mode
10
ACP-2200 User's Manual
Chapter 3 Configuration
3.1 One Touch Backup (OTB)
Before using the ACP-2200's OTB button, you must install the eSBR
utility from the included CD-ROM. Once installed a round green icon
will appear in the system tray in the lower right corner of the screen.
The "OTB Manager" will also be added to the system's Startup folder
so it will be automatically loaded when the computer is started.
eSBR Utility icon
One Touch
Backup button
(OTB)
Now we connect the ACP-2200's power supply and use the
USB/eSATA cable to connect it to the computer. Press the OTB
button indicated below to use the backup feature:
Once the button is pressed it will launch XP’s system backup or
recovery wizard. The backup prompt window shown below will
appear on the connected computer. Use the mouse to click“Next”:
11
ACP-2200 User's Manual

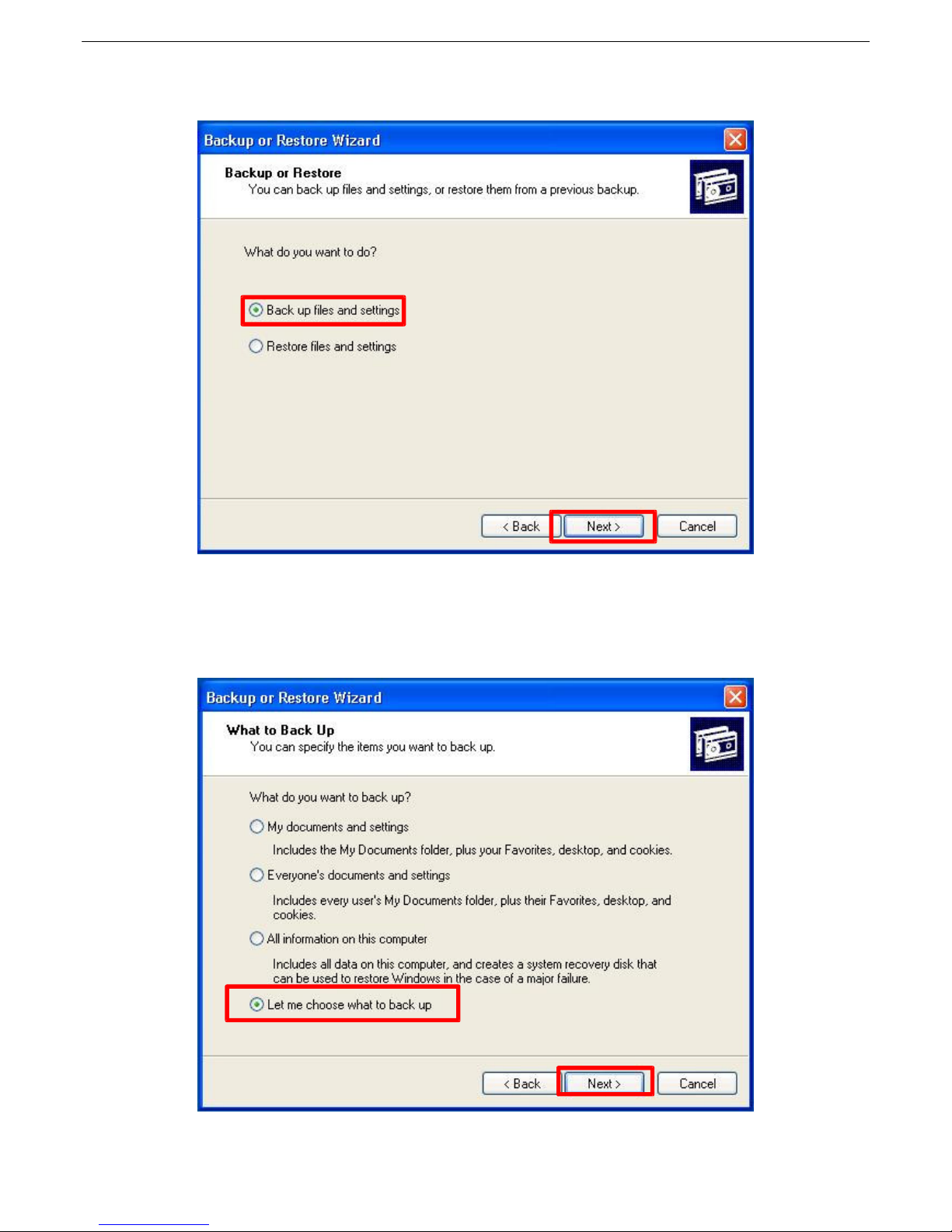

To backup data for the first time, follow the prompt and select “Back
up Files and settings”. Use the mouse to click “Next”.
12
Choose the data you wish to backup to the ACP-2200. These can be one of the
data backup options listed below. For example, we can choose “Let me
choose
the data to backup” then click “Next” as shown below:
ACP-2200 User's Manual
Choose the files on the computer to backup, then click on "Next":
Choose where you want the data to be stored on the ACP-2200 and
assign the backup file a filename. The destination on the ACP-2200
can be changed by clicking on "Browse".
13
ACP-2200 User's Manual
If you click on “Browse” a "Save as…” window will appear. Select
the drive letter for the ACP-2200 and click on “Open” as
At the ACP-2200 hard disk, check that the name of the backup
file is correct then click on “Save” as shown below:
Please use the
ACP-2200 drive letter
as shown on your own
14
ACP-2200 User's Manual
Finally, click on “Finish" to end the backup & recovery wizard and
begin backing up your files:
When the backup is under way, the backup progress window will
appear:
15
ACP-2200 User's Manual
When done, click on “Close” to finish the backup process or click on
“Report” to check the backup information as shown below:
If you cannot properly use eSBR software or Mirror Utility Tools in
the
Vista operating system, this problem may be resolved by disabling
the User Account Control (UAC) feature. The specific procedures are
shown as below:
Click Start－>Settings->Control Panel, as shown below:
16
ACP-2200 User's Manual
In the pop-up Control Panel windows, click the “User Account” icon,
as shown below:
This brings you to the user account screen:
17
ACP-2200 User's Manual
In this window, click “Turn User Account Control on or off” and the
“Turn User Account Control on or off” window as shown below
appears. Then, clear the check box before “Use User Account Control
(UAC) to helpprotect your computer” and click “OK.”
Finally, restart the system for the settings to take effect.
18
ACP-2200 User's Manual
Table of contents
