Vivo MOUNT-KB05-4DW User manual

Clamp-on Keyboard Tray with Pencil Drawer
Scan the QR code with your mobile device or follow the link
for helpful videos and specications related to this product.
Instruction Manual
https://vivo-us.com/products/mount-kb05-4d
SKU: MOUNT-KB05-4DW
[email protected]om www.vivo-us.com 309-278-5303
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

2
A
Left
ASSEMBLY STEPS
PACKAGE CONTENTS
TOOLS NEEDED
WARNING!
Phillips
Screwdriver
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualied technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
STEP 1
S-A (x6)
M4x7mm Screw
S-B (x8)
M5x12mm Screw
S-C (x4)
ST5x12mm Screw
C (x2)
Slider Bracket
D(x2)
Pad
A(x1)
Keyboard Tray
E (x2)
Clamp
B (x1)
Pencil Drawer
F (x2)
Drawer Slider

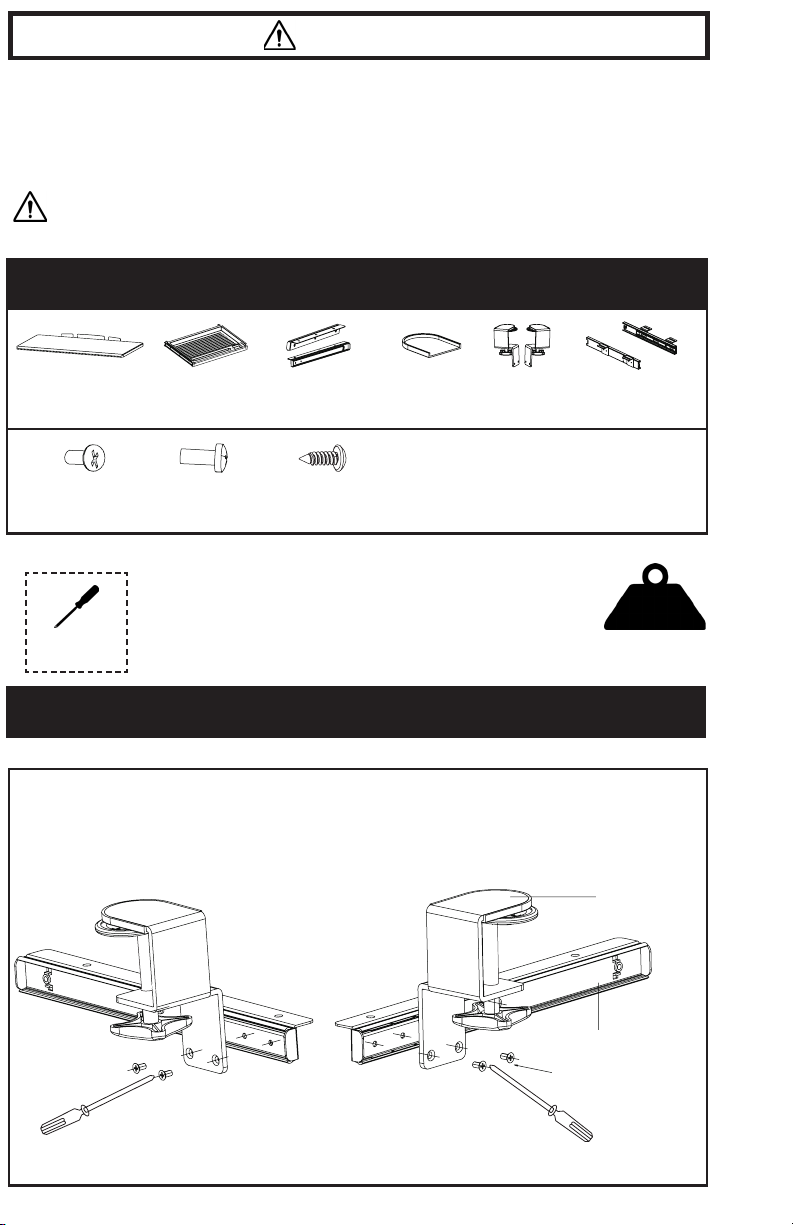

Assemble Slider Brackets (C) to Clamps (E) using M4x7mm Screws (S-A). Tighten with a Phillips
screwdriver.
11lbs
(5kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
ALLATION
F
G
A
Right
C
E
S-A
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

3
STEP 2
Assemble the slider brackets with clamps to Keyboard Tray (A) using M5x12mm Screws (S-B), and
tighten with a Phillips screwdriver. The clamps must be on the opposite end from the center cable
guide.
B
B
E
Right
Left
A
S-B
STEP 3
Slide Pencil Drawer (B) back into the open ends of Drawer Sliders (F) until they are latched together.
B
F
STEP 4
Mount assembled Pencil Drawer (B) to the underside of Keyboard Tray (A) using ST5x12mm Screws
(S-C) with a Phillips screwdriver.
B
A
S-C
STEP 5
Place Pads (D) on the underside of Clamp (E). Place the assembled keyboard mount on the edge of
the desk and tighten Clamps (E).
NOTE: To ensure keyboard tray is level, do not over-tighten Clamps (E).
Desktop
D
E

LAST UPDATED: 04/15/2022
REV1
