  9. Access Lighting 20043LEDDMG User manual

Access Lighting 20043LEDDMG User manual

IMPORTANT
Before assembling your ACCESS LIGHTING fixture, please make sure that
you carefully read through these instruction sheets. Consider having
your fixture installed by a qualified licensed electrician.
NOTE: The important safeguards and instructions that appear in this
manual are not meant to cover all possible conditions and situations
that may occur. It must be understood that common sense, caution and
care, are factors that can’t be built into any product. These factors must
be supplied by the person(s) caring for and operating the fixture.
STEP BY STEP INSTRUCTIONS
Before starting your installation disconnect the Power by turning off the
Circuit Breaker or by removing the fuse at the fuse box. Just turning the
light off at the light switch is not sufficient to prevent electrical shock.

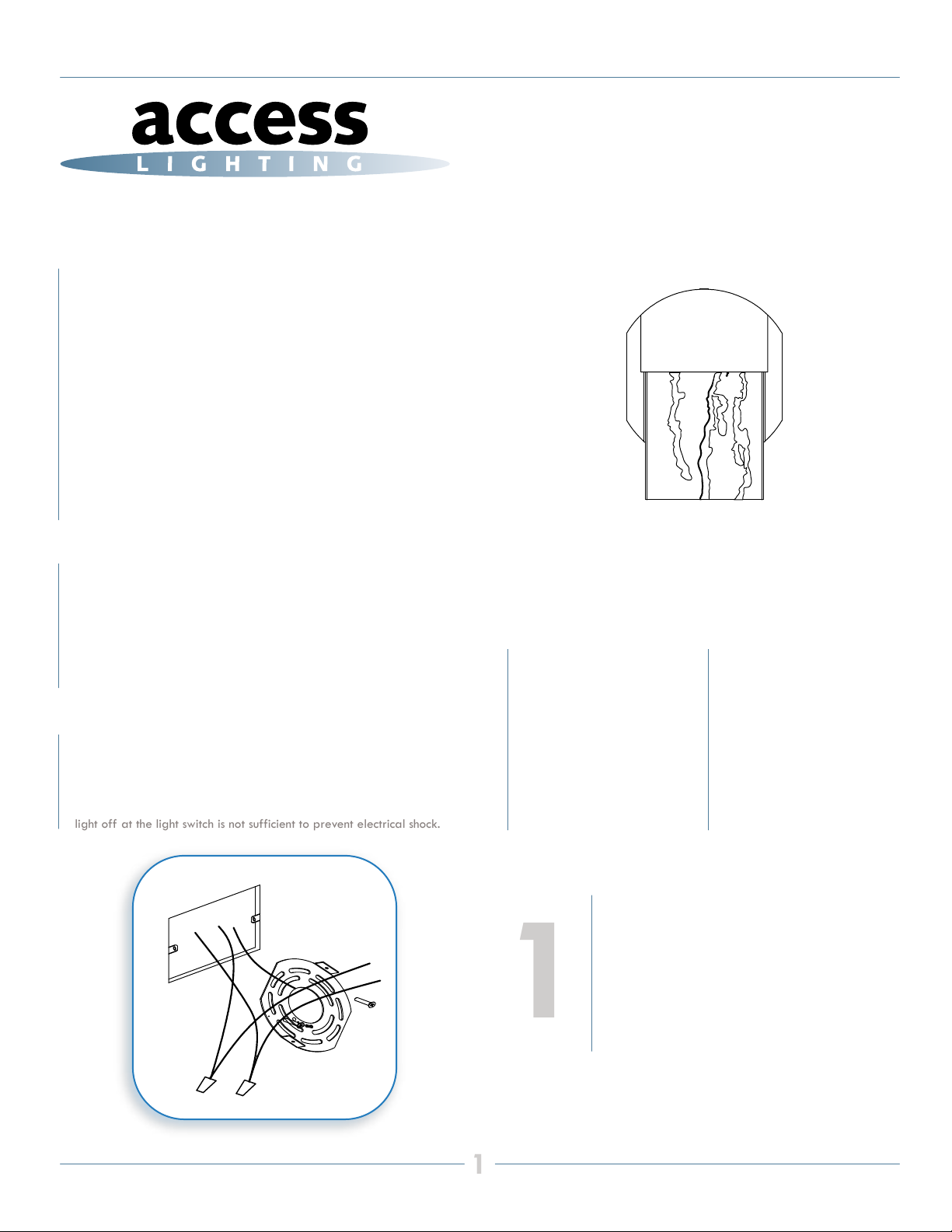

MOUNT CROSSBAR AND WIRE CONNECTIONS
If there is an existing fixture remove it. Expose the supply wire
from the J-box.
Mount the crossbar to the J-box with the
supplied screws. Connect the black supply wire to the black
fixture wire. Secure with the supplied wire nuts. Connect the
white supply wires to the white fixture wire. Secure with the
supplied wire nuts. Either wrap the green wire around one of
the protruding screws or connect it to the supply ground wire.
Secure all wire with electrical tape (not supplied).
Tuck all wires carefully into the J-Box.
1
GENERAL INFORMATION
All electrical connections must be in accordance with all ordinances,
Local and National Electrical Codes. These fixtures are intended for
mounting to a standard 4” x 2 1/2”metal octagon outlet box. The box
must be directly supported by the building structure and U.L. Recognized.
WHAT YOU NEED
• Screwdriver
• Wire Cutters
• Wiring Supplies as Specified
by Electrical Code
INSTALLATION INSTRUCTIONS
WHAT WE PROVIDE
• Mounting Hardware
• Crossbar
• Fixture with Glass shade
• LED
COLLECTION
1
CERTIFICATION: UL WET
NO. 20044LEDDMG
APPLICATION MODEL NO.
Wall Fixture
MIST
20043LEDDMG
2
4
2
CERTIFICATION: UL WET NO.
20043LEDDMG
3
MOUNT FIXTURE TO CROSSBAR
Position the fixture over the crossbar.
Align the holes on the top and bottom of the
fixture and secure with the supplied screws.
SECURE THE GLASS SHADE
Place the glass shade up to the fixture, align the
centre hole of the fixture and secure with the
supplied glass retaining screw.
** This fixture is wet location rated. In order to ensure
that moisture does not enter the outlet box and cause
a short circuit, clear caulking should be used to seal the
space between the fixture mounting bracket and the
wall. Ensure that a space is left at the bottom to allow
for the escape of moisture. It is required that Indoor/
Outdoor Silicon Sealant be used for that purpose**
RESTORE THE ELECTRICITY AND
CHECK THE OPERATION OF YOUR
NEW ACCESS LIGHTING FIXTURE
If the fixture is to be removed or replaced,
please ensure that the electricity is
switched off and that the fitting is cool
before touching it.
CAUTION
