ACCO Brands Quartet TPW35Q User manual

FRONT TAB
PULL-OUT SHELF
PULL-OUT SHELF
MIDDLE SHELF
INSTALL GROMMET CAP
BOTTOM SHELF
TOP SHELF WITH HANDLE
MIDDLE SHELF
BOTTOM SHELF
REAR TAB
7
Attach the keyboard by inserting the back of the keyboard rail into the tab in the rear of
the runner, and snap the front of the keyboard rail onto the black tabs. See diagram.
8
Insert leg post on the top shelf into the leg post and firmly seat.
9
Install grommet ring by tapping into place with rubber mallet. Snap off cord guide
cover from grommet cap so equipment plug may be run through grommet to plug
unit, then insert grommet cap into grommet ring.
10
Apply sure grip pads where needed to help prevent equipment from moving
on shelves.
ACCO Brands
300 Tower Parkway
Lincolnshire, IL 60069-3640
acco.com
quartet.com
Instruction Sheet
Quartet Plastic Mobile Tables
Model TPW35Q
Apply safety label here
Cord guide cover
Grommet cap
Grommet ring
TPW35Q_INX_REV.1

Instruction Sheet
Quartet Plastic Mobile Tables
Model TPW35Q
Parts List
1 – Keyboard shelf
2 – Runners
2 – Shelf runner adapters
1 – Top shelf with handle
1 – Center shelf with 8 leg posts
1 – Bottom shelf with caster sockets
4 – Short leg posts
4 – Long leg posts
2 – Casters
2 – Casters with brakes
6 – Small Phillips head 1/2
" screws
1 – “L” bracket
Tools Required:
1 Rubber mallet
1 Slotted screwdriver
1 Phillips screwdriver

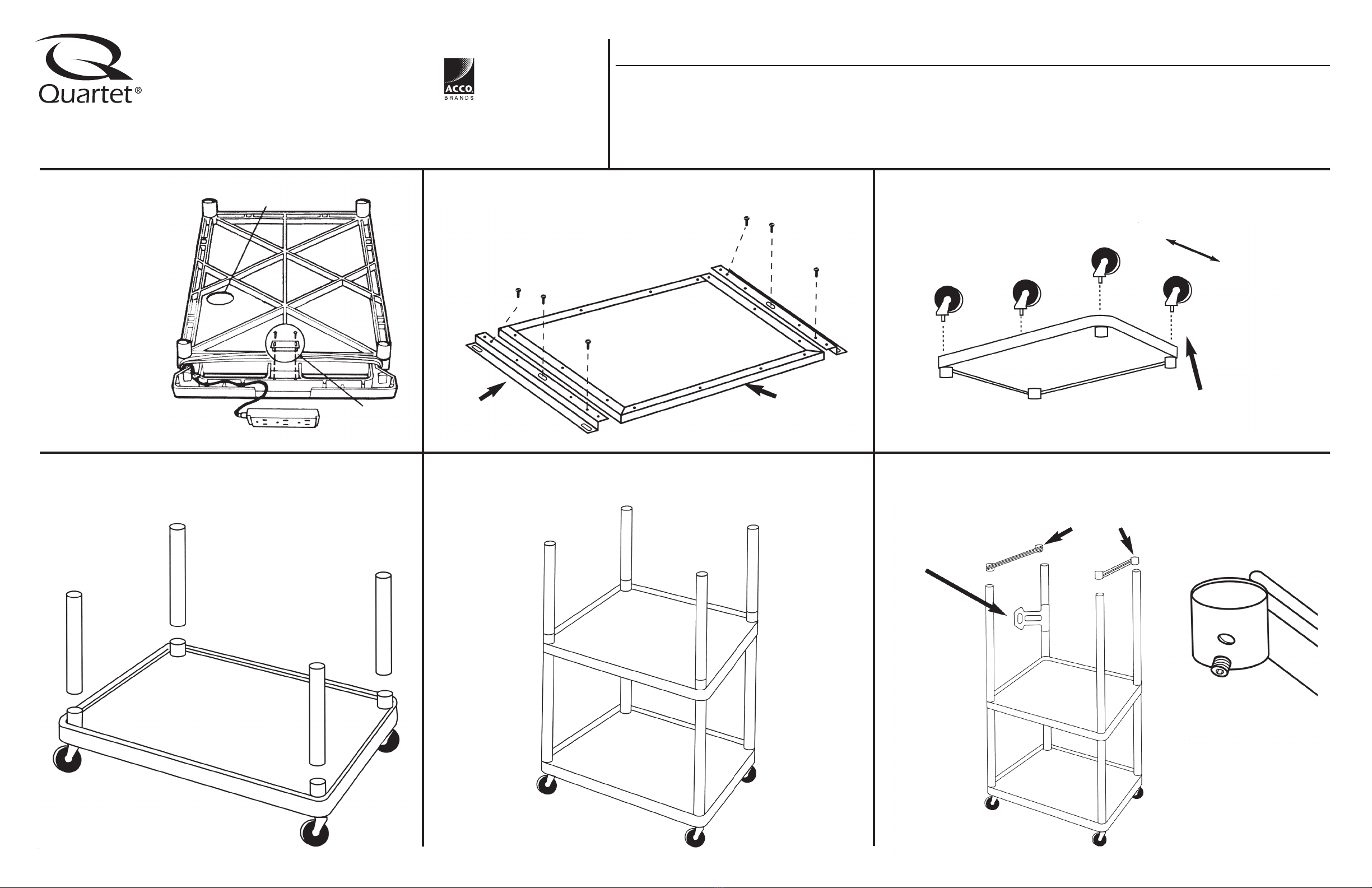

1
Lay top shelf with handle
(ribbed side up) on a
smooth flat surface as
illustrated. Firmly push the
3 plug power cord unit into
the plug housing on the
top shelf.
Secure power cord
into top shelf with
retaining “L” bracket
and 2 1/2
" silver
slotted or sheet
metal screws. DO
NOT OVER TIGHTEN.
2
Keyboard shelf assembly—lay metal keyboard shelf on a
flat surface so underside with holes is facing up. Attach
each shelf runner adapter with 3 1/2
" black Phillips head
screws to each side of keyboard shelf.
3
Firmly seat casters into casters sockets on the bottom shelf.
4
Slide shorter legs onto leg post onto bottom shelf and firmly seat.
5
Insert leg post on the middle shelf into legs attached to the bottom shelf. Then insert longer
legs onto middle shelf leg posts.
6
Slide the plastic cord wrap onto rear leg. Slide the runners onto the legs and tighten down to
desired height with 4 allen head screws provided.
2 – Slotted sheet metal screws
1 – 3-outlet power cord
4 – Allen head set screws
1 – Allen wrench
1 – Grommet pass through ring
2 – Sure grip pads
Cable grommet hole
FRONT
BRAKE
4" Casters with
Brake in front
Bottom Shelf
CORD WRAP
RUNNERS
ALLEN SCREW
Shelf
runner adapter
Front of shelf
3 Plug Unit
ACCO Brands
300 Tower Parkway
Lincolnshire, IL 60069-3640
acco.com
quartet.com
Questions?
Call Technical Service: 1-800-541-0094
