Quad Line Self-Leveling Line Generator
Model No. 40-6662
Instruction Manual
Congratulations on your choice of this Quad Line Self-Leveling Line
Generator. We suggest you read this instruction manual thoroughly
before using the instrument. Save this instruction manual for future use.
This tool emits four cross line laser beams and one down plumb beam.
Beam visibility depends upon lighting conditions in the work area.
This is a Class IIIa laser tool and is manufactured to comply with CFR 21,
parts 1040 .10 and 1040 .11 as well as international safety rule IEC 285.
®
1675H-English 10/3/08 10:25 AM Page 1

2©2008 Johnson Level & Tool
Table of Contents
1. Kit Contents
2. Features and Functions
3. Safety Instructions
4. Location/Content
of Warning Labels
5. Location of Parts/Components
6. Operating Instructions
7. Using the Product
8. Self-Check and Calibration
9. Technical Specifications
10. Application Demonstrations
11. Care and Handling
12. Product Warranty
13. Product Registration
14. Accessories
1. Kit Contents
Description Qty.
Quad Line Self-Leveling Line Generator 1
Tripodic Base 1
Ni-MH Rechargeable Battery Pack 1
Alkaline Battery Pack (batteries not included) 1
Battery Adapter 1
Tinted Glasses 1
Magnetic Target 1
Instruction Manual with Warranty Card 1
Hard Shell Carrying Case 1
1675H-English 10/3/08 10:25 AM Page 2

©2008 Johnson Level & Tool 3
2. Features and Functions
• Indoor and outdoor use (for outdoor use must use 40-6780
detector-not included)
• Simultaneously projects four self-leveling cross lines plus one
plumb down dot
• Locking mechanism protects inner pendulum during trans-
portation
• Self-leveling with visual and audible alarms when beyond level-
ing range
• Emits continuously both a solid and pulse beam (pulse beam
for use with detector)
• Manual mode allows unit to tilt to extreme angles
3. Safety Instructions
Please read and understand all of the following instructions, prior
to using this tool.
DANGER!
Class IIIa Laser Product
Max. Power Output: ≤5mW
Wavelength: 625-645nm
THIS TOOL EMITS LASER RADIATION.
DO NOT STARE INTO BEAM.
AVOID DIRECT EYE EXPOSURE.
1675H-English 10/3/08 10:25 AM Page 3

4©2008 Johnson Level & Tool
ATTENTION IMPORTANT
• Read all instructions prior to operating this laser tool. Do not remove any labels from
tool.
• Use of controls or performance of procedures other than those specified herein may
void warranty.
• Do not stare directly at the laser beam.
• Do not project the laser beam directly into the eyes of others.
• Do not set up laser tool at eye level or operate the tool near a reflective surface as
the laser beam could be projected into your eyes or into the eyes of others.
• Do not place the laser tool in a manner that may cause someone to unintentionally
look into the laser beam. Serious eye injury may result.
• Do not operate the tool in explosive environments, i.e. in the presence of gases or
flammable liquids.
• Keep the laser tool out of the reach of children and other untrained persons.
• Do not attempt to view the laser beam through optical tools such as telescopes as
serious eye injurymay result.
• Always turn the laser tool off when not in use or left unattended for a period of time.
• Remove the batteries when storing the tool for an extended time (more than 3 months)
to avoid damage to the tool should the batteries deteriorate.
• Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt
to repair this tool, it may void the warranty.
• Use only original AccuLine Pro®parts and accessories purchased from your AccuLine
Pro authorized dealer.Use of non-AccuLine Pro parts and accessories will void warranty.
1675H-English 10/3/08 10:25 AM Page 4

©2008 Johnson Level & Tool 5
4. Location/Content of Warning Labels
1675H-English 10/3/08 10:25 AM Page 5

6©2008 Johnson Level & Tool
5. Location of Part/Components
Laser Output
Windows
Tripodic Base
Bubble
Locking Knob
Fine-adjustment
knob
5/8” Screw
Thread
Plumb-down
Point
BatteryDoor
Keypad
Horizontal Circle
Indication Horizontal Circle
Adjustable Foot
Screws
1675H-English 10/3/08 10:25 AM Page 6

©2008 Johnson Level & Tool 7
6. Operating Instructions
IMPORTANT: It is the responsibility of the user to verify the
calibration of the instrument before each use.
Battery Installation
Note: Always check to be sure that the on/off switch is in the off
position before removing and replacing batteries.
Alkaline batteries installation
Put 4 x AA alkaline batteries into the battery case according to the
polarity indication shown in the battery case. Then put the battery
case on the instrument and tighten the locking screw.
Rechargeable battery case installation
Put the rechargeable batterycase on the instrument and tighten the
locking screw.
1675H-English 10/3/08 10:25 AM Page 7

8©2008 Johnson Level & Tool
Adapter Usage
The rechargeable battery case can be charged off the instrument or
connected to the instrument.
If the rechargeable battery case is on the instrument and plugged
into the adapter, the battery pack will charge and the instrument will
also operate. The DC power LED is red during charging and will turn
green after the rechargeable battery pack is fully charged. The
power LED operates the same when recharging the battery pack
when it is off the instrument.
Adjustable Foot Screws
Adjust the three adjustable foot screws on the tripodic base, to put
the bubble in the bullseye of the vial (the bubble centered means the
instrument is in its self-leveling range).
1675H-English 10/3/08 10:25 AM Page 8

©2008 Johnson Level & Tool 9
360º Rotation and Fine Adjustment
This instrument can turn 360º and can also make angle
fine-adjustments using the fine-adjustment knob.
Connecting to the Tripod
This instrument can be connected to a tripod using the 5/8” screw
thread hole located either on the tripodic base or on the bottom of
the instrument.
360º rotation Fine adjustment
Connecting to a tripod with the
tripodic base.
Connecting to a tripod with
just the instrument.
1675H-English 10/3/08 10:25 AM Page 9

10 ©2008 Johnson Level & Tool
7. Using the Product
Keypad
Power LED:
Light On: Power on
Light Off: Power off
Light Flashing: Low Battery
Pulse mode LED:
Light On: Pulse mode is on and the laser can be used with the
40-6780 detector (not included)
Light Off: Pulse mode is off
Manual mode LED:
Light On: Manual mode is on and laser can be turned on with
compensator locked
Light Off: Manual mode is off
Note: When manual mode is on, the laser does not self-level and
no out-of-level alarm is indicated.
Manual mode LED
Manual mode button
Vertical laser
line 2 button
Horizontal laser line button
Vertical laser
line 1 button
Pulse mode button
Pulse mode LED
Power LED
1675H-English 10/3/08 10:25 AM Page 10

©2008 Johnson Level & Tool 11
Compensator Transportation Lock
When the locking knob is in the “Unlock/On” position, the bubble will
illuminate and the power LED will be on.
When the locking knob is in the “Lock/Off” position, the bubble will
not be illuminated and power LED will be off.
Output of the laser line
Set the locking knob to “Unlock/On” position
Set the locking knob to “Lock/Off” position
1675H-English 10/3/08 10:25 AM Page 11

Pulse Mode:
Unlock the transportation lock and press the horizontal and/or vertical
laser line buttons. Press the pulse mode button to turn on the pulse
mode, the pulse mode LED will turn on and the laser beam line will
dim. The laser line can now be located by a detector (not included).
Press the pulse mode button again to switch off the pulse mode, the
pulse mode LED will turn off. The laser line now can not be located
with a detector.
Manual Mode:
Press the manual mode button with the transportation lock knob in
the “Lock/Off” position. The manual mode LED will flash and the
bubble light will go on. The output of the laser lines are the same as
in the self-leveling mode. Press the manual mode button again to
turn the instrument power off.
Note: When manual mode is on, the laser does not self-level and
no out-of-level alarm is indicated.
12 ©2008 Johnson Level & Tool
1675H-English 10/3/08 10:25 AM Page 12

©2008 Johnson Level & Tool 13
8. Self-Check and Calibration
IMPORTANT: It is the responsibility of the user to verify the
calibration of the instrument before each use.
Horizontal Line for Level
1. Set the laser unit on a tripod or flat surface approximately 10’ away
from a reference wall.
2. Unlock the transportation lock on the unit.
3.
Press the horizontal laser line button (H) and the vertical laser line button (V1).
4. Point the cross line at the reference wall (It is important to see the
laser line very clearly. This test should be preformed indoors and
in low light conditions).
5. Mark the intersection of the cross line as point A.
6.
Rotate the laser unit counter clockwise until the laser cross line is 8 feet away
from point A (to the left of point A). Mark the laser line at point A as point B.
7. Rotate the laser unit clockwise until the cross line is 8 feet to the right of point A.
8. Mark the laser line a point A as point C.
9. If the distance between point B & C is greater then 1/16” the unit needs
to be recalibrated. (See calibration information).
3Vertical Lines for Plumb
1. Use a plumb line or known vertical reference point.
2. Turn the laser unit on following the instructions above.
3. Rotate the laser unit so the vertical laser line intersects the plumb line.
4. Check all three vertical lines.
5. If the vertical laser line is not parallel with the plumb line (i.e. intersects
at the top and bottom), the unit needs to be recalibrated. (See
calibration information).
1675H-English 10/3/08 10:25 AM Page 13

14 ©2008 Johnson Level & Tool

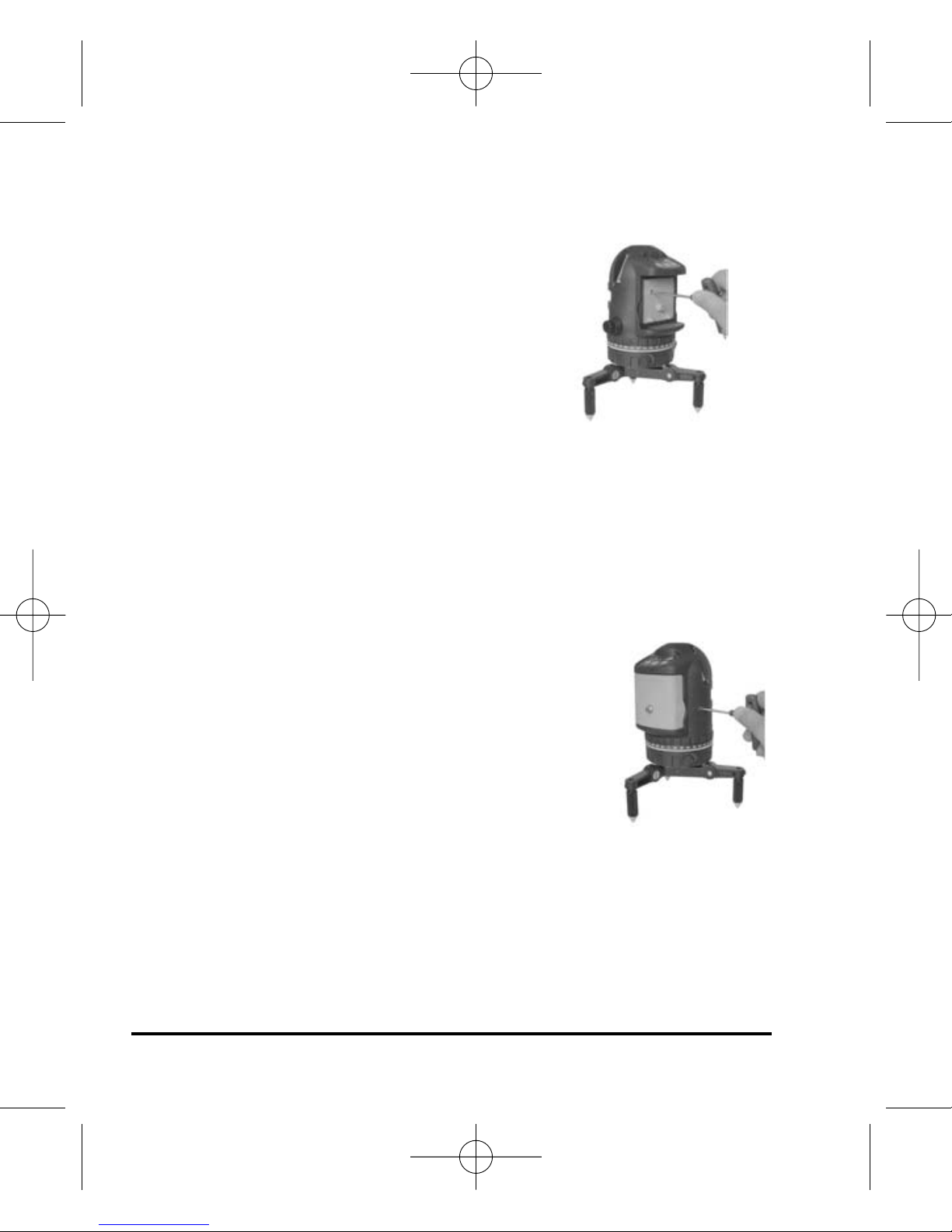

Self-Calibration Adjustment
Self-Calibrating the side vertical laser lines (not the front
vertical laser line) for plumb
1. Locate the calibration port inside the battery
compartment.
2. Remove the rubber plug.
3. Unlock the compensator.
4. Use a 3mm hex head wrench.
5. Turn the calibration screw counter clockwise to move the top of the
side vertical lines to the back of the unit (towards the battery compart-
ment). Do not rotate the screw more than 4 rotations.
6. If the side vertical lines can not be brought into plumb after 4 rotations
of the screw,the unit will need to be serviced by Johnson Level & Tool.
Self-Calibrating the horizontal laser line and front vertical laser line
1. Locate calibration port on the side of the laser unit.
2. Remove the plastic screw.
3. Unlock the compensator.
4. Use a 3mm hex head wrench.
5. Rotate the screw counter clockwise to raise the left
side of the horizontal line and to adjust the top of the
front vertical line to the right. Do not rotate the screw more than 4
rotations.
6. If the laser lines can not be brought into calibration after 4 rotations
the unit will need to be serviced by Johnson Level & Tool.
1675H-English 10/3/08 10:25 AM Page 14

©2008 Johnson Level & Tool 15
9. Technical Specifications
Laser Wavelength 635nm±10nm
Laser Classification Class IIIa
Maximum Power Output ≤5mW
Accuracy ±1/8"/50 ft. (±1mm/5m)
Interior Range Up to 200 ft. (60m) depending upon light
conditions
Exterior Range Up to 300 ft. (90m) with detector
Self-leveling Range ±3°
Power Supply 4 “AA” rechargeable battery -pack (included)
or 4 “AA” alkaline batteries (not included)
BatteryLife Approx. batterylife 8 hours continuous use
Dimensions 4.73" x 4.96" x 7.09"
(120 x 126 x 180mm)
Weight 4 lbs (1.8 Kg)
Working Temperature 14°F to 113°F (-10°C to +45°C)
Center Screw Thread 5/8" – 11
IP Protection 54
1675H-English 10/3/08 10:25 AM Page 15

16 ©2008 Johnson Level & Tool
10. Application Demonstrations
Horizontal line
Plumb reference formed by the laser cross
line on ceiling and plumb down point
Simultaneously supply four laser crosslines
on the front, left, right, and top
Front vertical and plumb point
Vertical line
Front laser cross line
Operate with detector to extend
working distance
Laser cross lines on right and left sides
1675H-English 10/3/08 10:25 AM Page 16

©2008 Johnson Level & Tool 17
11. Care and Handling
Care must be taken to maintain the accuracy of the instrument.
•After each use, the instrument should be wiped clean and kept in
its carrying case.
•Remove dust from the lenses with a soft brush or a nonabrasive
wipe. Never touch the lenses with your fingers.
•Store the instrument in a dust-free area with low humidity.
•Abag of silica gel dryer is included with each instrument.
12. Product Warranty
Johnson Level & Tool offers a one year limited warranty on each its
products. You can obtain a copy of the limited warranty for a
Johnson Level & Tool product by contacting Johnson Level & Tool's
Customer Service Department as provided below or by visiting us
online at www.johnsonlevel.com. The limited warranty for each
product contains various limitations and exclusions.
Do not return this product to the store/retailer or place of purchase.
Required repair/calibration must be done by an authorized
AccuLine Pro® service center or Johnson Level & Tool's limited
warranty, if applicable, will be void and there will be NO WARRANTY.
Contact our Customer Service Department to obtain a Return Material
Authorization (RMA) number for return to an authorized service center.
Proof of purchase is required.
NOTE: The user is responsible for the proper use and care of the
product.
1675H-English 10/3/08 10:25 AM Page 17

18 ©2008 Johnson Level & Tool
It is the responsibility of the user to verify the calibration of the
instrument before each use.
For further assistance, or if you experience problems with this product
that are not addressed in this instruction manual, please contact our
Customer Service Department.
In the U.S., contact Johnson Level & Tool’s Customer Service
Department at 800-563-8553.
In Canada, contact Johnson Level & Tool’s Customer Service
Department at 800-346-6682.
13. Product Registration
Enclosed with this instruction manual you will find a warranty card to be
completed for product warranty registration. Product warranty registration
can also be completed online at our web site www.johnsonlevel.com.
You will need to locate the serial number for your product that is located
on the bottom of the unit. PLEASE NOTE THAT IN ADDITION TO ANY
OTHER LIMITATIONS OR CONDITIONS OF JOHNSON LEVEL &
TOOL'S LIMITED WARRANTY, JOHNSON LEVEL & TOOL MUST
HAVE RECEIVED YOUR PROPERLY COMPLETED WARRANTY CARD
WITHIN 30 DAYS OF YOUR PURCHASE OF THE PRODUCT OR ANY
LIMITED WARRANTY THAT MAY APPLY SHALL NOT APPLY AND
THERE SHALL BE NO WARRANTY.
1675H-English 10/3/08 10:25 AM Page 18

©2008 Johnson Level & Tool 19
14. Accessories
AccuLine Pro®accessories are available for purchase through
authorized AccuLine Pro dealers. Use of non-AccuLine Pro accessories
will void any applicable limited warranty and there will be NO WARRANTY.
If you need any assistance in locating any accessories, please contact
our Customer Service Department.
In the U.S., contact Johnson Level & Tool’s Customer Service
Department at 800-563-8553.
In Canada, contact Johnson Level & Tool’s Customer Service
Department at800-346-6682.
1675H-English 10/3/08 10:25 AM Page 19

20 ©2008 Johnson Level & Tool
1675H-English 10/3/08 10:25 AM Page 20
