Accura ADVD3836 User manual

ACCURA
ADVD3836
INSTRUCTION MANUAL
PLEASE READ THESE INSTRUCTIONS CAREFULLY
BEFORE OPERATING YOUR NEW PRODUCT
CALL OUR TOLL FREE HELP LINE AT 1-800-663-5954,
FROM 9AM TO 5 PM (ET) MONDAY TO FRIDAY
IF YOU HAVE ANY QUESTIONS OR PROBLEMS WITH YOUR NEW PRODUCT
JUTAN INTERNATIONAL LIMITED
TORONTO, CANADA
Do jer]
DIGITAL
cD+G

* Warning
To prevent fire or shock hazard. Do not use this plug with an extension cord. Receptacle or other
outlet unless the blades can be fully inserted to prevent blade exposure to prevent fire or shock
hazard. Do not expose this appliance to rain or moisture.
The lightning flash with arrowhead symbol
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
dangerous voltage within the product s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
WARNING
14} oC 0) 0 0) BL oN ta Con.) $ COT ed ve
ORTON WO) 2 ONE
WARNING: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE COVER
RVICEABLE PARTS.
GTO QUALIFIED
SERVICE PERSONNEL
The exclamation point within an equilateral
ertothe
triangle is intended to alert the
of important operating and
nance (servicing) instructions in the
literature accompanying the appliance
* Important Safety Precautions
+ Read these instructions.
+ Keep these instructions.
* Heed all warnings.
+ Follow all instructions.
+ Do not use this apparatus near water.
* Clean only with dry cloth.
+ Do not block any ventilation openings. Install in accordance with the manufacture
* Do not install near any heat soure adiators, heat registers, stoves or other apparatus
such
(including amplifiers) that produce heat.
+ Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
+ Protect the power cord from being walked on or pinch particularly at plugs, convenience
receptacles, and the point w here they exit from the apparatus.
+ Only use attachments/ace
+ Unplug this apparatus duri
+ Refer all servicing to qualified s
rvice pe!
SS ed by the manufacturer,
ightening storms or when unused for long periods of time.
rsonnel. Servicing is required when the apparatus has
been damaged in any way, such as power supply cord or plug is damaged. Liquid has been
exposed to rain or moisture, do
+ This appliance shall not be exposed to dripping or
all be placed on the apparat
liquid such as vases s
not operate normally or has been dropped.
ashing water and that no object filled with

ble of Contents
<=
2)
. —!
Table
of
Discs
Your
DVD
player
Will
play
2
(0)
Supporting
function
of
dise
2
z
Remote Controller 3 Ww
Systems
Connection
4
Chapter 1 Basic Operation 5
1. Turn On the TV and your DVD player 5
2.
Place
a
disc
5
3. Play 5
Program Menu 6
Chapter
2
Additional
Operation
7
1. Selecting Tracks (compatible with DVD, CD, CD+G, DTS-CD, HD-CD,
WMA, MP3/JPEG discs) 7
2. Skipping Tracks (compatible with DVD, CD, CD+G, DTS-CD, HD-CD,
WMA, MP3/JPEG discs) 7
3. Multispeed Fast Motion Playback (compatible with DVD, CD, DTS-CD,
WMA, MP3/JPEG discs) 7
4. Multispeed Slow motion playback (compatible with DVD, CD, CD+G,
DTS-CD, HD-CD, WMA, MP3/JPEG discs) 7
5. Freeze Frame and Frame Advance (compatible with DVD, CD, CD+G,
DTS-CD, HD-CD, WMA, MP3/JPEG discs) —————————————__ 8
6. Using the Repeat Feature (compatible with DVD, CD, CD#G, DTS-CD,
HD-CD, WMA, MP3/JPEG discs) 8
7. Using the Display Feature (compatible with DVD, CD, CD+G,
DTS-CD, WMA, MP3/JPEG discs) 8
8.Using the Search Feature (compatible with DVD, CD, DTS-CD, HD-CD
discs) 8

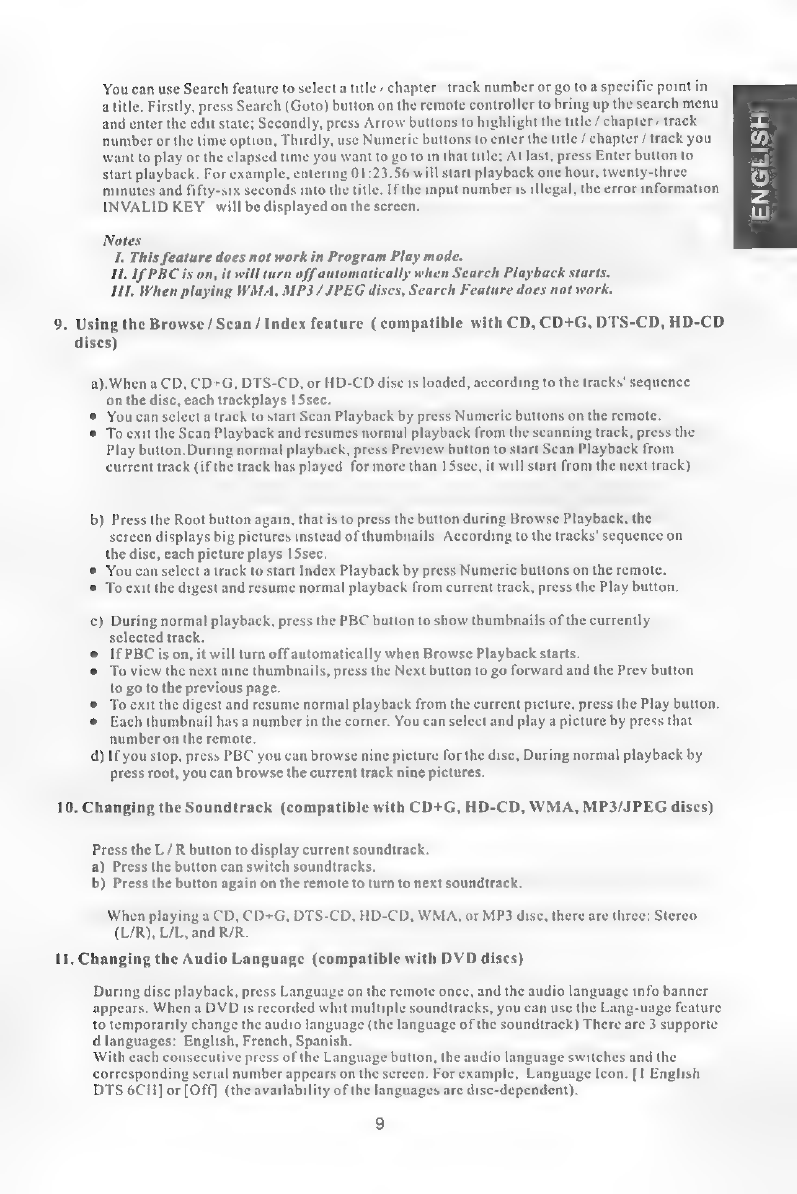

9.Using the Browse / Scan / Index feature (compatible with discs; the scan
feature is also compatible with CD, CD+G, DTS-CD, HD-CD discs) ————— 9
10. Changing the Soundtrack (compatible with CD,CD+G,HD-CD, WMA,
MP3/JPEG discs) 9
11.
Changing
the
Audio
Language
(compatible
with
DVD
discs)
———————_
9

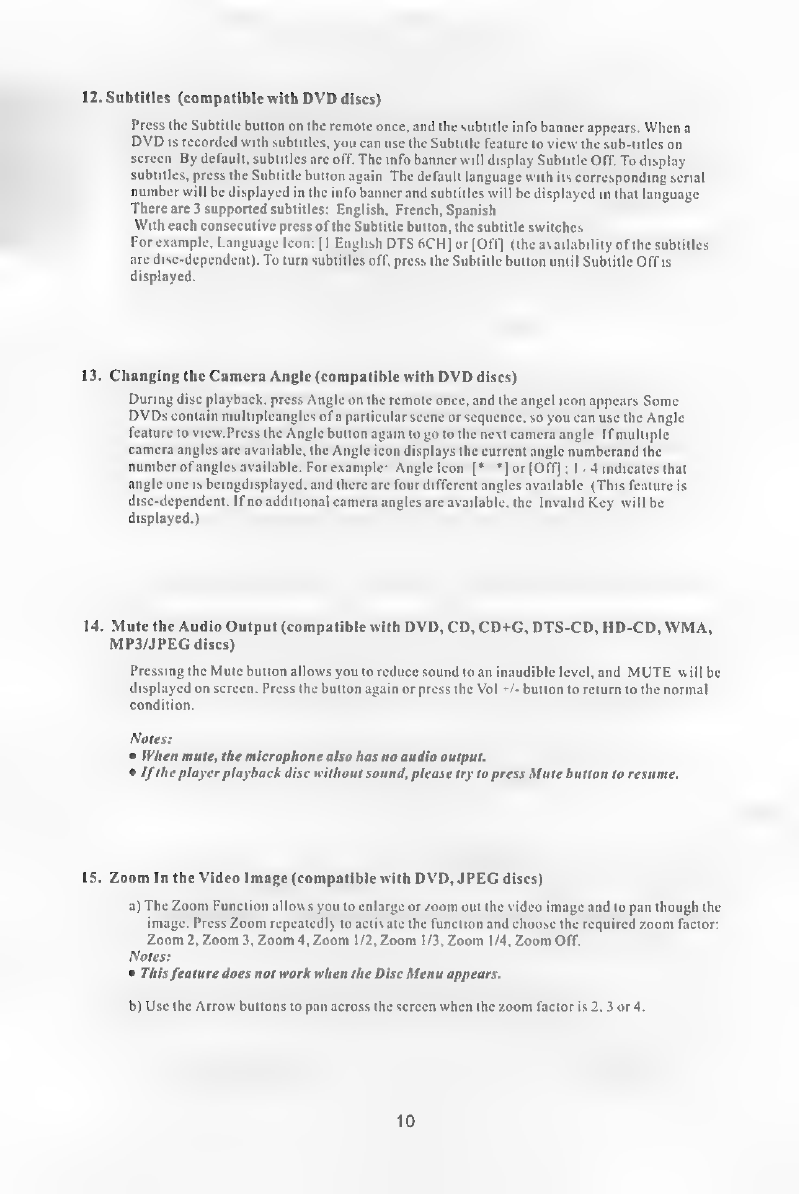

12. Subtitles (compatible with DVD discs) 10
13. Changing the Camera Angle (compatible with DVD discs) —-—-———————_ 10
14. Mute the Audio Output (compatible with DVD, CD, CD+G,
DTS-CD, HD-CD, WMA, MP3/JPEG discs) ———————_ 10
15. Zoom In the Video Image (compatible with DVD, JPEG discs) ———————_ 10

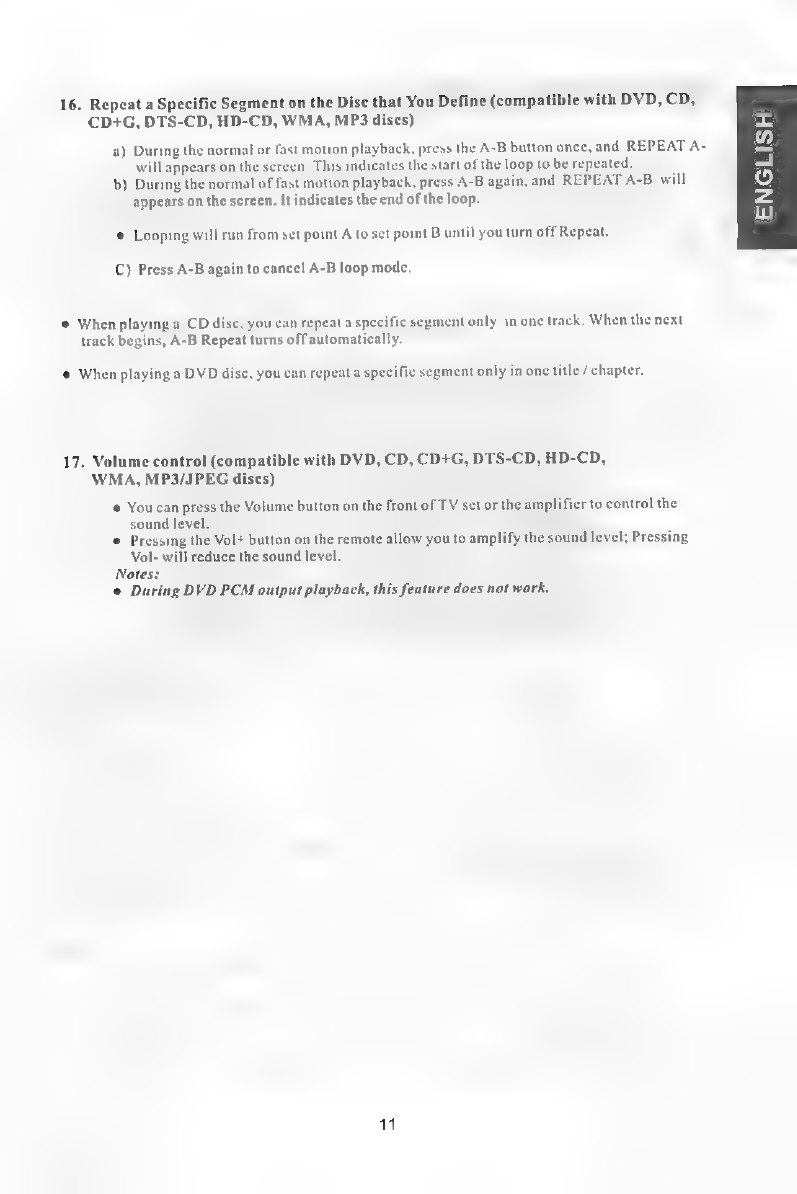

16. Repeat a Specific Segment on the Disc that You Define (compatible with
DVD, CD, CD+G, DTS-CD, HD-CD, WMA, MP3 discs) ——————————-_ 11
17. Volume control (compatible with DVD, CD, CD+G, DTS-CD, HD-CD,
WMA, MP3/JPEG discs) 11

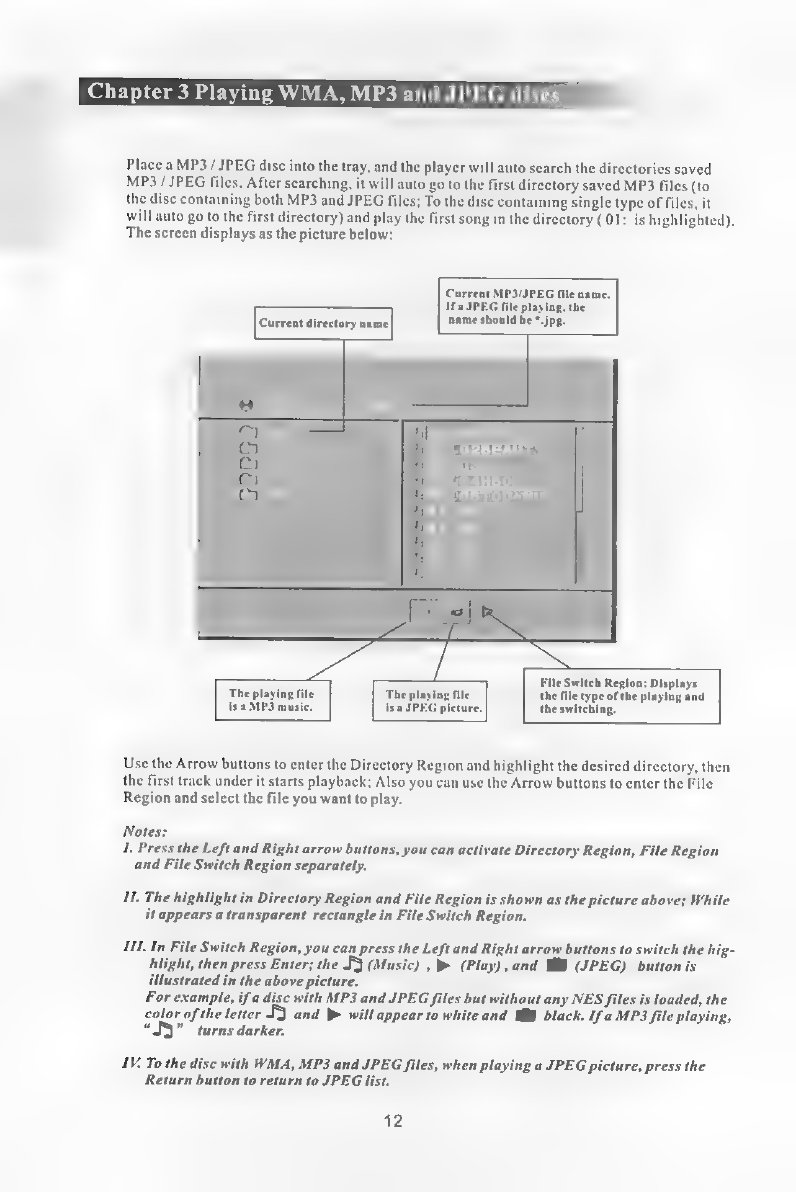

Chapter 3 Playing WMA, MP3 and JPEG dises —————————————_ 12
Chapter 4 The Setup Menu System 14
Disc maintenance 21
Specifications 21

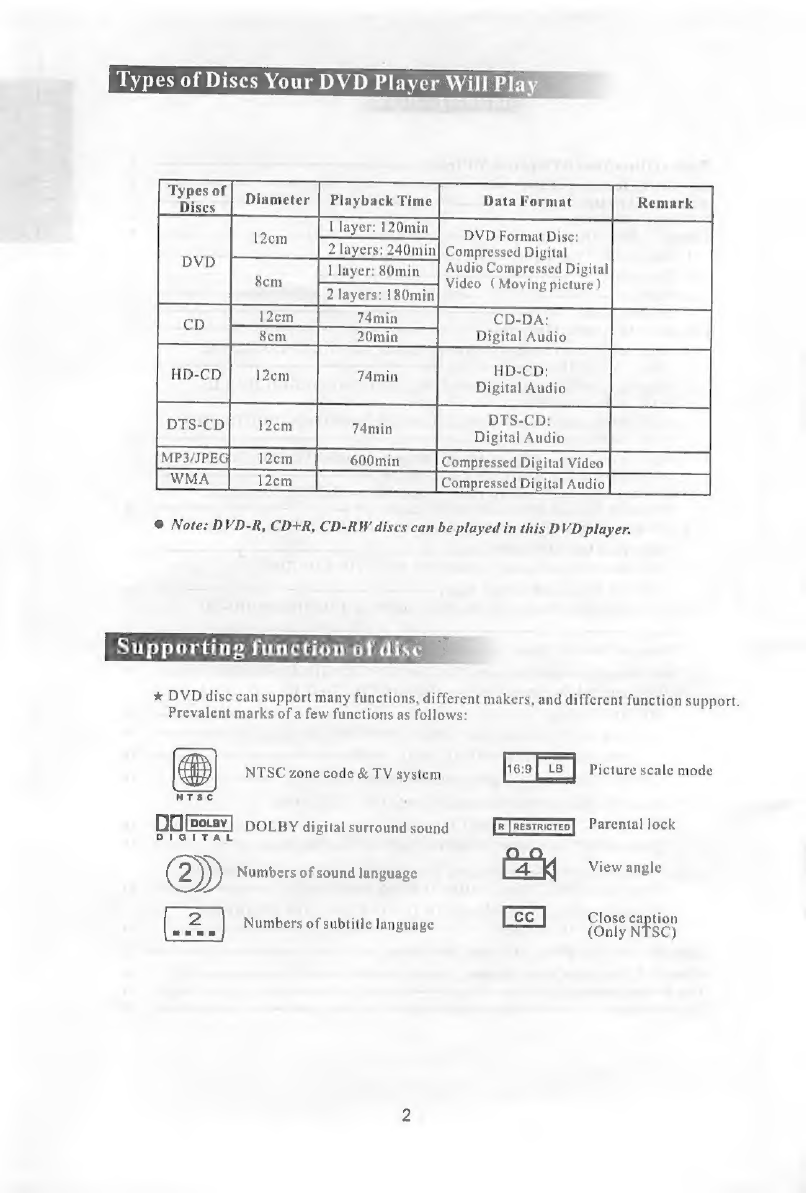

pes
of
Disc
Player
Will
Play
Types of
Dises
Diameter | Playback Time
1 layer: 120min
12cm
2 layers: 180min
Data Format
DVD Format Disc:
Compressed D
Audio Compre:
Video (Moving picture )
{ Digital
Ta |
Remark
12cm 74min
CD-DA:
20min Digital Audio
;
12cm
HD-CD:
(aruE Digital Audio
74min
12cm 600min
DTS-CD:
Digital Audio
Compressed Digital Video
WMA 12cm
Compressed Digital Audio
©
Note:
DVD-R,
CD+R,
CD-RW
dises
can
be
played
in
this
DVD
player.
Supporting function of disc)
*
DVD
disc
can
support
many
functions,
different
makers,
and
different
function
support.
Prevalent marks of a few functions as follows:
NTSC zone code & TV system
wise
DOLBY digital surround sound
DIGITAL
@)) Numbers of sound language
Numbers of subtitle language
Picture scale mode
Parental lock
View angle
Close caption
(Only NTSC)

Remote
Controll
;
ENGLISH
1, SUBTITLE
2. OPEN/CLOSE
3. NUMERIC KEYS
4. PBC
5.STEP
6. PROGRAM
7. SLOW
8. SETUP
9. CURSOR CONTROL
/ENTER
10. TITLE
11, PAUSE
12.MUTE
13. FR, FF
14. PREV, NEXT
srawopy
19. A-B
20. VOL+, VOL-
21. REPEAT
22.O0SD
23.GOTO
24, L/R
25. RETURN
26. S-VIDEO/
INTERLACE-Y U V/
P-SCAN Y Pb Pr
27, LANGUAGE
28. ANGLE
29. STAND-BY
ACCURA

ems connect
1) Before connecting, make sure to turn off power of all apparatus,
2) After finishing connection, turn on the power again.
AV cable (accessory) should be connected by color.
Yellow plug- video terminal (yellow)
left audio terminal (white)
right audio terminal (red)
Must connect properly, especially the plug should be inserted to the bottom.
5.ichannel
amplifier

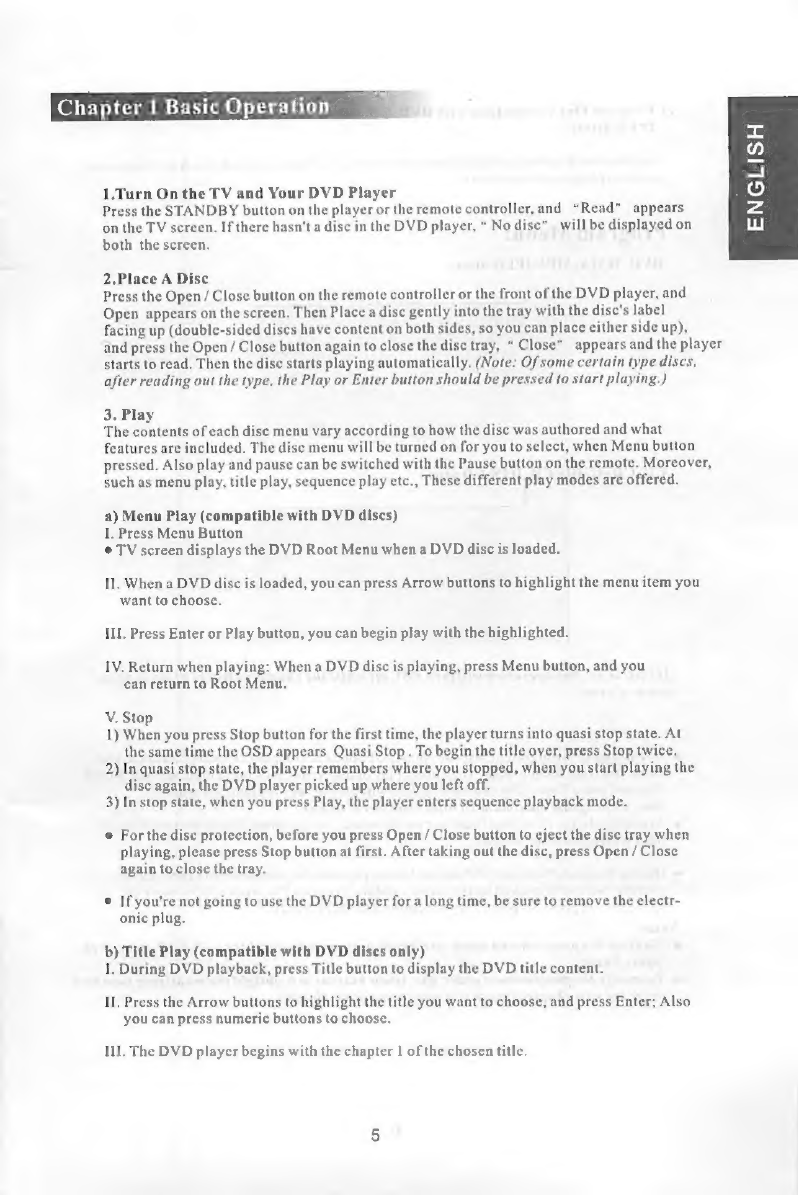

apter 1 Basic Operation i
1.Turn On the TV and Your DVD Player
Press
the
STANDBY
button
on
the
player
or
the
remote
controller,
and
“Read”
appears
on
the
TV
screen.
If
there
hasn't
a
disc
in
the
DVD
player,
“
No
disc”
will
be
displayed
on
both
the
screen.
ae
2
=
)
Zz
it)
2.Place A Dise
Press the Open / Close button on the remote controller or the front of the DVD player, and
Open
appears
on
the
screen.
Then
Place
a
disc
gently
into
the
tray
with
the
disc's
label
facing
up
(double-sided
discs
have
content
on
both
sides,
so
you
can
place
either
side
up),
and
press
the
Open/Close
button
again
to
close
the
disc
tray,
“
Close”
appears
and
the
player
starts
to
read. Then
the
disc
starts
playing
automatically.
(Note:
Of
some
certain
type
discs,
after
reading
out
the
type,
the
Play
or
Enter
button
should
be
pressed
to
start
playing.)
3. Play
The contents of each disc menu vary according to how the disc was authored and what
features are included. The dise menu will be turned on for you to select, when Menu button
pressed. Also play and pause can be switched with the Pause button on the remote. Moreover,
such as menu play, title play, sequence play etc., These different play modes are offered.
a) Menu Play (compatible with DVD discs)
I. Press Menu Button
© TV screen displays the DVD Root Menu when a DVD disc is loaded.
II, When a DVD disc is loaded, you can press Arrow buttons to highlight the menu item you
want to choose.
III. Press Enter or Play button, you can begin play with the highlighted.
IV. Return when playing: When a DVD disc is playing, press Menu button, and you
can return to Root Menu.
V. Stop
1) When you press Stop button for the first time, the player turns into quasi stop state. At
the same time the OSD appears Quasi Stop . To begin the title over, press Stop twice.
2) In quasi stop state, the player remembers where you stopped, when you start playing the
disc again, the DVD player picked up where you left off.
3) In stop state, when you press Play, the player enters sequence playback mode.
e For the disc protection, before you press Open/Close button to
playing, please press Stop button at first. After taking out the di
again to close the tray.
ject the disc tray when
¢, press Open / Close
e If you're not going to use the DVD player for a long time, be sure to remove the electr-
onic plug.
b) Title Play (compatible with DVD discs only)
I. During DVD playback, press Title button to display the DVD title content.
II, Press the Arrow buttons to highlight the title you want to choose, and press Enter; Also
you can press numeric buttons to choose.
II. The DVD player begins with the chapter | of the chosen title.

c)
Program
Play
(compatible
with
DVD,
CD,
CD+G,
DTS-CD,
HD-CD,
WMA,
MP3/
JPEG
dises)
The
Program
Playback
option
allows
you
to
enter
the
order
in
which
you
want
chapters
or
tracks
to
play,
maxi-mum
to
16.
Program Menu:
DVD, WMA, MP3/JPEG dises:
CD, CD+G, HD-CD, DTS-CD dises:
If
PBCis
on,
this
operation
will
turn
PBC
off
while
the
chapters
/tracks
plays
in
prog-
rammed
order,
According
to
the
highlight,
use
the
Numeric
buttons
to
enter
the
chapters
/
tracks
in
the
order
you
want
them
to
play.
Then
press
Play
or
use
Arrow
buttons
to
highlight
the
PLAY
item
and
press
Enter.
The
chapters
/
tracks
will
play
in
the
programmed
order.
You can program maximum 16 titles /chapters / tracks.
According
to
the
Direction
Indicator
on
the
menu,
you
can
press
Arrow
buttons
to
high-
light
where
you
want
to
enter.
¢
During
Program
Playback,
if
Program
button
pressed,
the
programmed
order
and
the
contents
will
be
displayed
on
the
screen,
and
the
Program
Playback
will
be
stopped;
Also
you
can
press
Stop
and
Play
to
resume
normal
playback.
Notes:
e To clear the programmed order, use Arrow buttons to highlight the CLEAR item, then
press Enter,
© To modify the programmed order, use Arrow buttons to highlight the modifying item and
enter the new chapter /track you want to program directly,

Chapter 2 Add
1.
Selecting
Tracks
(compatible
with
DVD,
CD,
CD+G,
DTS-CD,
HD-CD,
WMA,
MP3
/JPEG
dises)
a)
When
playing
a
DVD
disc,
press
Numeric
buttons
on
the
menu
or
title
page
to
select
tracks;
During
DVD playback,
you
can
input
desired
title
number
directly.
b) As for CD, CD+G, HD-CD, DTS-CD discs, press Numeric buttons directly to select tracks.
C) when playing wma, mp3 / jpeg discs, press numeric buttons to select different tracks on
current track list.
Notes: To select tracks from 1 to 10, press corresponding Numeric buttons (1-9, 10)
To select tracks above 10, press 10+ button, For example, to select the track 15, press
10+ and 5 button. If the selected track is not available, the input would be invalid.
2. Skipping Tracks (compatible with DVD, CD, CD+G, DTS-CD, HD-CD, WMA, MP3/JPEG
discs)
a) To skip forward to the beginning of the next title / chapter / track on a disc, press Next on
the remote or the front of the player.
b) To skip backward to the beginning of the preceding title / chapter / track on a disc, press
Prev onthe remote or the front of the player.
© IfaDVD disc is loaded, it varies according to how the disc was configed.
3. Multispeed Fast Motion Playback (compatible with DVD, CD, DTS-CD, WMA, MP3/
JPEG discs)
You can search in forward or reverse mode during playback.
a) Press the F.F button on the remote during playback to search through a disc. Press the
button again on the remote to search at the next speed. Fast Forward Playback has four
speeds: X 2, X 4, X 8, X 20. With each consecutive press of the button, the search
speed increases. If you press the button five times, Fast Forward Playback cycles back
to normal playback. During DVD playback, when Fast Forward Playback gets to the
beginning of the next title / chapter, it resumes normal playback.
© Press Play button to resume normal playback.
b) Press the F.R button on the remote during playback to search through a disc. Press the button
again on the remote to search at the next speed. Fast Reverse Playback has four speeds: X 2,
X 4, X 8, X 20. With each consecutive press of the button, the search speed increases. If
you press the button five times, Fast Reverse Playback cycles back to normal playback.
During DVD playback, when Fast Reverse Playback gets to the beginning of the playing title
/ chapter, it resumes normal playback.
@ Press Play button to resume normal playback.
4. Multispeed Slow Motion Playback (compatible with DVD, CD,CD+G, DTS-CD, HD-CD,
WMA, MP3/JPEG discs)
Press Slow button when pictures moving, you can enter Slow Motion Playback mode.
Press the Slow button on the remote during playback. Press the button again on the remote to
play at the next speed. Slow Motion Playback has six speeds: 1/2, 1/3, 1/4, 1/5, 1/6, 1/7. With
each consecutive press of the button, the play speed decreases. If you press the button seven
times, Slow Motion Playback cycles back to normal playback.Press Play button to resume
normal playback
x
2
_l
oO
z
ui

5.
Freeze
Frame
and
Frame
Advance
(compatible
with
DVD,
CD,
CD+G,
DTS-CD,
HD-CD,
WMA,
MP3/JPEG
dises).
a)
During
CD,
CD+G,
HD-CD,
DTS-CD,
WMA
or
MP3
/
JPEG
playback,
press
Pause
once
to
freeze
playback;
Press
the
Pause
button
again
or
Play
button
to
resume
normal
playback.
b)
During
DVD
playback,
press
Pause
once
to
freeze
playback;
Press
of
the
Pause
button
again
to
advance
the
one
frame
at
a
time;
Press
Play
to
resume
normal
playback.
6. Using the Repeat Feature (compatible with DVD, CD, CD+G, DTS-CD, HD-CD, WMA,
MP3/JPEG discs)
While
a
disc
is
playing,
press
Repeat
button
once,
and
the
repeat
banner
appears
to
show
current
repeat
mode.
a) InCD, CD+G, HD-CD, DTS-CD, WMA, or MP3/ JPEG sequence playback mode, press
Repeat button again to turn on repeat mode. Press the button again on the remote to turn to
the next repeat mode. There are three repeat options: Off, Track Repeat, and Disc Repeat.
With each consecutive press of the button, the repeat mode switches. If you press the button
four times, repeat mode cycles back to Off.
b)
In
DVD
playback,
press
Repeat
button
again
to
turn
on
repeat
mode.
There
are
three
repeat
options:
Off,
Chapter
Repeat,
and
Title
Repeat.
With
each
consecutive
press
of
the
button,
the
repeat
mode
switches.
If
you
press the
button
four
times, repeat
mode
cycles
back
to
Off.
c) In WMA, MP3/ JPEG playback, press Repeat button again to turn on repeat mode. There are
four repeat options: Off, Track Repeat, Directory Repeat, and Disc Repeat, With each consec-
utive press of the button, the repeat mode switches. If you press the button five times, repeat
mode cycles back to Off.
7. Using the Display Feature (compatible with DVD, CD, CD+G, DTS-CD, WMA, MP3/
JPEG dises)
a) Loading and playing DVDs (two pages)
Press Display button once to show the first page:
Disc Type, Title * / * (the playing title / total titles), Chapter * / * (the playing chapter / total
chapters),Elapsed Time of the Disc.
Press the button again to show the second page:
Language * / * (the serial number of playing language / the amount of optional languages)
or Off,Language Type, Audio Type,Subtitle * / * (the serial number of playing subtitle / the
amount of optional subtitles) or Off,Angle * / * (the serial number of playing angle / the am-
ount of optional angles) or Off.
Press the button for the third time, the display menu fades out.
b) Loading and playing CD, CD+G, DTS-CD, HD-CD, WMA, MP3 / JPEG discs
¢ Press Display button once to show the first page:
Disc Type,Track * / * (the playing track / total tracks)Mute,Repeat Mode,Elapsed Time
of the Playing Track .
© Press the button again, the display menu fades out.
8. Using the Search Feature (compatible with DVD, CD, DTS-CD, HD-CD discs)

You can use Search feature to select a title / chapter / track number or go to a specific point in
atitle. Firstly, press Search (Goto) button on the remote controller to bring up the search menu
and enter the edit state; Secondly, press Arrow buttons to highlight the title / chapter / track
number or the time option; Thirdly, use Numeric buttons to enter the title / chapter / track you
want to play or the elapsed time you want to go to in that title; At last, press Enter button to
start playback, For example, entering 01:23:56 will start playback one hour, twenty-three
minutes and fifty-six seconds into the title. If the input number is illegal, the error information
INVALID KEY will be displayed on the screen,
x=
a)
—l
o)
z
Lu
Notes
I. This feature does not work in Program Play mode.
II. If PBC is on, it will turn off automatically when Search Playback starts.
III, When playing WMA, MP3/JPEG discs, Search Feature does not work.
9, Using the Browse / Scan/ Index feature (compatible with CD, CD+G, DTS-CD, HD-CD
dises)
a).When a CD, CD+G, DTS-CD, or HD-CD disc is loaded, according to the tracks’ sequence
on the disc, each trackplays I Ssec.
© Youcan select a track to start Scan Playback by press Numeric buttons on the remote.
@ To exit the Scan Playback and resumes normal playback from the scanning track, press the
Play button.During normal playback, press Preview button to start Scan Playback from
current track (if the track has played for more than 15sec, it will start from the next track)
b) Press the Root button again, that is to press the button during Browse Playback, the
screen displays big pictures instead of thumbnails. According to the tracks' sequence on
the disc, each picture plays 1 Ssec.
e@ You can select a track to start Index Playback by press Numeric buttons on the remote.
© To exit the digest and resume normal playback from current track, press the Play button.
c) During normal playback, press the PBC button to show thumbnails of the currently
selected track.
e IfPBC is on, it will turn off automatically when Browse Playback starts.
e To view the next nine thumbnails, press the Next button to go forward and the Prev button
to go to the previous page.
@ To exit the digest and resume normal playback from the current picture, press the Play button.
e@ Each thumbnail has a number in the corner. You can select and play a picture by press that
number on the remote.
d) If you stop, press PBC you can browse nine picture for the disc, During normal playback by
press root, you can browse the current track nine pictures.
10. Changing the Soundtrack (compatible with CD+G, HD-CD, WMA, MP3/JPEG dises)
Press the L/ R button to display current soundtrack.
a) Press the button can switch soundtracks.
b) Press the button again on the remote to turn to next soundtrack.
When playing a CD, CD+G, DTS-CD, HD-CD, WMA, or MP3 disc, there are three: Stereo
(L/R), L/L, and R/R.
11. Changing the Audio Language (compatible with DVD discs)
During disc playback, press Language on the remote once, and the audio language info banner
appears. When a DVD is recorded whit multiple soundtracks, you can use the Lang-uage feature
to temporarily change the audio language (the language of the soundtrack) There are 3 supporte
dlanguages: English, French, Spanish.
With each consecutive press of the Language button, the audio language switches and the
corresponding serial number appears on the screen. For example, Language Icon: [1 English
DTS 6CH] or [Off] (the availability of the languages are disc-dependent).
9

12. Subtitles (compatible with DVD discs)
Press the Subtitle button on the remote once, and the subtitle info banner appears. When a
DVD is recorded with subtitles, you can use the Subtitle feature to view the sub-titles on
screen, By default, subtitles are off. The info banner will display Subtitle Off. To display
subtitles, press the Subtitle button again, The default language with its corresponding serial
number will be displayed in the info banner and subtitles will be displayed in that language.
There are 3 supported subtitles: English, French, Spanish
With each consecutive press of the Subtitle button, the subtitle switche:
For example, Language Icon: [1 English DTS 6CH] or [Off] (the availability of the subtitles
are disc-dependent). To turn subtitles off, press the Subtitle button until Subtitle Offis
displayed.
13. Changing the Camera Angle (compatible with DVD discs)
During disc playback, press Angle on the remote once, and the angel icon appears.Some
DVDs contain multipleangles of a particular scene or sequence, so you can use the Angle
feature to view.Press the Angle button again to go to the next camera angle. If multiple
camera angles are available, the Angle icon displays the current angle numberand the
number of angles available. For example: Angle Icon: [* / *] or [Off] ; 1 / 4 indicates that
angle one is beingdisplayed, and there are four different angles available. (This feature is
disc-dependent. If no additional camera angles are available, the Invalid Key will be
displayed.)
14. Mute the Audio Output (compatible with DVD, CD, CD+G, DTS-CD, HD-CD, WMA,
MP3/JPEG dises)
Pressing the Mute button allows you to reduce sound to an inaudible level, and MUTE will be
displayed on screen. Press the button again or press the Vol +/- button to return to the normal
condition.
Notes:
© When mute, the microphone also has no audio output.
¢ If the player playback disc without sound, please try to press Mute button to resume.
15. Zoom In the Video Image (compatible with DVD, JPEG discs)
a) The Zoom Function allows you to enlarge or zoom out the video image and to pan though the
image. Press Zoom repeatedly to activate the function and choose the required zoom factor:
Zoom 2, Zoom 3, Zoom 4, Zoom 1/2, Zoom 1/3, Zoom 1/4, Zoom Off.
Notes:
© This feature does not work when the Disc Menu appears.
b) Use the Arrow buttons to pan across the screen when the zoom factor is 2, 3 or 4.
10

16.
Repeat
a
Specific
Segment
on
the
Disc
that
You
Define
(compatible
with
DVD,
CD,
CD+G,
DTS-CD,
HD-CD,
WMA,
MP3
dises)
a)
During
the
normal
or
fast
motion
playback,
press
the
A-B
button
once,
and
REPEAT
A-
will
appears
on
the
screen.
This
indicates
the
start
of
the
loop
to
be
repeated.
b)
During
the
normal
of
fast
motion
playback,
press
A-B
again,
and
REPEAT
A-B
will
appears
on
the
screen.
It
indicates
the
end
of the
loop.
©
Looping
will
run
from
set
point
A
to
set
point
B
until
you
turn
off
Repeat.
C) Press A-B again to cancel A-B loop mode.
ga
CD
disc,
you can
repeat
a
specific
segment
only
in
one
track,
When
the
next
.
A-B
Repeat
turns
off
automatically.
e When pla
track beg'
@ When playing a DVD disc, you can repeat a specific segment only in one title / chapter.
17.
Volume
control
(compatible
with
DVD,
CD,
CD+G,
DTS-CD,
HD-CD,
WMA,
MP3/JPEG
discs)
e
You
can
press
the
Volume
button
on
the
front
of
TV
set
or
the
amplifier
to
control
the
sound
level.
©
Pressing
the
Vol+
button
on
the
remote
allow
you
to
amplify
the
sound
level;
Pressing
Vol-
will
reduce
the
sound
level.
Notes:
© During DVD PCM output playback, this feature does not work.
11
x
oD
-!
Oo
z
Ww

nd JPEG discs
Place
a
MP3
/
JPEG
disc
into
the
tray,
and
the
player
will
auto
search
the
directories
saved
MP3/JPEG
files.
After
searching,
it
will
auto
go
to
the
first
directory
saved
MP3
files
(to
the
disc
containing
both
MP3
and
JPEG
files;
To
the
disc
containing
single
type
of
files,
it
will
auto
go
to
the
first
directory)
and
play
the
first
song
in
the
directory
(01:
is
highlighted),
The
screen
displays
as
the
below:
Current MP3/JPEG file name
i JPEG fil
Current directory name name should be
-O2BEAUTY
a3-~--
-04HBO
-05T0O MU
File Switch Region: Displays
the file type of the playing and
the switching.
Use the Arrow buttons to enter the Directory Region and highlight the desired directory, then
the first track under it starts playback; Also you can use the Arrow buttons to enter the File
Region and select the file you want to play.
Notes:
I. Press the Left and Right arrow buttons, you can activate Directory Region, File Region
and File Switch Region separately.
U1. The highlight in Directory Region and File Region is shown as the picture above; While
it appears a transparent rectangle in File Switch Region.
III. In File Switch Region, you can press the Left and Right arrow buttons to switch the hig-
hlight, then press Enter; the S3 (Music) , > (Play), and @®B (JPEG) buttonis
illustrated in the above picture.
For example, if a disc with MP3 and JPEG files but without any NES files is loaded, the
color of the letter J} and > will appear to white and @B black. Ifa MP3 file playing,
“S53” turns darker.
IV. To the disc with WMA, MP3 and JPEG files, when playing a JPEG picture, press the
Return button to return to JPEG list.
12

V.
You
can
press
the
Numeric
buttons
to
select
the
file
you
want
to
play.
For
example,
ifyou
desire
the
15°
track
in
current
list,
press
the
10+
button
once,
then
press
5,
the
15.
starts
playback,
Notes:
When
playing
a
disc
with
MP3
files,
video
cannot
be
output
while
only
digital
audio
can,
VI.
When
playing
JPEG
pictures,
press
the
Program
button
to
choose
the
pictures
switched
mode.
There
are
17
switch
mod
ress
Program
repeatedly
to
activate
the
function
and
choose
the
required
switch
mode:
Spread
from
Up
to
Down,
Spread
from
Down
to
Left,
Spread
from
Left
to
Right,
Spread
from
Right
to
Left,
Spread
from
Left
Up
to
Right
Down,
Spread
from
Right
Up
to
Left
Down,
Spread
Left
Down
to
Right
Up,
Spread
from
Right
Down
to
Left
Up,
Spread
from
Center
to
Up/Down,
Fold
from
Up/Down
to
Center,
Fold
from
Left/Right
to
Center,
Horizontal
Shutter,
Vertical
Shutter,
Fold
from
the
Corners
to
the
Center,
Random
Play,
Off.
x
2
|
io)
2
rm
VII.
When
a
playing
or
pausing,
press
the
Arrow
buttons
to
change
the
display
angle:
Up:
flip
vertical
Down:
flip
horizontal
Left:
rotate
90 counter-clockwise
Right:
rotate
90
clockwise
VIII,
When
a
playing
or
pausing,
Please
press
STOP
button
and
then
press
PBC
button,
the
screen
displays
small
pictures.
Up
to
6
small
pictures
are
displayed
per
screen.
To
view
the
next
6
pictures,
press
the
Next
button
to
go
forward
and
the
Prev
button
to
go
to
the
previous
page.
You
can
also
select
and
play
a
in
full
screen
by
press
that
number
on
the
remote.
13

e Setup Menu System
1. General Steps of Setup Menu
a) Press the Setup button, the main setup menu appears.
e When the main menu displayed, the DVD system will auto pause.
2. Setup Items Introduction
a) SYSTEM SETUP
The system setup options are illustrated below:
TV SYSTEM
According to the Color System of the TV, you can choose the TV System.
NTSC: Choose this settings if your DVD player is connected to a NTSC TV.
PAL: Choose this settings if your DVD player is connected to a PAL TV.
2 Ee
|
Stem
___
(0
ERAS
=|
SCREEN SAVER
If the screen saver is on, when your DVD player is in Stop, Open, or No Disc state, or there
is
a
frame
frozen
for
more
than
60sec,
the
screen
saver
will
be
displayed.
This
feature
can
protect the screen from damage.
ON: Choose this setting to activate the screen saver.
OFF: Choose this setting to cancel the screen saver
The default setting is ON.
2 |e Se
14

VIDEO
S-VIDEO: Choose this setting if your DVD player is connected to the TV with S-VIDEO
cable.
+ Interlace-YUV: Choose this setti:
Y Cb Cr video cable.
P-SCAN(Y Pb Pr): Choose this setting if your DVD player is connected to the TV with
Y Pb Pr video cable.
f your DVD player is connected to the TV with
x=
2
-
1)
2
wi
= |S Ee
SYSTEM SETUP!
TV_SYSTEM |
PYIDEO. Ed
TV_TYPE i] NT! CE-YUV
PASSWORD | _P=SCAN_Y
TV TYPE
16 : 9 (Wide Screen): Choose this setting if your DVD player is connected to a wide screen
TV. If you choose this setting and you don't have a wide screen TV, the images on the screen
may appear distorted due to vertical compression.
4:3 LB (Letter Box): Choosing this setting if your DVD player is connected to a normal
ratio TV. connector You'll see the movies in their original aspect ratio (height-to-width ratio).
You'll sce the entire frame of the movie, but it will take up a smaller portion of the screen
vertically.
The movie might appear with black bars at the top and bottom of the screen.
4:3 PS (Pan & Scan): Choosing this setting if your DVD player is connected to a normal
ratio TV. You can fill the movie to the entire screen of your TV. This might mean that parts
of the picture (the left and right edges) won't be seen.
Notes:
° The image display ratio is related to the recorded disc format. Some disc can not display
images in the aspect ratio you choose,
° Ifyou play a disc recorded in 4:3 format on a wide screen TY, black bars will appear on
the left and right side of the screen.
© You must adjust the screen setting depending on the type of the television you have.
, |e ee
SYSTEM SETUP!
: < SYS - =
SAVER
DEO
ry TY!
PAssworD
The password option is initia zed locked, and you cannot set the ratings limit or change the
password. In order for the Ratings feature work, the password mode must be turned on. If you
want to set the ratings limit, you will need to enter the default password, which is 0000, then
press Enter to confirm. To change the password, you will be prompted for the old password,
then be prompted for a new. Enter a 4-digit number (this is your password).
15

RATING
The Rating feature is a rating limit system, like movie ratings. It works with DVD discs that
have been assigned a rating. This helps you control the types of DVDs that your family wat-
ches,
Notes:
If the password option is locked, you cannot set the ratings limit; the rating limit doe not
work when the password option unlocked.
NEXT PAGE
you can choose DEFALT, RESUME in NEXT PAGE menu.
DEFAULT: Restores the original factory settings.
RESUME: select resume function ONorOFF.
PREV PAGE: go back to previous menu.
b) LANGUAGE SETUP
The language setup options are illustrated below:
OSD LANGUAGE
Highlight the OSD LANGUAGE option, and press the Arrow buttons to choose the OSD
language you prefer. Press Enter to confirm, and it will display OSD in that language;
There are 2 optional OSD languages: English, French.
16

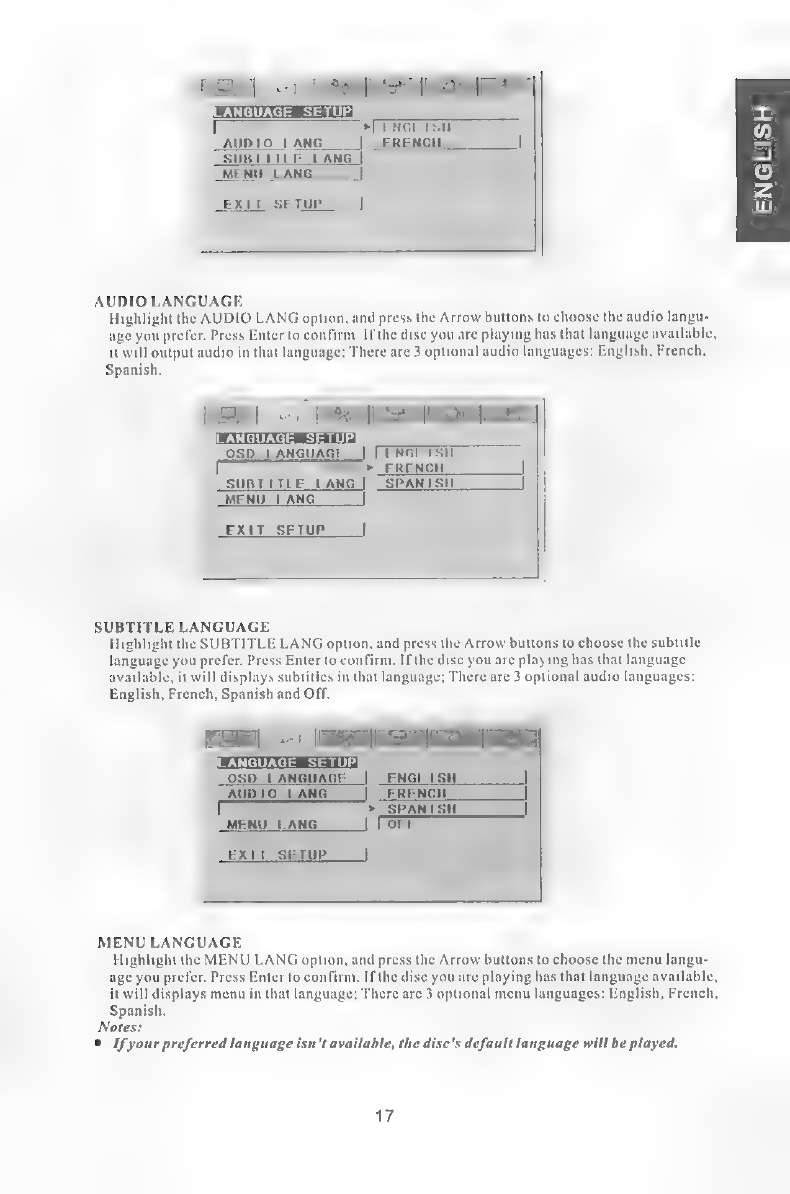

AUDIO LANGUAGE
Highlight the AUDIO LANG option, and press the Arrow buttons to choose the audio langu-
age you prefer. P. Enter to confirm. If the you are playing has that language available,
it will output audio in that language; There are 3 optional audio languages; English, French,
Spanish.
SUBTITLE LANGUAGE
Highlight the SUBTITLE LANG option, and press the Arrow buttons to choose the subtitle
language you prefer. Press Enter to confirm. If the disc you are playing has that language
available, it will disp’ ubtitles in that language; There are 3 optional audio languages:
English, French, Spanish and Off.
MENU LANGUAGE
Highlight the MENU LANG option, and press the Arrow buttons to choose the menu langu-
age you prefer, Press Enter to confirm. If the disc you are playing has that language available,
it will displays menu in that language; There are 3 optional menu languages: English, French,
Spanish.
Notes:
© Ifyour preferred language isn't available, the disc's 's
default language will be played.
17
x
oe
=!
1)
Zz
Ww

c) AUDIO SETUP
The audio setup options are illustrated below:
AUDIO OUT
Highlight the AUDIO OUT option, and press the Arrow buttons to choose the audio output
mode you prefer. Press Enter to confirm; There are 3 optional audio output modes:
SPDIF/OFF, SPDIF / RAW, and SPDIF/ PCM.
SPDIF/ OFF: From the Coaxial Output jack, no signal is output.
SPDIF/ RAW: Choose this setting if your DVD player is connected to a power amplifier
with a coaxial cable or an optical cable; When playing a disc recorded with Dolby Digital,
DTS and MPEG audio formats, the corresponding digital signals will be output from the
Coaxial Output jack . This player's digital output jacks are designed for a connection toa
Dolby Digital, DTS , or MPEG receiver or decoder. For the dts CD there is no RAW output
only PCMoutput
SPDIF/ PCM: Choose this setting if your DVD player is connected to a 2-channel digital
stereo amplifier; When playing a disc recorded with Dolby Digital and MPEG audio formats,
audio signals will be modulated into a 2-channel PCM signal, and it will be output from the
Coaxial Output jack.
d) VIDEO SETUP
The video setup options are illustrated below:
BRIGHTNESS
Use the Up and Down arrow button to move the scroll and adjust the brightness.
18
