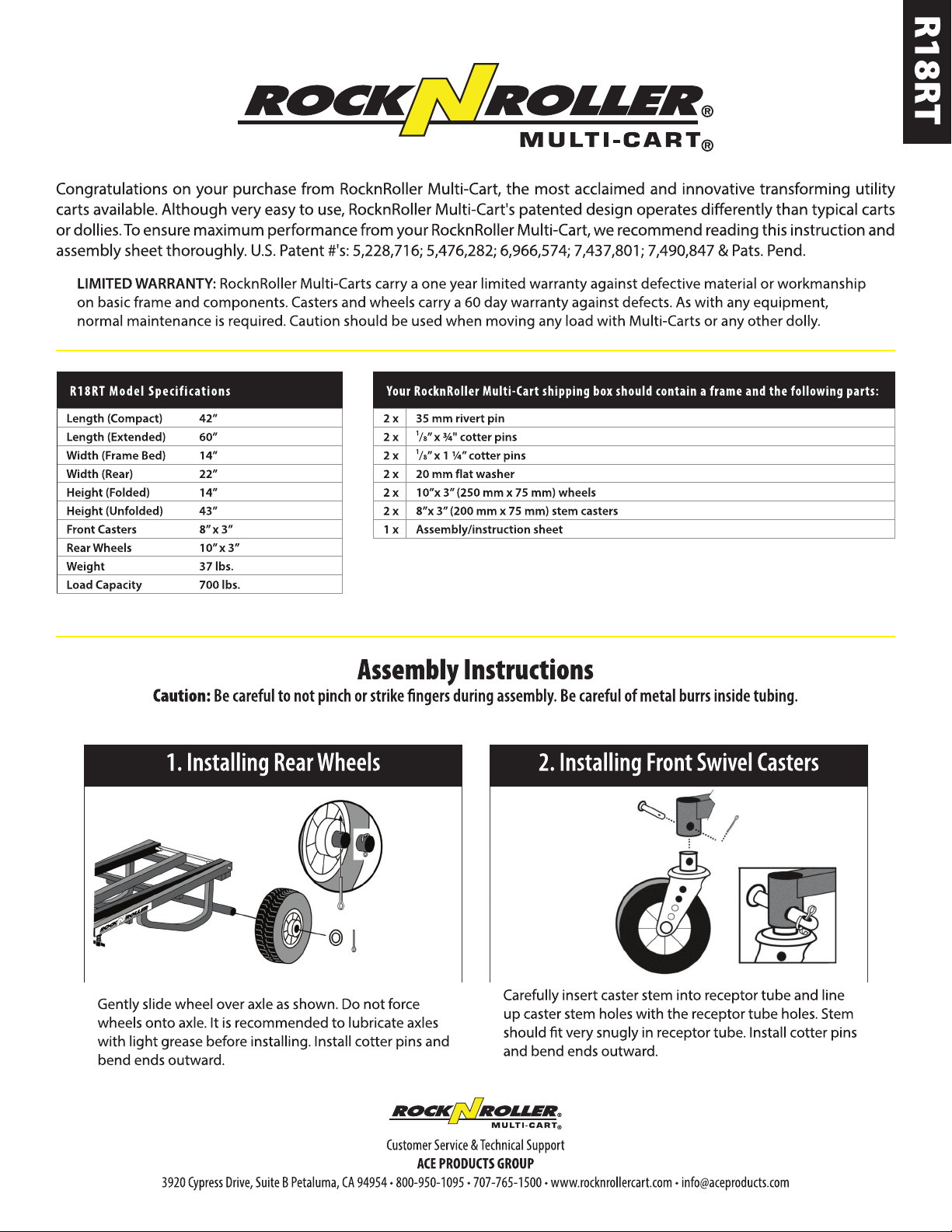

ACE PRODUCTS RockNRoller Multi-Cart R18RT User manual
R18RT Model Specifications Your RocknRoller Multi-Cart shipping box should contain a frame and the following parts:
Length (Compact) 42” 2 x 35 mm rivert pin
Length (Extended) 60” 2 x 1/8” x ¾" cotter pins
Width (Frame Bed) 14” 2 x 1/8” x 1 ¼” cotter pins
Width (Rear) 22” 2 x 20 mm flat washer
Height (Folded) 14” 2 x 10”x 3” (250 mm x 75 mm) wheels
Height (Unfolded) 43” 2 x 8”x 3” (200 mm x 75 mm) stem casters
Front Casters 8” x 3” 1 x Assembly/instruction sheet
Rear Wheels 10” x 3”
Weight 37 lbs.
Load Capacity 700 lbs.
1. Installing Rear Wheels
Gently slide wheel over axle as shown. Do not force
wheels onto axle. It is recommended to lubricate axles
with light grease before installing. Install cotter pins and
bend ends outward.
2. Installing Front Swivel Casters
Carefully insert caster stem into receptor tube and line
up caster stem holes with the receptor tube holes. Stem
should t very snugly in receptor tube. Install cotter pins
and bend ends outward.
Extending Frame
Loosen wingbolts 1/4 turn. Step on
rear axle and push in extension
stop button. Pull up on frame as
shown until stop button engages.
Retighten wingbolts.
Raising Foldable Sides
Firmly press down on release cable
while raising other end of foldable
side as shown.
Repeat with other side.
Solid Deck Cargo
Extension Rack
Cable/headphone
hanger Laptop Shelf Flex Straps
