Chapter 4 - Installing Optional Components 4-1
Chapter 4 Installing Optional
Components
4.1 Installation Precautions
Before you install any system component, we recommend that you read the
following sections. These sections contain important ESD precautions, pre- and
post-installation instructions.
4.1.1 ESD Precautions
Electrostatic discharge (ESD) can damage your processor, disk drives, expansion
boards, and other components. Always observe the following precautions before
you install a system component:
1. Do not remove a component from its protective packaging until you are
ready to install it.
2. Wear a wrist grounding strap and attach it to a metal part of the system unit
before handling components. If a wrist strap is not available, maintain
contact with the system unit throughout any procedure requiring ESD
protection.

AcerPower 2000 User’s Guide4-2
4.1.2 Preinstallation Instructions
Always observe the following before you install a system component:
1. Turn off the system power and all the peripherals connected to the unit before
opening it. Read section 1.5 for information on how to properly turn off the
system.
Make sure that the system is unplugged.
2. Open the system according to the instructions in the housing installation
manual.
3. Follow the ESD precautions in section 4.1.1 before handling a system
component.
4. Remove any expansion boards or peripherals that block access to the DIMM
sockets or CPU socket.
5. See the following sections for specific instructions on the component you wish
to install.
Do not attempt the procedures described in
the following sections unless you are a
qualified service technician.

Chapter 4 - Installing Optional Components 4-3
4.1.3 Post-installation Instructions
Observe the following after installing a system component:
1. See to it that the components are installed according to the step-by-step
instructions in their respective sections.
2. Unplug the system unit.
3. Make sure you have set all the required jumpers. See section 2.3.2 for the
correct jumper settings or refer to the jumper setting label pasted inside the
system cover.

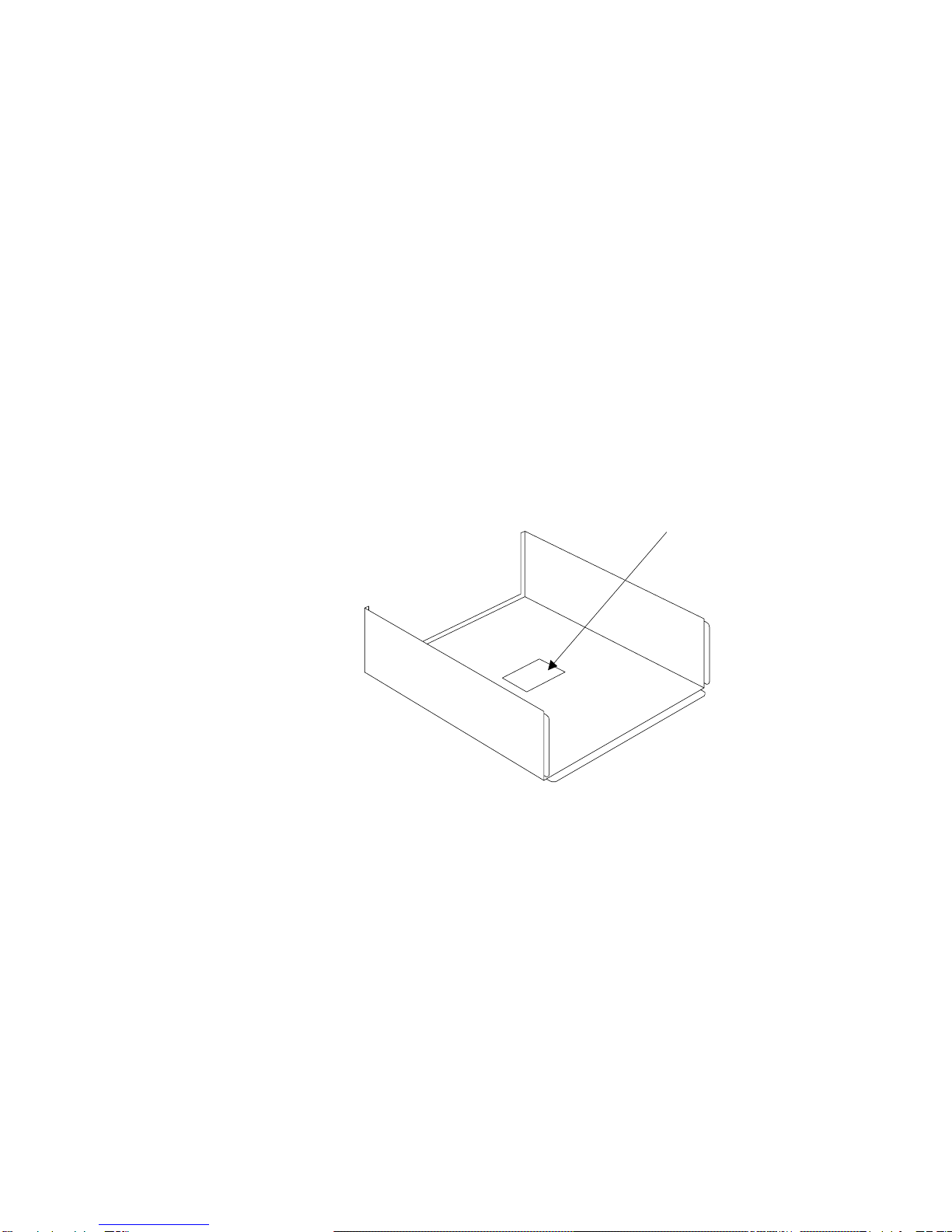

Figure 4-1 Jumper Setting Label Location
4. Replace any expansion boards or peripherals that you removed earlier.
5. Replace the system cover.
6. Connect the necessary cables and turn on the system.
jumper settings
label

AcerPower 2000 User’s Guide4-4
4.2 Removing and Replacing the Housing
Cover
Before you proceed, make sure that you
have turned off the system and all
peripherals connected to it. Read section
4.1.2 for preinstallation instructions.
This section tells you how to open the housing cover when you need to install
additional components inside the system unit.
4.2.1 Removing the Housing Cover
1. Turn off power to the system unit and unplug all cables.
2. Place the system unit on a flat, steady surface.
3. Remove the three screws from the rear panel. Set the screws aside; you will
need them when replacing the housing cover.

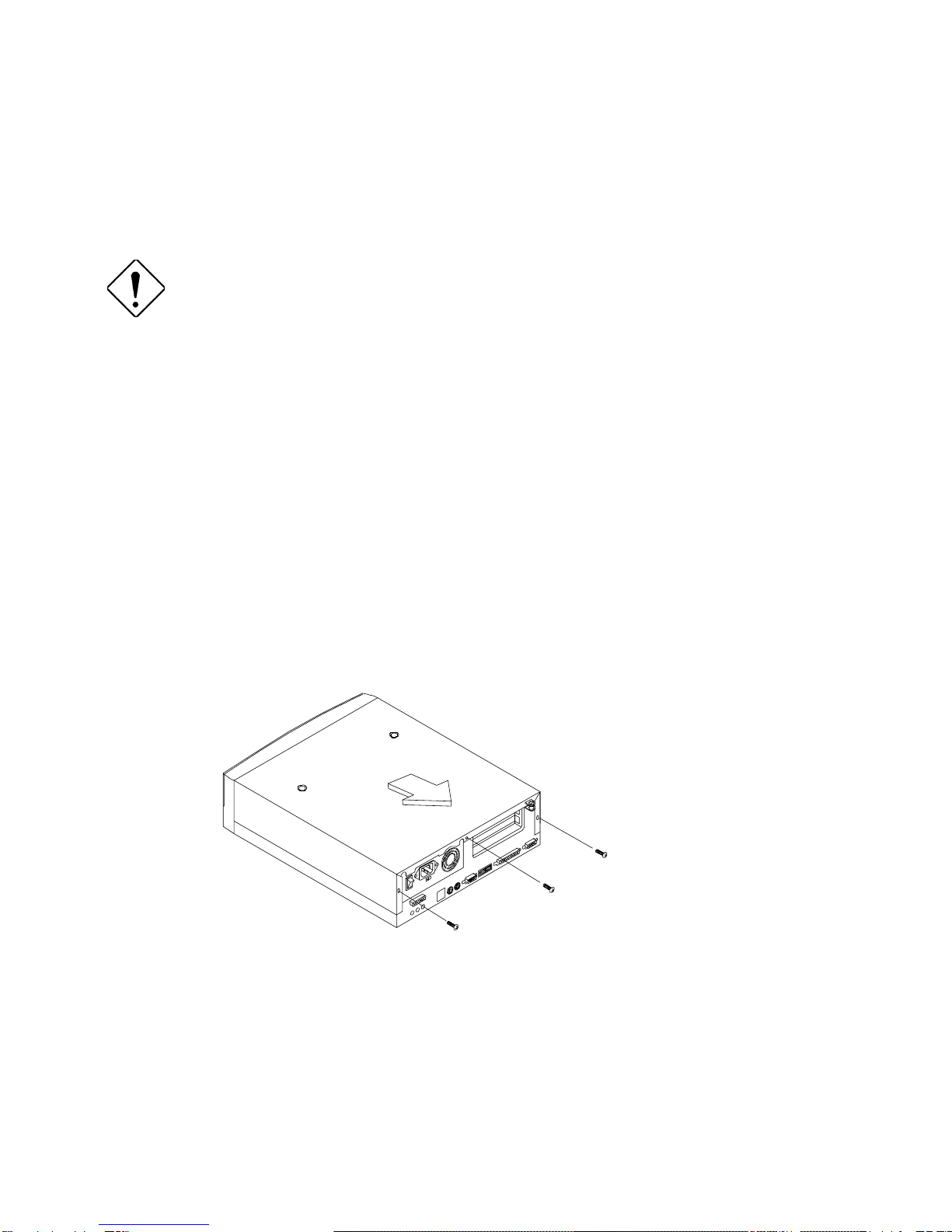

Figure 4-2 Removing the Screws

Chapter 4 - Installing Optional Components 4-5
4. Pull the housing cover slightly backward as indicated in Figure 4-3.
5. Lift the housing cover upward and remove it from the chassis.

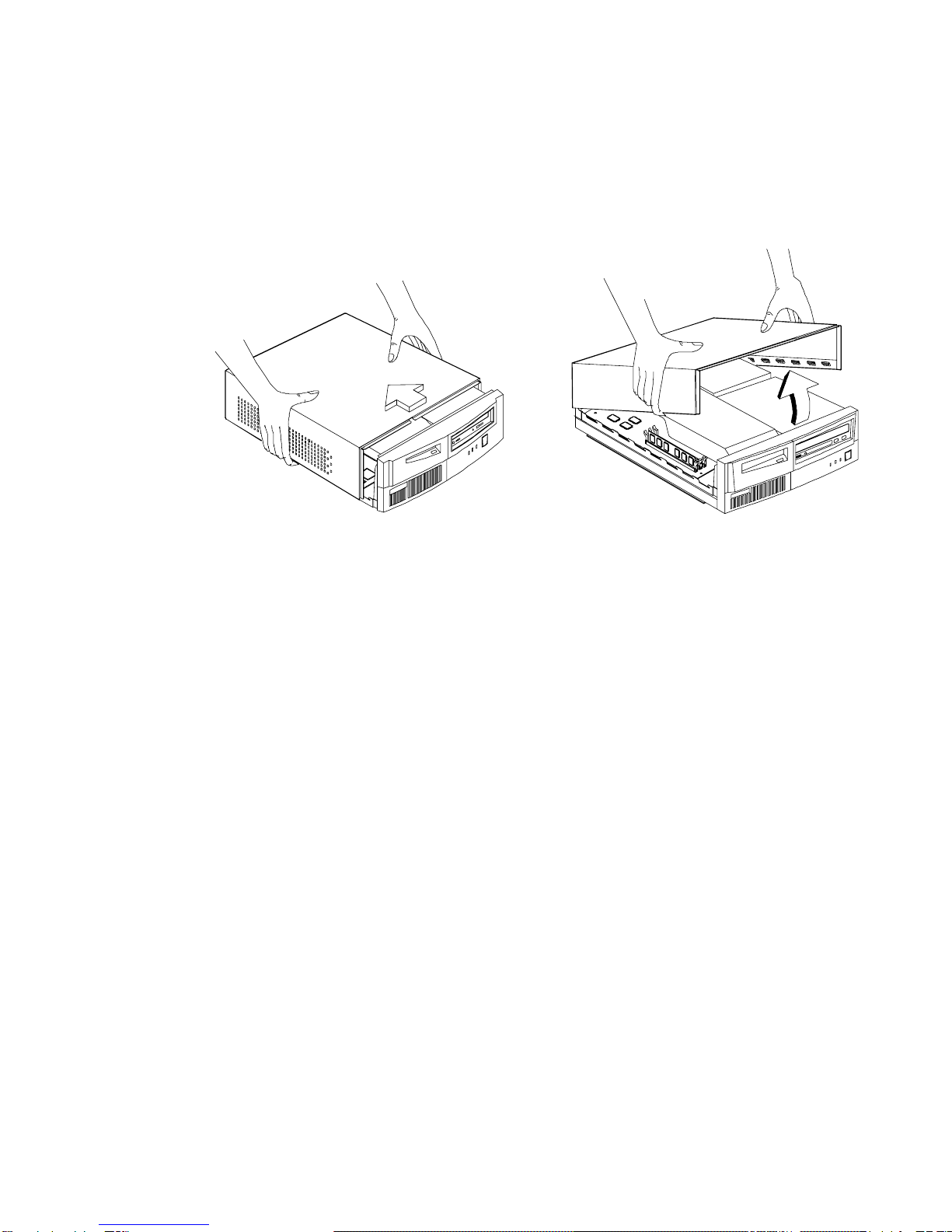

Figure 4-3 Removing the Housing Cover

AcerPower 2000 User’s Guide4-6
4.2.2 Replacing the Housing Cover
1. Replace the housing cover as shown in Figure 4-4.
Figure 4-4 Replacing the Housing Cover
2. Secure the housing cover with the necessary screws.
Figure 4-5 Securing the Screws

Chapter 4 - Installing Optional Components 4-7
4.3 Disassembling and Reassembling the
System
When upgrading, you may need to disassemble your system in order to access
the system board and other components inside the system.
To disassemble the system:
1. The metal cover inside the housing gives additional support to the housing’s
structure. To remove the metal cover, remove the two screws that attach the
metal bracket to the riser card. Insert two fingers into the hole and gently
draw it back as you lift it up.

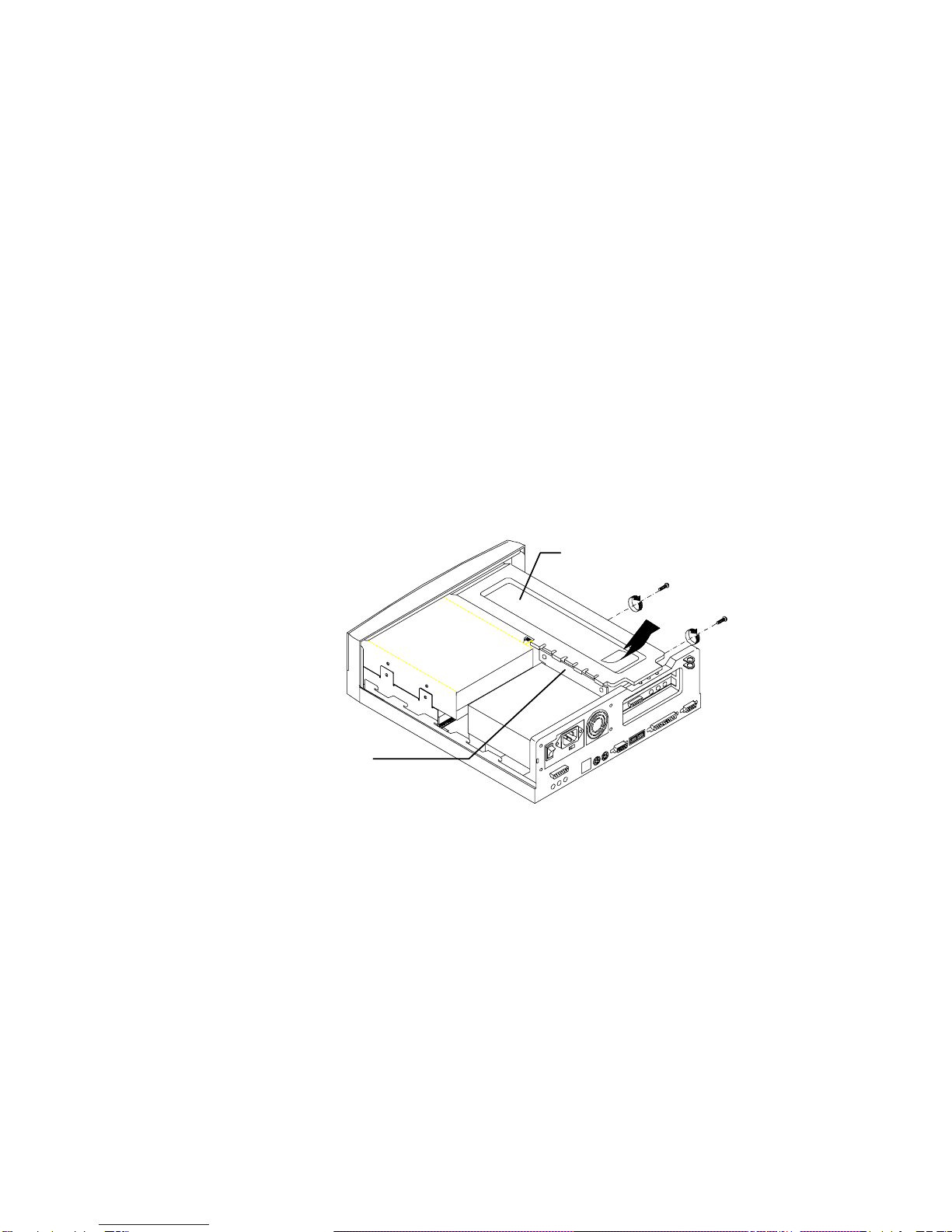

Figure 4-6 Detaching the Metal Cover
Metal Cover
Riser Card

AcerPower 2000 User’s Guide4-8
2. Disconnect the drive cables then pull out the disk frame holding the CD-ROM
drive, hard drive, and the 3.5-inch diskette drive.
Figure 4-7 Removing the Drive Frame with CD-ROM, Hard Disk, and 3.5-inch
Diskette Drives
3. When the drives have been removed, you can now access the system board
and the riser card.
To reassemble the system:
To reassemble the system, simply reverse the procedure. However, before you
reassemble your system, make sure that you have installed all necessary
components and connected the cables.

Chapter 4 - Installing Optional Components 4-9
4.4 Replacing the Hard Disk Drive
1. Detach the hard disk drive bay from the disk drive metal frame by removing
the screw as shown below.

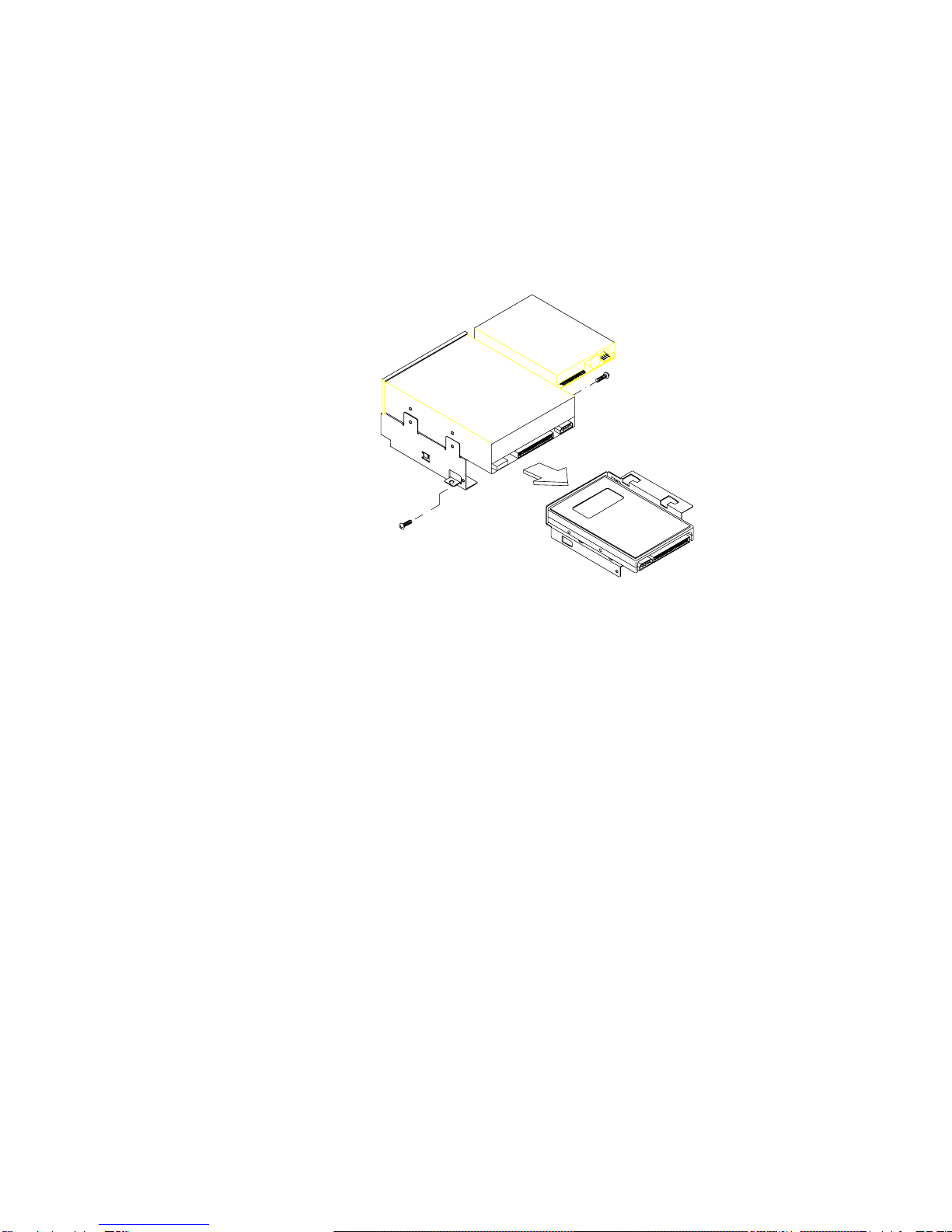

Figure 4-8 Removing the Hard Disk Drive

AcerPower 2000 User’s Guide4-10
2. Remove the necessary screws to detach the hard disk drive from the bracket.
Figure 4-9 Removing a Hard Disk Drive from the Bracket
3. Attach the new hard disk drive to the racket with the necessary screws.
Figure 4-10 Attaching the Hard Disk Drive Bay to the Metal Frame

Chapter 4 - Installing Optional Components 4-11
3. Reattach the hard disk drive bay to the disk drive metal frame.
Figure 4-11 Attaching a Hard Disk Drive to the Bracket
4. Replace the metal frame to its original position in the system and reassemble
the system.
4.5 Installing and Removing Expansion
Boards
4.5.1 Installing a PCI Card
To install a PCI card:
1. Turn off and unplug the system.
2. Locate the riser card.
3. Locate an empty PCI slot on the slot board.
4. Remove the bracket on the housing opposite to the empty PCI slot.
5. Insert a PCI card into the slot. Make sure that the card is properly seated.

AcerPower 2000 User’s Guide4-12
6. Secure the card to the housing with a screw.
When you turn on the system, BIOS automatically detects and assigns resources
to the PCI devices.
Figure 4-12 Installing a PCI Card

Chapter 4 - Installing Optional Components 4-13
4.6 Installing Additional Memory
The system memory is upgradable to a maximum of 256 MB via two 168-pin
DIMM sockets on board. These DIMM sockets accept PC-66 compliant DIMMs
with 16-, 32-, 64-, and 128-MB capacities. See Figure 2-1 for the location of the
DIMM sockets. Section 4.6.1 tells how to install DIMMs.
Table 4-1 lists possible memory configurations.
Table 4-1 Memory Configurations
DIMM1 DIMM2 Total Memory
16 MB 16 MB
32 MB 32 MB
64 MB 64 MB
128 MB 128 MB
16 MB 16 MB
32 MB 32 MB
64 MB 64 MB
128 MB 128 MB
16 MB 16 MB 32 MB
16 MB 32 MB 48 MB
16 MB 64 MB 80 MB
16 MB 128 MB 144 MB
32 MB 16 MB 48 MB
32 MB 32 MB 64 MB
32 MB 64 MB 96 MB
32 MB 128 MB 160 MB
64 MB 16 MB 80 MB
64 MB 32 MB 96 MB
64 MB 64 MB 128 MB
64 MB 128 MB 192 MB
128 MB 16 MB 144 MB
128 MB 32 MB 160 MB
128 MB 64 MB 192 MB
128 MB 128 MB 256 MB

AcerPower 2000 User’s Guide4-14
4.6.1 Installing a DIMM
1. Open the clips on the socket.
2. Align the DIMM with the socket.
3. Press the DIMM into the socket until the clips lock into the DIMM.
Figure 4-13 Installing a DIMM
The DIMM socket is slotted to ensure proper
installation. If you insert a DIMM but it does not fit
easily into the socket, you may have inserted it
incorrectly. Turn the DIMM around and try to insert
it again.

Chapter 4 - Installing Optional Components 4-15
4.6.2 Removing a DIMM
1. Press the holding clips on both sides of the socket outward to release the
DIMM.
2. Gently pull the DIMM out of the socket.

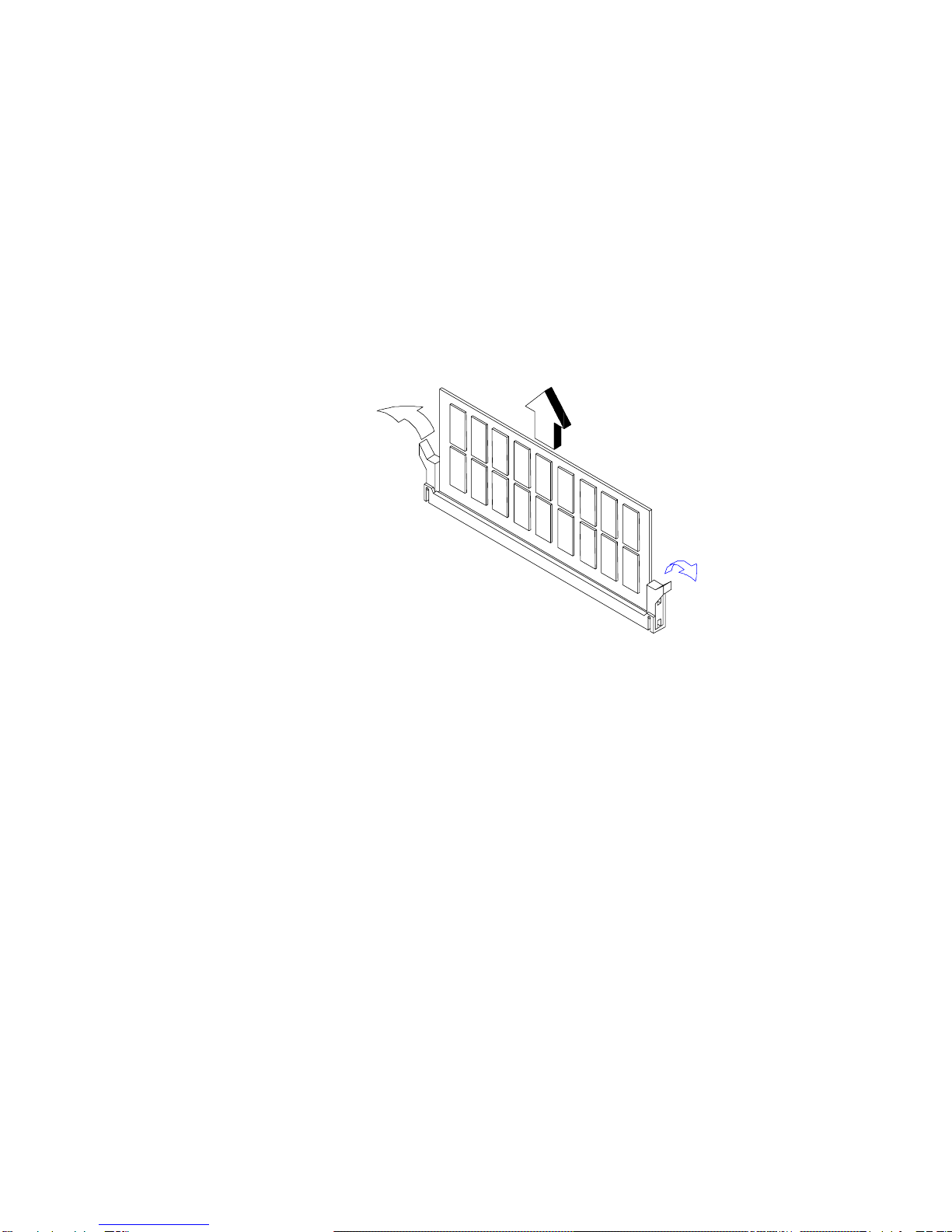

Figure 4-14 Removing a DIMM
4.6.3 Reconfiguring the System
The system automatically detects the amount of memory installed. Run Setup to
view the new value for total system memory and make a note of it.
4.7 Upgrading the CPU
The board supports a Pentium II processor or a Celeron processor. Both
processors come in a new enclosed packaging technology called S.E.C.
(Single-Edge Contact) cartridge. The only difference between the two is that the

AcerPower 2000 User’s Guide4-16
Pentium II processor comes with a 256-KB or 512-KB built-in second-level cache,
while the Celeron processor comes only with an internal cache. Both are capable
of increasing the performance of 32-bit software and multimedia applications.
4.7.1 Removing the Pentium II CPU
Observe the ESD precautions when installing or
removing a system component. See section 4.1.1.
Before you can replace or upgrade your processor, you need to remove the
previously installed processor on the system board.
Follow these steps to remove the Pentium II CPU:
1. Disconnect the 3-pin and 2-pin heatsink fan cables from the system board.
Figure 4-15 Disconnecting the heatsink cable from the system board

Chapter 4 - Installing Optional Components 4-17
To insure proper installation, remove all DIMMs
from their sockets before installing or removing the
CPU. See section 4.6.2 for instructions on
removing a DIMM.
2. Press the latches on both sides of the processor to release it from the retention
mechanism. You will hear a click sound once the latch is released.
3. Pull out and lift up the processor to detach it from the CPU connector.
Figure 4-16 Pressing the Latches and Detaching the CPU
4.7.2 Installing a Pentium II CPU
Observe the ESD precautions when installing or
removing a system component. See section
4.1.1.
Before you proceed, make sure that there is no processor installed in the CPU
connector.

AcerPower 2000 User’s Guide4-18
Follow these steps to install a Pentium II CPU:
1. Remove the processor card from its protective packaging. Make sure that the
latches on the sides of the module are not pressed.

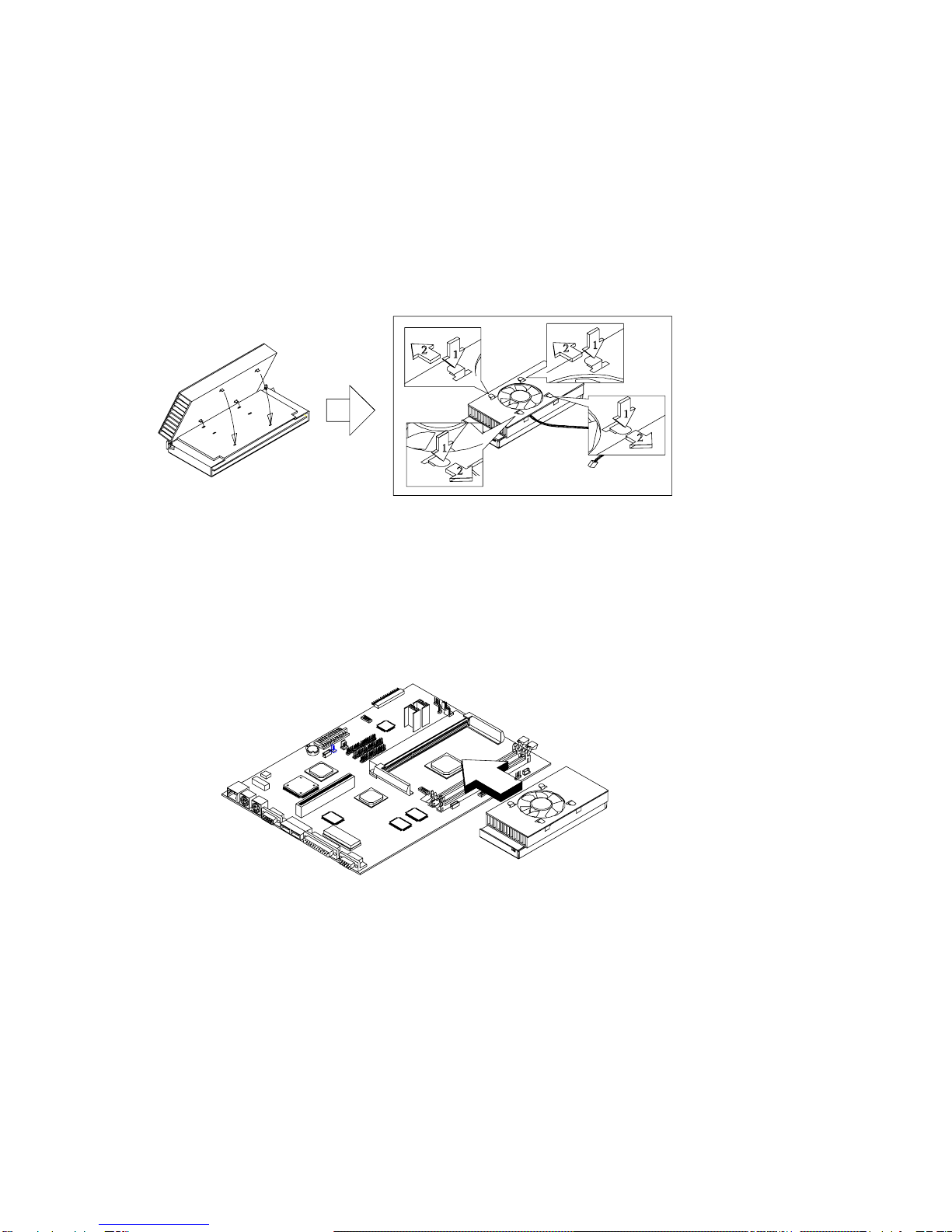

2. Insert the clip ends into the holes on the processor as shown below.
Figure 4-17 Inserting the Clip Ends into the Processor Holes
3. Lower the processor into to the CPU socket and gently push it in until the
golden fingers completely fit into the connector and the latches on the sides
lock the processor into place.
Figure 4-18 Installing the Pentium II CPU

Chapter 4 - Installing Optional Components 4-19
To insure proper installation, remove any DIMM
from their sockets before installing or removing the
CPU. See section 4.6.2 for instructions on
removing a DIMM.
4. Connect the 3-pin cable to JPX1 and the 2-pin cable to JP8 on the system
board.
Figure 4-19 Connecting the heatsink cables to the system board
The heatsink becomes very hot when the
system is on. NEVER touch the heatsink with
any metal or with your hands.
JPX1
JP8

AcerPower 2000 User’s Guide4-20
4.5.3 Installing the Celeron CPU
Observe the ESD precautions when installing or
removing a system component. See section
4.1.1.
Before you proceed, make sure that there is no processor installed in the CPU
connector.
Follow these steps to install a Celeron processor:
1. Remove the Celeron processor from its protective packaging.
2. Lower the processor into the CPU socket and gently push it in until the
golden fingers completely fit into the connector.
Figure 4-20 Installing the Celeron Processor
3. Connect the 3-pin cable to JPX1 and the 2-pin cable to JP8 on the system
board.
