Acer G330 - Altos - 1 GB RAM User manual

Altos G330 Installation
Configuration Guide
Abstract
This document provides you a quick OS installation guide on Altos G330, including Windows
Server 2003, Windows Server 2003 x64 Edition, Windows 2000, Red Hat Enterprise Linux 4.0
(32-bit & 64-bit), SuSE Linux Enterprise Server 9 (32-bit & 64-bit), SuSE Linux Enterprise Server
10 (32-bit & 64-bit) and NetWare 6.5.
Version 1.3
July 2007

© 2007 Acer Incorporation. All rights reserved.
This paper is for informational purposes only. ACER MAKES NO WARRANTIES,
EXPRESS OR IMPLIED, IN THIS DOCUMENT.
Acer, Acer Altos are registered trademarks or trademarks of Acer Incorporation.
Other product or company names mentioned herein may be the trademarks of
their respective owners.

INTRODUCTION.................................................................................... 1
Where Can I Download the Latest Altos G330 Installation Configuration
Guide 1
HARDWARE SPECIFICATION ............................................................... 2
BOARD LAYOUT .................................................................................. 3

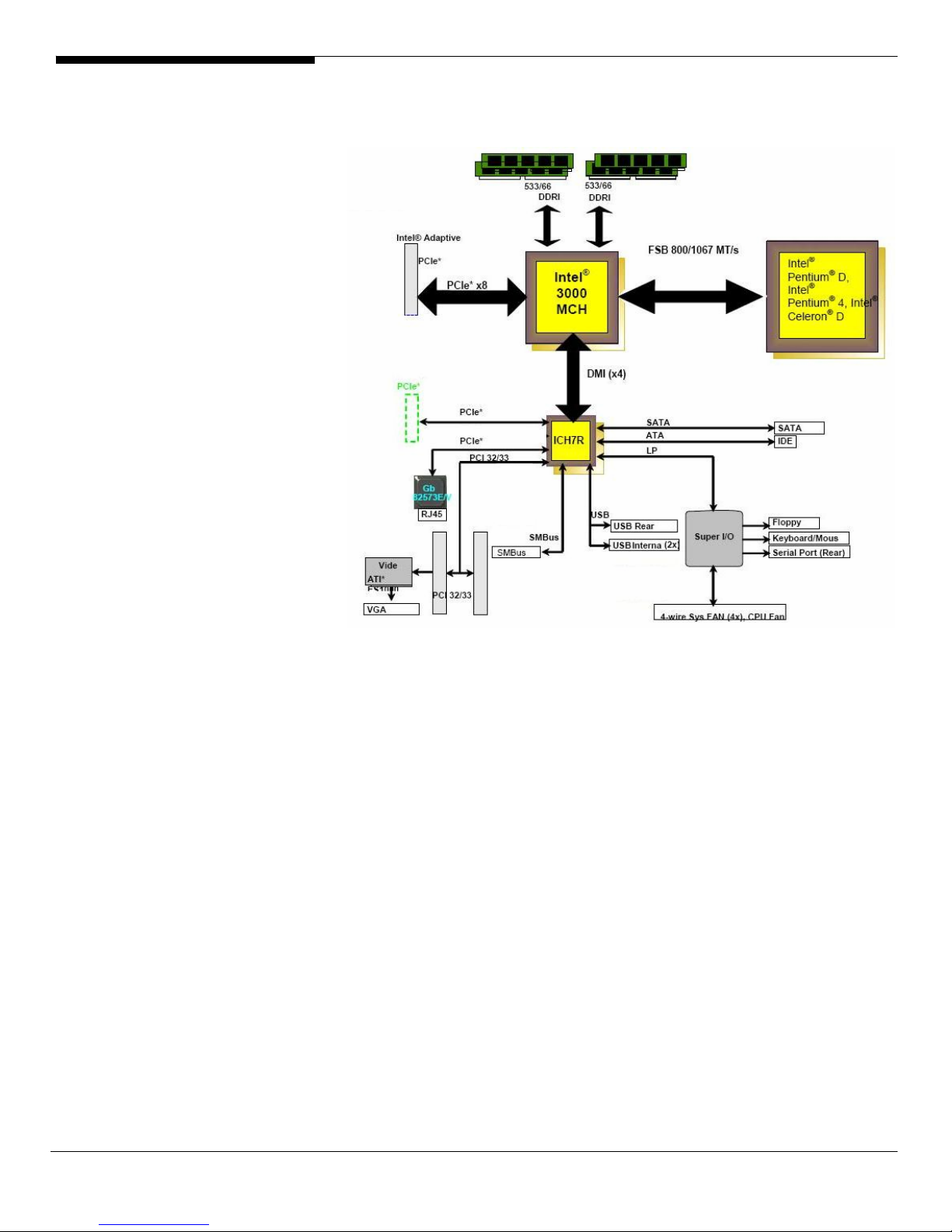

System Block Diagram 3
DIMM POPULATION GUIDELINE ......................................................... 4
Memory population 4
OS INSTALLATION TIPS ....................................................................... 5
Windows Server 2003 Enterprise x64 Edition (with onboard Intel SATA
RAID) 5
Drivers Required 5
Software Required 6
Configuring Onboard Intel SATA RAID 6
Installation Tips 6
Chipset Driver Installation 6
VGA Driver Installation 7
Gigabit Ethernet Driver Installation 7
iAMT Driver Installation 8
Matrix Storage Manager Utility Installation 8
Intel PROSet Utility Installation 8
Windows Server 2003 Enterprise x64 Edition (with onboard LSI SATA RAID) 9
Drivers Required 9
Software Required 9
Configuring onboard LSI SATA RAID 9
Installation Tips 9
Chipset Driver Installation 10
VGA Driver Installation 10
Gigabit Ethernet Driver Installation 10
iAMT Driver Installation 10
SATA RAID Monitor Utility Installation 10
Intel PROSet Utility Installation 10
Windows Server 2003 Enterprise x64 Edition (with Adaptec SAS 44300
HostRAID) 10
Drivers Required 10
Software Required 11
Configuring Adaptec SAS 44300 HostRAID 11
Installation Tips 11
Chipset Driver Installation 11
VGA Driver Installation 11
Gigabit Ethernet Driver Installation 12
iAMT Driver Installation 12
CONTENTS

Adaptec Storage Manager Installation 12
Intel PROSet Utility Installation 12
Windows Server 2003 Enterprise x64 Edition (with LSI MegaRAID SAS
8204ELP) 12
Drivers Required 12
Software Required 13
Configuring LSI MegaRAID SAS 8204ELP 13
Installation Tips 13
Chipset Driver Installation 13
VGA Driver Installation 13
Gigabit Ethernet Driver Installation 13
iAMT Driver Installation 13
MegaRAID Storage Manager Installation 14
Intel PROSet Utility Installation 14
Windows Server 2003 Enterprise Edition SP1 (with onboard Intel SATA
RAID) 14
Drivers Required 14
Software Required 14
Configuring Onboard Intel SATA RAID 15
Installation Tips 15
Chipset Driver Installation 15
VGA Driver Installation 15
Gigabit Ethernet Driver Installation 16
iAMT Driver Installation 16
Matrix Storage Manager Utility Installation 17
Intel PROSet Utility Installation 17
Windows Server 2003 Enterprise Edition SP1 (with onboard LSI SATA RAID) 17
Drivers Required 17
Software Required 17
Configuring onboard LSI SATA RAID 18
Installation Tips 18
Chipset Driver Installation 18
VGA Driver Installation 18
Gigabit Ethernet Driver Installation 18
iAMT Driver Installation 18
SATA RAID Monitor Utility Installation 18
Intel PROSet Utility Installation 19
Windows Server 2003 Enterprise Edition SP1 (with Adaptec SAS 44300
HostRAID) 19
Drivers Required 19
Software Required 19
Configuring Adaptec SAS 44300 HostRAID 19
Installation Tips 19
Chipset Driver Installation 20
VGA Driver Installation 20
Gigabit Ethernet Driver Installation 20

iAMT Driver Installation 20
Adaptec Storage Manager Installation 20
Intel PROSet Utility Installation 20
Windows Server 2003 Enterprise Edition SP1 (with LSI MegaRAID SAS
8204ELP) 20
Drivers Required 21
Software Required 21
Configuring LSI MegaRAID SAS 8204ELP 21
Installation Tips 21
Chipset Driver Installation 21
VGA Driver Installation 22
Gigabit Ethernet Driver Installation 22
iAMT Driver Installation 22
MegaRAID Storage Manager Installation 22
Intel PROSet Utility Installation 22
Windows 2000 Advanced Server SP4 (with onboard Intel SATA RAID) 22
Drivers Required 22
Software Required 23
Configuring Onboard Intel SATA RAID 23
Installation Tips 23
Chipset Driver Installation 23
VGA Driver Installation 24
Gigabit Ethernet Driver Installation 24
iAMT Driver Installation 25
Matrix Storage Manager Utility Installation 25
Intel PROSet Utility Installation 25
Windows 2000 Advanced Server SP4 (with onboard LSI SATA RAID) 26
Drivers Required 26
Software Required 26
Configuring Onboard Intel SATA RAID 26
Installation Tips 27
Chipset Driver Installation 27
VGA Driver Installation 27
Gigabit Ethernet Driver Installation 27
iAMT Driver Installation 27
SATA RAID Monitor Utility Installation 27
Intel PROSet Utility Installation 27
Windows 2000 Advanced Server SP4 (with Adaptec SAS 44300 HostRAID)28
Drivers Required 28
Software Required 28
Configuring Adaptec SAS 44300 HostRAID 28
Installation Tips 28
Chipset Driver Installation 29
VGA Driver Installation 29
Gigabit Ethernet Driver Installation 29
iAMT Driver Installation 29

Adaptec Storage Manager Utility Installation 29
Intel PROSet Utility Installation 29
Windows 2000 Advanced Server SP4 (with LSI MegaRAID SAS 8204ELP) 29
Drivers Required 29
Software Required 30
Configuring LSI MegaRAID SAS 8204ELP 30
Installation Tips 30
Chipset Driver Installation 30
VGA Driver Installation 30
Gigabit Ethernet Driver Installation 30
iAMT Driver Installation 31
MegaRIAD Storage Manager Utility Installation 31
Intel PROSet Utility Installation 31
Red Hat Enterprise Linux 4.0 Update 3 (with onboard LSI SATA RAID) 31
Drivers Required 31
Software Required 32
Configuring Onboard LSI SATA RAID 32
Installation Tips 32
Gigabit Ethernet Driver Installation 32
Onboard SATA RAID Utility Setup 33
Red Hat Enterprise Linux 4.0 Update 3 (with Adaptec SAS 44300 HostRAID) 33
Drivers Required 33
Software Required 33
Configuring Adaptec SAS 44300 HostRAID 33
Installation Tips 33
Gigabit Ethernet Driver Installation 34
Adaptec Storage Manager Installation 34
Red Hat Enterprise Linux 4.0 Update 3 (with LSI MegaRAID SAS 8204ELP)34
Drivers Required 34
Software Required 34
Configuring LSI MegaRAID SAS 8204ELP 35
Installation Tips 35
Gigabit Ethernet Driver Installation 35
MegaRAID Storage Manager Installation 35
Red Hat Enterprise Linux 4.0 EM64T Update 3 (with onboard LSI SATA RAID)
36
Drivers Required 36
Software Required 36
Configuring onboard LSI SATA RAID 36
Installation Tips 36
Gigabit Ethernet Driver Installation 37
Onboard SATA RAID Utility Setup 37
Red Hat Enterprise Linux 4.0 EM64T Update 3 (with Adaptec SAS 44300
HostRAID) 37
Drivers Required 37
Software Required 38

Configuring Adaptec SAS 44300 HostRAID 38
Installation Tips 38
Gigabit Ethernet Driver Installation 38
Adaptec Storage Manager Installation 38
Red Hat Enterprise Linux 4.0 EM64T Update 3 (with LSI MegaRAID SAS
8204ELP) 39
Drivers Required 39
Software Required 39
Configuring LSI MegaRAID SAS 8204ELP 39
Installation Tips 39
Gigabit Ethernet Driver Installation 40
MegaRAID Storage Manager Installation 40
SUSE Linux Enterprise Server 10 (with onboard LSI SATA RAID) 40
Drivers Required 41
Software Required 41
Configuring onboard LSI SATA RAID 41
Installation Tips 41
Gigabit Ethernet Driver Installation 42
Onboard SATA RAID Utility Setup 42
SUSE Linux Enterprise Server 10 Installation (with Adaptec SAS 44300
HostRAID) 42
Drivers Required 42
Software Required 43
Configuring Adaptec SAS 44300 HostRAID 43
Installation Tips 43
Gigabit Ethernet Driver Installation 45
Adaptec Storage Manager Installation 45
SUSE Linux Enterprise Server 10 Installation (with LSI MegaRAID SAS
8204ELP) 45
Drivers Required 46
Software Required 46
Configuring LSI MegaRAID SAS 8204ELP 46
Installation Tips 46
Gigabit Ethernet Driver Installation 48
MegaRAID Storage Manager Installation 48
SUSE Linux Enterprise Server 10 EM64T (with onboard LSI SATA RAID) 49
Drivers Required 49
Software Required 49
Configuring onboard LSI SATA RAID 49
Installation Tips 49
Gigabit Ethernet Driver Installation 50
Onboard SATA RAID Utility Setup 50
SUSE Linux Enterprise Server 10 EM64T Installation (with Adaptec SAS
44300 HostRAID) 50
Drivers Required 51
Software Required 51

Configuring Adaptec SAS 44300 HostRAID 51
Installation Tips 51
Gigabit Ethernet Driver Installation 53
Adaptec Storage Manager Installation 53
SUSE Linux Enterprise Server 10 EM64T Installation (with LSI MegaRAID SAS
8204ELP) 53
Drivers Required 54
Software Required 54
Configuring LSI MegaRAID SAS 8204ELP 54
Installation Tips 54
Gigabit Ethernet Driver Installation 56
MegaRAID Storage Manager Installation 56
SUSE Linux Enterprise Server 9 Service Pack 3 (with onboard LSI SATA RAID) 57
Drivers Required 57
Software Required 57
Configuring onboard LSI SATA RAID 57
Installation Tips 57
Gigabit Ethernet Driver Installation 58
Onboard SATA RAID Utility Setup 58
SUSE Linux Enterprise Server 9 Service Pack 3 Installation (with Adaptec SAS
44300 HostRAID) 58
Drivers Required 59
Software Required 59
Configuring Adaptec SAS 44300 HostRAID 59
Installation Tips 59
Gigabit Ethernet Driver Installation 60
Adaptec Storage Manager Installation 60
SUSE Linux Enterprise Server 9 Service Pack 3 Installation (with LSI
MegaRAID SAS 8204ELP) 60
Drivers Required 60
Software Required 60
Configuring LSI MegaRAID SAS 8204ELP 61
Installation Tips 61
Gigabit Ethernet Driver Installation 61
MegaRAID Storage Manager Installation 62
SUSE Linux Enterprise Server 9 EM64T Service Pack 3 (with onboard LSI
SATA RAID) 62
Drivers Required 62
Software Required 62
Configuring onboard LSI SATA RAID 63
Installation Tips 63
Gigabit Ethernet Driver Installation 63
Onboard SATA RAID Utility Setup 64
SUSE Linux Enterprise Server 9 EM64T Service Pack 3 Installation (with
Adaptec SAS 44300 HostRAID) 64
Drivers Required 64

Software Required 64
Configuring Adaptec SAS 44300 HostRAID 64
Installation Tips 65
Gigabit Ethernet Driver Installation 65
Adaptec Storage Manager Installation 65
SUSE Linux Enterprise Server 9 EM64T Service Pack 3 Installation (with LSI
MegaRAID SAS 8204ELP) 66
Drivers Required 66
Software Required 66
Configuring LSI MegaRAID SAS 8204ELP 66
Installation Tips 66
Gigabit Ethernet Driver Installation 67
MegaRAID Storage Manager Installation 67
NetWare 6.5 Support Pack 5 Installation (with Adaptec SAS 44300 HostRAID)
68
Drivers Required 68
Software Required 68
Patch Required 68
Configuring Adaptec SAS 44300 HostRAID 68
Installation Tips 68
ACPI PSM Module Update 71
Adaptec Storage Manager Installation 72
NetWare 6.5 Support Pack 6 Installation (with onboard LSI SATA RAID) 72
Drivers Required 72
Software Required 73
Configuring onboard LSI SATA RAID 73
Installation Tips 73
Onboard LSI SATA RAID Monitor Utility Installation 75
NetWare 6.5 Support Pack 5 Installation (with onboard LSI SATA RAID) 75
Drivers Required 75
Software Required 76
Patch Required 76
Configuring onboard LSI SATA RAID 76
Installation Tips 76
Onboard LSI SATA RAID Monitor Utility Installation 79
APPENDIX A: ONBOARD INTEL SATA RAID CREATION ................... 80
Configuring the onboard Intel SATA RAID 80
Enable onboard Intel SATA RAID function 80
Enter the onboard Intel SATA RAID Configuration Utility 80
Create RAID 1 volume 80
APPENDIX B: ONBOARD LSI SATA RAID CREATION ........................ 81
Configuring the onboard LSI SATA RAID 81
Enable onboard SATA RAID function 81
Enter the onboard SATA RAID Configuration Utility 81

Loading onboard SATA RAID default setting 81
Create RAID 1 volume 81
Initial RAID Volume 82
Assigning a Hot Spare Disk 82
Save and Exit Embedded RAID Configuration Utility 82
APPENDIX C: ADAPTEC SAS 44300 HOSTRAID CREATION.............. 83
Configuring Adaptec SAS 44300 HostRAID 83
Starting SAS Configuration Utility 83
Create RAID1 volume 83
Assigning a Hot Spare Disk 83
APPENDIX D: LSI MEGARAID SAS 8204ELP RAID CREATION ......... 84
Configuring LSI MegaRAID SAS 8204ELP 84
Starting LSI MegaRAID SAS RAID Configuration Utility 84
Loading Factory default setting 84
Creating a RAID volume 84
Initial RAID Volume 84
Assigning a Hot Spare Disk 85
Save and Exit Embedded RAID Configuration Utility 85

1 Altos G330 Installation Configuration Guide
This article describes the Altos G330 Installation Configuration guide:
•Hardware parts give you a briefly and quick hardware information about
Altos G330
•The operating system installation tips.
Where Can I Download the Latest Altos G330 Installation
Configuration Guide
The Altos G330 Installation Configuration Guide would be updated on a
monthly basis. Please download the latest release from Acer Support Website.
(http://support.acer-euro.com)
INTRODUCTION

Altos G330 Installation Configuration Guide 2
Model Altos G330
Processor Single Intel Xeon 3000 sequence, Pentium 4,
Pentium D and Celeron D processors at 1.86GHz
or above Frequency
Front Side Bus 1066/800/533 MHz
Cache 256KB, 1MB, 2 MB, 4 MB, 2 x 2MB or 2 x 4 MB L2
cache
Chipset Intel chipset
•North Bridge: Intel 3000 MCH
•South Bridge: Intel ICH7R I/O Controller
Memory •Four DIMM sockets support 512MB/1GB/2GB
DDR2-667 unbuffered with ECC
•Maximum memory of 8GB
•Dual channel memory bus
•Up to 8.4 GB/s maximum b/w for DDR2-667
Storage Interface •Four SATA ports
•One ATA-100 port
Expansion Slots •Two 32bit/33MHz/3.3V PCI slots
•One x8 PCI-Express slot
•One x8 PCI-Express slot (w/ x4 throughput)
VGA •Onboard ATI ES1000 video controller w/ 16MB
SDRAM
SATA Controller •Four SATA ports
•Software RAID support
•Intel SATA RAID supports RAID 0, 1, 10
and 5. (Windows only)
•LSI SATA RAID supports RAID 0, 1 and 10.
(Multi-OS support)
LAN Controller •One onboard Intel 82573E Gigabit Ethernet
Controller
•Supports Intel Active Management
Technology (iAMT)
BMC •N/A
Availability sub-system
System Power Supply •Single 350W power supply
Storage Subsystem
Drive Bays •Three 5.25” front accessible drive bays for
optical device and TBU
Hard Disks •Up to 4 HDDs by one 4 HDD hot-plug/easy-
swap cage
HARDWARE
SPECIFICATION

3 Altos G330 Installation Configuration Guide
System Block Diagram
BOARD LAYOUT

Altos G330 Installation Configuration Guide 4
Memory population
Channel A Channel B
DIMM 1A DIMM 2A DIMM 1B DIMM 2B
Memory
Interleave
512 MB 1-way
1GB
1-way
2GB
1-way
512 MB 512 MB 2-way
1 GB 1 GB 2-way
2 GB 2 GB 2-way
512 MB 512 MB 512 MB 512 MB 2-way
1 GB 1 GB 1 GB 1 GB 2-way
2 GB 2 GB 2 GB 2 GB 2-way
DIMM POPULATION
GUIDELINE

5 Altos G330 Installation Configuration Guide
Below is Altos G330 OS certification matrix:
Operating System Status Note
Windows 2000 Advanced Server SP4 Tested
Windows Server 2003 Enterprise
Edition SP1
Certified
Windows Server 2003 Enterprise x64
Edition SP1
Certified
Red Hat Enterprise Linux 4.0 Update 3 Certified
Red Hat Enterprise Linux 4.0 EM64T
Update 3
Certified
SuSE Linux Enterprise Server 10 Certified
SuSE Linux Enterprise Server 10 EM64T
SP3
Certified
SuSE Linux Enterprise Server 9 SP3 Certified
SuSE Linux Enterprise Server 9 EM64T
SP3
Certified
NetWare 6.5 SP5 Certified
The drivers required for the OS installation can be found on the Altos G330
Resource CD build 100. We suggest that you use the drivers contained in the
Resource CD, as these drivers are tested and qualified by Acer.
There are two ways you can get the drivers. You can either make diskettes
from Resource CD, or put the Resource CD in the optical drive and search the
driver directly from the Resource CD.
NOTE. In this section, we assume the OS is installed on the HDD connected to
the onboard SATA RAID (Intel and LSI) and add-on Adaptec 44300 SAS HBA.
Windows Server 2003 Enterprise x64 Edition (with onboard Intel
SATA RAID)
Below information describes how to manually install Windows Server 2003 x64
Edition on Altos G330 with onboard Intel SATA RAID.
Drivers Required
For Windows Server 2003 x64 Installation, the following device drivers are
required.
Device Version Directory on Resource CD
Onboard ATI
ES1000
8.24.3.0 \Disk\G330\onboard\VGA\WS03x64\Set
up.exe
Onboard Intel 3000
Chipset
8.1.0.1002 \Disk\G330\onboard\chipset\Setup.exe
Onboard Intel SATA
RAID
6.1.0.1002 \Disk\G330\RAID\INTEL\ws03x64
OS INSTALLATION TIPS

Altos G330 Installation Configuration Guide 6
Onboard Intel
82573E Gigabit
Ethernet
9.5.12.0 \Disk\G330\NIC\Intel\x64\pro1000.net
Onboard iAMT 5.1.2600.2180 \Disk\G330\onboard\iAMT\ws03x64
Onboard USB 2.0 7.2.2.1007 Included in Intel 3000 Chipset driver
Software Required
The management utility of onboard Intel SATA RAID can be found in the G330
Resource CD build 100.
Software Version Directory on Resource CD
Matrix Storage
Manager
6.1.0.1002 \APP\G330\SATARAID\Matrix\ws03x64
\iata61_cd.exe
PROSet Utility 11.1.0.19 \APP\G330\NIC\prosetdx\ws03x64\DxS
etup.EXE
Configuring Onboard Intel SATA RAID
Please refer to the Appendix A. for the onboard Intel SATA RAID configuration.
Installation Tips
1. As Windows Server 2003 x64 can’t recognize the onboard Intel SATA RAID,
you need to make a driver diskette from the resource CD first before the
installation.
2. Press F6 at the start of installation to provide the driver diskette.
3. Select “Intel (R) 82801GR/GH SATA RAID Controller (Desktop ICH7R/DH)”
as target driver
4. After loading the RAID driver from diskette, follow the normal procedure
to finish the installation.
Chipset Driver Installation
1. After the installation is completed, you would see the following other
devices listed in Device Manager.

7 Altos G330 Installation Configuration Guide
2. Please insert the G330 Resource CD into optical drive.
3. Select Driver, expand Drivers -> Altos G330 -> Onboard Device -> Chipset,
select Windows Server 2003 x64 and run Setup.
4. Follow the instruction to install the chipset driver and reboot the server
after the driver is installed.
VGA Driver Installation
1. Windows will treat onboard VGA as Standard VGA device. You can find
the ATI ES1000 driver in G330 Resource CD. Please insert the G330
Resource CD into the optical drive.
2. Select Driver, Expand Drivers -> Altos G330 -> Graphics adapters -> ATI
ES1000, select Windows Server 2003 x64 and click on Setup.
3. Follow the instruction to install the chipset driver and reboot the server
after the driver is installed.
4. After installing the driver, you would see ATI ES1000 listed in Display
adapters.
Gigabit Ethernet Driver Installation
1. The Ethernet Controller listed under Other devices is onboard Intel
82573E Gigabit Ethernet Controller.
2. Right-click on the Ethernet Controller and select Update Driver.
3. Select No, not this time. Do not connect to Windows Update to search the
driver.
4. Select Install from a list or specific location (Advanced).
5. Select Search the best driver these locations and check Include this

Altos G330 Installation Configuration Guide 8
location in the search.
6. Click on Browse and specify the path for the driver. Please refer to the
Directory on Resource CD in Driver required section for the path for the
NIC.
7. Click on Next and follow the instruction to finish the driver update.
8. After installing the driver, you would see Intel(R) PRO/1000 PM Network
Connection with I/O Acceleration listed in Network adapters.
iAMT Driver Installation
1. After you installing all the drivers, there are still two devices name PCI
Device and PCI Serial Port listed in Other devices in Windows Device
Manager. They are the onboard iAMT device. You can find the driver in
G330 Resource CD. Please do the same on both of the devices.
2. Right-click on the PCI Device/PCI Serial Port and select Update Driver.
3. Select No, not this time. Do not connect to Windows Update to search the
driver.
4. Select Install from a list or specific location (Advanced).
5. Select Search the best driver these locations and check Include this
location in the search.
6. Click on Browse and specify the path for the driver. Please refer to the
Directory on G330 Resource CD in Driver required section for the path for
the onboard iAMT.
7. Click on Next and follow the instruction to finish the driver update.
8. After you installing the driver for both of PCI Device and PCI Serial Prot,
you would see only one Intel(R) Active Management Technology – SOL
(COM3) listed in Ports (COM & LPT) in Windows Device Manager.
Matrix Storage Manager Utility Installation
1. Please insert the G330 Resource CD into the optical drive.
2. Select Utilities, expand Utilities -> Altos G330 -> Onboard Intel SATA RAID,
select Matrix Storage Manager (Windows Server 2003 x64) and click on
Setup.
3. Follow the instruction to install the RAID utility installation and reboot
the server after the utility is installed.
Intel PROSet Utility Installation
1. Please insert the G330 Resource CD into the optical drive.
2. Select Utilities, expand Utilities -> Altos G330 -> Intel Gigabit Ethernet
Controller, select PROSet Utility (Windows Server 2003 x64) and click on
Setup.

9 Altos G330 Installation Configuration Guide
3. Follow the instruction, accept the license agreement and use the default
setting to complete the Intel PROSet utility installation.
Windows Server 2003 Enterprise x64 Edition (with onboard LSI
SATA RAID)
Below information describes how to manually install Windows Server 2003
Enterprise x64 Edition on Altos G330 with onboard LSI SATA RAID.
Drivers Required
For Windows 2003 x64 Installation, the following device drivers are required.
Device Version Directory on Resource CD
Onboard ATI
ES1000
8.24.3.0 \Disk\G330\onboard\VGA\WS03x64\Set
up.exe
Onboard Intel 3000
Chipset
8.1.0.1002 \Disk\G330\onboard\chipset\Setup.exe
Onboard LSI SATA
RAID
4.4.630.2006 \Disk\G330\RAID\LSI\ws03x64
Onboard Intel
82573E Gigabit
Ethernet
9.5.12.0 \Disk\G330\NIC\Intel\x64\pro1000.net
Onboard iAMT 5.1.2600.2180 \Disk\G330\onboard\iAMT\ws03x64
Onboard USB 2.0 7.2.2.1007 Included in Intel 3000 Chipset driver
Software Required
The management utility for onboard LSI SATA RAID can be found in the G330
Resource CD build100 (or later).
Software Version Directory on Resource CD
Onboard SATA
RAID Monitor
Utility
1.25.11.18 \APP\G330\SATARAID\Monitor\ws03x64
\MegaIDESpy.exe
Intel PROSet Utility 11.1.0.19 \APP\G330\NIC\prosetdx\ws03x64\DxSet
up.EXE
Configuring onboard LSI SATA RAID
Please refer to the Appendix B. for the onboard LSI SATA RAID configuration.
Installation Tips
1. As Windows Server 2003 x64 can’t recognize the onboard LSI SATA RAID,
you need to make a driver diskette from the resource CD first before the
installation.
2. Press F6 at the start of installation to provide the driver diskette.
3. Select “Intel (R) Embedded Server RAID Technology (Intel IA32E)” as
target driver

Altos G330 Installation Configuration Guide 10
4. After loading the RAID driver from diskette, follow the normal procedure
to finish the installation.
Chipset Driver Installation
The chipset driver installation is the same as onboard Intel SATA RAID enabled.
Please refer to the Windows Server 2003 Enterprise x64 Edition (with onboard
Intel SATA RAID) Chipset Driver Installation section.
VGA Driver Installation
The VGA driver installation is the same as onboard Intel SATA RAID enabled.
Please refer to the Windows Server 2003 Enterprise x64 Edition (with onboard
Intel SATA RAID) VGA Driver Installation section.
Gigabit Ethernet Driver Installation
The Gigabit Ethernet driver installation is the same as onboard Intel SATA RAID
enabled. Please refer to the Windows Server 2003 Enterprise x64 Edition (with
onboard Intel SATA RAID) Gigabit Ethernet Driver Installation section.
iAMT Driver Installation
The iAMT driver installation is the same as onboard Intel SATA RAID enabled.
Please refer to the Windows Server 2003 Enterprise x64 Edition (with onboard
Intel SATA RAID) iAMT Driver Installation section.
SATA RAID Monitor Utility Installation
1. Please insert the G330 Resource CD into the optical drive.
2. Select Utilities, expand Utilities -> Altos G330 -> Onboard LSI SATA RAID,
select Onboard SATA RAID Monitor Utility (Windows Server 2003 x64) and
click on Setup.
3. Follow the instructions to finish the onboard SATA RAID monitor utility
installation.
Intel PROSet Utility Installation
The PROSet Utility installation is the same as onboard Intel SATA RAID enabled.
Please refer to the Windows Server 2003 Enterprise x64 Edition (with onboard
Intel SATA RAID) Intel PROSet Utility Installation section.
Windows Server 2003 Enterprise x64 Edition (with Adaptec SAS
44300 HostRAID)
Below information describes how to manually install Windows Server 2003
Enterprise x64 Edition on Altos G330 with Adaptec 44300 HostRAID.
Drivers Required
For Windows 2003 x64 Installation, the following device drivers are required.
Device Version Directory on Resource CD
