Chapter 1 1
Features
Below is a brief summary of the computer’s many feature:
NOTE: The features listed in this section is for your reference only. The exact configuration of the system
depends on the model purchased.
Operating System
•Microsofte Windows 7 Professional
•Microsoft Windows7 Professional 32/64bit dual load
•Microsofte Windows 7 Home Premium 64bit
•Microsoft Windows7 Home Basic 32bit
•Microsoft WindowsXP Professional
•Linpux Linux X window mode
•FreeDos
Processor
•Socket Type: LGA 1155 pin
•Socket Quantity: 1
•Processor Type:
•Intel Sandy Bridge Processor.
•32 nm, 2nd Generation Hi-K+metal gate process processor core.
•32nm, Hi-K+metal gate process, Intel® HD Graphics & Integrated Memory Controller.
Chipset
•PCH: Intel Q65
•Design Criteria:
•Should meet Intel Cougar Point platform design guide.
•Super I/O:
•Should support Intel PECI 3.0.
•Should support SST signal output.
•Please follow Intel design guide.
PCB
•Max. 244 mm x 244 mm, MicroATX
Memory subsystem
•Socket Type: DDR III connector
•Socket Quantity: 4
•Channel A: slot 0, 1; Channel B: slot 2, 3.
•Different colors for slot 0/2 and slot 1/3.
•Dual channel support.
System Tour
Chapter 1

2Chapter 1
•Support Intel Flex Memory Mode.
•Capacity support:
•1GB/2GB/4GB DDR3 1.5V 1333/1066 Un-buffered Non-ECC DIMM support.
•1 GB to 16GB Max memory support(using 4Gb tech).
•DDR3 1.5V 1066/1333.
•Design Criteria:
•Should meet Intel Sandy Bridge Family design guide.
•Support 1.5V DIMM.
•Dual channel should be enabled always when plug-in 2 same memory size DDRIII memory
module.
•Population Rule
•Slot 0 must always be populated.
•Follow Intel design guide and spec.
Hard disk drive
•Support SATA interface.
•3.5”, 25.4mm, 80/160/320/500/640/1TB/2TB G or higher capacity.
•5400/7200 rpm or higher".
•Capacity and models are listed on AVLC.
Optical disk drive
•Support SATA 5.25” standard ODD.
•Support DVD-ROM, DVD-SuperMulti (Label Flash), BD-DVD, BD-Combo. BD-RW.
•Capacity and model is listed on AVLC.
Graphics
•Intel® HD Graphics Support
•Dual independent display
•Digital display (HDMI/DVI/DP/eDP) and VGA
•DVMT 5.0 technology support
•Enhanced 3D and Clear Video technology support
•1 D-sub VGA port on rear
•1 DVI-D port at rear side
•Dual View function support
•Need to measure VGA follow Acer VGA SOP
•Monitor compatible is requested to the monitor AVL and DQM recommended list
Graphics card support
•No mechanical retriction to support for double slot, full length graphics cards in the single PCIe X16 slot.
Serial ATA controller
•Slot Type: SATA connector
•Slot Quantity: 3(6Gb/s*1 for Q65, must use different color to define, other are 3Gb/s)
•Storage Type support:
•3.5” SATA/SATAII/SATAIII HDD
•Combo/ DVD supermulti/Blue-ray DVD ODD

Chapter 1 3
•RAID/AHCI/IDE mode option
•Default AHCI mode.
LAN
•Controller: Intel 82579LM Gbt LAN controller/PHY.
•RJ-45 Back panel port with Link/Activity LEDs.
•Need support Wake up on LAN function.
Audio
•Chip : HD audio codec ALC662-VC HD codec 5.1
•Connectors support:
•Rear 3 jack follow HD audio definition (ALC662-VC).
•Audio jacks color coding: should meet Microsoft Windows Logo Program Device Requirements:
Audio-0002.
•1 front panel audio header (2*5).
•1 internal speaker header (2*4).
•S/N ration: 90dB at rear output jack.
•1 front panel audio header (2*5).
•Follow Acer Audio spec v4.1 & audio C/R should support Acer Internal speaker spec.
•BIOS should meet MS Pin Configuration Guidelines for High Definition Audio Devices.
•HD Audio de-pop CKT.
•One earphone and one microphone jack is required on front bezel.
•One 4pin SPDIF internal header closed to PCIEx16 slot.
•Auto detection and re-tasking behavior is following Acer Audio Jack spec.
USB ports
•Controller: 6 Series Express Chipset (Cougar Point).
•Ports Quantity: 14
•6 back rear ports(USB2.0 * 6 ports, USB 3.0*2 reserve for BOM option, default w/o USB3.0).
•On-board: four 2*5 headers ( 8ports).
•4 ports for front daughter board.
•4 ports reserved.
•Connector Pin: standard Intel FPIO pin definition.
•Data transfer rate support:
•USB 2.0/1.1 (3.0 by BOM option).
•All USB ports must be boot-capable includes USB-ODD, USB-HDD, USB-FDD, and etc…
•All USB ports must provide the over current protection.
•The pin connector should be located on upper if Virginia is placed on horizontal.
Extension slot
•1 * PCIE x16 (PCIE V2.0)
•1 * PCIE x1 (PCIE V2.0)
Buzzer
•1 on board buzzer

4Chapter 1
Rear I/O connectors
•1 D-Sub port
•1 DVI-D port
•6 USB 2.0 ports
•2 USB 3.0 ports(reserve by BOM option, default w/o)
•1 RJ45 LAN port
•3 mini audio jacks
•At least five HD audio in/output
•2 PS2 keyboard/mouse connector
•1 serial port
On-board connectors
•1 LGA 1155 CPU socket
•4 DDR3 DIMM memory sockets
•1 PCI Express x16 slot
•PCI Express x 1 slot
•3 SATA connectors( 6Gb/s*1 and 3Gb/s*2 for Q65 and reserve 3Gb/s*1 for BOM option. Must use
different color to define SATAIII and SATAII. )
•Four 2*5 pin Intel FPIO specification USB pin connectors (follow Intel FPIO standard Specification)
•One 2*5 pin Intel FPIO spec. Microphone In/ Headphone Out pin connectors
•One 4 pin CPU Fan connector
•One 3 pin System Fan connector with linear circuit
•One 4 pin SPDIF header closed to PCIEx16 slot
•One 24 pin ATX interface PS3/PS2 SPS connector.
•One 2*7 pin front panel IO header
•One Jumper for clear CMOS
•One on board buzzer
•One 2pin OBR header
•Two reserved 2pin GPIO connector
•One Serial port header (COM2) (near rear IO is preferable)
•One 2pin Intrusion Alarm connector
•One LPT 2*13pin header (near rear IO is preferable)
•One 2*4 pin internal speaker header
•One 3pin ME enable/disable connector (with 1 jumper)
•Color management for on board connecter (please refer to Acer spec)
•Header Naming should follow MB Header Naming
System BIOS
•Kernel: AMI Aptio Kernel with Acer skin/copyright.
•Type:
•Use SPI Flash
•Size: 64M

Chapter 1 5
Power supply
•Maximum power rating should satisfy the minimal requirement of system spec.
•Protection circuits are required on over voltage, short circuit, over current,and over power protection.
•Safety and EMI certification is required as system certification.
•Quotation required on non-PFC 110/220V manual switch, PFC 220V, full range, and Energy Start 5.0
compliance.

6Chapter 1

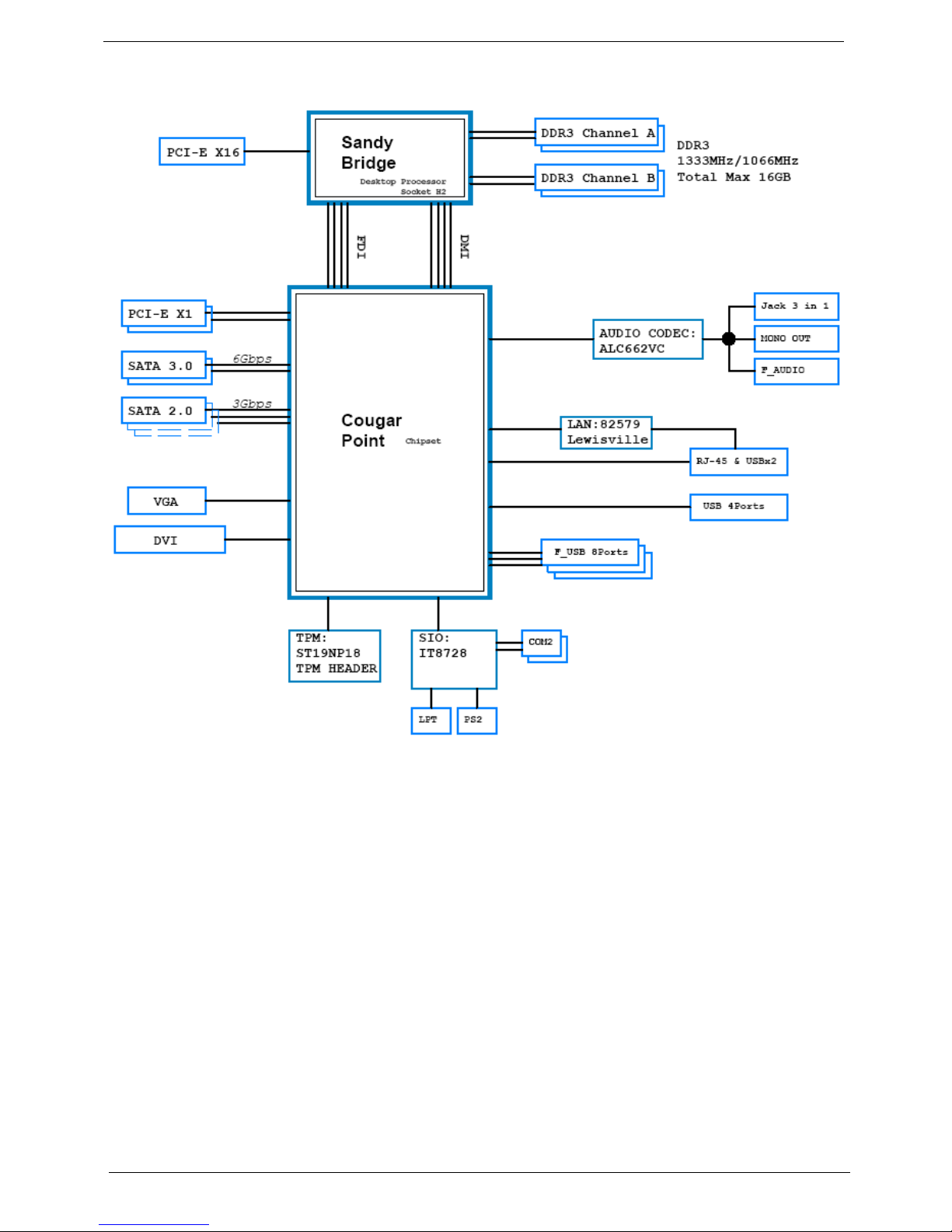

Block Diagram

Chapter 1 7
System Components
This section is a virtual tour of the system’s interior and exterior components.

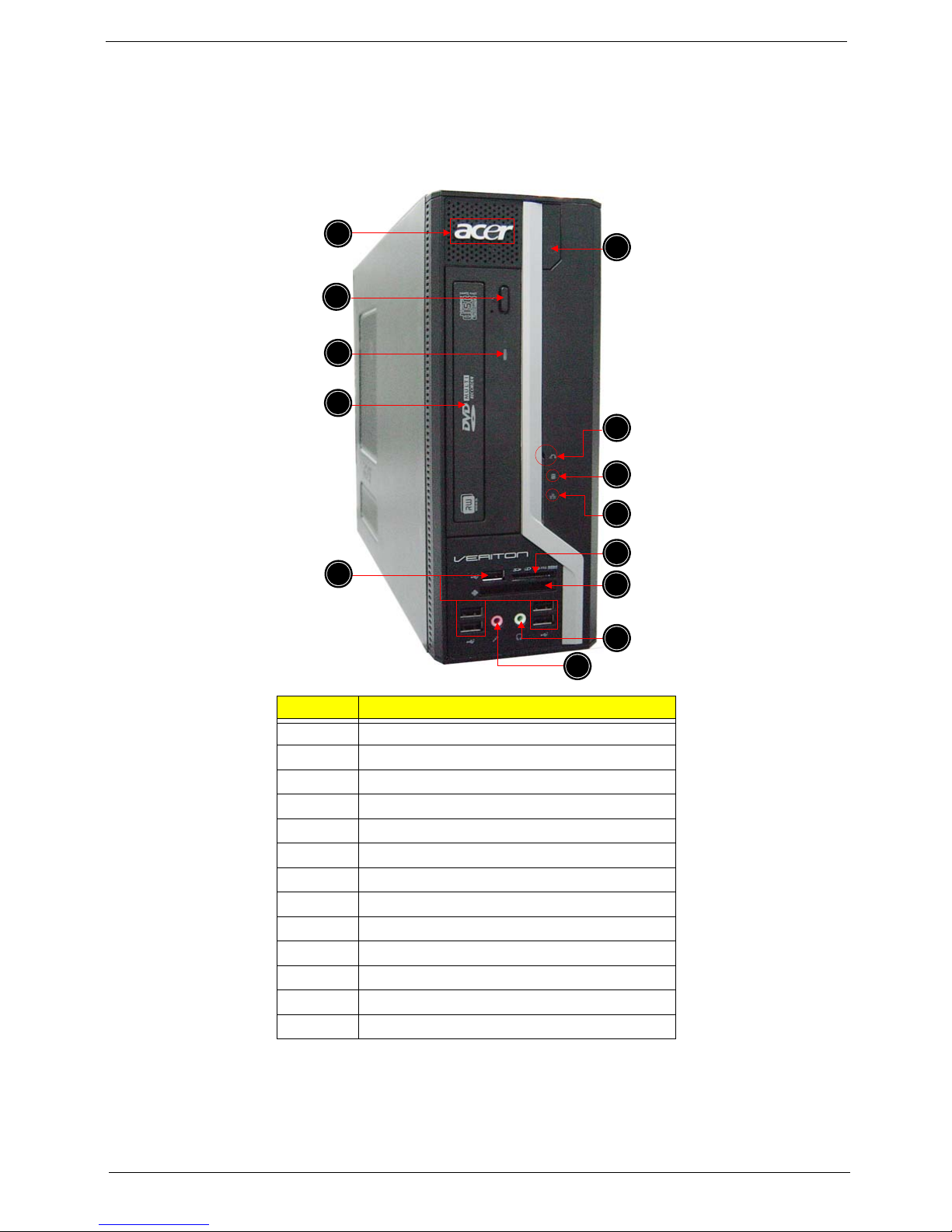

Front Panel
No. Component
1Acerlogo
2 Optical drive button
3 ODD activity indicator
4 Optical drive
5 USB 2.0 ports
6 Microphone-in jack
7 Headphone/Speaker-out/line-out jack
8 CF I/II (CompactFlash Type I/II) slot
9 XD(XD-Picture)/SD(Secure Digital)/PRO slot
10 LAN activity indicator
11 HDD activity indicator
12 Recover jack and indicator
13 Power button
1
2
3
4
5
6
7
8
9
10
11
12
13

8Chapter 1

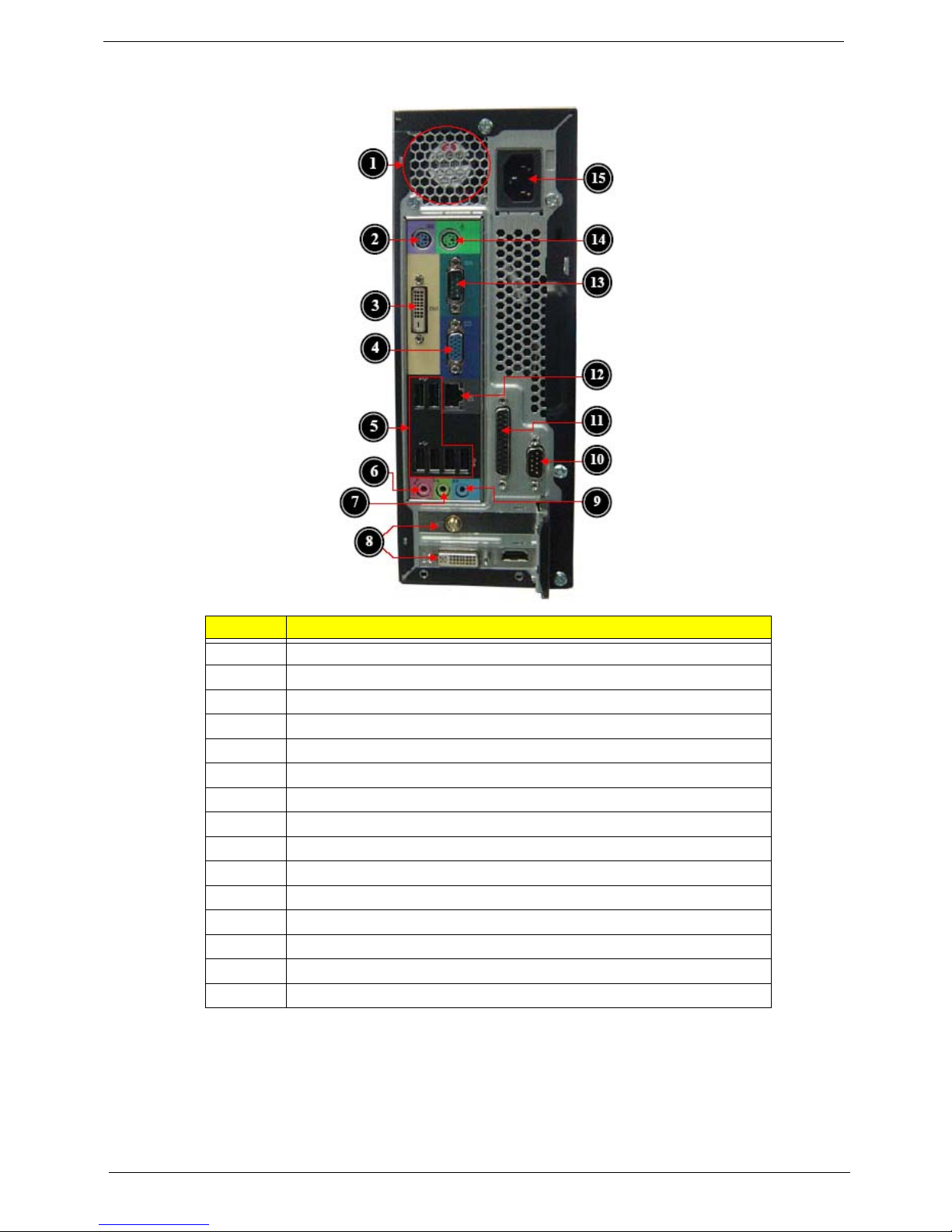

Rear Panel
No. Component
1 Fan aperture
2 PS2 keyboard connector
3 DVI-D port
4 D-Sub VGA port
5 USB 2.0 ports
6 Microphone jack
7 Line-out jack
8 Expansion slot(graphics card ect.)
9 line-in jack
10 Serial port
11 Parallel port
12 RJ45 LAN port
13 Serial port
14 PS2 mouse connector
15 Power connector

Chapter 1 9
Hardware Specifications and Configurations
Processor
BIOS
BIOS Hotkey List
Main Board Major Chips
Item Specification
Processor Type Intel Sandy Bridge Processor
Socket Type Intel Socket LGA 1155 pin
FSB 1333 MHz
Minimum operating speed 0 MHz (If Stop CPU Clock in Sleep State in BIOS Setup is set to Enabled.)
Item Specification
BIOS code programer AMI Kernel with Acer skin
BIOS version P01-A0
BIOS ROM type SPI Flash
BIOS ROM size 8Mb
Support protocol SMBIOS(DMI)2.4/DMI2.0
Device Boot Support 1st priority: EFI device
2nd priority: SATA HDD
3rd priority: CD-ROM
4th priority: Removable Device
5th priority: LAN
Support to LS-120 drive Not quite sure LS-120
Support to BIOS boot block feature YES
Hotkey Function Description
Del Enter BIOS Setup Utility Press while the system is booting to enter BIOS Setup Utility.
Item Specification
North Bridge Intel Q65
Audio controller Intel Q65+Realtek ALC662-VC
LAN controller Intel 82579LM
USB controller Intel Q65
HDD controller Intel Q65

10 Chapter 1
Memory Combinations
System Memory
Audio Interface
Slot Memory Total Memory
Slot 1 1GB/2GB/4GB 1G ~4GB
Slot 2 1GB/2GB/4GB 1G ~4GB
Slot 3 1GB/2GB/4GB 1G ~4GB
Slot 4 1GB/2GB/4GB 1G ~4GB
Maximum System Memory Supported 1G~16GB
Item Specification
Memory slot number 4 slot
Support Memory size per socket 1GB/2GB/4GB
Support memory type DDRIII
Support memory interface DDR III 1333/1066 MHz
Support memory voltage 1.5V
Support memory module package 240-pin DDRIII
Support to parity check feature Yes
Support to error correction code (ECC) feature No
Memory module combinations You can install memory modules in any combination as long as
they match the above specifications.
Item Specification
Audio controller Intel Q65 HDA controller
Audio controller type ALC662-VC
Audio channel codec 5.1CH
Audio function control Enable/disable by BIOS Setup
Mono or stereo Stereo
Compatibility High performance audio accelerator and AC’97 support
Music synthesizer No
Sampling rate 96 KHz (max.)
MPU-401 UART support No
Microphone/Headphone jack Supported

Chapter 1 11
SATA Interface
USB Port
Environmental Requirements
Power Management
•Devices wake up from S3 should be less than.
•Devices wake up from S5 should be less than 10 seconds.
Item Specification
SATA controller Intel Q65
Number of SATA channel SATA X4(6Gb/s*2SATAIII and 3Gb/s*2SATAII)
Support mode RAID/AHCI/IDE mode option
Item Specification
Universal HCI USB 2.0/1.1
USB Class Support legacy keyboard for legacy mode
USB Connectors Quantity Ports Quantity: 14
•6 back rear ports(USB2.0 * 6 ports)
•On-board: 4 2*5 headers ( 8ports)
•4 ports for front daughter board,4 ports reserved
•Connector Pin: standard Intel FPIO pin definition
Item Specification
Temperature
Operating +5°C ~ +35°C
Non-operating -20 ~ +60°C (Storage package)
Humidity
Operating 15% to 80% RH
Non-operating 10% to 90% RH
Vibration
Operating (unpacked) 5 ~ 500 Hz: 2.20g RMS random, 10 minutes per axis in all 3 axes.
5 ~500 Hz: 1.09g RMS random, 1 hour per axis in all 3 axes.
Devices S1 S3 S4 S5
PowerButtonVVVV
USB Keyboard/Mouse V V N/A N/A
PME Disabled Disabled Disabled Disabled
RCT Disabled Disabled Disabled Disabled
WOR Disabled Disabled Disabled Disabled

12 Chapter 1
Power Management Function(ACPI support function)
Device Standby Mode
•Independent power management timer for hard disk drive devices(0-15 minutes,time step=1minute).
•Hard Disk drive goes into Standby mode(for ATA standard interface).
•Disable V-sync to control the VESA DPMS monitor.
•Resume method:device activated (keyboard for DOS, keyboard &mouse for Windows.
•Resume recovery time 3-5sec
Global Standby Mode
•Global power management timer(2-120minutes,time step=10minute).
•Hard disk drive goes into Standby mode(for ATA standard interface).
•Disable H-sync and V-sync signals to control the VESA DPMS monitor.
•Resume method: Resume to original state by pushing external switch Button,modem ring in,keyboard
an mouse for APM mode.
•Resume recovery time :7-10sec
Suspend Mode
•Independent power management timer(2-120minutes,time step=10minute)or pushing extern switch
button.
•CPU goes into SMM
•CPU asserts STPCLK# and goes into the Stop Grant State.
•LED on panel turns amber colour.
•Hard disk drive goes into SLEEP mode (for ATA standard interface).
•Disable H-sync and V-sync signals to control the VESA DPMS monitor.
•Ultra I/O and VGA chip go into power saving mode.
•Resume method: Resume to original state by pushing external switch Button,modem ring in,keyboard
an mouse for APM mode
•Return to original state by pushing external switch button,modem ring in and USB keyboard for ACPI
mode.
ACPI
•ACPI specification 1.0b
•S0,S1,S2 and S5 sleep state support.
•On board device power management support.
•On board device configuration support.
