First things first
We would like to thank you for making the TravelMate series of
notebook computers your choice for your mobile computing needs.
Your guides
To help you use your TravelMate, we have designed a set of guides:
First off, the Just for starters... poster helps you get started
with setting up your computer.
The User's guide introduces you to the many ways your
computer can help you be more productive. This guide
provides clear and concise information about the computer,
so read it thoroughly.
If you ever need to print out a copy, this User’s guide is also
available in Portable Document Format (PDF). To open it,
follow these steps:
1Click on Start, All Programs, AcerSystem.
2Click on AcerSystem User's guide.
Note: Viewing the file requires Adobe Acrobat Reader be
installed. For instructions on how to use Adobe Acrobat
Reader, access the Help and Support menu.

iv
English
Basic care and tips for using your computer
Turning your computer on and off
To turn on the computer, simply press and release the power button
below the LCD screen beside the launch keys. See “Front view” on
page 1 for the location of the power button.
To turn the power off, do any of the following:
•Use the Windows shutdown command
Click on Start, Turn Off Computer; then click on Turn Off.
•Use the power button
Note: You can also use the power button to perform power
management functions. See “Moving around” on page 27.
•Use the customized functions for power management
You can also shut down the computer by closing the display cover,
or by pressing the sleep hot key (Fn-F4). See “Moving around” on
page 27.
Note: If you cannot power off the computer normally, press and
hold the power button for more than four seconds to shut down
the computer. If you turn off the computer and want to turn it on
again, wait at least two seconds before powering up.
Taking care of your computer
Your computer will serve you well if you take care of it.
•Do not expose the computer to direct sunlight. Do not place it
near sources of heat, such as a radiator.
•Do not expose the computer to temperatures below 0ºC (32ºF) or
above 50ºC (122ºF).
•Do not subject the computer to magnetic fields.
•Do not expose the computer to rain or moisture.
•Do not spill water or any liquid on the computer.
•Do not subject the computer to heavy shock and vibration.
•Do not expose the computer to dust and dirt.

v
English
•Never place objects on top of the computer to avoid damaging the
computer.
•Do not slam the computer display when you close it.
•Never place the computer on uneven surfaces.
Taking care of your AC adapter
Here are some ways to take care of your AC adapter:
•Do not connect the adapter to any other device.
•Do not step on the power cord or place heavy objects on top of it.
Carefully route the power cord and any cables away from personal
traffic.
•When unplugging the power cord, do not pull on the cord itself
but pull on the plug.
•The total ampere ratings of the equipment plugged in should not
exceed the ampere rating of the cord if you are using an extension
cord. Also, the total current rating of all equipment plugged into a
single wall outlet should not exceed the fuse rating.
Taking care of your battery pack
Here are some ways to take care of your battery pack:
•Use only batteries of the same kind as replacements. Turn the
power off before removing or replacing batteries.
•Do not tamper with batteries. Keep them away from children.
•Dispose of used batteries according to local regulations.
Recycle if at all possible.
Cleaning and servicing
When cleaning the computer, follow these steps:
1Power off the computer and remove the battery pack.
2Disconnect the AC adapter.
3Use a soft cloth moistened with water. Do not use liquid or
aerosol cleaners.

vi
English
If any of the following occurs:
•The computer has been dropped or the body has been damaged.
•The computer does not operate normally.
Please refer to “Frequently-asked questions” on page 55.
Caution
Changes or modifications not expressly approved by the manufacturer
could void the user's authority, which is granted by the Federal
Communications Commission, to operate this computer.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Users are requested to follow the RF safety instructions on wireless
option devices that are included in the user's manual of each RF option
device.
An improper installation or unauthorised use may cause harmful
interference to radio communications. Also any tampering of the
internal antenna will void the FCC certification and your warranty.
To prevent radio interference to the licensed service, this device is
intended to be operated indoors and installation outdoors is subject to
licensing.For more information about our products, services, and
support information, please visit our website: http://global.acer.com/.

First things first iii
Your guides iii
Basic care and tips for using your computer iv
Turning your computer on and off iv
Taking care of your computer iv
Taking care of your AC adapter v
Taking care of your battery pack v
Cleaning and servicing v
A TravelMate tour 1
Front view 1
Closed front view 2
Left view 4
Right view 5
Rear view 6
Bottom view 7
Specifications 8
Indicators 11
Using the keyboard 12
Lock keys 12
Embedded numeric keypad 13
Windows keys 14
Hot keys 15
The Euro symbol 17
Launch keys 19
Touchpad 20
Touchpad basics 20
Ejecting the optical (CD or DVD) drive tray 22
Using a computer security lock 22
Audio 23
Adjusting the volume 23
Using system utilities 24
Acer GridVista 24
Acer eManager 25
Launch Manager 26
Moving around with your Notebook PC 27
Disconnecting from the desktop 27
Moving around 27
Preparing the computer 27
What to take to short meetings 28
What to bring to long meetings 28
Taking the computer home 28
Preparing the computer 28
What to take with you 29
Special considerations 29
Contents

Setting up a home office 30
Traveling with the computer 30
Preparing the computer 30
What to take with you 30
Special considerations 30
Traveling internationally with the computer 31
Preparing the computer 31
What to bring with you 31
Special considerations 31
Securing your computer 32
Using a computer security lock 32
Using the Smart Card 32
Registering your Smart Card 33
Running PlatinumSecure 33
Running PlatinumKey 36
Using passwords 37
Entering passwords 38
Setting passwords 38
Expanding through options 39
Connectivity options 39
Fax/Data modem 39
Built-in network feature 40
Fast Infrared 40
Universal Serial Bus 41
IEEE 1394 port 41
PC Card slot 42
BIOS Utility 44
Boot sequence 44
Disc to Disc Recovery enable 44
Password 44
Using software 45
Playing DVD movies 45
Power management 46
Acer eRecovery 47
Create backup 47
Restore from backup 48
Create factory default image CD 48
Re-install bundled software without CD 49
Change password 49
Acer disc-to-disc recovery 50
Multilingual operating system installation 50
Restore without a Recovery CD 50

Troubleshooting my computer 53
Frequently-asked questions 55
Troubleshooting tips 58
Error messages 58
Requesting service 59
International Traveler’s Warranty (ITW) 59
Before you call 60
Appendix A
Regulation & safety notices 61

1
English
A TravelMate tour
After setting up your computer as illustrated on the Just for Starters...
poster, let us show you around your new TravelMate computer.
Front view
#Item Description
1 Display screen Liquid-Crystal Display (LCD), displays
computer output.
2 Power button Turns the computer on and off.
3 Status indicators Light-Emitting Diodes (LEDs) that turn on
and off to show the status of the
computer’s functions and components.
4 Keyboard Inputs data into your computer.
5 Palmrest Comfortable support area for your hands
when you use the computer.

2
English

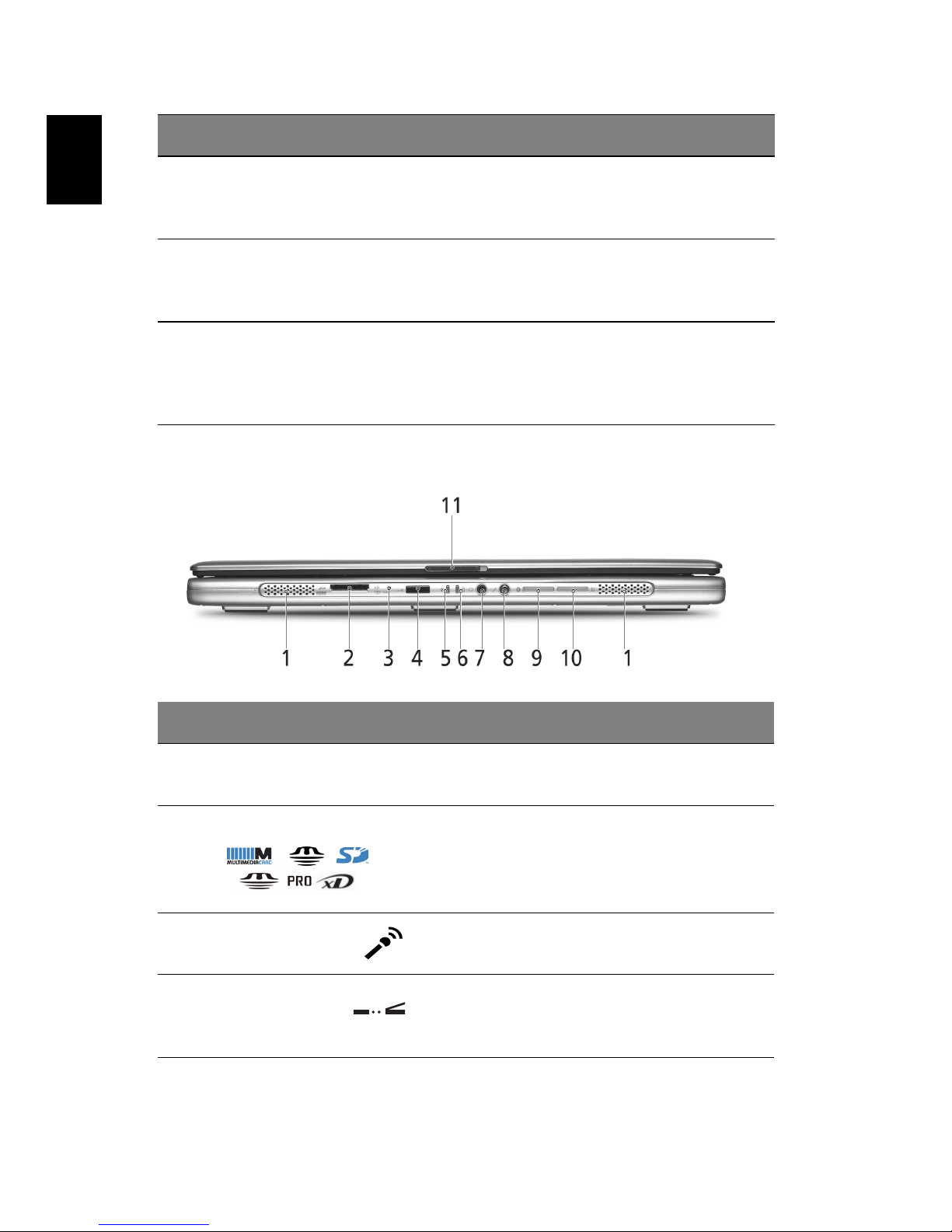

Closed front view
6 Click buttons
(Left, center and right)
The left and right buttons function like the
left and right mouse buttons; the center
button serves as a 4-way scroll button.
7 Launch keys Buttons for launching frequently used
programs. See “Launch keys” on page 19
for more details.
8 Touchpad Touch-sensitive pointing device which
functions like a computer mouse. See
“Touchpad basics” on page 20 for more
details.
#Item Description
1 Speakers Left and right speakers deliver stereo
audio output.
2 5-in-1 card reader Accepts MS, MMC, xD, MS PRO, and SD
cards.
Note: Only one card can operate at any
given time.
3 Microphone Internal microphone for sound recording.
4 Infrared port Interfaces with infrared devices
(e.g., infrared printer and IR-aware
computer).
#Item Description

3
English
5 Power indicator Lights when the computer is on.
6 Battery
indicator
Lights when the battery is being charged.
7 Speaker/Line-
Out/Headphone
jack
Connects to audio line-out devices (e.g.,
speakers, headphones).
8 Line-in/Mic-in
jack
Accepts audio line-in devices (e.g., audio
CD player, stereo walkman).
9 Bluetooth
communication
button/
indicator
Press to enable/disable Bluetooth function.
Lights to indicate the status of Bluetooth
communications.
10 Wireless
communication
button/indicator
Press to enable/disable Wireless function.
Lights to indicate the status of wireless
LAN communications.
11 Latch Locks and releases the lid.
#Item Description

4
English
Left view
#Item Description
1 External display
port
Connects to a display device (e.g., external
monitor, LCD projector).
2 Ventilation Slots Enable the TravelMate to stay cool.
3 Network LAN Jack Connects to an Ethernet 10/100/1000 -
based network.
4 RJ-11 Modem Jack Connects to a phone line
5 One USB 2.0 port Connect to Universal Serial Bus (USB) 2.0
devices (e.g., USB mouse, USB camera)
6 IEEE 1394 port Connects to IEEE 1394 devices.
7 Smart Card Slot Accepts Smart Cards for added security
8 PC Card slot Connects to one Type II CardBus PC Card.
9 PC Card slot eject button Ejects the PC Card from the slot.

5
English
Right view
Note: The positions of the AcerMedia indicator, eject button and
emergency eject hole may differ depending on the optical drive
module installed.
#Item Description
1 Three USB 2.0
ports
Connect to Universal Serial Bus (USB) 2.0
devices (e.g., USB mouse, USB camera).
2 Optical drive Internal optical drive; accepts CDs or DVDs
depending on the optical drive type.
3 LED indicator Lights up when the optical drive is active.
4 Optical drive eject button Ejects the optical drive tray.
5 Emergency eject hole Ejects the optical drive tray when the
computer is turned off.
6 Power jack Connects to an AC adapter.
7 Security keylock Connects to a Kensington-compatible
computer security lock.

6
English
Rear view
#Item Description
1 DVI-D port Supports digital video connections
2 S-video port Connects to a television or display device
with S-video input.
3 124-pin
ezDock
connector
Connects to the Acer ezDock.

7
English
Bottom view
#Item Description
1 Battery lock latches Lock the battery in place.
2AcerMediabay
release latch
Unlatches the AcerMedia drive for
removal of drive (optional).
3 Cooling fan Helps keep the computer cool.
Note: Do not cover or obstruct the
opening of the fan.
4 AcerMedia bay Houses an AcerMedia drive module.
5 Wireless LAN bay Houses the computer’s wireless LAN.
6 Hard disk bay Houses the computer's hard disk
(secured by a screw).
7 Battery bay Houses the computer's battery pack.
8 Memory compartment Houses the computer's main memory.

8
English
Specifications
Operating System
•Microsoft®Windows®XP Home/Professional Service Pack 2 Edition
Microprocessor
•Intel®Pentium®M Processor with Intel®Centrino™ mobile
technology at 1.6 ~ 2.13 GHz
Memory
•256/512 MB of DDR2 533 SDRAM standard, upgradeable to 2 GB
with dual soDIMM modules
Data storage
•One 60/80 (4200rpm), or 80/100 GB PATA hard disk (5400rpm)
•One internal optical drive, (DVD-8X Super Multi Double Layer or
DVD/CD-RW combo)
•5-in-1 Card Reader supports Secure Digital (SD), Multimedia Card
(MMC), Memory Stick, Memory Stick Pro, and xD cards.
Display and video
•Thin-Film Transistor (TFT) displaying at: 15.4” WSXGA+
(1680x1050) pixel resolution, 16.7 million colours
•ATI MOBILITY™ RADEON™ X700 with 128 MB DDR video RAM
supporting ATI Powerplay™ 5.0, Microsoft®DirectX®9.0
•DualView™ support
•S-video/TV-out (NTSC/PAL) supported
Connectivity
•Integrated 10/100/1000 Mbps Fast Ethernet connection
•Built-in 56K ITU V.92 modem with PTT approval, Wake -on-Ring
ready*
•Four Universal Serial Bus (USB) 2.0 ports
•Wireless LAN: Integrated Intel PRO/Wireless 2915ABG or Intel
2200BG network connection
•InviLink™ 802.11b/g or 802.11a/b/g tri-mode Wi-Fi Certified

9
English
solution with Acer SignalUp wireless technology
•Bluetooth®enabled
Audio
•16-bit AC’97 stereo audio, Intel®high-definition audio compliant
•Sound Blaster®Pro and MS-Sound compatible
•Dual speakers and one internal microphone
Keyboard and pointing device
•Acer FineTouch™ keyboard with 5-degree curve, 88/89-key
Windows keyboard with 12 function and embedded numeric
keypad
•4 easy-launch buttons (1 user-programmable)
•Ergonomically-centered touchpad pointing device with scroll
function
I/O ports
•Four USB 2.0 ports
•One Type II PC Card slot
•One IEEE 1394 port
•One RJ-11 modem port
•One RJ-45 ethernet port
•One DC-in jack for AC adaptor
•One 124-pin ezDock connector
•One monitor (VGA) port
•One speaker/headphone-out jack (3.5mm mini jack)
•One microphone-in jack (3.5mm mini jack)
•One Infrared (FIR) port
•One S-video TV-out port
•One DVI-D port
•5-in-1 MS/MS Pro/MMC/SD/xD card reader
Weight (with battery)
• 6.3lbs (2.86kg)

10
English
Dimensions
•363 (W) x 265.7 (D) x 30.5 (H) front, 34.3 mm rear
Environment
• Temperature:
- Operating: 5°C ~ 35°C, Non-operating: -20°C ~ 65°C
• Humidity (non-condensing):
- Operating: 20% ~ 80% RH, Non-operating: 20% ~ 80% RH
System
•ACPI 1.0b support, DMI 2.0 compliant, CCX 3 compliant
Power
•71W Li-ion battery pack (14.8V, 4800mAh) with optional 42W Li-
ion second battery pack (11.1V, 3800mAh)
•3-pin 65W AC adapter (Input 100-240V, 1.6A, 50-60Hz, Output
19V, 3.42A)
Options/Accessories
•Additional 512MB/1GB DDR-II 533 MHz soDIMM memory upgrade
modules
•Additional 3-pin AC adapter
PA-1650-02, 19VDC, 65W
SADP-65KB B, 19VDC, 65W
•Addition 8-cell Li-ion battery pack
SQU-410, 14.8VDC, 4800mAh
4UR18650F-2-QC145, 14.8VDC, 4800mAh
•AcerMedia Bay 6-cell Li-ion 2nd battery pack
3UF103450P-2-QC171, 11.1VDC, 3800mAh
•AcerMedia Bay 8X DVD-Super Multi Double Layer Drive Module
•Additional 80GB (4200/5400rpm) or 100GB (5400rpm) 2nd hard
disk drive module
•External USB floppy drive
•Acer ezDock
Note: The specifications listed above are for reference only. The
exact configuration of your PC depends on the model purchased.
