Chapter 1 1
Features
This computer was designed with the user in mind. Here are just a few of its many features:
Performance
TIntel®915GM PCI Express chipset
TIntel®Pentium®M processor 725A/730/740/750/760/770/780 (2MB L2 cache, 1.6 GHz, 400 MHz
FSB) or higher
TCPU Package is uFPGA 478 Package
TIntegrated Intel®PRO/Wireless 2200BG network connection (dual-mode 802.11b/g) Wi-Fi
CERTIFIEDTM solution
Memory
T256MB or 512MB of DDRII 400/533
TUpgradeable to 2GB Memory by Dual channels of SODIMM
T512KB flash ROM BIOS
Display and video
TThin-Film Transistor (TFT) displaying at:
T15.0” XGA TFT LCD, supporting 1024x768 pixel resolution
T15.4” WXGATFT LCD, supporting 1280x800 pixel resolution
TAcer Crystal lBrite (for selected models)
TATI MOBILITYTM RADEON®X300 with 64/128 MB of GDDR1 VRAM with ATI POWERPLAYTM
5.0, Microsoft DirectX 9.0, PCI ExpressTM and DualViewTM
TSimultaneous LCD and CRT display support
TDual independent display
TExternal resolution/refresh rate
T2048x1536: 75/70/66/60 Hz
T1600x1200: 120/100/92/85/76/75/70/66/65/60/58/52 Hz
T1280x1024: 160/120/100/90/85/75/74/70/60 Hz
T1024x768: 200/160/150/120/100/90/85/75/72/70/60 Hz
T800x600: 160/120/100/90/85/75/72/70/60 Hz
Audio
TDual speakers and one internal microphone
TS/PDIF support
TMS-Sound Compatible
TSeparate audio ports for headphone-out, line-in and microphone-in devices
System Specifications
Chapter 1
download service manual and resetter printer at http://printer1.blogspot.com

2Chapter 1
Storage
T40 GB and above E-IDE hard disk (2.5”, 9.5mm, UltraDMA-100)
TOptical drive options: tray type DVD-Dual double-layer or DVD/CD-RW combo
TTray type DVD-Dual double-layer drive; Read: 8X DVD-ROM, 6X DVD-R, 6X DVD+RW, 6X
DVD-RW, 6X DVD+R, 6X DVD+R DL (double-layer), 24X CD-RW, 24X CD-R; Write: 24X CD-
R, 10X CD-RW, 8X DVD+R, 8X DVD-R, 4X DVD+RW, 2.4X DVD+R DL (double-layer), 4X
DVD-RW
TDVD/CD-RW combo drive; Read: 24X CD-RW, 24 CD-R, 24X CD-ROM, 8X DVD+R, 8X DVD-
R, 8X DVD-ROM, 4X DVD+RW, 4X DVD-RW; Write: 24X CD-RW, 24X CD-R
Communication
T56Kbps V.90/92 with PTT approval; Wake-on-ring ready
T10/100Mbps Fast Ethernet; wake-on-LAN ready
TWLAN: integrated Intel®PRO/Wireless 2200BG network connection (dual-mode 802.11b/g) Wi-Fi
CERTIFIEDTM solution, supporting Acer SignalUp wireless technology
TWPAN: integrated Bluetooth®
I/O Ports
TOne Type II PC Card slot
TOne RJ-11 phone jack (V.92, 56Kbps modem)
TOne RJ-45 network jack
TOne DC-in jack (AC adapter)
TOne external monitor port
TOne headphones/speaker/headphone-out jack
TMicrophone/line-in jack
TThree USB 2.0 ports
Battery
T4-cell of Li-ion battery pack, (2000mAh,32W) different from TravelMate 4020
T65W AC adaptor 19V 3.42A
Weight (with battery)
T3.0 kg (6.6 lbs.)
Dimensions
T364(W) x 279(D) x 33.9/38.9(H) mm (14.3 x 11 x 1.3/1.5 inches)
Environment
TTemperature
TOperating: 5oC ~ 35oC
TNon-operating: -20oC ~ 65oC
THumidity ( non-condensing)Operating: 20% ~ 80% RH
download service manual and resetter printer at http://printer1.blogspot.com

Chapter 1 3
Mainboard Placement
Top Vi ew
download service manual and resetter printer at http://printer1.blogspot.com

4Chapter 1
Rear View
download service manual and resetter printer at http://printer1.blogspot.com

Chapter 1 5
ITEM DESCRIPTION ITEM DESCRIPTION
CN2 LCD Connector CN14 DC JACK
CN3 LED board connector CN15 CRT connector
SW2 Lid switch CN16 Docking connector
CN10 express card connector CN17 Battery connector
CN11 4 IN 1 connector CN18 Fix ODD connector
CN13 Speaker connector CN21 Swap ODD connector
CN9 MD board connector CN24 2nd Battery connector
CN12 INT MIC connector CN30 PATA HDD connector
CN5 Keyboard connector CN31 SATA HDD connector
CN6 BT connector CN36 Line IN connector
CN8 TP connector CN34 MIC IN connector
U4 VGA RAM CN35 Line out/SPDIF
connector
U8 VGA RAM CN33 USB connector
U6 LAN transformer CN32 1394 connector
CN28 PCMCIA connector CN26 USB connector
CN25 USB connector CN23 S video connector
CN20 RJ45/RJ11 connector CN19 Fan connector
CN22 MINI PCI connector U31 CPU
U30 EC U29 VGA Chp
U34 North Bridge U38 South Bridge
U25 VGA RAM U28 VGA RAM
U24 BIOS ROM
download service manual and resetter printer at http://printer1.blogspot.com

6Chapter 1
Block Diagram
INTEL Mobile_479 CPU
400/533MHZ DDR2
ATA 66/100
AC97
CLOCK GEN
AUDIO CODEC
Centrino
DDR2-SODIMM1
DDR2-SODIMM2
IDE-ODD
IDE - HDD
MODEM
RJ11
Page:27
Page:27
Page:27
Page:21
Page:21
Page:9~10
Page:9~10
ICS954201
Page : 3 , 4
Page : 5 ~ 8
Page : 18 ~ 20
Page : 2
Page:28
LINE
OUT
ALVISO
ICH6-M
609 BGA
DMI I/F
Page : 29
Page:30Page:30
Touchpad
KBC(97551)
Keyboard
DOCKING
Page:33
DOTHAN
CELEROM-M
M26P/M24P
Page : 11 ~ 14
ATI
64M /
128M
PCIE
TVOUT
EXT_LVDS
EXT_CRT
EXT_TV-OUT
INT_LVDS
INT_CRT
INT_TV-OUT
SWITCH
CIRCUIT
MEDIA BAY
Page:21
PCI7411
PCI BUS
MINI-USB
RJ45
TI
10/100/1G LAN
USB2,3,5
Page:25
PCMCIA
USB 2.0
Page : 22
Page: 23
Page : 22
Wireless LAN
Modem/LAN
Page: 24
SYSTEM 3
USB PORT
USB4
Page: 22
Page:26
MINI-PCI
BROADCOM
CONEXANT
20493-21
MAX9755
Page:28
AMP
20468-31
SPEKER
Page:28Page:27
LINE
IN
Page:27
MIC IN
CONEXANT
PS2
HOST BUS 400MHz
LPC
NS
SIO (87383)
NS
Page : 31
Page:31
IrDA
Page:33
DOCKING
Print Port
Page:33
DOCKING
COM Port
LVDS
RGB
Page : 22
DOCKING 2
USB PORT
USB0,1
PCMCIA+1394
+3 IN 1
1394
Page: 24
3 IN 1
Page: 23
4401 / 5705M TRANSFORMER
BOTHHAND
ICS
5V / 3.3V / 12V
Page : 35
5VPCU
3V_ALWAYS
+12V
3V_S5
+5V
3VSUS
5VSUS
1.8V / 0.9V
Page : 36 Page:16
TV-OUT
LVDS
CRT
Page:16
Page:17
Page : 37
1.5V / 1.05V / 1.8V
SMDDR_VTERM
+2.5V
2.5VSUS
+1.8V
MVREF_DM
AGP_VCC (+1.5V)
+1.5V
1.2VCCT
1.5V_S5
VTT
VCC_CORE
Page : 34
CPU CORE
+1.2V
Page : 38
VGA_CORE
2.5V_VGA
Page : 39
BATTERY
CHARGER
Page : 40
BATTERY
SELECT
CRANE2 ( ZL3 )
PCI ROUTING TABLE
REQ0# / GNT0#
REQ2# / GNT2#
REQ1# / GNT1#
IDSEL
AD24
AD19
AD17
INTERUPT
INTA#
INTB# , INTD#
INTC#,INTD#,INTA#
DEVICE
BROADCOM LAN
MINI-PCI
TI 7411
1257 BGA
DVI
Page:15
CH7307
Page:26
SATA - HDD
Page:21
SATA
DOCKING/DVI
NEW CARD
PCIE
Page : 32
Page: 33
REV.C
400/533MHZ DDR2
HOST BUS 533MHz
download service manual and resetter printer at http://printer1.blogspot.com

Chapter 1 7
Outlook View
A general introduction of ports allow you to connect peripheral devices, as you would with a desktop PC.

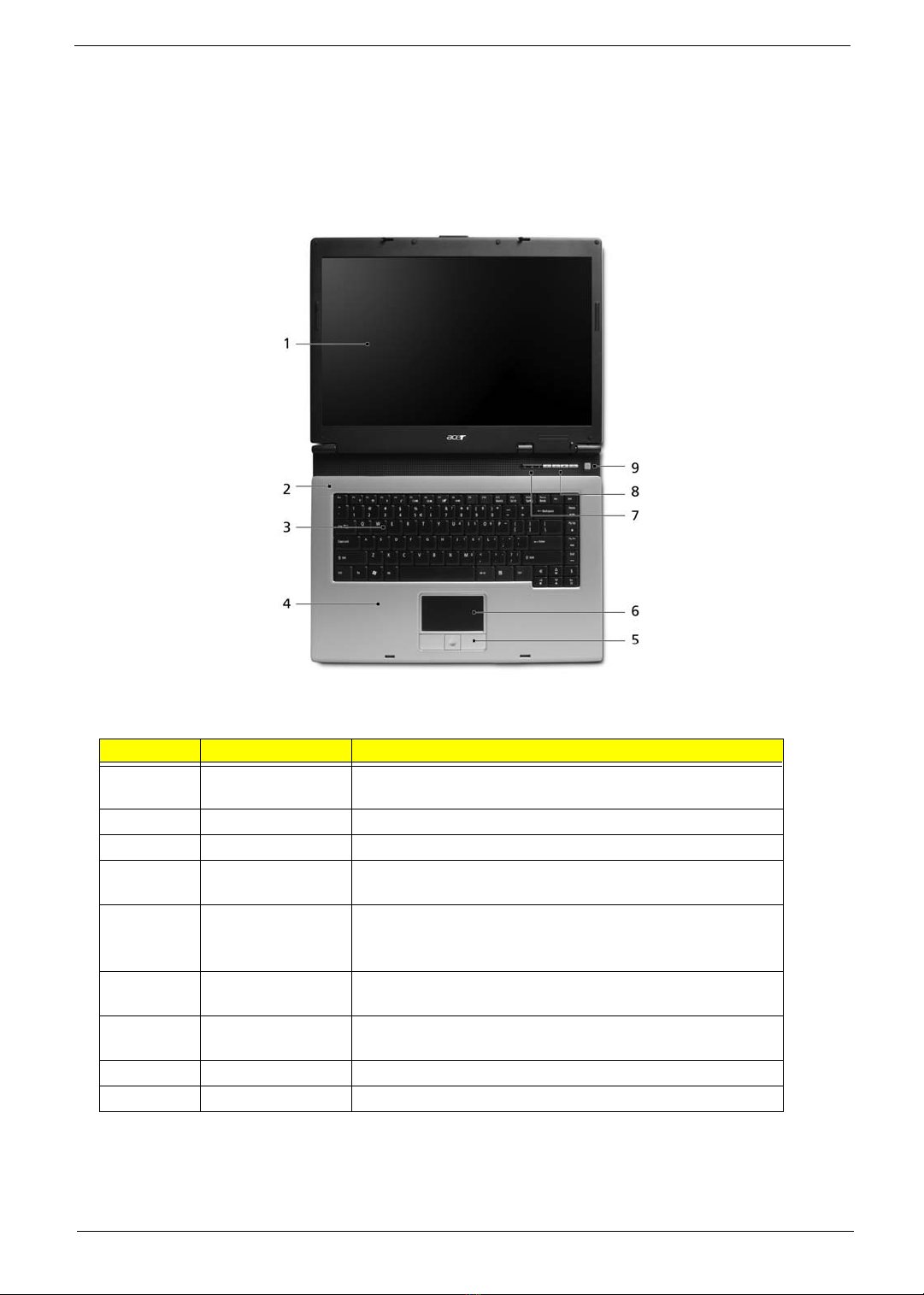

Open View
#Item Description
1 Display screen Also called Liquid-Crystal Display (LCD), displaying computer
output.
2 Microphone Internal microphone for sound recording.
3 Keyboard For entering data into your computer.
4 Palmrest Comfortable support area for your hands when you use the
computer.
5 Click buttons
(Left, center and
right)
The left and right buttons function like the left and right mouse
buttons; the center button serves as a 4-way scroll button.
6 Touchpad Touch-sensitive pointing device which functions like a
computer mouse.

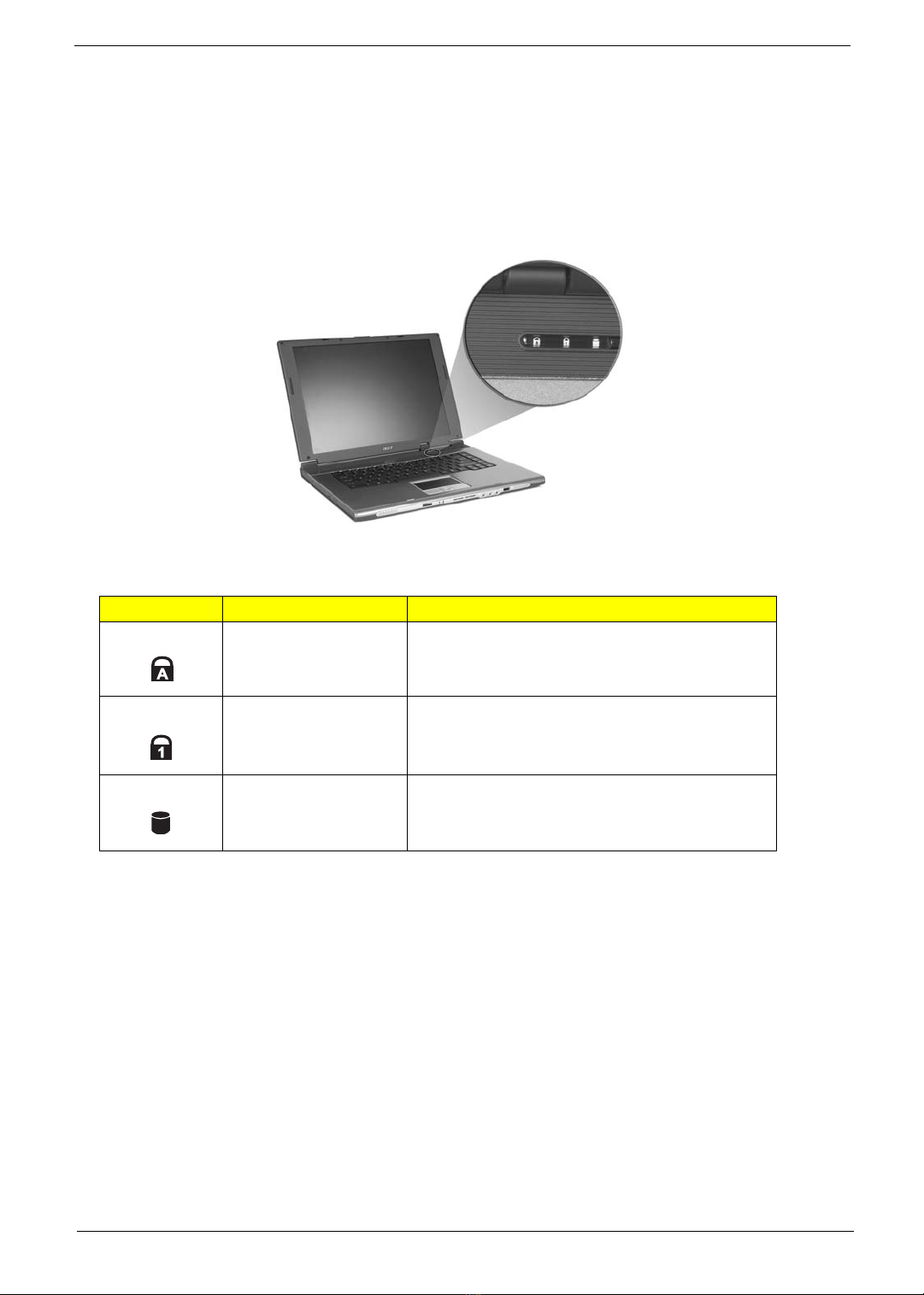

7 Status indicators Light-Emitting Diodes (LEDs) that turn on and off to show the
status of the computer’s functions and components.
8 Easy-launch buttons Buttons for launching frequently used programs.
9 Power button Turns the computer on and off.
download service manual and resetter printer at http://printer1.blogspot.com

8Chapter 1

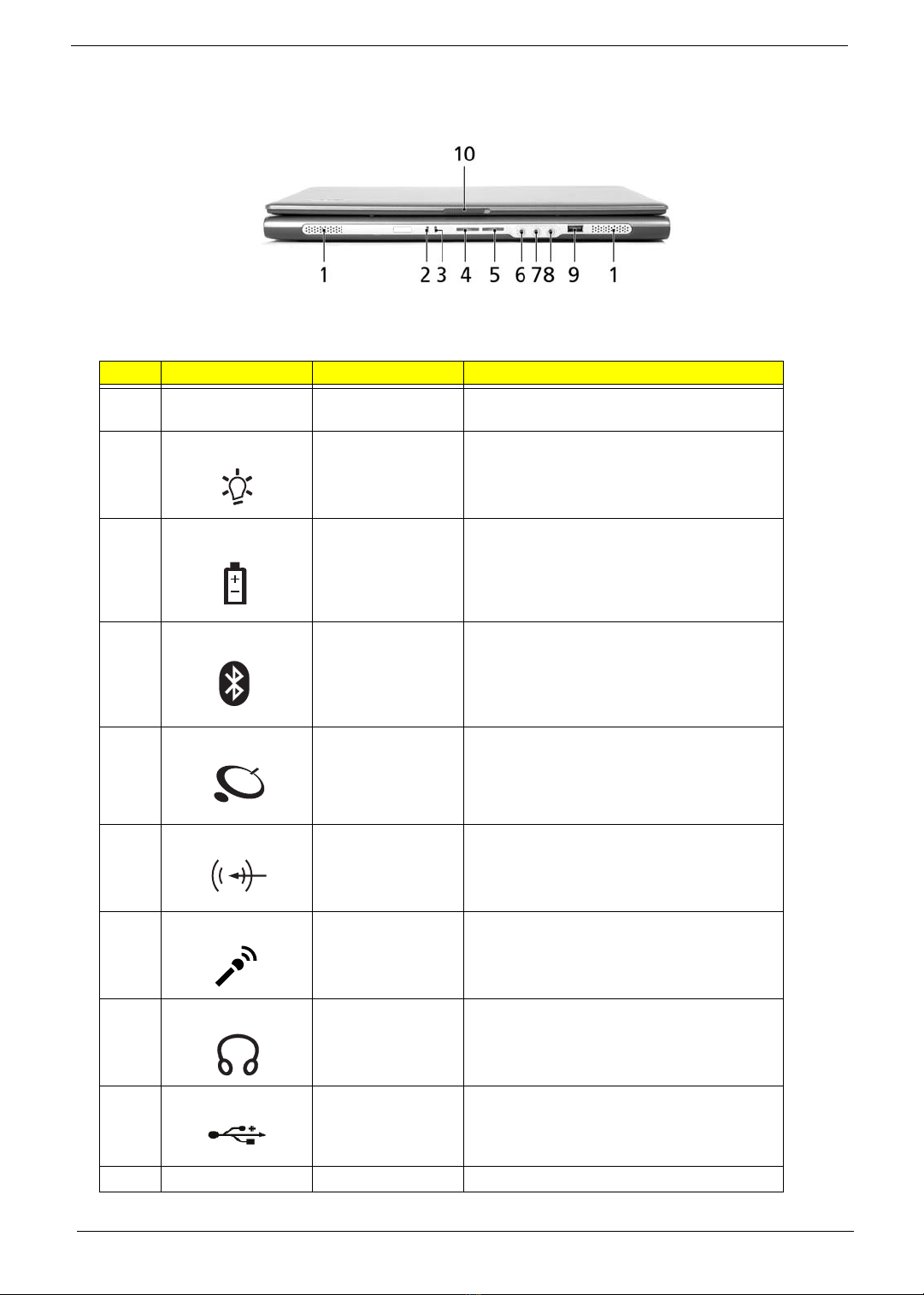

Front Panel
#Icon Item Description
1 Speakers Left and right speakers deliver stereo audio
output.
2 Power indicator Lights when the computer is on.
3 Battery indicator Lights when the battery is being charged.
4 Bluetooth
communication
button/indicator
Press to enable/disable Bluetooth function.
Lights to indicate the status of Bluetooth
communications.
5Wireless
communications
button/indicator
Press to enable/disable Wireless function.
Lights to indicate the status of wireless LAN
communications. (manufacturing option)
6 Line-in jack Accepts audio line-in devices (e.g., audio CD
player, stereo walkman).
7 Microphone jack Accepts inputs from external microphones.
8 Speaker/Line-Out/
Headphone jack
Connects to audio line-out devices (e.g.,
speakers, headphones).
9 USB 2.0 port Connects to Universal Serial Bus (USB) 2.0
devices (e.g., USB mouse, USB camera).
10 Latch Locks and releases the lid.
"Launch keys" on page 10
# Icon Item Description
# Item Description
"Launch keys" on page 10
# Icon Item Description
# Item Description
"Launch keys" on page 10
# Icon Item Description
# Item Description
"Launch keys" on page 10
# Icon Item Description
# Item Description
"Launch keys" on page 10
# Icon Item Description
# Item Description
"Launch keys" on page 10
# Icon Item Description
# Item Description
"Launch keys" on page 10
# Icon Item Description
# Item Description
# Item Description
# Icon Item Description
# Icon Item Description
download service manual and resetter printer at http://printer1.blogspot.com

Chapter 1 9
Left View
NOTE: The positions of the AcerMedia indicator, eject button and emergency eject hole may differ depending
on the optical drive module installed.
#Item Description
1 Optical drive Internal optical drive; accepts CDs or DVDs depending on the
optical drive type.
2 LED indicator Lights up when the optical drive is active.
3 Optical drive eject
button
Ejects the optical drive tray from the drive.
4 Emergency eject
hole
Ejects the optical drive tray when the computer is turned off
download service manual and resetter printer at http://printer1.blogspot.com

10 Chapter 1
Right View
#Icon Item Description
1 PC Card slot eject
button
Ejects the PC Card from the slot.
2 PC Card slot Connects to one Type II CardBus PC Card.
3 Two USB 2.0 ports Connect to Universal Serial Bus (USB) 2.0
devices (e.g., USB mouse, USB camera).
4 Ethernet (RJ-45)
port
Connects to an Ethernet 10/100-based
network (for selected models).
5 Modem (RJ-11) port Connects to a phone line.
6 Ventilation slots Enable the computer to stay cool, even after
prolonged use.
Note:
# Icon Item Description
# Icon Item Description
# Item Description
# Icon Item Description
# Icon Item Description
Note:
# Icon Item Description
# Icon Item Description
Note:
# Icon Item Description
# Icon Item Description
download service manual and resetter printer at http://printer1.blogspot.com

Chapter 1 11
Rear View
Bottom View
#Icon Item Description
1 Power jack Connects to an AC adapter.
2 External display port Connects to a display device (e.g., external
monitor, LCD projector).
3 Security keylock Connects to a Kensington-compatible
computer security lock.
#Item Description
1 Hard disk bay Houses the computer's hard disk
(secured with two screws).
2 Battery release latch Unlatches the battery to remove the battery pack.
3 Battery bay Houses the computer's battery pack.
4 Battery lock Locks the battery in place.
Note:
# Icon Item Description
# Icon Item Description
Note:
# Icon Item Description
# Icon Item Description
Note:
# Icon Item Description
# Icon Item Description
download service manual and resetter printer at http://printer1.blogspot.com

12 Chapter 1
5 Cooling fan Helps keep the computer cool.
NOTE: Do not cover or obstruct the opening of the fan.
6 Memory compartment Houses the computer's main memory and Mini PCI Card.
#Item Description
download service manual and resetter printer at http://printer1.blogspot.com

Chapter 1 13
Indicators
Your computer provides an array of three indicators located above the keyboard, in addition to four
indicators positioned at the front of the palm rest area. These indicators show the status of the computer
and its componetns.
The three indicators located above the keyboard provide the following status information:
NOTE: The keypad lock must be turned on to use the embedded numeric keypad.
Icon Item Description
Caps Lock activity Lights when Caps Lock is activated.
Num Lock activiy Lights when Num Lock is activated.
Media activity Lights when the hard disk or optical drive is active.
Icon Function Description
download service manual and resetter printer at http://printer1.blogspot.com

14 Chapter 1
Easy-launch buttons
The build-in touchpad is a PS/2 compatible pointing device that senses movement on its surface.
The cursor responds to your finger movements on the touchpad. In addition, the two click buttons provide
the same functionality as a computer mouse, while the scroll key enables easy up and down scrolling in
documents and web pages.
The touchpad is located in the middle of the palm rest area, providing maximum comfort and efficiency.
download service manual and resetter printer at http://printer1.blogspot.com
