First things first
We would like to thank you for making the Extensa series of notebook PC
your choice for meeting your mobile computing needs.
Your guides
To help you use your Extensa, we have designed a set of guides:
Basic care and tips for using your computer
Turning your computer on and off
To turn on the computer, simply press and release the power button below the
LCD screen beside the easy-launch buttons. See "Front view" on page 9 for the
location of the power button.
First off, the Just for Starters... poster helps you get started with
setting up your computer.
The printed User's Guide introduces you to the basic features and
functions of your new computer. For more on how your computer
can help you to be more productive, please refer to the
AcerSystem User's Guide. This guide contains detailed
information on such subjects as system utilities, data recovery,
expansion options and troubleshooting. In addition it contains
warranty information and the general regulations and safety
notices for your notebook. It is available in Portable Document
Format (PDF) and comes preloaded on your notebook. Follow
these steps to access it:
1 Click on Start, All Programs, AcerSystem.
2 Click on AcerSystem User's Guide.
Note: Viewing the file requires Adobe Reader. If Adobe Reader is
not installed on your computer, clicking on AcerSystem User's
Guide will run the Adobe Reader setup program first. Follow the
instructions on the screen to complete the installation. For
instructions on how to use Adobe Reader, access the Help and
Support menu.

v
To turn the power off, do any of the following:
•Use the Windows shutdown command
Click on Start, Turn Off Computer, then click on Turn Off.
•Use the power button
You can also shut down the computer by closing the display cover, or by
pressing the sleep hotkey <Fn> + <F4>.
Note: If you cannot power off the computer normally, press and
hold the power button for more than four seconds to shut down
the computer. If you turn off the computer and want to turn it on
again, wait at least two seconds before powering up.
Taking care of your computer
Your computer will serve you well if you take care of it.
•Do not expose the computer to direct sunlight. Do not place it near sources
of heat, such as a radiator.
•Do not expose the computer to temperatures below 0 ºC (32 ºF) or above
50 ºC (122 ºF).
•Do not subject the computer to magnetic fields.
•Do not expose the computer to rain or moisture.
•Do not spill water or any liquid on the computer.
•Do not subject the computer to heavy shock or vibration.
•Do not expose the computer to dust or dirt.
•Never place objects on top of the computer.
•Do not slam the computer display when you close it.
•Never place the computer on uneven surfaces.
Taking care of your AC adapter
Here are some ways to take care of your AC adapter:
•Do not connect the adapter to any other device.
•Do not step on the power cord or place heavy objects on top of it.
Carefully route the power cord and any cables away from foot traffic.
•When unplugging the power cord, do not pull on the cord itself but pull
on the plug.
•The total ampere ratings of the equipment plugged in should not exceed
the ampere rating of the cord if you are using an extension cord. Also, the
total current rating of all equipment plugged into a single wall outlet
should not exceed the fuse rating.

vi
Taking care of your battery pack
Here are some ways to take care of your battery pack:
•Use only batteries of the same kind as replacements. Turn the power off
before removing or replacing batteries.
•Do not tamper with batteries. Keep them away from children.
•Dispose of used batteries according to local regulations. Recycle if possible.
Cleaning and servicing
When cleaning the computer, follow these steps:
1 Turn off the computer and remove the battery pack.
2 Disconnect the AC adapter.
3 Use a soft, moist cloth. Do not use liquid or aerosol cleaners.
If either of the following occurs:
•the computer has been dropped or the body has been damaged;
•the computer does not operate normally
please refer to "Frequently asked questions" on page 30.
Caution
Changes or modifications not expressly approved by the manufacturer could
void the user's authority, which is granted by the Federal Communications
Commission, to operate this computer.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) This device must accept any interference received, including
interference that may cause undesired operation.
Users are requested to follow the RF safety instructions for wireless option
devices that are included in the user's manual of each RF option device.
An improper installation or unauthorized use may cause harmful interference
to radio communications. Also, any tampering of the internal antenna will void
the FCC certification and your warranty.
To prevent radio interference to the licensed service, this device is intended to
be operated indoors, and installation outdoors is subject to licensing.
For more information about our products, services, and support information,
please visit our website: http://global.acer.com.

Disposal instructions iii
First things first iv
Your guides iv
Basic care and tips for using your computer iv
Turning your computer on and off iv
Taking care of your computer v
Taking care of your AC adapter v
Taking care of your battery pack vi
Cleaning and servicing vi
Acer Empowering Technology 1
Acer eDataSecurity Management 2
Acer eLock Management 3
Acer ePerformance Management 4
Acer eRecovery Management 5
Acer eSettings Management 6
Acer ePower Management 6
Acer ePresentation Management 8
AnExtensa tour 9
Front view 9
Closed front view 10
Left view 11
Right view 12
Rear view 12
Base view 13
Specifications 14
Indicators 17
Easy-launch buttons 18
Touchpad 19
Touchpad basics 19
Using the keyboard 21
Lock keys and embedded numeric keypad 21
Windows keys 22
Hotkeys 22
Special keys 24
Ejecting the optical (CD or DVD) drive tray 25
Using a computer security lock 25
Audio 26
Adjusting the volume 26
Using the system utilities 27
Acer GridVista (dual-display compatible) 27
Launch Manager 28
Norton AntiVirus 29
Frequently asked questions 30
Requesting service 33
International Travelers Warranty (ITW) 33
Before you call 33
Contents

Taking your notebook PC with you 34
Disconnecting from the desktop 34
Moving around 34
Preparing the computer 34
What to bring to meetings 35
Taking the computer home 35
Preparing the computer 35
What to take with you 35
Special considerations 36
Setting up a home office 36
Traveling with the computer 36
Preparing the computer 36
What to take with you 36
Special considerations 37
Traveling internationally with the computer 37
Preparing the computer 37
What to bring with you 37
Special considerations 37
Securing your computer 38
Using a computer security lock 38
Using passwords 38
Entering passwords 39
Setting passwords 39
Expanding through options 40
Connectivity options 40
Fax/data modem 40
Built-in network feature 41
Fast Infrared (FIR) 41
Universal Serial Bus (USB) 42
IEEE 1394 port 42
PC Card slot 43
Installing memory 44
BIOS utility 44
Boot sequence 44
Enable disk-to-disk recovery 45
Password 45
Using software 45
Playing DVD movies 45
Power management 46
Acer eRecovery Management 47
Create backup 47
Restore from backup 48
Create factory default image CD 48
Re-install bundled software without CD 48
Change password 49
Troubleshooting 50

Troubleshooting tips 50
Error messages 50
Regulations and safety notices 52
ENERGY STAR guidelines compliance 52
FCC notice 52
Modem notices 53
Important safety instructions 56
Laser compliance statement 58
LCD pixel statement 58
Macrovision copyright protection notice 58
Radio device regulatory notice 59
General 59
European Union (EU) 59
The FCC RF safety requirement 60
Canada — Low-power license-exempt radio
communication devices (RSS-210) 61
Federal Communications Comission
Declaration of Conformity 62
Declaration of Conformity for CE Marking 63
Index 64

1
Empowering Technology
Acer Empowering Technology
Acer's innovative Empowering Technology makes it easy for you to access
frequently used functions and manage your new Acer notebook. It features the
following handy utilities:
•Acer eDataSecurity Management protects data with passwords and
advanced encryption algorithms.
•Acer eLock Management limits access to external storage media.
•Acer ePerformance Management improves system performance by
optimizing disk space, memory and registry settings.
•Acer eRecovery Management backs up/recovers data flexibly, reliably
and completely.
•Acer eSettings Management accesses system information and adjusts
settings easily.
•Acer ePower Management extends battery power via versatile usage
profiles.
•Acer ePresentation Management connects to a projector and adjusts
display settings conveniently.

2
Empowering Technology
For more information, press the < > key to launch the Empowering
Technology menu, then click on the appropriate utility and select the Help
function.
Acer eDataSecurity Management
Acer eDataSecurity Management is a handy file encryption utility that protects
your files from being accessed by unauthorized persons. It is conveniently
integrated with Windows Explorer as a shell extension for quick and easy data
encryption/decryption and also supports on-the-fly file encryption for MSN
Messenger and Microsoft Outlook.

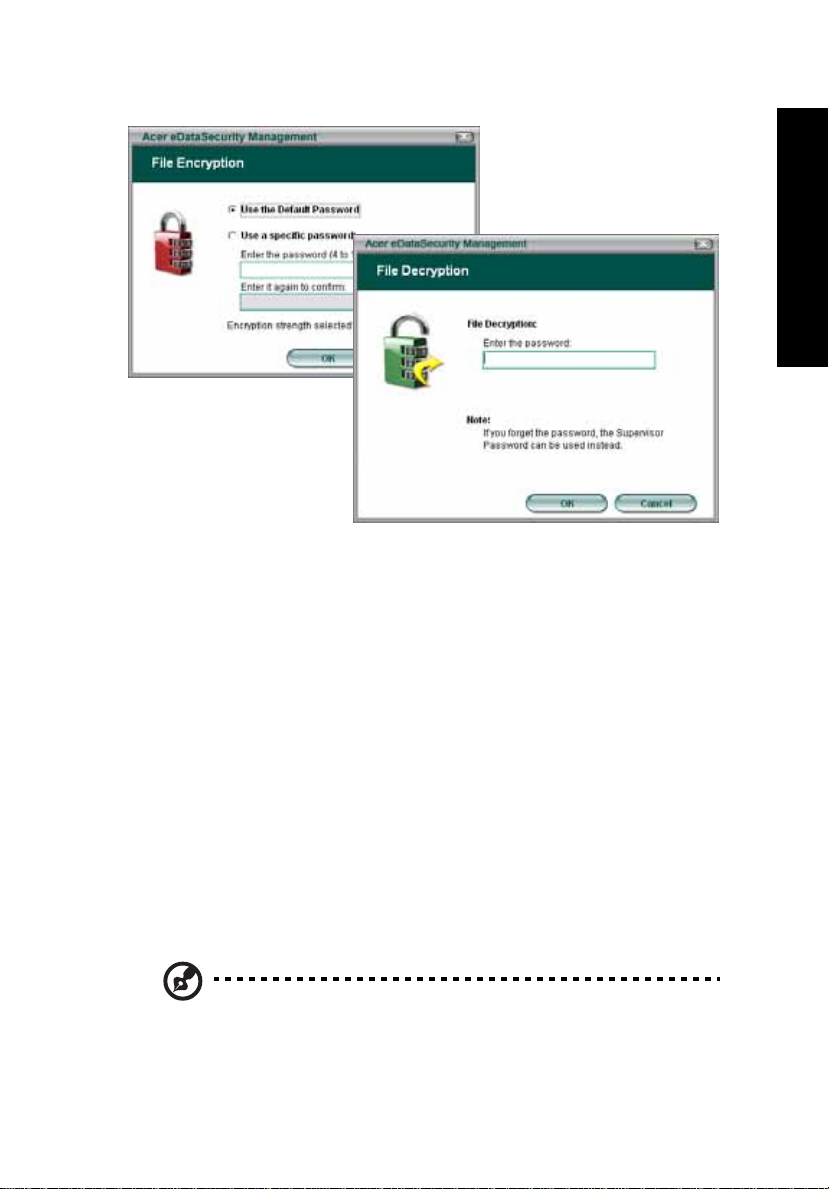

There are two passwords that can be used to encrypt/decrypt a file: the
supervisor password and the file-specific password. The supervisor password is a
"master" password that can decrypt any file on your system; the file-specific
password is assigned when you encrypt each individual file.

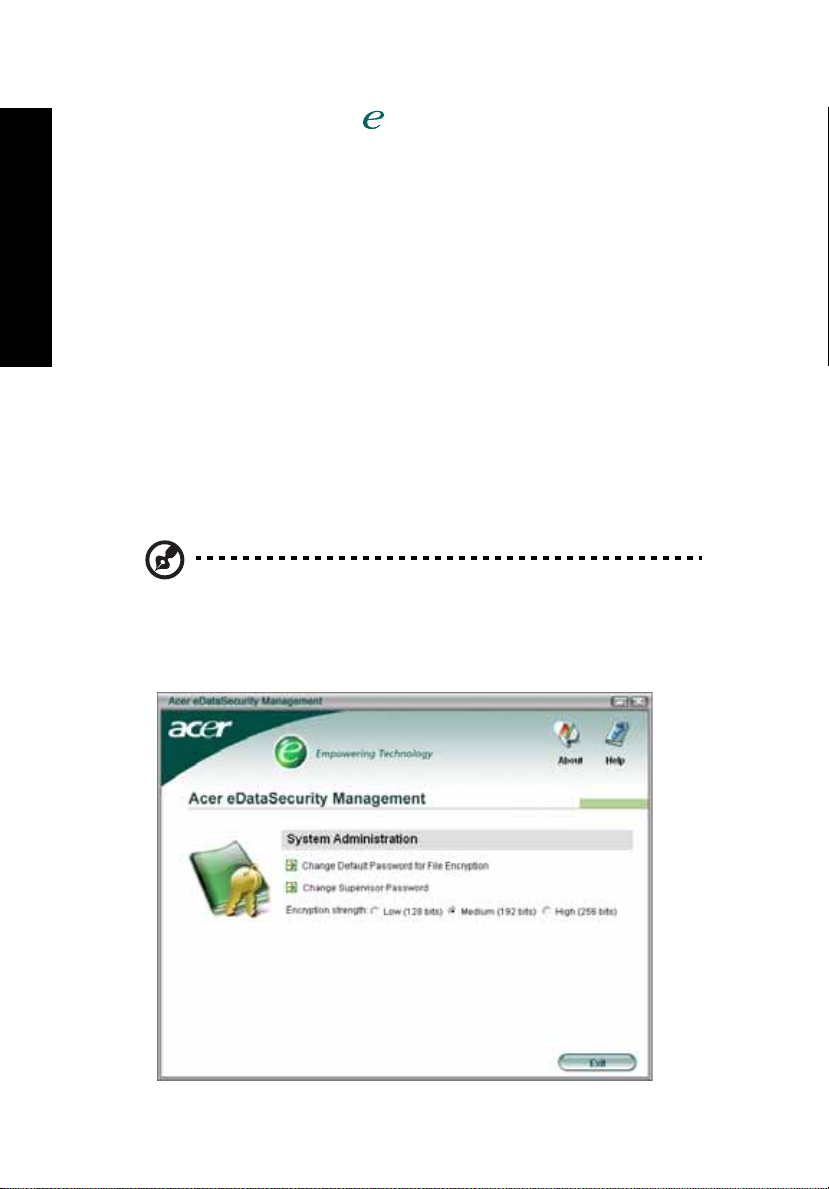

The Acer eDataSecurity Management setup wizard will prompt you for a
supervisor password and default file-specific password. This file-specific
password will be used to encrypt files by default, or you can choose to enter
your own file-specific password when encrypting a file.
Note: The password used encrypt a file is the unique key that the
system needs to decrypt it. If you lose the password, the supervisor
password is the only other key capable of decrypting the file. If
you lose both passwords, there will be no way to decrypt your
encrypted file! Be sure to safeguard all related passwords!

3
Empowering Technology
Acer eLock Management
Acer eLock Management is a security utility that allows you to lock up your
removable data, optical and floppy drives to ensure that data can't be stolen
while your notebook is unattended.
•Removable data devices — includes USB disk drives, USB pen drives, USB
flash drives, USB MP3 drives, USB memory card readers, IEEE 1394 disk
drives and any other removable disk drives that can be mounted as a file
system when plugged into the system.
•Optical drive devices — includes any kind of CD-ROM or DVD-ROM drives.
•Floppy disk drives — 3.5-inch disks only.
To activate Acer eLock Management, a password must be set first. Once set, you
may apply locks to any of the three kinds of devices. Lock(s) will immediately
be set without any reboot necessary, and will remain locked after rebooting,
until unlocked.
If you do not set a password, Acer eLock Management will reset back to the
initial status with all locks removed.
Note: If you lose your password, there is no method to reset it
except by reformatting your notebook or taking your notebook
to an Acer Customer Service Center. Be sure to remember or write
down your password.

4
Empowering Technology
Acer ePerformance Management
Acer ePerformance Management is a system optimization tool that boosts the
performance of your Acer notebook. It provides you with the following options
to enhance overall system performance:
•Memory optimization — release unused memory and check usage.
•Disk optimization — remove unneeded items and files.
•Speed optimization — improve the usability and performance of your
Windows XP system.

5
Empowering Technology
Acer eRecovery Management
Acer eRecovery Management is a powerful utility that does away with the need
for recovery disks provided by the manufacturer. The Acer eRecovery
Management utility occupies space in a hidden partition on your system's HDD.
User-created backups are stored on D:\ drive. Acer eRecovery Management
provides you with:
•Password protection.
•Recovery of applications and drivers.
•Image/data backup:
•Back up to HDD (set recovery point).
•Back up to CD/DVD.
•Image/data recovery tools:
•Recover from a hidden partition (factory defaults).
•Recover from the HDD (most recent user-defined recovery point).
•Recover from CD/DVD.
For more information, please refer to "Acer eRecovery Management" on page
47 in the AcerSystem User's Guide.
Note: If your computer did not come with a Recovery CD or
System CD, please use Acer eRecovery Management's "System
backup to optical disk" feature to burn a backup image to CD or
DVD. To ensure the best results when recovering your system
using a CD or Acer eRecovery Management, detach all peripherals
(except the external Acer ODD, if your computer has one),
including your Acer ezDock.

6
Empowering Technology
Acer eSettings Management

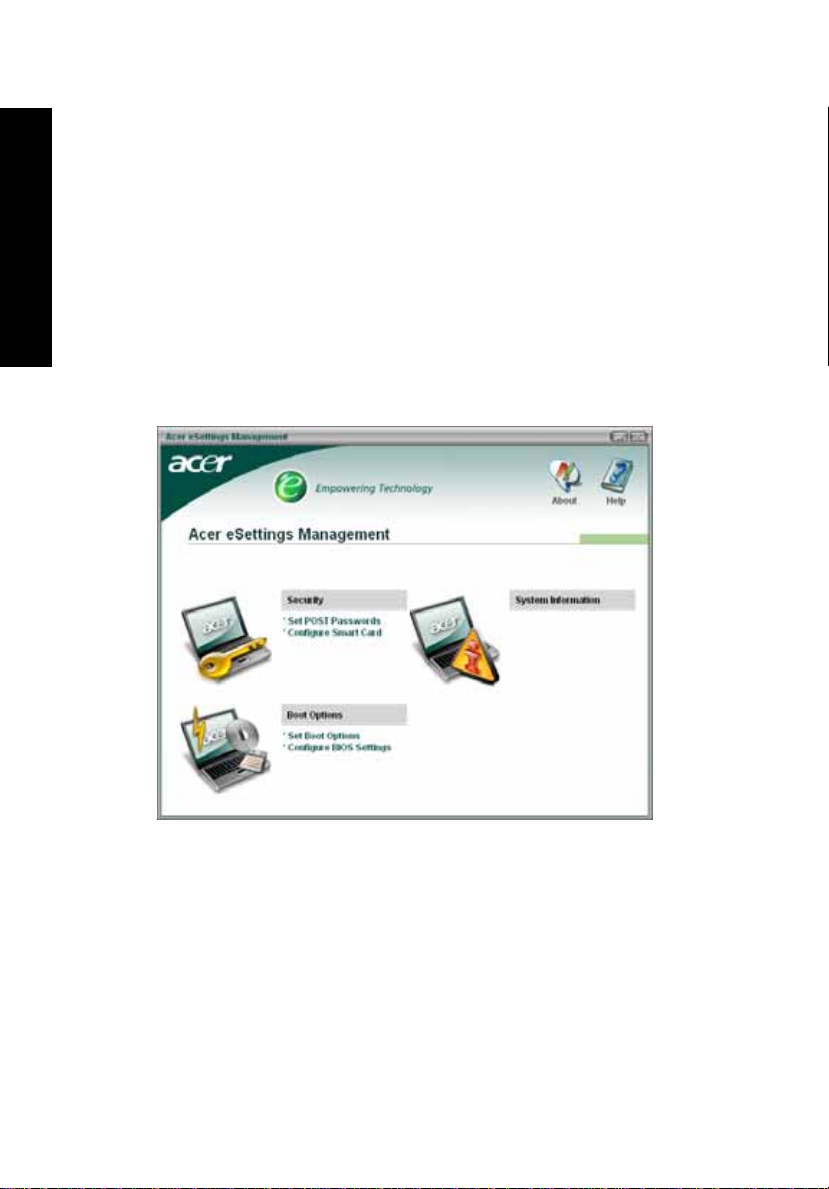

Acer eSettings Management allows you to inspect hardware specifications and
to monitor the system health status. Furthermore, Acer eSettings Management
enables you to optimize your Windows operating system, so your computer
runs faster, smoother and better.
Acer eSettings Management also:
•Provides a simple graphical user interface for navigating through the
program effortlessly.
•Displays general system status and advanced monitoring for power users.
•Logs when a hardware component has been removed or replaced.
•Permits you to migrate personal settings.
•Keeps a history log of all alerts that were previously issued.
Acer ePower Management
Acer ePower Management features a straightforward user interface. To launch
it, select Acer ePower Management from the Empowering Technology
interface, or double-click the Acer ePower Management icon in the task tray.

7
Empowering Technology
AC mode
The default setting is "Maximum Performance." You can adjust CPU speed, LCD
brightness and other settings, or click on buttons to turn the following
functions on/off: Wireless LAN, Bluetooth, CardBus, Memory Card, Audio, and
Wired LAN.
DC mode
To suit your usage, there are four pre-defined profiles — Entertainment,
Presentation, Word Processing, and Maximum Battery. Or, you can define up to
three of your own profiles.
Create new power scheme
1 Assign a name for the new scheme.
2 Choose existing scheme to use as a template.
3 Select whether used for mains (AC) or battery mode.
4 Choose which power options best fit your needs, then click OK.
5 The new profile will appear on the main screen.
Battery status
For real-time battery life estimates based on current usage, refer to the panel
on the lower left-hand side of the window.
You can also click "Advanced Settings" to:
•Set alarms.
•Re-load factory defaults.
•Select what actions will be taken when the cover is closed, and set
passwords for accessing the system after Hibernation or Standby.

8
Empowering Technology
•View information about Acer ePower Management.
Acer ePresentation Management
Acer ePresentation Management lets you select from two of the most common
projector resolutions: XGA and SVGA.

9
English
AnExtensa tour
After setting up your computer as illustrated in the Just for Starters... poster,
let us show you around your new Extensa computer.
Front view
#Item Description

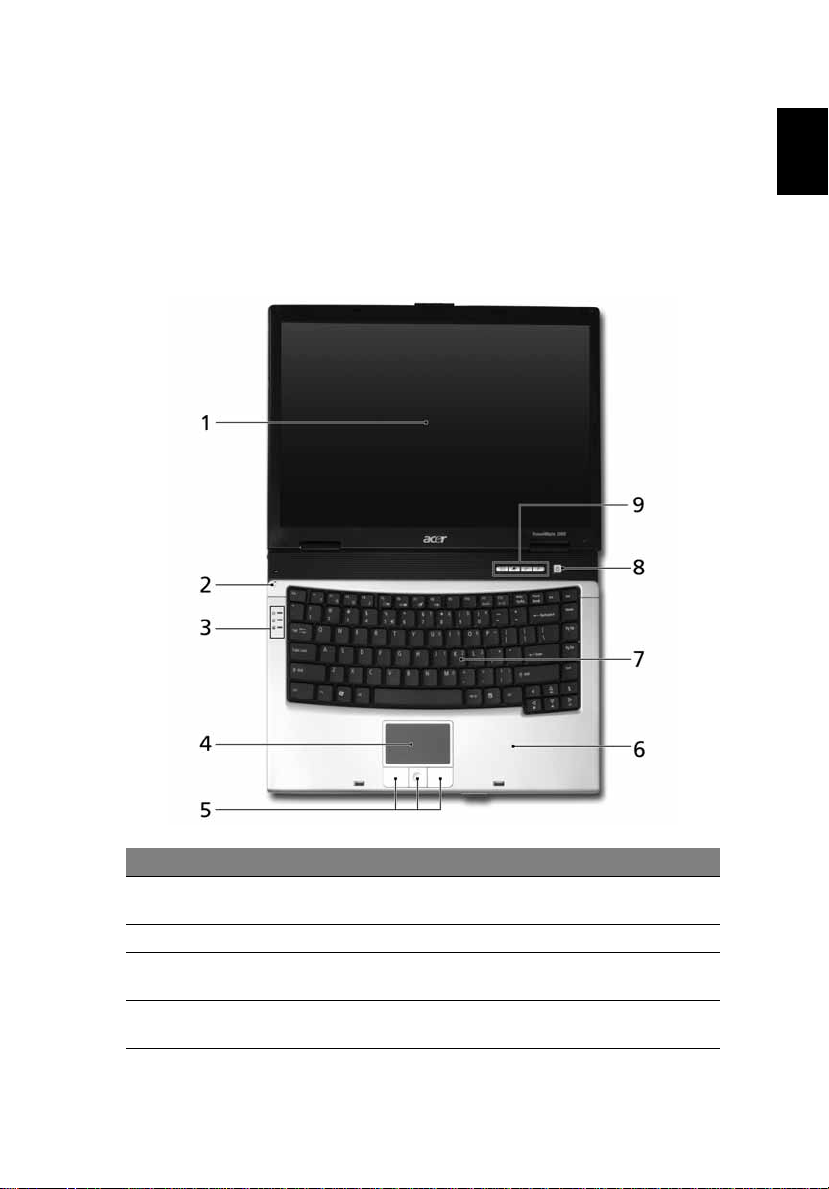

1 Display screen Also called Liquid-Crystal Display (LCD), displays
computer output.
2 Microphone Internal microphone for sound recording.
3 Status
indicators Light-Emitting Diodes (LEDs) that light up to show the status of the computer's functions and components.
4 Touchpad Touch-sensitive pointing device which functions like a
computer mouse.

10
English
Closed front view
5 Click buttons
(left, center
and right)
The left and right buttons function like the left and
right mouse buttons; the center button serves as a 4-way
scroll button.
6 Palmrest Comfortable support area for your hands when you use
the computer.
7 Keyboard For entering data into your computer.
8 Power button Turns the computer on and off.
9 Easy-launch
buttons Buttons for launching frequently used programs. See "Easy-launch buttons" on page 18 for more details.
#Icon Item Description

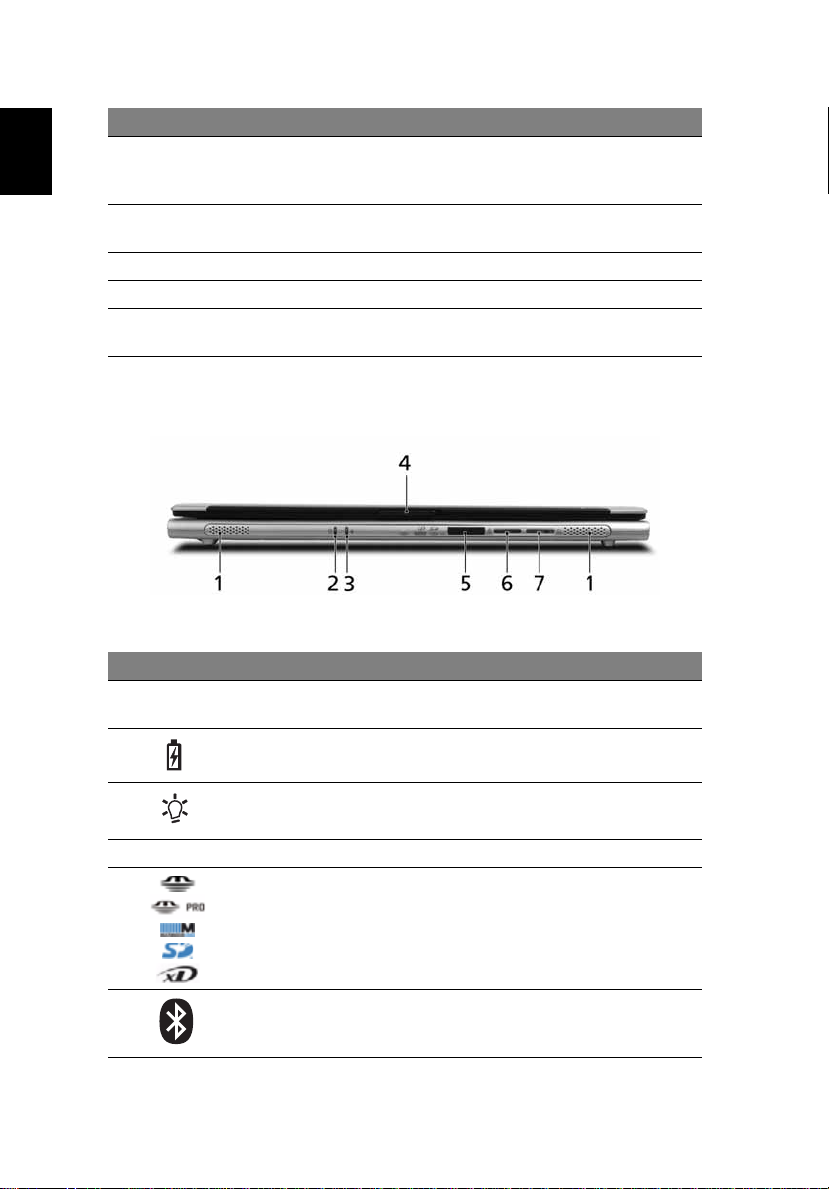

1 Speakers Left and right speakers deliver stereo
audio output.
2 Battery indicator Lights up when the battery is being
charged.
3 Power indicator Lights up when the computer is on.
4 Latch Locks and releases the lid.
5 5-in-1 card reader Accepts Memory Stick, Memory Stick
Pro, MultiMediaCard (MMC), Secure
Digital (SD) and xD-Picture Card.
Note: Only one card can operate at any
given time.
6Bluetooth
communication
button/indicator
Press to enable/disable the Bluetooth
function. Indicates the status of
Bluetooth communication (optional).
#Item Description
