Introduction
Features
Networking features
•With high-performance wireless projection via a USB WiFi adapter or an
RJ-45 port for wired connections (only for the models with RJ-45 port).
•The projector can act as an access point (AP) or work in WiFi con-current
mode when doing networking display.
•Powerful wireless display features ready for devices with different OS (MS
Windows, Mac OS, Android, iOS).
•Supports wireless network security (WPA-PSK, WPA2-PSK).
Multi-media features
•Fancy and stylish user interface for better experience.
•You can enjoy media & documents playback via USB flash drive.
•Supports high resolution JPEG and BMP picture formats, slideshow and
various slideshow effects for the best viewing experience.
•Supports MP3, PCM and WMA...audio formats, music spectrum and
random play function for your pleasing.
•Supports office documents playback (Word, Excel, PowerPoint, PDF).
•Easy control for all media functions by the remote control.
•Using EZCast app, you can wirelessly project your mobile device screen to
the projector.

2
English
Get Started
Connecting multi-media device to the projector.
To switch between different inputs, press SOURCE on the remote control to
open the Source menu that allows you to select an input signal source.
#Component Description
1 USB Type A Connects to USB flash drive for multimedia playback.
NOTE: To enable wireless function, the
USB Wireless Adaptor must be plugged
into the Acer WirelessProjection-Kit
(optional) port.
2 LAN port Connects to an Ethernet 10/100-based network.
3 WirelessProjection-
Kit (optional)
For Acer WirelessProjection-Kit (optional) only.
Before the projector is turned on, you need to insert
the wireless projection-kit (optional).
Connects to USB flash drive for multimedia playback.
NOTE: Acer WirelessProjection-Kit
(optional) is only allowed to be
installed while projector is off;
forbidden to plug out or installed
while projector is active.
2
3 1

3
English
Copyright © 2018. Acer Incorporated.
All Rights Reserved.
Changes may be made periodically to the information in this publication
without obligation to notify any person of such revisions or changes. Such
changes will be incorporated in new editions of this manual or supplementary
documents and publications.
This company makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims the
implied warranties of merchantability or fitness for a particular purpose.

4
English
Control Panel and Remote Control

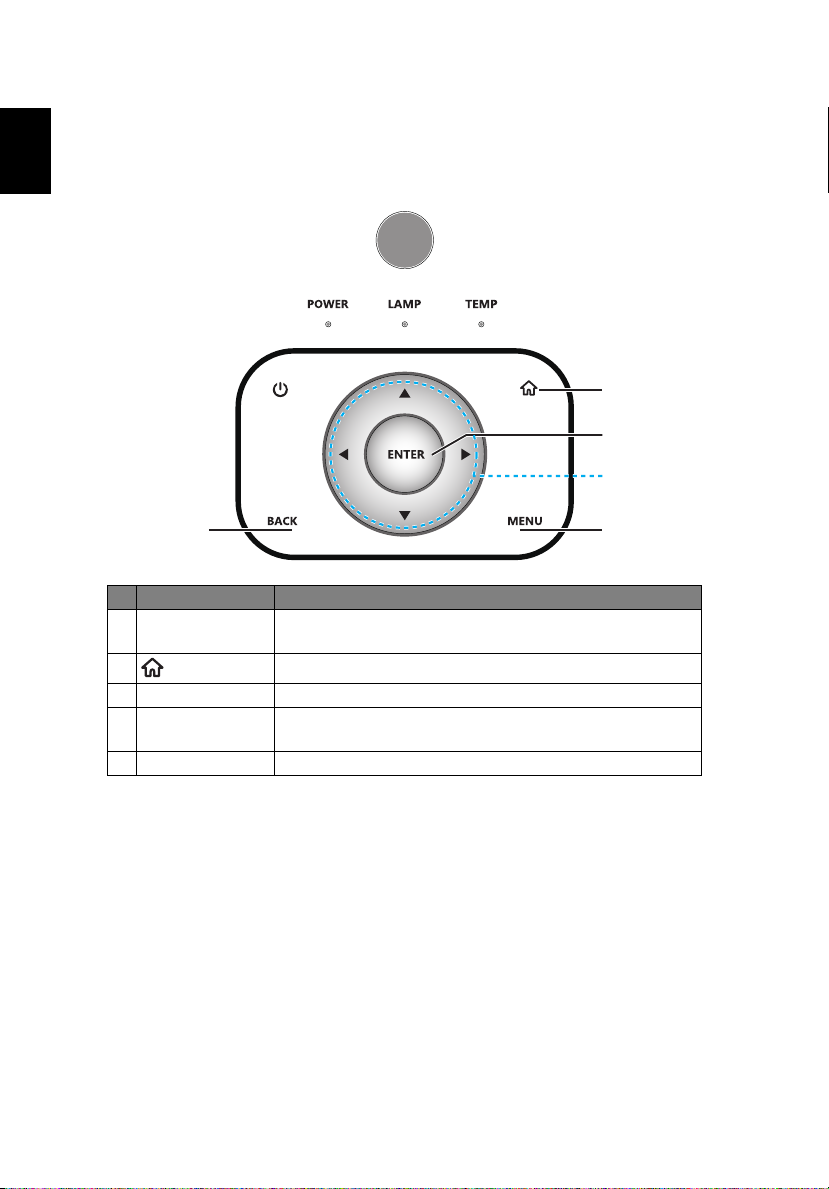

Control Panel
#Function Description
1 BACK Cancels your selection, or goes back to the previous
page.
2 Home Goes to MEDIA home screen.
3 ENTER Confirms your selection of items.
4 Four directional
selection keys
Selects the media files or features in four directions.
5 MENU Launches the projector Onscreen Display (OSD) menu.
5
3
1
2
4

5
English
Remote Control
#Function Description
1 ENTER Confirms your selection of items.
2 BACK Cancels your selection, or goes back to the previous
page.
3 Home Goes to MEDIA home screen.
4Four
directional
select pad
Selects the media files or features in four directions.
5 SOURCE Press to open the Source
menu that allows you to
select an input signal
source.
6 MENU Launches the projector Onscreen Display (OSD) menu.
7Media
quick
menu
Launches the media quick menu when playing media.

6
English
Media Mode
Enter Media mode by selecting source to “Media” and you will see Media home
screen as below.
From the main Home screen, it basically divided into 3 main categories:
Projector, Application, and Settings.
To navigate the Home screen, simply use the buttons on the remote control or
the control panel.
NOTE: To return to the main Home screen at any time, simply
press on the control panel or press on the remote control.

7
English

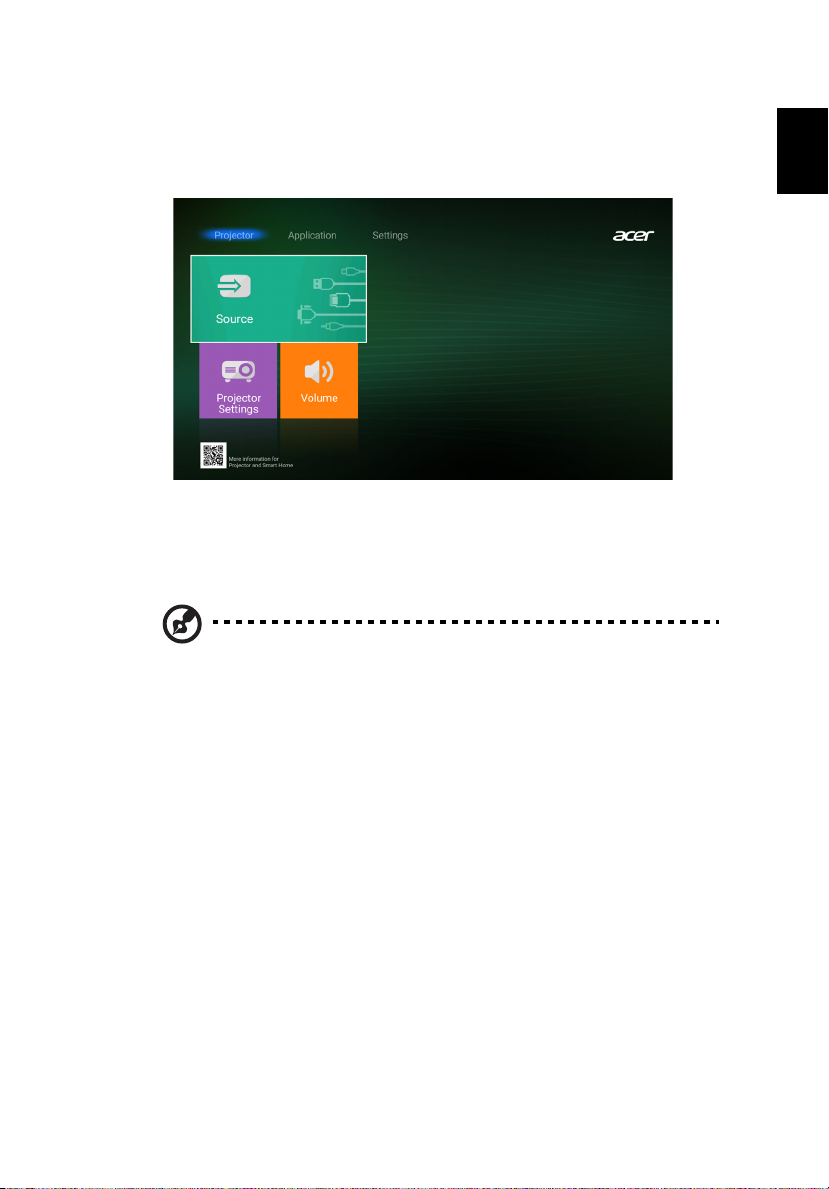

Projector home screen
On the Projector home screen, you can change the input source, configure the
projector settings, and adjust the volume level.
Source
Select "Source" to open the Source menu. Then select the desired input signal
source.
NOTE 1: Make sure the interface cable is properly connected
before switching the input source.
NOTE 2: You can also access the Source menu by pressing SOURCE.
For details, see "Remote Control".
Projector Settings
Select "Projector Settings" to open the OSD menu that allows you to configure
the projector settings.

8
English
Volume
Select "Volume" to open the Volume menu. Then press / to adjust the
volume level.
NOTE: To activate the mute function, set the volume level to 0.

9
English

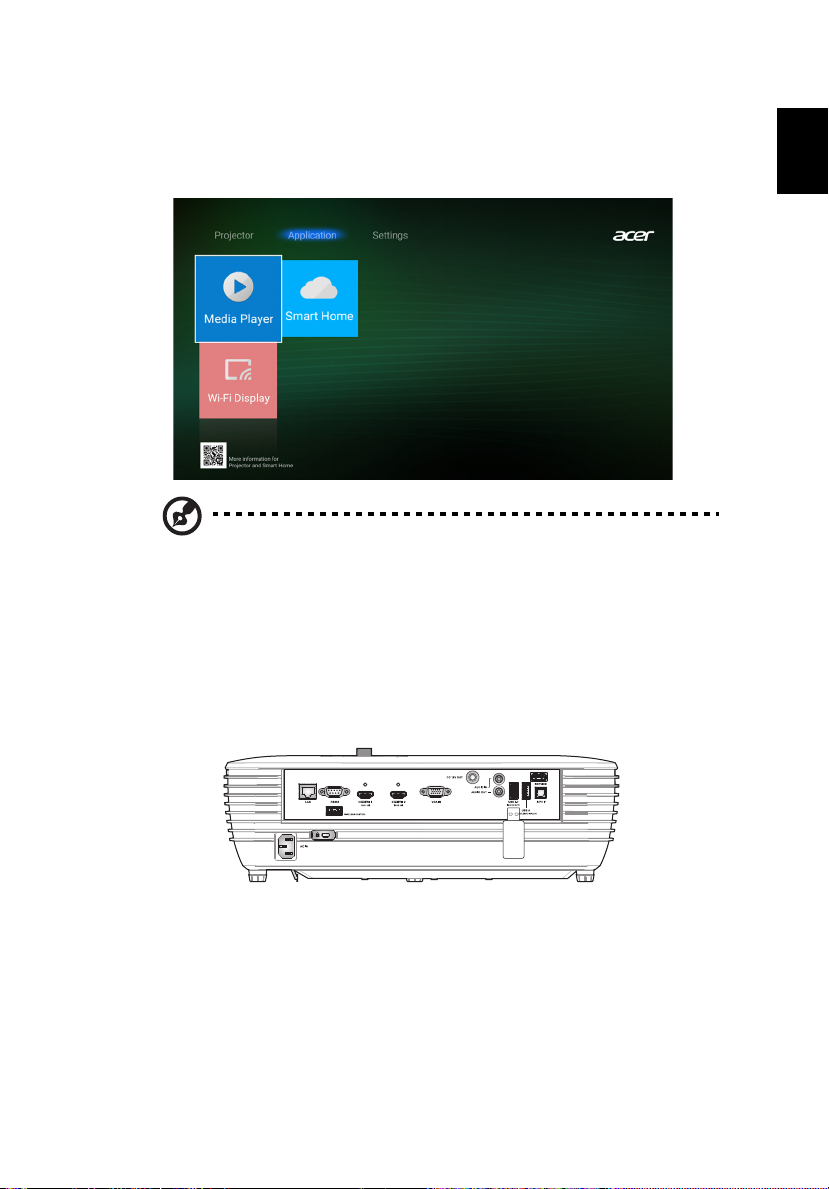

Application home screen
On the Application home screen, you can view the multimedia files, register the
projector to Device Cloud, and stream the media files wirelessly.
NOTE 1: For the "Wi-Fi Display" configuration, refer to the
"EZCast" section.
NOTE 2: For the "Smart Home" configuration, refer to quick start
guide for smart home device.
Media Player
Select "Media Player" to browse data files stored in the USB flash drive after
connecting to projector.
In this mode, you can view the photos, play the videos or songs, and browse the
document files. For details, see "Supported File Format".

10
English

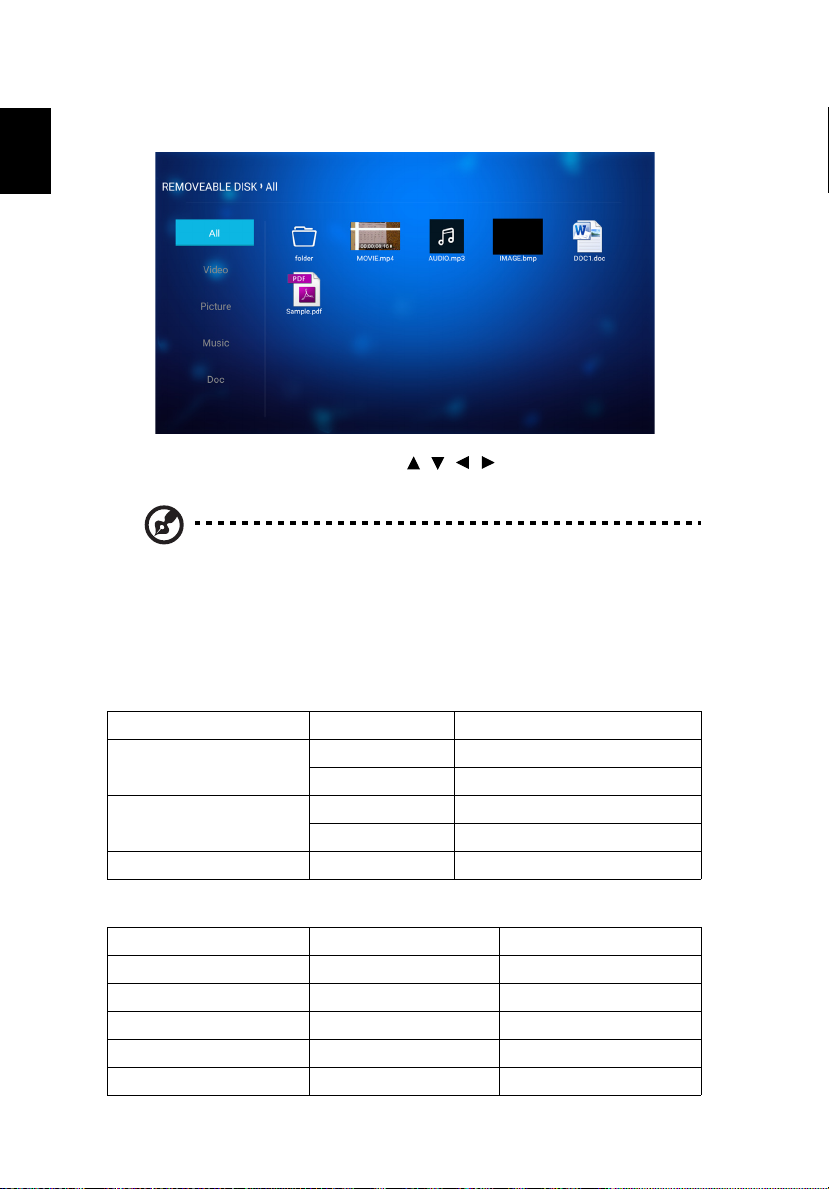

Once you insert a USB flash drive to the USB port of the projector, the system
will automatically detect and below screen will appear.
When browsing the files, you can press / / / to select a file and press
ENTER to access.
NOTE 1: To manually enter the Media Player mode, select
Application > Media Player.
NOTE 2: USB format is only supported on FAT and FAT32.
Supported File Format
Music
Image Type (Ext name) Sub Type Maximum Pixels
Jpeg / Jpg Baseline 8000 x 8000
Progressive 6000 x 4000
PNG Non-interlace 6000 x 4000
Interlace 6000 x 4000
BMP 6000 x 4000
Music Type (Ext name) Sample Rate (KHz) Bit Rate (Kbps)
MP3 16~48 8~320
WMA 8~48 128~320
ADPCM-WAV 8~48 32~384
PCM-WAV 8~48 64~1536
AAC 8~48 8~48

11
English
Video
Document
File Format Video
Format
Decode Maximum
Resolution
Maximum
Bit Rate (bps) Profile
MPG,
MPEG
MPEG1
/2 1920 x 1080 60fps 40M bps MP@HP
MOV, MP4,
MKV H.264 4096 x 2176 30fps 135M bps MP/HP @Level 5.1
AVI, MOV,
MP4 MPEG4 1920 x 1080 60fps 40M bps SP/ASP @Level 5.1
AVI, MP4,
MOV, MKV MJPEG 1920 x 1080 30fps 10M bps Baseline
WMV, ASF VC-1 1920 x 1080 60fps 40M bps SP/MP/AP
3GP, MP4,
AVI, MOV H.263 1920 x 1080 60fps 40M bps
MP4, MOV,
MKV
HEVC/
H.265 4096 x 2176 60fps 100M bps
Main/Main10
Profile, High
Tier @Level
5.1
MKV VP8 1920 x 1080 60fps 20M bps
VP9 4096 x 2176 60fps 100M bps Profile0,2
MP4, MOV,
TS, TRP,TP AVS 1920 x 1080 60fps 40M bps
Jizhun
profile
@Level 6.0
Document
Format Support Version and Format Pages/Lines Limitation
Size
Limitation
PDF PDF 1.0 ~ 1.7 and above
Up to 1500
pages (One
File)
Up to
100MB
Word
Kingsoft Writer Document (*.wps) Since WPS
Projector
does not
load the MS/
Word files all
at one time,
there is no
obvious
limitation on
the number
of pages and
rows of files.
Up to
150MB
Kingsoft Writer Template (*.wpt)
Microsoft Word 97/2000/XP/2003
Document (*.doc)

12
English
Word
Microsoft Word 97/2000/XP/2003
Template (*.dot)
Since WPS
Projector
does not
load the MS/
Word files all
at one time,
there is no
obvious
limitation on
the number
of pages and
rows of files.
Up to
150MB
RTF Files (*.rtf)
Text Files (*.txt, *.log, *.lrc, *.c,
*.cpp, *.h, *.asm, *.s, *.java, *.asp,
*.prg, *.bat, *.bas, *.cmd)
Web Page Files (*.html, *.htm)
Single Web Page Files (*.mht,
*.mhtml)
Microsoft Word 2007/2010
Document (*.docx)
Microsoft Word 2007/2010 Template
(*.dotx)
Microsoft Word 2007/2010 Macro-
Enabled Document (*.docm)
Microsoft Word 2007/2010 Macro-
Enabled Template (*.dotm)
XML Files (*.xml)
OpenDocument Text (*.odt)
Works 6-9Document (*.wtf)
Works 6.0&7.0 (*.wps)
Excel
Kingsoft Spreadsheets Files (*.et)
Row Limit:
up to 65,535
Column
Limit: up to
256
Sheet: up to
200
Up to
30MB
Kingsoft Spreadsheets Template
(*.ett)
Microsoft Excel 97/2000/XP/2003
Workbook (*.xls)
Microsoft Excel 97/2000/XP/2003
Template (*.xlt)
Text Files (*.csv)
Web Pages (*.htm, *.html)
XML Files (*.xml)
Microsoft Excel 2007/2010 Files
(*.xlsx, *.xlsm)
Microsoft Excel 2007/2010 Template
(*.xltx)
Microsoft Excel 2007/2010 Binary
Workbook (*.xlsb)
Document
Format Support Version and Format Pages/Lines Limitation
Size
Limitation

13
English
NOTE 1: Decoding may take a while for large files with complex
contents.
NOTE 2: Objects embedded in files cannot be activated or viewed.
NOTE 3: For Microsoft Word
(1) No support for advanced settings, such as drawing plug-in or
table background settings.
(2) Contents outside the defined borders in Microsoft Word will
not be displayed.
(3) Not support Bold Text in Simplified Chinese font
NOTE 4: For Microsoft PowerPoint
(1) Slide effects not supported.
(2) Password-protected sheets are not protected.
NOTE 5: For Microsoft Excel
(1) Worksheets are displayed individually and sequentially when
the workbook has multiple worksheets.
(2) Page layout and numbering may be changed during decoding.
PowerPoint
Kingsoft Presentation Files (*.dps)
Up to 1500
pages (One
File)
Up to
30MB
Kingsoft Presentation Templates
(*.dpt)
Microsoft PowerPoint 97/2000/XP/
2003 Presentations (*.ppt, *.pps)
Microsoft PowerPoint 97/2000/XP/
2003 Presentation Templates (*.pot)
Microsoft PowerPoint 2007/2010
Presentations (*.pptx; *.ppsx)
Microsoft PowerPoint 2007/2010
Presentations Template (*.potx)
Document
Format Support Version and Format Pages/Lines Limitation
Size
Limitation

14
English
Playback Control
Video
When playing back a video, press ENTER to pause the playback. While the
video is being paused, you can do the following:
• Press / to rewind or fast forward the video.
• Press ENTER to resume the playback.
Picture
When viewing a photo in full screen, you can do the following:
• Press / to view the previous or next photo.
• Press ENTER to access the quick menu that allows you to
configure the slide show settings, rotate the photo 90-degree
clockwise, or magnify the view of a photo.

15
English
Music
When playing back an audio file or a song, you can select one of the icon
on the control bar and do the following:
• To pause the playback, select and press ENTER. To resume,
select and press ENTER.
• To skip to the previous/next track, select / and press ENTER.
• To switch the play mode, select and press ENTER repeatedly
to select the desired mode.
• To view the playlist, select and press ENTER.
• To stop playback at any time, press BACK.
Document
When browsing a document, press / / / to scroll the page up/
down or navigate the page.

16
English
NOTE 1: The control action may vary depending on the type of
documents.
NOTE 2: When opening a Powerpoint file, the
Play Mode menu
will appear on the screen. Then select the desired play mode and
select OK to start browsing the file.

17
English
Settings home screen
On the Settings home screen, you can set the on-screen display (OSD) language
and configure the network settings.

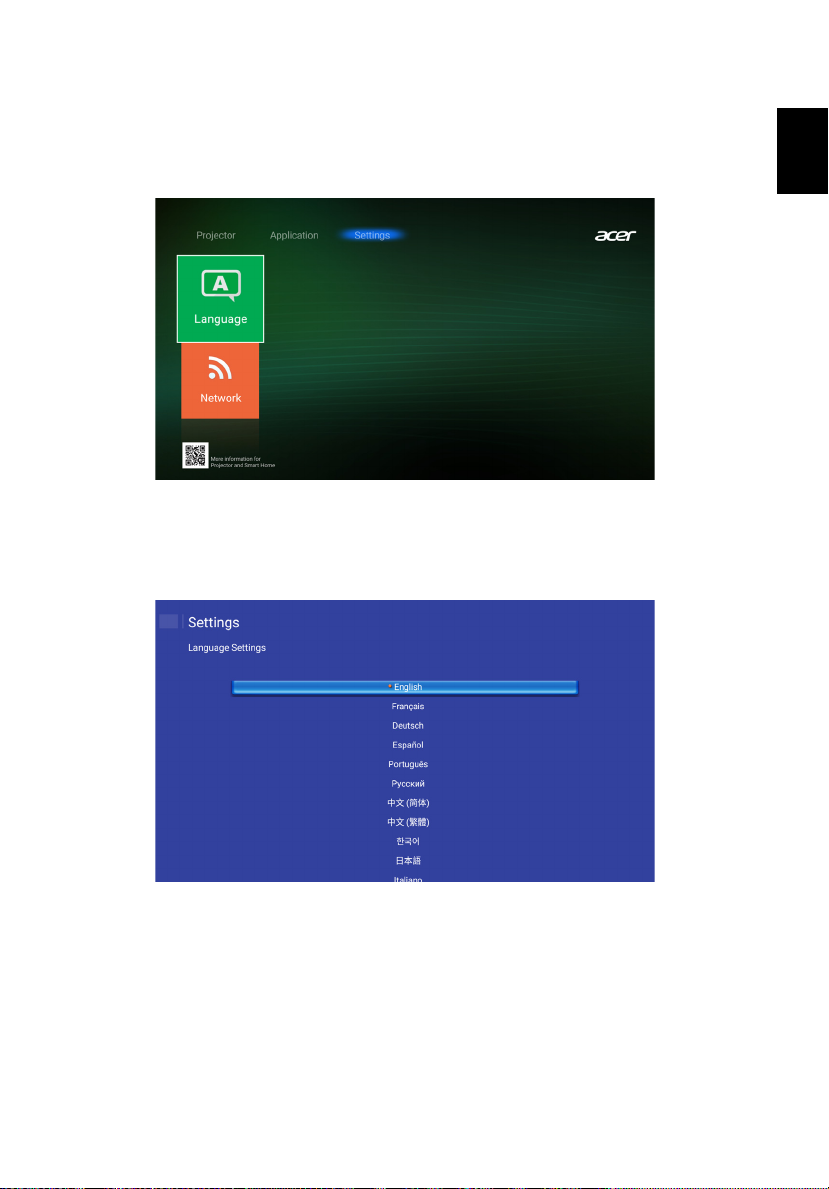

Language
Select "Language" to open the Language menu. Then select the desired OSD
language.

18
English
Network

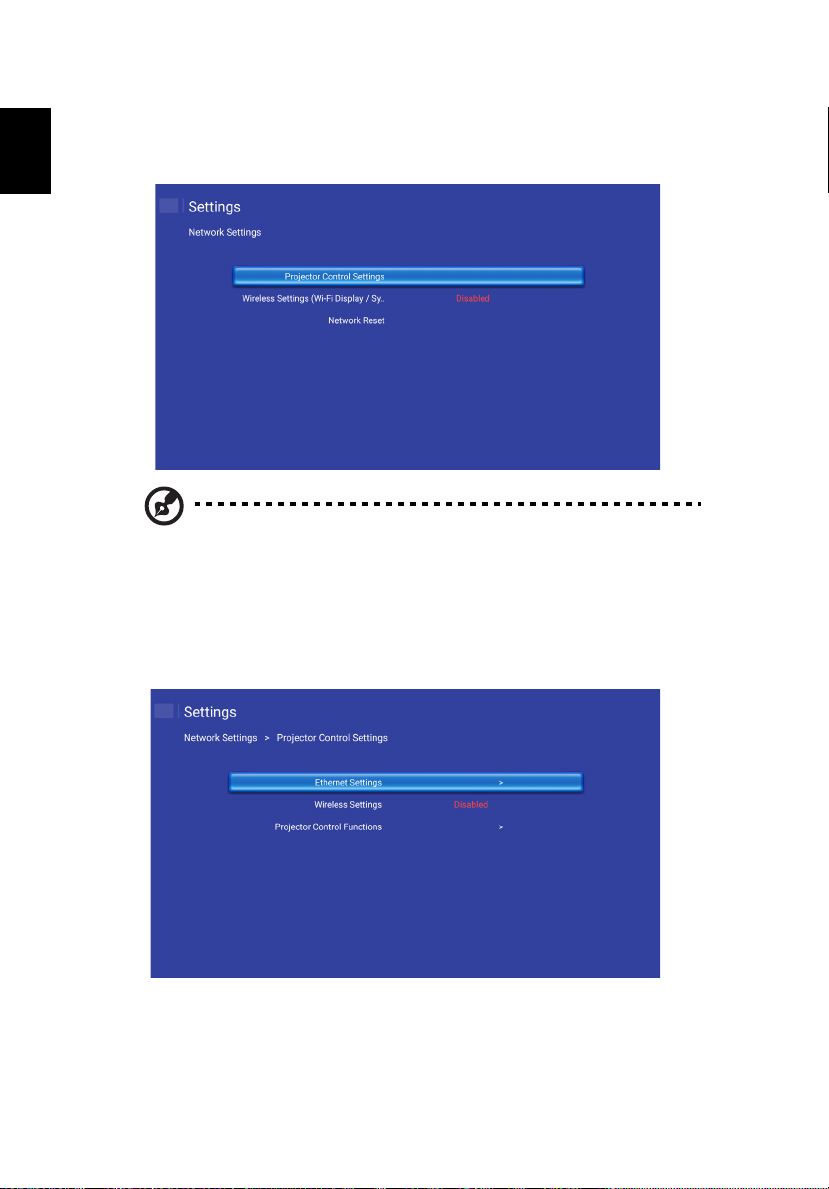

Select "Network" to open the Network menu that allows you to configure
the network settings.
NOTE: To configure the wireless connection, select "Wireless
Setting (Wi-Fi Display/System Update)". For details, see "Step 2:
Connect the projector to a WiFi network" on page 22.
Projector Control Settings
Select "Projector Control Settings" to configure the network settings that allow
you to access the projector remotely.

19
English
Ethernet Settings

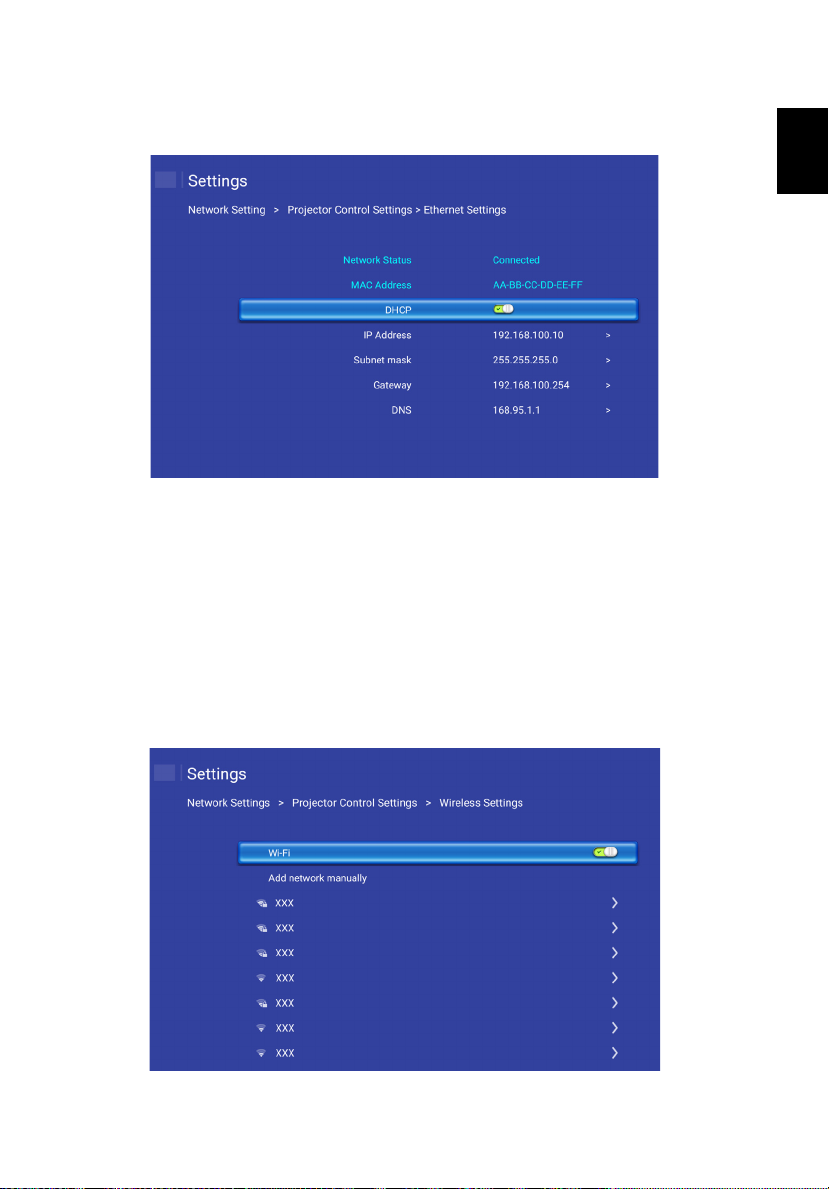

Select "Ethernet Settings" to configure the network parameters.
Enter the following connection parameters:
•DHCP: Off
•IP Address: 192.168.100.10
•Subnet Mask: 255.255.255.0
•Gateway: 192.168.100.254
•DNS: 168.95.1.1
Wireless Settings
Select "Wireless Settings" to connect to other Smart Home devices after you
have complete the necessary connection settings.

20
English
Projector Control Functions
Select "Projector Control Functions" to configure how to monitor and control
your projector over the network.
Network Reset
Select "Network Reset" to reset the network parameters to factory default.
To reset all current network settings, press / to select Yes and press ENTER
to confirm.
