First things first
We would like to thank you for making an Acer notebook your choice for
meeting your mobile computing needs.
Your guides
To help you use your Acer notebook, we have designed a set of guides:
Basic care and tips for using your computer
Turning your computer on and off
To turn on the computer, simply press and release the power button below the
LCD screen beside the easy-launch buttons. See "Front view" on page 1 for the
location of the power button.
First off, the Just for Starters... poster helps you get started with
setting up your computer.
The printed User's Guide introduces you to the basic features and
functions of your new computer. For more on how your computer
can help you to be more productive, please refer to the
AcerSystem User's Guide. This guide contains detailed
information on such subjects as system utilities, data recovery,
expansion options and troubleshooting. In addition it contains
warranty information and the general regulations and safety
notices for your notebook. It is available in Portable Document
Format (PDF) and comes preloaded on your notebook. Follow
these steps to access it:
1 Click on Start, All Programs, AcerSystem.
2 Click on AcerSystem User's Guide.
Note: Viewing the file requires Adobe Reader. If Adobe Reader is
not installed on your computer, clicking on AcerSystem User's
Guide will run the Adobe Reader setup program first. Follow the
instructions on the screen to complete the installation. For
instructions on how to use Adobe Reader, access the Help and
Support menu.

v
To turn the power off, do any of the following:
•Use the Windows shutdown command
Click on Start, Turn Off Computer, then click on Turn Off.
•Use the power button
You can also shut down the computer by closing the display cover, or by
pressing the sleep hotkey <Fn> + <F4>.
Note: If you cannot power off the computer normally, press and
hold the power button for more than four seconds to shut down
the computer. If you turn off the computer and want to turn it on
again, wait at least two seconds before powering up.
Taking care of your computer
Your computer will serve you well if you take care of it.
•Do not expose the computer to direct sunlight. Do not place it near sources
of heat, such as a radiator.
•Do not expose the computer to temperatures below 0 ºC (32 ºF) or above
50 ºC (122 ºF).
•Do not subject the computer to magnetic fields.
•Do not expose the computer to rain or moisture.
•Do not spill water or any liquid on the computer.
•Do not subject the computer to heavy shock or vibration.
•Do not expose the computer to dust or dirt.
•Never place objects on top of the computer.
•Do not slam the computer display when you close it.
•Never place the computer on uneven surfaces.
Taking care of your AC adapter
Here are some ways to take care of your AC adapter:
•Do not connect the adapter to any other device.
•Do not step on the power cord or place heavy objects on top of it.
Carefully route the power cord and any cables away from foot traffic.
•When unplugging the power cord, do not pull on the cord itself but pull
on the plug.
•The total ampere ratings of the equipment plugged in should not exceed
the ampere rating of the cord if you are using an extension cord. Also, the
total current rating of all equipment plugged into a single wall outlet
should not exceed the fuse rating.

vi
Taking care of your battery pack
Here are some ways to take care of your battery pack:
•Use only batteries of the same kind as replacements. Turn the power off
before removing or replacing batteries.
•Do not tamper with batteries. Keep them away from children.
•Dispose of used batteries according to local regulations. Recycle if possible.
Cleaning and servicing
When cleaning the computer, follow these steps:
1 Turn off the computer and remove the battery pack.
2 Disconnect the AC adapter.
3 Use a soft, moist cloth. Do not use liquid or aerosol cleaners.
If either of the following occurs:
•the computer has been dropped or the body has been damaged;
•the computer does not operate normally
please refer to "Frequently asked questions" on page 23.
Caution
Changes or modifications not expressly approved by the manufacturer could
void the user's authority, which is granted by the Federal Communications
Commission, to operate this computer.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) This device must accept any interference received, including
interference that may cause undesired operation.
Users are requested to follow the RF safety instructions for wireless option
devices that are included in the user's manual of each RF option device.
An improper installation or unauthorized use may cause harmful interference
to radio communications. Also, any tampering of the internal antenna will void
the FCC certification and your warranty.
To prevent radio interference to the licensed service, this device is intended to
be operated indoors, and installation outdoors is subject to licensing.
For more information about our products, services, and support information,
please visit our website: http://global.acer.com.

Disposal instructions iii
First things first iv
Your guides iv
Basic care and tips for using your computer iv
Turning your computer on and off iv
Taking care of your computer v
Taking care of your AC adapter v
Taking care of your battery pack vi
Cleaning and servicing vi
Your Acer notebook tour 1
Front view 1
Closed front view 2
Left view 3
Right view 4
Rear view 4
Base view 5
Specifications 6
Indicators 9
Easy-launch buttons 10
Touchpad 11
Touchpad basics 11
Using the keyboard 13
Lock keys and embedded numeric keypad 13
Windows keys 14
Hotkeys 14
Special keys 16
Ejecting the optical (CD or DVD) drive tray 17
Using a computer security lock 17
Audio 18
Adjusting the volume 18
Using the system utilities 19
Acer eManager 19
Acer GridVista (dual-display compatible) 20
Launch Manager 21
Norton AntiVirus 22
Frequently asked questions 23
Requesting service 26
International Travelers Warranty (ITW) 26
Before you call 26
Taking your notebook PC with you 27
Disconnecting from the desktop 27
Moving around 27
Preparing the computer 27
What to bring to meetings 28
Taking the computer home 28
Preparing the computer 28
What to take with you 28
Contents

Special considerations 29
Setting up a home office 29
Traveling with the computer 29
Preparing the computer 29
What to take with you 29
Special considerations 30
Traveling internationally with the computer 30
Preparing the computer 30
What to bring with you 30
Special considerations 30
Securing your computer 31
Using a computer security lock 31
Using passwords 31
Entering passwords 32
Setting passwords 32
Expanding through options 33
Connectivity options 33
Fax/data modem 33
Built-in network feature 34
Universal Serial Bus (USB) 34
PC Card slot 35
Installing memory 35
BIOS utility 36
Boot sequence 36
Enable disk-to-disk recovery 37
Password 37
Using software 37
Playing DVD movies 37
Power management 38
Acer eRecovery 38
Create backup 39
Restore from backup 39
Create factory default image CD 40
Re-install bundled software without CD 40
Change password 41
Troubleshooting 42
Troubleshooting tips 42
Error messages 42
Regulations and safety notices 44
ENERGY STAR guidelines compliance 44
FCC notice 44
Modem notices 45
Important safety instructions 48
Laser compliance statement 50
LCD pixel statement 50
Macrovision copyright protection notice 50
Radio device regulatory notice 51

General 51
European Union (EU) 51
The FCC RF safety requirement 52
Canada — Low-power license-exempt radio
communication devices (RSS-210) 53
Federal Communications Comission
Declaration of Conformity 54
Declaration of Conformity for CE Marking 55
Index 56

1
English
Your Acer notebook tour
After setting up your computer as illustrated in the Just for Starters... poster,
let us show you around your new Acer notebook.
Front view
#Item Description
1 Display screen Also called Liquid-Crystal Display (LCD), displays
computer output.
2 Microphone Internal microphone for sound recording.
3 Keyboard For entering data into your computer.
4 Palmrest Comfortable support area for your hands when you use
the computer.

2
English
Closed front view
5 Click buttons
(left, center
and right)
The left and right buttons function like the left and
right mouse buttons; the center button serves as a 4-way
scroll button.
6 Touchpad Touch-sensitive pointing device which functions like a
computer mouse.
7 Status
indicators
Light-Emitting Diodes (LEDs) that light up to show the
status of the computer's functions and components.
8 Easy-launch
buttons
Buttons for launching frequently used programs.
See "Easy-launch buttons" on page 10 for more details.
9 Power button Turns the computer on and off.
#Icon Item Description
1 Speakers Left and right speakers deliver stereo
audio output.
2 Power indicator Indicates the computer's power status.
3 Battery indicator Indicates the computer's batttery status.
4Bluetooth
communication
button/indicator
Press to enable/disable the Bluetooth
function. Indicates the status of
Bluetooth communication (optional).
5 Wireless
communication
button/indicator
Press to enable/disable the wireless
function. Indicates the status of wireless
LAN communication (optional).
#Item Description

3
English
Left view
6 Line-in jack Accepts audio line-in devices (e.g., audio
CD player, stereo walkman).
7 Microphone-in jack Accepts input from external
microphones.
8 Headphones/speaker/
line-out jack
Connects to audio line-out devices (e.g.,
speakers, headphones).
9 USB 2.0 port Connects to USB 2.0 devices (e.g., USB
mouse, USB camera).
10 Latch Locks and releases the lid.
#Icon Item Description
1 Optical drive Internal optical drive; accepts CDs or DVDs
2 LED indicator Lights up when the optical drive is active.
3 Optical drive eject
button
Ejects the optical disk from the drive.
4 Emergency eject
hole
Ejects the optical drive tray when the
computer is turned off.
#Icon Item Description

4
English
Right view
Rear view
#Icon Item Description
1 PC Card slot
eject button
Ejects the PC Card from the slot.
2 PC Card slot Accepts one Type II PC Card.
3 Two USB 2.0
ports
Connect to USB 2.0 devices (e.g., USB
mouse, USB camera).
4 Ethernet (RJ-
45) port
Connects to an Ethernet 10/100-based
network.
5 Modem (RJ-11)
port
Connects to a phone line.
6 Ventilation
slots
Enable the computer to stay cool, even after
prolonged use.
#Icon Item Description
1 DC-in jack Connects to an AC adapter.
2 External display
(VGA) port
Connects to a display device (e.g., external
monitor, LCD projector).
3 Kensington lock slot Connects to a Kensington-compatible
computer security lock.

5
English
Base view
#Item Description
1 Hard disk bay Houses the computer's hard disk (secured with
screws).
2 Battery release latch Releases the battery for removal.
3 Battery bay Houses the computer's battery pack.
4 Battery lock Locks the battery in position.
5 Cooling fan Helps keep the computer cool.
Note: Do not cover or obstruct the opening of
the fan.
6 Memory compartment Houses the computer's main memory and Mini
PCI Card.

6
English
Specifications
Operating
system •Genuine Windows®XP Home Edition
•Genuine Windows®XP Professional
Platform •Intel®Pentium®M processor 735A (2 MB L2 cache,
1.70 GHz, 400 MHz FSB)
•Intel®Celeron®M processor 370/380/390 (1 MB L2
cache, 1.50/1.60/1.70 GHz, 400 MHz FSB)
•SiS®M661MX / 963L / 302ELV (LVDS) chipset
System memory 256/512 MB of DDR 333 MHz memory, upgradeable to 2
GB using two soDIMM modules
Display and
graphics •15" XGA color TFT LCD with 1024 x 768 pixel
resolution
•15.4" WXGA color TFT LCD with 1280 x 800 pixel
resolution
•15.4" WXGA Acer CrystalBrite™color TFT LCD with
1280 x 800 pixel resolution
•16.7 million colors
•SiS®M661MX integrated 3D graphics with up to 64
MB of VRAM, supporting Microsoft®DirectX®7.0
and dual independent display
•MPEG-2/DVD hardware-assisted capability
Storage
subsystem
40/60/80/100 GB ATA/100 hard disk drive
Acer Optical drive options:
•DVD-Dual double-layer
•DVD/CD-RW combo
Dimensions
and weight •364 (W) x 279 (D) x 33.9/38.9 (H) mm (14.33 x 10.98 x
1.33/1.53 inches)
•2.8 kg (6.5 lbs.) for 15.4" model
•2.76 kg (6.4 lbs.) for 15" model
Power
subsystem •ACPI 1.0b CPU power management standard:
supports Standby and Hibernation power-saving
modes
•29.6 W Li-ion battery pack (4-cell)
•2.5-hour rapid charge; 3.5-hour charge-in-use
•3-pin 65 W AC adapter

7
English
Input devices •88-/89-key Acer FineTouch™keyboard , 2.7 mm
(minimum) key travel, international launguage
support
•Touchpad with 4-way scroll button
•12 function keys, four cursor keys, two Windows®
keys, hotkey controls, embedded numeric keypad
•Six easy-launch buttons: Empowering Key, email,
Internet, WLAN, Bluetooth®, user-programmable
button
•Two front-access LED-buttons: WLAN, Bluetooth®
Audio •Audio system with two built-in speakers
•MS Sound compatible
Communication •WLAN: MINI PCI®802.11b/g dual-band connection,
supporting Acer SignalUp™wireless technology
(manufacturing option)
•WPAN: Bluetooth®
•LAN: 10/100 Mbps Fast Ethernet; Wake-on-LAN ready
•Modem: 56K ITU V.92 with PTT approval; Wake-on-
Ring ready
I/O interface •Three USB 2.0 ports
•PC Card slot (one Type II)
•External display (VGA) port
•Microphone/line-in jack
•Headphones/speaker/line-out port
•Ethernet (RJ-45) port
•Modem (RJ-11) port
•DC-in jack for AC adapter
Security •Kensington lock slot
•BIOS user and supervisor passwords
Software •Acer eManager (ePresentation / eRecovery /eSettings)
•Acer GridVista™
•Acer Launch Manager
•Adobe®Reader®
•Norton AntiVirus™
•NTI CD-Maker™

8
English
Note: The specifications listed above are for reference only. The
exact configuration of your PC depends on the model purchased.
Options and
accessories •256/512 MB or 1 GB DDR SDRAM soDIMM modules
•Li-ion battery pack
•65 W AC adapter
Environment •Temperature:
- Operating: 5 °C to 35 °C
- Non-operating: -20 °C to 65 °C
•Humidity (non-condensing):
- Operating: 20% to 80%
- Non-operating: 20% to 80%
System
compliance •Wi-Fi®
•ACPI 1.0b
•Mobile PC 2001
•DMI 2.0
Warranty One-year International Travelers Warranty (ITW)

9
English
Indicators

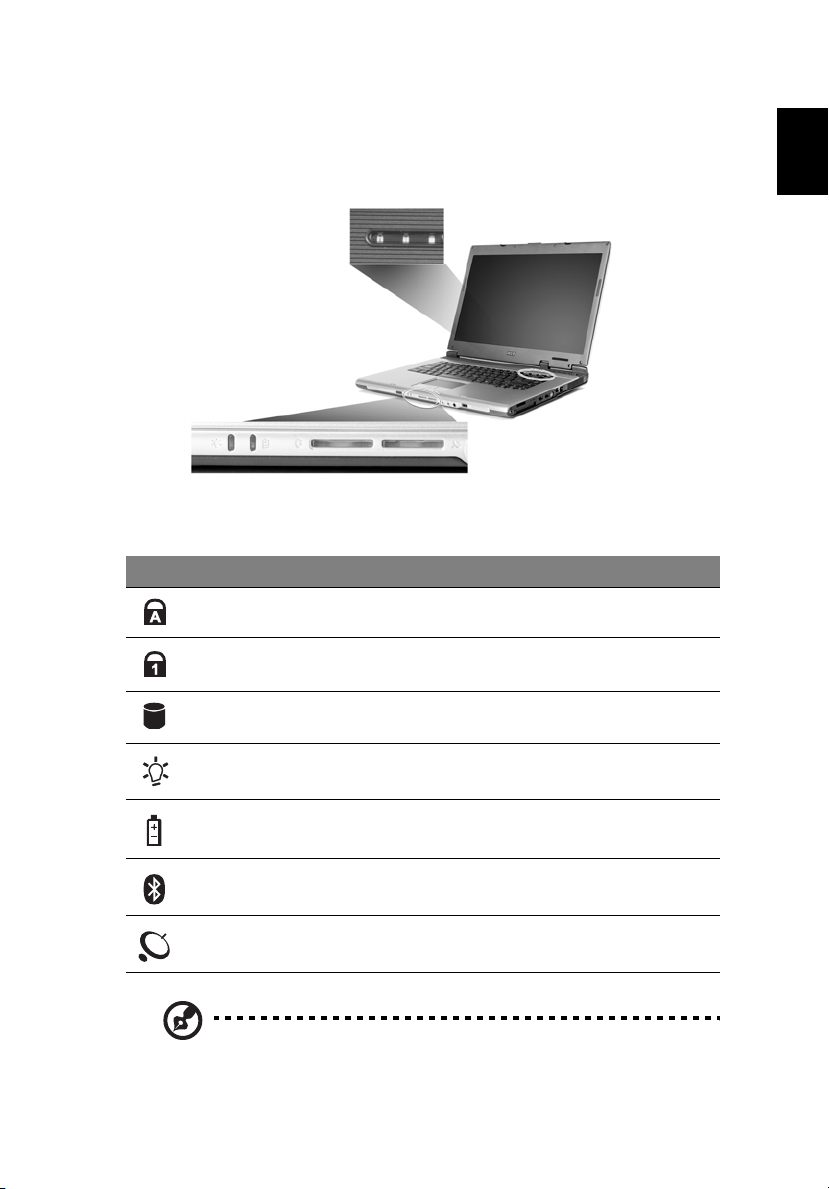

The computer has seven easy-to-read status indicators, including four on the
front panel.
The power, battery and wireless communication status indicators are visible
even when the LCD display is closed.
1. Charging: The light shows amber when the battery is charging.
2. Fully charged: The light shows green when in AC mode.
Icon Function Description
Caps Lock Lights up when Caps Lock is activated.
Num Lock Lights up when Num Lock is activated.
HDD Indicates when the hard disk drive is active.
Power Indicates the computer's power status.
Battery Indicates the computer's batttery status.
Bluetooth Indicates the status of Bluetooth communication.
Wireless LAN Indicates the status of wireless LAN communication.

10
English
Easy-launch buttons

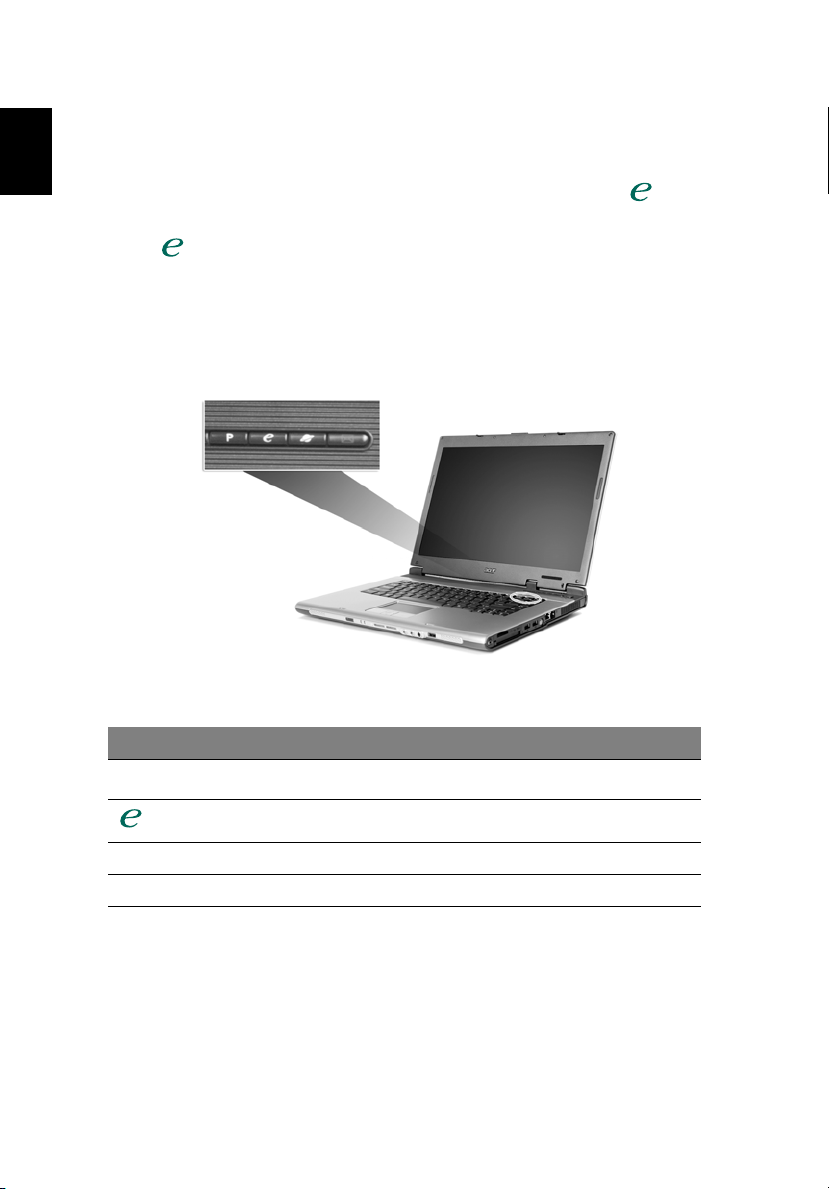

Located above the keyboard are four buttons. These buttons are called
easy-launch buttons. They are: mail, Web browser, Empowering Key < > and
one user-programmable button.
Press < > to run the Acer Empowering Technology. Please see "Acer
eManager" on page 19. The mail and Web browser buttons are pre-set to email
and Internet programs, but can be reset by users. To set the Web browser, mail
and programmable buttons, run the Acer Launch Manager. See "Launch
Manager" on page 21.
Easy-launch button Default application
PUser-programmable
Acer Empowering Technology (user-programmable)
Web browser Internet browser (user-programmable)
Mail Email application (user-programmable)
