First things first
We would like to thank you for making the TravelMate series of
notebook computers your choice for your mobile computing needs.
We hope you will be happy with your TravelMate as much as we
enjoyed making it for you.
Your guides
To help you use your TravelMate, we have designed a set of guides:
For more information about our products, services, and support
information, please visit our Web site (global.acer.com).
First off, the Just for Starters... poster helps you get
started with setting up your computer.
This User’s guide introduces you to the many ways your
computer can help you be more productive. This guide
provides clear and concise information about the computer,
so read it thoroughly.
If you ever need to print out a copy, this User’s guide is also
available in PDF (Portable Document Format). Follow these
steps:
1 Click on Start, Programs, TravelMate.
2 Click on TravelMate User’s guide.
Note: Viewing the file requires Adobe Acrobat Reader
installed. If Adobe Acrobat Reader is not installed on your
computer, clicking on TravelMate User’s guide will run the
Acrobat Reader setup program first. Follow the instructions
on the screen to complete the installation. For instructions
on how to use Adobe Acrobat Reader, access the Help
menu.
TM800-e.book Page iii Monday, February 17, 2003 4:07 PM

iv
English
Basic care and tips for using your computer
Turning your computer on and off
To turn on the computer, simply press the power button, the button
left of the launch keys found above your TravelMate’s standard
keyboard. See “Front open view” on page 3 for the location of the
power switch.
To turn the power off, do any of the following:
•Use the Windows shutdown command
For Windows 2000: Click on Start, Shut Down..., and select Shut
down; then click on OK.
- or -
For Windows XP: Click on Start, Turn off Computer; then click
Turn Off.
•Use the power button
Note: You can also use the power button to perform power
management functions. See Windows help for more information.
•Use the customized functions for power management
You can also shut down the computer by closing the display cover,
or by pressing the sleep hot key (Fn-F4). See the online guide for
details.
Note: If you cannot power off the computer normally, press and
hold the power switch for more than four seconds to shut down
the computer. If you turn off the computer and want to turn it on
again, wait at least two seconds before powering up.
Taking care of your computer
Your computer will serve you well if you take care of it.
•Do not expose the computer to direct sunlight. Do not place it
near sources of heat, such as a radiator.
•Do not expose the computer to temperatures below 0ºC (32ºF) or
above 50ºC (122ºF).
TM800-e.book Page iv Monday, February 17, 2003 4:07 PM

v
Englis
h
•Do not subject the computer to magnetic fields.
•Do not expose the computer to rain or moisture.
•Do not spill water or any liquid on the computer.
•Do not subject the computer to heavy shock and vibration.
•Do not expose the computer to dust and dirt.
•Never place objects on top of the computer to avoid damaging the
computer.
•Do not slam the computer display when you close it.
•Never place the computer on uneven surfaces.
Taking care of your AC adapter
Here are some ways to take care of your AC adapter:
•Do not connect the adapter to any other device.
•Do not step on the power cord or place heavy objects on top of it.
Carefully route the power cord and any cables away from personal
traffic.
•When unplugging the power cord, do not pull on the cord itself
but pull on the plug.
•The total ampere ratings of the equipment plugged in should not
exceed the ampere rating of the cord if you are using an extension
cord. Also, the total current rating of all equipment plugged into a
single wall outlet should not exceed the fuse rating.
Taking care of your battery pack
Here are some ways to take care of your battery pack:
•Use only batteries of the same kind as replacements. Turn the
power off before removing or replacing batteries.
•Do not tamper with batteries. Keep them away from children.
•Dispose of used batteries according to local regulations. Recycle if
at all possible.
Cleaning and servicing
When cleaning the computer, follow these steps:
1Power off the computer and remove the battery pack.
TM800-e.book Page v Monday, February 17, 2003 4:07 PM

vi
English
2Disconnect the AC adapter.
3Use a soft cloth moistened with water. Do not use liquid or aerosol
cleaners.
4To clean the display screen, use an LCD cleaning kit.
If any of the following occurs:
•The computer has been dropped or the body has been damaged.
•Liquid has been spilled into the product.
•The computer does not operate normally.
Please refer to "Troubleshooting my computer" on page 55.
TM800-e.book Page vi Monday, February 17, 2003 4:07 PM

Contents
First things first iii
Your guides iii
Basic care and tips for using your computer iv
1 Getting to know your TravelMate 1
A TravelMate tour 3
Front open view 3
Front view
Left view 5
Rear view 8
Bottom view 9
Features 11
Indicators 13
Using the keyboard 14
Special keys 14
Touchpad 22
Touchpad basics 22
Storage 24
Hard disk 24
AcerMedia bay 24
Using software 25
Audio 27
Adjusting the volume 27
Power management 28
Moving around with your TravelMate 29
Disconnecting from the desktop 29
Moving around 29
Taking the computer home 30
Traveling with the computer 32
Traveling internationally with the computer 32
Securing your computer 34
Using a computer security lock 34
Using the Smart Card 34
Using passwords 40
2 Customizing my computer 43
Expanding through options 45
Connectivity options 45
Upgrade options 50
Using system utilities 53
Notebook Manager 53
Launch Manager 54
TM800-e.book Page vii Monday, February 17, 2003 4:07 PM

viii
English
BIOS Utility 54
3 Troubleshooting my computer 55
Frequently-asked questions 57
Troubleshooting tips 60
Error messages 61
Requesting service 62
International Traveler’s Warranty (ITW) 62
Before you call 62
Appendix A Specifications 65
Appendix B Notices 71
Index 79
TM800-e.book Page viii Monday, February 17, 2003 4:07 PM

1 Getting to know your
TravelMate
TM800-e.book Page 1 Monday, February 17, 2003 4:07 PM

Your TravelMate computer combines high-
performance, versatility, power management
features and multimedia capabilities with a
unique style and ergonomic design. Work
with unmatched productivity and reliability
with your new power computing partner.
TM800-e.book Page 2 Monday, February 17, 2003 4:07 PM

3
Englis
h
A TravelMate tour
After setting up your computer as illustrated in the Just for
Starters... poster, let us show you around your new TravelMate
computer.

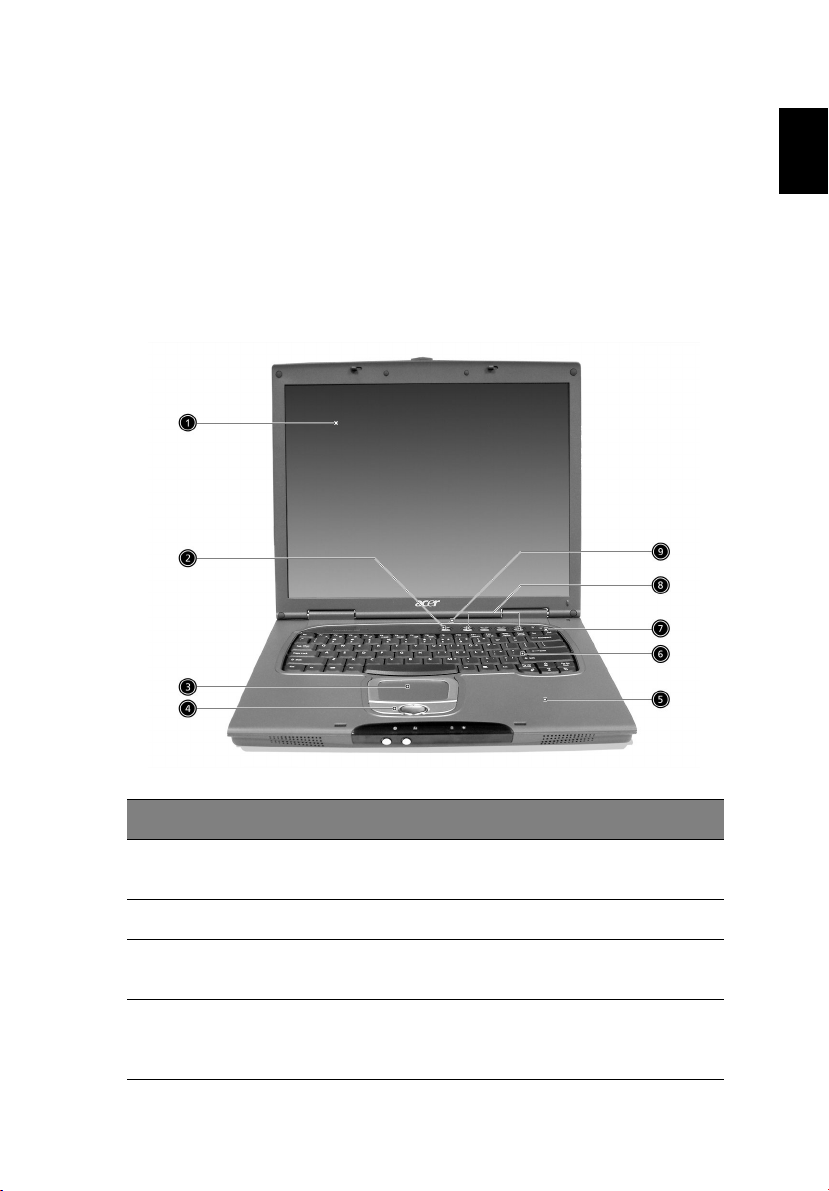

Front open view
#Item Description
1 Display screen Also called LCD (liquid-crystal display),
displays computer output.
2 Power button Turns on the computer.
3 Touchpad Touch-sensitive pointing device which
functions like a computer mouse.
4 Click buttons (left,
center and right)
The left and right buttons function like the
left and right mouse buttons; the center
button serves as a 4-way scroll button.
TM800-e.book Page 3 Monday, February 17, 2003 4:07 PM

1 Getting to know your TravelMate4
English
5 Palmrest Comfortable support area for your hands
when you use the computer.
6 Keyboard Inputs data into your computer.
7 Status indicators LEDs (light-emitting diode) that turn on and
off to show the status of the computer, its
functions and components.
8 Launch keys Special keys for launching internet browser,
email program and frequently used
programs. See “Launch Keys” on page 20 for
more details.
9 Microphone Internal microphone for sound recording.
# Item Description
TM800-e.book Page 4 Monday, February 17, 2003 4:07 PM

5
Englis
h
Front view
#Item Description
1 Speaker Outputs sound.
2 Bluetooth button Starts (optional) Bluetooth functionality.
3 Bluetooth indicator Indicates that (optional) Bluetooth is
enabled.
4 InviLink button Opens (optional) wireless connectivity.
5 InviLink indicator Indicates status of (optional) wireless
communication.
6 Latch Latch for opening and closing the laptop.
7 Infrared port Interfaces with infrared devices (e.g.,
infrared printer, IR-aware computer).
8 Battery indicator Lights orange when the battery is charging.
Lights green when the battery is full.
9 Power status
indicator
Lights green when the power is on and
orange when the computer is in standby
mode.
TM800-e.book Page 5 Monday, February 17, 2003 4:07 PM

1 Getting to know your TravelMate6
English
Left view
# Item Description
1 Four (4) USB 2.0 ports Connect to Universal Serial Bus devices
(e.g., USB mouse, USB camera).
Note: The far left USB port on the
computer will be disabled when
connected with a PortReplicator.
2 IEEE 1394 port Connects to IEEE 1394 devices.
3 Smart Card slot Slot for Smart Card interface with pre-
boot authentication system.
4 Line-in jack Accepts audio line-in devices (e.g., audio
CD player, stereo walkman).
5 Microphone jack Accepts input from external microphones.
6 Headphone/ Speaker/
Line-out jack
Connect to headphones or other line-out
audio devices (speakers).
7 PC Card eject button Ejects the PC Card from the slot.
TM800-e.book Page 6 Monday, February 17, 2003 4:07 PM

7
Englis
h

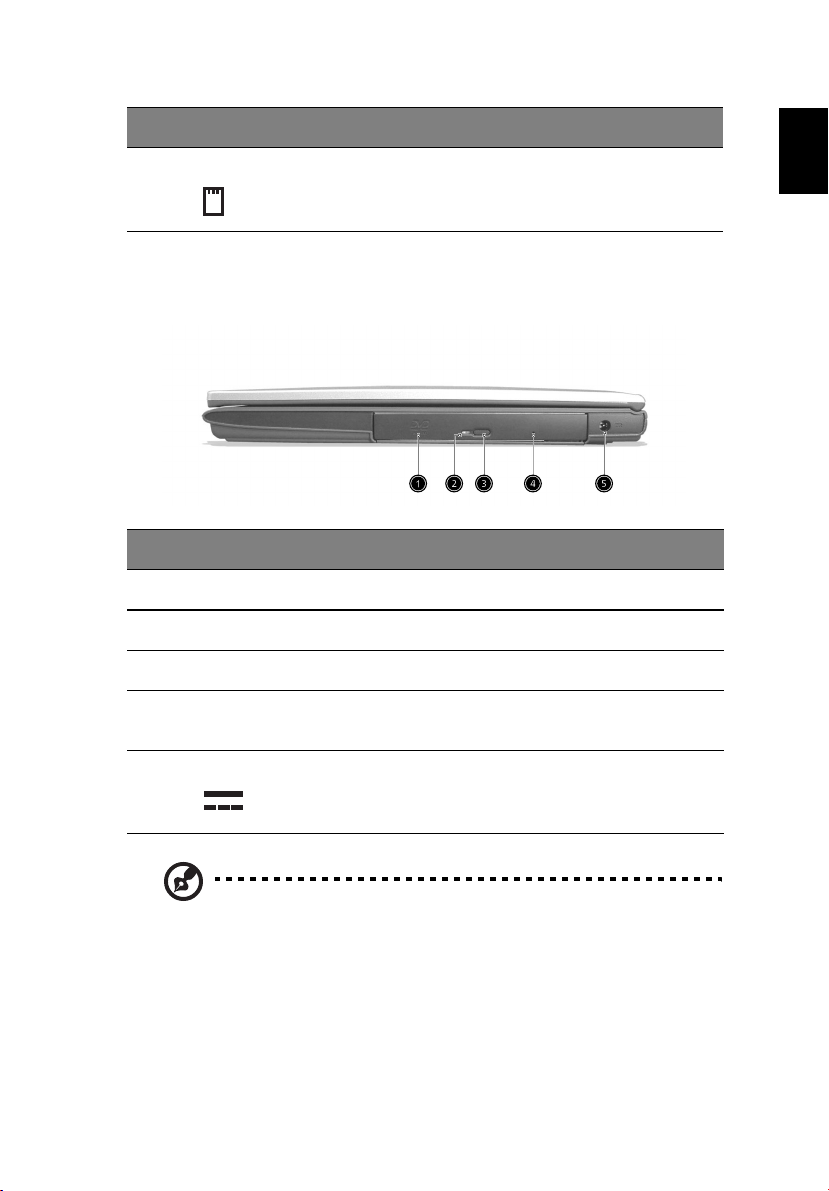

Right view
Note: The positions of the AcerMedia indicator, eject button and
emergency eject hole may differ depending on the optical drive
module installed.
8 PC Card slot Accepts one Type II 16-bit PC Card or 32-
bit CardBus PC Card.
#Item Description
1 AcerMedia drive Houses a removable media drive module.
2 AcerMedia indicator Lights up when the AcerMedia drive is active.
3 Eject button Ejects the drive tray.
4 Emergency eject slot Ejects the drive tray when the computer is
turned off. See page 58 for more details.
5 Power jack Connects to an AC adapter.
#Item Description
TM800-e.book Page 7 Monday, February 17, 2003 4:07 PM

1 Getting to know your TravelMate8
English

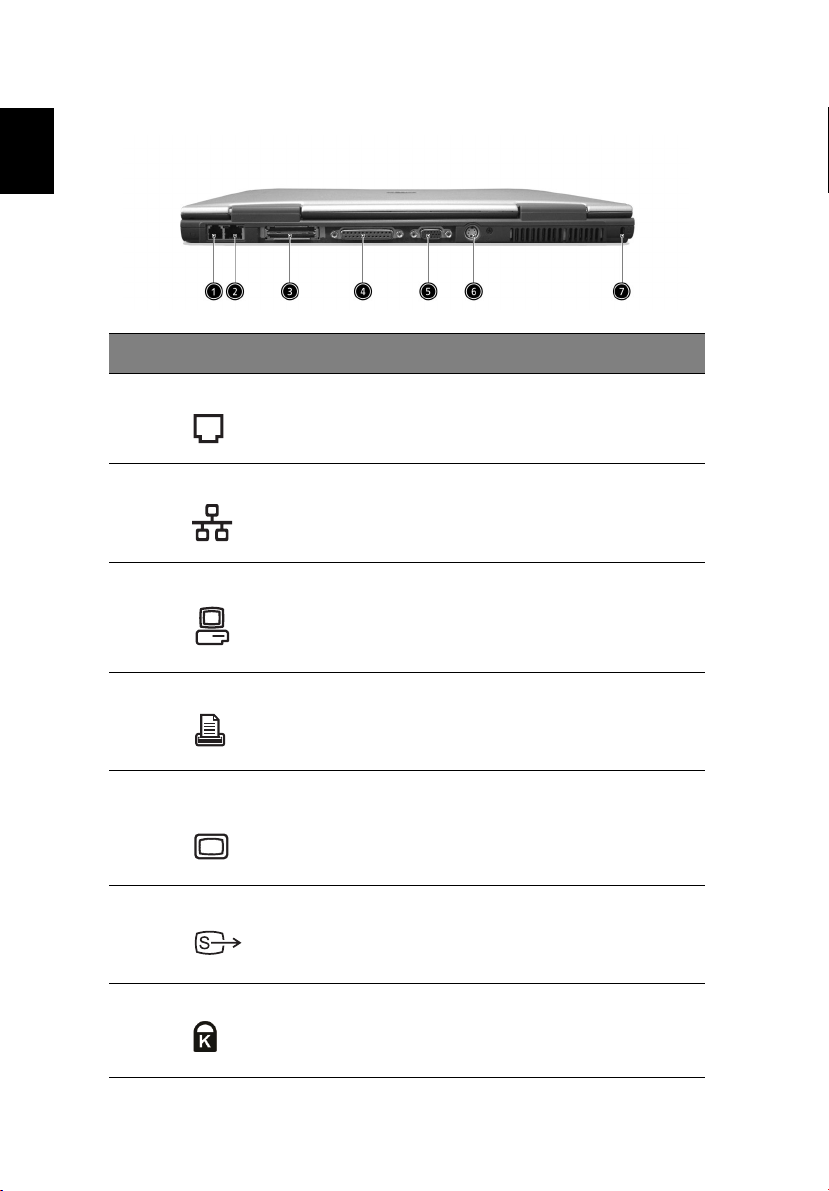

Rear view
#Item Description
1 Modem jack Connects to a phone line.
2 Network jack Connects to an Ethernet 10/100-based
network.
3 Expansion port Connects to I/O port replicator or EasyPort
expansion devices.
4 Parallel port Connects to a parallel device (e.g., parallel
printer).
5 External display
port
Connects to a display device (e.g., external
monitor, LCD projector).
6 S-video Connects to a television or display device
with S-video input.
7 Security keylock Connects to a Kensington-compatible
computer security lock.
TM800-e.book Page 8 Monday, February 17, 2003 4:07 PM

9
Englis
h

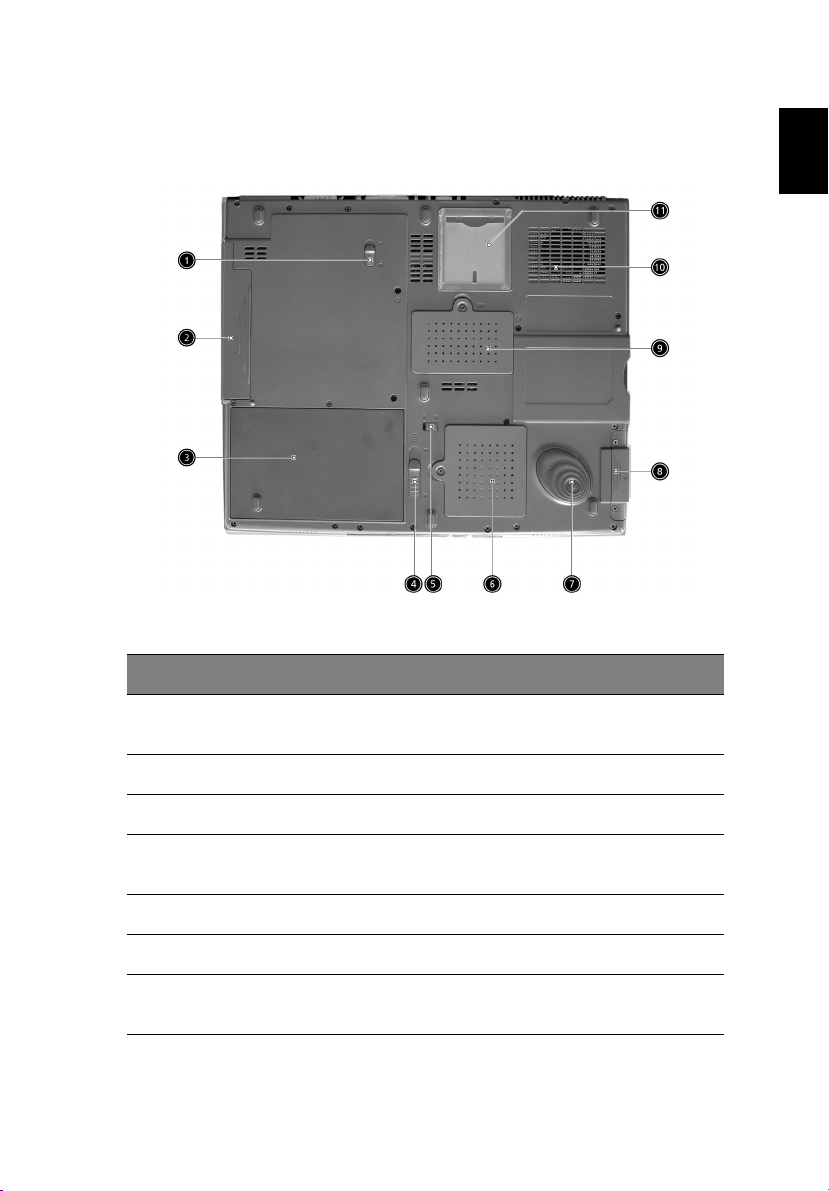

Bottom view
# Item Description
1AcerMediabay
release latch
Unlatches the AcerMedia drive for
removing the optical drive.
2 AcerMedia bay Houses an AcerMedia drive module.
3 Battery bay Houses the computer's battery pack.
4 Battery release latch Unlatches the battery to remove the
battery pack.
5 Battery lock Locks the battery in place.
6 Mini-PCI slot Slot for adding mini-PCI cards.
7 Hard disk protector Protects the hard disk from accidental
bumps and vibration.
TM800-e.book Page Monday, February 17, 2003 4:07 PM

1 Getting to know your TravelMate10
English
8 Hard disk bay Houses the computer's hard disk (secured
by a screw).
9Memory
compartment
Houses the computer’s memory.
10 Cooling fan Helps keep the computer cool.
Note: Don’t cover or obstruct the opening
of the fan.
11 Personal
identification slot
Insert a business card or similar-sized
identification card to personalize your
computer.
#Item Description
TM800-e.book Page 10 Monday, February 17, 2003 4:07 PM

11
Englis
h
Features
Below is a brief summary of the computer’s many features:
Performance
•Intel® Pentium® M Processor with 1024 KB level 2 cache featuring
the new Enhanced Intel® SpeedStep™ technology
•Memory expandable up to 2 GB
•Internal removable optical drive (AcerMedia bay)
•High-capacity, Enhanced-IDE hard disk
•Li-Ion main battery pack
•Power management system with ACPI (Advanced Configuration
Power Interface)
•Smart Card interface with pre-boot authentication system for
added security
Display
•Thin-Film Transistor (TFT) liquid crystal display (LCD) displaying 32-
bit high color up to 1024 x 768 eXtended Graphics Array (XGA)
resolution for 14.1”/15” and 1600 x 1200 Ultra eXtended Graphics
Array (UXGA) resolution for some 15” models. (specification varies
depending on the model)
•3D capabilities
•Simultaneous LCD and CRT display support
•S-video for output to a television or display device that supports S-
video input
•"Automatic LCD dim" feature that automatically decides the best
settings for your display and conserves power
•Dual display capability
Multimedia
•16-bit high-fidelity AC’97 stereo audio
•Built-in dual speakers
•Built-in microphone
•High-speed optical drive (AcerMedia bay)
TM800-e.book Page 11 Monday, February 17, 2003 4:07 PM

1 Getting to know your TravelMate12
English
Connectivity
•High-speed fax/data modem port
•Ethernet/Fast Ethernet port
•Fast infrared wireless communication
•Four (4) USB 2.0 (Universal Serial Bus) ports
•IEEE 1394 port
•InviLink 802.11b/802.11a+b wireless LAN mini-PCI module
(manufacturing optional)
•Bluetooth module (manufacturing optional)
Human-centric design and ergonomics
•Internet 4-way scroll button
•Sleek, smooth and stylish design
•Full-sized keyboard
•Ergonomically-centered touchpad pointing device
Expansion
•One type II CardBus PC Card slot
•Upgradeable memory
•Acer EasyPort (optional)
TM800-e.book Page 12 Monday, February 17, 2003 4:07 PM
