Important safety instructions
Read these instructions carefully. Save them for
future reference.
1 Follow all warnings and instructions marked on
the product.
2 Unplug this product from the power outlet be-
fore cleaning. Use a soft, moist cloth for clean-
ing. Do not use liquid or aerosol cleaners.
3 Do not use this product near water. Do not spill
water or any other liquid on the product.
4 Do not place this product on an unstable cart,
stand, or table. The product may fall, causing
serious damage to the product.
5 Slots and openings are provided for ventilation;
to ensure reliable operation of the product and
to protect it from overheating. These openings
must not be blocked or covered. The openings
should never be blocked by placing the product
on a bed, sofa, rug, or other similar surface.
This product should never be placed near or
over a radiator or heat register, or in a built-
in installation unless proper ventilation is
provided.
6 This product should be operated from the type
of power source indicated on the label. If you
are unsure of the type of power source avail-
able, consult your dealer or local power com-
pany before use.
7 Do not step on or place heavy objects on the
power cord. Carefully route the power cord
and any cables away from foot traffic.cord. Do
not locate this product where persons will step
on the cord.
8 If an extension cord is used with this product,
make sure that the total ampere rating of the
equipment plugged into the extension cord
does not exceed the extension cord ampere
rating. Also, make sure that the total rating of
all products plugged into the wall outlet does
not exceed the fuse rating.
9 Never push objects of any kind into this prod-
uct through cabinet slots as they may touch
dangerous voltage points or short out parts
that could result in a fire or electric shock.
10 Do not attempt to service this product yourself,
as opening or removing covers may expose you
to dangerous voltage points or other risks. Refer
all servicing to qualified service personnel.
11 Unplug this product from the wall outlet and
refer servicing to qualified service personnel
under the following conditions:
a. When the power cord or plug is damaged or
frayed.
b. If liquid has been spilled into the product.
c. If the product has been exposed to rain or
water.
d. If the product does not operate normally
when the operating instructions are fol-
lowed. Adjust only those controls that are
covered by the operating instructions since
improper adjustment of other controls may
result in damage and will often require
extensive work by a qualified technician to
restore the product to normal condition.
e. If the product has been dropped or the case
has been damaged.
f. If the product exhibits a distinct change in
performance, indicating a need for service.
12 Only use the correct power cord (provided in
your accessories box) for this product. Always
disconnect the power cord from the wall outlet
before servicing or disassembling this equip-
ment.
AL2671-USen.indd 2005/4/11,下午05:015
English
6
Taking care of your remote control
Follow these steps to ensure proper care of your remote control:
• Handle the remote control with care. Dropping it, placing it in direct sunlight, or allowing it to get
wet may cause damage.
• Do not tamper with the batteries, and keep them away from children.
• When you anticipate that the remote control will not be used for an extended period, remove the
batteries to prevent possible damage from battery leakage.
• Dispose of batteries according to local regulations. Recycle if possible.
Cleaning and servicing
When cleaning your LCD TV, follow these steps:
1 Power off the TV.
2 Disconnect the power cord.
3 Use a soft, moist cloth. Do not use liquid or aerosol cleaners.
Declaration of Environmental Protection Conformity
1. This product was produced in compliance with strict global environmental regulations regarding
pol-lution levels.
2. The manufacturer of this product is ISO 14001 certified.
3. Do not dispose of this product after use. Please recycle in accordance to your country's regulations.
4. LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF
AC-CORDING TO LOCAL, STATE OR FEDERAL LAWS. FOR MORE INFORMATION, CONTACT THE ELEC-
TRON-IC INDUSTRIES ALLIANCE AT WWW.EIAE.ORG. FOR LAMP SPECIFIC DISPOSAL INFORMATION
CHECK WWW.LAMPRECYCLE.ORG
5. Please visit the Acer website (http://www.acer.com) for more environmental protection information.
AL2671-USen.indd 2005/4/11,下午05:016
English
7
First things first
We would like to thank you for making the Acer LCD TV your choice. Your new Acer LCD TV will provide
you with years of entertainment, versatility, and satisfaction.
This User’s Guide introduces you to the various features of your LCD TV, and provides clear and concise
information about the product. It is important that you read it thoroughly before use and retain it for fu-
ture reference.
Basic features and benefits
• Wide display with 1280 x 768 resolution - HDTV ready display
• Simultaneous pre-viewing of programs with 4 different Picture-In-Picture modes
• Excellent sound enhancement with SRS WOW technologies
• Brilliant color with gamma correction
• Minimized motion artifacts thru noise reduction
• Sharp and accurate image with de-interlacing and comb filter
• Best DVD video quality with 3:2/2:2 pull down recovery
• Elegant TV appearance and remote control
Packing Checklist
In addition to the accessory box, your LCD TV package should contain the following accessories. Please en-
sure that they are all present.
Remote Control (X1)
AAA Batteries (X2)
Power cord (X1) TV cable (X1)
D-Sub cable (X1)
Composite cable (x1) Component cable (x1)
Warranty Card
User Manual &
Quick Guide
S-Video Cable (X1)
AL2671-USen.indd 2005/4/11,下午05:017
English
8
Your LCD TV overview
Front panel view

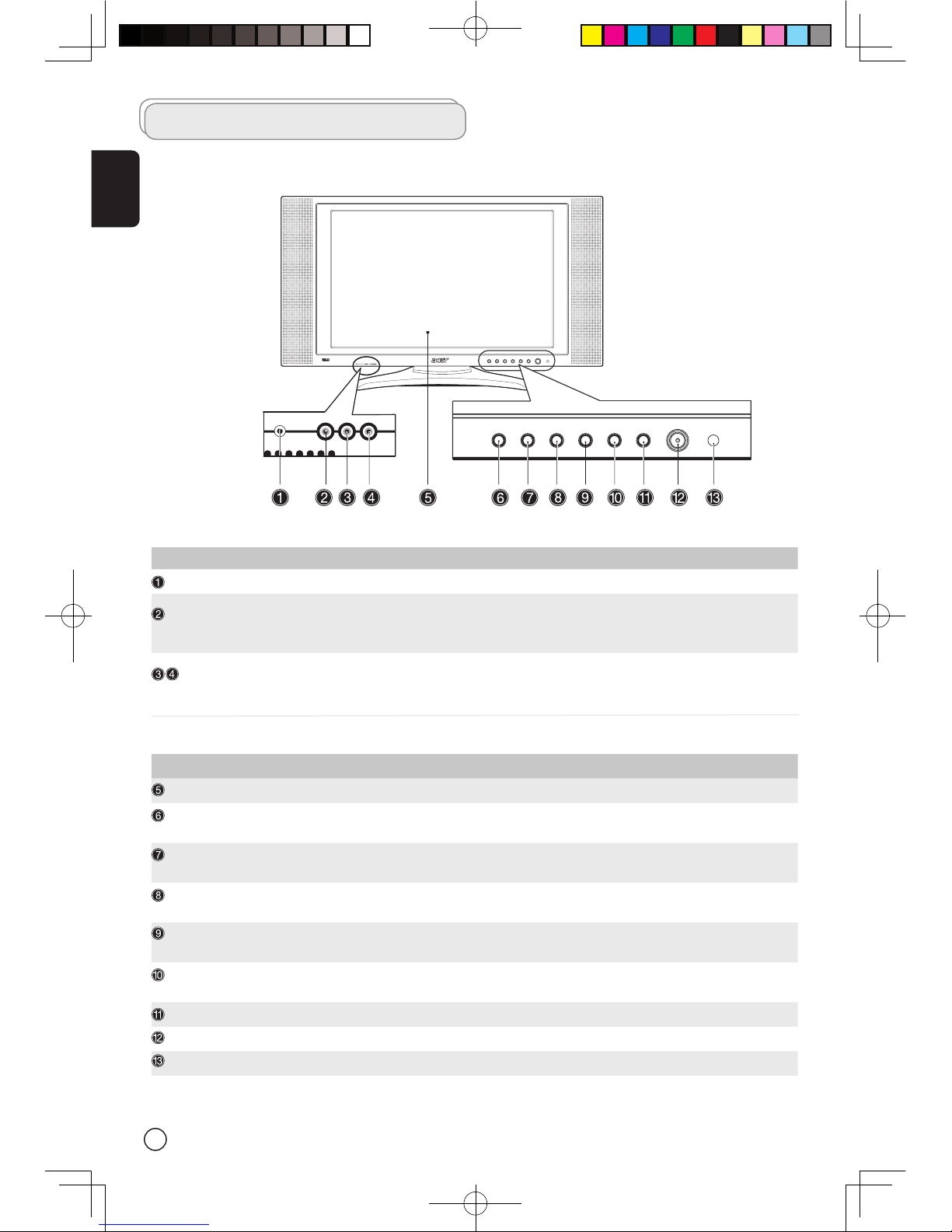

AV IN 3
No. Item Description
Headphone Connects to headphones.
AV3/Video In Connects to the composite output of your camcorder or video game.
AV3/Video Out In TV mode, connects to the composite input of your VCR or PVR to re-
cord TV programs. (Please set AV3 to “out” using the OSD.)
AV3/Audio In (L/R) Connects to the audio output (L/R) of your camcorder or video game.
AV3/Audio Out (L/R) In TV mode, connects to the audio (L/R) input of your VCR or PVR to re-
cord TV programs. (Please set AV3 to “out” using the OSD.)
No. Item Description
LCD Screen
Input Select source.
When the OSD is on, press this button to confirm selection
Vol Down Volume Down.
When the OSD is on, functions the same as Left directional arrow
Vol Up Volume Up.
When OSD is on, functions the same as Right directional arrow
Channel Down Channel Down.
When the OSD is on, functions the same as Down directional arrow
Channel Up Channel Up.
When the OSD is on, functions the same as Up directional arrow
Menu Turns the OSD menu ON and OFF
Power Turns the Power ON and OFF
Remote Control Window Infrared Sensor, (do not block)
AL2671-USen.indd 2005/4/11,下午05:028
English
9
AV1/AV2 Item Description
Tuner Connects the outdoor antenna cable
S-Video Connects to the S-Video output of your DVD, VCR player with the
S-video cable
Video Connects to the Composite - video output of your DVD, VCR player
with the yellow composite cable
Audio-L Connects to the Audio-L output of your DVD, VCR player with the
white composite cable
Audio-R Connects to the Audio-R output of your DVD, VCR player with the
red composite cable
Com1/Com2 Item Description
Component-Y Connects to the Component-Y output of your DVD, VCR player with
the green component cable
Component-Pb/Cb Connects to the Component- Pb/Cb output of your DVD, VCR player
with the blue component cable
Component-Pr/Cr Connects to the Component- Pr/Cr output of your DVD, VCR player
with the red component cable
Audio-L Connects to the Audio-L output of your DVD, VCR player with the
white composite cable
Audio-R Connects to the Audio-R output of your DVD, VCR player with the
red composite cable
Rear panel view
AL2671-USen.indd 2005/4/11,下午05:029
English
10
Bottom view
No. Item Description
AC Switch Turns the power on and off.
AC In Connects to an AC power source.
DVI-D In Connects to DVI-D output (e.g., from your PC.)
D-Sub In Connects to VGA output (e.g., from your PC.)
PC Audio In In PC mode, connects to the audio output of your PC or other devices
with a DVI or VGA connector.
Audio Out Connects to another speaker.
AL2671-USen.indd 2005/4/11,下午05:0210
English
11
Basic connection
Connecting the power cord
1. Plug the AC cord into the AC input on the back of the set.
2. Connect the male plug to the wall outlet as shown.
Connecting an antenna or cable
Connect the outdoor antenna or cable lead-in to the antenna terminal on the back of the TV set as
shown.
antenna or cable
AL2671-USen.indd 2005/4/11,下午05:0211
English
12
Connecting DVD/VCR/AV equipment
Connect your external device to the Component/ Audio ports on the TV set as shown below.
Alternatively you can use DVI or AV1 / AV2 connectors such as S-Video / Video and Audio R/L for
appropriate equipment
Connecting a camera, camcorder or video game
Connect your camera or camcorder to the Video/Audio ports on the bottom of the TV set as shown below.
AL2671-USen.indd 2005/4/11,下午05:0212
English
13
Connecting headphones

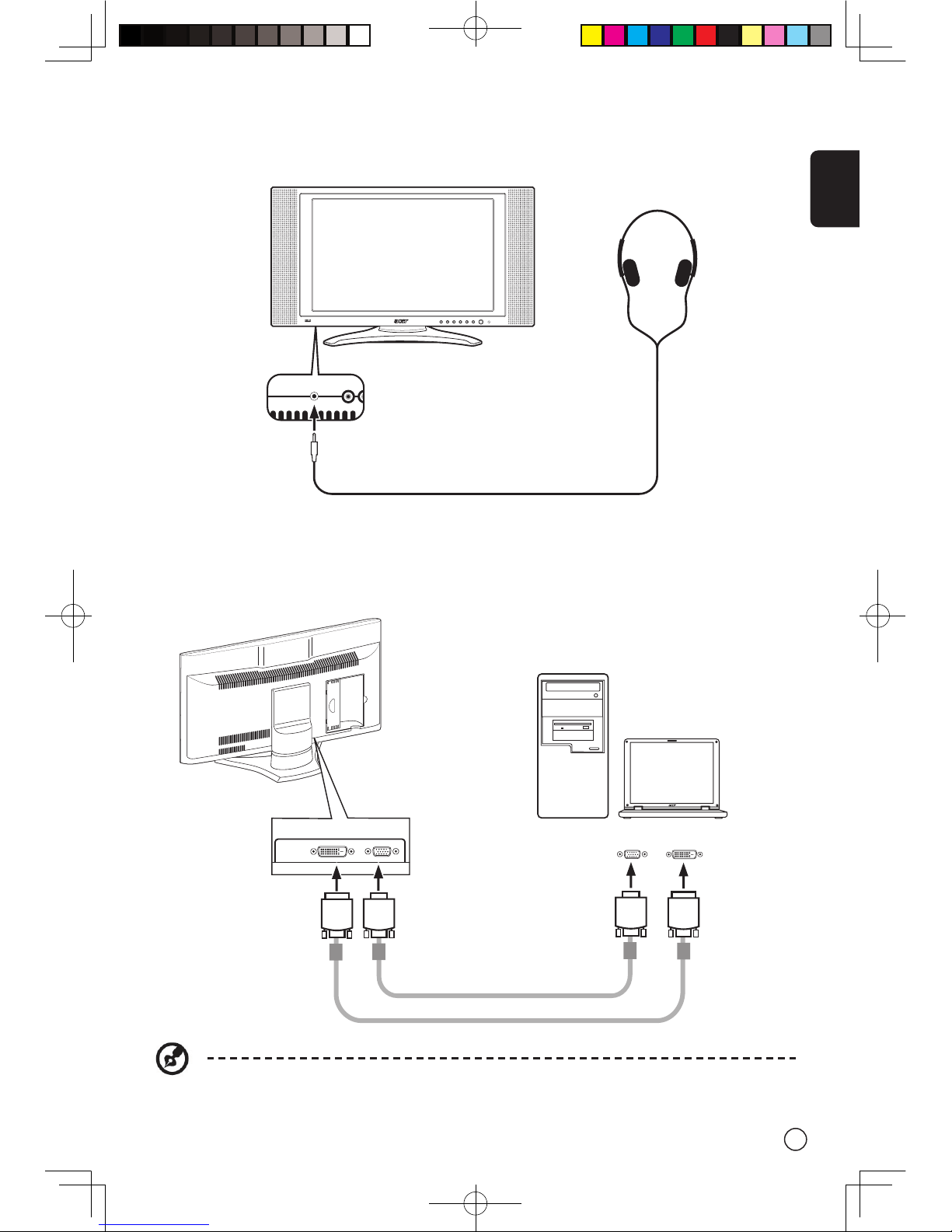

Connect headphone to the headphone input on the bottom of the TV set as shown below.
Connecting a PC or Notebook
Connect your PC or notebook to the D-Sub or DVI ports on the bottom of the TV set as shown below.
The optimal resolution for PC setting is 1280* 768@60Hz
AL2671-USen.indd 2005/4/11,下午05:0213
English
14
Remote control overview
AL2671-USen.indd 2005/4/11,下午05:0214
English
15
General Keys
Item Description
Power button Press to turn your TV on/off.

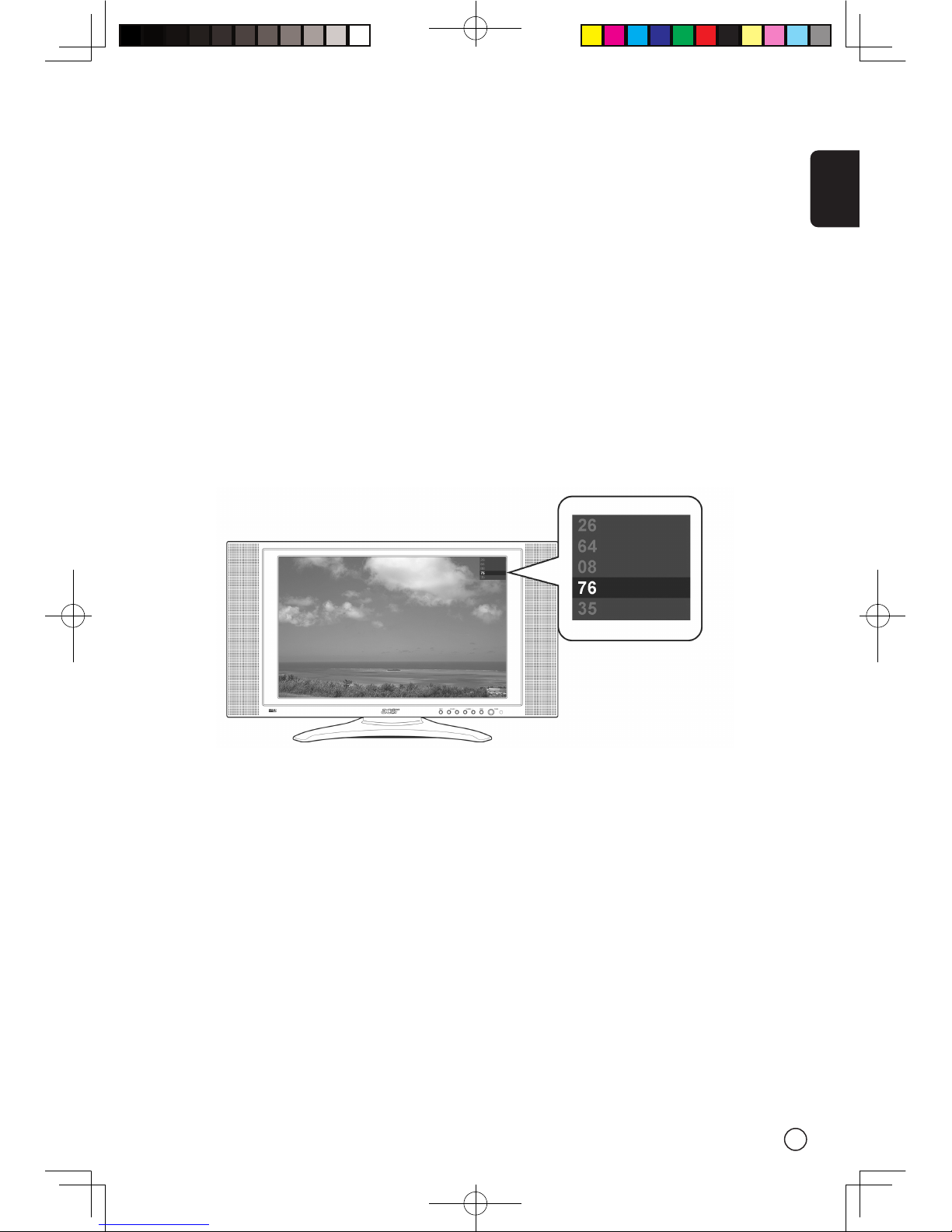

DISPLAY Displays the channel number and input source on the upper right-
hand corner of the screen.
MUTE Press once to mute the sound; press again to restore.
TV Press to toggle select TV mode.
AV Press to toggle between AV1, AV2 and AV3.
Component Press to toggle between Component1 and Component2.
PC Press to toggle sources between VGA and DVI
Number keys Number keys from 0-9.
ENTER Press to confirm channel selections by the number keys.
RECALL Press to return to the previous channel.
CC Press to select close caption and text service between CC1, CC2,
CC3,CC4, Text1, Text2, Text3. Text4.
MENU Press to open Menu or leave Menu.
4-way scroll key/OK When the OSD is on: Navigate up, down, left and right in the OSD
menu / press OK to confirm.
MTS Press to switch the sound system between stereo, main, and SAP. In-
formation is displayed in the top right-hand corner.
e Acer empowering key for Favorite Channel, Scenario Mode. See
page 18.
CH (up/down) Press to sequentially select the TV channel.
VOL (up/down) Press to increase or decrease the volume.
PIP/PBP/POP Switch between PIP/PBP/POP modes. See page 20.
SWAP When in PIP/PBP mode: Toggle primary and sub- screens.
ACTIVE When in POP mode: Toggle the active screen.
POSITION When in PIP mode: Change position of sub- screen
SIZE/MODE When in PIP mode: Select sub- screen size (25%, 37.5%, 50%)
When in POP mode: Switch POP mode between 1+5 and 1+12
SLEEP Set a time period after which the TV will switch itself to standby.
Press repeatedly to select the number of minutes.
WIDE Press to toggle scaling mode between 4:3, 16:9, Panorama and Letterbox
ZOOM Press to switch image between
Normal Zoom1 (1.85:1) Zoom2 (2.35:1)
SRS Press to select WOW, TruBass, 3D Stereo, Off modes sequentially. SRS
is a technology to enhance 3D sound, bass performance and to pro-
duce a wider sound field.
4:3 16:9 Panorama Letterbox
AL2671-USen.indd 2005/4/11,下午05:0215
English
16
Changing channels
1 Press 0-9 on the remote control to select a
channel. The channel changes after 2 seconds.
Press ENTER to select the channel immediately.
2 You can also change the channel by pressing
and holding the channel up/down button on
the remote control. Up will increase the num-
ber, while down will decrease the number.
Adjusting the volume
Adjust the volume by pressing using the Vol +/-
button on the remote control. Up will increase the
volume, while down will decrease the volume.
You can also adjust the volume and chan-
nel using the buttons on the front control
panel. Please see “Front panel view” on
page 8 for details.
Getting started watching your TV
Power On
a. Press the power switch located on the bottom
of the TV to the “on” position
b. Push the power button, number keys, or chan-
nel up/down button on the remote control.
Setup Wizard
The first time you switch on the TV, the Setup
wizard will guide you to complete the “language
selection” and “channel scanning”.
Step 1. Please select language:
Step 2. Please plug in the tuner coaxial cable and
then press "OK" key
Step 3. Please select TV system (air or cable)
Step 4. Auto scanning, please wait.
Setup completed
b
a
AL2671-USen.indd 2005/4/11,下午05:0216
English
17
OSD Navigation
Advanced settings and picture adjustments are available through the OSD (on- screen display) menus, as
shown in the example screenshot below.
You can also interact with these menus using the front panel controls. Please see “Front panel
view” on page 8 for details.
Navigating the OSD using the remote control:
There are five main OSD menus. These are: Picture , Audio , Settings , Options and Em-
powering . Use the following method to easily navigate these menus.
1 Press the “Menu” button on the remote control or the “Menu” button on the control panel.
2 Select your desired menu by using the Left/Right sides of the directional pad to switch between the
five menus.
3 Use the directional pad to interact with the menu. The Up/Down directions will scroll through the
menu options, while Left/Right will adjust the different settings (for example, in the Picture menu, set-
tings such as brightness, contrast, etc). If there are no adjustments, press “OK” to select.
AL2671-USen.indd 2005/4/11,下午05:0217
English
18
Advanced Features
Empowering Key: Scenario Mode and Favorite Channels
Use the OSD to define your “e” Empowering Key setting: Scenario mode or Favorite channel. The default
for the “e” key is the Scenario mode. Follow these steps: Menu > Empowering > e Key Setting. Choose
between “Favorite channel” or “Scenario mode.” Now, when you press the “e” key, your chosen selection
will be accessed.
Scenario Mode
Press the“e”Empowering key and use the Scenario Mode to select pre-defined audio and video settings
for optimal enjoyment of the following scenarios: Standard, Movie, Sport, Concert, Game, User; and
smoothly presents moving images.
Mode Scenario Mode Design Direction
Standard
Standard mode allows you to watch your favorite channels with sharp, brilliant
imagery via adaptive brightness and contrast adjustments. Clear-sounding audio is
provided by 3D Stereo performance.
Movie
For comfortably enjoying movies at home, Movie mode displays dim scenes in
clear detail; compensates for color; and smoothly presents motion images. This
is accomplished through optimal Gamma correction plus saturation, brightness
and contrast adjustments. Movie mode makes the most of high-definition movie
soundtracks by using SRS WOW technology.
Game
Game mode carefully details the exquisite graphics of modern video games,
providing lifelike entertainment while protecting your eyesight by adjusting
brightness and contrast. What’s more, Game mode provides a heightened audio
experience via SRS WOW technology.
Sports
Sports mode is suited for outdoor sports programmes, with accurate background
depth and clear gradation between the bright, outdoor playing field and darker
auditoriums. Sports mode also brilliantly enhances colors and presents swiftly mov-
ing pictures without residual images. All of this is achieved via specific Gamma cor-
rections and saturation adjustments. Precise audio can be heard, thanks to TruBass
performance.
Concert
Concert mode places you in a virtual concert hall, opera house or other dim
environment by means of adaptive brightness and contrast adjustments. Concert
mode accentuates symphonic harmonies and the tenor audio range using SRS
WOW technology.
AL2671-USen.indd 2005/4/11,下午05:0218
English
19
Favorite Channels
Please note that Scenario mode is the default value for the “e” Empowering key. In order to make use of
the following instructions, please set Favorite channel as the default using the method described on the
previous page.
Storing favorite channels
For quick access to your favorite channels, use the following method:
• To store a channel in memory for quick access, select your desired channel, then press and hold the “e”
Empowering key on the remote control for more than 2 seconds. This will store the TV channel infor-
mation at the bottom of the favorite list.
• There are a total of five slots in which you can store TV channels.
• If there is no empty slot in the favorite list, the first channel will be wiped out and the new TV channel
is added at the bottom of the favorite list. Simply put, it’s “First in, first out”.
• When the current program is stored in the favorite list, pressing the “e” key for more than 2 seconds
will remove the channel from the favorite list.
• To view currently stored favorite channels, press the “e” Empowering key. You will see a screen similar
to the one shown below
Viewing your favorite channels
• On the remote control, if you press the “e” Empowering key for less than 1 second, the favorite chan-
nel table will pop up. Your currently selected favorite channel will be highlighted. To view your other
favorite channels, press the “e” Empowering key again to toggle the TV channels sequentially accord-
ing to your favorite list.
AL2671-USen.indd 2005/4/11,下午05:0219
English
20

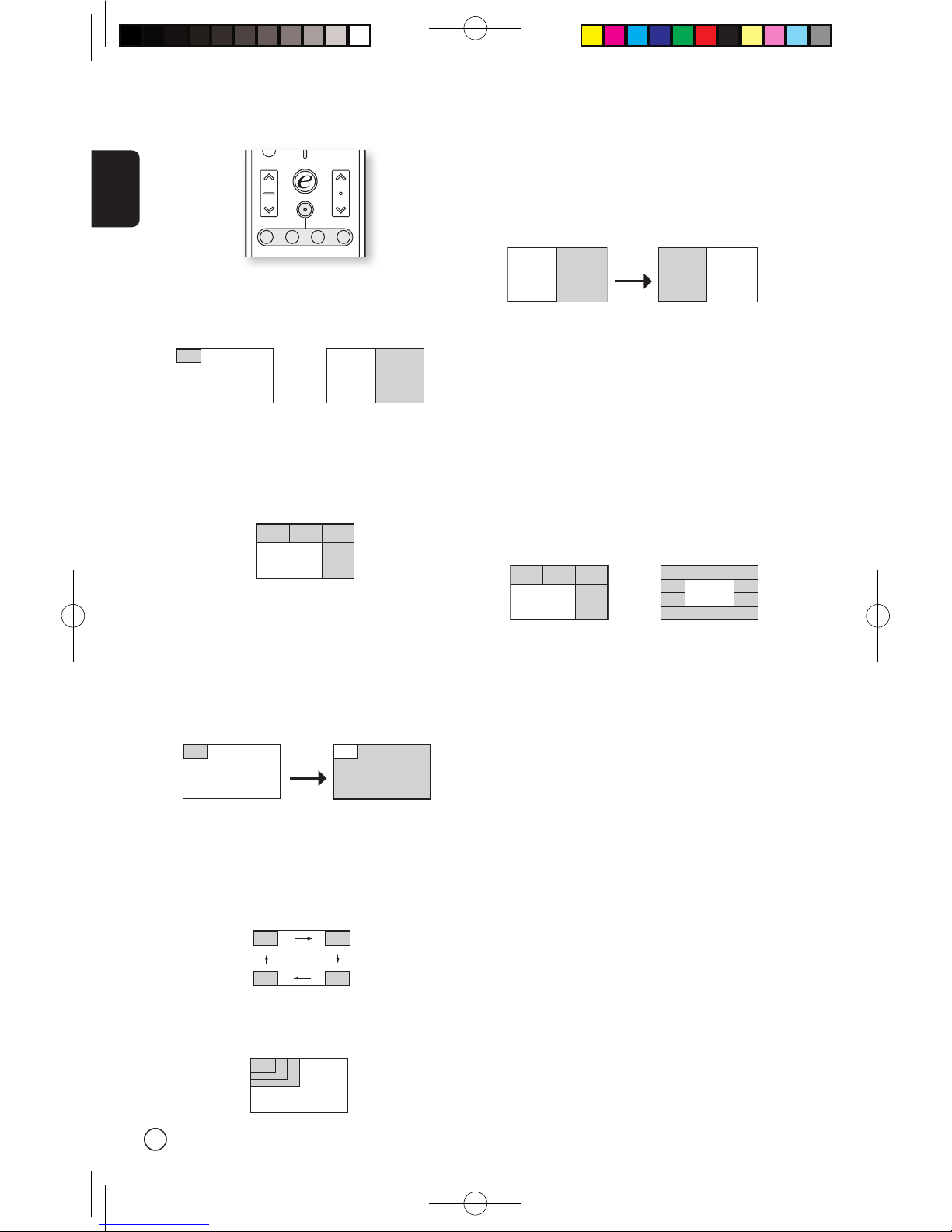

PIP/PBP/POP
In TV, AV, Component and PC mode, press PIP/PBP/
POP button once to display using picture- in- pic-
ture (PIP). Press twice to display using picture- by-
picture (PBP).
In Component and PC mode, press PIP/PBP/POP
button three times to display picture-on-picture
(POP). Then, the POP screens will display the subse-
quent TV channels one-by-one.
PIP
1. Press the “TV/Component/AV/PC” keys, number
keys or “CH up/down” key to change the con-
tent of the PIP screen.
2. Press “Swap” key to change the content be-
tween the primary and the PIP screen.
3. Press the “Position” key to select the location
of the sub-screens,: from Upper Left -> Upper
Right -> Lower Right -> Lower Left, as shown in
the image.
4. Press the “Size/Mode” key to change the size
of the PIP screen between 25%, 37.5%, 50%
PBP
1. Press the “TV/Component/AV/PC” keys, number
keys or “CH up/down” key to change the con-
tent of the PBP screen.
2. Press “Swap” key to change the content be-
tween the primary and the PBP screen.
POP
1. Press “Activate” key to activate the TV channel
on the top-left POP screen.
2. After pressing the “activate key”, press the
number keys or “CH up/down” key to change
the TV channel of the top-left POP screen. The
other POP screens will show the subsequent
channels in sequence.
3. Press the "Size/Mode" key to access the 1 + 5 or
1+12 picture on picture mode as shown in the
image below.
Swap
Swap
PBP (Picture by Picture)
PIP (Picture in Picture)
POP (Picture on Picture)
AL2671-USen.indd 2005/4/11,下午05:0220
Other manuals for AL2671W
4
Table of contents
Other Acer LCD TV manuals
