Acer Predator XB273K User manual

Quick Guide
Predator XB273K

English
Acer LCD Monitor Quick Start Guide (QSG)
Important safety instructions
Please read the following instructions carefully.
1. To clean the LCD monitor screen:
• Turn off the LCD monitor and unplug the power cord.
• Spray a non-solvent cleaning solution onto a rag and clean the screen gently.
2. Do not place the LCD monitor near a window. Exposing the monitor to rain, moisture or sunlight can severely damage
it.
3. Do not apply pressure to the LCD screen. Excessive pressure may cause permanent damage to the display.
4. Do not remove the cover or attempt to service this unit yourself. An authorized technician should perform servicing of
any nature.
5. Store the LCD monitor in a room with a temperature of -20° to 60° C (-4° to140° F). Storing the LCD monitor outside
this range may result in permanent damage.
6. Immediately unplug your monitor and call an authorized technician if any of the following circumstances occur:
• Monitor-to-PC signal cable is frayed or damaged.
• Liquid spills onto the LCD monitor or the monitor is exposed to rain.
• The LCD monitor or case is damaged.
Attaching the monitor to the base
1. Remove the monitor from the packaging.
2. Attach the footstand to the base. (for selected models).
3. Turn clockwise to lock. Ensure that the base in locked onto the stand. (for selected models)
4. Secure the base to the stand by turning the screw using the intergrated tab or a suitable coin. (for selected models)
Connecting your monitor to a computer
1. Turn off your computer and unplug your computer's power cord.
2. Connect the signal cable to the DP (optional) and/or HDMI (optional)
input socket of the monitor, and the DP (optional) and/or HDMI
(optional) output socket of the graphics card on the computer. Then
tighten the thumbscrews on the signal cable connector.
3. Connect the USB Cable(Optional)
Connect the USB 3.0 cable to port for fast charge.
Connect the USB 3.0 cable to port.
4. Insert the monitor power cable into the power port at the back of the
monitor.
5. Connect the power adapter and power cord to the monitor, then to a
properly grounded AC outlet.
Note: Audio output is only for audio output model. Please check user
manual for more instruction.
USB
DP
PLEASE READ THIS BEFORE SETTING UP YOUR MONITOR.
To ensure that your PC can support this NVIDIA®
G-SYNCTM
HDRmonitor,downloadandinstallthelatestgraphicsdriverandfirmwareforyourGEFORCE® GTX 10 Series graphics
card from this link:
http://www.nvidia.com/object/nv-uefi-update.html
For additional support, please contact Acer Customer Care at
http://www.acer.com/worldwide/support/
G-SYNC :
G-SYNC requires an NVIDIA GeForce GTX 1070 BOOST GPU or higher. For more information, visit the nVidia® website:
http://www.nvidia.com/page/home.html
1
2
3
4
5

English
External controls
1 Power button Turns the monitor on/off.Blue indicates power on. Amber indicates standby/ power saving
mode.
2 Function key
/
a. Press to view Main page. Press again to enter hotkey1 function.
b. When the Function Menu is active, press this key to view the basic information
for your monitor and current input or reset the custom color settings to the factory
defaults.
3 Function key
/
a. Press to view Main page.Press again to enter hotkey2 function.
b. When the Function Menu is active, press this button to select scenario mode or
game mode .
4 Function key
/
X
a. Press to view Main page.Press again to enter Input select function.
b. When the Function Menu is active, this button will quit the OSD.
5 Function key
/
a. Press to view Main page.Press again to enter next function in the Function Menu.
b. The single toggle button on the backside of the Display bezel operates like a
joystick. To move the cursor, simply toggle the button in four directions. Press the
button to select desired option.Red indicates operable. Grey indicates inoperable.
Note: Acer monitor is purposed for video and visual display of information obtained from electronic
devices.
Regulations and safety notices
FCC notices
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which
can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
CE declaration of conformity
Hereby, Acer Inc., declares that this LCD monitor is in compliance with the essential requirements and other relevant
provisions of EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, and RoHS Directive 2011/65/EU and Directive
2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with EMC
regulations.
Notice: Peripheral devices
Onlyperipherals(input/outputdevices,terminals,printers,etc.)certifiedtocomplywiththeClassBlimitsmaybeattached
tothisequipment.Operationwithnon-certifiedperipheralsislikelytoresultininterferencetoradioandTVreception.
Caution
Changesormodificationsnotexpresslyapprovedbythemanufacturercouldvoidtheuserauthority,whichisgrantedby
the Federal Communications Commission, to operate this product.
In order to prevent damage to the monitor, do not lift the monitor by its base.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Notice: Canadian users
CAN ICES-3(B)/NMB-3(B)
Disposal of waste equipment by user in private household in the European Union
This symbol on the product or on its packaging indicates that this product must not be disposed
of with your other household waste. Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for the recycling of waste electrical
and electronic equipment. The separate collection and recycling of your waste equipment at the time
of disposal will help to conserve natural resources and ensure that it is recycled in a manner that
protects human health and the environment. For more information ab ut where you can drop off your
wasteequipmentforrecycling,pleasecontactyourlocalcityoffice,yourhouseholdwastedisposal
service or the shop where you purchased the product.

English
SPECIFICATION
LCD Panel
Driving system TFT Color LCD
Size 27"W (69cm)
Pixel pitch 0.15mm(H) x 0.15mm(V)
Brightness Native 350nits, HDR mode: peak 400nits
Contrast 1,000:1 (Native)
Viewable angle 178° (H) 178° (V) (CR≥10) (Typical)
Response time 4ms (G to G,Typical)
Panel Type In-Plane Switching
Video Digital interface
H-Frequency 30KHz-140KHz(3840x2160@60Hz)
52kHz-322kHz(3840x2160@144Hz )
V-Frequency 24Hz-60Hz(3840x2160@60Hz)
24Hz-144Hz(3840x2160@144Hz)
Display Colors 1.07B Colors
Dot Clock 600MHz
Max. Resolution
3840x2160@120Hz
Normal mode:
HDMI: 3840x2160@60Hz, DP: 3840x2160@120Hz
Overclocking mode: DP: 3840x2160@144Hz
Plug & Play VESA DDCCI/DDC2B
EnergyEfficiencyClass D
*Annual Energy Consumption 103 (kWh) (for HDMI-input Model)
Power consumption
@200cd/m2
ON Mode 68W(typ.)
Sleep Mode 0.45W(typ.)
Off Mode 0.35W(typ.)
Input Connector
HDMI (Only HDMI Model)
DP (Only DP-Input Model)
USB Hub / USB3.0 x 4 (Only USB Hub Model)
Input Video Signal DP signal (Only DP Model)
HDMI signal (Only HDMI-Input Model)(Optional)
Speakers 4W x 2
Audio Audio-Output (Only Audio-Output Model)
Maximum Screen Size Horizontal:596.16mm
Vertical:335.34mm
Power Source 100-240V~, 50/60Hz
Environmental
Considerations
Operating Temp: 0° to 40°C
Storage Temp: -20° to 60°C
Operating Humidity: 20% to 80%
Dimensions 629.0(W) x 441~541(H) x 307.2(D)mm
Weight (N. W.) 9.04kg Unit (net)
Mechanism spec
Tilt: -5° to 23° (Only at the highest point can 23 degrees of recline be
offered for the angle of elevation)
Swivel: +/- 20°
Height adjustment: 100 mm
Pivot: No
Detachable foot stand: No
External
Controls: Functions
Peak/Ref. White
Contrast
Dark boost
Blue Light
Backlight Response
SDR Variable Backlight
Auto Brightness
Auto Black Level
Relative Gamma
SDR Colors sRGB
DP YCbCr sRGB
HDMI YCbCr sRGB
Color Temp.
Volume
Over Drive
Over Clock
Aim point
Language
OSD timeout
Transparency
Refresh rate num
OSD Lock
Input
Ambient Light
Hot Key Assignment
Wide Mode
Deep Sleep
Quick Start Mode
*Allspecificationsaresubjecttochangewithoutnotice.
FindmanualsandotherdocumentsforyourAcerproductontheofficialAcersupportwebsite.
*Annual energy consumption is calculated using the typical power consumption 4 hours per day, 365 days per year.

English
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi
New Taipei City 221, Taiwan
Declaration of Conformity
We,
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan
And,
Acer Italy s.r.l.
Via Lepetit, 40, 20020 Lainate (MI) Italy
Tel: [phone] ,Fax: [phone]
www.acer.it
Product: LCD Monitor
Trade Name: Acer
Model Number:
SKU Number:
(“x” = 0~9, a ~ z, A ~ Z, or blank)
We, Acer Incorporated, hereby declare under our sole responsibility that the product described above is in
conformity with the relevant Union harmonization legislations as below Directive and following harmonized
standards and/or other relevant standards have been applied:
EMC Directive: 2014/30/EU
EN 55032:2012/AC:2013 Class B
EN 61000-3-2:2014-3- Class D
EN 55024:2010
EN 61000-3-3:2013
LVD Directive: 2014/35/EU
EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013
RoHS Directive: 2011/65/EU
EN 50581:2012
ErP Directive: 2009/125/EC
Regulation (EC) No. 1275/ 2008; EN 50564:2011
Year to begin affixing CE marking: 2018.
_______________________________ Jul.30,2018
RU Jan / Sr. Manager Date
Acer Incorporated (Taipei, Taiwan)
XB273K
XB273K xxxxxx;
EN 55032:2015/AC:2016 Class B
XB273K
Jul.30,2018
XB273K XXXXXX

Deutsch
Konformitätserklärung
Wir,
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan,
Und
Acer Italy s.r.l.
Via Lepetit, 40, 20020 Lainate (MI) Italy
Tel.: [phone], Fax: [phone]
www.acer.it
Produkt: LCD-Monitor
Handelsbezeichnung:
Modellnummer:
Artikelnummer:(„x“ = 0 bis 9, a bis z, A bis Z oder Leerzeichen)
Wir, Acer Incorporated, erklären hiermit in alleiniger Verantwortung, dass das oben beschriebene Produkt
mit den relevanten Angleichungsrechtsvorschriften der Union entsprechend der nachstehenden Richtlinie
übereinstimmt und folgende harmonisierte Standards und/oder anderen relevanten Standards angewandt
wurden:
EMV-Richtlinie: 2014/30/EU
EN 55032:2012/AC:2013 Klasse B
EN 61000-3-2:2014 Klasse D
EN 55024:2010
EN 61000-3-3:2013
LVD-Richtlinie: 2014/35/EU
EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013
RoHS-Richtlinie: 2011/65/EU
EN 50581:2012
Ökodesign-Richtlinie (ErP): 2009/125/EG
Verordnung (EG) Nr. 1275/ 2008; EN 50564:2011
Jahr, in dem mit der Anbringung der CE-Kennzeichnung begonnen wird: 2018.
_______________________________
RU Jan / leitender Manager Datum
Acer Incorporated (Taipeh, Taiwan)
Jan.20,2018
Acer
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi
New Taipei City 221, Taiwan
VG270
VG270
EN 55032:2015/AC:2016 Klasse B
XB273K
XB273K XXXXXX
Jul.30,2018

Français
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi
New Taipei City 221, Taiwan
Déclaration de conformité
Nous,
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan
Et,
Acer Italy s.r.l.
Via Lepetit, 40, 20020 Lainate (MI) Italy
Tél : [phone], Fax : [phone]
www.acer.it
Produit : Moniteur LCD
Nom commercial :
Numéro de modèle :
Numéro SKU : (“x” = 0~9, a ~ z, A ~ Z, ou blanc)
Nous, Acer Incorporated, déclarons par la présente, sous notre seule responsabilité, que le produit décrit ci-
dessus est conforme aux législations d'harmonisation pertinentes de l'Union comme la directive ci-dessous,
et que les normes harmonisées suivantes et / ou d'autres normes pertinentes ont été appliquées :
Directive CEM : 2014/30/UE
EN 55032:2012/AC:2013 Classe B
EN 61000-3-2:2014 Classe D-3-
EN 55024:2010
EN 61000-3-3:2013
Directive LVD : 2014/35/UE
EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013
Directive RoHS : 2011/65/UE
EN 50581:2012
Directive ErP : 2009/125/CE
Règlementation (CE) n° 1275/2008; EN 50564:2011
Année de début concernant l'apposition du marquage CE : 2018.
_______________________________
RU Jan / Dirigean Date
Acer Incorporated (Taipei, Taiwan)
Jan.20,2018
Acer
VG270
VG270
EN 55032:2015/AC:2016 Classe B
XB273K
XB273K XXXXXX
Jul.30,2018

Español
Declaración de conformidad
Nosotros,
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwán
Y,
Acer Italy, S.R.L.
Via Lepetit, 40, 20020 Lainate (MI) Italy
Tel: [phone], Fax: [phone]
www.acer.it
Producto: Monitor LCD
Nombre comercial:
Número de modelo:
Número de Referencia (SKU): (“x” = 0~9, a ~ z, A ~ Z, o en blanco)
Nosotros, Acer Incorporated, por la presente declaramos bajo nuestra exclusiva responsabilidad que el
producto descrito anteriormente cumple con la normativa de armonización correspondiente en la Unión
Europea, la Directiva a continuación y las siguientes normas armonizadas y/o se han aplicado otras normas
pertinentes:
Directiva CEM: 2014/30/UE
EN 55032:2012/AC:2013 Clase B
EN 61000-3-2:2014 Clase D
EN 55024:2010
EN 61000-3-3:2013
Directiva de baja tensión: 2014/35/UE
EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013
Directiva RoHS: 2011/65/UE
EN 50581:2012
Directiva ErP: 2009/125/CE
Reglamento (CE) Nº 1275/ 2008; EN 50564:2011
Año para empezar a aplicar el marcado CE: 2018.
_______________________________
RU Jan / Administrador Superior Fecha
Acer Incorporated (Taipei, Taiwán)
Jan.20,2018
Acer
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi
New Taipei City 221, Taiwan
VG270
VG270
EN 55032:2015/AC:2016 Clase B
XB273K
XB273K XXXXXX
Jul.30,2018

Italiano
Dichiarazione di conformità
Con la presente,
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan
E,
Acer Italy s.r.l.
Via Lepetit, 40, 20020 Lainate (MI) Italy
Tel: [phone], Fax: [phone]
www.acer.it
Prodotto: Monitor LCD
Denominazione commerciale:
Numero modello:
Numero articolo (SKU): (“x” = 0~9, a ~ z, A ~ Z, o spazio)
Acer Incorporated, dichiara sotto la propria responsabilità che il prodotto sopra descritto è conforme alle
pertinenti normative di armonizzazione dell'Unione, come le Direttive che seguono, e che sono state
applicate le seguenti norme armonizzate e/o altre norme pertinenti:
Direttiva EMC: 2014/30/UE
EN 55032:2012/AC:2013 Classe B
EN 61000-3-2:2014 Classe D-3-
EN 55024:2010
EN 61000-3-3:2013
Direttiva LVD: 2014/35/EU
EN 60950-1:2006 / A11:2009 / A1:2010 / A12:2011 / A2:2013
Direttiva RoHS: 2011/65/UE
EN 50581:2012
Direttiva ErP: 2009/125/CE
Regolamento (CE) numero 1275/ 2008; EN 50564:2011
Anno per iniziare l'apposizione della marcatura CE: 2018.
_______________________________
RU Jan / Senior Manager Data
Acer Incorporated (Taipei, Taiwan)
Jan.20,2018
Acer
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi
New Taipei City 221, Taiwan
VG270
VG270
EN 55032:2015/AC:2016 Classe B
XB273K
XB273K XXXXXX
Jul.30,2018

Nederlands
Conformiteitverklaring
Wij,
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan
En,
Acer Italy s.r.l.
Via Lepetit, 40, 20020 Lainate (MI) Italy
Tel: [phone], Fax: [phone]
www.acer.it
Product: LCD-monitor
Handelsnaam:
Modelnummer:
SKU-nummer: (“x” = 0~9, a ~ z, A ~ Z, of leeg)
Wij, Acer Incorporated, verklaren hierbij onder exclusieve verantwoordelijkheid dat het hierboven
beschreven product voldoet aan de relevante wetten op harmonisering in de Unie zoals in de onderstaande
Richtlijn en dat de geharmoniseerde normen en/of andere relevante standaarden werden toegepast:
EMC-richtlijn: 2014/30/EU
EN 55032:2012/AC:2013 Klasse B
EN 61000-3-2:2014 Klasse D
EN 55024:2010
EN 61000-3-3:2013
LVD-richtlijn: 2014/35/EU
EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013
RoHS-richtlijn: 2011/65/EU
EN 50581:2012
ErP-richtlijn: 2009/125/EG
Verordening (EG) nr. 1275/ 2008; EN 50564:2011
Jaar om de CE-markering te beginnen aanbrengen: 2018.
_______________________________
RU Jan / Sr. Manager Date
Acer Incorporated (Taipei, Taiwan)
Jan.20,2018
Acer
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi
New Taipei City 221, Taiwan
VG270
VG270
EN 55032:2015/AC:2016 Klasse B
XB273K
XB273K XXXXXX
Jul.30,2018

Português brasileiro
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi
New Taipei City 221, Taiwan
Declaração de Conformidade
Nós,
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan
E,
Acer Italy s.r.l.
Via Lepetit, 40, 20020 Lainate (MI) Italy
Tel: [phone], Fax: [phone]
www.acer.it
Produto: Monitor LCD
Designação comercial:
Número do modelo:
Número SKU: (“x” = 0~9, a ~ z, A ~ Z, ou espaço em branco)
Nós, Acer Incorporated, declaramos sob nossa exclusiva responsabilidade que o produto acima descrito está
em conformidade com a legislação de harmonização da União e que foram aplicadas as Diretivas e normas
indicadas abaixo e/ou outras normas relevantes:
Diretiva CEM: 2014/30/UE
EN 55032:2012/AC:2013 Classe B
EN 61000-3-2:2014 Classe D
EN 55024:2010
EN 61000-3-3:2013
Diretiva LVD: 2014/35/UE
EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013
Diretiva RSP: 2011/65/UE
EN 50581:2012
Diretiva ErP: 2009/125/CE
Regulamentação (CE) Nº. 1275/ 2008; EN 50564:2011
Ano para iniciar a utilização da marca CE: 2018.
_______________________________ Jan.20,2018
RU Jan / Administrador Data
Acer Incorporated (Taipé, Taiwan)
Acer
VG270
VG270
EN 55032:2015/AC:2016 Classe B
XB273K
XB273K XXXXXX
Jul.30,2018

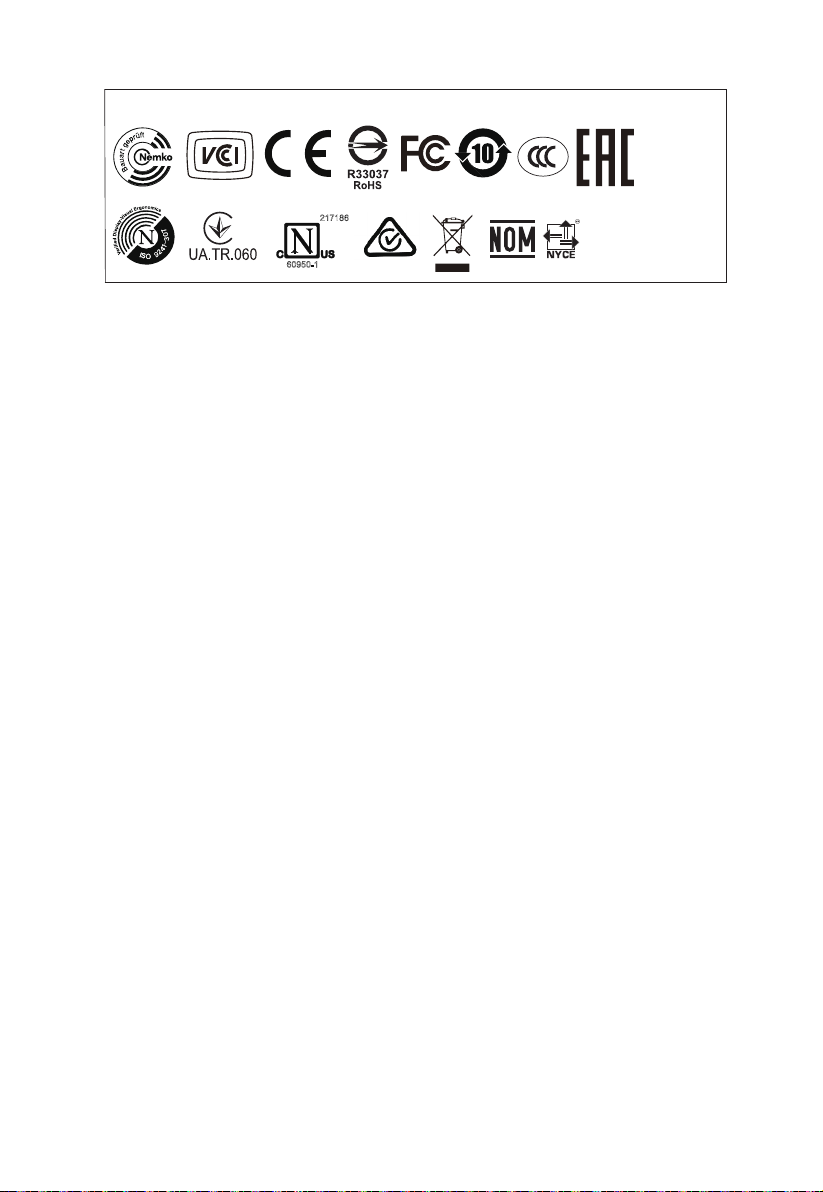

Regulatory Compliance
217186
60950-1

Q41G27M2786XXA
