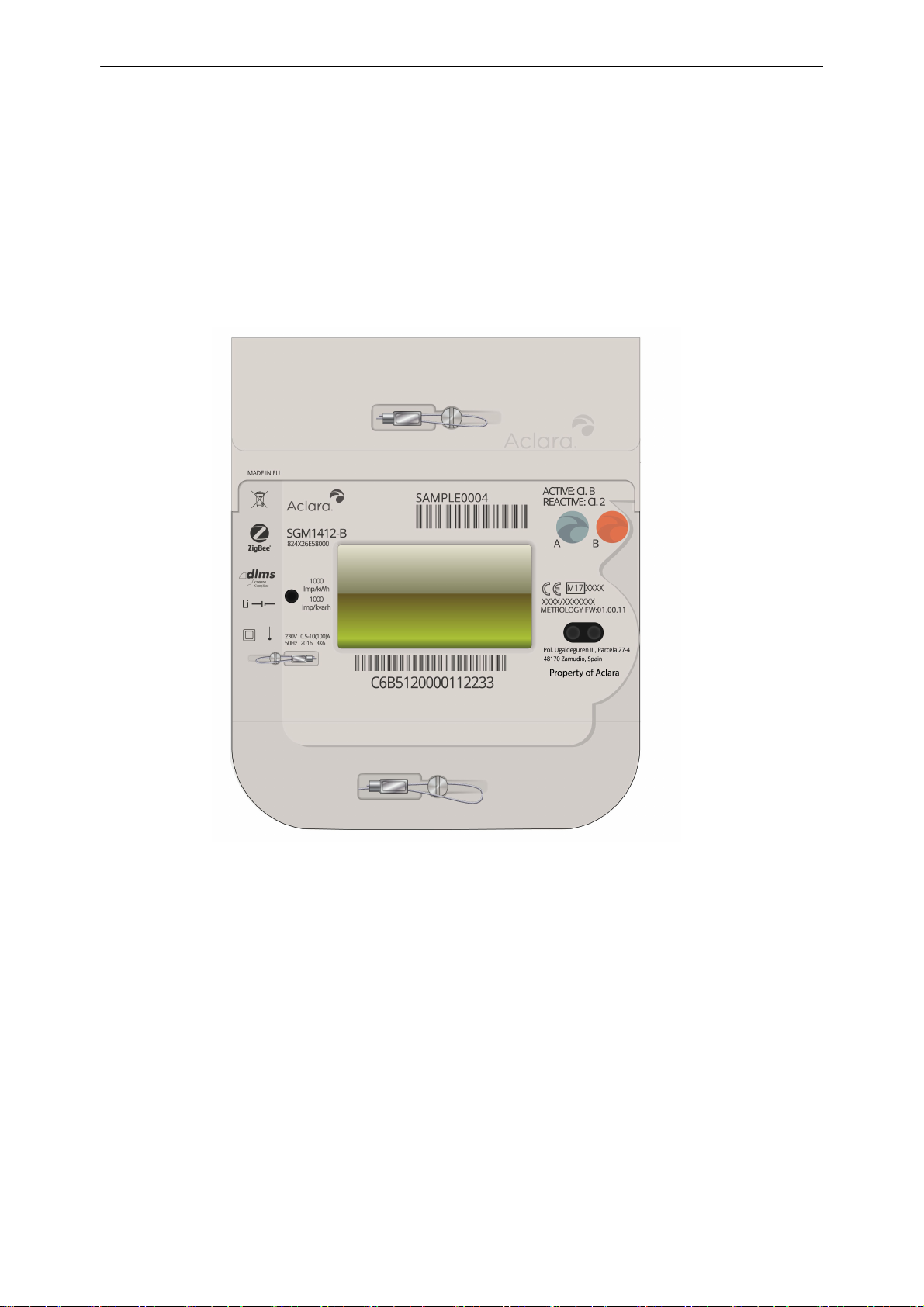

Aclara SGM1400 Series User manual

SGM1400-B Series Smart Meter
Single Phase User Manual - SMETS2
Y20974-TUM
Revision B
www.Aclara.com

SGM1400 Series Smart Meter User Manual – SMETS2 i
Proprietary Notice
This document contains information that is private to Aclara Technologies LLC, an Ohio limited
liability company, and/or that is private to Aclara Meters LLC, a Delaware limited liability
company (individually or collectively “Aclara”). This information may not be published,
reproduced, or otherwise disseminated without the express written authorization of Aclara.
Any software or firmware described in this document is furnished under a license and may be
used or copied only in accordance with the terms of such license.
Disclaimer
The information in this document is subject to change without notice and should not be construed
as a commitment by Aclara. Aclara assumes no responsibility for any errors that may appear in
this document.
No responsibility is assumed for the use or reliability of software on equipment that is not
supplied by Aclara.
MeterMate, SGM1100, SGM1300, and SGM3000 are trademarks of Aclara Meters LLC. All
third-party trademarks are the property of their respective owners. Aclara may have patents or
pending patent applications covering subject matter in this document. The furnishing of this
document does not provide any license whatsoever to any of these patents.
Aclara
Confidential and Proprietary
Copyright 2019. All Rights Reserved.

ii SGM1400 Series Smart Meter User Manual – SMETS2

SGM1400 Series Smart Meter User Manual – SMETS2 iii
C OMPLIANCE WITH S TANDARDS AND
E
UROPEAN D IRECTIVES
Meters are marked with the European CE mark in accordance with the Marking
Directive 93/68/EEC to indicate compliance with the requirements of the EMC
directive and Measuring Instruments Directive 2004/24/EC.
Safety requirements for meters are addressed in specific metering standards outlined
below.
BS EN 50470-1:2006
General Requirements
BS EN 50470-3:2006
Active Energy Class A or Class B
IEC 62052-11:2003
General Requirements
IEC 62053-21:2003
Active Energy Class 1 or Class 2
IEC 62053-23:2003
Reactive Class 2 or Class 3
BS 7856:2013
BS Meter Dimension
IEC 60529
Ingress Protection
IEC 62056-21:2002
Hardware Description for local meter data exchange
The SGM1400-B Series smart meter complies with the general requirements of EN
50470 Parts 1 and Parts 3 and complies with Class M2 Mechanical environment.
W ARNINGS AND C AUTIONS
Electrical equipment contains hazardous voltages and may cause death, serious
personal injury, or equipment damage.

iv SGM1400 Series Smart Meter User Manual – SM E TS2
Always de-energize and ground the equipment before maintenance. Maintenance
should be performed only by qualified personnel. The use of unauthorized parts in
the repair of the equipment or tampering by unqualified personnel will result in
dangerous conditions which will cause severe personal injury or equipment
damage. Follow all safety instructions contained herein.
IMPORTANT
The information contained herein is general and not intended for specific
application purposes. It does not relieve the user of responsibility to use sound
practices in application, installation, operation, and maintenance of the equipment
purchased. Aclara reserves the right to make changes in the specifications shown
herein or to make improvements at any time without notice or obligations. Should
a conflict arise between the general information contained in this publication and
the contents of drawing or supplementary material or both, the latter shall take
precedence.
The equipment in this manual must be operated only from the power source
specified.
The successful operation of this equipment depends upon proper handling,
installation, and operation. Neglecting fundamental installation requirements may
lead to personal injury as well as damage to electrical equipment or other property.
All electronic components within the meter are susceptible to damage from
electrostatic discharge. To prevent damage when handling this product, use
approved static control procedures.
Hazardous voltages can cause shock, burns, or death. To prevent exposure to
hazardous voltages, disconnect and lock out all power sources before servicing
and removing components.
If the meter is used in a manner not specified in this manual, the protection
provided by the equipment may be impaired.
Unauthorized changes or modifications made to the unit could void the warranty.
Qualified Personnel
For the purpose of this manual, a qualified person is one who is familiar with the
installation, configuration, or operation of the equipment and the hazards
involved. In addition, the person is:
• trained and authorized to de-energize, clear, ground, and tag circuits and
equipment in accordance with established safety procedures;
• trained in the proper care and use of protective equipment such as rubber
gloves, hard hat, safety glasses or face shields, flash clothing, etc. in
accordance with established safety practices; and
• trained in rendering first aid.
Any work on or near energized meters, meter sockets, or other metering
equipment presents the danger of electrical shock. All work on these products
must be performed by qualified industrial electricians and metering specialists
only. All work must be done in accordance with local utility safety practices and
procedures.

SGM1400 Series Smart Meter User Manual – S M ETS 2 v
Chapter 1: Introduction 1
Aclara Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Chapter 2: Product Description 3
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Terminal Arrangements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chapter 3: Physical Components 9
Enclosure and Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cover Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Descriptor, Numerical, and Unit Indicators. . . . . . . . . . . . . . . . . . . . . .11
Active Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Current Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Reverse Run . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HAN Signal Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Contactors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Load Control Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Display Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Display Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Auto-Scroll Duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Manual Operation Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Backlight Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Display Item Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
OBIS Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Interface Class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Number of Digits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Number of Decimal Places . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Push Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Push Button A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Push Button B - Sealable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Push Buttons A and B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Supply Reconnection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Audible Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Optical Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
LED Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Nameplate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
CSP Communications Hub Interface . . . . . . . . . . . . . . . . . . . . . . . . . .23
Contactors and Relay Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Terminal Screws. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Lithium Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Meter Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Magnetic Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Table of Contents

vi SGM1400 Series Smart Meter User Manual – SM E TS2
Table of Contents
Firmware Variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Firmware Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Firmware Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Metrology Firmware and Data . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Firmware Release Notes Process . . . . . . . . . . . . . . . . . . . . . . . . . .26
Firmware Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Firmware Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Power Outages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Chapter 4: Communications 29
Communication Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
ICHIS Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
20 Pin Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Optional AC Mains Connector . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Home Area Network (HAN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Manufacturing Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Advanced Metering Infrastructure (AMI) . . . . . . . . . . . . . . . . . . . . . . .31
Chapter 5: Metrology Functionality 33
Multipurpose Energy Metering . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Instantaneous Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Frequency of Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Cumulative Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Power Quality Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Over Voltage/Under Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Sag and Swell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Over Frequency and Under Frequency. . . . . . . . . . . . . . . . . . . . . . . .36
Over Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Power Factor Threshold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Voltage Quality Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Average RMS Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Over Voltage Threshold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Under Voltage Threshold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
RMS Extreme Over Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
RMS extreme Under Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
RMS Voltage Sag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
RMS Voltage Swell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Supply Outage Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Load Profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Voltage Profile Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Interval Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Interval Time Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Data Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Load Profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Instrumentation Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Memory Overwrite. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Power Outages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Time-of-Use (TOU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Block Tariffs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Maximum Demand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Billing Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Daily Billing Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Monthly Billing Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

SGM1400 Series Smart Meter User Manual – SMETS2 vii
Table of Contents
Asynchronous Billing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Chapter 6: Advanced Features 45
Supply Disconnect and Reconnect . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Supply Contactor Visual Status . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Scheduled Disconnection/Reconnection . . . . . . . . . . . . . . . . . . . . . . .45
Automatic Disconnection/Reconnection . . . . . . . . . . . . . . . . . . . . . . .45
Load Limiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Under/Over Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Sag/Swell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Under/Over Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Over Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Power Factor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Tamper Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Arming and Disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Auxiliary Load Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Real-Time Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Event Logging and Errors/Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Event Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Prepayment Solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Account Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Credit Object Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Charge Object Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Payment Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Credit Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Credits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Charges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Prepayment Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Credits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Charges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Changing Payment Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Changing to Credit Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Changing to Prepayment Mode . . . . . . . . . . . . . . . . . . . . . . . . . .55
Non-Disablement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Display Indication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Non-Disablement Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Days . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Weeks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Seasons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Special Days - Holidays . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Disconnector Control Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Top-Ups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
UTRN (Token) Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Prepayment Token Decimal (PPTD) . . . . . . . . . . . . . . . . . . . . . . .58
Prepayment Top-up Token (PTUT). . . . . . . . . . . . . . . . . . . . . . . .58
Class 5 Token . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Consumer UTRN Token — 20-Digit Decimal . . . . . . . . . . . . . . . . . . . .59
Check Digit — 20th Digit . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
UTRN Token – MAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Prepayment Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
UTRN Counter Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
UTRN - Manual Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

viii SGM1400 Series Smart Meter User Manual – SM E TS2
Table of Contents
UTRN Entry Responses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
UTRN Entry Accepted . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
UTRN Entry Lockout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Maximum Meter Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Maximum Credit Threshold . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Debt to Clear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Order of Recovery of Debts . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Prepayment Events and Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Prepayment Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Prepayment Menu – Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Mandatory Prepayment Menu Items . . . . . . . . . . . . . . . . . . . . . . . .68
Prepayment Menu – Item Structure and Access . . . . . . . . . . . . . . . . . . .68
Chapter 7: Installation 71
Terminal Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Terminal Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Terminal Arrangements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
SGM1411-B Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
SGM1412-B Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
SGM1415-B Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
SGM1416-B Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
SGM1422-B Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Installation Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
UK Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Installation Screwdrivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Backup Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Mounting Template . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Connect SGM1400-B to the CSP Communications Hub . . . . . . . . . . . . . . . . . .75
Notifications to Installers and Utilities. . . . . . . . . . . . . . . . . . . . . . . . .78
Chapter 8: Tests Procedures and Maintenance 81
Pulse Output LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Test Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Test Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Field Accuracy Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Watt-Hour Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Maintenance and Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Battery Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Chapter 9: Specifications 85
Catalogue Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Appendix A: Event Codes 89
UK SMETS2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
Index 97

SGM1400 Series Smart Meter User Manual – SMETS2 1
Chapter 1 • Introduction
CHAPTER
1
I NTRODUCTION
The purpose of this document is to provide qualified metering personnel with
product description; operating, maintenance, and upgrading instructions; site
analysis guides; and diagrams for the SGM1400-B Series smart meter family. It is
not intended to replace the extensive training necessary to install or remove meters
from service. Any work on or near energized meters, meter sockets, or other
metering equipment presents the danger of electrical shock. All work on these
products must be performed by qualified industrial electricians and metering
specialists only. All work must be done in accordance with local utility safety
practices and procedures.
Aclara Support
If you have questions, an issue, or would like to speak with Aclara's Support
personnel, please contact Aclara using one of the following methods.
Technical Support
Email [email protected] or call 1-800-892-9008 to speak with an Aclara
representative.

2SGM1400 Series Smart Meter User Manual – SMETS2
Aclara Support

SGM1400 Series Smart Meter User Manual – SMETS2 3
Chapter 2 • Product Description
CHAPTER
2
P RODUCT D ESCRIPTION
The SGM1400-B meter from Aclara is an advanced modular designed family of
products for domestic and small commercial installations. The SGM1400-B is
available in both single phase and dual element variants, and it forms an integral
part of a complete two-way, secure, end-to-end solution.
The SGM1400-B has been designed to offer flexibility and the choice of home
area network (HAN) and wide area network (WAN) communications. As
standard, the SGM1400-B supports different AMI technologies, including the UK
CSP communications hub solution. The communications hub mechanically
connects directly to the electricity meter. The hub communicates with the meter
using the ZigBee communication protocol. A manufacturing option that provides
direct communications via a hardwired interface is also available.
The on-board ZigBee RF interface uses industry standard Smart Energy Profile
for HAN communications to the UK communications hub and in-home display
(IHD) respectively.
The standard meter is supplied with an integrated 100A switch for
connect/disconnect of the consumer supply. Certain models of the SGM1400-B
Series meter offer an optional 2 A load control relay, whilst others support an
additional 100 A contactor for control of other ancillary devices such as night
storage heating, pumps, etc.

4SGM1400 Series Smart Meter User Manual – SMETS2
General Information
The meters also support a comprehensive tariff developed in association with the
UK Great Britain Companion Specifications Standard and supports both Seasonal
Time of Day (STOD) and block tariffs.
Additionally, the meters offer storage for two years of load profile data and
support independent profiling of instrumentation values, typically line voltage,
current, frequency, etc. The SGM1400-B Series meter also provides, as standard,
enhanced power quality features offering support of sag/swell, under/over voltage,
and max and min.
Designed with installation in mind, the SGM1400-B Series meter offers a means
for a quick and secure deployment. A custom-designed LCD provides added value
information. For example, when ZigBee is used, information such as HAN pairing
progress, notification of pairing complete, local signal strengths for HAN, etc. is
displayed to improve the installation experience. Refer to Installation on page 71
for more information on installing an SGM1400-B Series meter.
All SGM1400-B Series meters have a common layout for buttons, optical port,
display, and pulse indicators. The communications hub interface is also
standardized across all meter models. The SGM1400-B Series meter can be
customized with optional variants and extras, including the following:
• Back-lit LCD
• Hardwired Communications Interface
• Magnetic Detection
• Removal of the HAN
General Information
The key features of the SGM1400-B Series meters include:
• Product life of 20 years
• Single phase direct connected (whole current)
• Single phase dual element
• Optional 2 A auxiliary relay
• Optional 100 A contactor
• A field-replaceable CSP communications hub that prevents disruption of
service
• Comprehensive metrology-active, reactive and apparent energy, import and
export
• Extensive tariff capability:
•48 x standard time of day TOU registers and 4 x 8 block tariff
•4 x standard time of day TOU registers (specific for meters with a
secondary element, notably SGM1415-B, SGM1416-B, and SGM1422-B)

SGM1400 Series Smart Meter User Manual – SMETS2 5
Chapter 2 • Product Description
• Two years of load profile data storage
• Three months instrumentation profile data
• Daily, weekly, and monthly billing data
• Voltage sag/swell, under and over voltage
• Over and Under Frequency
• Power Factor Threshold
• Comprehensive Event Logging with over 100 unique event codes, as well as
Security, Power Event, Standard Event, and ALCS Logs for event storage
• Enhanced physical and electronic security (tamper, password levels)
• HAN support of industry standard Smart Energy Profile
• GPRS wide area network for remote retrieval of data to a headend system
via CSP communications hub
• DLMS COSEM compliant via the optical port
• Firmware Over-the-Air (FOTA) Full Upgrades
• Change of tenancy and supplier - CoT and CoS
• Dual firmware versions - Firmware rollback feature during firmware update
• Extensive data storage
• Simultaneous local and remote communication without performance loss
• Enhanced power quality monitoring including voltage, frequency, and power
factor
• Control of external loads via auxiliary relay
• Short terminal cover
• Tariff Structure (primary element):
• Active and Deferred Tariffs • 50 Special Days
• 48 Time-of-Use Registers • 200 Switching Times
• 4 x 8 Block Tariffs • 13 End of Month Billing Dates
• 4 Seasons • 5 Weekly Billing Dates
• 5 Week Profiles • 31 Daily Billing Sets
• 16 Day Profiles

6SGM1400 Series Smart Meter User Manual – SMETS2
General Information
• Tariff Structure (secondary element):
Features
The SGM1400-B Series smart meter family has the following main features:
• 640 kB of RAM temporary data storage, 164 MB of Serial Flash Memory
for non-volatile data storage, and 1.5 MB of Internal (on-chip) program
memory
• Configurable display with auto and manual scroll lists and user defined
fields
• Independent communication ports: Local optical port, AMI interface port
(GPRS as standard), and ZigBee HAN port
• Configurable time-of-use (TOU) operation to support full flexibility tariffing
• Flexible calendar definition that supports up to 48 daily time periods, 16 day
types, four week types, 50 designated holidays or special days, and four
seasons
• Configurable measurement profile with independent measurements for each
measuring element (applicable to SGM1422-B)
• Select demand measurement for demand calculation including selected
measurement profile and selectable demand interval
• Prepayment mode of operation
• Field-replaceable CSP communications hub that provides flexibility for
HAN and WAN communications
• Tamper detection
• Terminal overheating detection - manufacturing option for
SGM1415/16/22-B
• 50 Special Days • 4 Week Profiles
• 4 Time-of-Use Registers • 16 Day Profiles
•4Seasons

SGM1400 Series Smart Meter User Manual – SMETS2 7
Chapter 2 • Product Description
Models
The SGM1400-B Series smart meter family is made up of meters of common
physical characteristics and functionality. The nomenclature of the meter models
indicates the following:
The following models are currently available in the SGM1400-B smart meter
family:
Terminal Arrangements
The SGM1400-B single phase meters conform to the British Standard Institute
code of practice (BS 7856:2013).
Model Connect
Type Phase Current Elements
100 A
Primary
Contactor
100 A
Secondary
Contactor
2 A
Auxiliary
Relay
Itr – Iref (Imax)
SGM1411-B Direct Single 1 Yes No No 1-10 (100 A)
SGM1412-B Direct Single 1 Yes No Yes 1-10 (100 A)
SGM1415-B Direct Single 1 Yes Yes No 1-10 (100 A)
SGM1416-B Direct Single 1 Yes Yes Yes 1-10 (100 A)
SGM1422-B Direct Single 2 Yes Yes No 1-10 (100 A)
SGM1411-B SGM1412-B

8SGM1400 Series Smart Meter User Manual – SMETS2
Terminal Arrangements
SGM1415-B SGM1416-B
.
SGM1422-B

SGM1400 Series Smart Meter User Manual – SMETS2 9
Chapter 3 • Physical Components
CHAPTER
3
P HYSICAL C OMPONENTS
The SGM1400-B Series smart meter family comprises of a single phase and single
phase with 2 A relay output. The main physical features of a SGM1400-B Series
meter are shown below.
Enclosure and Covers
The SGM1400-B Series meters use a thermally stable, UV-protected
polycarbonate enclosure that is double insulated to protective Class II. The
enclosure provides an Ingress Protection Rating of IP54 in accordance with IEC
60529. The following cover segments are constructed of Polycarbonate 10% GF
(Grade Lexan 503RS):
• Meter cover - When the meter is fully installed, the main cover cannot be
removed while the terminal cover is fitted to the meter.
• Terminal cover - Protects the terminal screws from external contact. Inside
the terminal cover is a diagram identifying the connections on the terminal
block. This includes a schematic diagram and description of all physical
elements on the terminal block, the arrangement of active and neutral
terminals for the conductors, and an identifying number defining the specific
variant of terminal.

10 SGM1400 Series Smart Meter User Manual – SMETS2
Cover Seals
Cover Seals
The meter cover and terminal cover are secured by standard single sealing screws.
The torque value for the sealing screw is 0.6-0.9 Nm. The screw head has a
recessed hole and slot to accommodate a 0.914 mm diameter thread wire seal. The
sealing wire is crimped close to the body of the meter using a tool with die
indents.
As a manufacturing option, the meter can also be supplied with an ultrasonic
permanent seal.
Display
The SGM1400-B Series meter provides a backlit Liquid Crystal Display (LCD)
located on the meter face. The display consists of graphical elements and
segments. The graphical section displays the meter status in quantities up to eight
digits, including the unit of measure. It can also display end user instructions to
advise installation teams that commissioning is complete. The LCD backlight will
illuminate the display when a button is pressed. The automatic scroll duration,
manual scroll timeout, backlight duration, and contrast adjustment are
configurable via the display settings object.
The display shows the following:
• Units of measure
• Constant display of the meter status
• State of the primary supply contactor
• State of the secondary contactor (applicable to SGM1415-B, SGM1416-B,
and SGM1422-B)
• State of the auxiliary control relay (applicable to SGM1412-B and
SGM1416-B)
• Signal strength as reported by the HAN module
• Communication status of the HAN network
• Direction of energy (for example, flowing from the premise to the network)
• Battery status
• Various data values, meter status, and indications
• Current and historical energy and demand registers
