ACME STAGE PAR 300 ZOOM User manual

MP-300Z
User Manual
Please read the instructions carefully before use
2017.07.03
毅丰
受控正本

CONTENTS
1. Safety Instructions.................................................................................................. 2
2. Technical Specifications .......................................................................................... 4
3. How To Set The Unit ............................................................................................... 5
3.1 Control panel.................................................................................................... 5
3.2 Main Functions................................................................................................. 6
4. How to Control the Unit ......................................................................................... 9
4.1 DMX Controller................................................................................................. 9
4.2 DMX 512 Configurations................................................................................. 10
5. DMX 512 Connections .......................................................................................... 12
6. Troubleshooting ................................................................................................... 13
7. Fixture Cleaning ................................................................................................... 14
1D

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure
that they also receive this instruction booklet.
Please unpack and check carefully there is no transportation damage before using the unit.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
Please disconnect main power before replacement or servicing.
Please make sure there are no flammable materials close to the unit while operating as it is fire
hazard.
Please use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but
always by taking its base.
Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher
than this.
Unit surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand during its
operation. Turn off the power and allow about 15 minutes for the unit to cool down before
replacing or serving.
In the event of serious operating problem, stop using the unit immediately. Never try to repair
the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction.
Please read the instruction carefully which includes important
information about the installation, usage and maintenance.
2D

Please contact the nearest authorized technical assistance center. Always use the same type
spare parts.
DO NOT touch any wire during operation as high voltage might be causing electric shock.
Warning:
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or
moisture.
DO NOT open the unit within five minutes after switching off.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
Caution:
There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any
repairs yourself. In the unlikely event your unit may require service, please contact your nearest
dealer.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is
firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to
which you are attaching the unit is secure and is able to support a weight of 10 times of the
unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit
when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place where is out of the
touch of people and has no one pass by or under it.
For 230V 50Hz power supply, maximum fixtures that can be connected together from the same outlet is 8pcs;
For 120V 60Hz power supply, maximum fixtures that can be connected together from the same outlet is 4pcs
3D

2. Technical Specifications
◇DMX 512 Channels: 5/6/8 channels
◇Two Operation Modes: DMX, Master/Slave
◇Strong die-casting aluminum housing
◇Perfect strobe with smooth dimming 0~100%
◇Outstanding color macro effect
◇Flexible hanging/standing dual brackets for easy mounting
Power Voltage:AC 100~240V, 50/60Hz
Power Consumption:220W
Light Source:OSRAM OSTAR 19×10W RGBW LEDs
Fuse: T 6.3A
Beam Angle: 0°~60°
Weight:7.2Kgs
Dimension:324×276×368mm
4D

3. How To Set The Unit
3.1 Control panel
1. DMX IN: For DMX512 link, use 3-pin XLR plug cable to input DMX512 single.
2. DMX OUT: For DMX512 link, use 3-pin XLR plug cable to output DMX512 single to the next unit.
3. DMX IN: For DMX512 link, use 5-pin XLR plug cable to input DMX single.
4. DMX OUT: For DMX512 link, use 5-pin XLR plug cable to output DMX512 single to the next unit.
5. Display: To show the various menus and the selected functions
Button:
6. MENU To select the programming functions
7. DOWN
To go backward in the selected functions
8. UP
To go forward in the selected functions
9. ENTER
To confirm the selected functions
LED:
10. POWER
On
Power On
11. DMX
On
DMX input present
12. POWERCON IN:Connect to supply power for the fixture.
13. POWERCON OUT: Connect to supply power to the next fixture.
14. Fuse (T 6.3A):Protect the fixture from damage of current.
5D

3.2 Main Functions
To select any of the given functions, press the MENU button up to when the required one is
showing on the display. Select the function by the ENTER button and the display will blink. Use the
DOWN and UP button to change the mode. Once the required mode has been selected, press the
ENTER button to setup, to go back to the functions without any change press the MENU button
again. Hold and press the MENU button about one second or wait for one minute to exit the menu
mode.
The main functions are showing below:
6D

DMX Address
Select the DMX Address, press the ENTER button and the display will blink. Use the DOWN and UP
button to change the DMX 512 Address, and then press the ENTER button to save. Back to the
previous functions without any change press the MENU button.
Channel Mode
Select the Channel Mode, press the ENTER button and the display will blink. Use the DOWN and
UP button to select the 5chan, 6chan or 8chan mode. Once the mode has been selected, press the
ENTER button to save or automatically exit menu mode without any change. Back to the previous
functions without any change press the MENU button.
Dimmer Curve
Select Dimmer Curve, press the ENTER button to confirm, present mode will blink on the display.
Use the DOWN and UP button to select the Mode1 or Mode 2 or Mode 3 or Mode 4 mode. Once
the mode has been selected, press the ENTER button to setup, to go back to the functions without
any change press the MENU button again. Hold and press the MENU button about one second or
wait for one minute to exit the menu mode.

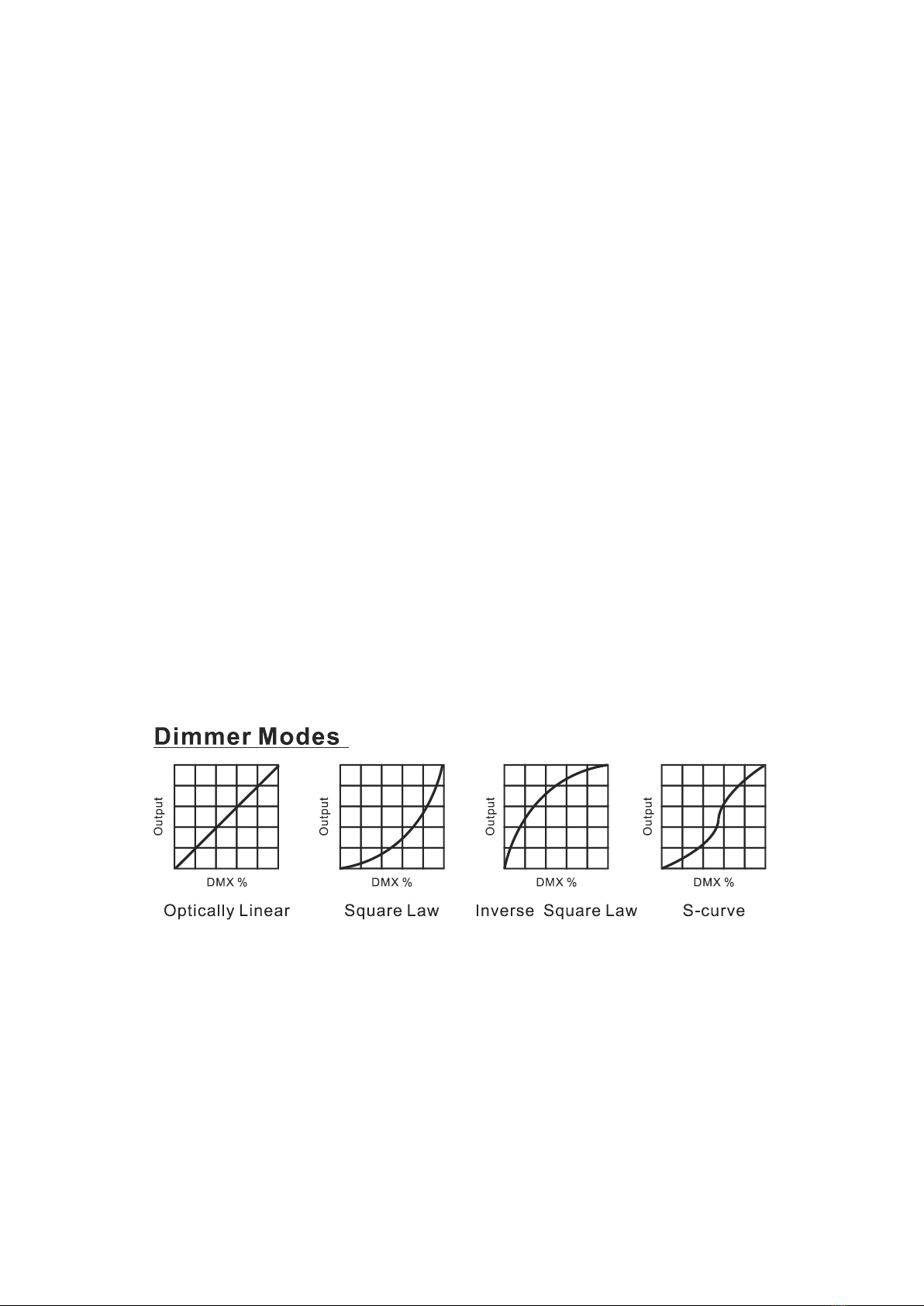

Mode 1 (Optically Linear): The increase in light intensity appears to be linear as DMX value is
increased.
Mode 2 (Square Law): Light intensity control is finer at low levels and coarser at high levels.
Mode 3 (Inverse Square Law): Light intensity control is coarser at low levels and finger at high
levels.
Mode 4 (S-cure): Light intensity control is finger at low levels and high levels and coarser at
medium levels.
7D

Black Out
Select the Black Out, press the ENTER button and the display will blink. Use the DOWN and UP
button to select the Yes (blackout) or Hold (keep the present status). Once selected, press the
ENTER button to save or automatically exit menu mode without any change. Back to the previous
functions without any change press the MENU button.
Back Light
Select the Back Light, press the ENTER button and the display will blink. Use the DOWN and UP
button to select the On or Off. Once selected, press the ENTER button to save or automatically exit
menu mode without any change. Back to the previous functions without any change press the
MENU button.
White Balance
Select the White Balance, press the ENTER button and the display will blink. Use the DOWN and
UP button to find the color (Red, Green,Blue) you wish to adjust. Press the ENTER button to
confirm and use DOWN and UP button to adjust the value (125~255), once select press ENTER
button to setup or automatically exit menu mode without any change after 7seconds. To go back
to the last function without any change press the MENU button.
Manual Test
Select the Manual Test, press the ENTER button and the display will blink. Use the DOWN and UP
button to find the Red, Green, Blue, White, Zoom and Dimmer or Strobe. Once you find a
function or color you wish to test, press the ENTER button, the displayed value will begin to flash.
You can now adjust the values (000~255) by pressing the DOWN and UP button. Once you have
finished testing press the ENTER button. To go back to the last function without any change press
the MENU button.
Auto Test
Select the Auto Test,press the ENTER button, the unit will run the built-in programmer for self test.
Press the MENU button to exit.
8D

Temp.
Select the Temp. , press the ENTER button and the display will show the current running
temperature of the fixture. Press the MENU button to exit.
Fixture Time
Select the Fixture Time, press the ENTER button and the display will show the running time of the
fixture. Press the MENU button to exit.
Firmware Version
Select the Firmware Version, press the ENTER button and the display will show the software
version of the fixture. Press the MENU button to exit.
Reset
Select the Reset, press the ENTER button and the fixture will now reset.
4. How to Control the Unit
Please access the fixture in two ways:
1. By master/slave built-in preprogram function
2. By DMX controller
No need to turn the fixture off when you change the DMX address, as new DMX address setting
will be affected at once. Every time you turn the fixture on, it will show “MP-300Z” on the display
and move all the motors to their ‘home’ position. After that the fixture will be ready to receive
DMX signal or run the built in programs.
4.1 DMX Controller
Use universal DMX controller to control the fixtures, you have to set DMX address from 1 to 512
channel so that the units can receive DMX signal.
Press the MENU button, select the DMX Address. Pressing the ENTER button and the display will
blink. Use the DOWN and UP button to change the DMX512 address. Once the address has been
selected, press and keep ENTER button to save. To go back to the functions without any change
9D

press the MENU button again.
If you use please refer to the following diagram to address your DMX512 channel for the first 4
fixtures.
Channel Mode Fixture 1
Address
Fixture 2
Address
Fixture 3
Address
Fixture 4
Address
5 channels 1 6 11 16
6 channels 1 7 13 19
8 channels 1 9 17 25
4.2 DMX 512 Configurations
5/6/8 Channels Mode:
10D

11D

5. DMX 512 Connections
The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable.
2. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm 1/4W
resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the
DMX-output of the last unit.
3. Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to the
input of the next unit. The cable can not branched or split to a `Y` cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can
easily distort the signal and shut down the system.
4. The DMX output and input connectors are pass-through to maintain the DMX circuit, when
one of the units’ power is disconnected.
5. Each lighting unit needs to have an address set to receive the data sent by the controller. The
address number is between 0-511 (usually 0 & 1 are equal to 1).
6. The end of the DMX 512 system should be terminated to reduce signal errors.
12D

7. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+),
Pin 4/Pin 5: Not used.
6. Troubleshooting
Following are a few common problems that may occur during operation. Here are some
suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings and
DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the
unit or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may cause
damage or interference to DMX interface circuit.
C. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is broken.
2. The motor’s drive IC on the PCB might be out of condition
13D

7. Fixture Cleaning
The cleaning must be carried out periodically to optimize light output. Cleaning frequency
depends on the environment in which the fixture operates: damp, smoky or particularly dirty
surrounding can cause greater accumulation of dirt on the unit’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 30 days.
14D

Declaration of Conformity
We declare that our products (lighting equipments) comply with the following
specification and bears CE mark in accordance with the provision of the
Electromagnetic Compatibility (EMC) Directive 89/336/EEC.
EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008;
EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008.
&
Harmonized Standard
EN 60598-1:2008 + All:2009; EN 60598-2-17:1989 + A2:1991; EN 62471:2008;
EN 62493: 2010
Safety of household and similar electrical appliances
Part 1: General requirements
Innovation, Quality, Performance
15D
